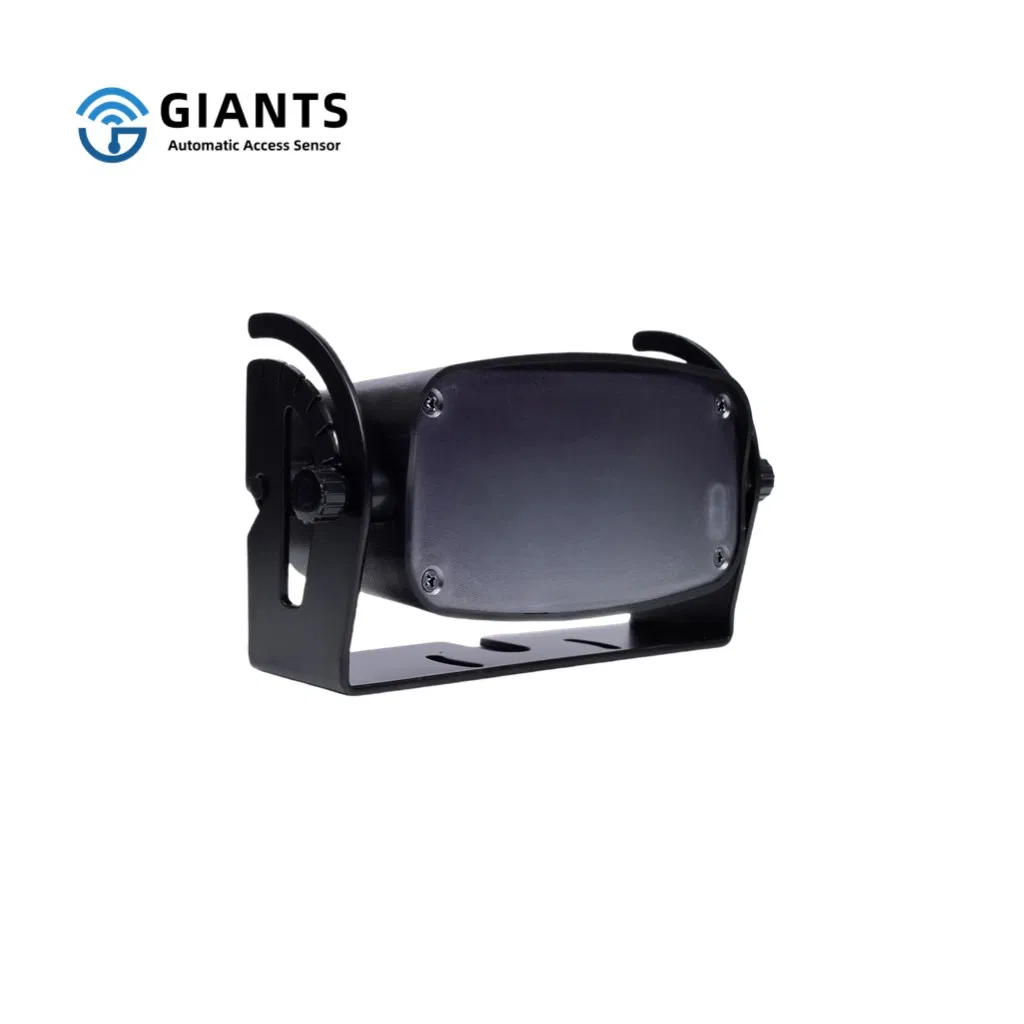

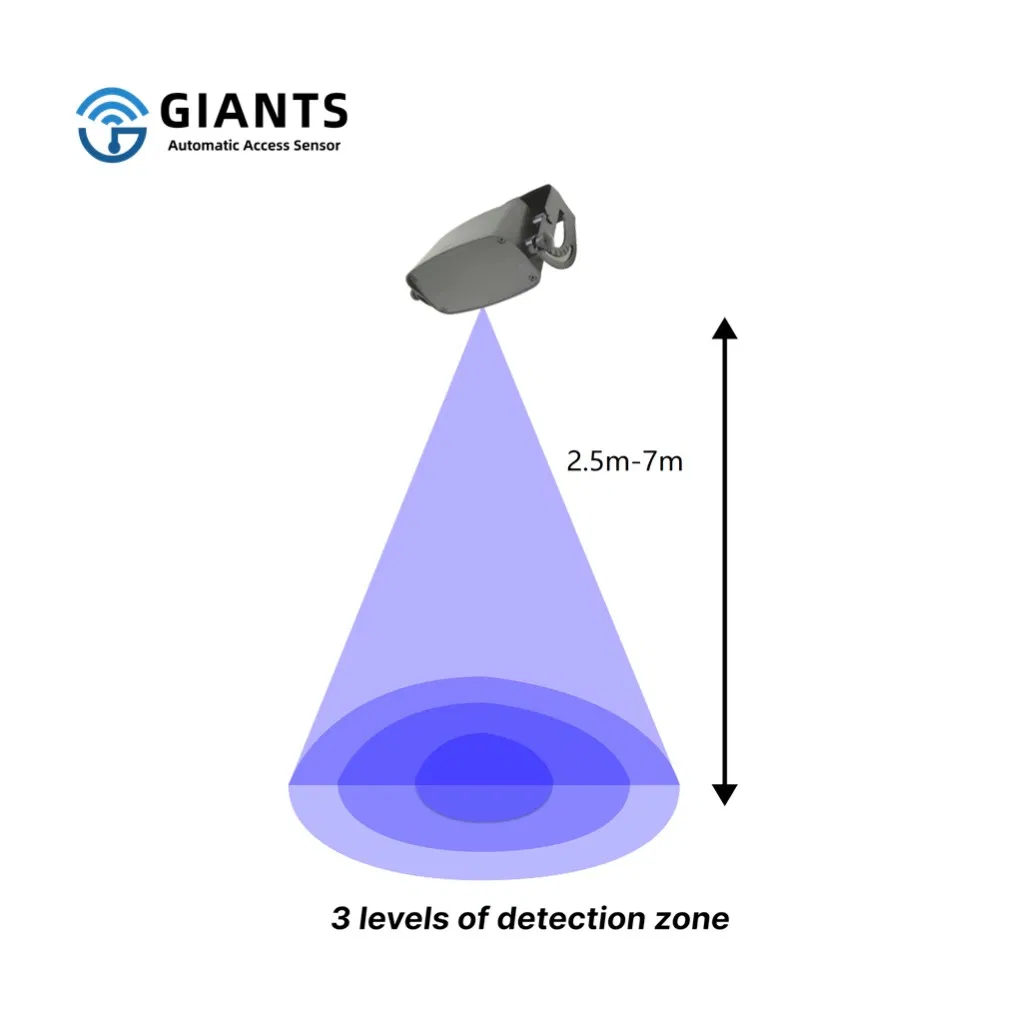

Batman is designed for industrial doors, gates, and garage doors as an opening sensor, capable of distinguishing between people and vehicles. It features a mounting height ranging from 3m to 7m, with cross-traffic masking that is digitally adjustable.
It can perfectly replace the loop detector without digging up the ground, providing both aesthetics and significant time savings.
| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Technology | Doppler radar | IP Class | IP65 |
| Transmission Frequency | 24.125GHz | Power Supply | 12-36V AC/DC |
| Detection Height | 3.0m ~ 7.0m | Output | Max 48V AC/DC; 1A |
| Adjustment Angle | 0º ~ 180º longitudinal | Temperature | -30ºC to +60ºC |
| Detection Speed | 5cm/s ~ 25km/h | Housing Material | ABS + PC |

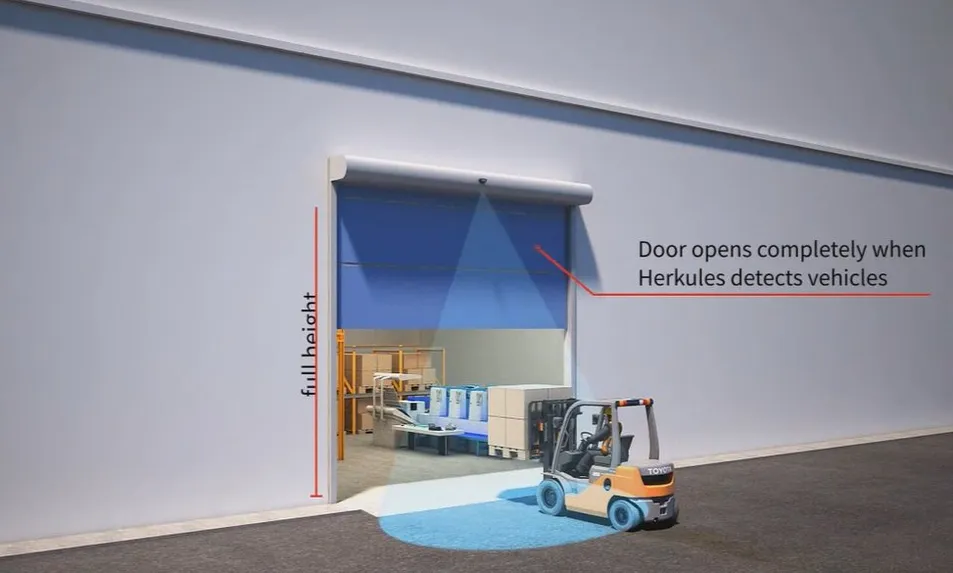

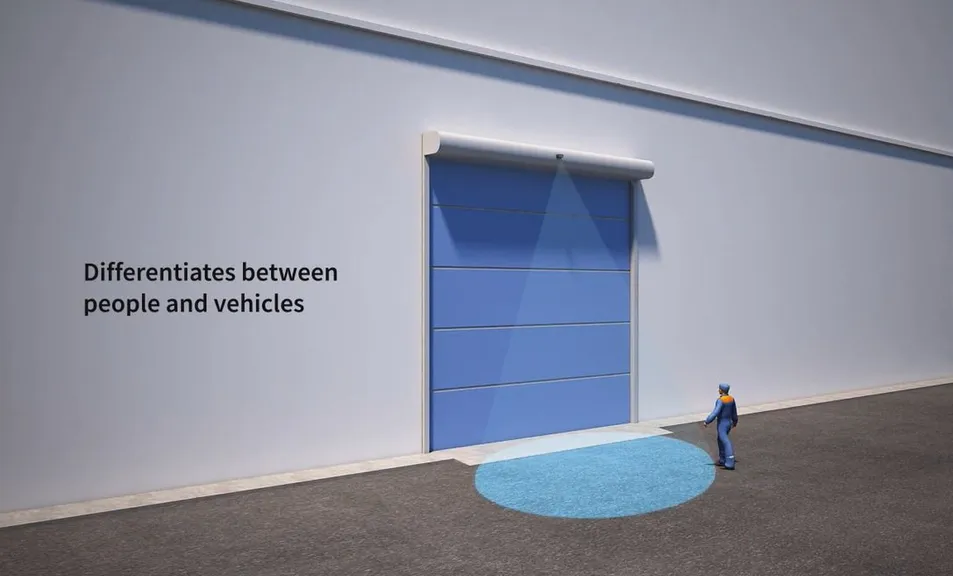

Batman is designed to identify pedestrians or vehicles—allowing the door to open only for vehicles, or for both vehicles and pedestrians. This enhances passage efficiency and conserves energy.

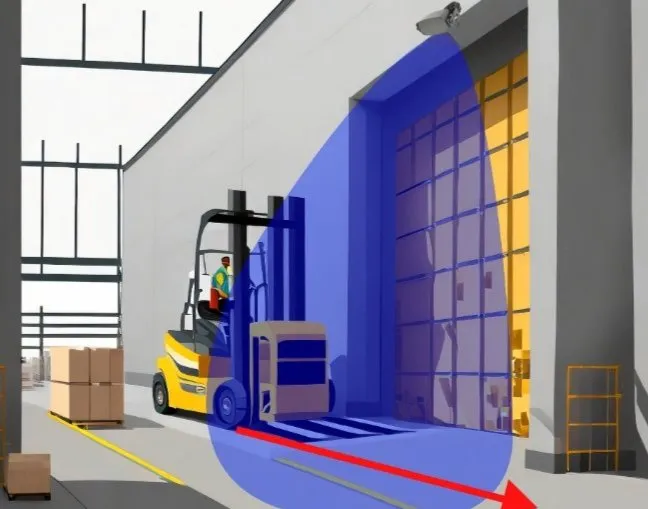

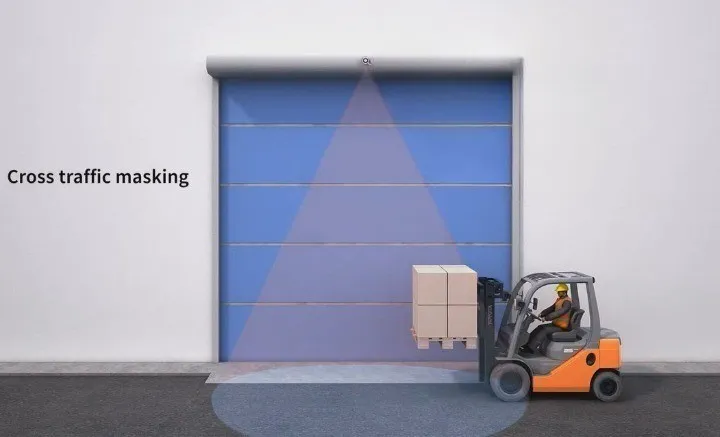

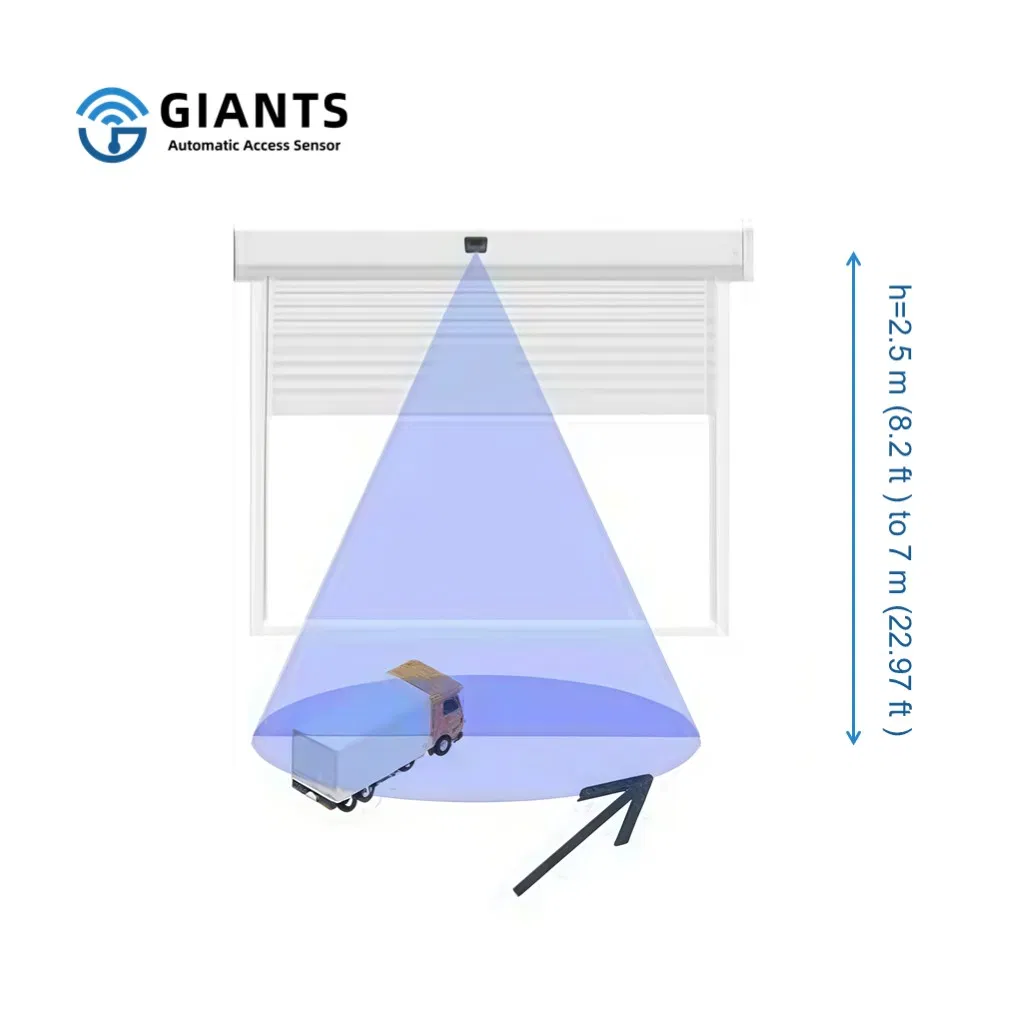

Batman excels in recognizing lateral movements of vehicles or pedestrians, ensuring doors open only when necessary. This outstanding performance in cross-traffic suppression sets Batman apart from traditional sensors.

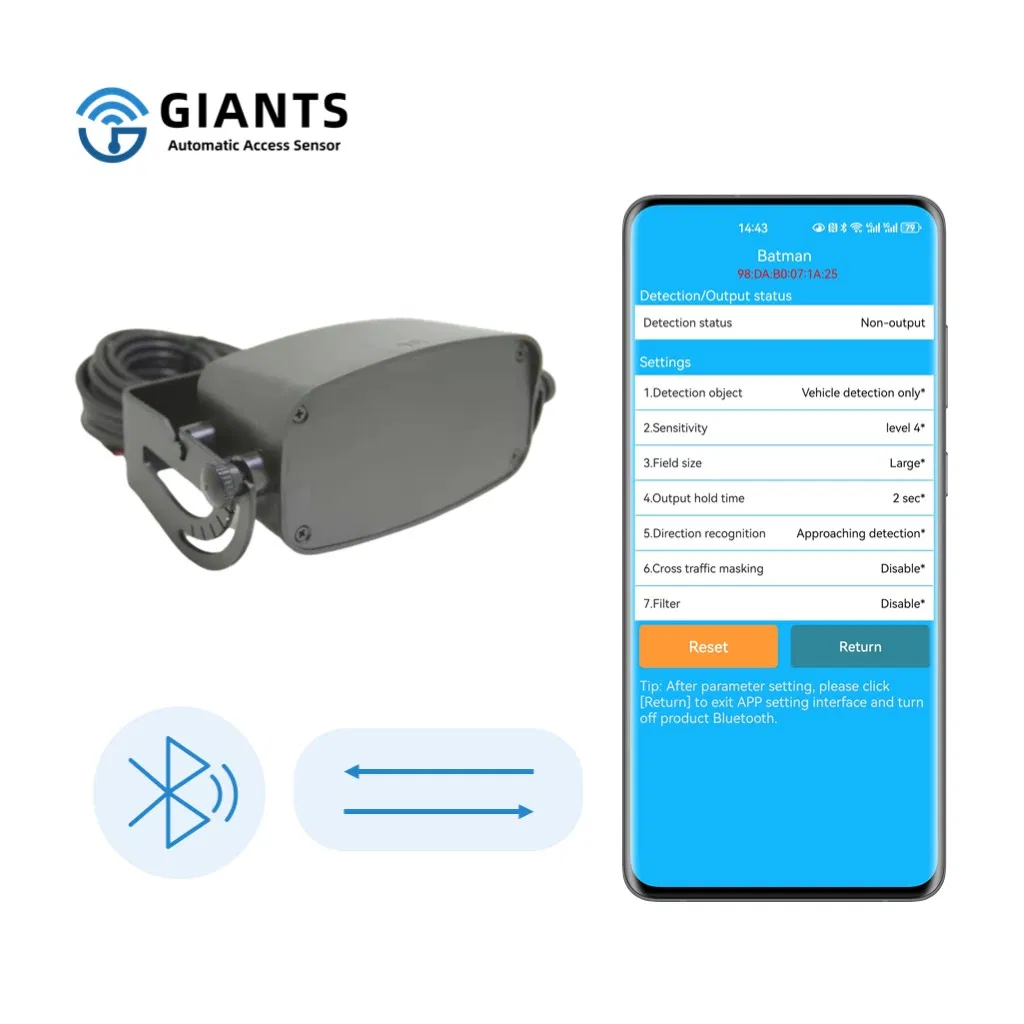

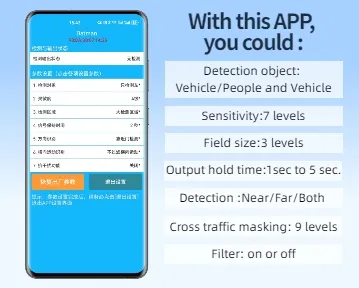

Batman provides two methods of configuration. It utilizes a mobile APP to configure all parameters, making the setting process effortless. Additionally, physical push buttons are retained to ensure the sensor can be tuned in any situation.

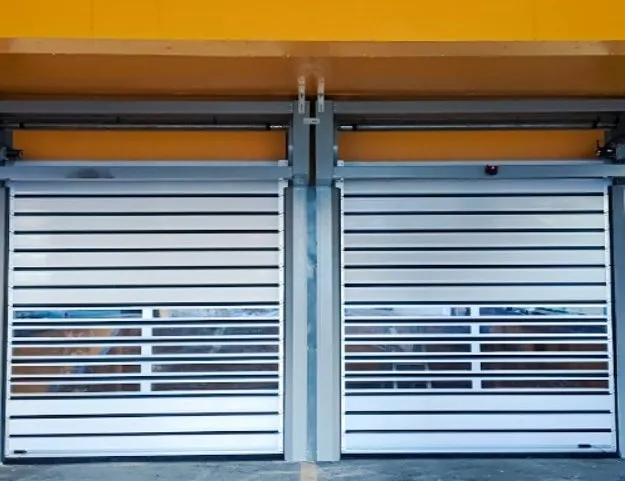

Garage Doors

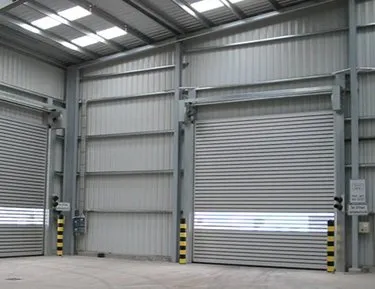

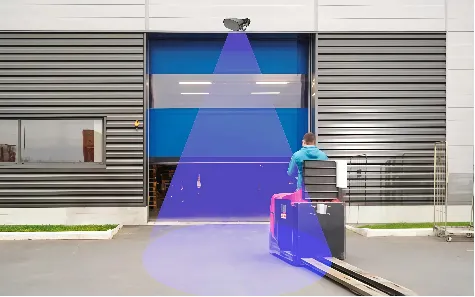

Industrial Doors

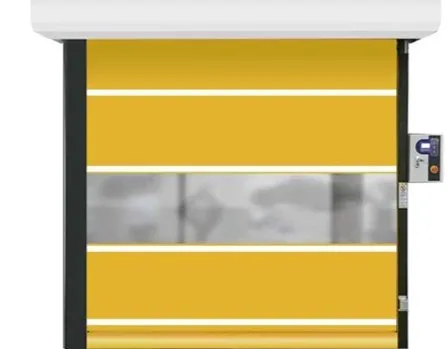

High-Speed Doors
The manufacturing process complies with international Quality Management Systems (ISO 9001:2015).
Products have obtained certifications including CE and RoHS. Our sensors meet the rigorous requirements of EN16005, EN61000, EN60825, and EN55014 standards.
