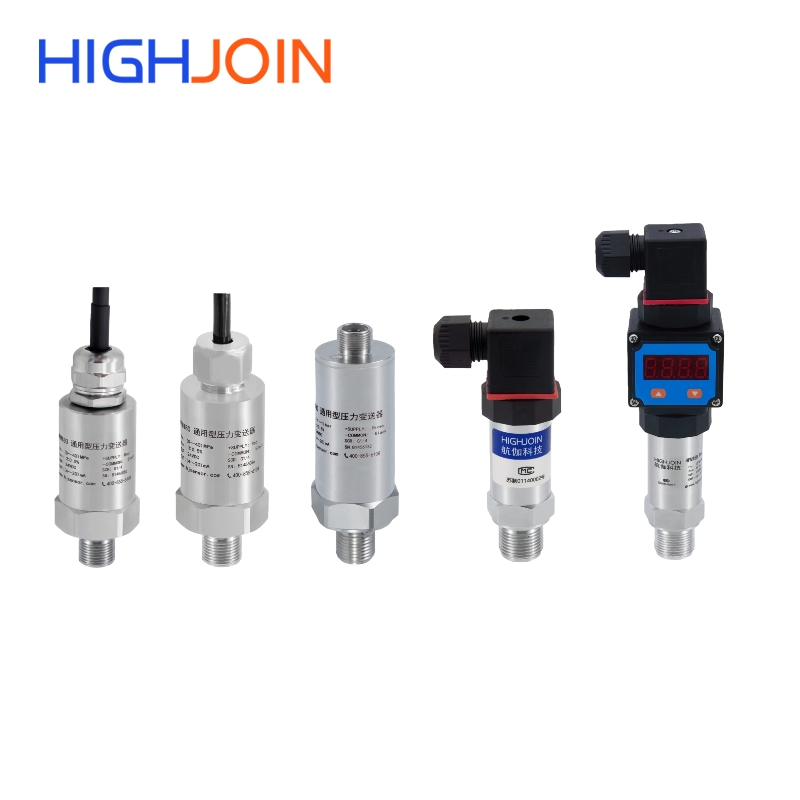

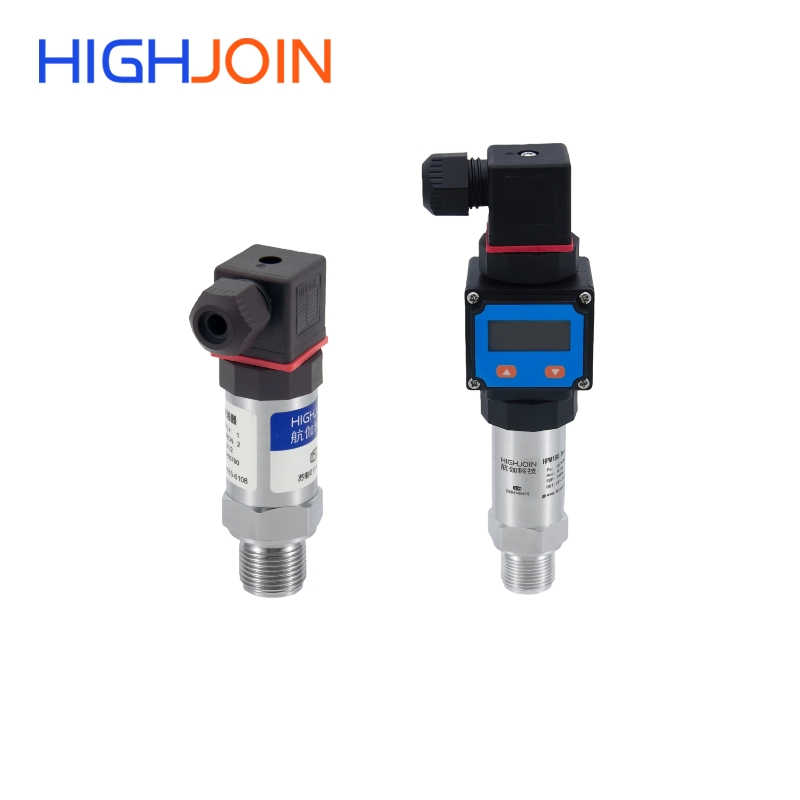

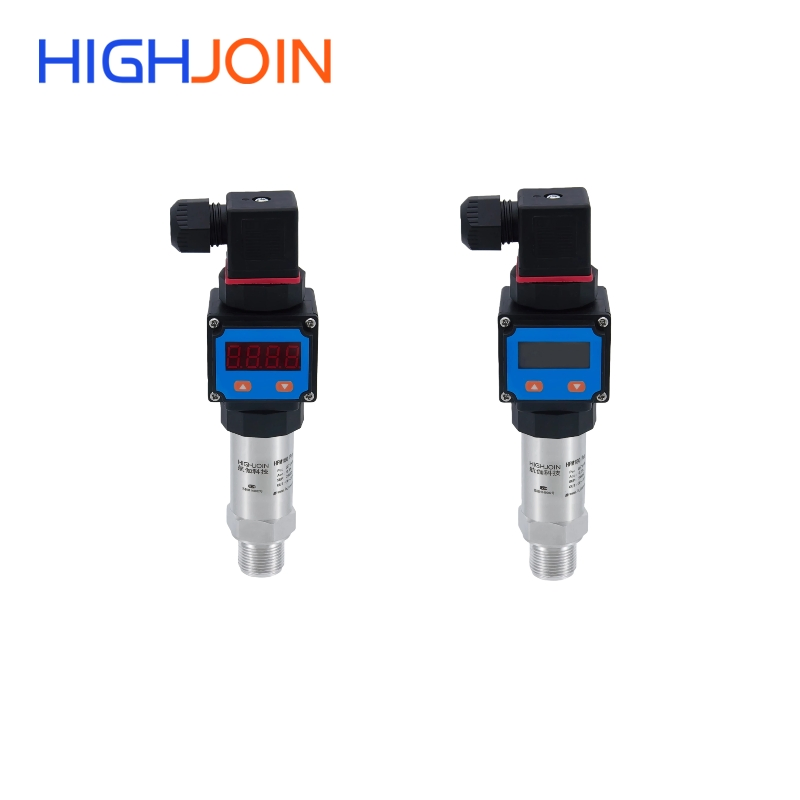

Cost-effective 4~20mA Universal Industrial gauge Pressure sensor transmitter Transducer water oil pressure

Overview

Model NO.

HPM1800

For

Diffused Silicon Pressure Transmitter

Output Signal Type

Analog Type

Production Process

Integration

Material

Stainless Steel

Thread Type

G

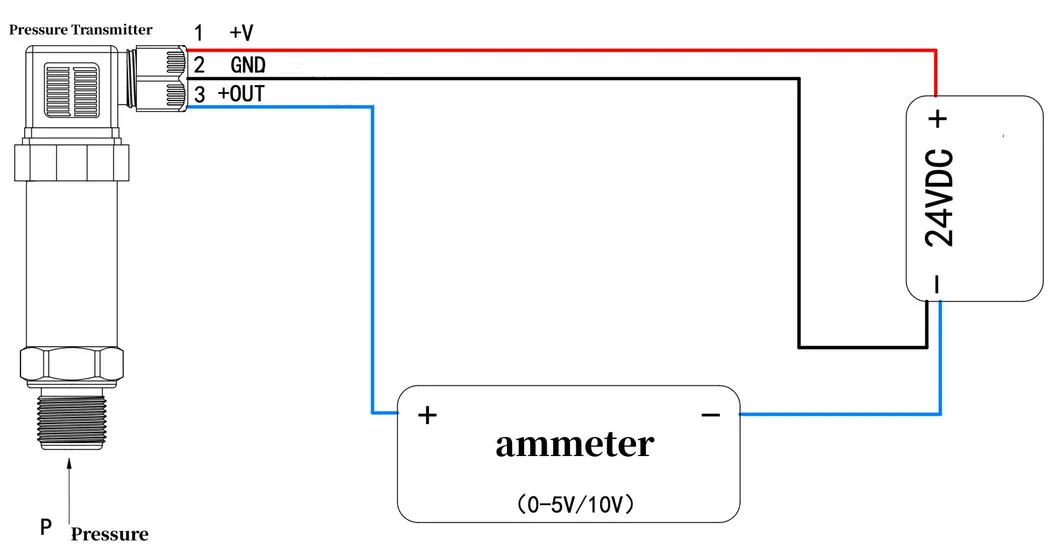

Wiring Type

Three-Wire

Measuring Medium

Liquid Gas Steam

IP Rating

IP65

Certification

ISO9001

Pressure Reference

Gauge, Absolute, Sealed Gauge

Accuracy

0.5%F.S.

Overpressure

1.5 times the full scale

Supply

5VDC 24VDC

Output

4~20mADC 1~5VDC

Shell Material

304, 316L

Product Description

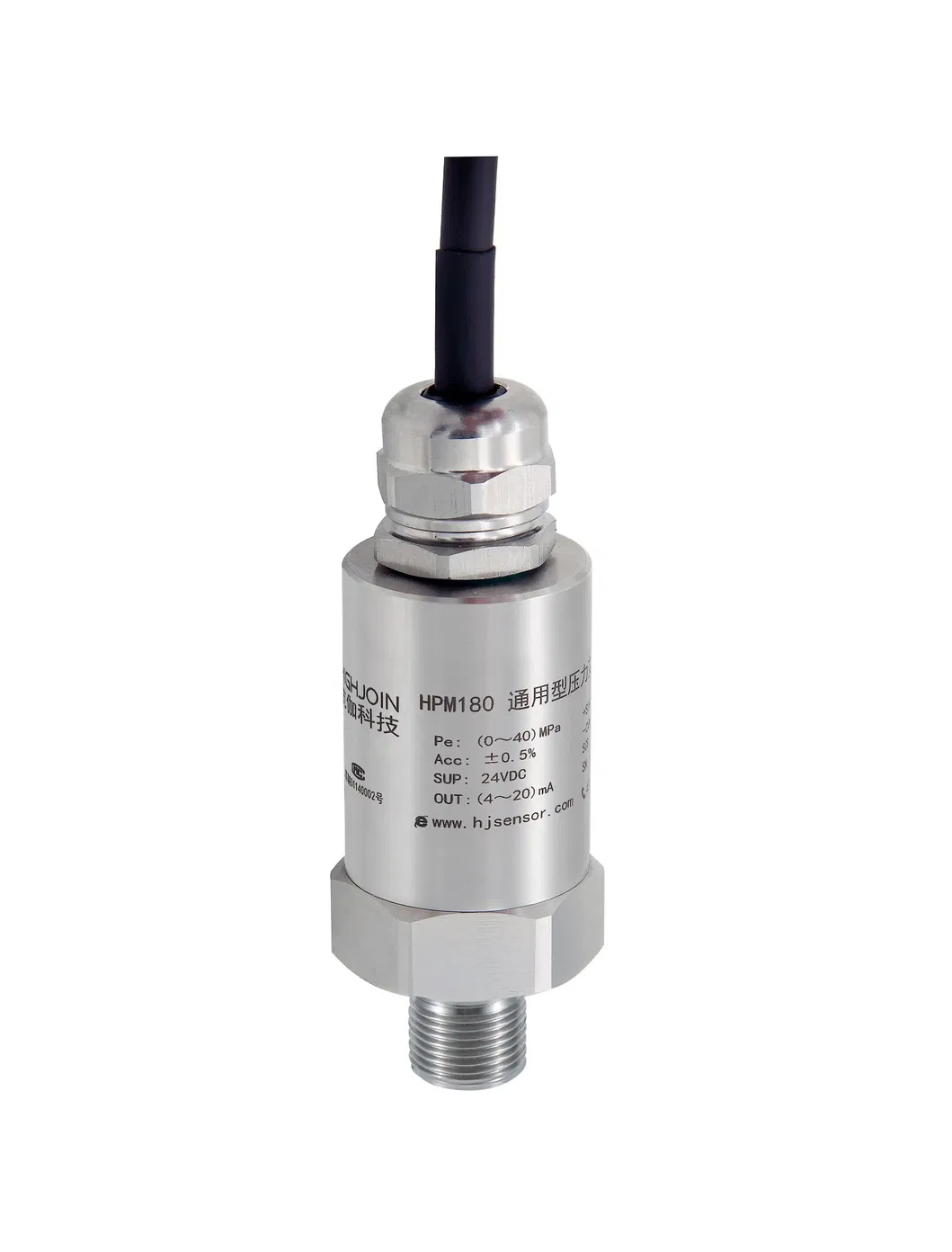

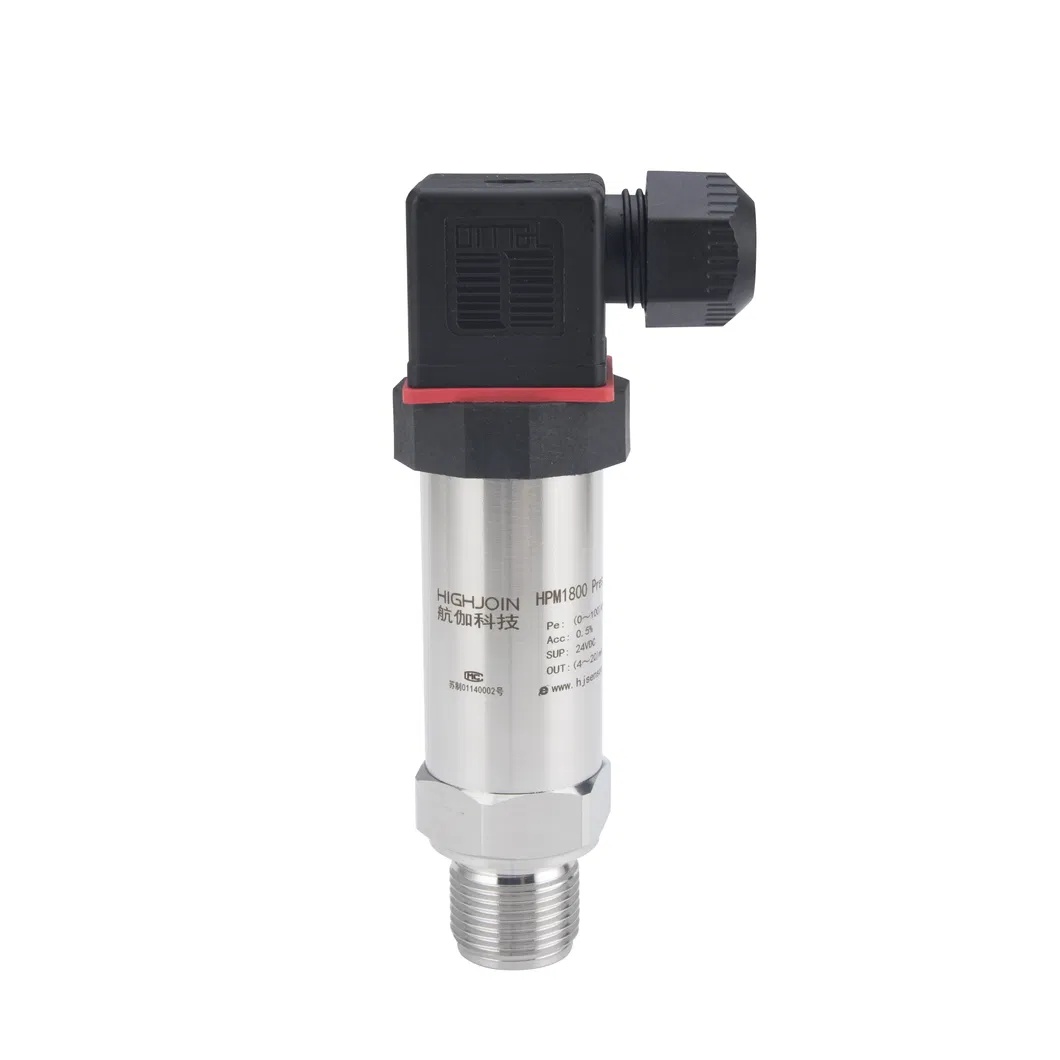

HPM1800 universal pressure transmitter uses high-precision and high-stability diffused silicon pressure core as the sensitive element and is assembled and produced through strict process flow.

The product has a built-in signal conditioning circuit to convert the pressure sensor signal into a standard current or voltage signal output, which can be directly connected to a computer, control instrument, display instrument, etc. This product has a sturdy stainless-steel shell, a variety of output signals to choose from, wide temperature range compensation, strong anti-interference, and good long-term stability.

Product Features

Wide measuring range, can measure gauge pressure, absolute pressure and sealed gauge pressure
Universal for oil, water and gas

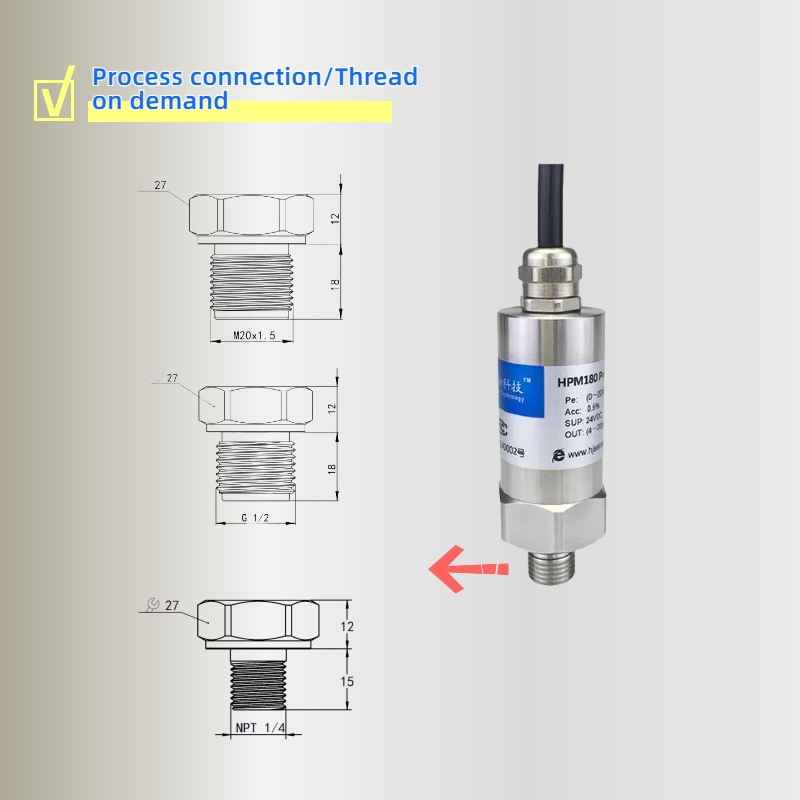

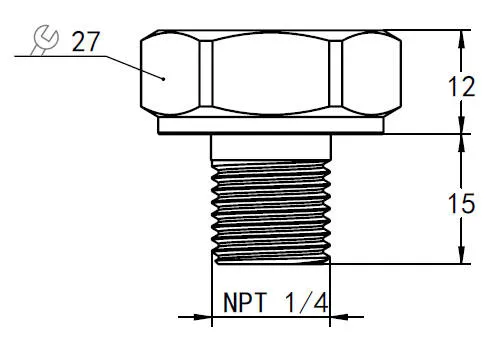

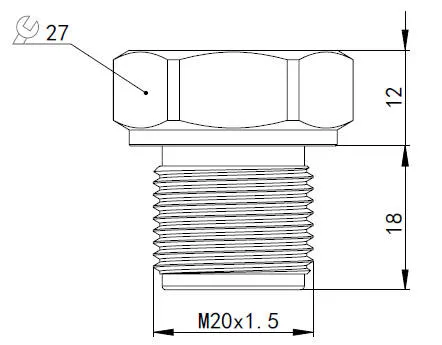

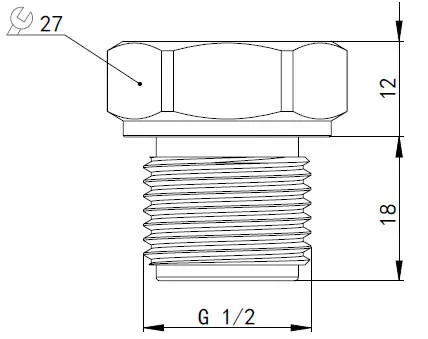

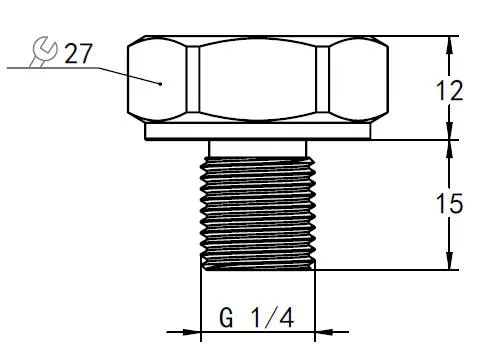

Multiple pressure interfaces available
Multiple output signals available
Wide temperature range compensation, small temperature drift
Good long-term stability

Product Parameters

Pressure Range (Gauge)	-100kPa…0~10kPa…60MPa	Medium Temp	-40~100ºC
Pressure Range (Absolute)	0~20kPa…10MPa	Ambient Temp	-40~85ºC
Overload	1.5x of full scale OR 80MPa	Storage Temp	-40~85ºC
Measuring Medium	Liquid, gas or steam compatible with 304/316L	Protection Grade	IP65(DIN43650); IP67(Cable)
Output Signal	4~20mA, 0-5V, 0-10V	Response Time	About 5ms
Accuracy	±0.5%FS (Default) / ±0.25%FS	Insulation	>20MΩ @500VDC
