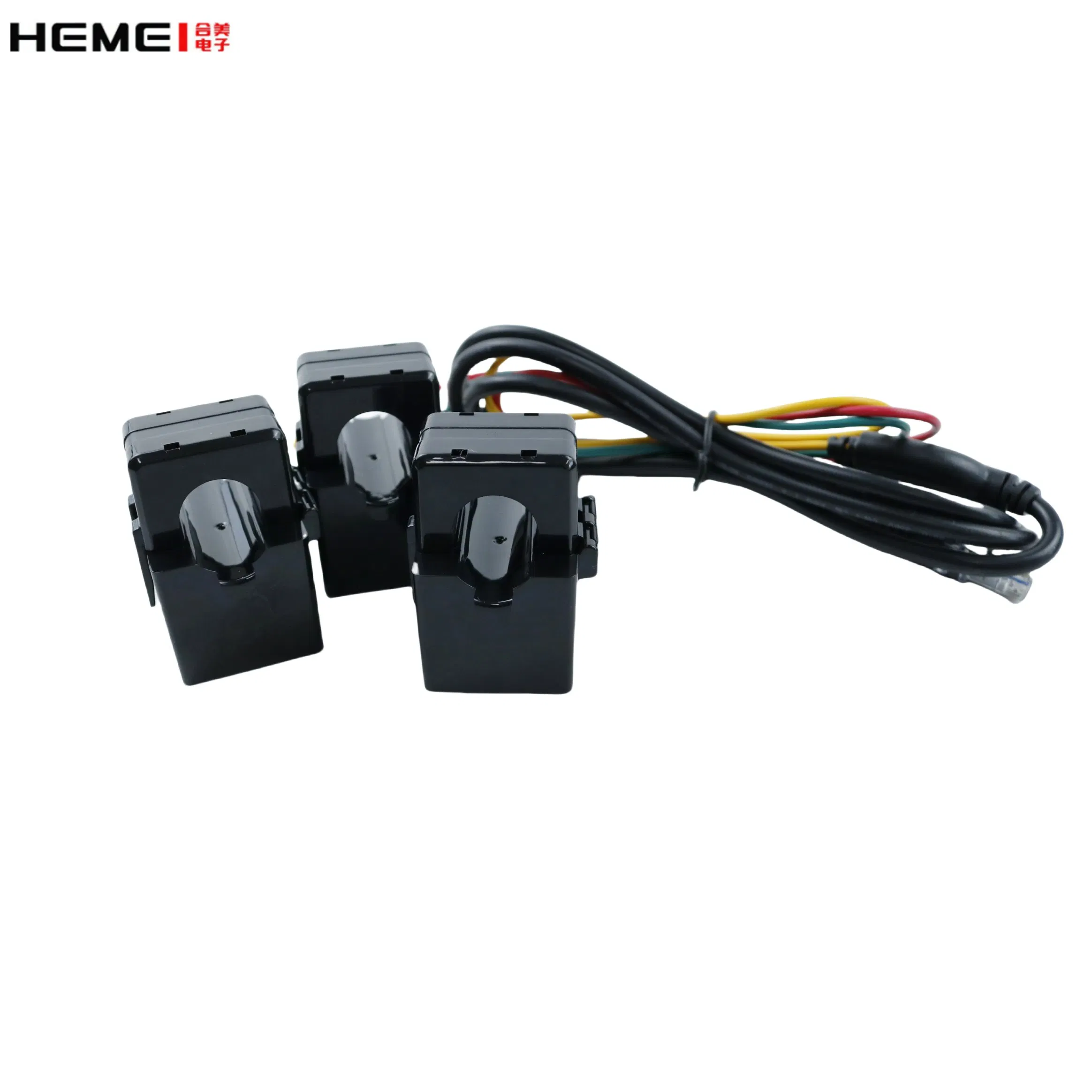

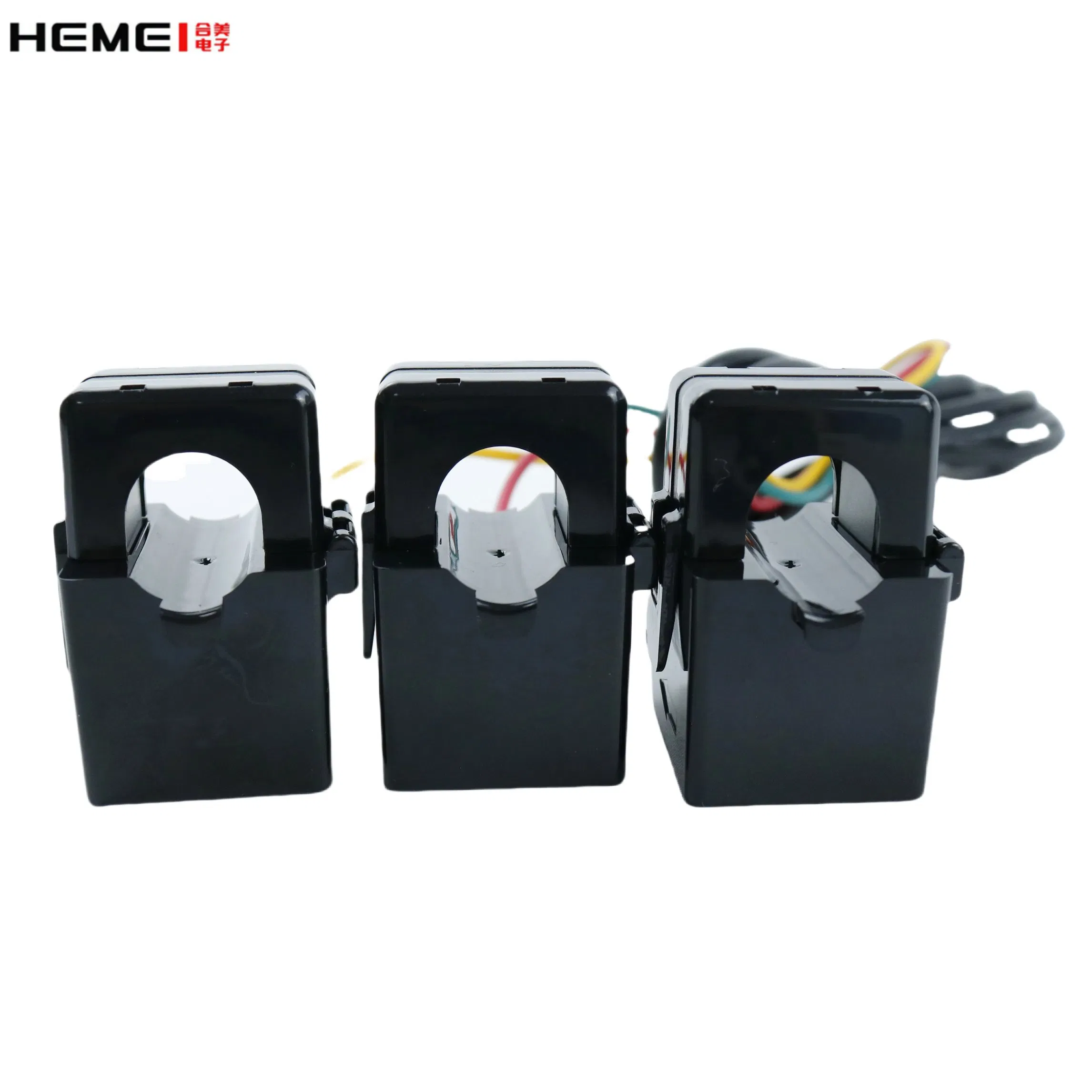

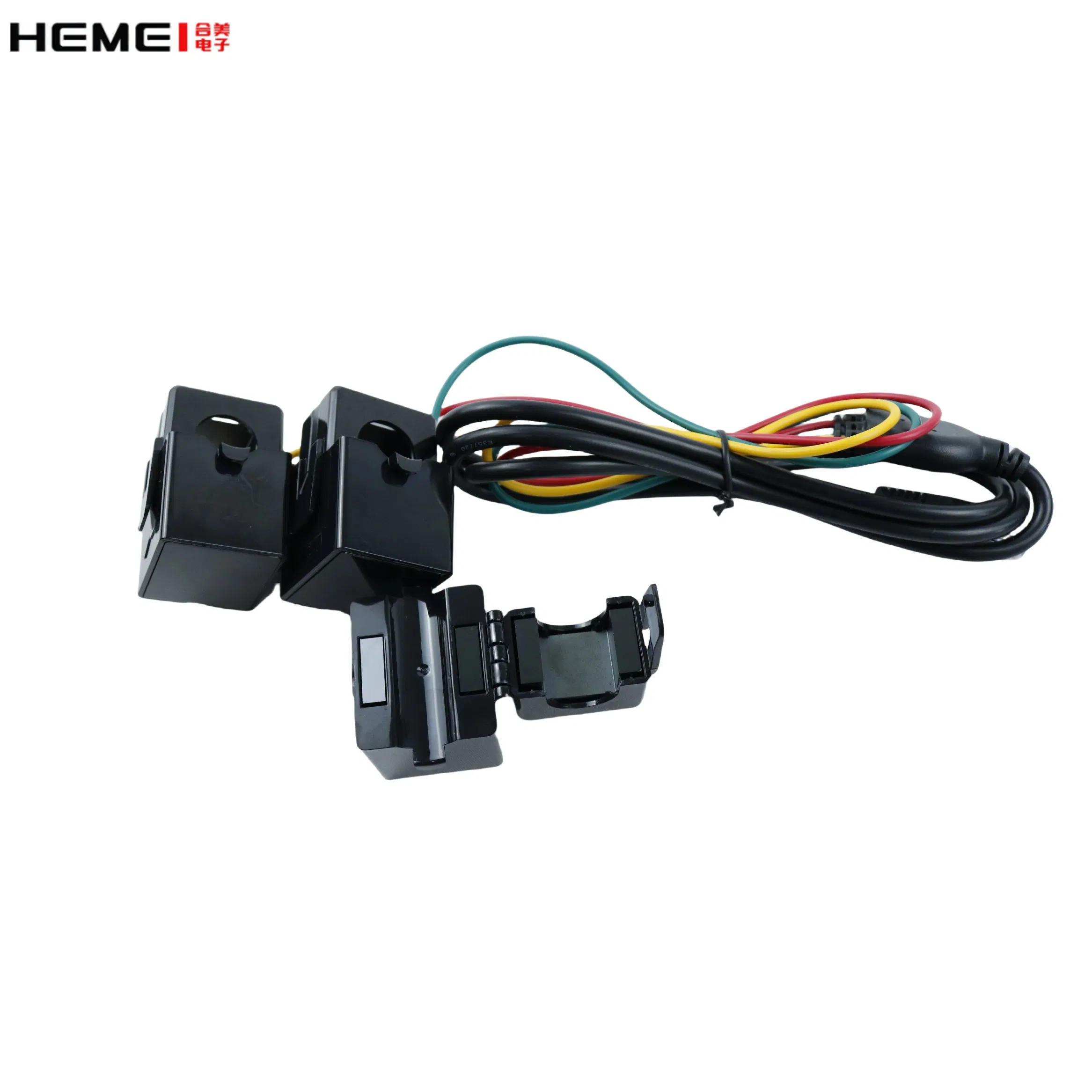

Factory Direct Sale 4-20mA RS485 DC Hall Current Transmitter Industrial Current Sensor 0-300AC Current Sensor 0-10V

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.HMP
PhaseSingle
ConditionIndoor
UsageProtection, Measurement
InsulatingEpoxy Resin
CoreSilicon Steel
Primary Input-600A~+600A
High Precision0.2/0.5
HS Code8504311000
OriginChina

Product Description

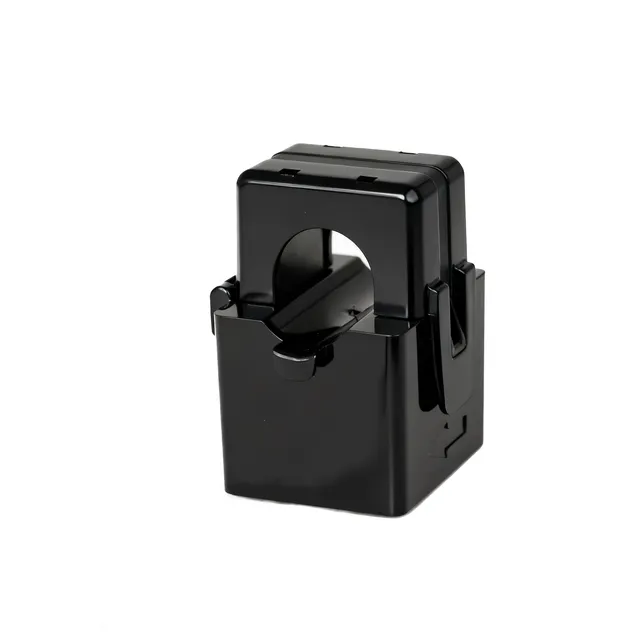

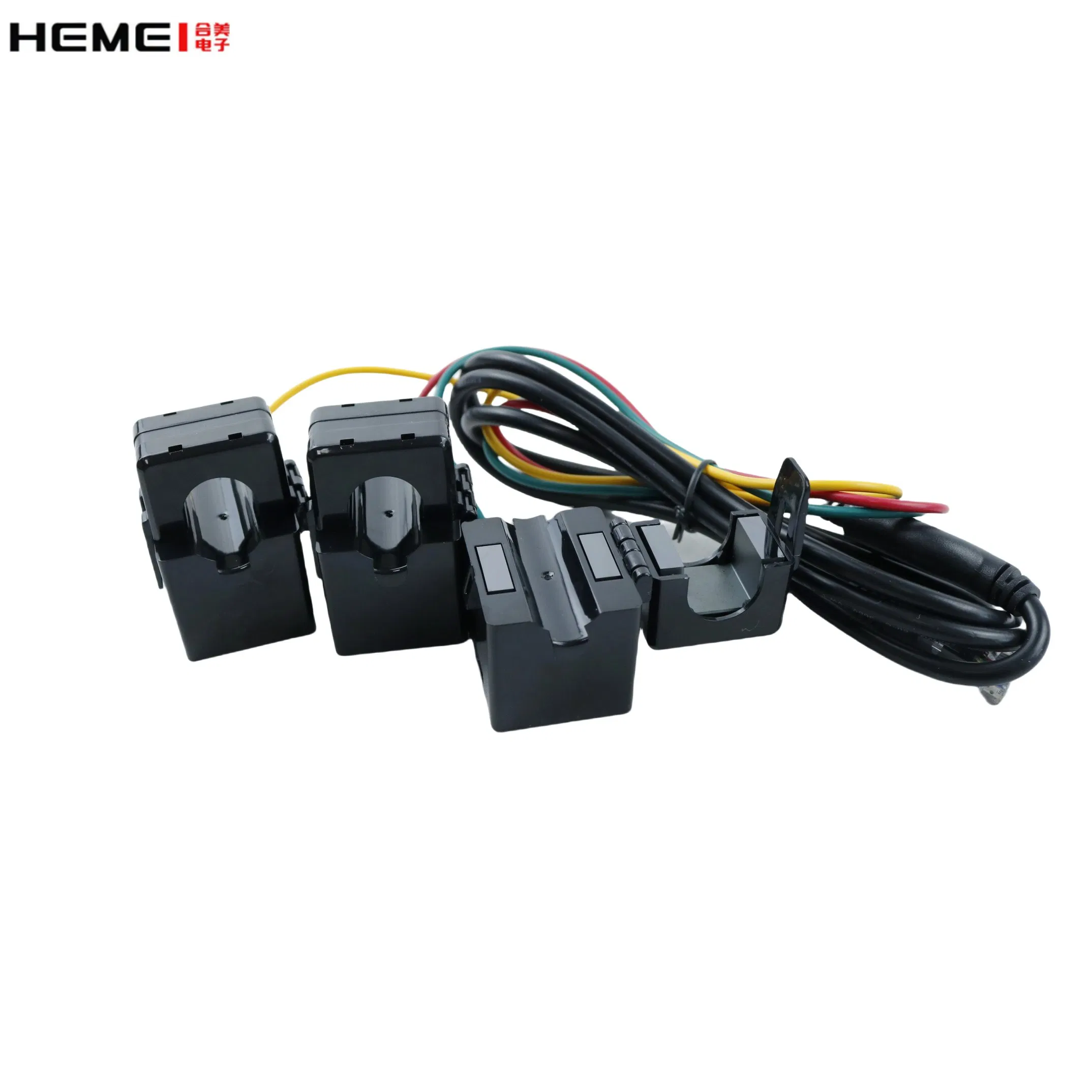

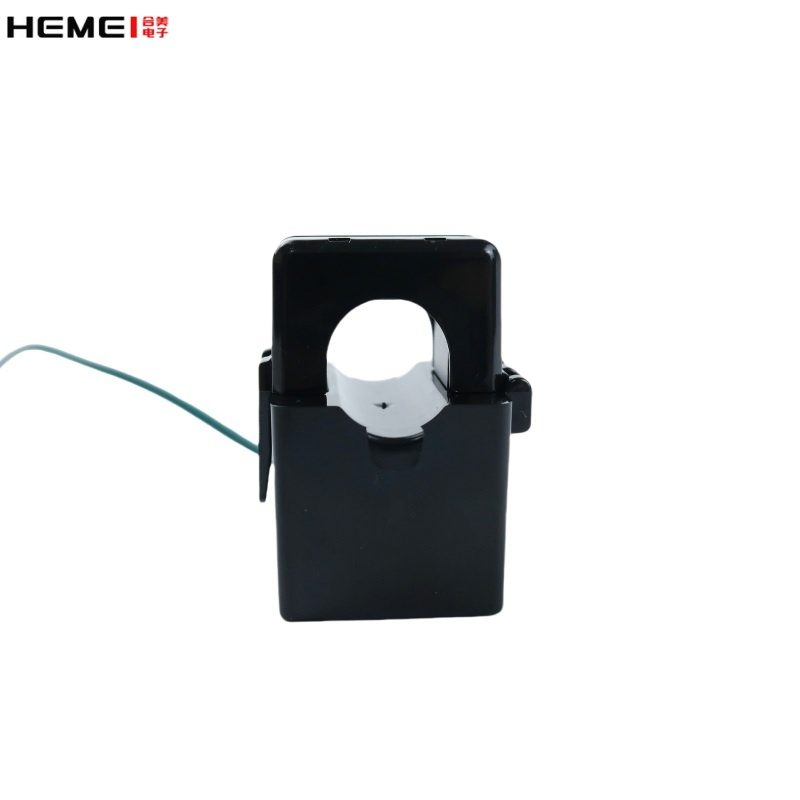

Split Core Current Transformer
The split core current transformers are designed for fast and easy installation. The CTs are ideal for installation on existing electrical cables by clamping on the conductor. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.
Split Core Current Transformer

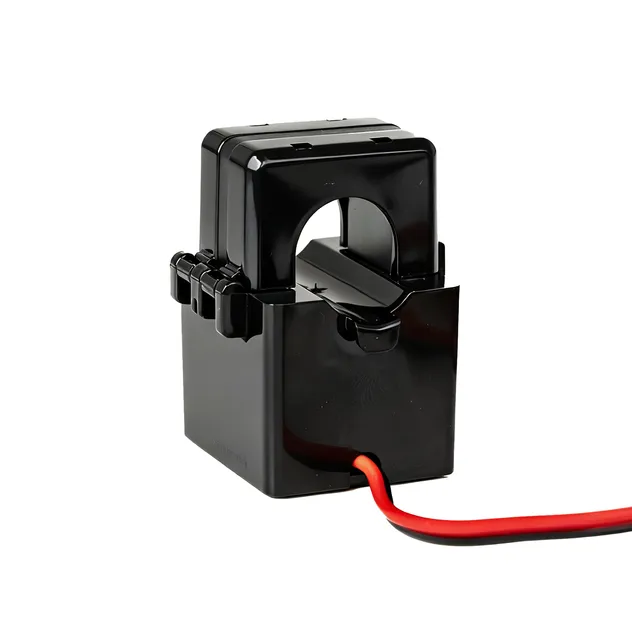

Current Sensor

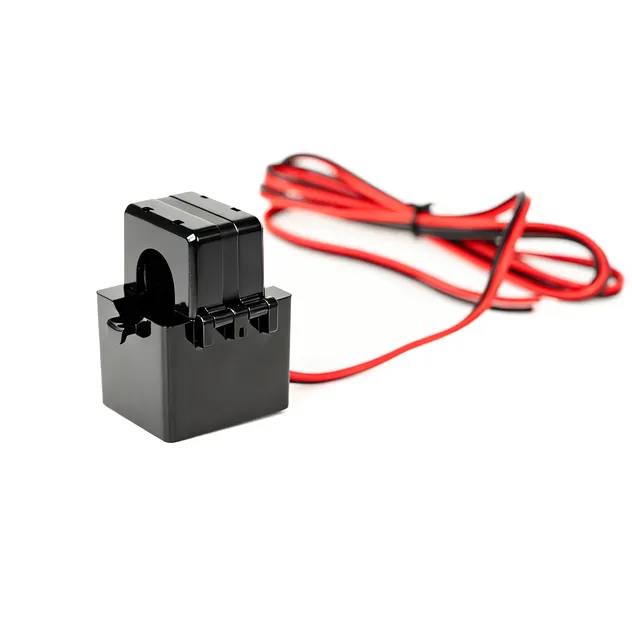

Industrial Current Transmitter
Technical Indicators Indicator Parameters
Operating voltage≤0.72KV
Operating frequency50Hz~1KHz
Rated accuracy level0.2%/0.5%/1.0%
Input current0A~600A
Rated short-time thermal current60 times rated current @1sec
Insulation resistance≥1M ohms@500Vdc
Power frequency withstand voltage3500V@2mA\1min\50Hz
Product flame retardant levelUL94-V0
Insulation heat resistance levelE level
Phase linearity error≤20′

Product Parameters

Model Inner Diameter Turns Ratio Input Current Accuracy
HM-CTSC-10 10mm 500/1 to 3000/1 0A~80A 0.2% / 0.5%
HM-CTSC-16 16mm 500/1 to 3000/1 0A~150A 0.2% / 0.5%
HM-CTSC-24 24mm 500/1 to 3000/1 0A~300A 0.2% / 0.5%
HM-CTSC-35 35mm 500/1 to 3000/1 0A~600A 0.2% / 0.5%

Application & Scenarios

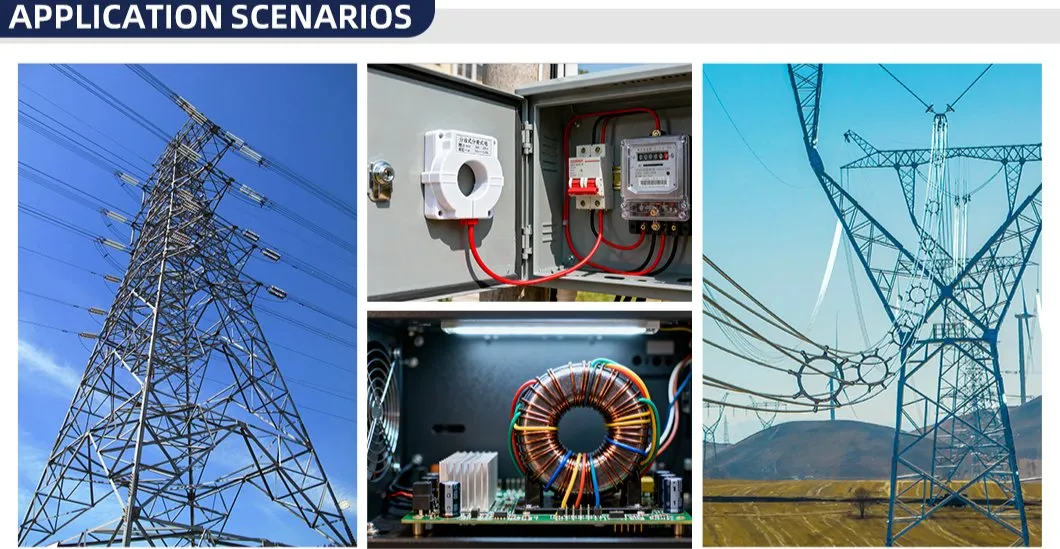

Application Scenarios

Main Products

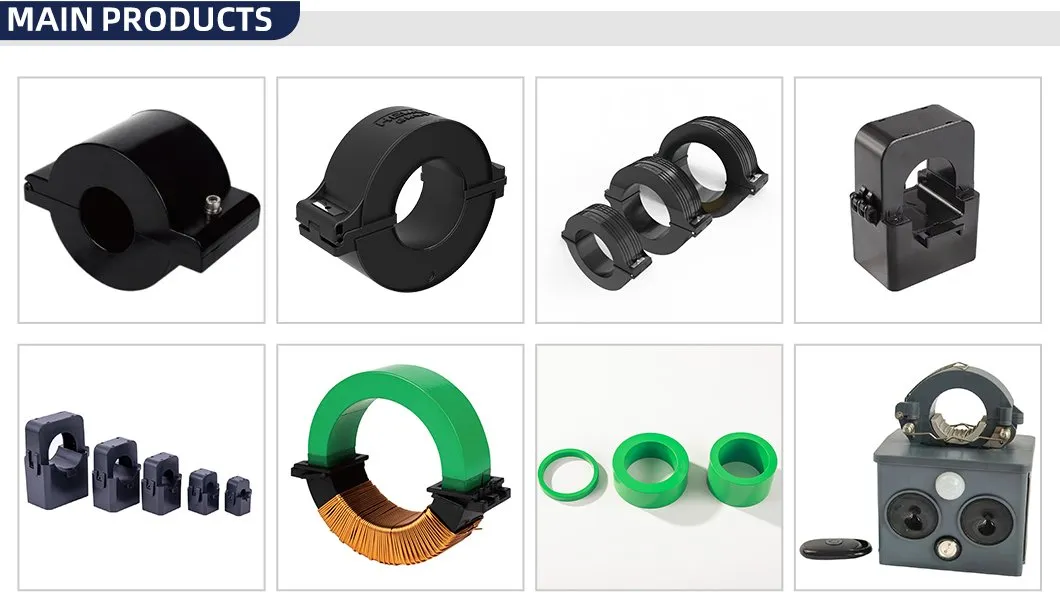

Product Range

Certifications & Quality

Certifications

Packaging & Shipping

Package Size10.0cm * 10.0cm * 20.0cm
Package Gross Weight2.000kg
Packaging Process

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a professional manufacturer specializing in current transformers and sensors.
Can I request a sample order?
Yes, we welcome sample orders to test and check the quality. Sample fees and freight are applicable.
Do you accept customized product requests?
Yes. Our R&D team has over 10 years of experience in the electric industry. We offer professional OEM, ODM, and OPM services tailored to your specific needs.
What is the typical lead time for an order?
For customized products, it usually takes 10-15 working days, depending on the complexity of the design and the total quantity.
How do you ensure product quality?
Our production follows ISO9001 standards. We perform performance tests during production and a comprehensive quality inspection once products are completed.
What is the flame retardant level of the products?
The products meet the UL94-V0 flame retardant level, ensuring high safety standards for indoor industrial use.
