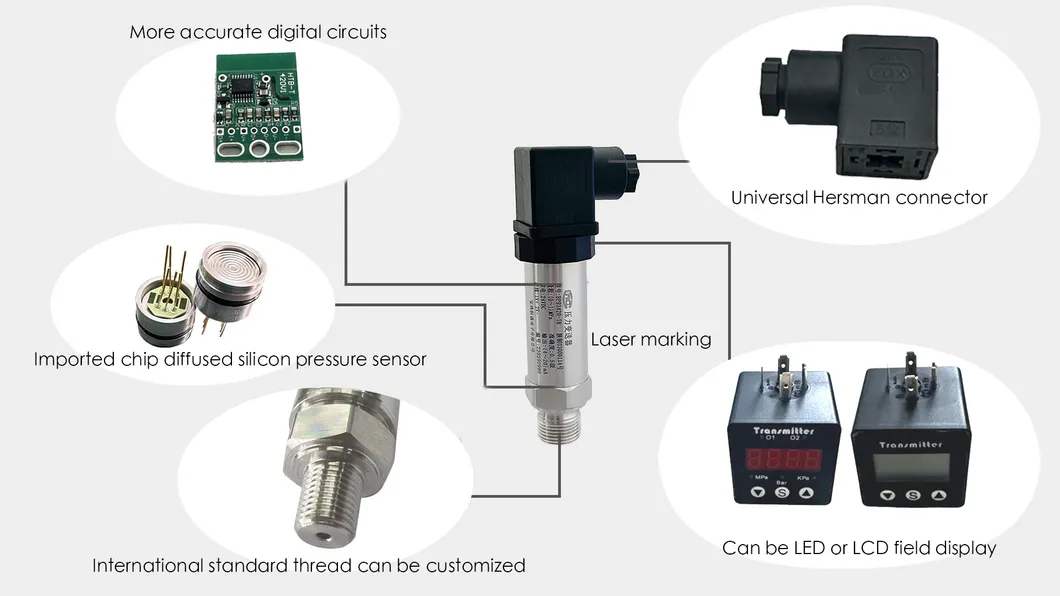

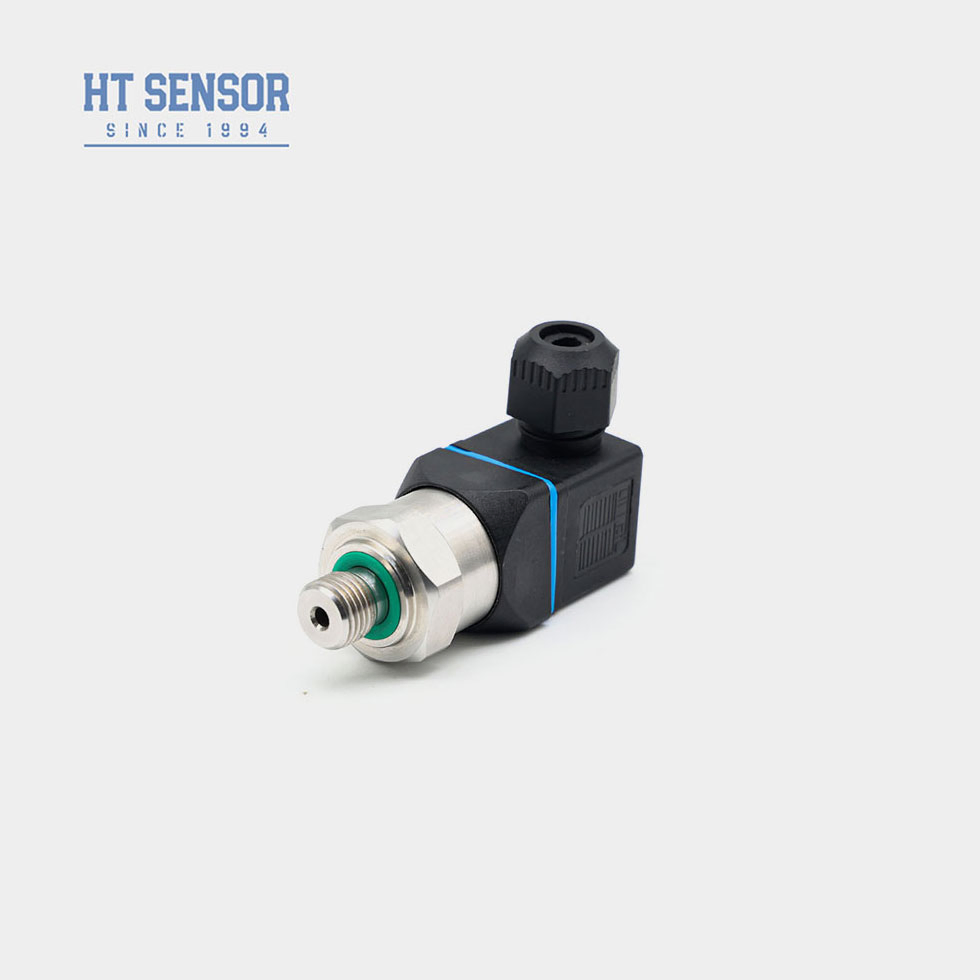

The BP93420IB pressure transmitter adopts the diffusion silicon isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening for components, ensuring stable and reliable performance.
| Parameter | Specification |
|---|---|
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Overload | ≤ 1.5 times of the rated range |
| Long-Term Stability | ±0.1%F.S/Year(Typical) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 12~30VDC | 3 wire |
| 0/1~5V / 10V | 12~30VDC | 3 wire |
| 0.5~4.5V | 5VDC | 3 wire |
