Frequently Asked Questions
What are the main advantages of this wireless monitoring system?
The system eliminates the need for expensive signal cabling, significantly reducing installation costs and time. It supports synchronous collection of vibration and temperature data.
How long does the wireless sensor battery last?

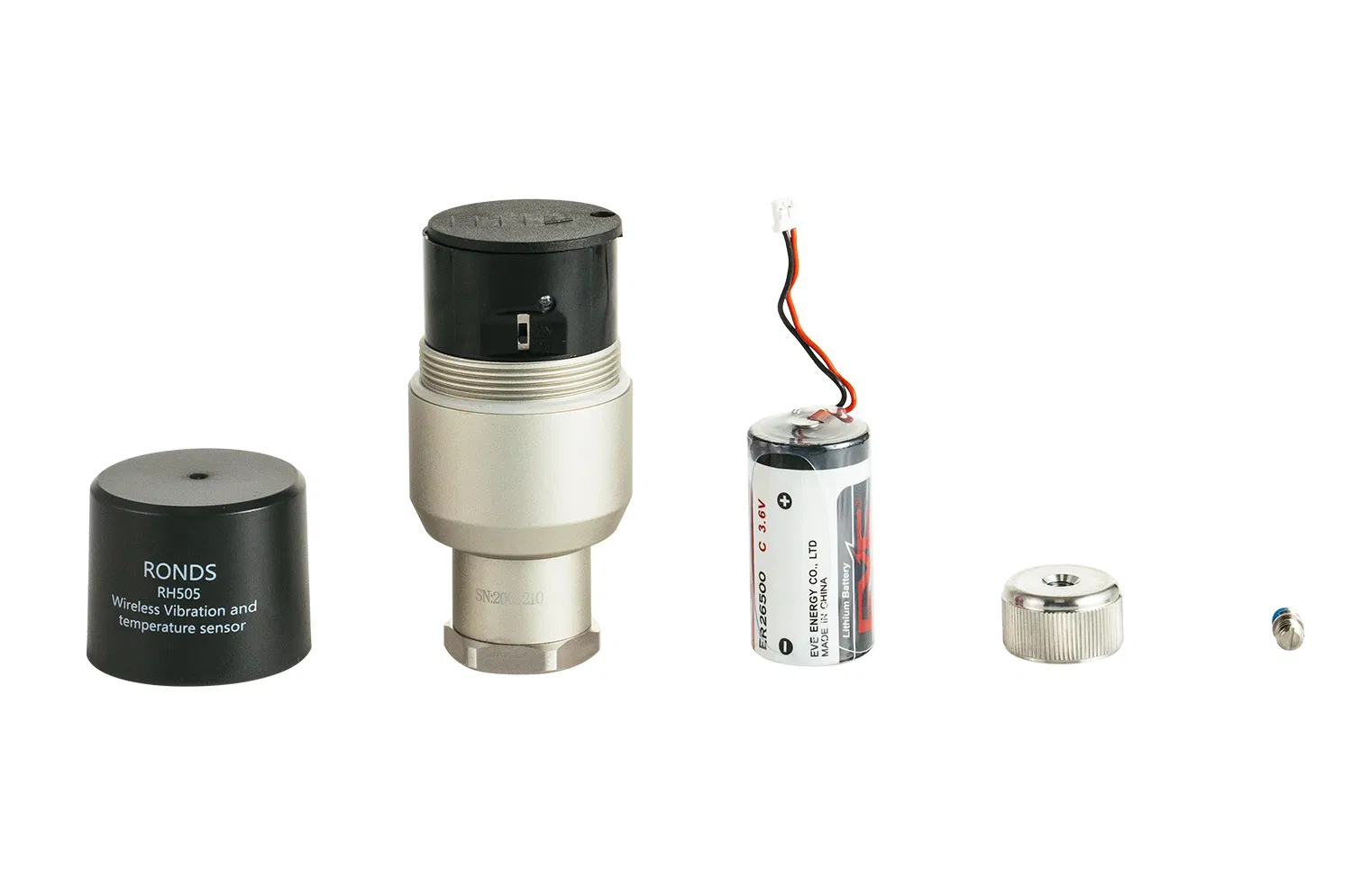

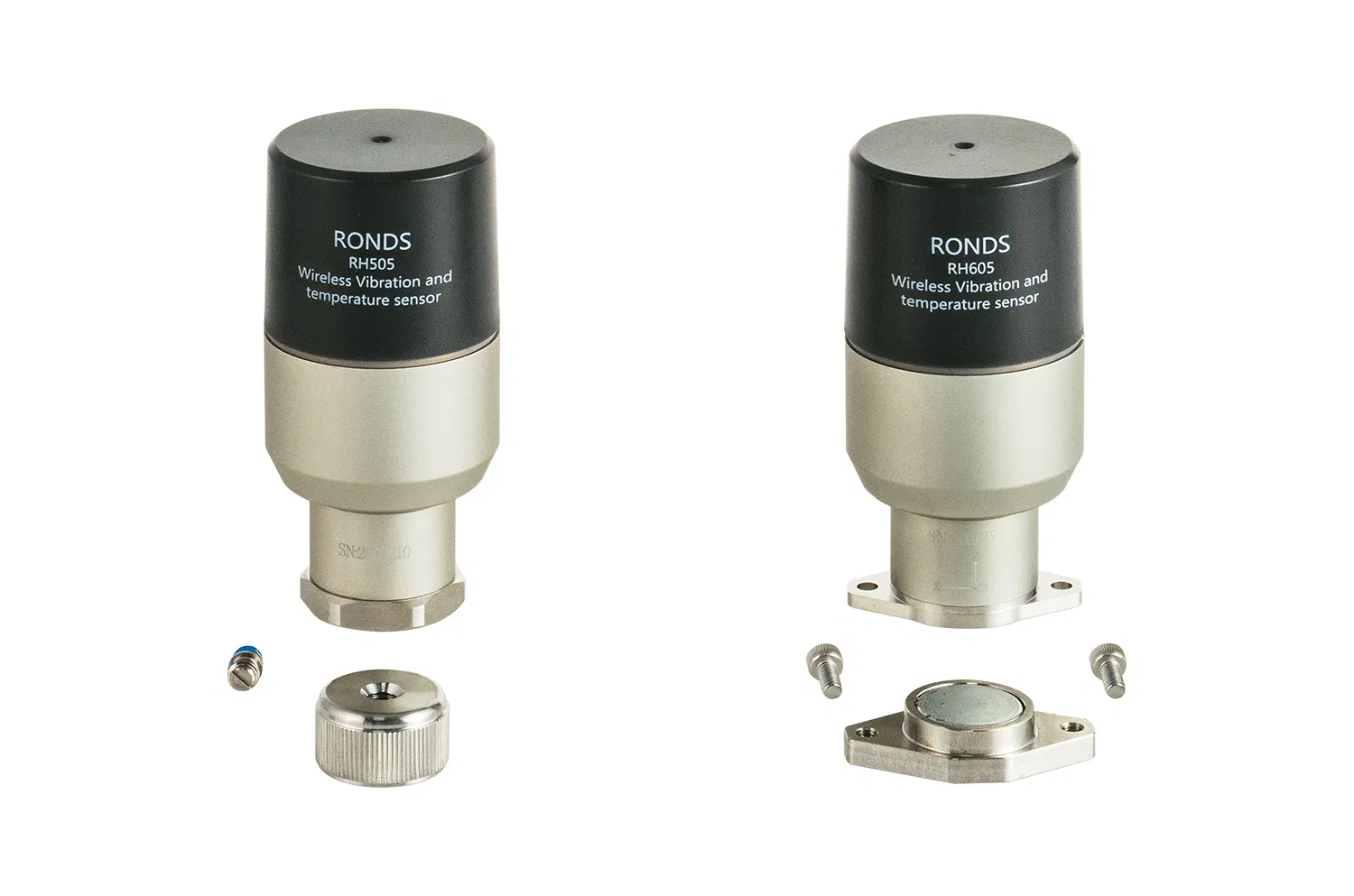

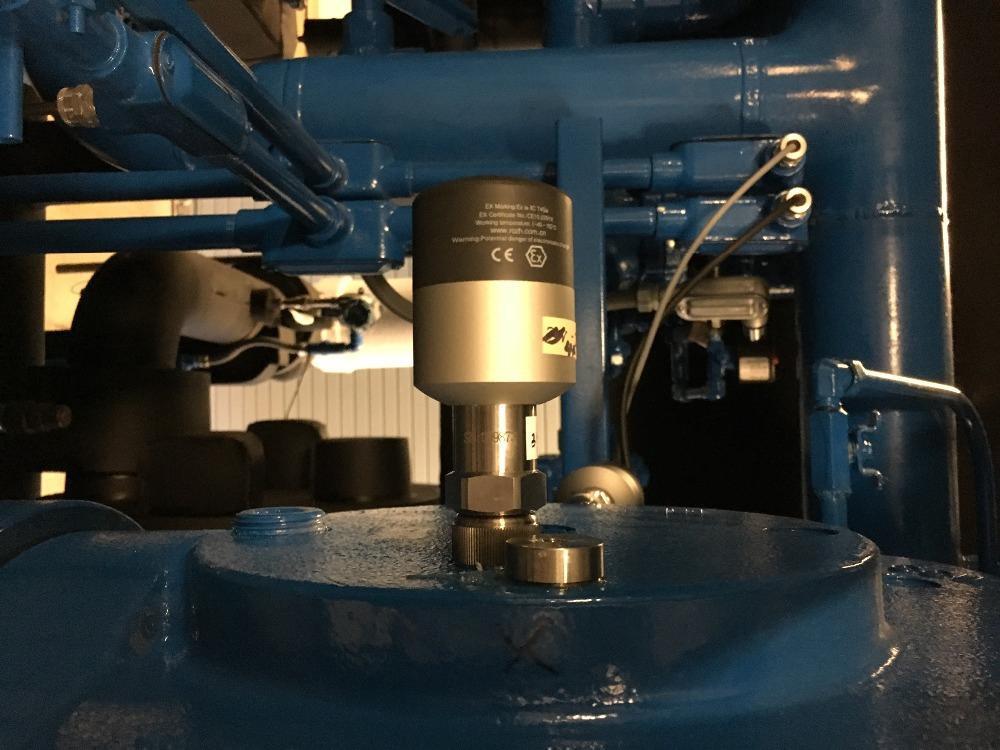

The RH505 wireless accelerometer is equipped with a high-capacity lithium battery providing approximately 2 years of battery life under standard operating conditions.

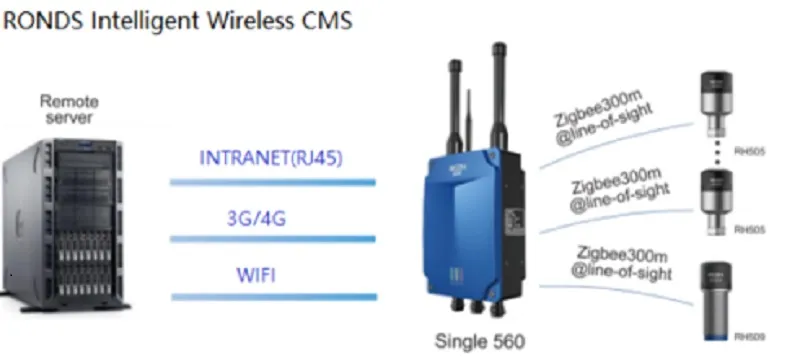

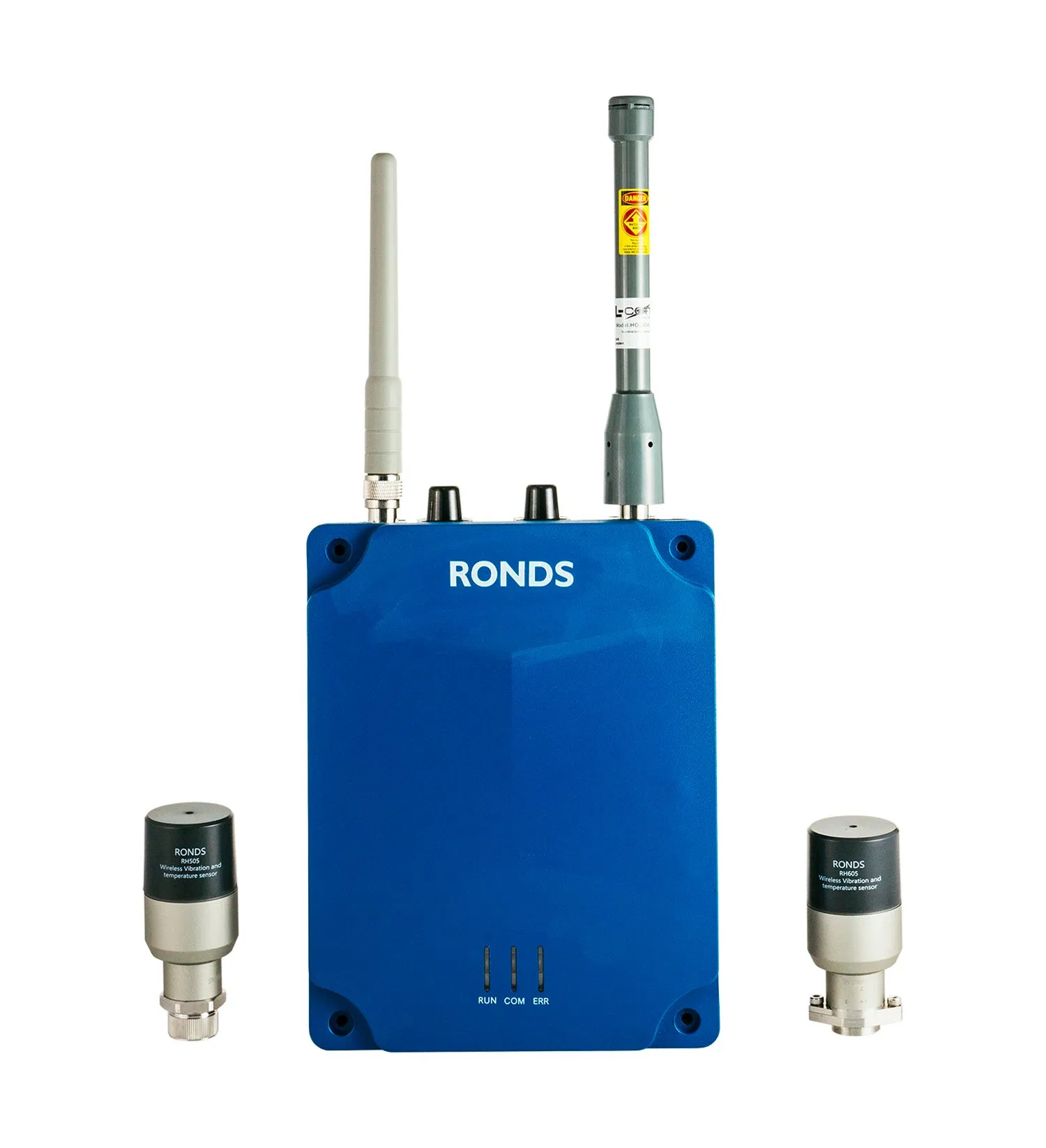

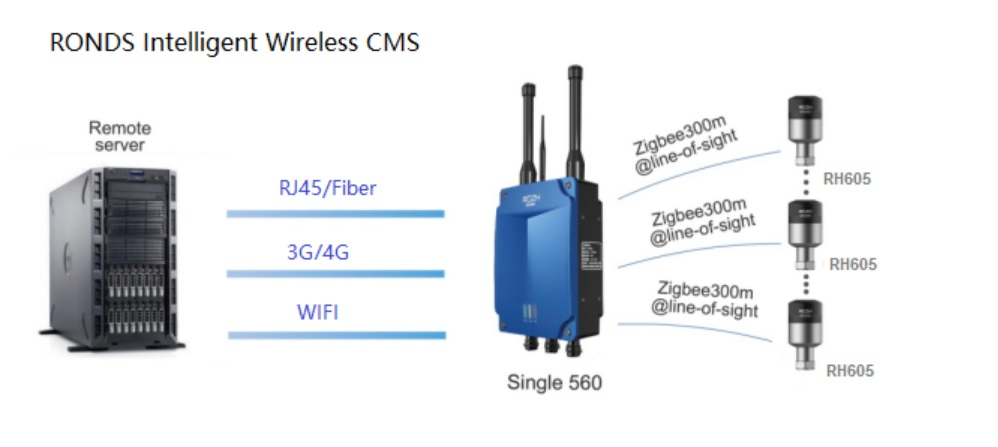

How many sensors can be connected to a single RH560 data collector?
A single RH560 wireless data collector can support between 30 to 60 sensor units, depending on the real-world application conditions and environment.
What is the measurement range for temperature and vibration?
The system measures vibration up to ±50g and temperature from -40ºC to 125ºC with high accuracy (±1ºC for temperature).

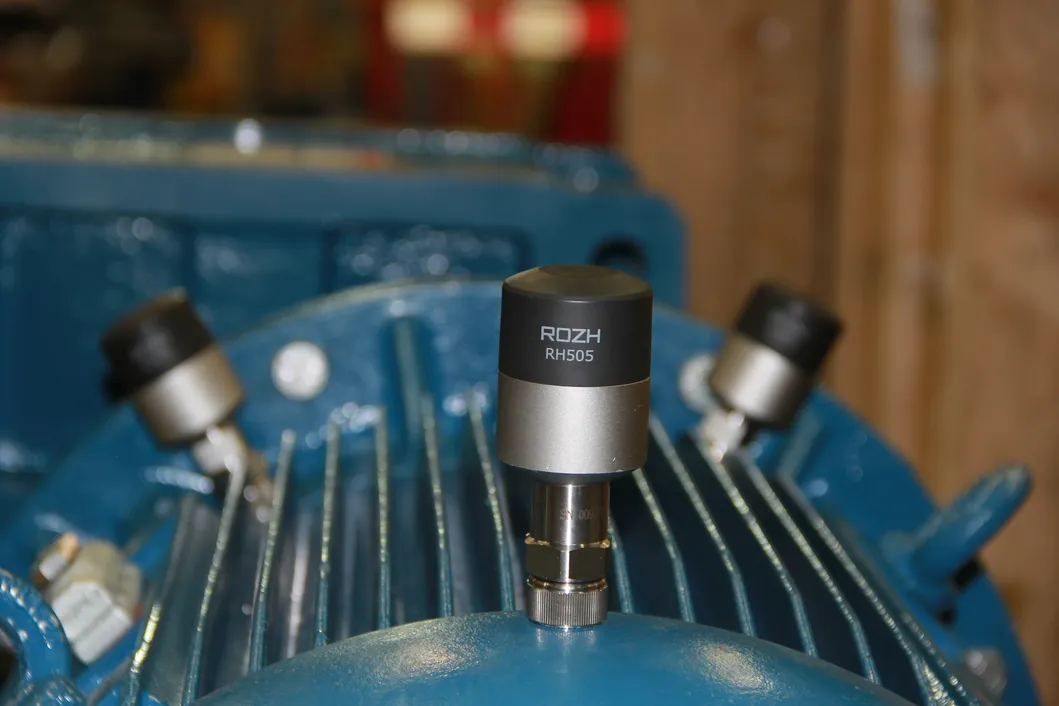

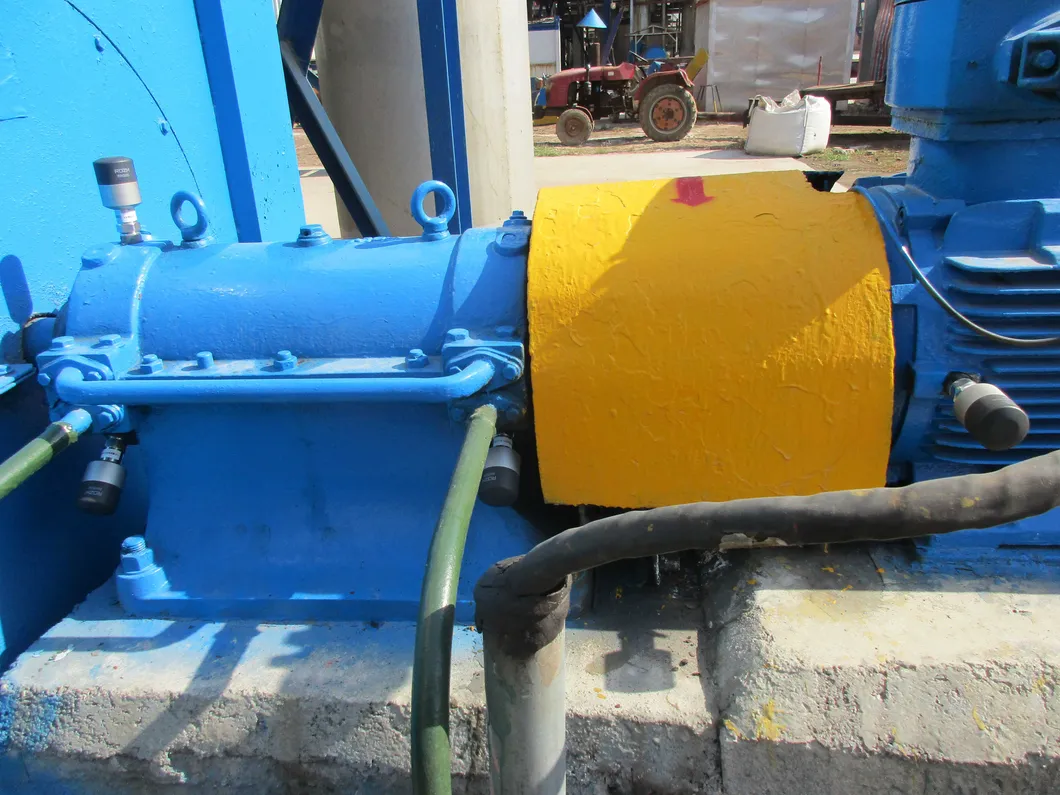

Is the equipment suitable for harsh industrial environments?
Yes, the sensors are IP67 rated and the data collectors are IP66 rated, with a working temperature range of -40ºC to 70ºC, making them suitable for demanding site conditions.
Does the system provide real-time alerts?
Yes, the system includes an intelligent alarm feature that can send notifications via SMS or EMAIL when vibration or temperature thresholds are exceeded.
