Software & Site Installation

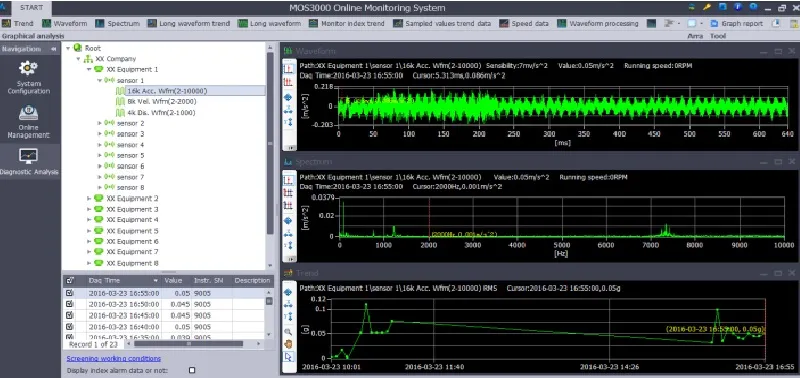

MOS3000 Software Interface

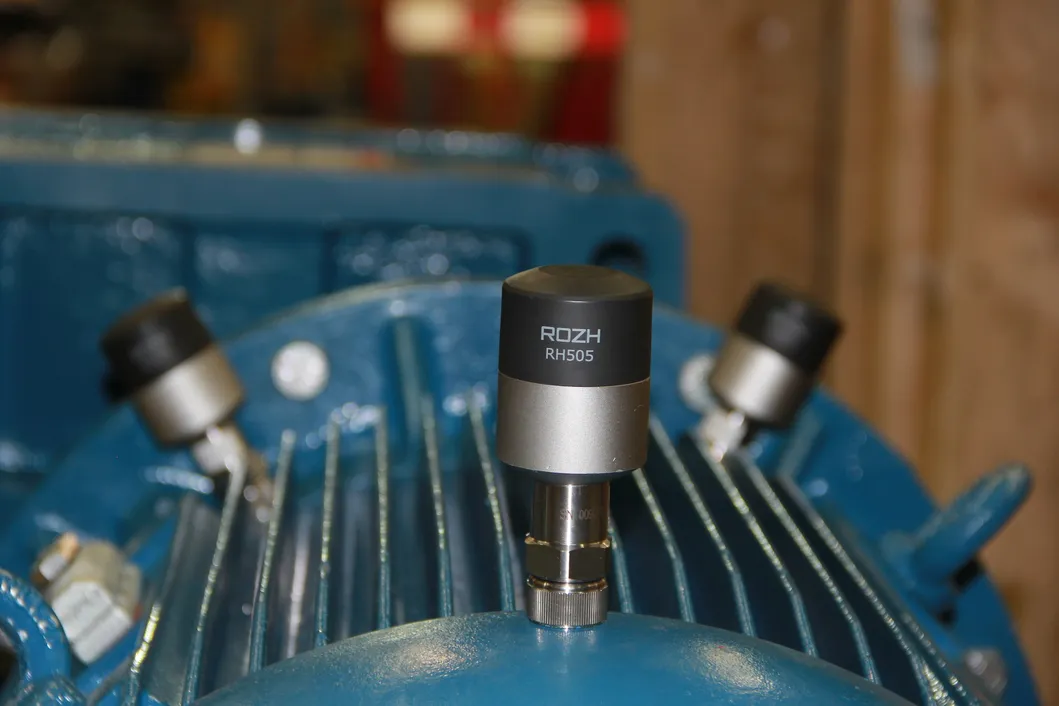

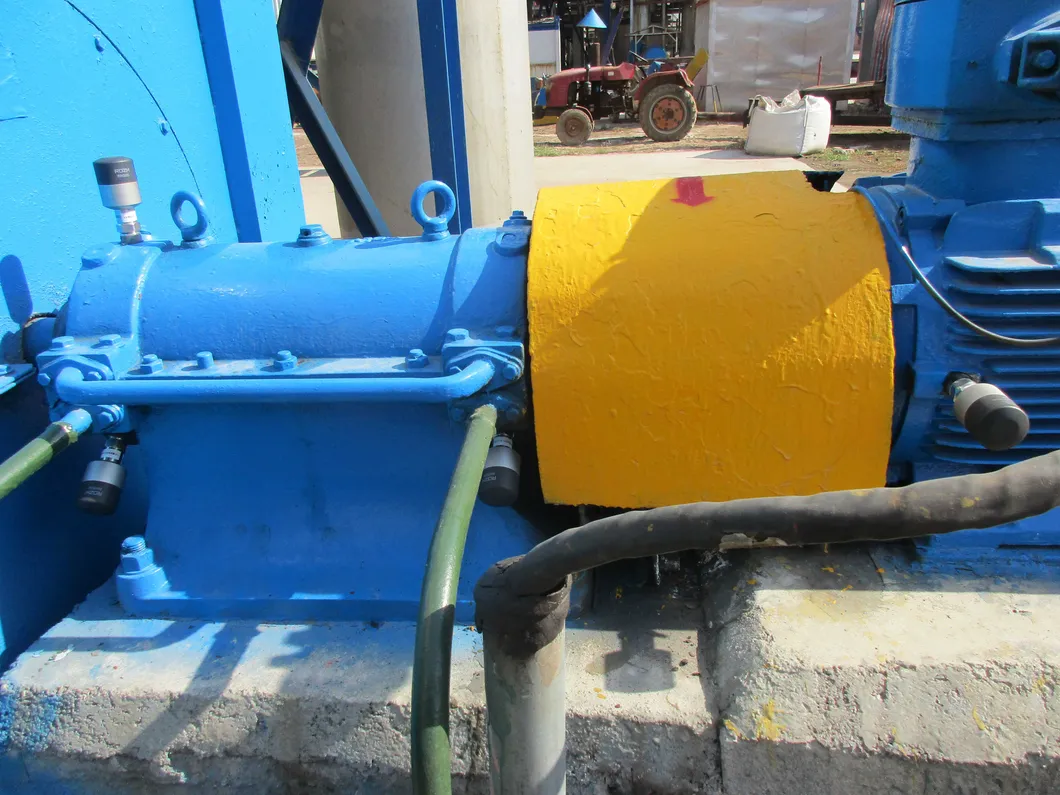

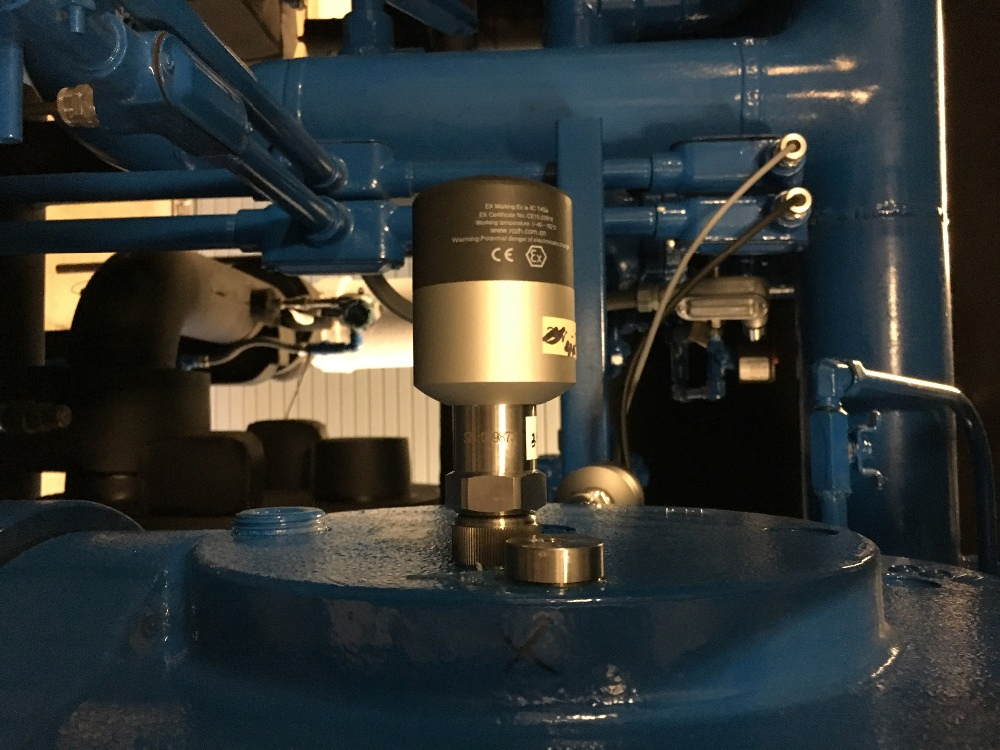

Site Installation Examples
Expertise & Remote Diagnostics
Professional Vibration Analysis Team
✓ Diagnosis experts with more than 20 years of experience
✓ CAT III and CAT II vibration analysts
Intelligent Algorithm & Big Data
✓ Algorithm team led by famous doctoral tutor
✓ Dedicated Big Data team with 13 members

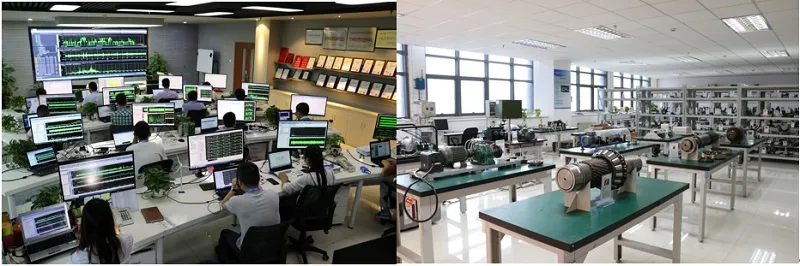

Remote Diagnostic Center and Lab
Frequently Asked Questions
Q1: What parameters does the RH505 sensor monitor?
A: The RH505 is an integrated sensor that synchronously collects vibration (acceleration, velocity, displacement) and temperature data.

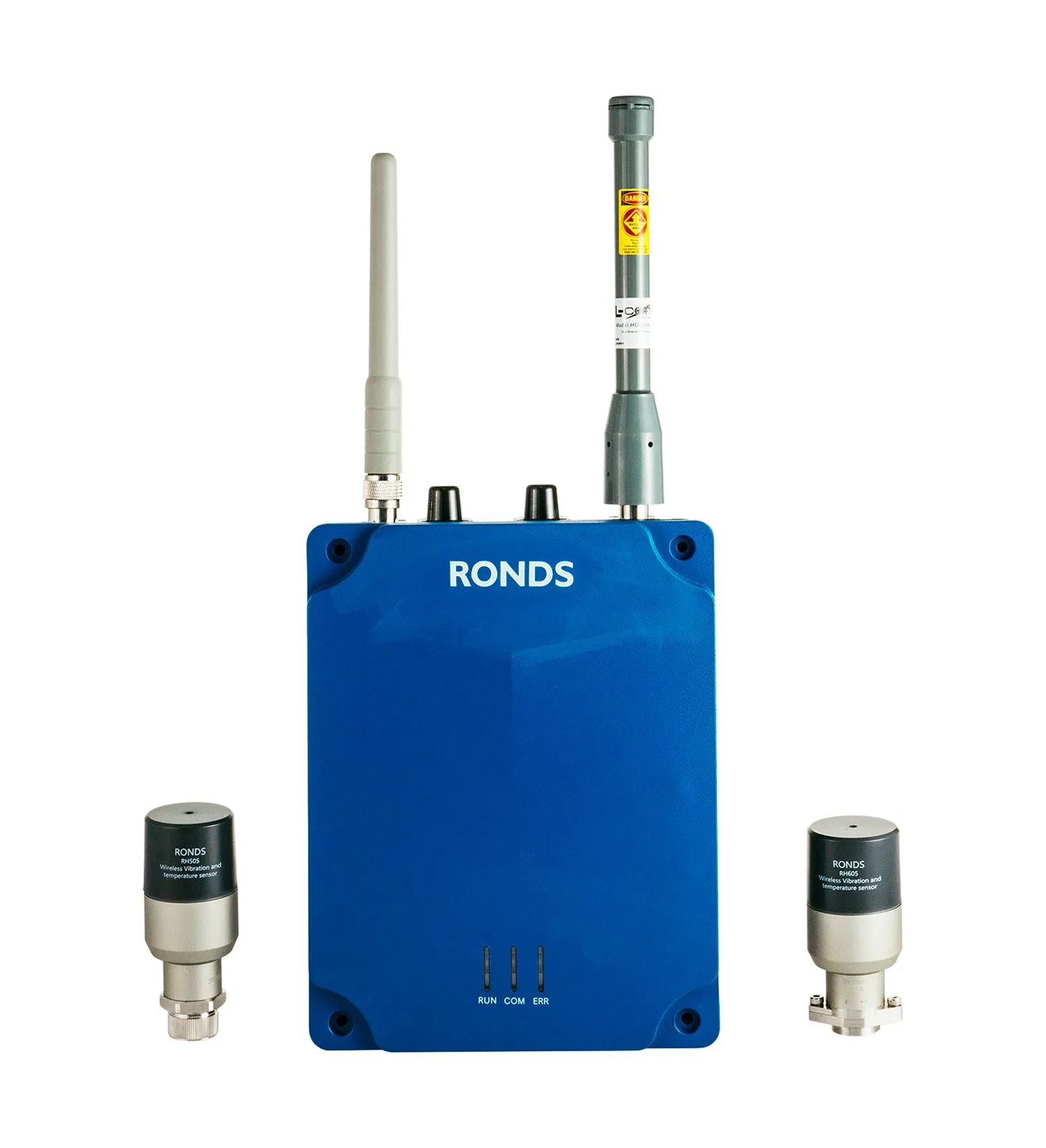

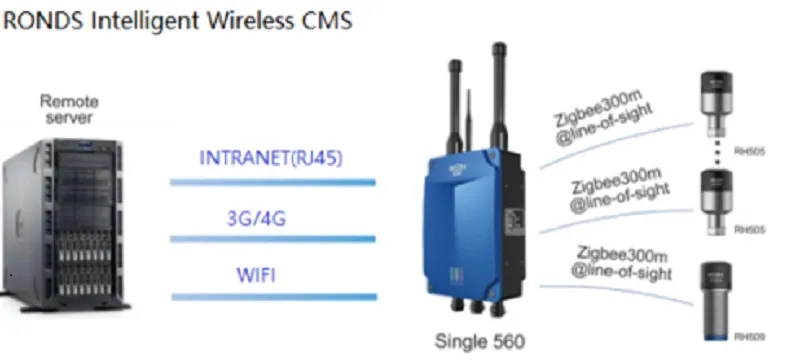

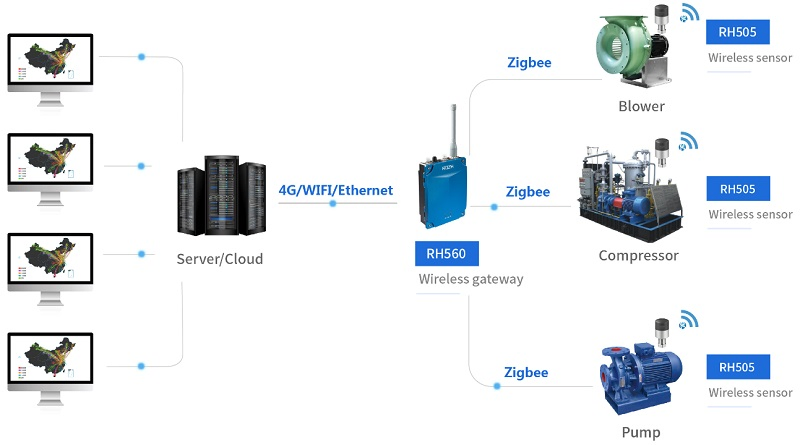

Q2: How many sensors can be connected to one RH560 wireless data collector?
A: Depending on the site application conditions, a single RH560 collector can support between 30 to 60 units of RH505 sensors.
Q3: Is the system suitable for hazardous or explosive environments?
A: Yes, the system satisfies high-degree explosion-proof requirements and features a wireless design that eliminates the need for complex wiring in sensitive areas.

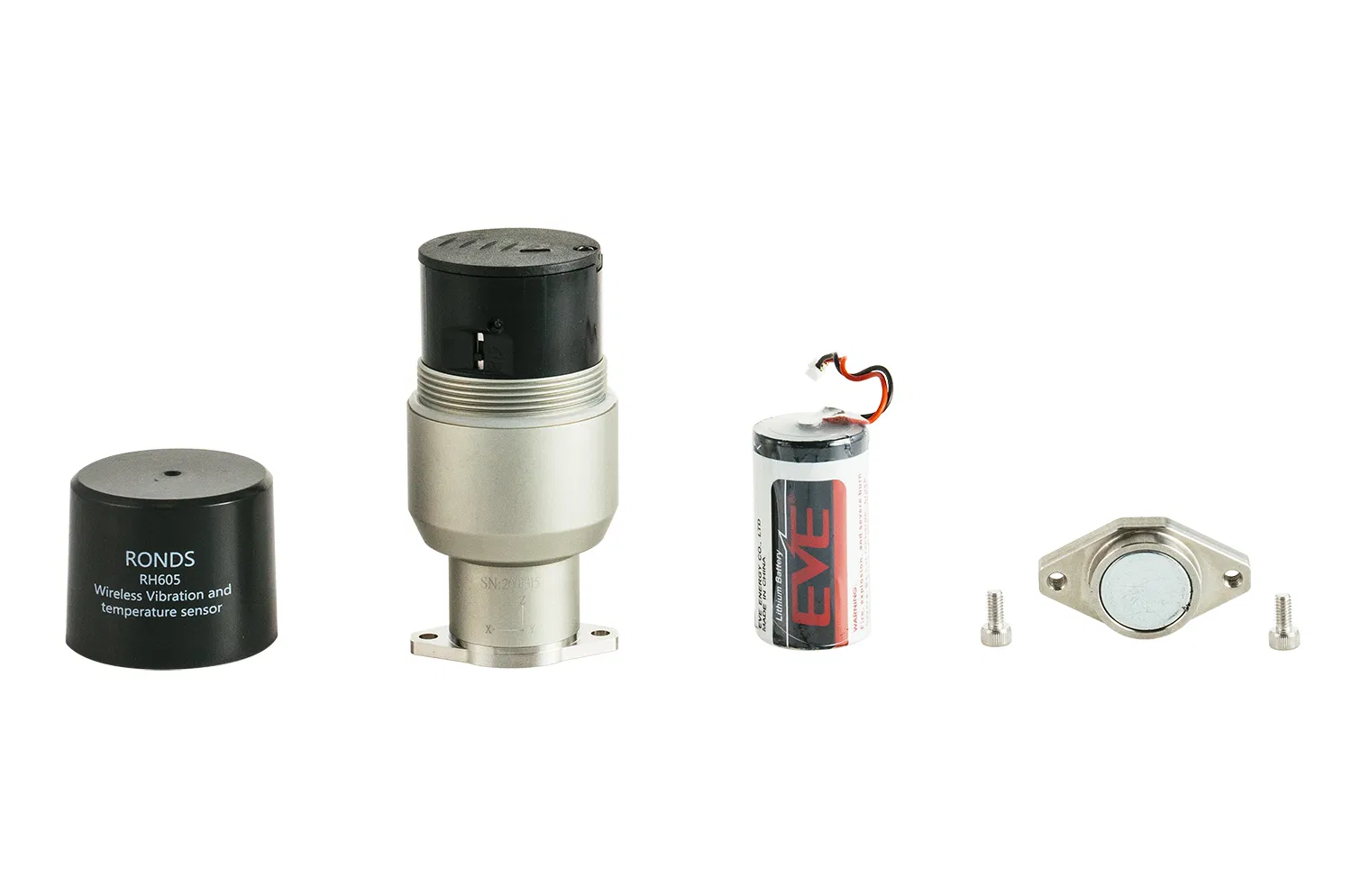

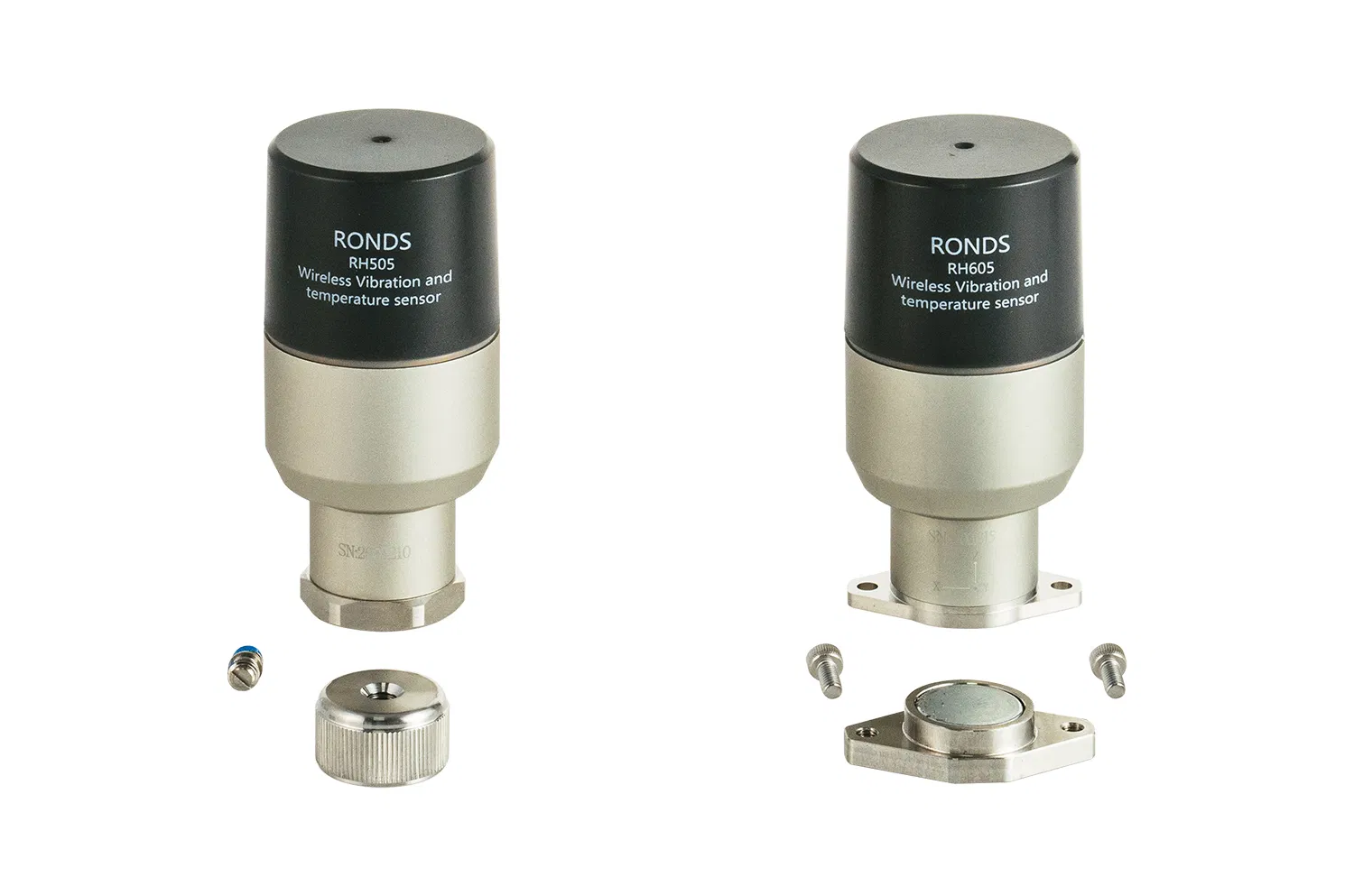

Q4: What is the battery life and installation method for the sensors?
A: The wireless accelerometer has a battery life of approximately 2 years. It can be securely installed using either a magnet base or M6 bolts.
Q5: How does the system notify users of equipment abnormalities?
A: The system features an intelligent alarm mechanism that sends real-time SMS or EMAIL notifications whenever vibration or temperature data exceeds predefined thresholds.
Q6: What is the protection rating for these devices?
A: The RH505 integrated sensor has an IP67 rating, while the RH560 wireless data collector is rated at IP66, making them suitable for harsh industrial environments.
