Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
1 / 5
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry
Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry

Wireless Explosion Proof Compressor Condition Monitoring System for Petrochemical Industry

Specification: 188g
Trademark: Ronds
Origin: China
Send Inquiry

Product Description

Model NO.RH560
HS Code9031809090
Production Capacity2000/Month
1

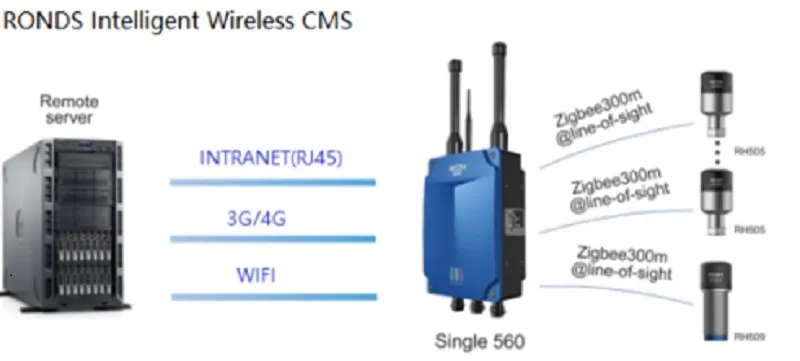

Working Diagram

Working Diagram
2

System Features

  • All channels synchronous collection
  • One sensor collects both vibration and temperature
  • Alarm SMS/EMAIL for both vibration and temperature data
  • Intelligent alarm: minimal sampling interval 5min, full coverage
  • Wireless mode: no wiring needed, saving installation costs
  • Multiple communication options available
  • Convenient installation: 2 years battery life, magnet base or bolt mounting
  • Explosion-proof degree compliant for industrial sites
3

Technical Parameters

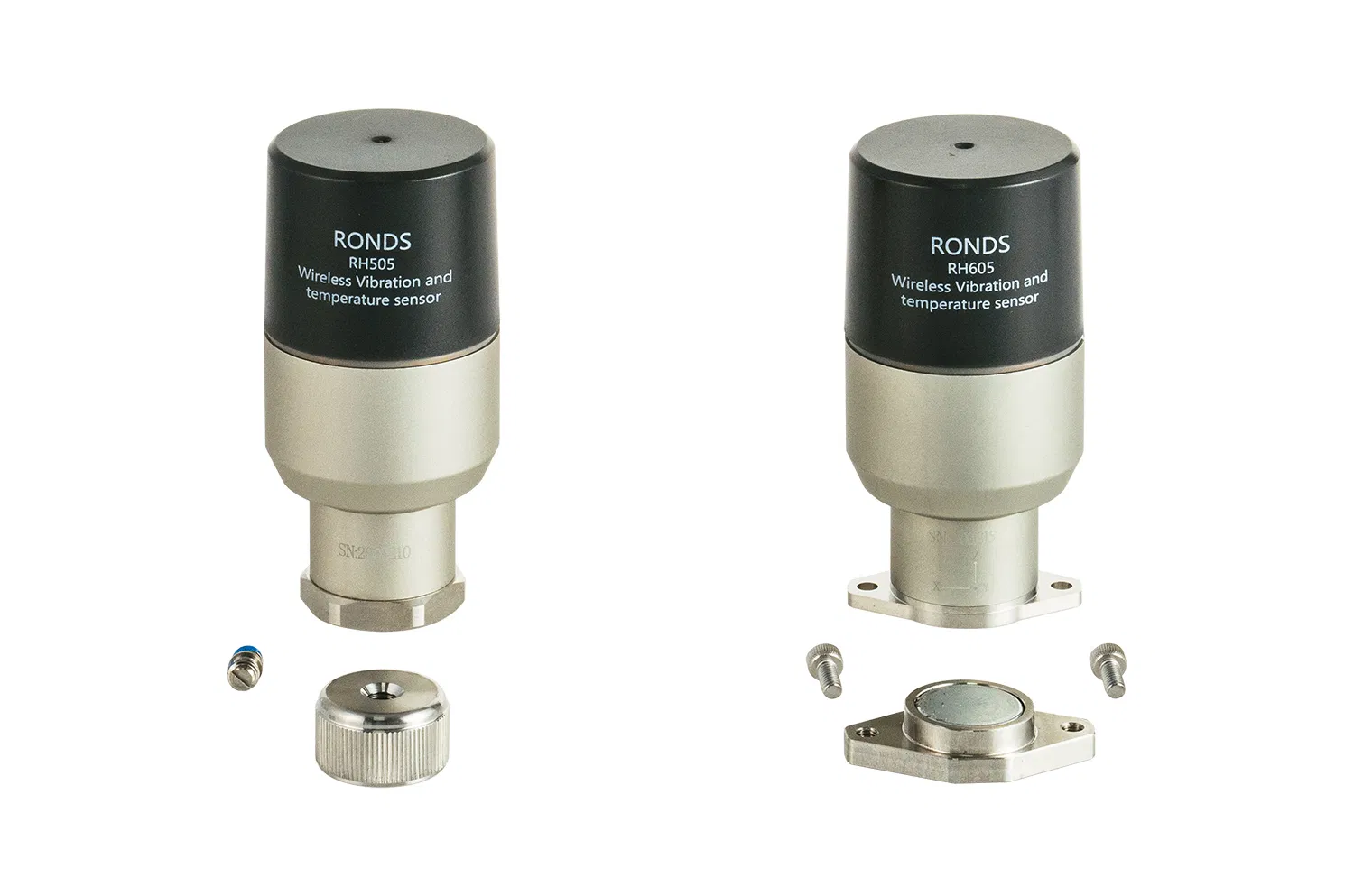

RH505 Wireless Vibration and Temperature Sensor
Vibration Range±50 g
Frequency Range (±3dB)2~20kHz
Sampling Rate1280Hz~51.2kHz
Lines400 to 51200
Temperature Range-40 ~ 125 ºC
Power SupplyLithium battery, 3.6V, 3.3Ah
IP GradeIP67

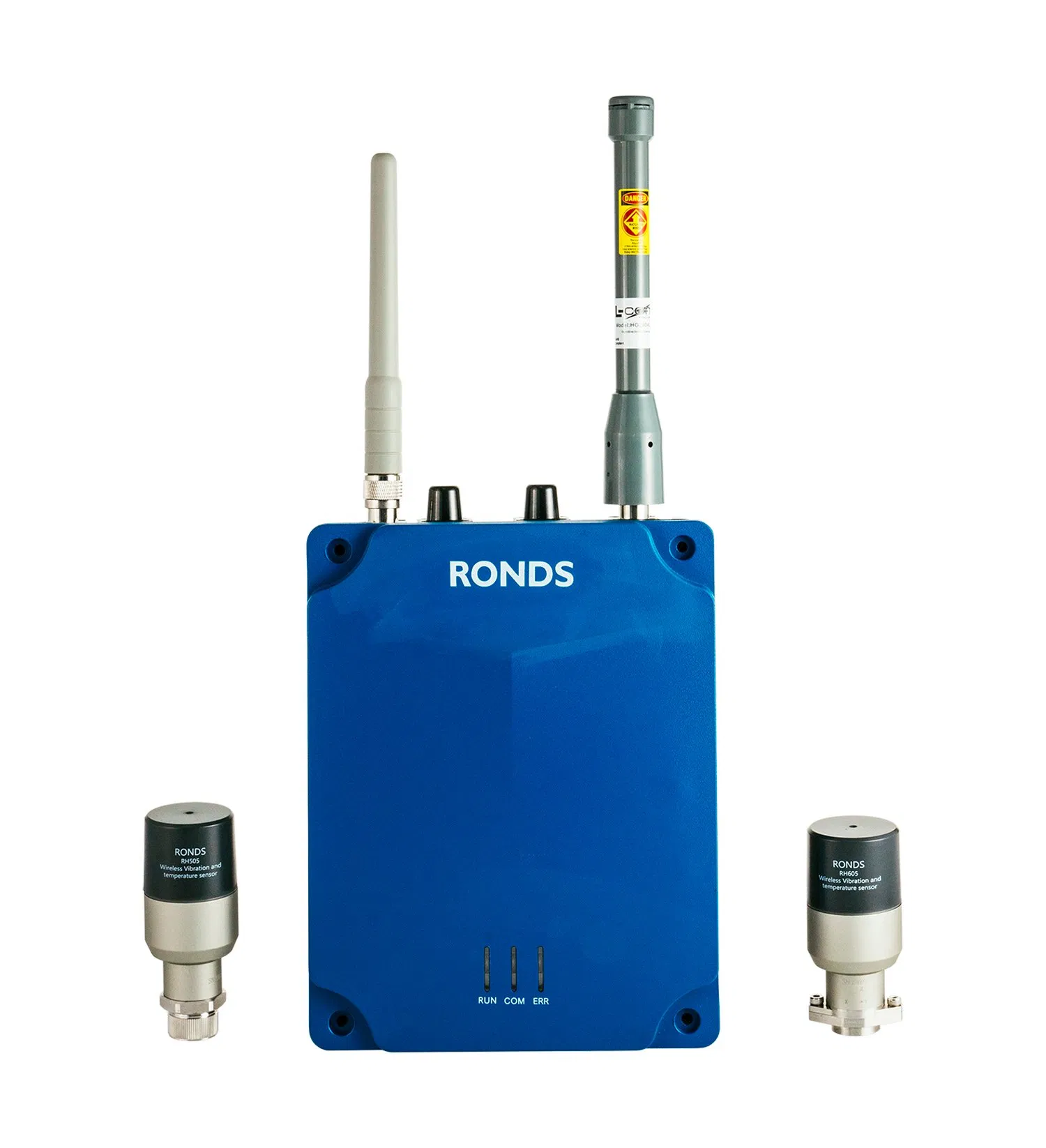

RH560 Wireless Data Collector
Communication with Sensor2.4GHz IEEE 802.15.4
Connecting Units30~60 units per collector
Power Supply220V AC
IP GradeIP66
Working Temperature-40~70 °C
4

Software & Site Installation

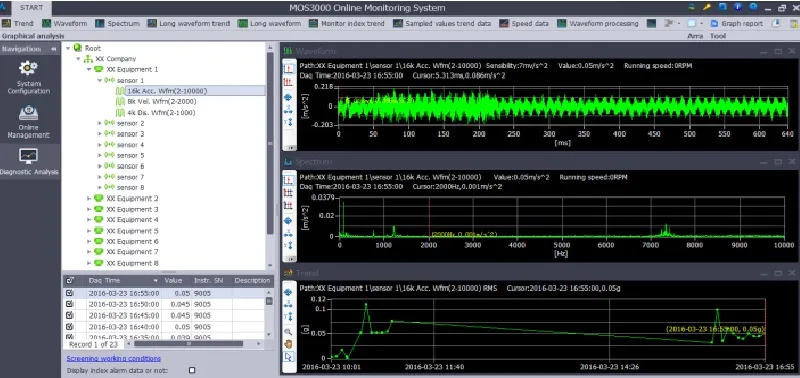

Software Overview

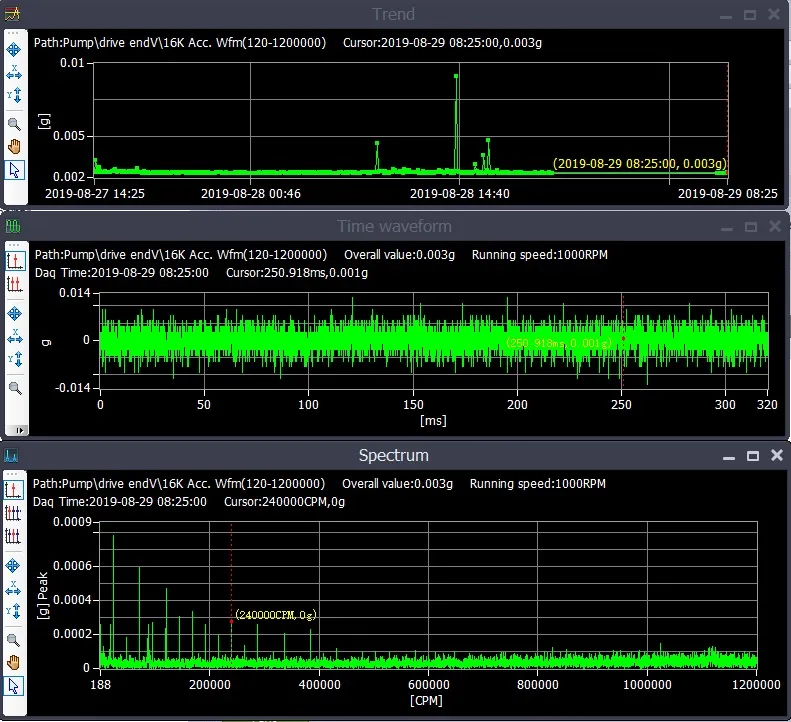

Data Analysis

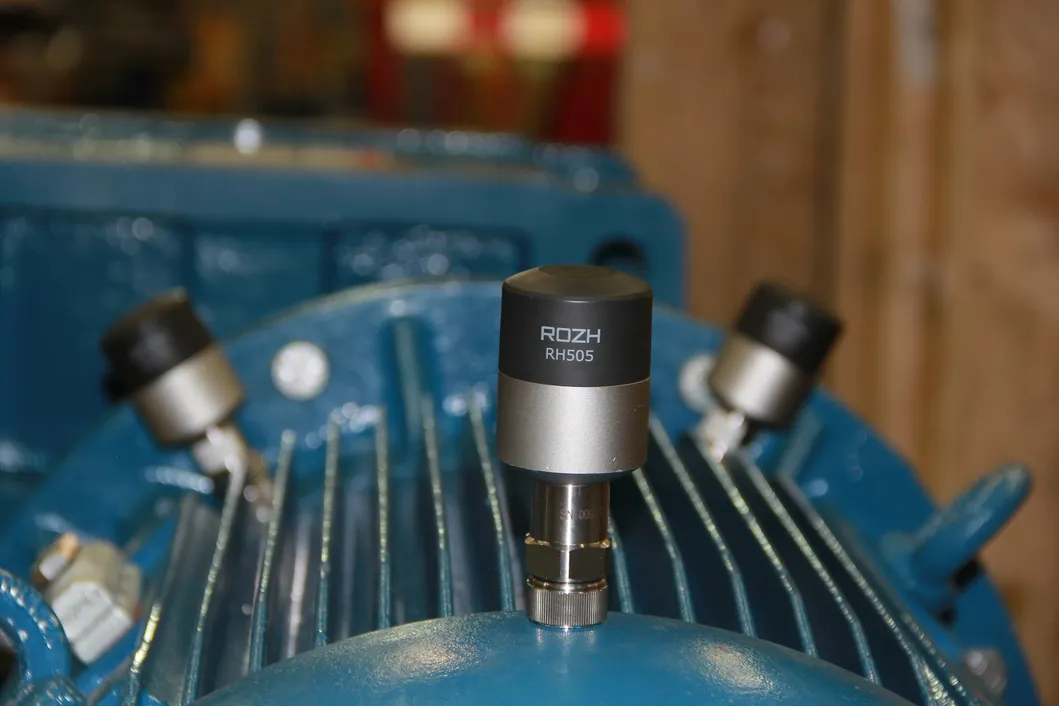

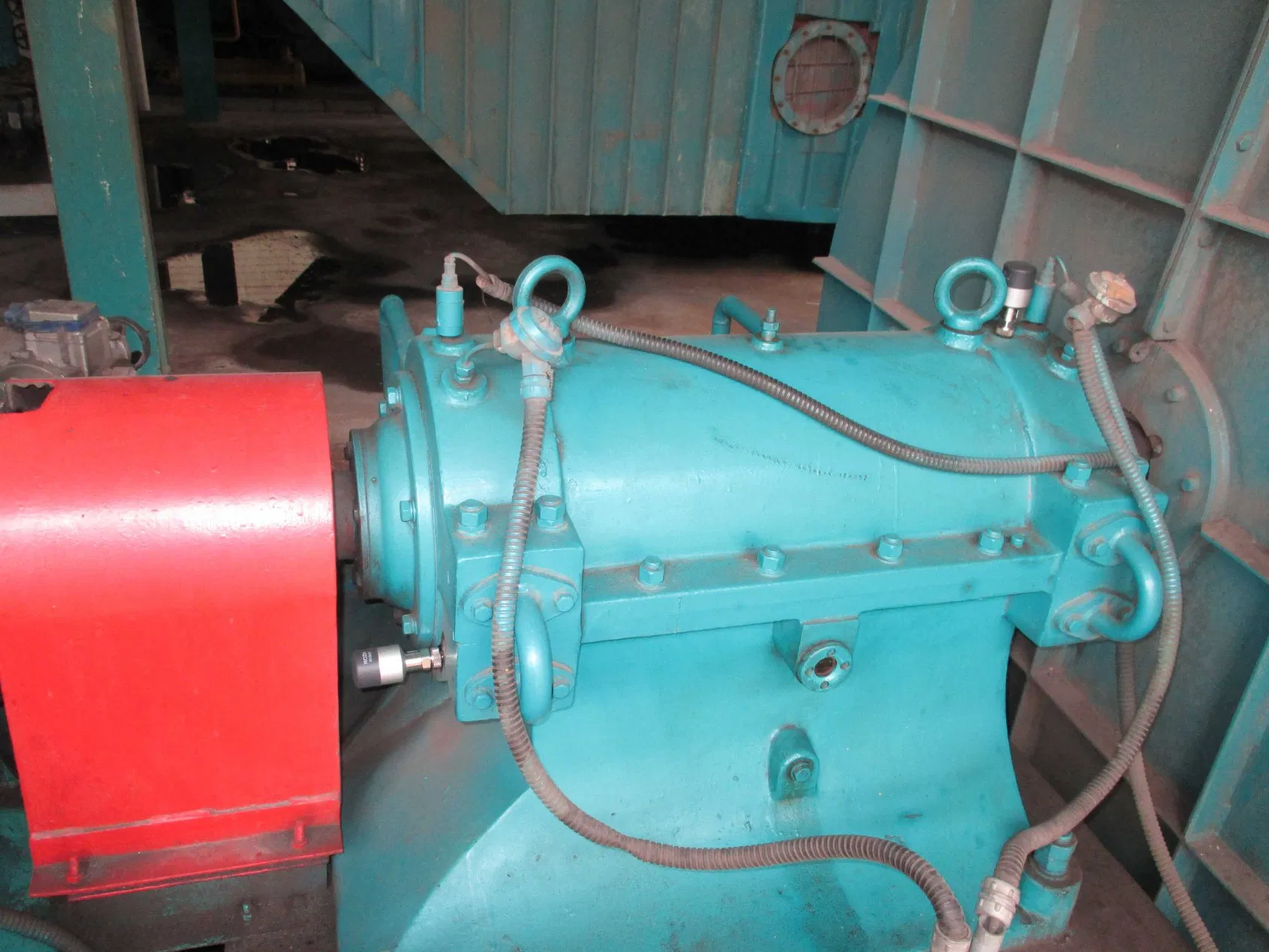

Site Installation 1

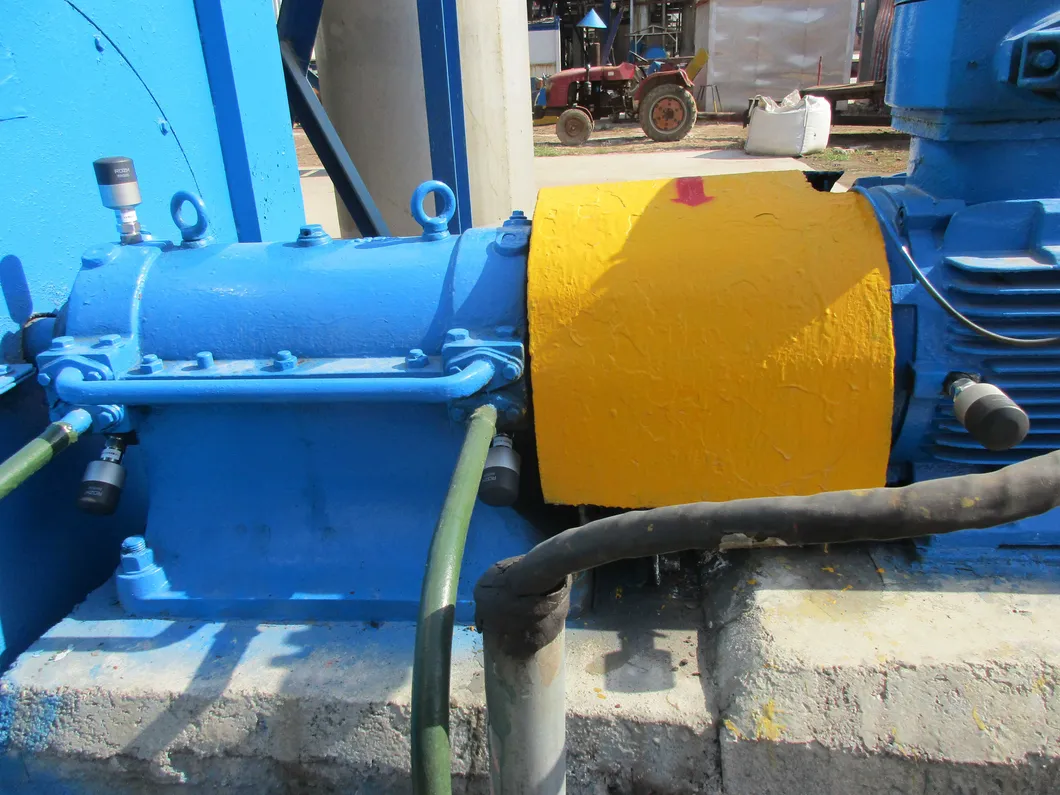

Site Installation 2

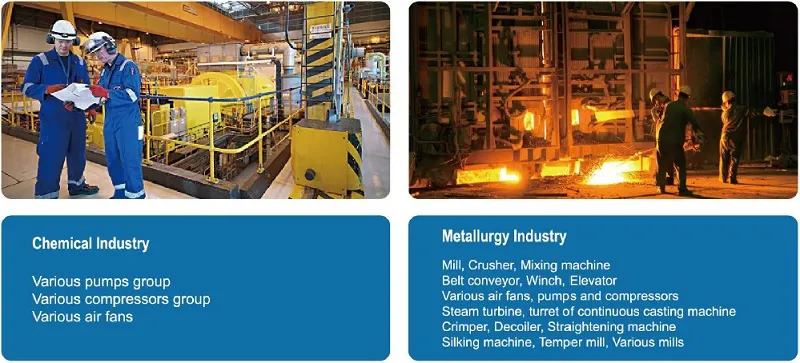

Site Installation 3
5

Professional Analysis Team

30 Professional Vibration Analysts: Including experts with over 20 years of experience, CAT III, and CAT II vibration analysts.

Intelligent Algorithm & Big Data: A dedicated team with 11 algorithm members led by doctoral tutors and a 13-member big data team.

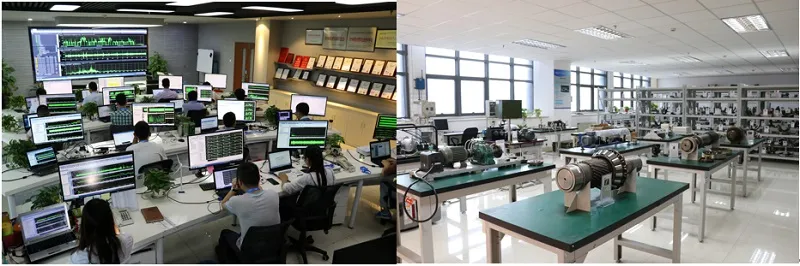

Diagnostic Center
?

Frequently Asked Questions

Q1: How long is the battery life of the wireless vibration sensor? A1: The RH505 wireless vibration sensor features a long-lasting lithium battery providing up to 2 years of operation depending on the sampling interval.
Q2: How many sensors can one RH560 collector manage? A2: One RH560 wireless data collector can connect and manage 30 to 60 sensor units simultaneously, depending on the site conditions.
Q3: Is the system suitable for hazardous environments? A3: Yes, the system is designed to satisfy explosion-proof requirements and features IP66/IP67 ratings for harsh industrial environments.
Q4: What parameters does the sensor measure? A4: The integrated sensor synchronously collects vibration data (acceleration, velocity, displacement) and temperature measurements.
Q5: How is the hardware installed on site? A5: The sensors can be easily installed using magnet bases or M6 bolts, and the collector supports hanging or fixed holder mounting without complex signal cabling.
