The portable radio positioning detector integrates drone radio detection, direction-finding, and protocol decoding and positioning functions. By utilizing omnidirectional radio frequency scanning for feature recognition and decoding, it detects unauthorized drones and issues an alert upon target identification.
It supports handheld directional antenna operation, using amplitude comparison for direction-finding, and can also decode DJI drone beacon signals, extracting information from the radio messages. The extracted data includes, but is not limited to, the drone model, serial number (SN), latitude, longitude, orientation, pilot location, and home point.

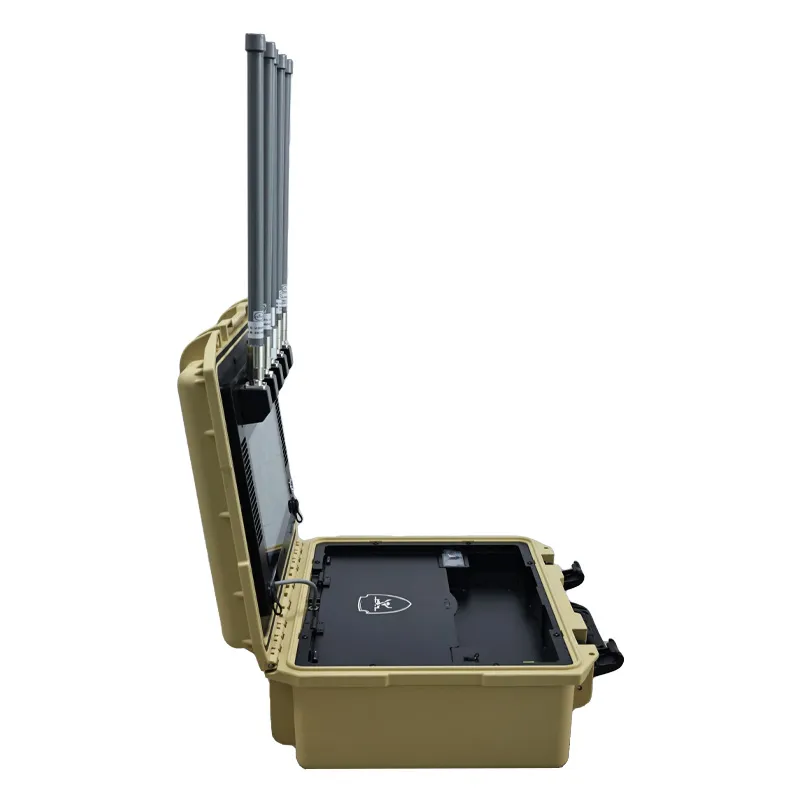

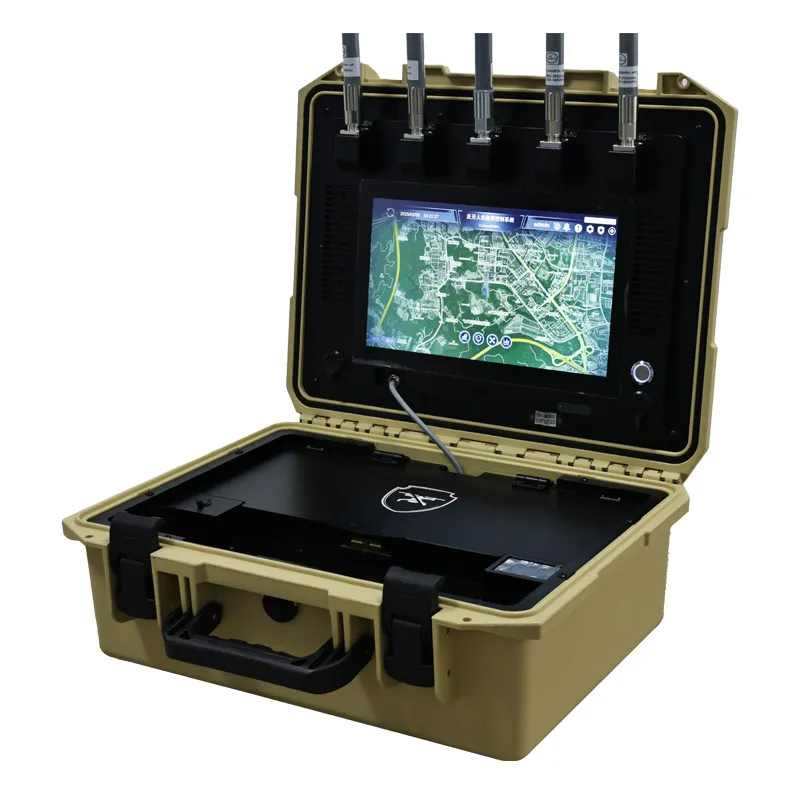

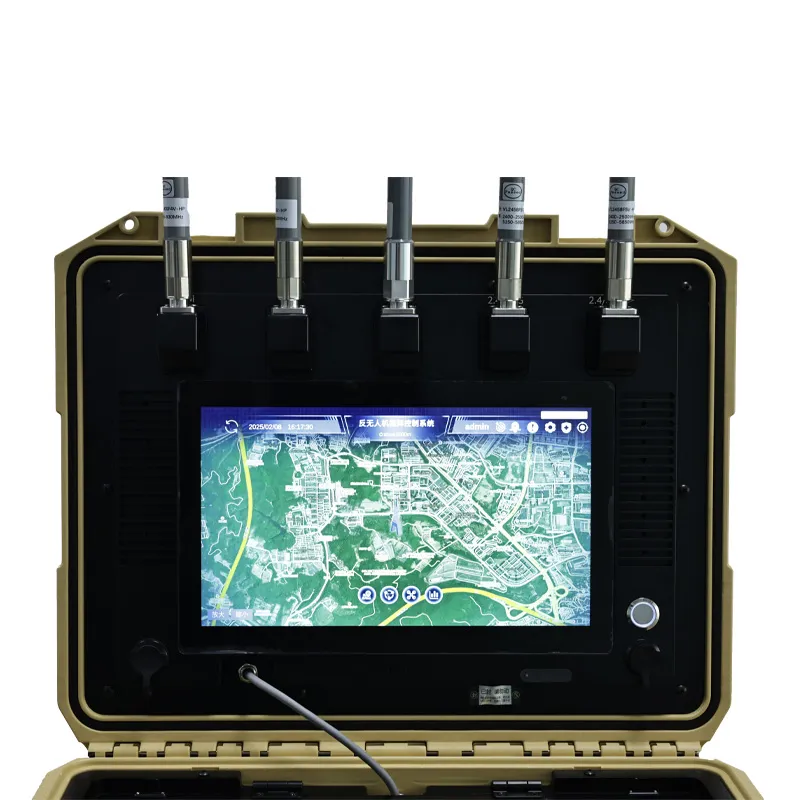

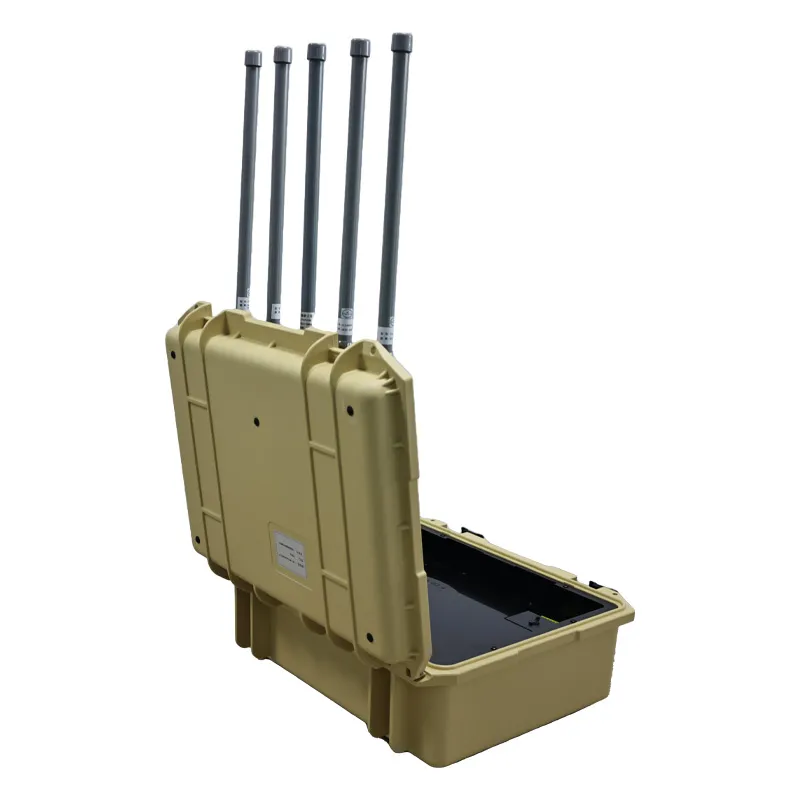

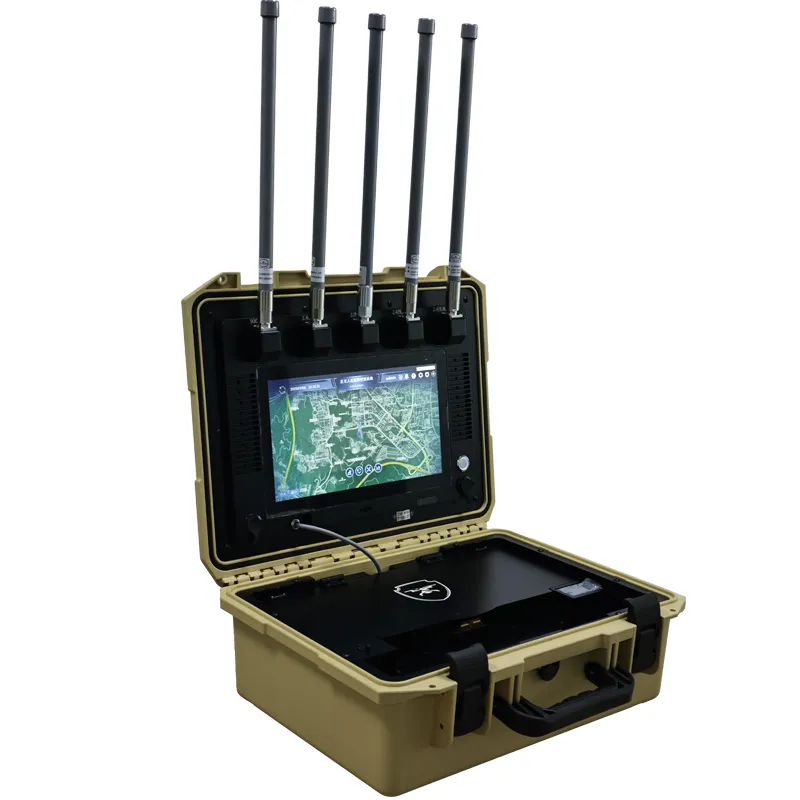

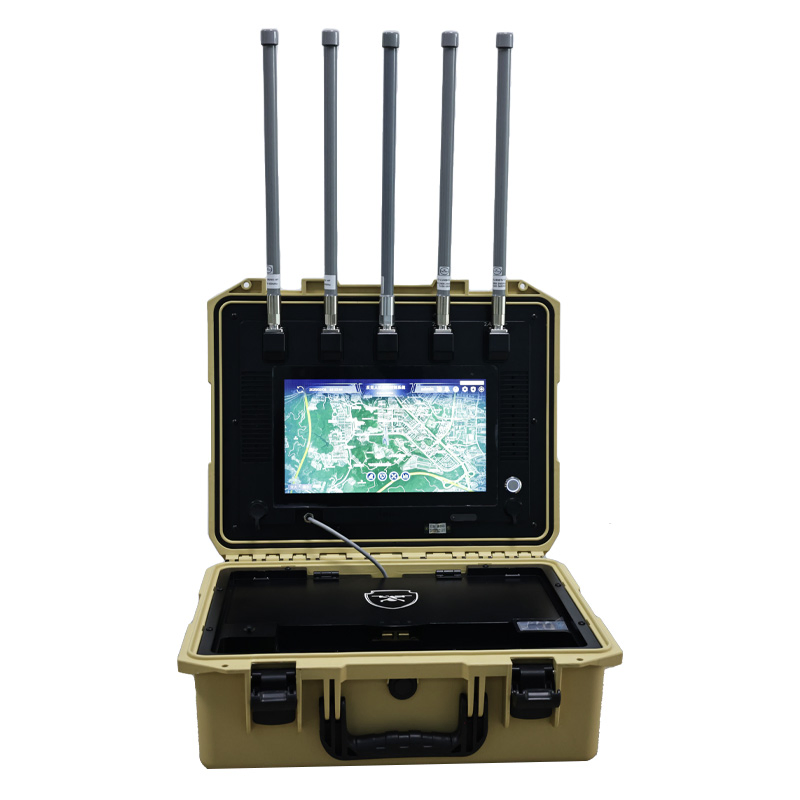

The system features long detection range, high identification accuracy, precise positioning, real-time flight path indication, and audio/visual alerts. All detection information is intuitively displayed on the LCD screen. The entire system adopts a modular design with a portable suitcase structure, making it highly mobile and supporting 24/7 uninterrupted monitoring.
The device can locate and display the pilot's position in real time.
Capable of detecting and tracking flight location and unique serial number (SN).
Supports backend management platforms and multi-device collaboration.
Deploys in seconds, ready to use immediately upon startup.
| Parameter | Specification |
|---|---|
| Device Name | Portable Drone Spectrum Detector |
| Detection Range | 2 - 8 KM |
| Frequency Band | 45MHz ~ 6000MHz |
| Identification Capability | 100+ drone models; Supports DJI O3, O4, and RID data |
| Supported Models | DJI Phantom 4PV2, Mavic 2, Mavic 3, FPV, 2S, M300, etc. |
| Screen Size | 12.6 inches |
| Power Consumption | 40W |
| Total Weight | 16 KG |
| Battery Capacity | 720Wh |
| Operating Time | 18 hours (Ideal conditions) |
| Quantity (sets) | Lead time (days) |
|---|---|
| 1 - 500 | 7 days |
| 501 - 1000 | 7-14 days |
| Above 1000 | Negotiation |
