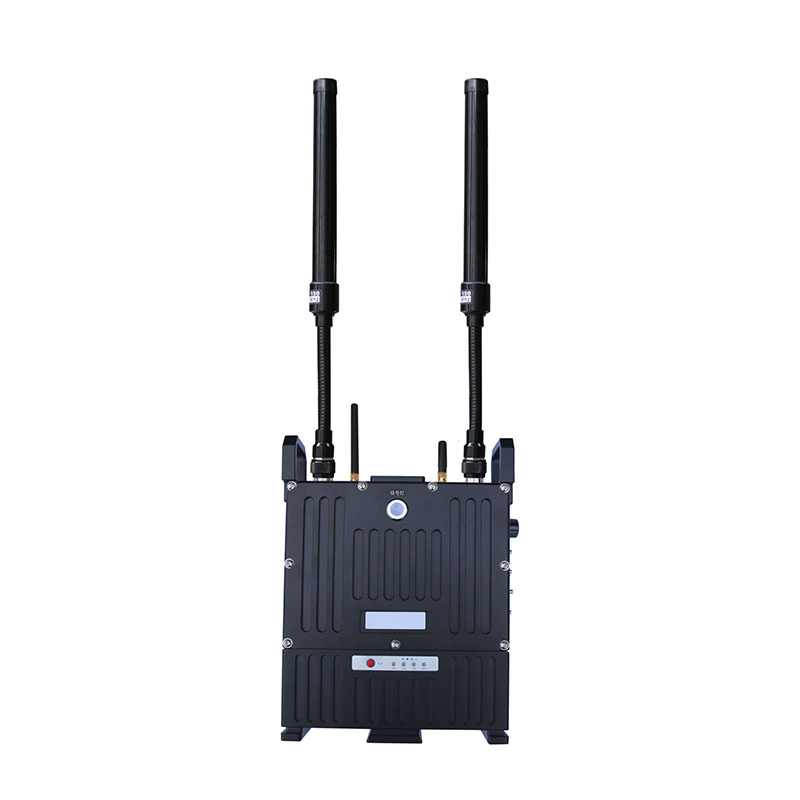

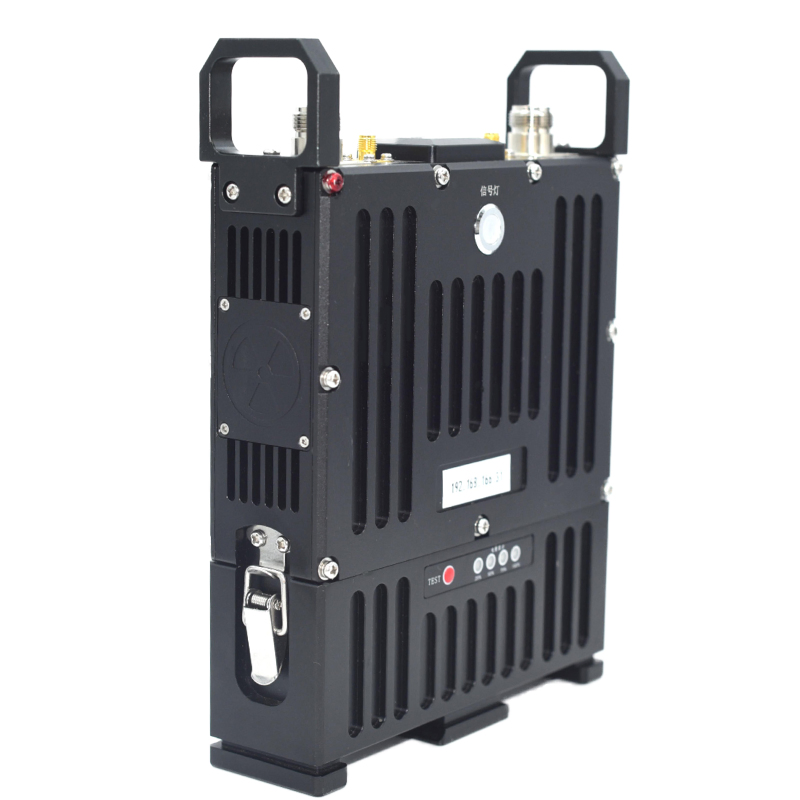

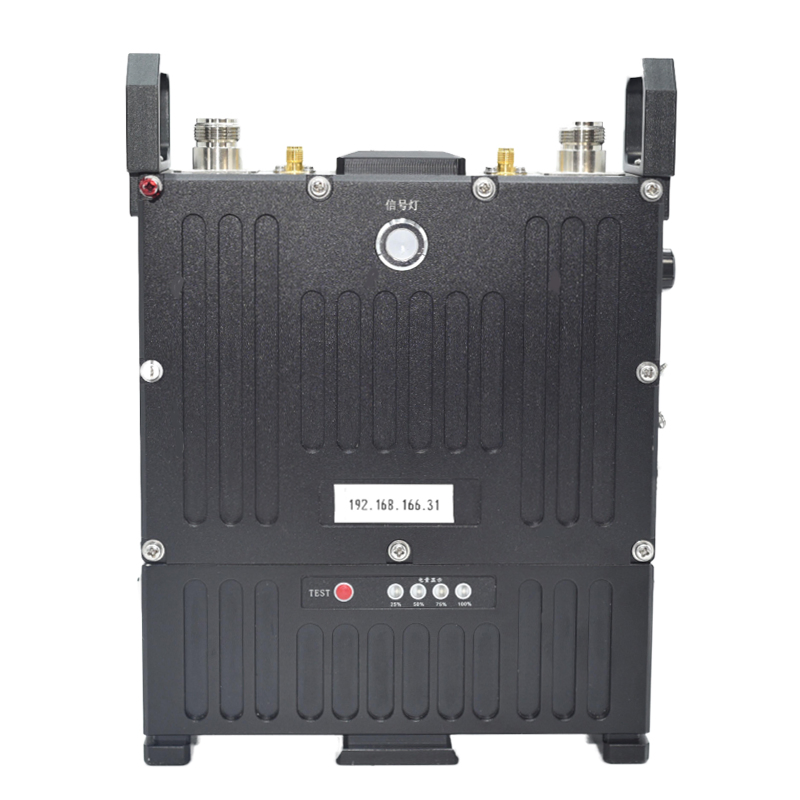

MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
1 / 5
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer
MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer

MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer

Customization: Available
Operating Temp: -30~+65degree Celsius
Storage Temp: -45~+85degree Celsius
Send Inquiry

Product Description

Basic Information
Model NO.
XK-V103TE
Weight
1680g
Battery Life
3hrs Charge for 6~8hrs Operation
Transport Package
Carton Packing
Specification
221x166x46mm
Origin
China
Production Capacity
50000 PCS/Year
Product Overview
💡

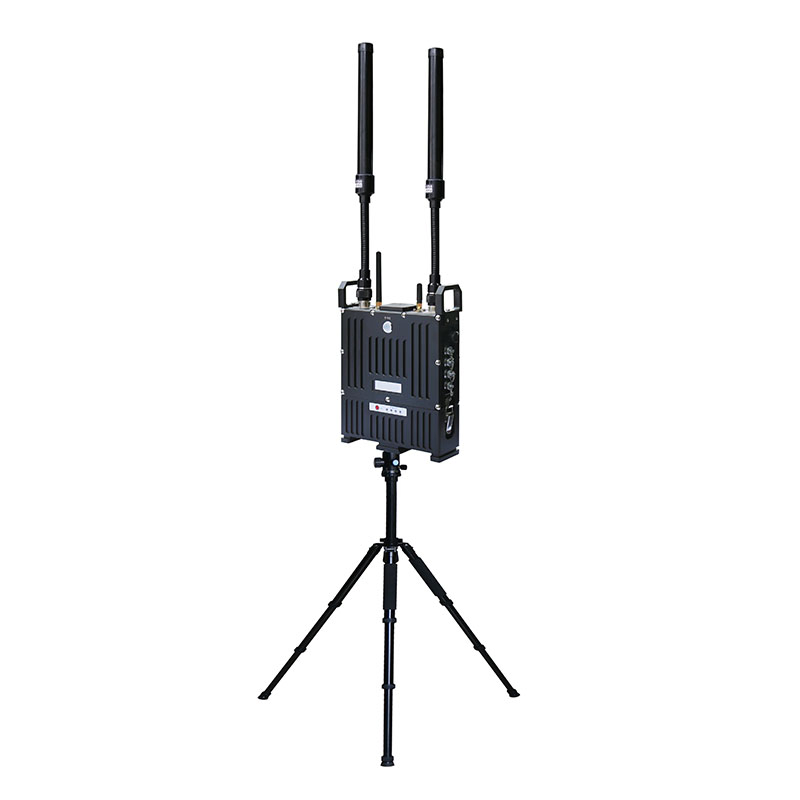

XK-V103TE is a high-performance wireless ad-hoc communication device that supports automatic relay and multi-hop. Without using any central base station, wireless voice communication, HDMI/network video input, and 2-network data transmission among individual soldiers can be realized.
2*2 MIMO Advantages
  • Long transmission distance
  • Strong anti-interference capabilities
  • Excellent diffraction performance
  • Safe and reliable communication
Key Features
  • MIMO dual-channel ad-hoc network
  • Ultra-wide frequency 350M-3.8GHz (customizable)
  • Centralized management platform with GIS maps
  • 120Mbps maximum wireless networking bandwidth
  • Supports 2.4G WiFi & HDMI input
  • Equipped with a removable battery
Product Performance
Item Performance Details
Networking Frequency1400-1485MHz @ 4W MIMO 2*2
Encryption ModeAES128
Modulation MethodBPSK/QPSK/16-QAM/64-QAM
Transmitting Power36dBm
Receiving SensitivityUp to -102dBm
Transmission Delay1~2ms

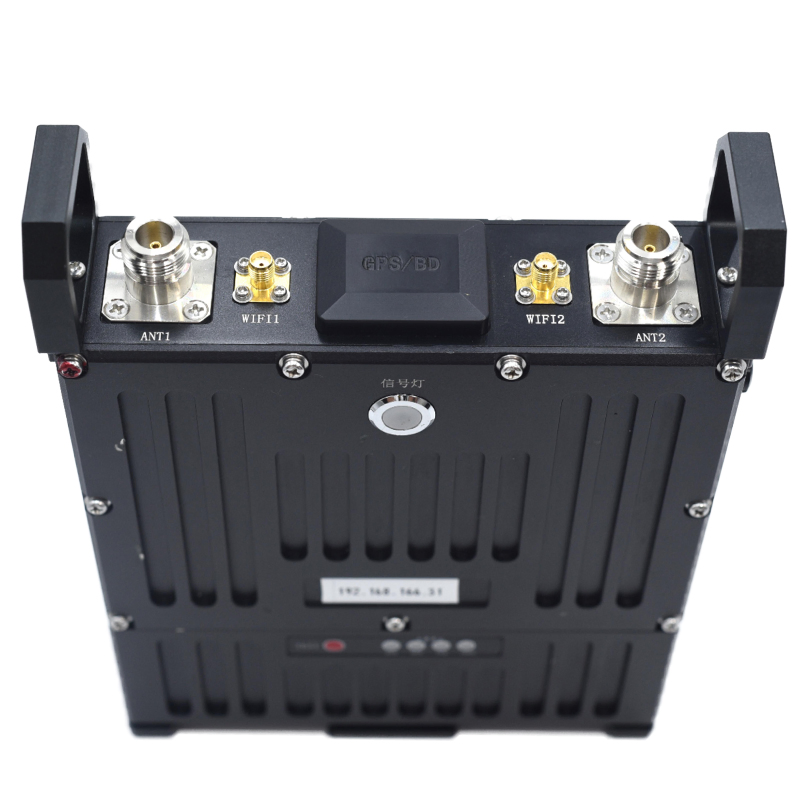

RF InterfaceMESH N*2, WIFI SMA*2
Channel Bandwidth2M/5M/10M/20M/40M (adjustable)
WiFi Hotspot2.4G
Effective DistanceLOS: 3~5km; NLOS: 800m~2km (ground to ground)
Configuration ModeWEB and MESH management platform
Ad-hoc Network NodesNo less than 50 nodes
System TypeMESH ad-hoc network
Operating Humidity5% ~ 95% (non-condensing)
Power ConsumptionAverage device consumption: 12W
InterfacesNetwork, TTL, Charging, PTT, Exp Port

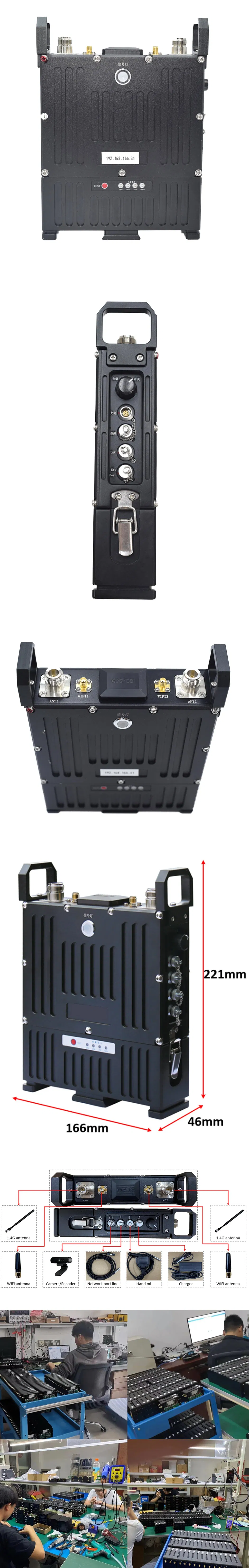

MIMO Wireless Mesh Networking Manback Vehicle Radio
Related Solutions
Related Product 1 Related Product 2 Related Product 3 Related Product 4 Related Product 5 Related Product 6
Service & Advantages
Professional Team: Over 20 years of technical experience.
Factory Direct: Competitive pricing directly from manufacturing.
OEM & ODM: Customizable solutions with low MOQ.
Quality Control: 100% QC testing before every shipment.
Fast Delivery: Shipments within 2-3 working days post-testing.
Packaging & Delivery
Packing: Professionally packed in secure shipping boxes.
Shipping Ports: Yantian, Shekou, or Hong Kong.
Frequently Asked Questions
What is the communication range of the XK-V103TE?
The device provides an effective Line-of-Sight (LOS) distance of 3~5km and a Non-Line-of-Sight (NLOS) ground-to-ground distance of 800m~2km.
How long does the battery last on a single charge?
After a full 3-hour charge, the removable battery supports approximately 6 to 8 hours of continuous operation.
Does this system support secure data transmission?
Yes, the XK-V103TE utilizes AES128 encryption to ensure all wireless voice and data communications remain safe and reliable.
How many nodes can be connected in one ad-hoc network?
The system is designed to support a robust mesh network consisting of no less than 50 individual nodes.
What types of video input does the device support?
The device features both HDMI input and network video input, allowing for high-definition video transmission across the network.
Can the operating frequency be customized?
Yes, while the standard networking frequency is 1400-1485MHz, the device supports an ultra-wide customizable range from 350MHz to 3.8GHz.
