Industrial network Ethernet Over Powerline Solution

Customization:	Available
Standard:	Homeplug AV2
OEM:	Accepted

Send Inquiry

Product Description

Basic Info.

Model NO.	WD-1201M-DIN(T/T4/V3/S/D)
Usage	Industry
Performance	Poweline
Bandwidth	1200Mbps
Frequency	2-68MHz
Specification	1208944mm
Origin	China
HS Code	85176990

Product Description

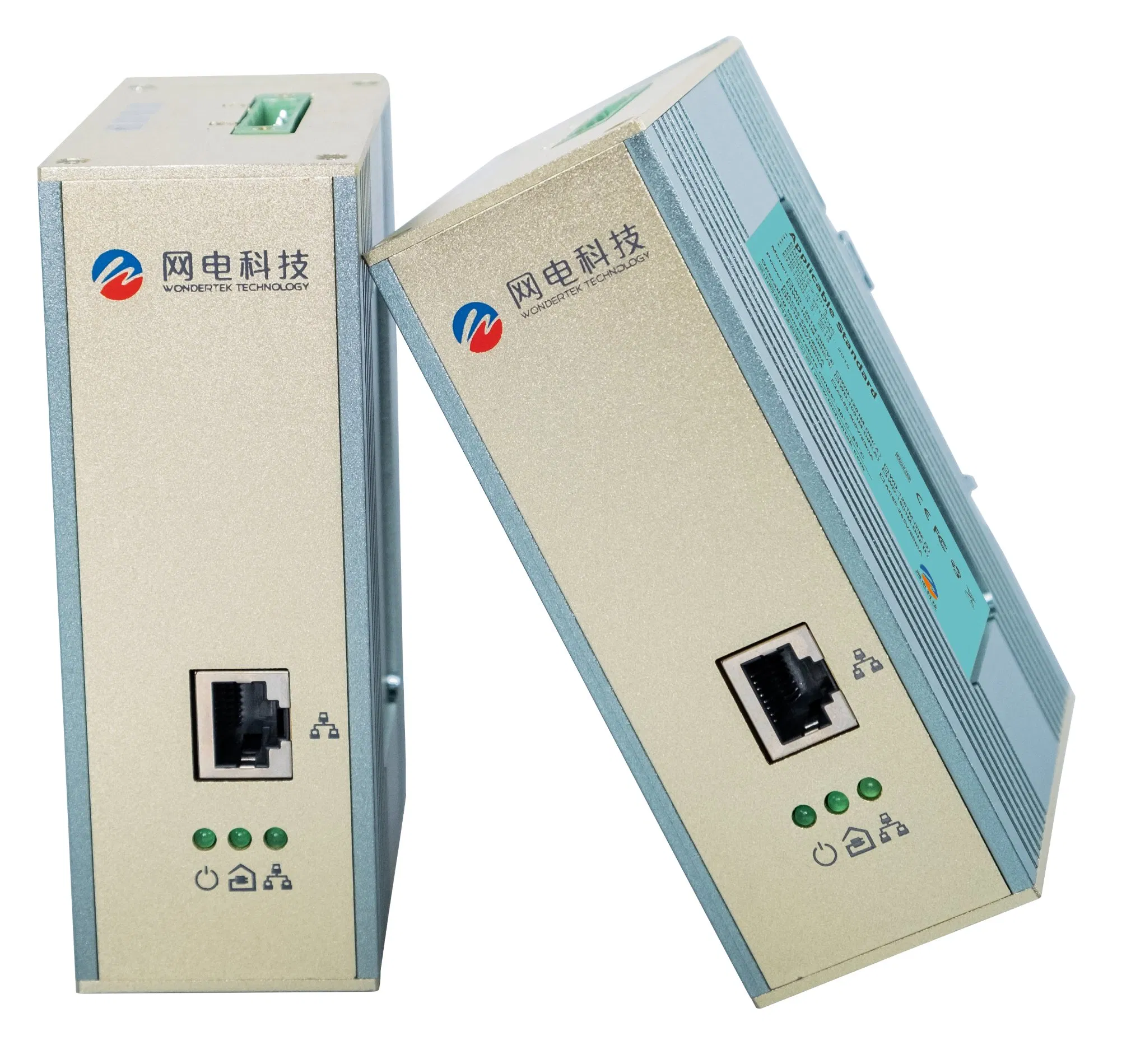

Industrial Powerline Ethernet Bridge
Model: WD-1201M-DIN(V3)

Industrial scenarios, Recommended to use with blocking Filter

Product Overview

The DIN rail mounting industrial powerline ethernet bridge is a high-performance communication product supporting the HomeplugAV2 protocol standard. It is extensively utilized in railway, mining, industrial communication, airport, subway, intelligent storage, and industrial automation control environments.

⚙️ Technical Standard

Support HomeplugAV2 Protocol

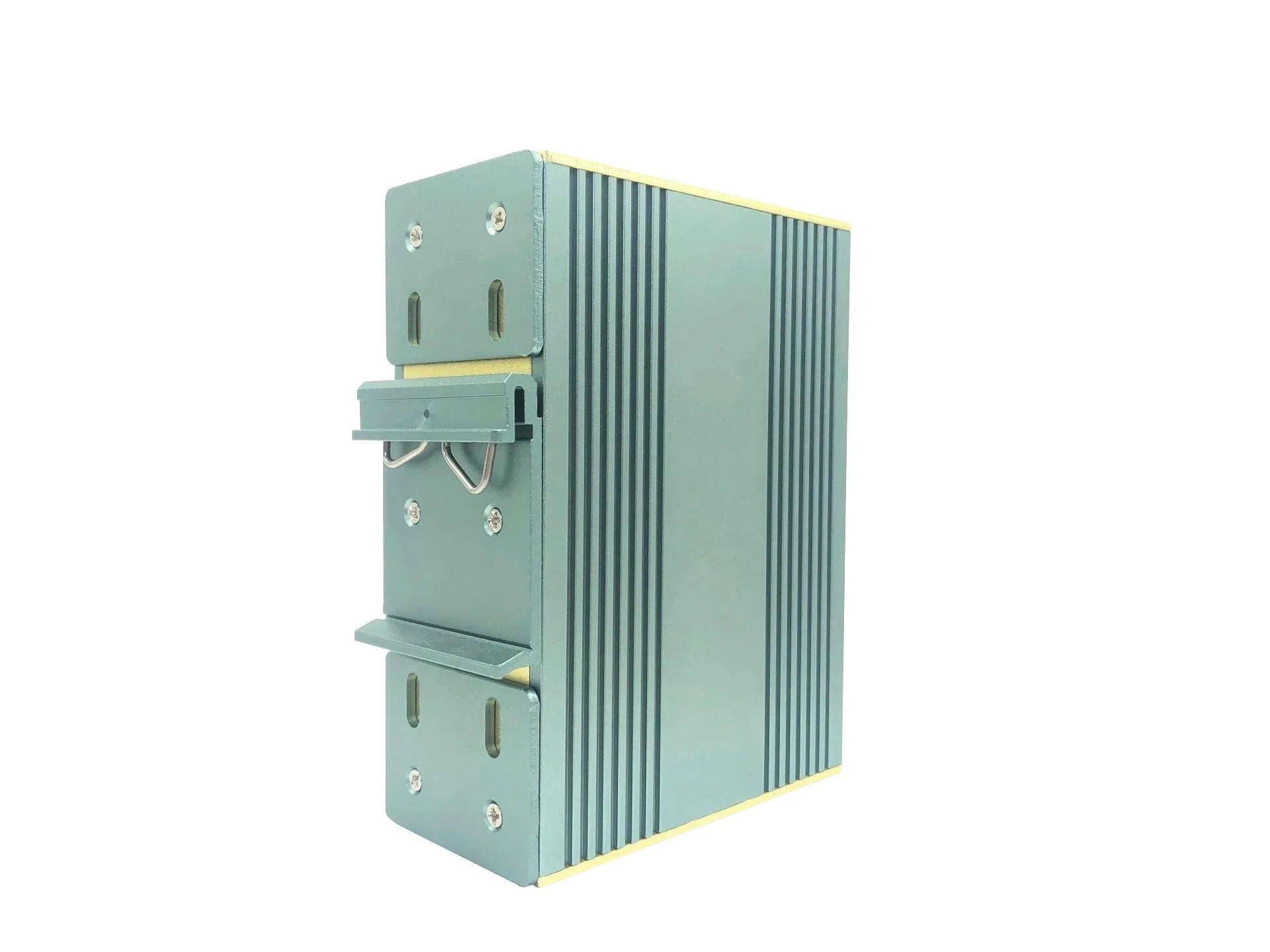

Industrial DIN rail style installation
Transfer distance up to 500 meters
Self-adaptive data rate

🛠️ Manageability

802.3D Ethernet Bridge
Quality of Service (QoS)
IGMP(IPv4) & MLD(IPv6) Snooping

🌡️ Environment

Temp: -40ºC to +80ºC
Humidity: 10%-85% (Operating)
Storage Humidity: 5%-90%

Technical Parameters

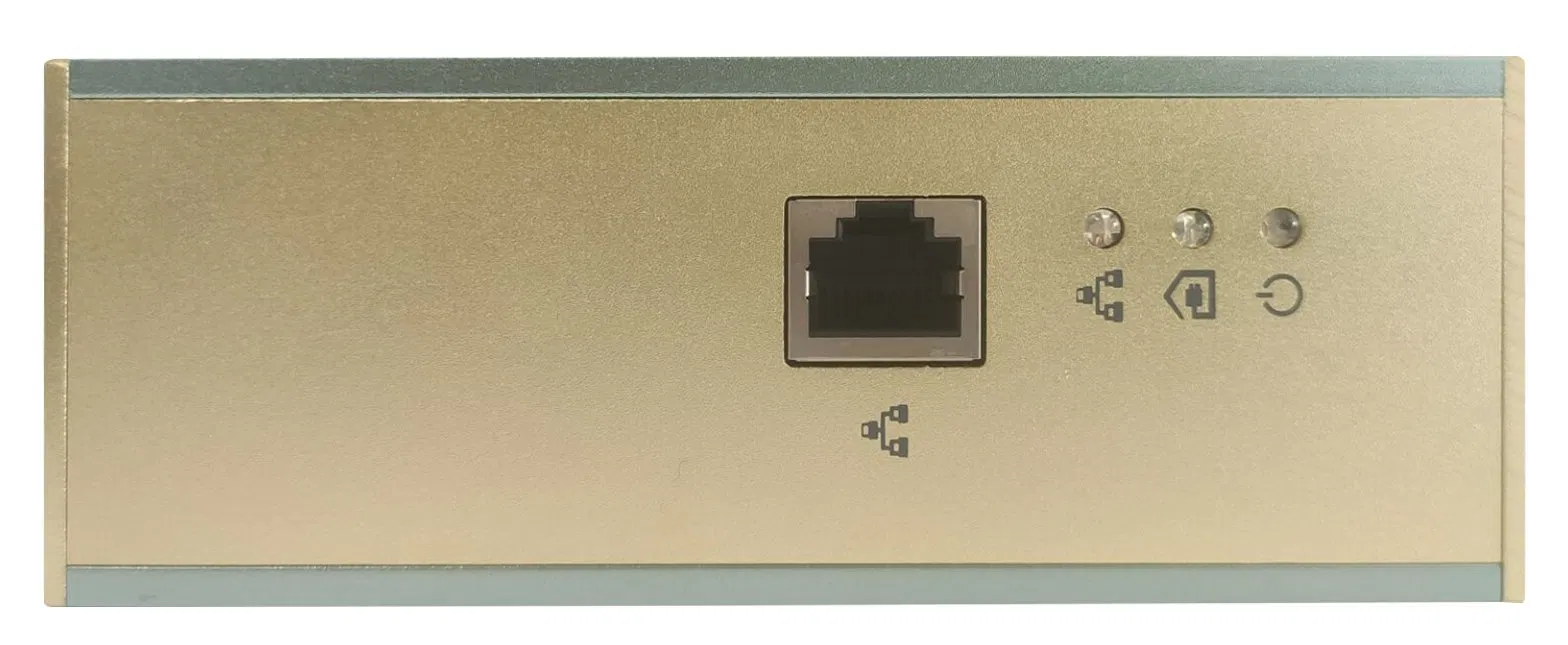

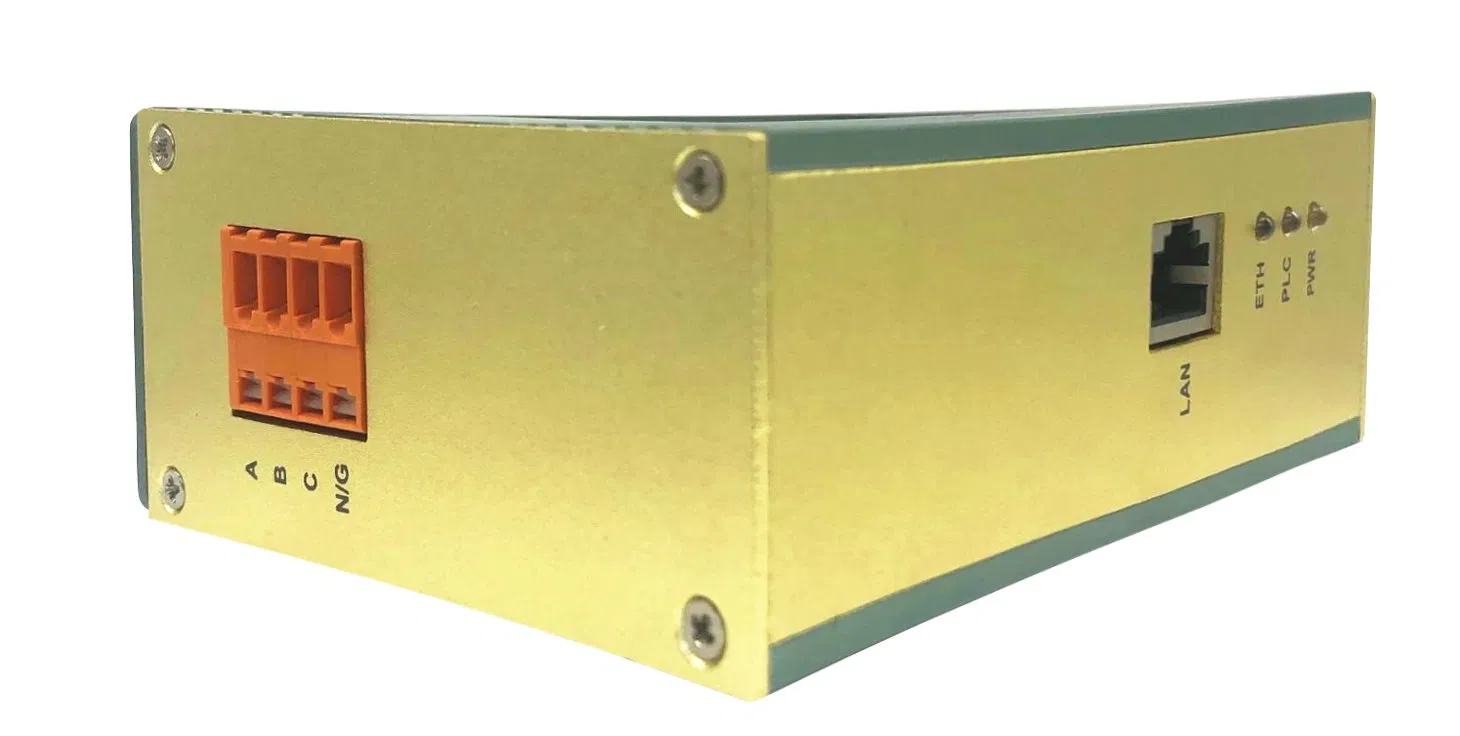

Interface	1LAN 10/100/1000Base-TX self-adaption RJ45, 1AC power interface
LED Indicators	Ethernet, PLC, Power
Transfer Frequency	2-68MHz MIMO
Security	128-AES encryption
Max Group Size	Up to 63 nodes
Protection Level	IP40
Transfer Rate	TCP/IP up to 500Mbps effective
Voltage Range	AC 90V-530V 50/60Hz / DC 100-700V / 80mA
Size (L×W×H)	123 * 97 * 47 (mm)

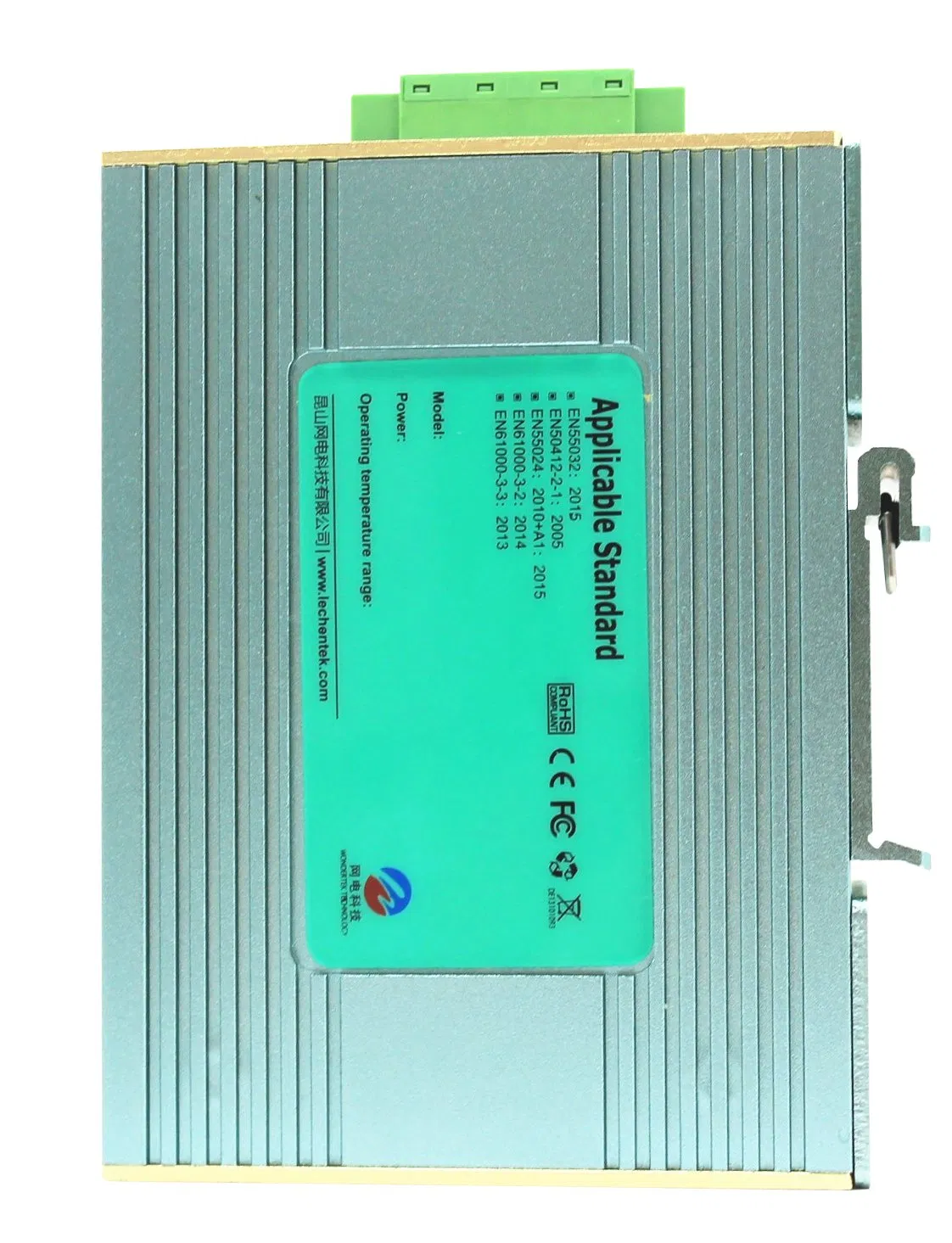

Certifications	FCC, CE class B, RoHS

Reliability & Immunity

Packet Loss: ≤0.1% (100M, load 70%)
Operation: 7*24 hours all-weather stability
Watchdog: Integrated hardware watchdog function
Latency: PING ≤ 20MS
ESD Immunity: ±6kV Direct, ±8kV Air discharge (IEC 60529)
Surge Protection: ±2kV (GB/T 17626.5-2008)
Anti-vibration: TB1433 MX3 standard (0-200Hz, 2g acceleration)

PLC-Blocking-Filter Selection

Filter Series	Rated Voltage	Working Frequency	Rated Current	Protection
WD302 Series	380/440V AC	50/60Hz	10-250A	IP40

⚠️ Installation Note: All loads must be installed on the Filter's LOAD side. Do not connect backwards.

Frequently Asked Questions

Q1: What is the maximum transmission distance for this bridge? A1: The device supports a maximum transfer distance of up to 500 meters over existing power lines.

Q2: Can it operate in extreme temperature environments? A2: Yes, it is designed for industrial use with an operating temperature range of -40ºC to +80ºC.

Q3: How many devices can be networked together in one group? A3: You can network up to 63 devices within a single communication group.

Q4: What are the primary power requirements? A4: The bridge is highly versatile, supporting AC 90V-530V (50/60Hz) and DC 100-700V power inputs.

Q5: What mounting method is supported? A5: It supports standard industrial Rail TS35 (DIN Rail) installation for easy integration into control cabinets.

Q6: Is the data transmission secure? A6: Yes, the device utilizes 128-AES (Advanced Encryption Standard) to ensure secure data transfer over the powerline.
