Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
1 / 5
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security
Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security

Embeddedembedded Industrial Computer 1u Server Case LGA1700 1u Network Security

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
FA-6106S
Max Memory
64G
SATA Interface
SATA3.0
PCB
Four Layers
Structure
Circuit Baded
CPU
Intel 12th/13th i3-i9/Pentium/Celeron
RAM
2*DDR4 Max 64GB
Storage
4 X SATA3.0 + 1*M.2
Size
411mm X 486mm X 44mm
Certification
CE FCC RoHS
Origin
China
Production Capacity
100,000
🚀 Main Features
Industrial Computer Server
  • Support LGA1700 Intel 12th and 13th i3-i5-i7-i9/Pentium/Celeron CPUs
  • 2*DDR4 SO-DIMM slots support up to 64GB RAM
  • 6 Intel 2.5G NIC chips, supports Bypass function (LAN1-4)
  • 4 x SFP 10G (Intel XL710-BM2) for high-speed connectivity
  • Rich I/O: 2USB, 1COM, 4SATA, 3 M.2 (SSD, WIFI, 4G&5G)
⚙️ Technical Specifications
Materials & FinishesHorse steel, exterior surface sandblasted black
MotherboardAD610C6L
ProcessorLGA1700 Intel 12th/13th Core i3/i5/i7/i9/Pentium/Celeron
Storage1 x M.2 M-Key 2280 NVMe PCIe 3.0; 4 x SATA3.0 ports (supports 3.5" and 2.5" drives)
Display1 x HDMI port

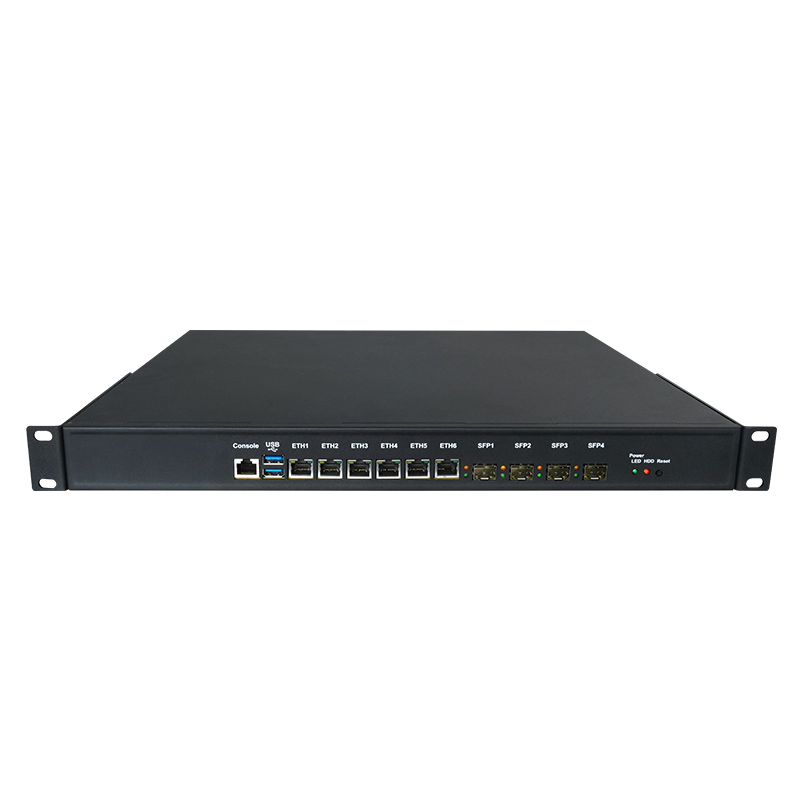

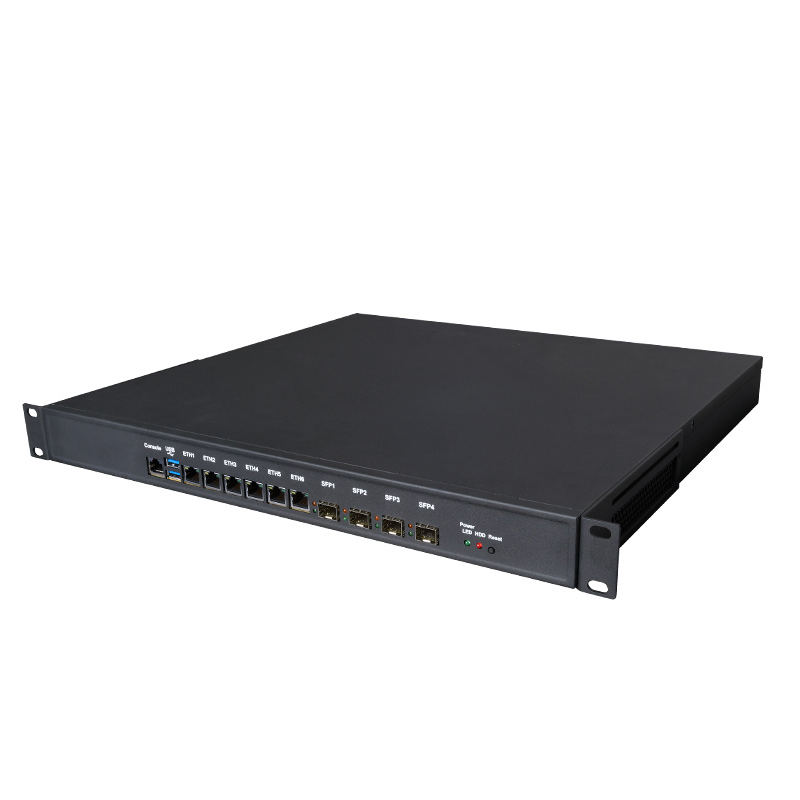

Front Panel1 x RJ45 Console, 2 x USB3.2, 6 x LAN (Intel i226), 4 x SFP 10G, Power/HDD LED

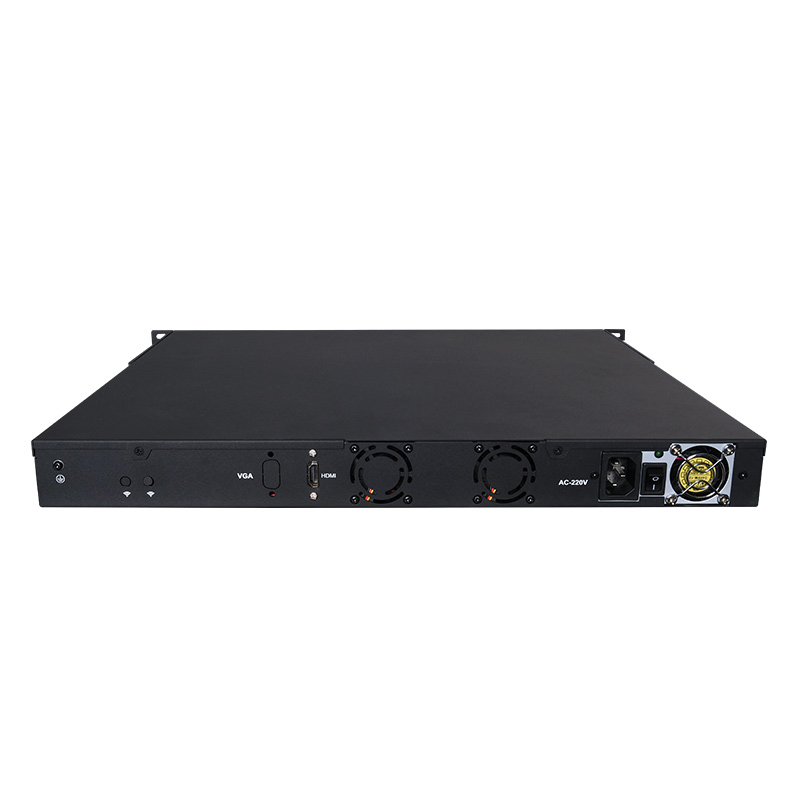

Rear Panel2 x 4020 system fans, 1 x POWER switch, 1 x HDMI, 2 x antenna holes
ExpansionM.2 E-Key (WIFI/BT), M.2 B-Key (4G/5G) with Micro SIM slot, Optional TPM2.0
Power Supply1U ATX 24+8 Pin Power Supply, 300W or above
EnvironmentOperating: -20ºC ~ +60ºC; Storage: -40ºC ~ +85ºC; Humidity: 5% ~ 90%
OS SupportWindows 10, Windows 11, Linux, etc.
DimensionsD411.1mm x W486mm x H43.9mm ±2.0mm
WeightApprox 7Kg
📸 Product Display

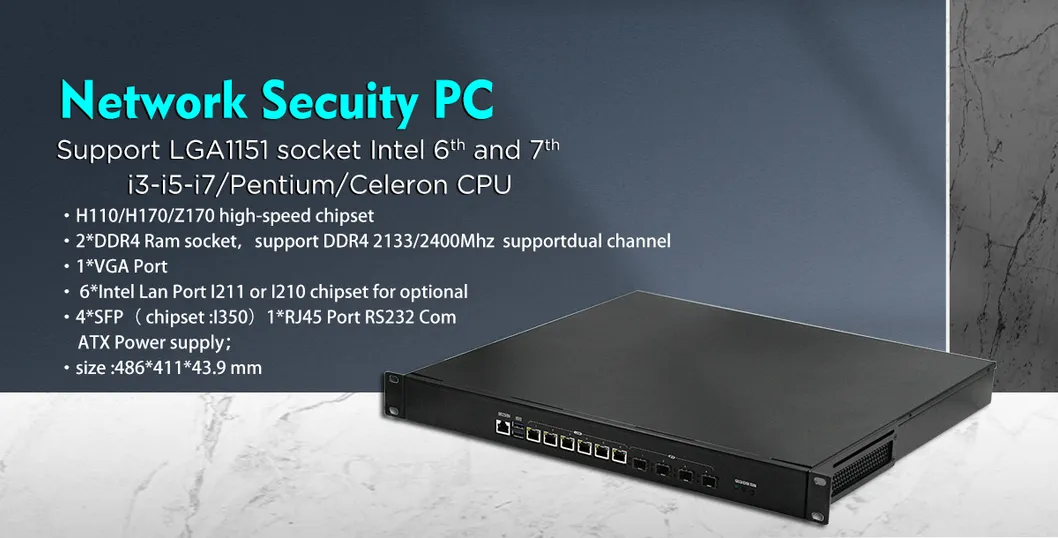

Product View 1

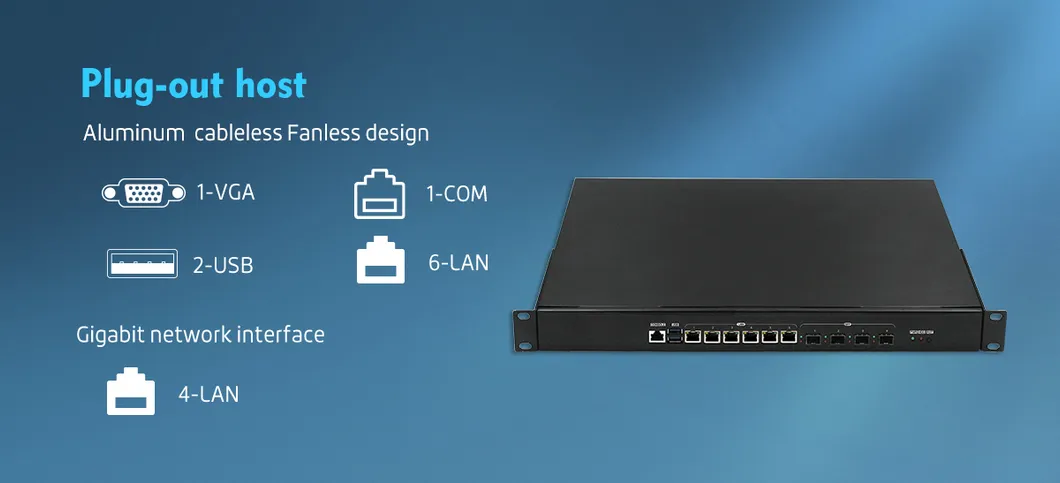

Product View 2

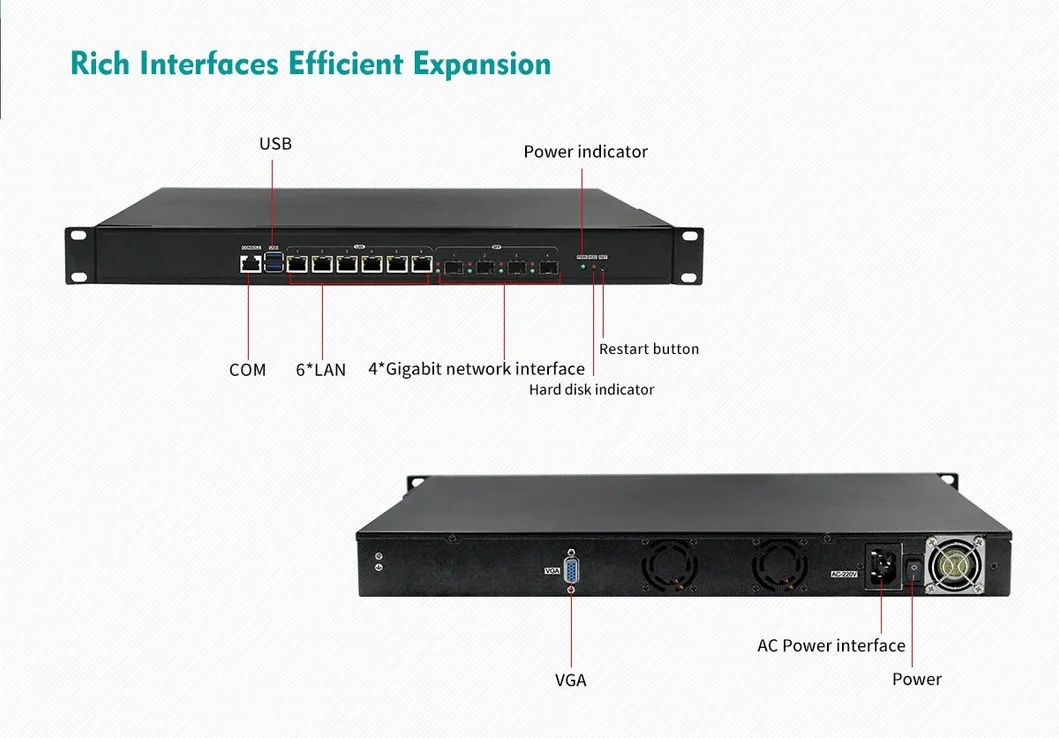

Product View 3

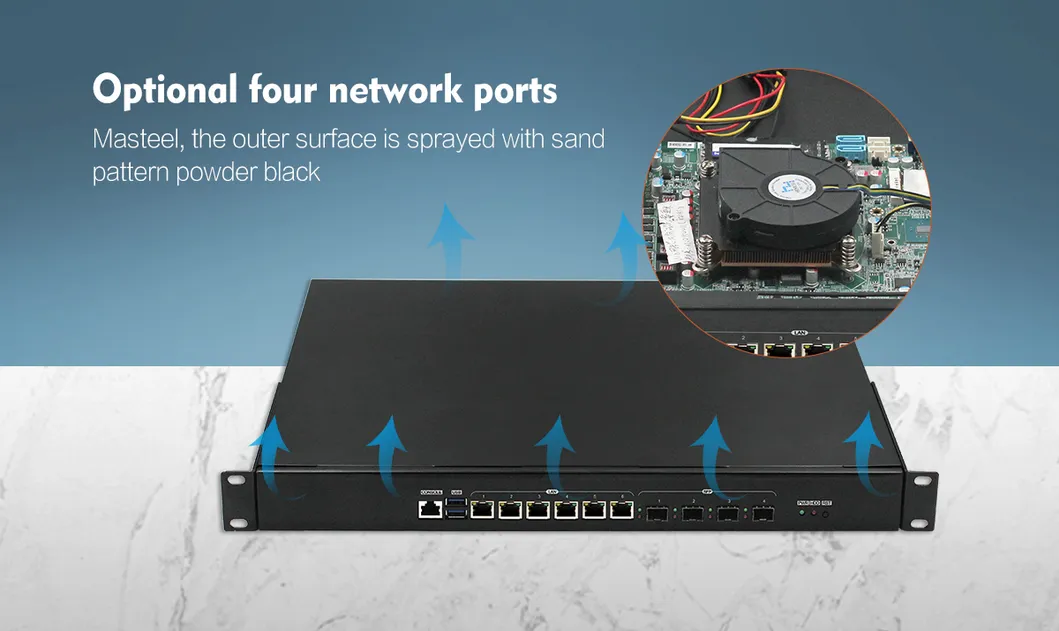

Product View 4
Product View 5
🏢 Production & Quality
Production Line

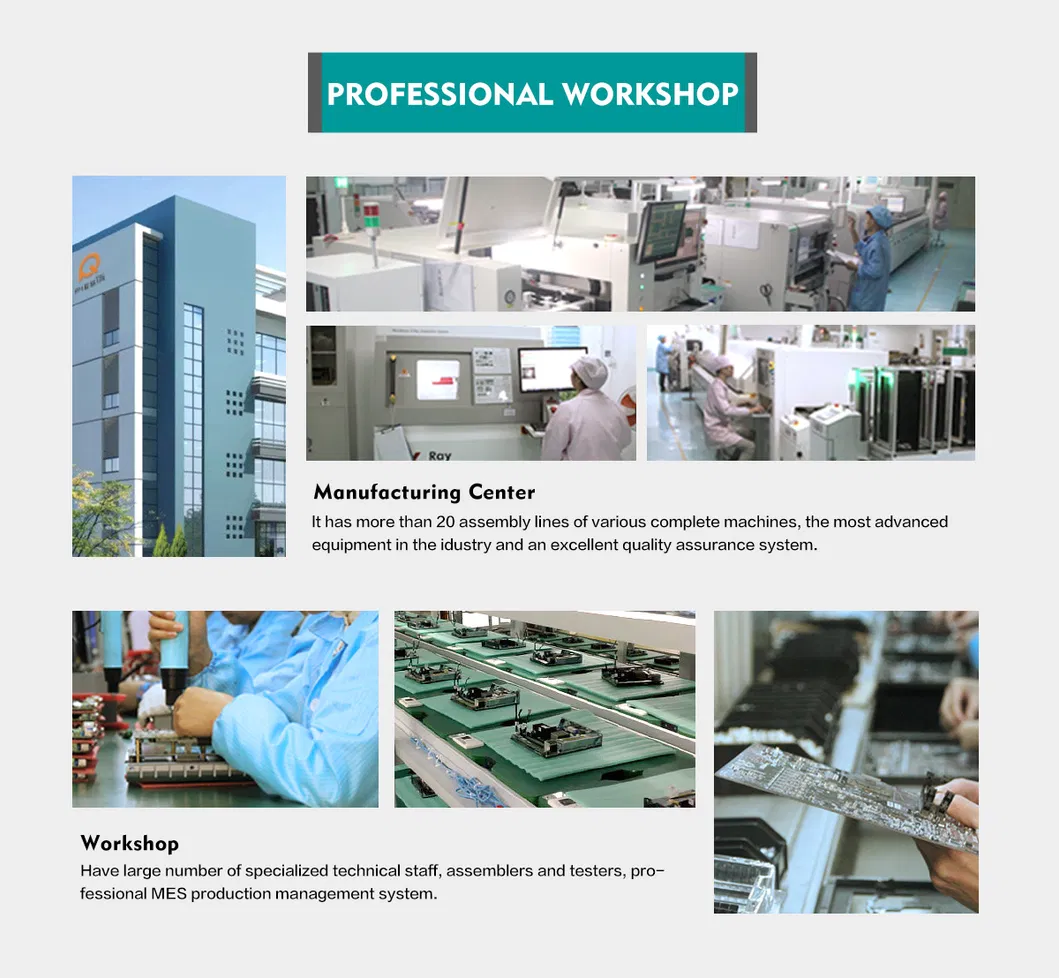

Facility
Certifications
📦 Packaging & Logistics
Packaging
Shipping
Exhibition
❓ Frequently Asked Questions
What is the warranty for your PC hardware?
We provide a 2-year warranty for our industrial computer hardware.
How do you handle quality issues during the warranty period?
Please provide photos or videos of the issue. We will offer free replacement or arrange for free maintenance at our facility.
What types of payment methods are accepted?
We support T/T (Telegraphic Transfer), Western Union, and PayPal.
Can you provide support for specific market requirements?
Yes, please inform us of your detailed market demands. We will discuss and propose the most helpful suggestions and solutions for your position.
What are the available shipping options?
Options include Postal parcels for small samples, Express (DHL, TNT, UPS) for air samples or mid-sized orders, and Sea delivery for large volume orders.
What is the typical lead time for production?
Samples are generally finished within 3-5 working days after payment. Mass production lead time depends on the specific order quantity.
