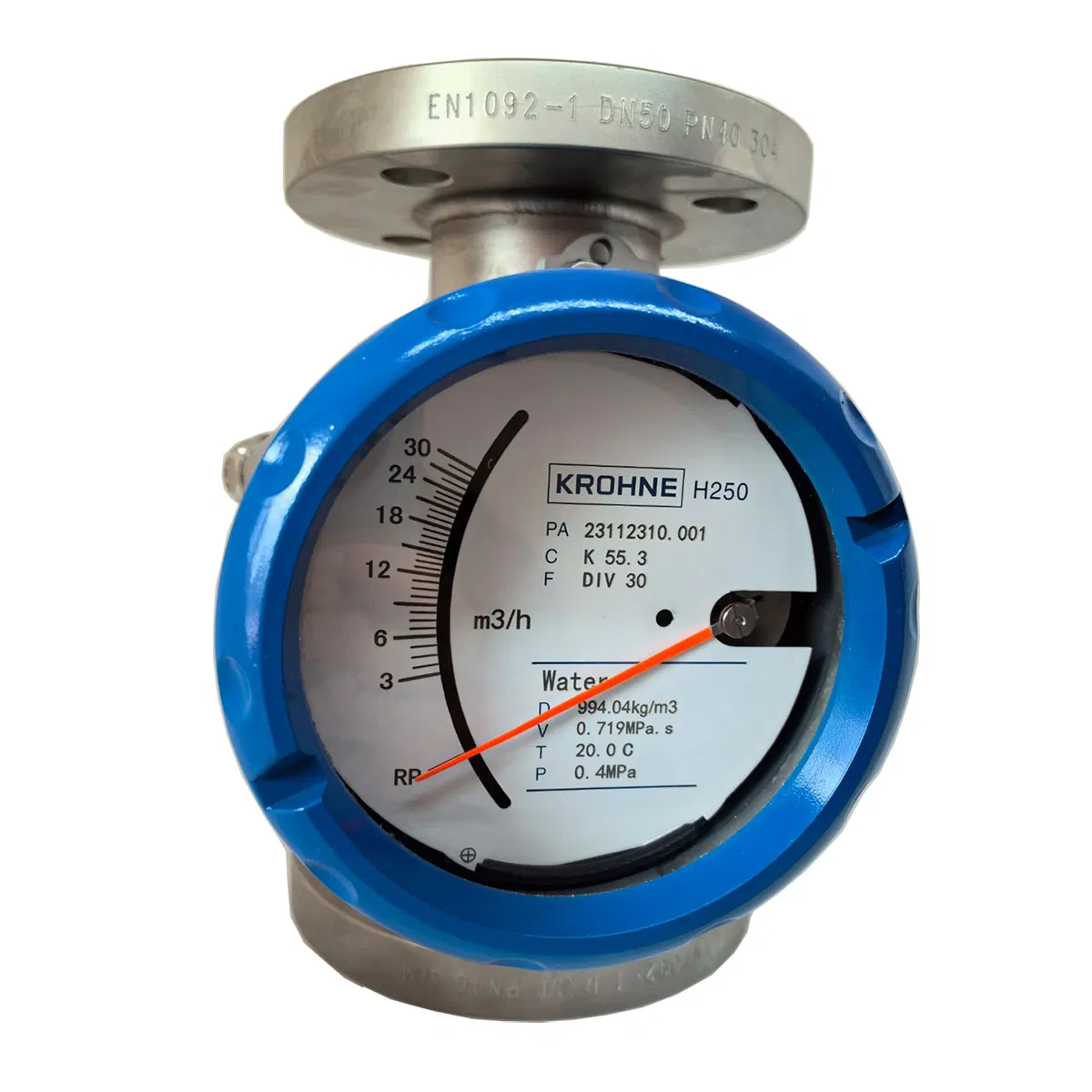

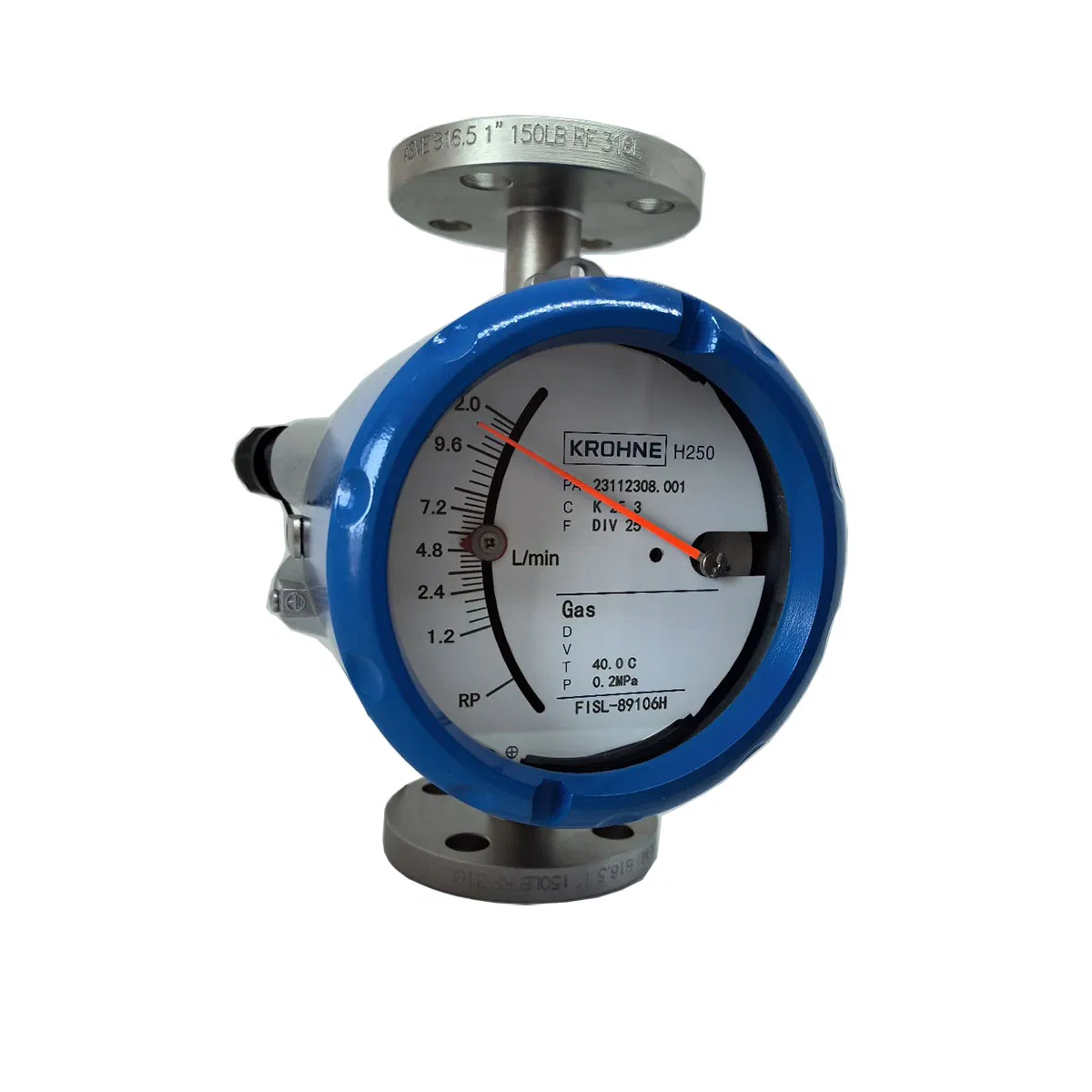

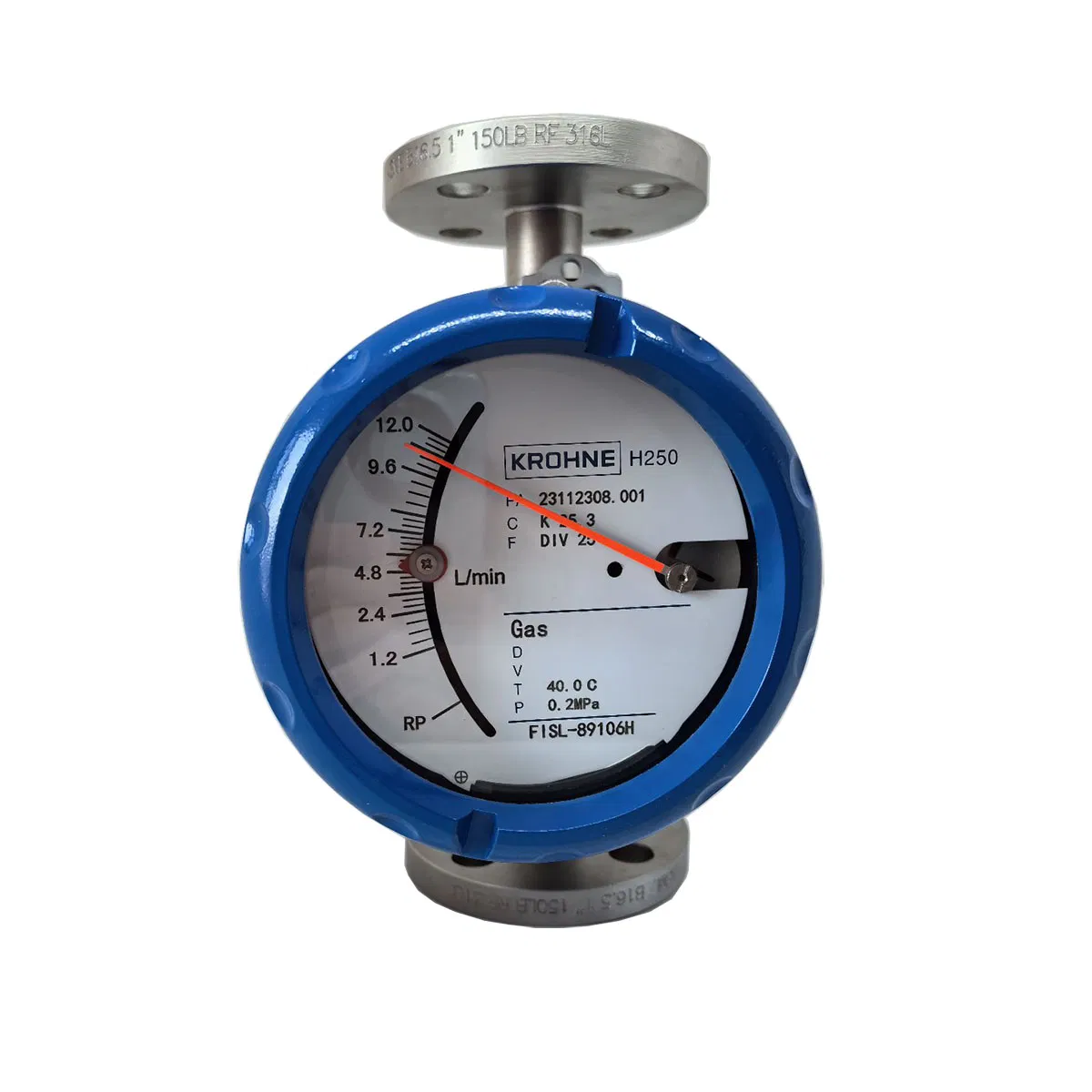

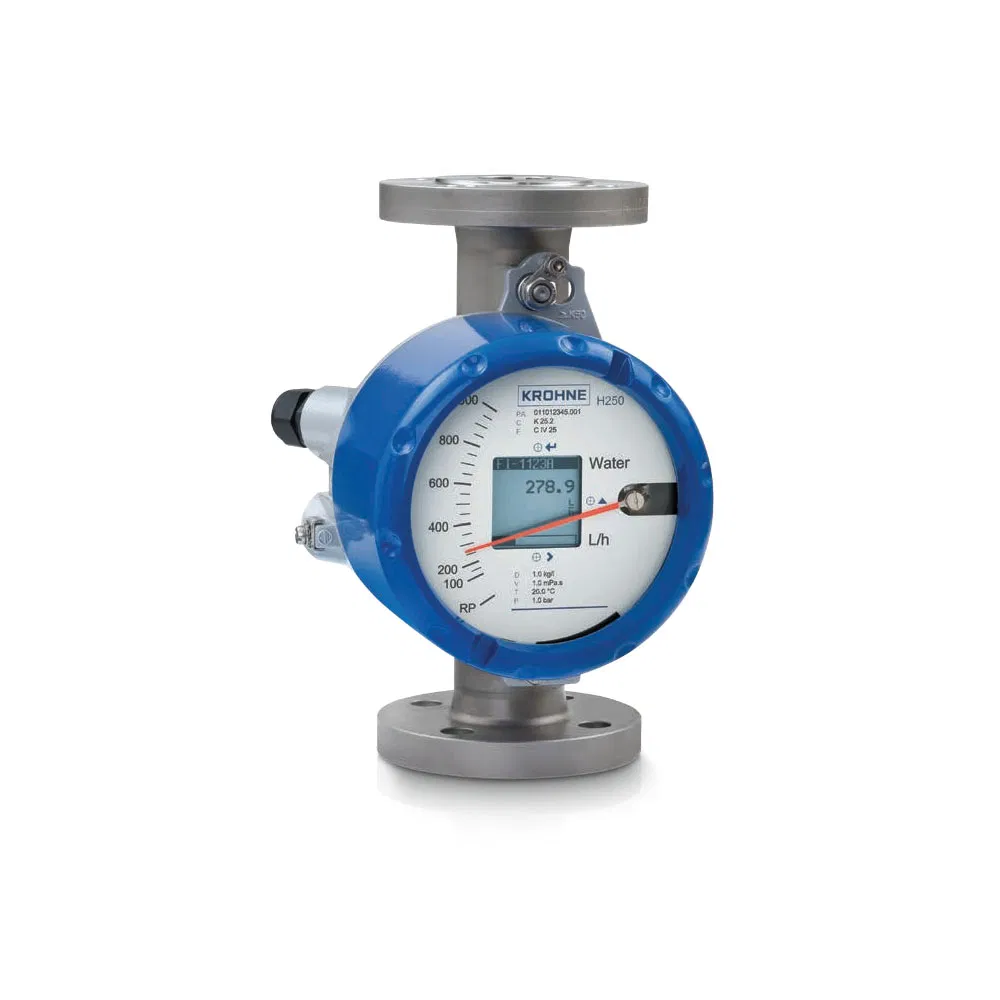

Krohne Flow Meter H250 M40 Metal Variable Area Flowmeter for Liquid Gas

1 / 5

Krohne Flow Meter H250 M40 Metal Variable Area Flowmeter for Liquid Gas

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

H250 M40

Accuracy

1.0%

Main Application

Corrosive Liquid/Gas

Size

DN15-DN200

Sensor

Tube/Flange

Type

Variable Area Flow Meter

Measuring Media

Liquid and Gas

Certification

JIS, DIN, CE, RoHS

Display

LCD

Power

24V DC

Output

4-20mA

Trademark

KROHNE

Product Introduction

💡

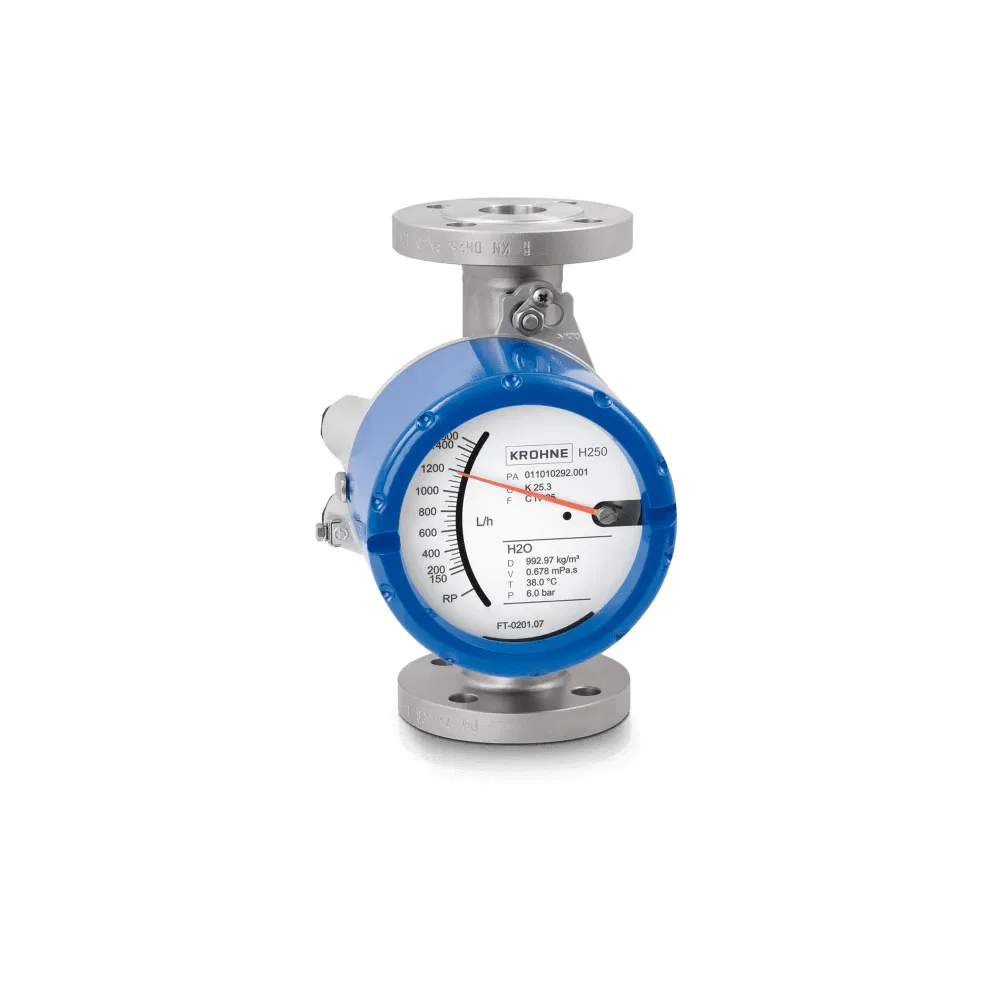

H250 M40 Rotameter: The standard variable area (VA) flowmeter for the process and OEM industry. It combines mechanical flow measurement of liquids or gases with state-of-the-art communication capabilities. The device is modularly extendable, allowing modules to be added or replaced without process interruption.

The sturdy all-metal flowmeter can be used in applications with high pressures (up to 1000 barg), extreme temperatures (-196 to +400°C), or aggressive media. It allows installation in horizontal or descending pipes up to DN150. Special hygienic versions are also available. The H250 M40 is intrinsically safe and explosion-proof.

Key Features

Simple, low-cost installation

Modular scalability: mechanical to fieldbus

Universal Ex concept: Exi, Exec, Exd, Ext

Suitable for SIL2 safety applications

Any installation position: vertical or horizontal

Robust construction for extreme pressures

Choice of Materials: Stainless Steel, Hastelloy, Titanium

Extended measuring span: up to 100 : 1

High application safety for low flows

CFM diagnostics for float block detection

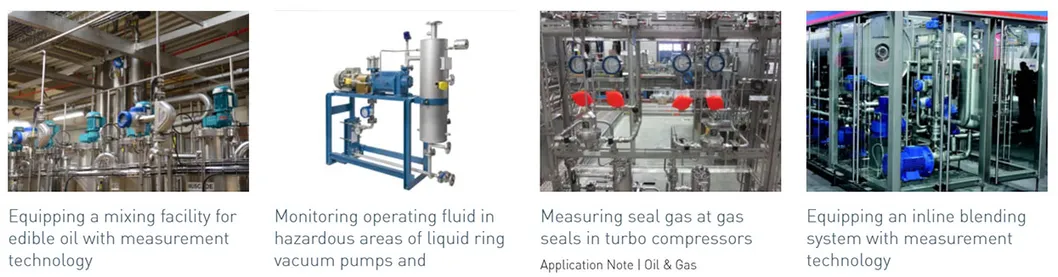

Industries

Chemicals, Petrochemicals, Pharmaceuticals, Machinery, Food & Beverage, Oil & Gas, Iron/Steel, Power Plants, Pulp & Paper, Water & Wastewater, Marine.

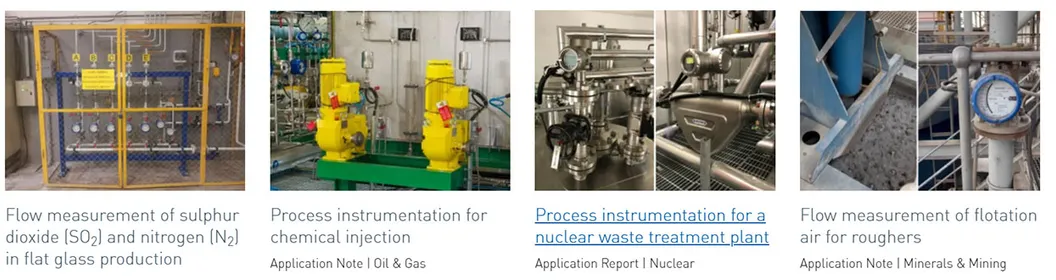

Applications

Nitrogen inerting, Catalyst/Additives measurement, Chlorine/Sulphur compounds, Demineralised water, Lubricating/Cooling monitoring, Compressor sealing, Industrial furnaces.

Operating Conditions

Parameters	Details	Standard Values
Accuracy (H250/RR/HC)	Measured value (VDI/VDE3513-2)	1.6% (1.5% Full Scale)
Max Temperature	Standard version	-196 to +300°C
Optional High Temp	Special request	Up to +400°C
Protection Class	M40, M40R	IP66/68 (NEMA 4/4X/6)
Max Pressure	Heating cone variant	Up to 40 barg (DN15-50)

Product Certifications

The device meets international safety standards including ATEX, IECEx, UKEx (II2GD IIC), FM (Class I Div 1), NEPSI, CCOE/PESO, EAC, INMETRO, and KGS for various industrial environments.

Production Excellence

Frequently Asked Questions

❓ How quickly can I expect a response to my inquiry?

Our team ensures a rapid response time, typically contacting you within 2 hours of receiving your inquiry.

❓ Are product samples available for testing?

Yes, we maintain a stock of materials to provide samples as quickly as possible for your evaluation.

❓ What quality certifications do your instruments hold?

Our products are fully certified with ISO9001, CE, SIL, RoHS, and EX certifications to ensure global compliance and safety.

❓ What is the typical lead time for an order?

Standard items are often in stock. With a strong executive team, we ensure the fastest possible delivery to meet your project deadlines.

❓ Do you provide customized or OEM services?

Absolutely. We provide high-quality standard products as well as non-standard customized services and OEM solutions tailored to your specific requirements.

❓ Is technical support available for installation?

Yes, we offer professional technical guidance for our modular flowmeters to ensure seamless integration into your industrial processes.
