Honeywell PLC Module 10005/1/1 10001/R/1 10014/H/F 10024/H/F 10024/I/F FSC System in stock

1 / 5

Honeywell PLC Module 10005/1/1 10001/R/1 10014/H/F 10024/H/F 10024/I/F FSC System in stock

Customization:	Available
Task:	Check datasheet
Structure:	Check datasheet

Send Inquiry

Product Description

Basic Information

Model NO.	10024/I/F
Mathematical Model	Check datasheet
Condition	New
Warranty	1 year
Lead Time	In Stock
H/S CODE	8537101190
Trademark	Honeywell
Origin	USA

Product Description

Honeywell PLC Module Series

High-performance FSC System modules including 10005/1/1, 10001/R/1, 10014/H/F, 10024/H/F, and 10024/I/F currently in stock.

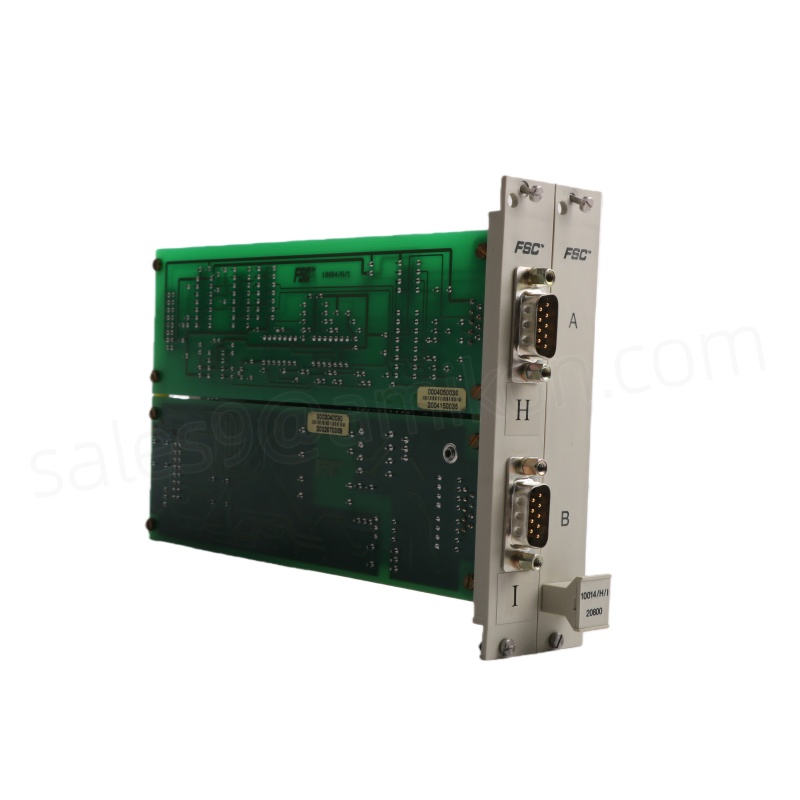

10014/H/F Specification

Dimensions	4 cm x 18.4 cm x 12.8 cm
Weight	0.34kg
Description	Honeywell 10014/H/I DUAL PORT EPROM FLASH MEMORY

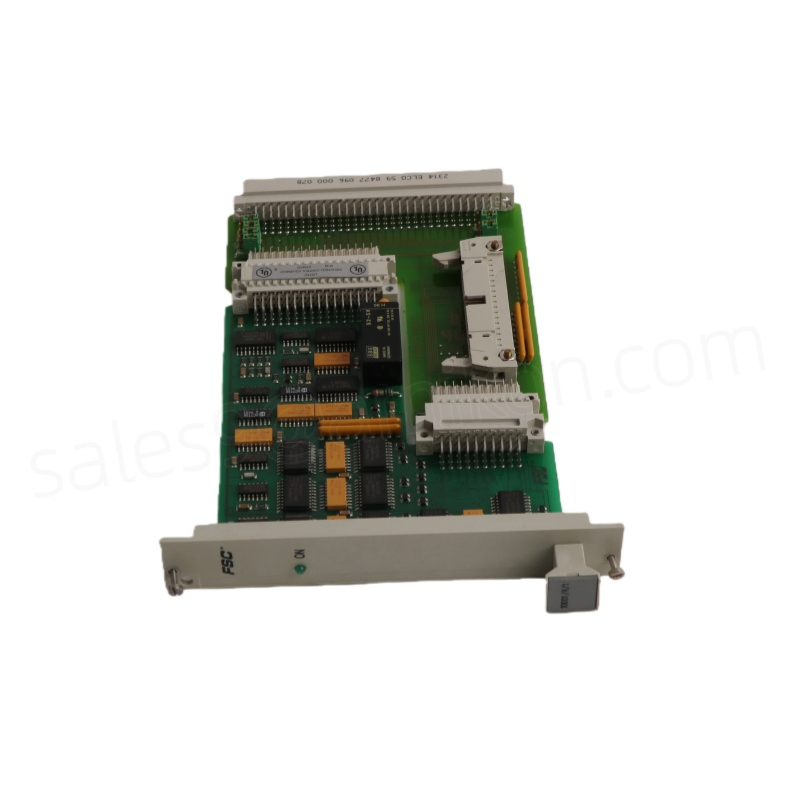

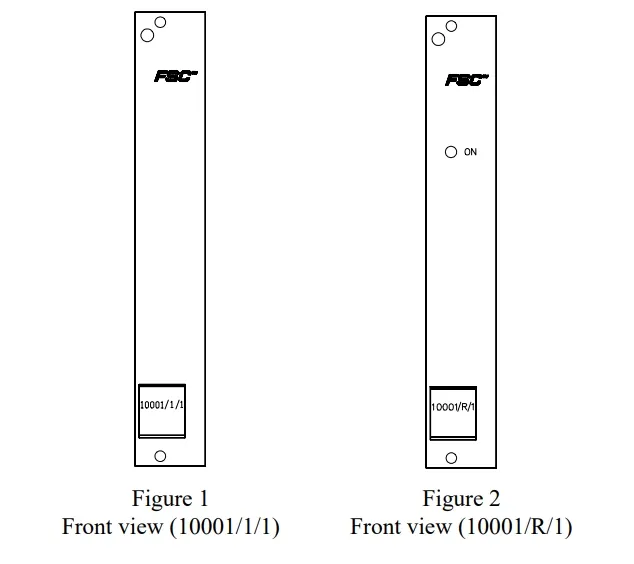

10001/R/1 Vertical Bus Driver (VBD)

The Central Part (CP) of the FSC system connects to the I/O level via VBD modules. Up to 14 drivers can be installed per CP, supporting up to 10 horizontal bus drivers each.

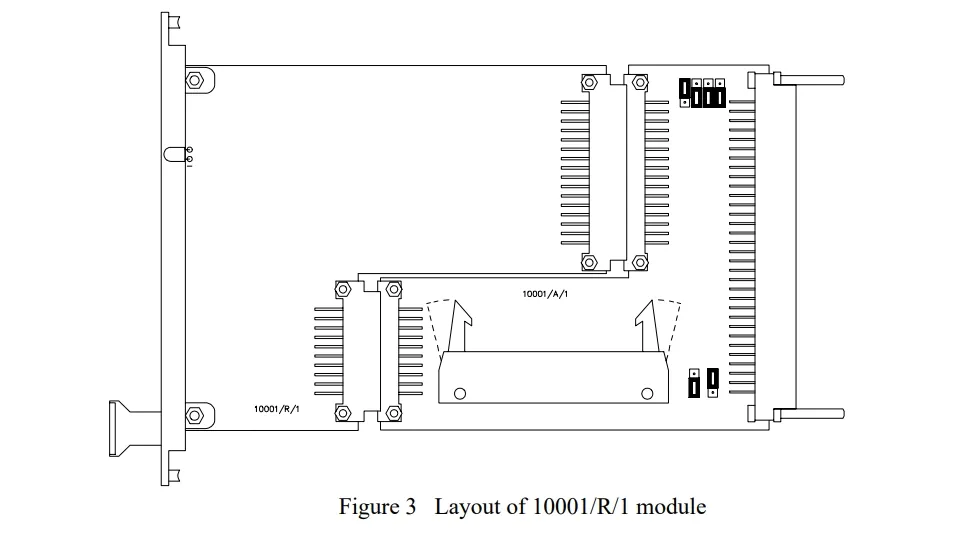

The 10001/1/1 and 10001/R/1 modules consist of an electronic mainboard and a wiring part (10001/A/1). The design allows for the exchange of electronic parts without disconnecting the vertical bus flat cable.

Technical Application: 10024/H/F

Safety Manager SC is a third-generation safety platform using QMR (2oo4D) architecture. It is modular, scalable, and certified by TUV Rheinland for SIL3 applications. It provides high flexibility for Emergency Shutdown (ESD) and Safety Instrumented System (SIS) tasks.

10024/I/F Enhanced COM Module

Dimensions	17.2cm x 10.2 cm x 4.1cm
Weight	0.5kg
Feature	Supports ISA S88.01 batch standard; executing all 4 levels of the procedural model.

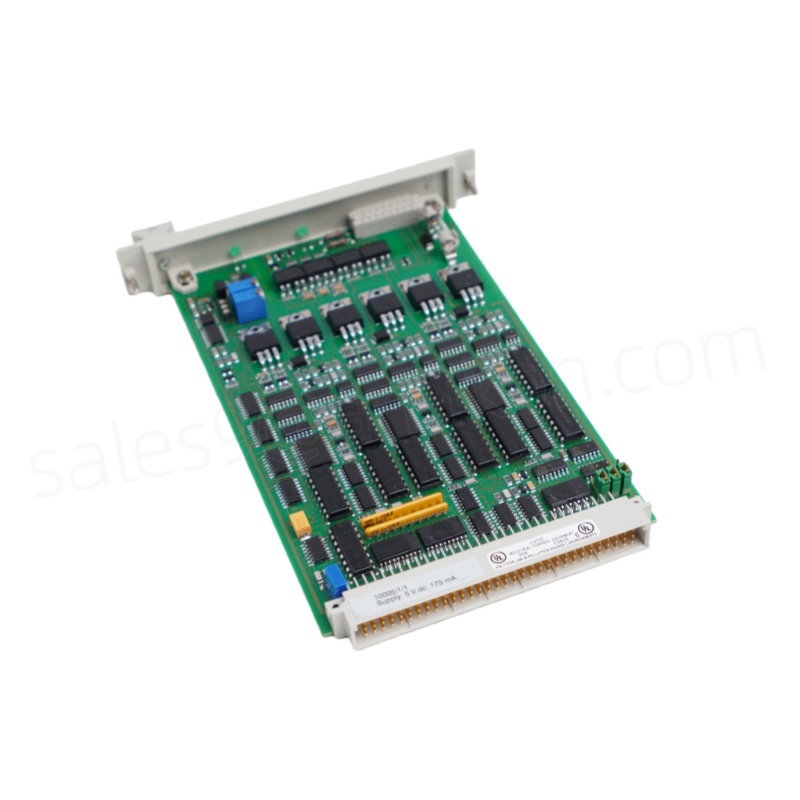

Watchdog Module (WD) 10005/1/1

Monitors system parameters including application loop execution time, 5 Vdc voltage (over/under), and memory errors. The WD module uses a 2-out-of-3 voting system for maximum reliability.

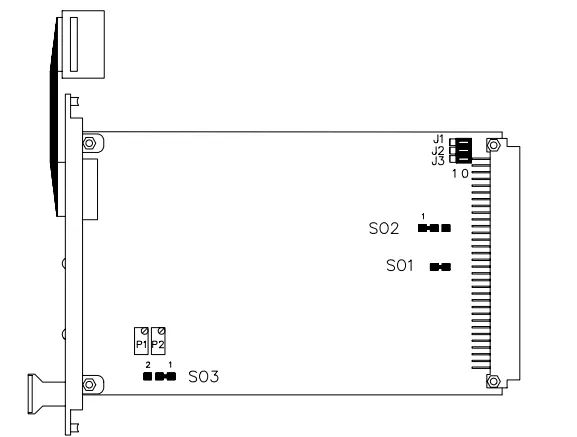

Figure: Jumper settings on 10005/1/1 module

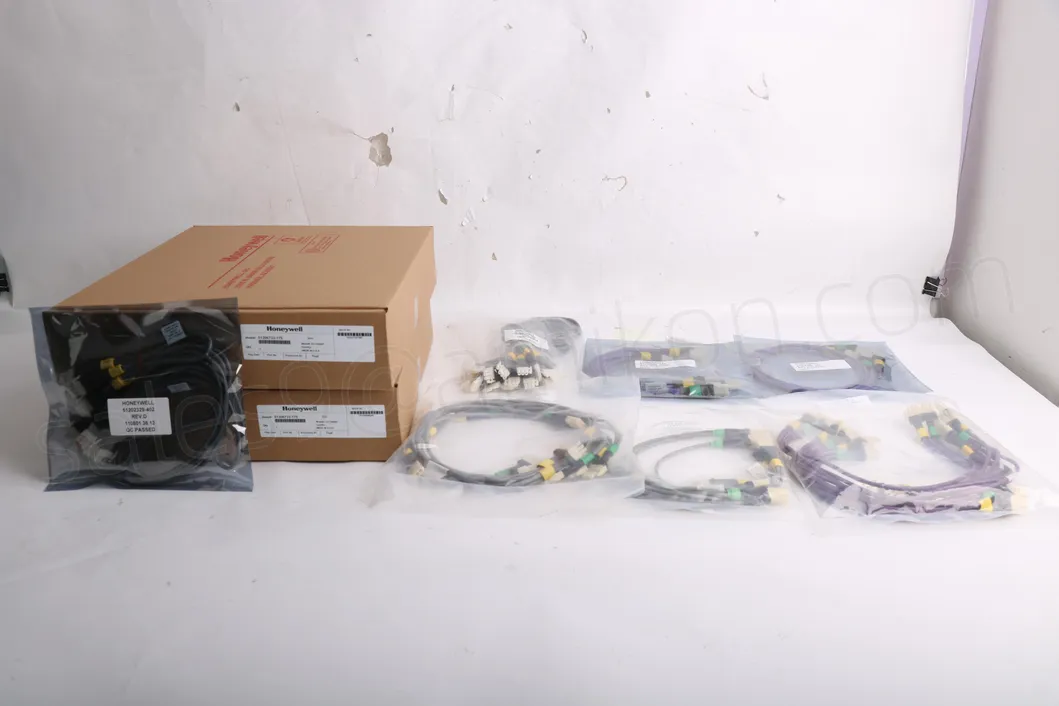

Product Gallery

Related Honeywell Models

HONEYWELL	MU-FOED02 51197564-200	HONEYWELL	MC-TAOY22 51204172-175	HONEYWELL	MC-PDIY22 80363972-150
HONEYWELL	MC-TSTX13 51309142-175	HONEYWELL	MC-TAOX12 51304335-125	HONEYWELL	MC-PAIH03 51304754-150
HONEYWELL	MC-TDIY22 51204160-175	HONEYWELL	MC-PSIM11 51304362-350	HONEYWELL	FS-USI-0001

Frequently Asked Questions

Are the Honeywell PLC modules brand new?

Yes, all modules like 10024/I/F and 10005/1/1 are original new products.

What is the standard warranty period?

We provide a comprehensive one-year warranty on all original new Honeywell components.

How long does international shipping take?

For in-stock items, shipping usually takes 3-5 business days to reach your location via express couriers.

Which shipping methods are available?

We ship worldwide using trusted carriers such as DHL, UPS, FedEx, and TNT.

What is the accepted payment method?

We primarily accept T/T (Telegraphic Transfer), which usually clears within 1-2 business days.

Do you provide technical datasheets?

Yes, product parameters and mathematical models can be verified through the official datasheet provided upon request.
