Krohne Flowmeter H250 DN15-DN200 Flow Meter for Water Oil Gas

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

H250 M40

Accuracy

1.0%

Main Application

Water, Wastewater, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas

Size

DN15-DN200

Sensor

Tube/Flange

Type

Variable Area Flow Meter

Measuring Media

Liquid and Gas

Certification

JIS, DIN, CE, RoHS

Display

LCD

Power

24V DC

Output

4-20mA

Communication

Hart + FF Dual Protocol

Packaging & Delivery

Package Size

55.00cm * 55.00cm * 45.00cm

Gross Weight

7.000kg

Lead Time

20 days (1 - 1 Pieces); To be negotiated (> 1 Pieces)

Product Overview

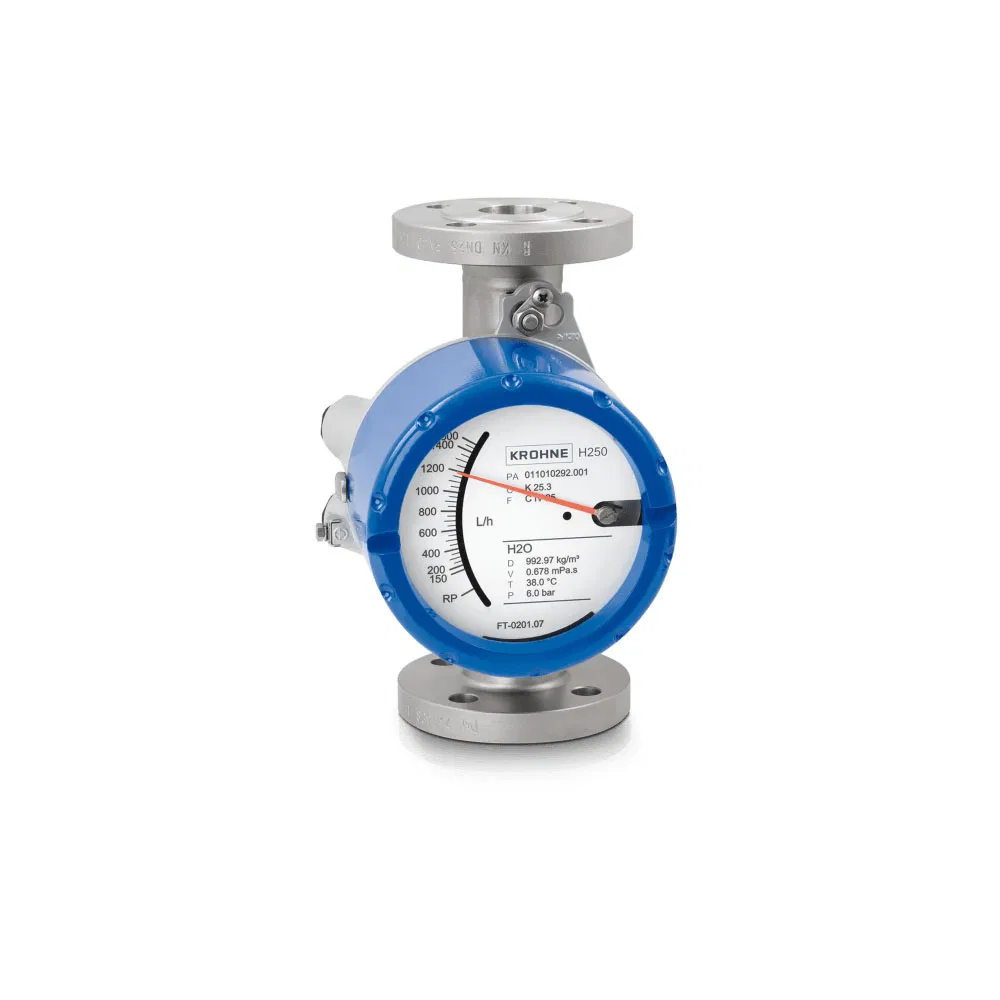

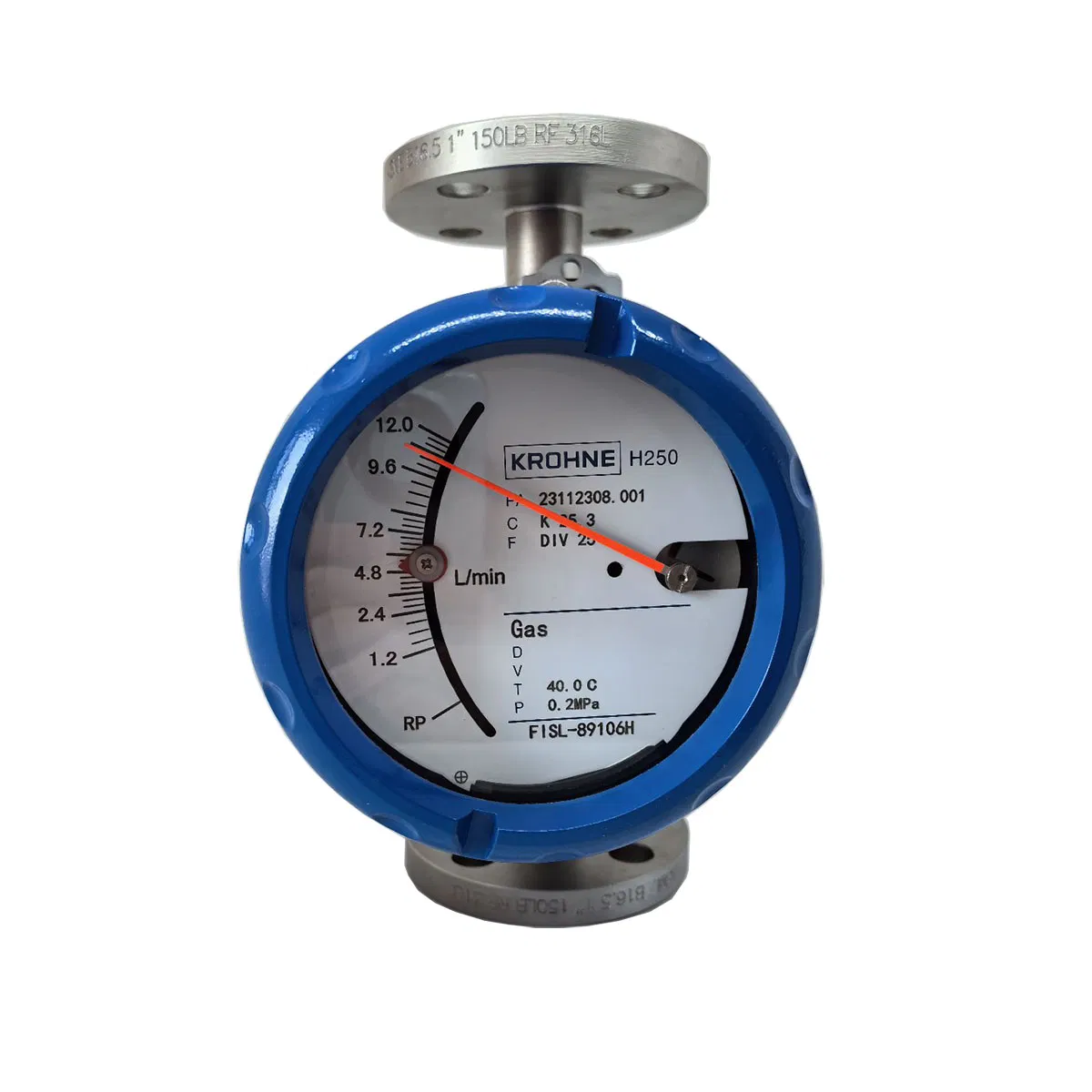

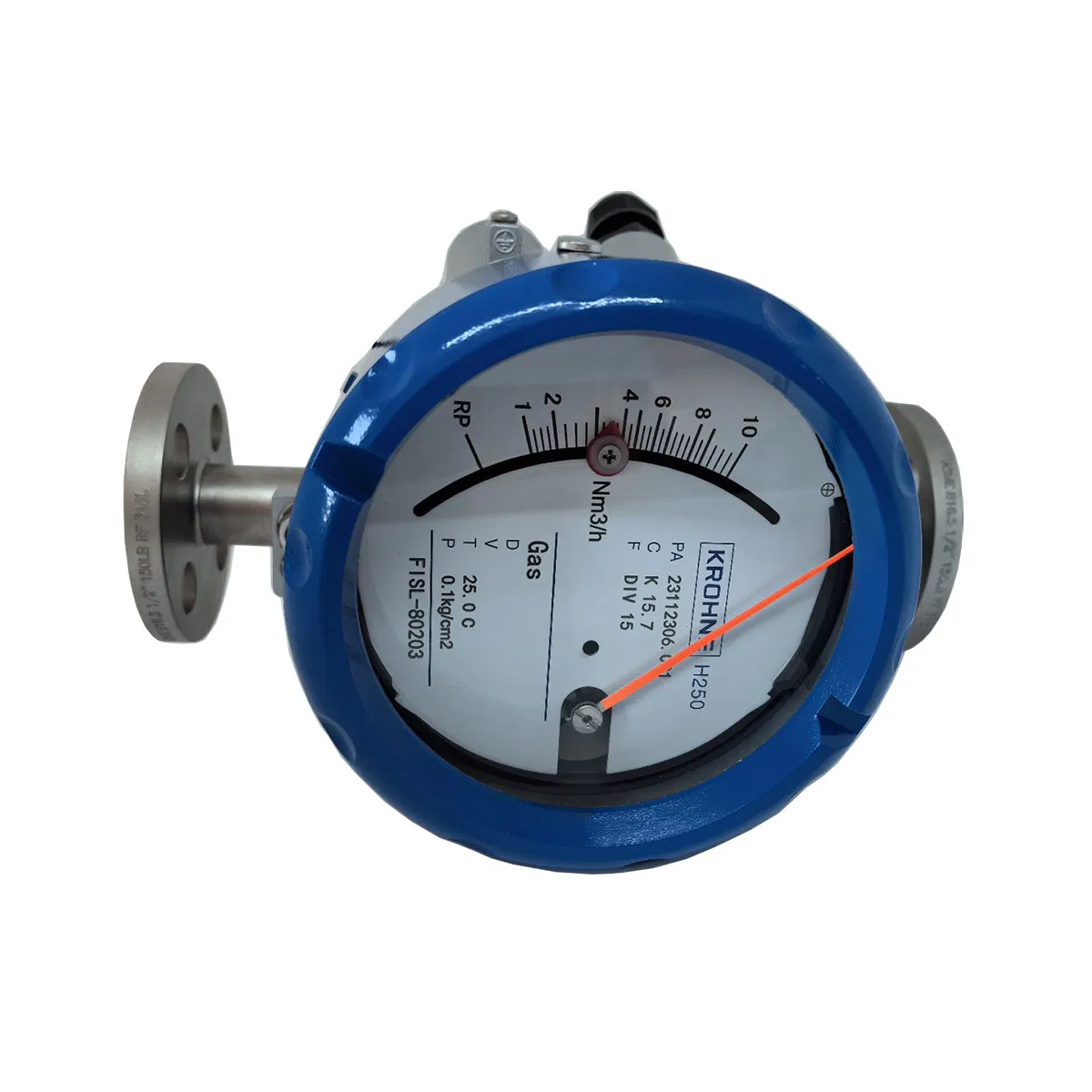

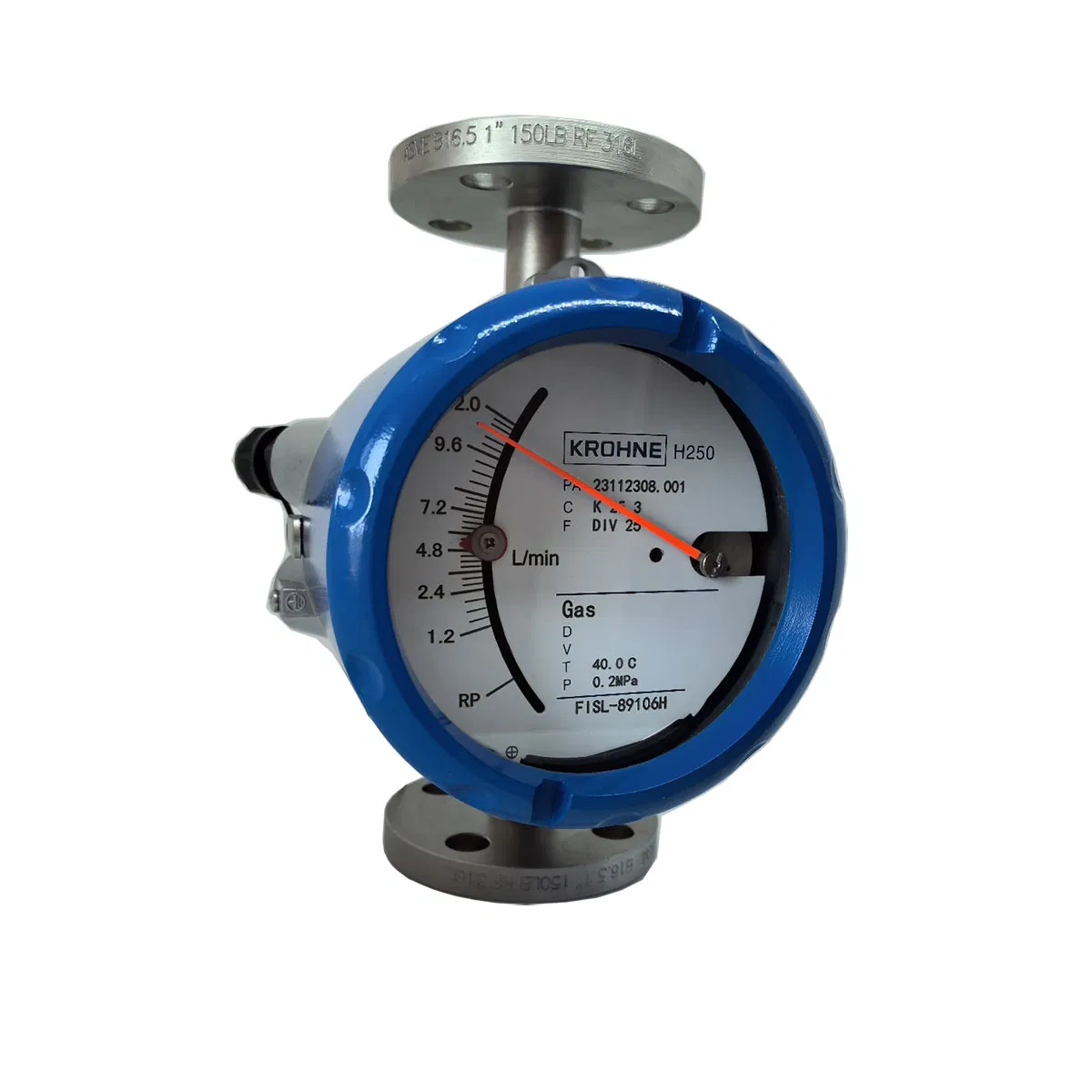

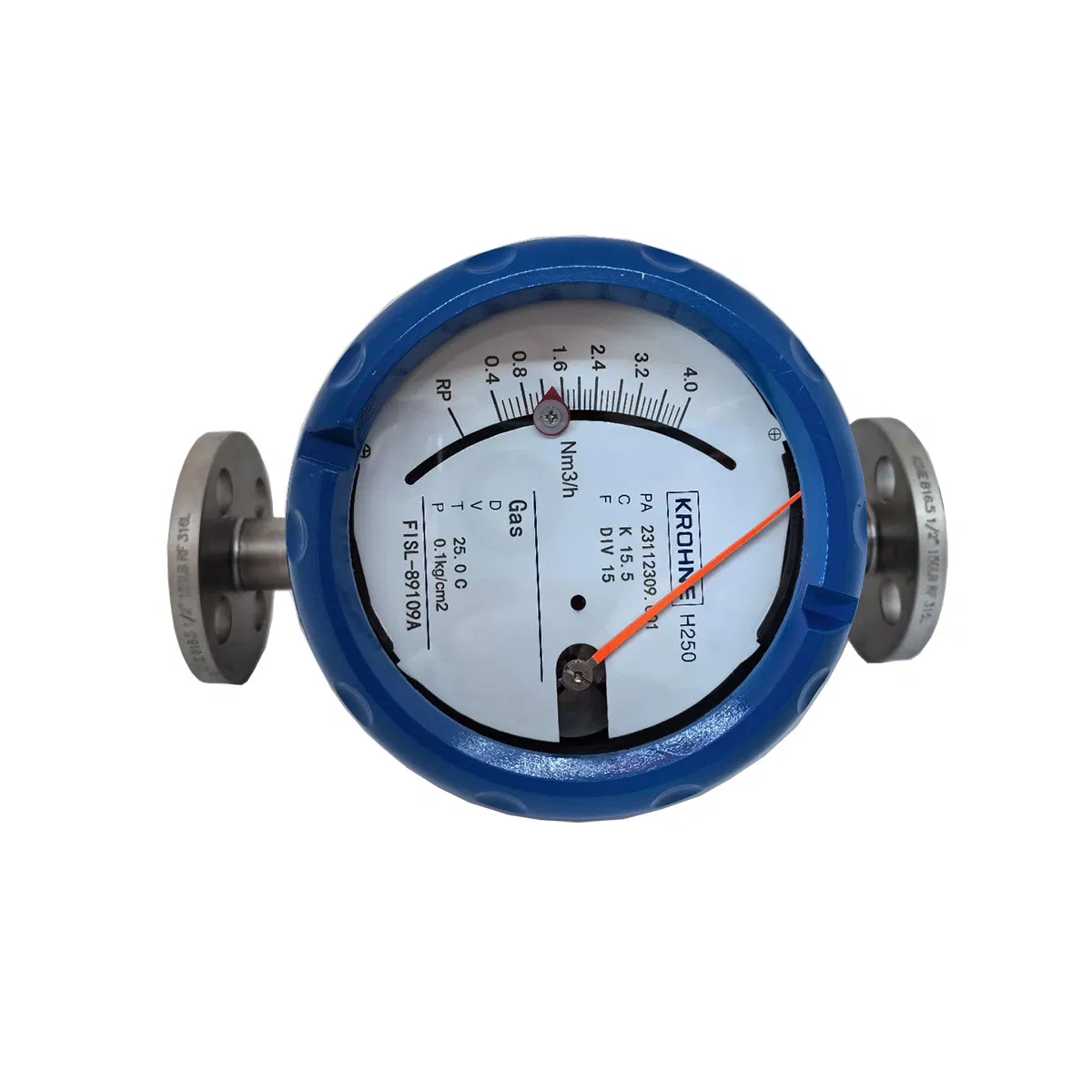

H250 DN15-DN200 Flow Meter for Water, Oil, and Gas

The H250 M40 is the standard variable area (VA) flowmeter for the process and OEM industry. The VA meter combines mechanical flow measurement of liquids or gases with state-of-the-art communication capabilities. The device is modularly extendable. Additional electronic modules can be added or replaced at any time without process interruption.

The sturdy all-metal flowmeter can be also used in applications with high pressures (up to 1000 barg), extreme temperatures (-196…+400°C) or aggressive media. It allows installation in horizontal or descending pipes up to DN150 / 6".

Core Features

Simple, low-cost installation without auxiliary power supply
Modular scalability: from mechanical to analogue to fieldbus
Universal Ex concept: Exi, Exec, Exd and Ext
Suitable for safety-related SIL2 applications
CFM application diagnostics for detection of float blocks
Any installation position: vertical upward, horizontal, vertical downward
Robust construction for extreme operating pressures
Materials: Stainless steel, Hastelloy®, Titanium, Monel®, PTFE/TFM
Extended measuring span: up to 100 : 1

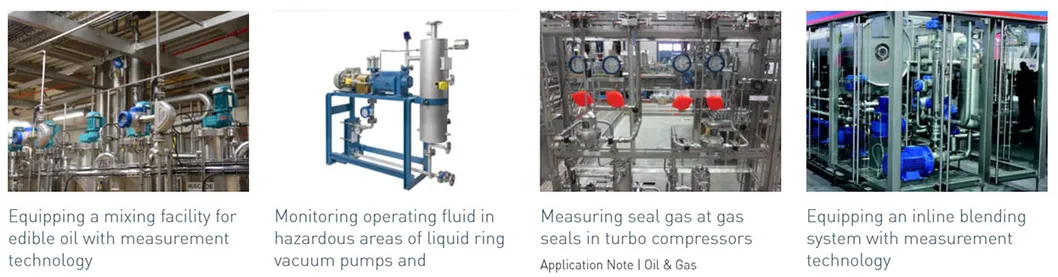

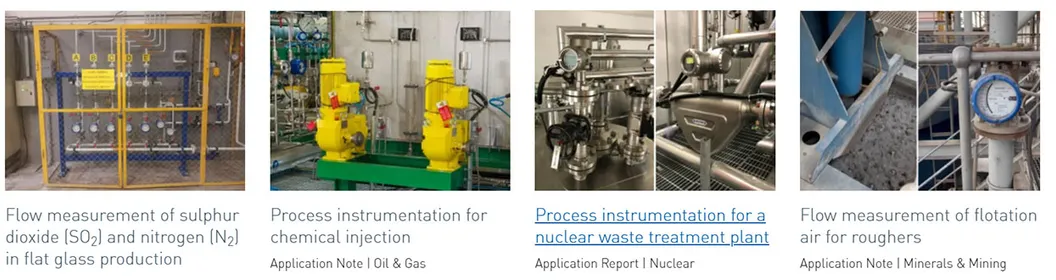

Industrial Sectors

Chemicals & Petrochemicals

Pharmaceuticals

Food & Beverage

Oil & Gas

Power Plants

Water & Wastewater

Marine Industry

Pulp & Paper

Technical Data

Parameter	Specific Version	Value / Range
Measurement Accuracy	H250 /RR /HC /F	1.5% of full scale range
Measurement Accuracy	H250/C (Ceramic/PTFE)	2.0% of full scale range
Operating Temp	Standard Version	-196...+300°C (Up to +400°C on request)
Protection	M40, M40R	IP66/68, NEMA 4/4X/6
Certification	ATEX / IECEx / FM	Intrinsically safe and explosion-proof variants

Packing & Logistics

Extensive cooperation with global carriers including EMS, TNT, DHL, UPS, and Fedex ensures prompt delivery to designated locations worldwide.

Frequently Asked Questions

How long will it take to get a reply for an inquiry?

We provide 24-hour service and will contact you within 2 hours of your inquiry. Email inquiries are generally restored within 4 hours.

Can I request samples before placing a large order?

Yes, we have materials in stock to help you obtain samples as quickly as possible.

What quality certifications do your products hold?

Our products are certified with ISO9001, CE, SIL, RoHS, and EX (explosion-proof) certifications.

What is the standard delivery time for these flowmeters?

Standard lead time is approximately 20 days for single pieces. For larger quantities, the delivery schedule can be negotiated based on stock availability.

Do you provide customized or OEM services?

Yes, we provide high-quality standard products as well as non-standard customized services and OEM solutions according to your specific requirements.

Are these flowmeters suitable for hazardous environments?

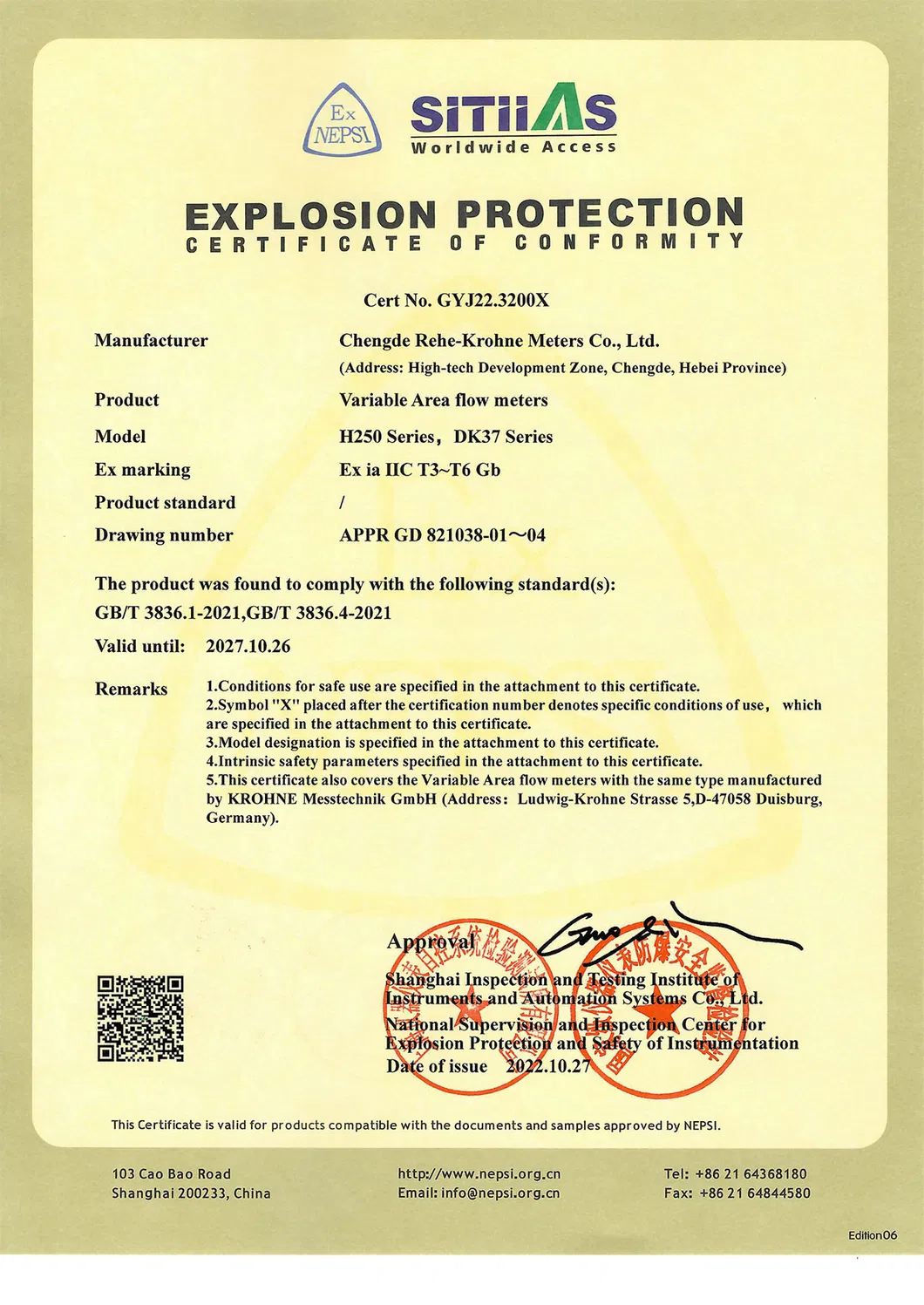

Absolutely. The H250 M40 series includes intrinsically safe and explosion-proof variants (ATEX, IECEx, NEPSI, etc.) suitable for various industrial hazardous zones.
