⚡ Basic Info.
Model NO.
Intel Celeron N4505/ N5105/N600
Graphics Card
Integrated Graphics Card
Widescreen
Without Widescreen
Built-in Bluetooth
Built-in Bluetooth
Built-in 3G Module
Built-in 3G Module
Fingerprint
Without Fingerprint
📋 Product Specifications
| HARDWARE SPECIFICATIONS |

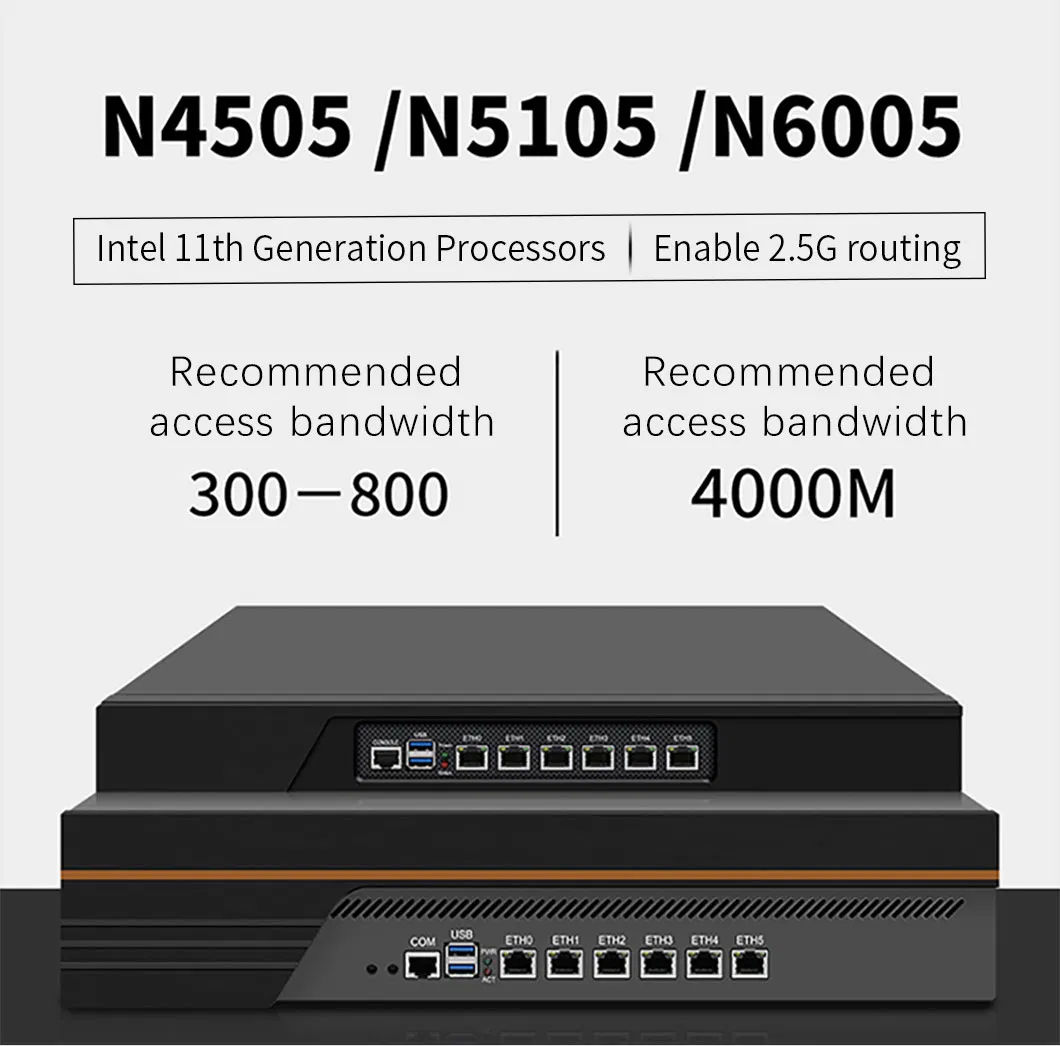

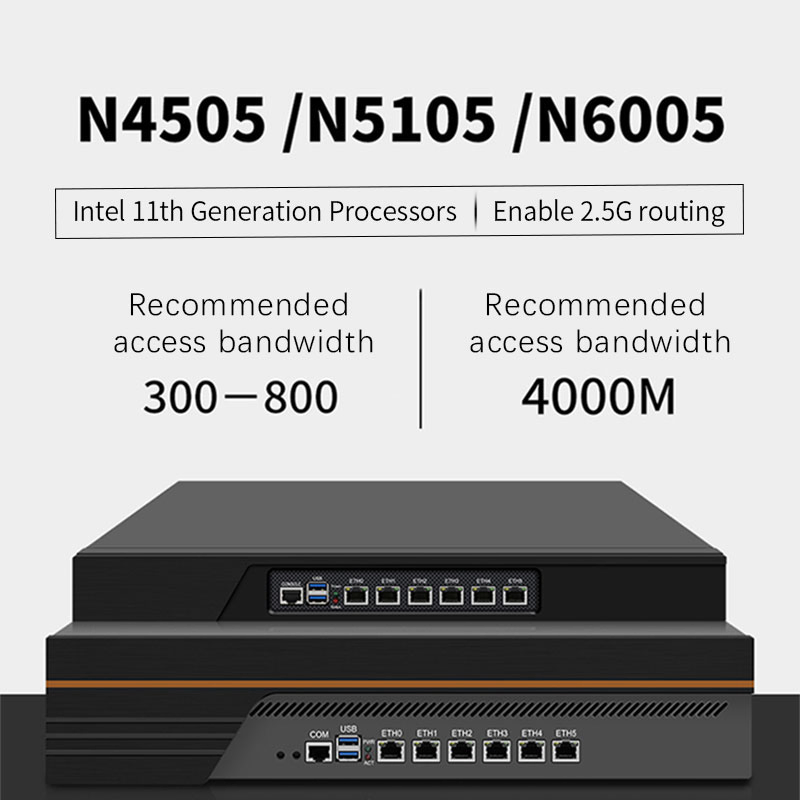

| CPU | Intel Celeron N4505/ N5105/N6005 |
| Code Name | Jasper Lake |

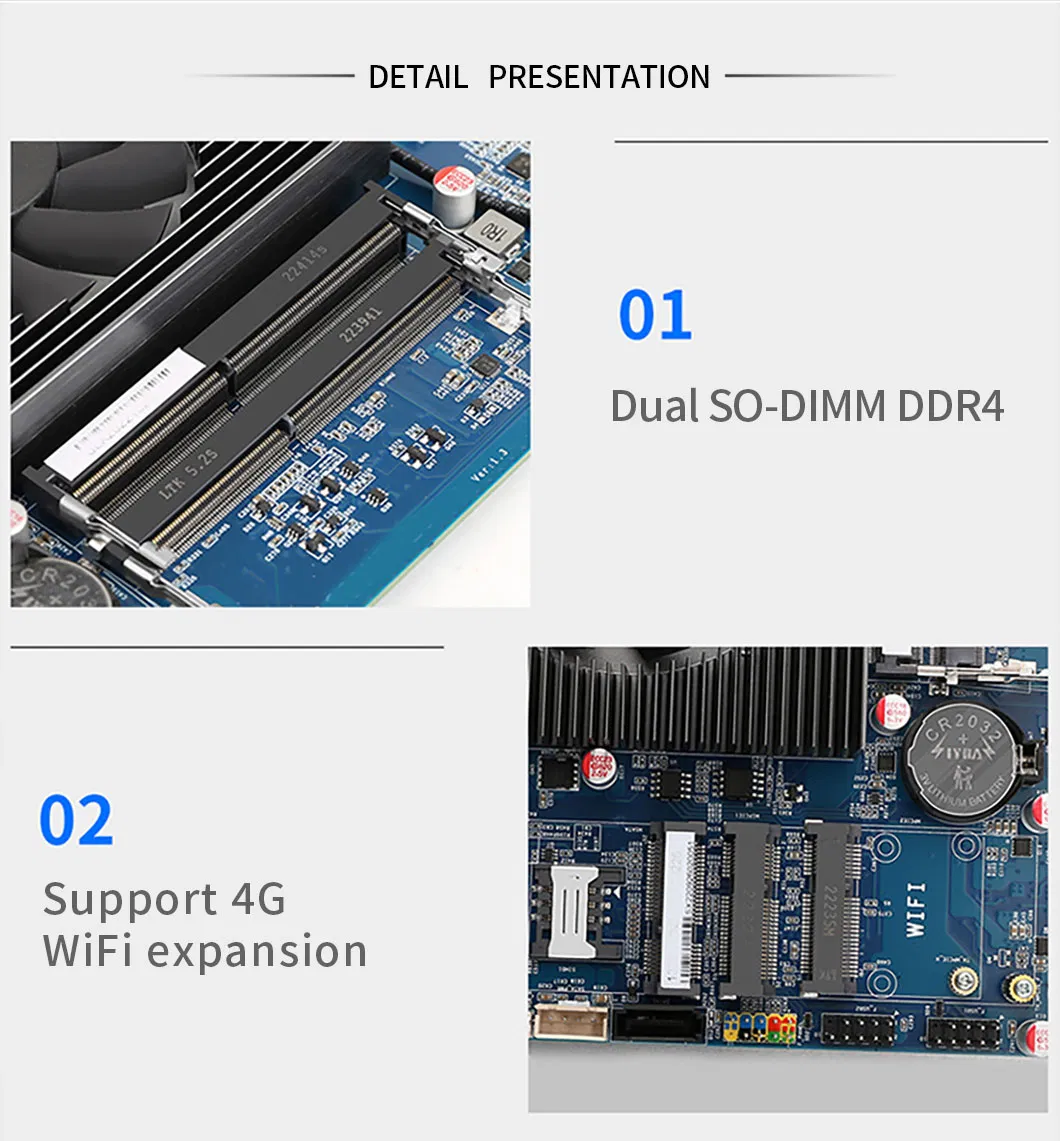

| Memory | 2*SO-DIMM DDR4 2133/2400/2666MHz MAX 32GB |
| IC | Intel Ethernet Controller 1226-V |
| Speed | 100/1000/2500Mbps 2.5G adapting |

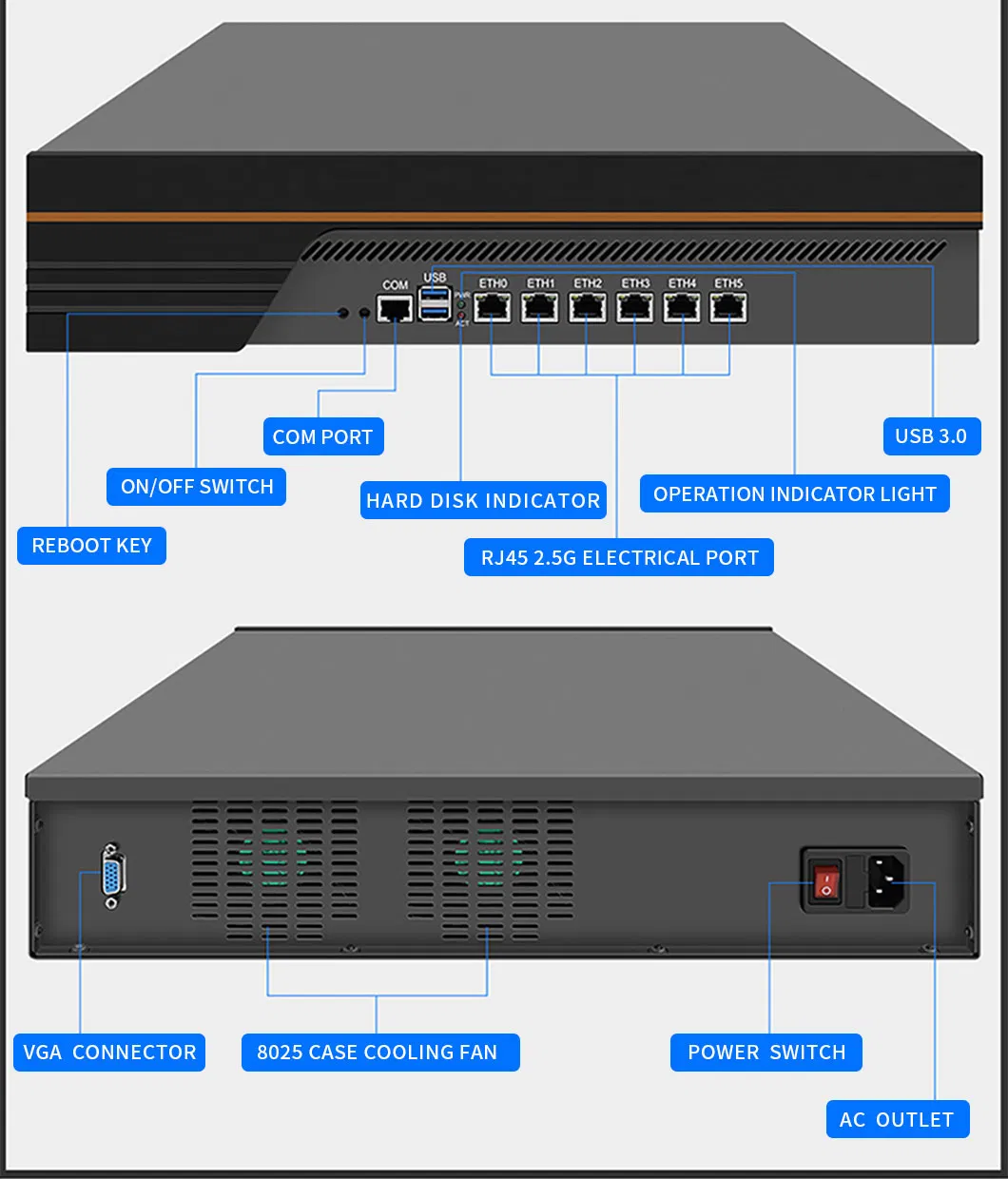

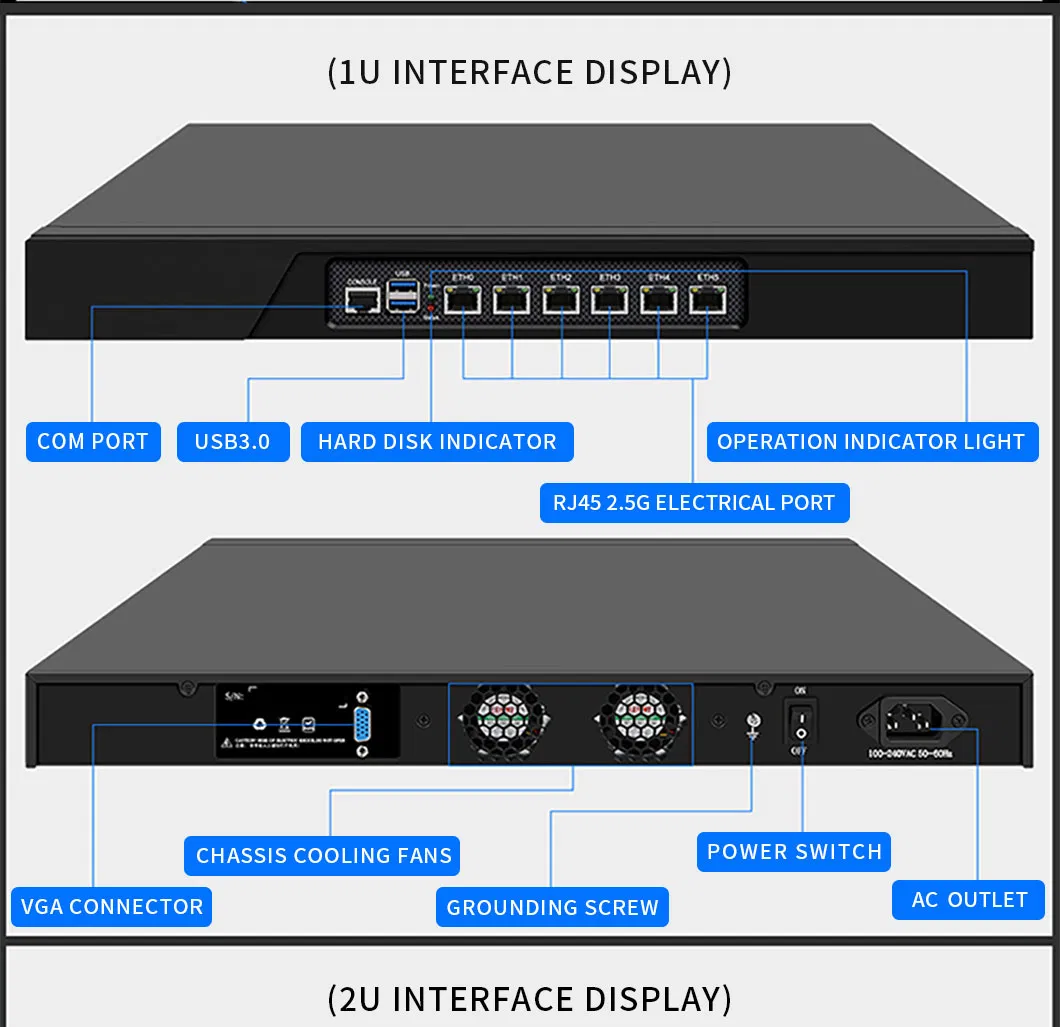

| Interface | 6 * IntelR 2.5Gbps Ethernet Controller, RJ45 |
| mSATA/SATA | 1* mSATA & 2* 7pin SATAIII 6Gbps |
| Display Output | 1* VGA (1920*1080@60Hz) / 1* HDMI (4096*2160@24Hz) |
| USB | 2 * USB3.0 / 2 * USB2.0 (Header) |
| Power Input | 100-240V~50/60Hz Output: 12V=4.2A |
| Expansion | 1 * MINIPCle (4G) / 1 * MINIPCle (WiFi/Bluetooth) |
| OS Support | Windows 10, Windows 11, Linux |

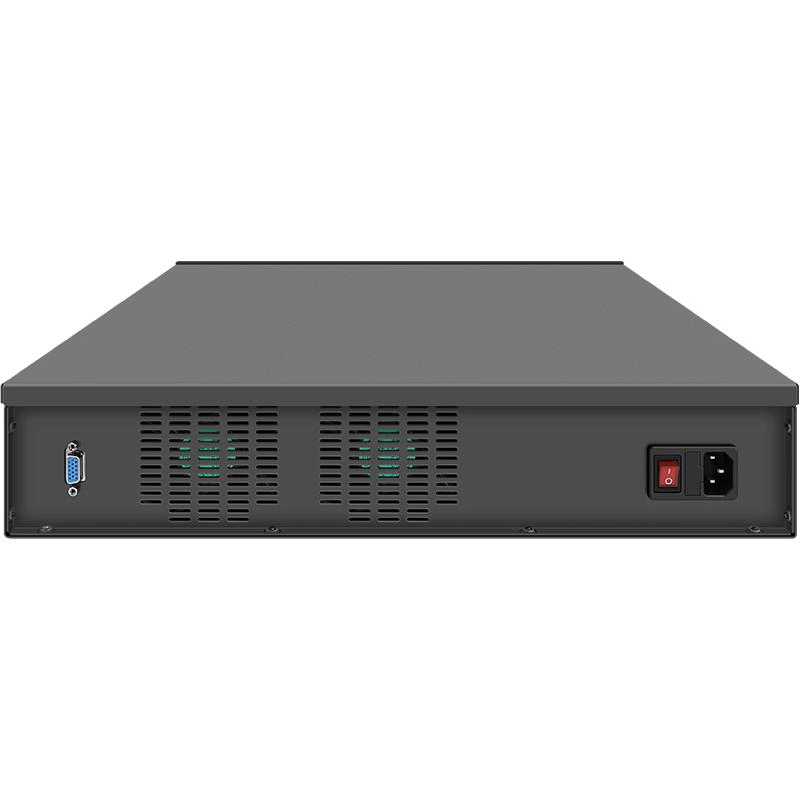

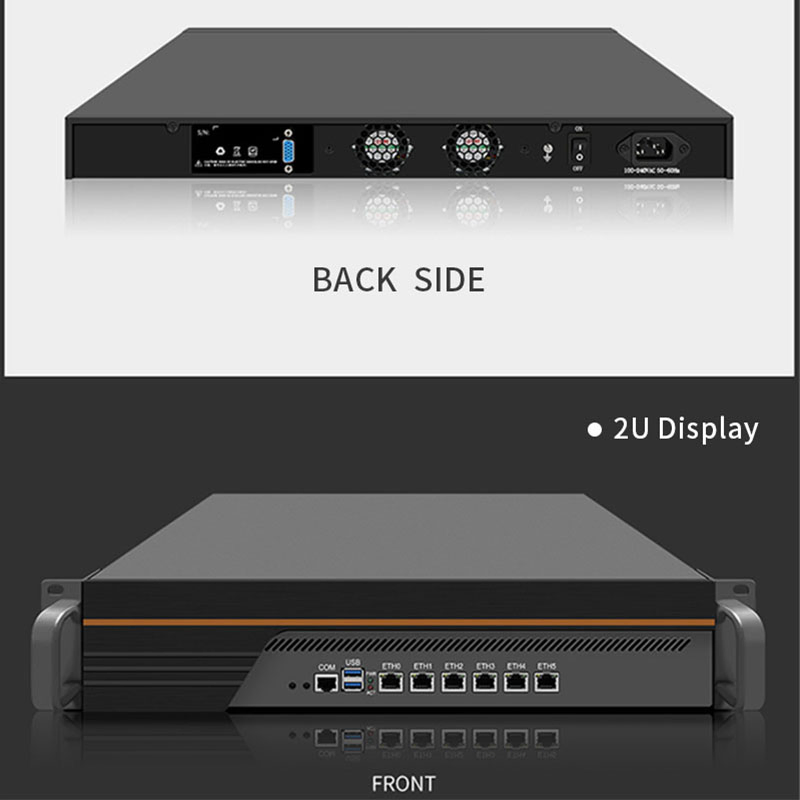

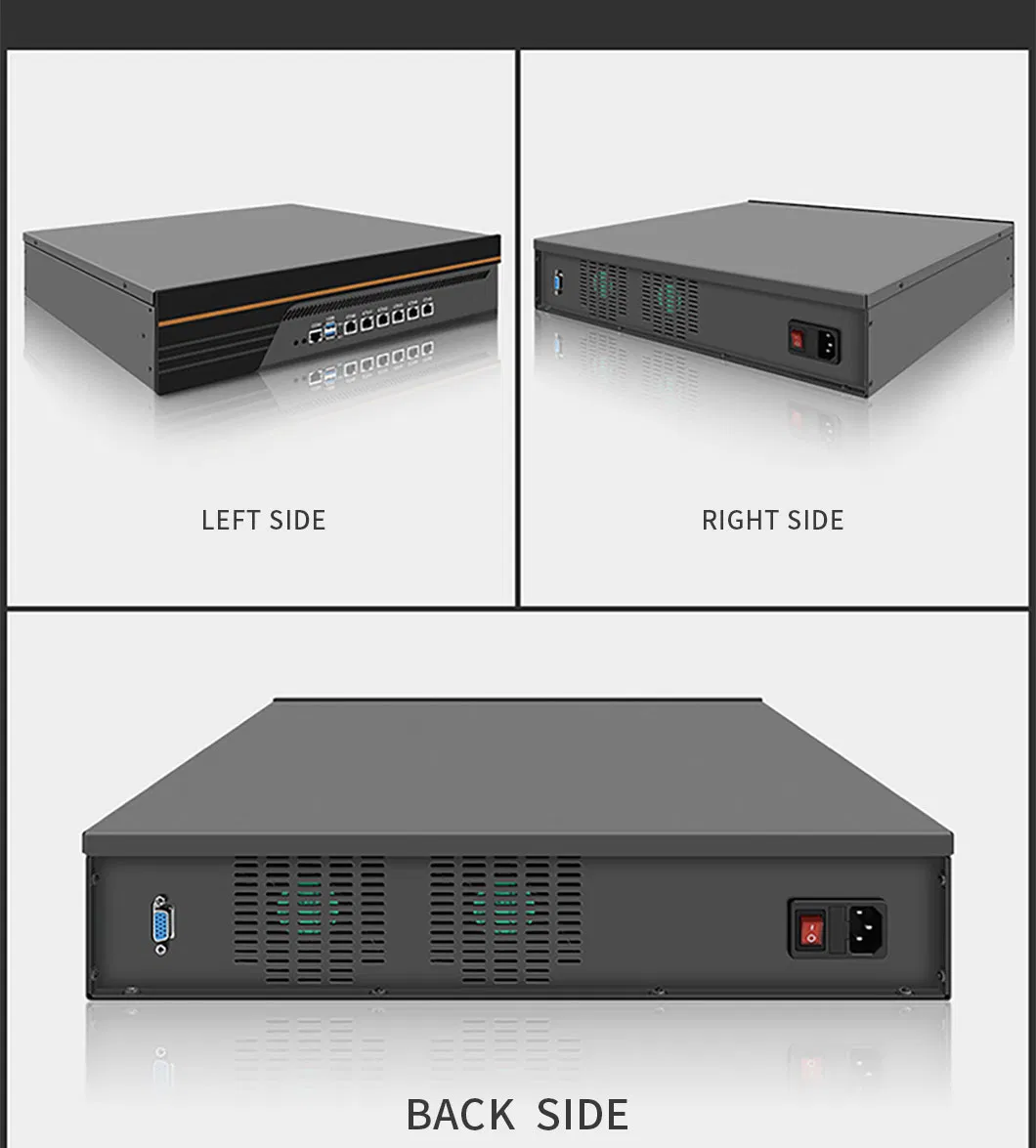

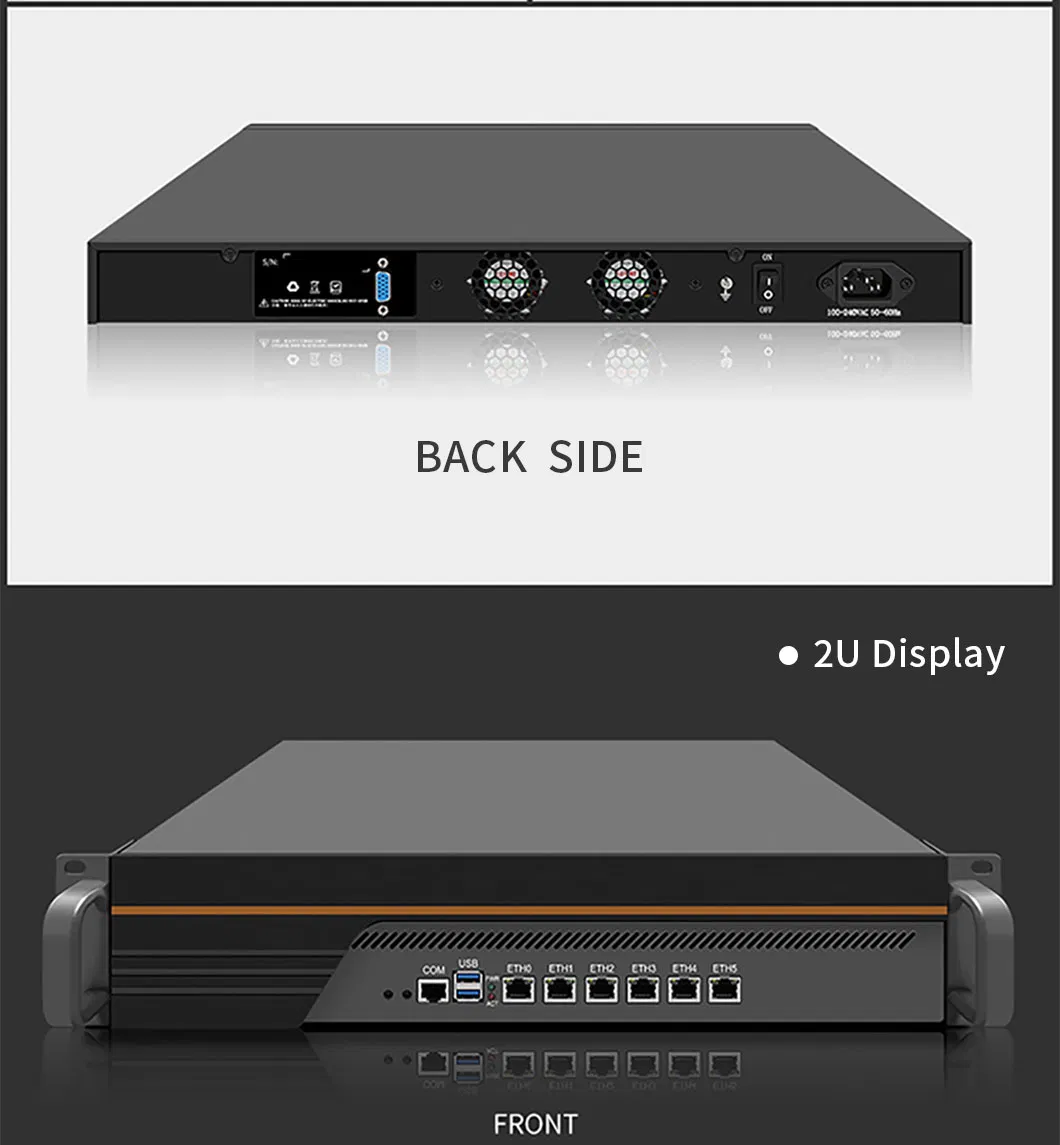

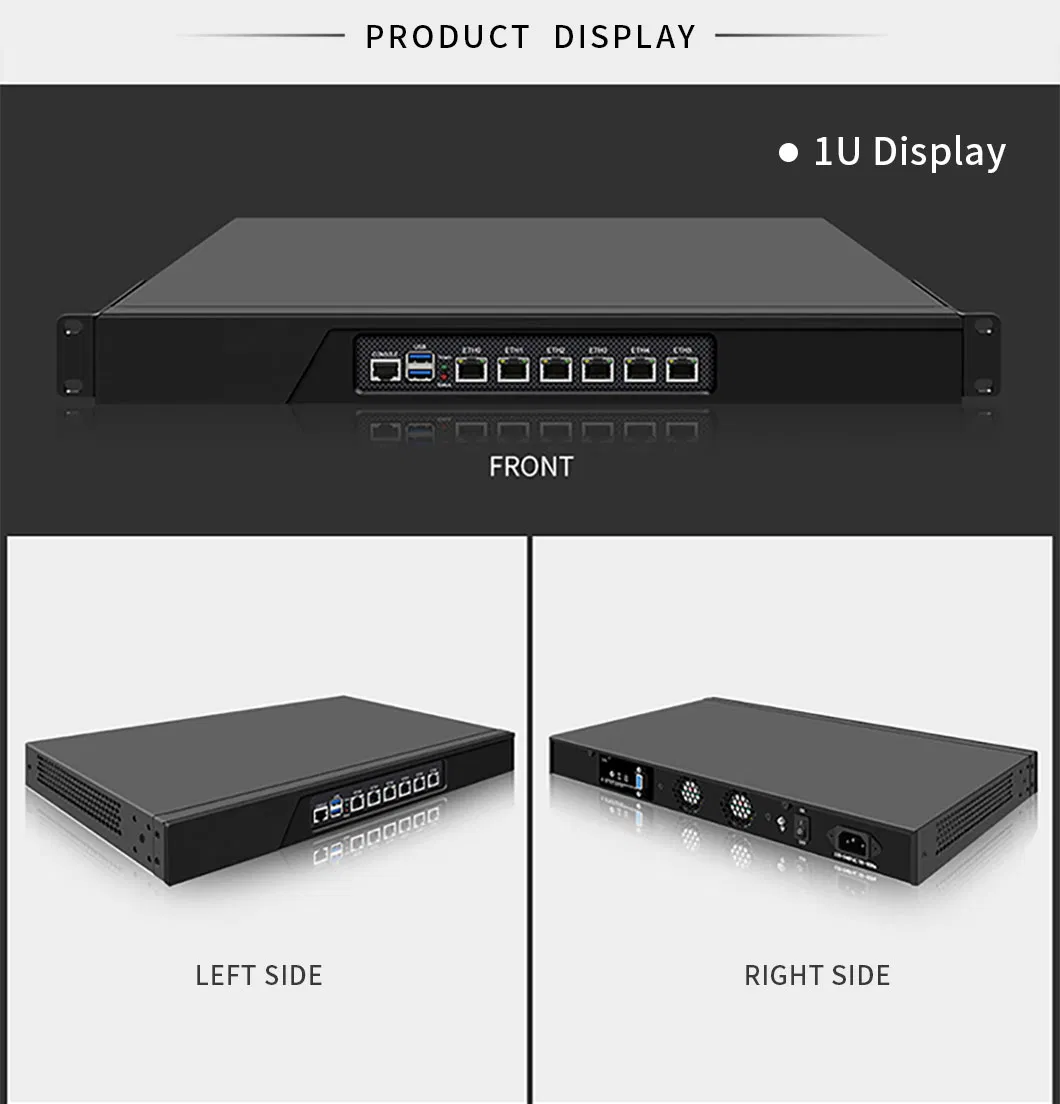

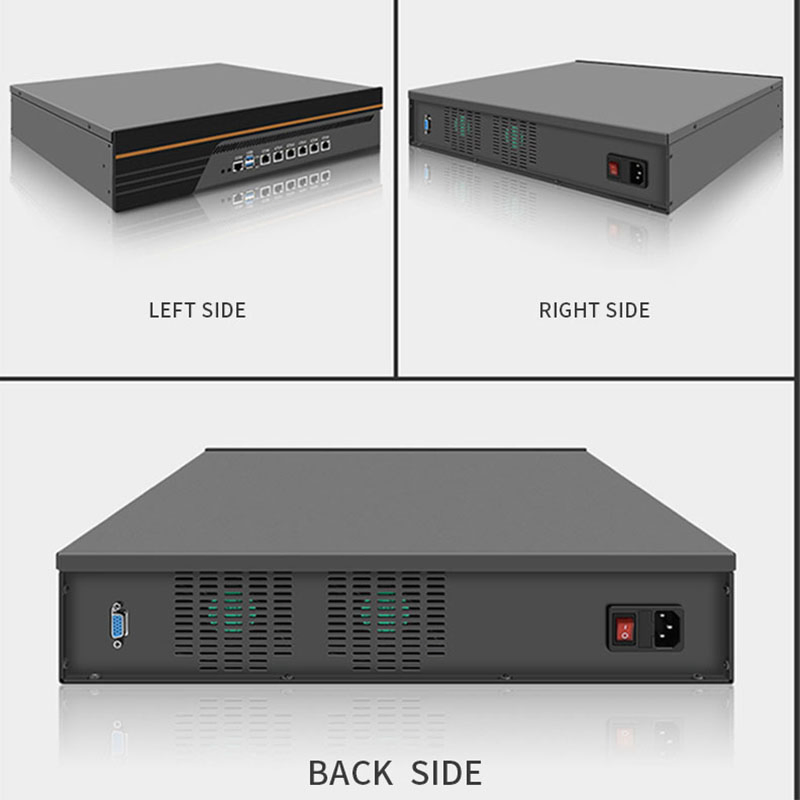

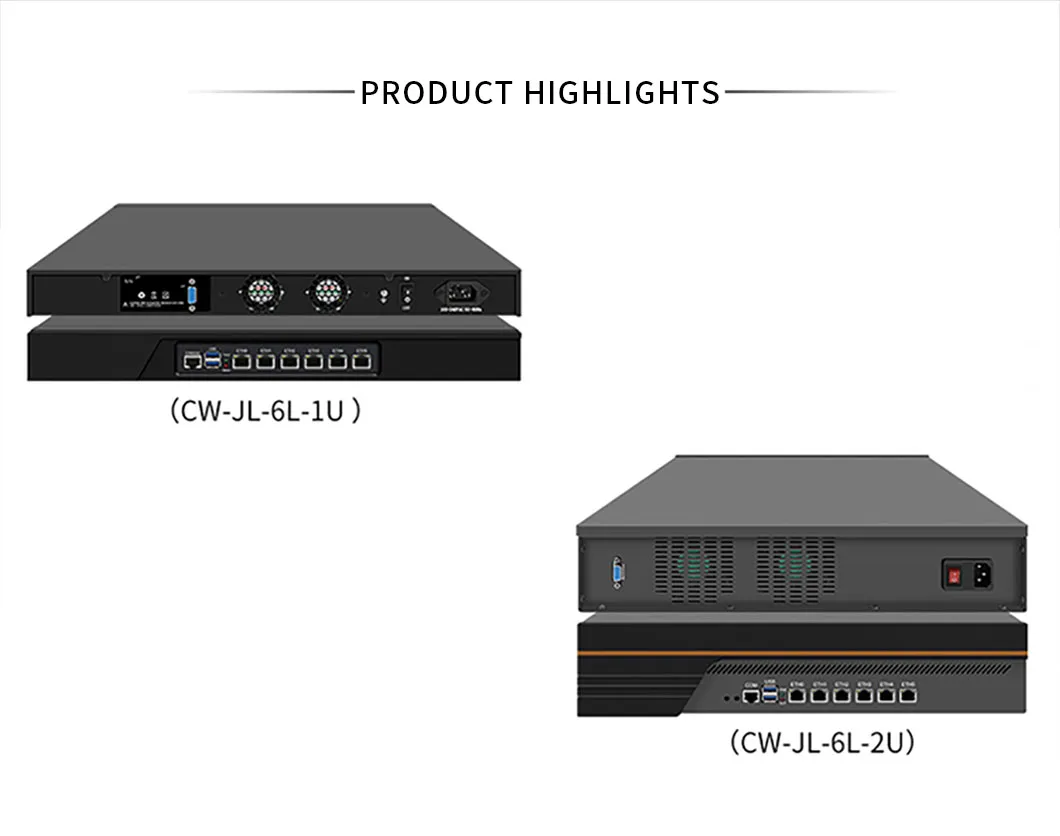

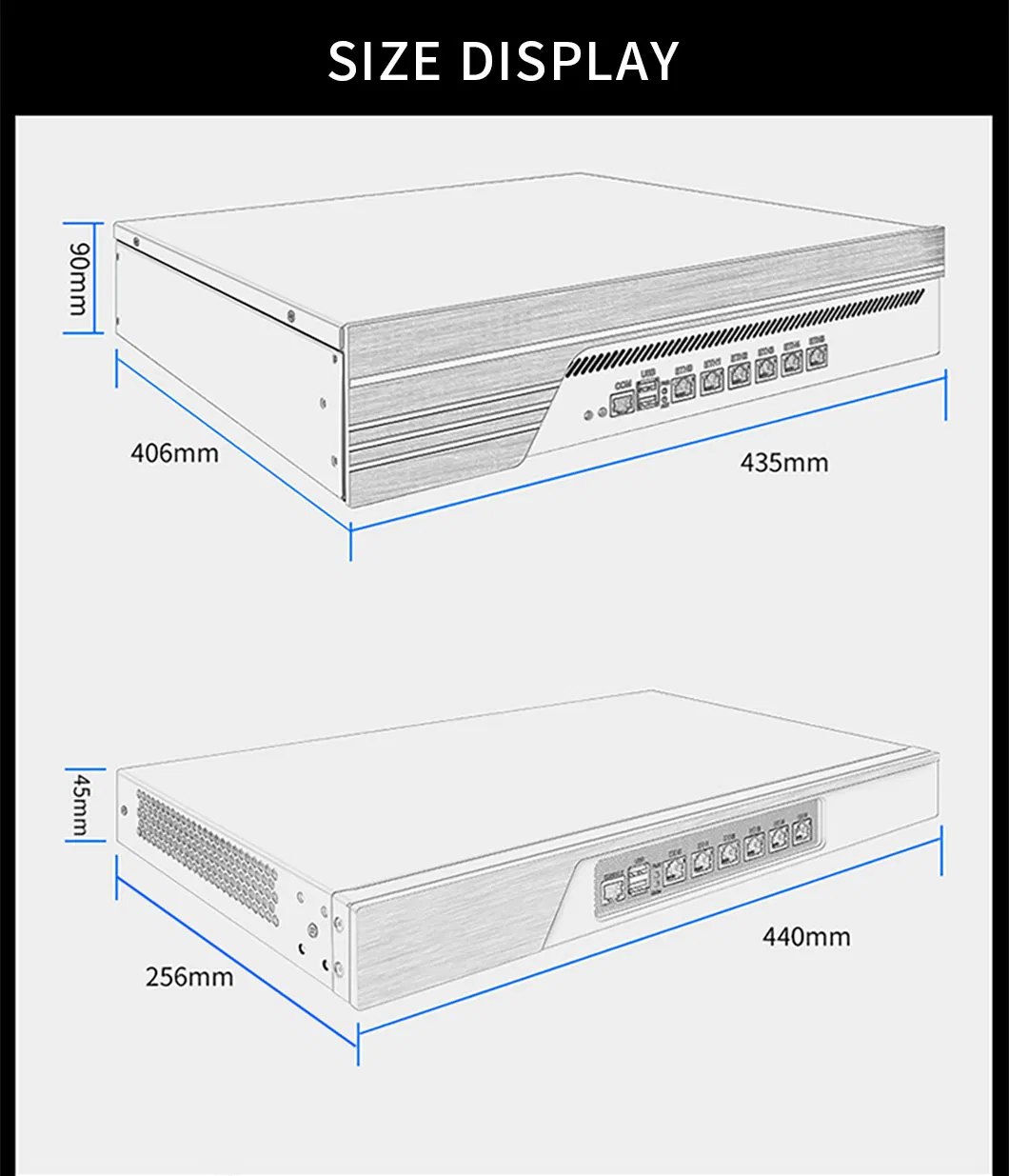

| Dimensions | 1U (440*256*45mm) & 2U (435*406*90mm) |
🛠️ Custom Made Services
| Feature Name |
Quantity |
Project Details |
| Ethernet |
6 |
Intel i211-AT /Intel i210-AT/ Intel i225-V |
| BYPASS |
1&2 |
Customizable 1-2 Groups |
| GPIO |
4&8 |
Customizable 4-8 Channels |
We can offer custom solutions for small order quantities with immediate shipment. Support 24 hours online service. We ensure the safety of your goods with professional, environmentally friendly, and efficient packaging services. Welcome to your inquiry.
🖼️ Product Gallery
❓ Frequently Asked Questions
1 What is the warranty for your products?
We provide 1 Year's Warranty for all our products to ensure long-term reliability.
2 Can I purchase samples or small orders?
Yes! You are welcome to place sample orders to test our superior quality and service. We offer fast dispatch for small orders.
3 What is the typical lead time for orders?
Lead time is 1-3 working days for sample orders and 7-40 working days for bulk orders, depending on the quantity.
4 What shipping methods are available?
We offer DHL, UPS, FedEx, TNT, and EMS for rapid delivery. Economic options like air cargo and sea cargo are also available upon request.
5 How do you ensure product quality?
We follow a rigorous 20-step QC testing procedure, including Incoming Quality Control and 100% Final Quality Control for every piece.
6 Do you provide OEM services for branding?

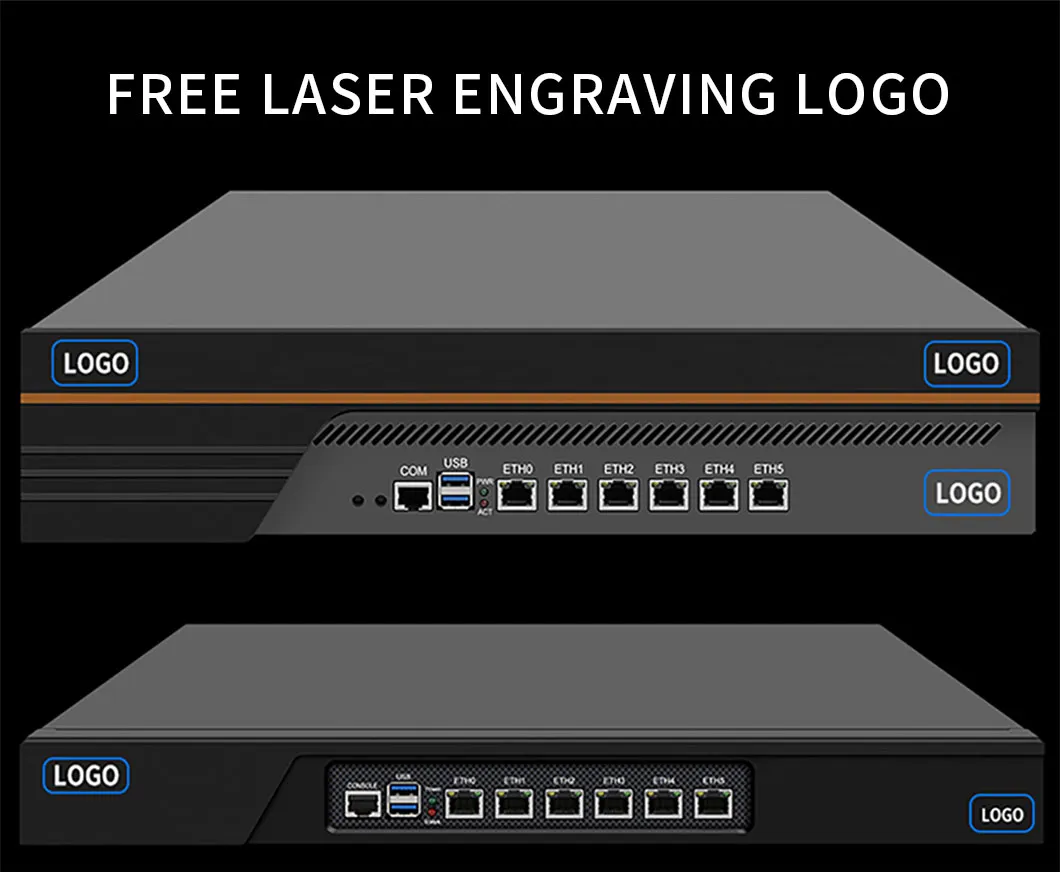

Yes, we provide professional OEM services including startup logos, laser-printed logos on the chassis, and custom gift box packaging.
