60channels Intelligent Condition Monitoring System for Steel Mill

Transmission Distance: Max 300m
Comunication: Ethernet, Optical Fiber, WiFi, 4G, 5g (Optional)
Industrial Communication Interface: RS485

Product Description

Basic Specifications
Model NO.
RH570
Communication
Zigbee: 2.4GHz IEEE 802.15.4
IP Grade
IP66
Shell Material
Cast Aluminum
Weight
About 2.5kg
Ambient Temp
-40℃ ~ 70℃
Supported Sensors
Up to 60 PCS
Dimensions
260mm × 203mm × 87mm
Product Overview

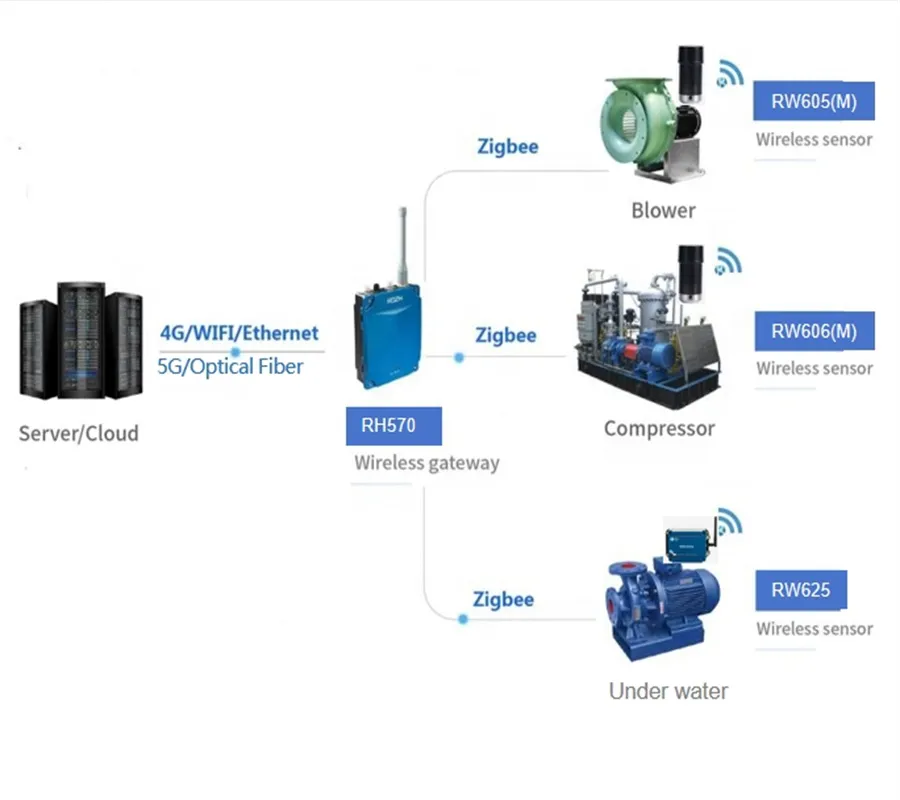

Wireless monitoring station RH570 is a new generation wireless product which features strong wireless data transmission functions. By configuring different modules, it is suitable for various application scenarios and supports both wireless and wired data transmission. RH570 works seamlessly with different wireless sensors to provide flexible equipment status monitoring across multiple industries.

Key Applications: Petrochemical, Steel, Cement, Mining, and more. The design ensures accurate and real-time monitoring in diverse field conditions.
Technical Index
Parameter Specification Remark
Input & Output
Communication with Sensor Zigbee: 2.4GHz IEEE 802.15.4
Max Supported Sensors 60pcs Compatible: RW606(M), RW506(M), RH505, RH605, RW625
Communication Distance 300m (line of sight) With sensors
Communication Method Ethernet, Optical fiber, WiFi, 4G, 5G Optional
Industrial Interface RS485 Optional
Electrical & Structure
Overall Dimension 260mm × 203mm × 87mm L × W × H
Power Supply 100VAC ~ 240VAC
Protection Grade IP66 Dust & Water resistant
Product Display
Wireless Monitoring Station Side View

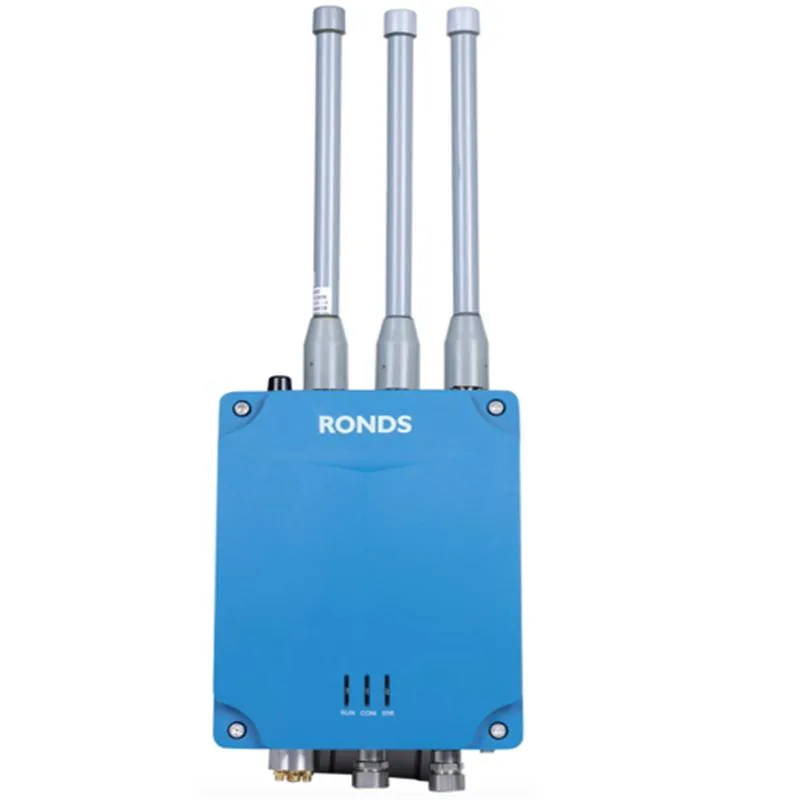

Wireless Monitoring Station Front View
Packaging & Warranty
Packaging Detail
Warranty: One year comprehensive warranty provided for the RH570 system.
Technical Expertise
Facility View
Team Work
  • Scale: Over 800 professional employees.
  • R&D Force: 200+ technical team members with 18%+ R&D expense ratio.
  • Software: CMMI Level 3 certified R&D team.
  • Hardware: Over 10 years of practical industrial experience.
  • Algorithms: Fully autonomous data platform capabilities.
Production Line
Support & Services

Pre-Sales

  • Technical plan support
  • Inquiry and consulting support

After-Sales

  • Remote training for installation and usage
  • Professional data analysis suggestions

Products have been exported to more than 35 countries, supporting industries including power, petrochemical, steel, cement, coal, mining, paper making, and water treatment.

Industry Applications
Frequently Asked Questions
How many sensors can the RH570 monitoring station support? The RH570 can support a maximum of 60 wireless sensors simultaneously, making it suitable for large-scale industrial monitoring.
What is the wireless communication range? It offers a communication distance of up to 300 meters with a clear line of sight using Zigbee 2.4GHz protocol.
Is the device suitable for harsh outdoor environments? Yes, with an IP66 protection grade and a cast aluminum shell, it is designed to operate in temperatures ranging from -40°C to 70°C.
What types of data transmission methods are available? The station supports multiple methods including Ethernet, Optical fiber, WiFi, 4G, and 5G (optional).
Which industries typically use the RH570 system? It is widely used in the steel, petrochemical, power, cement, mining, and water treatment industries for predictive maintenance.
What is the warranty period for this equipment? The product comes with a standard one-year warranty and professional after-sales support.
