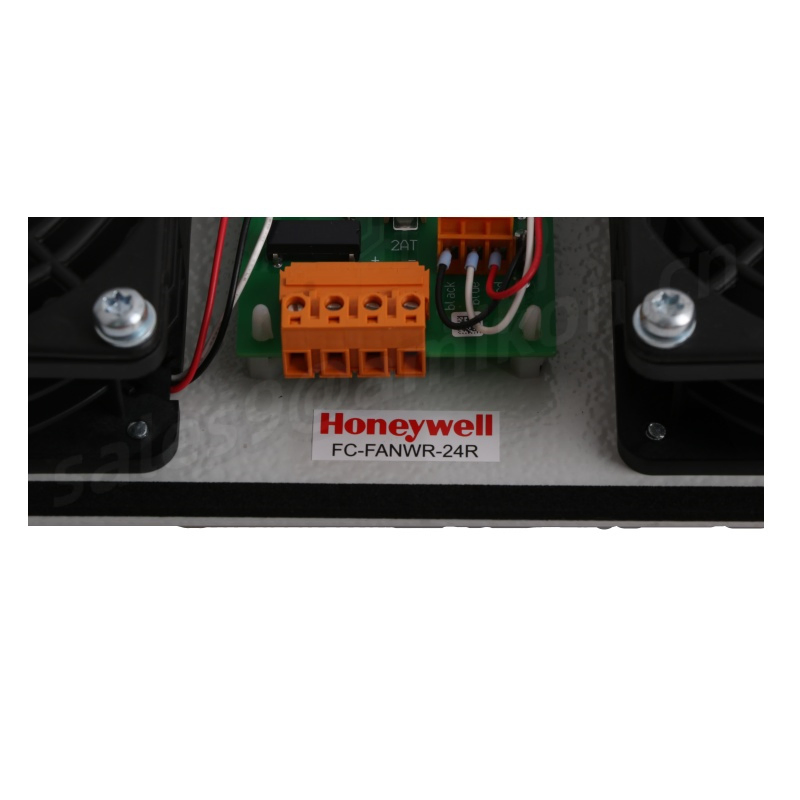

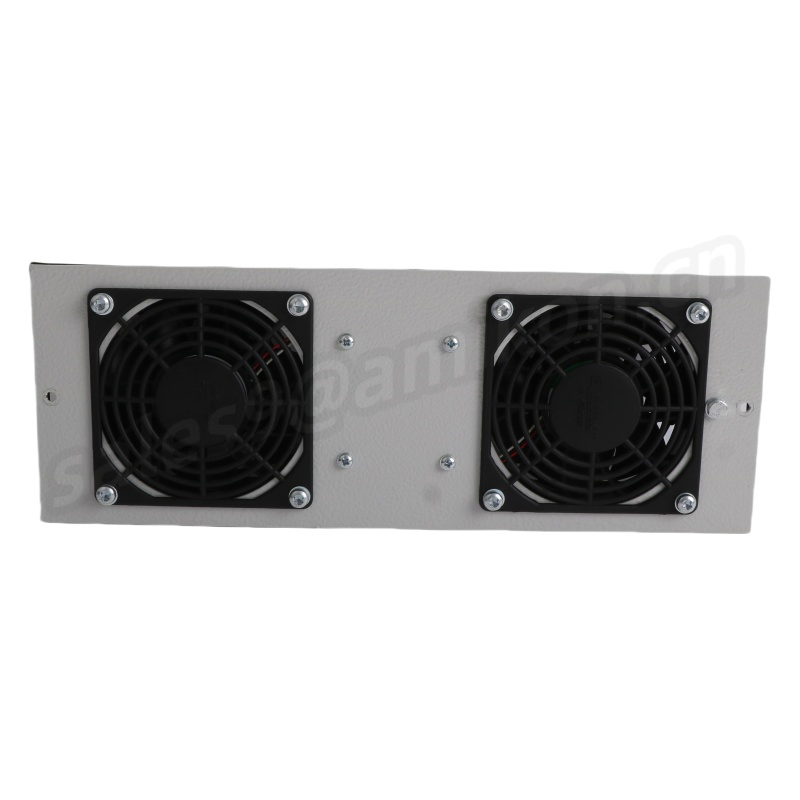

Honeywell PLC MODULE FC-FANWR-24R 24VDC FAN UNIT WITH READBACK

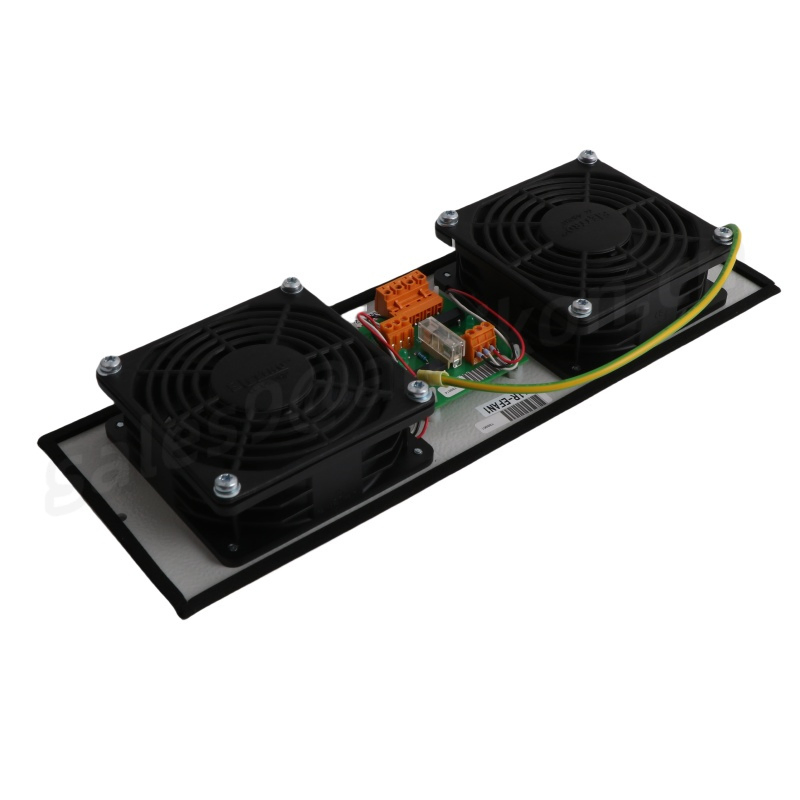

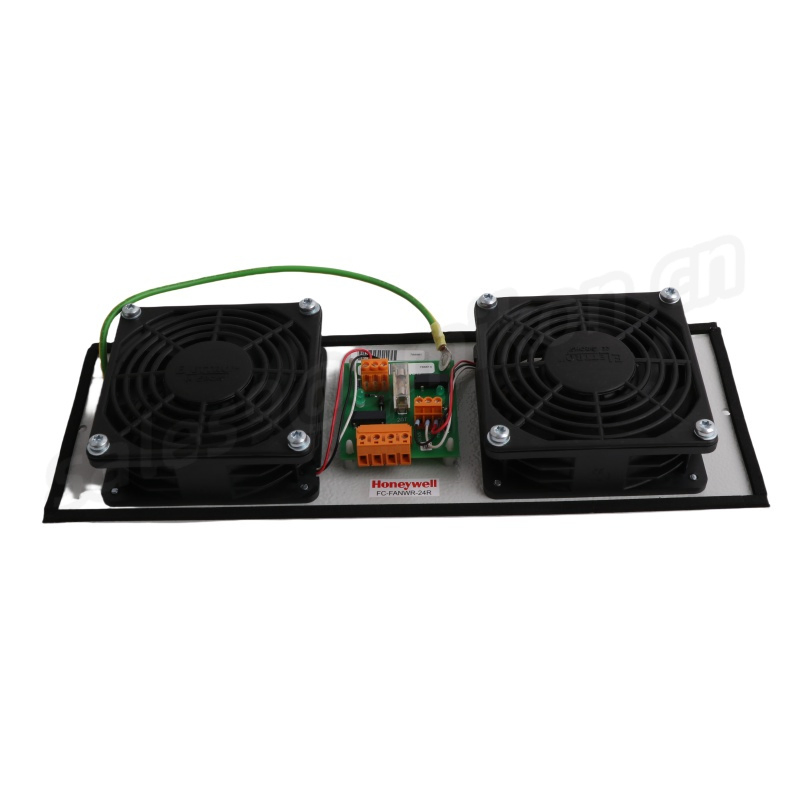

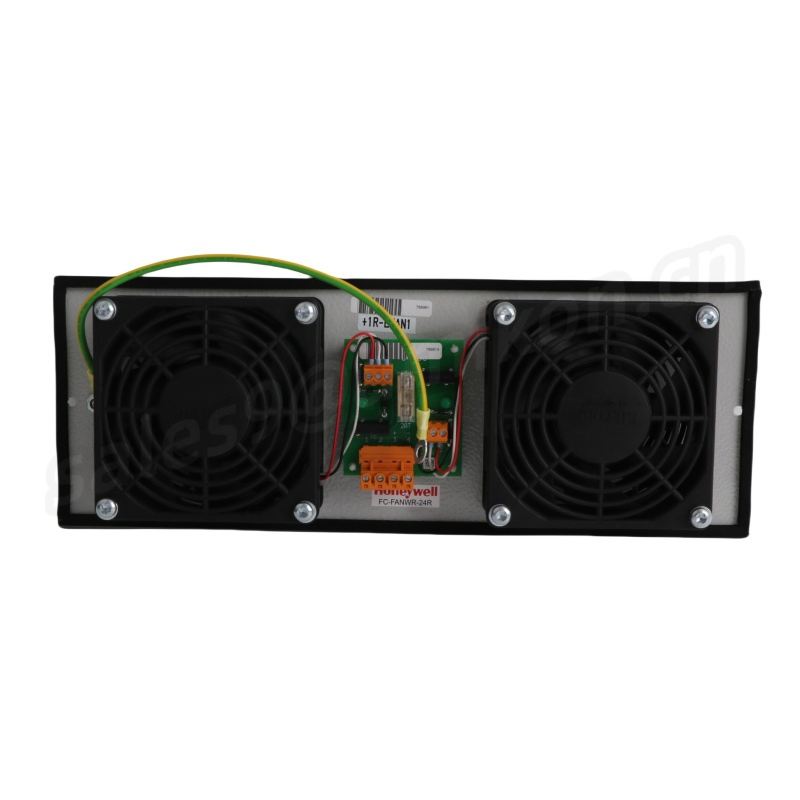

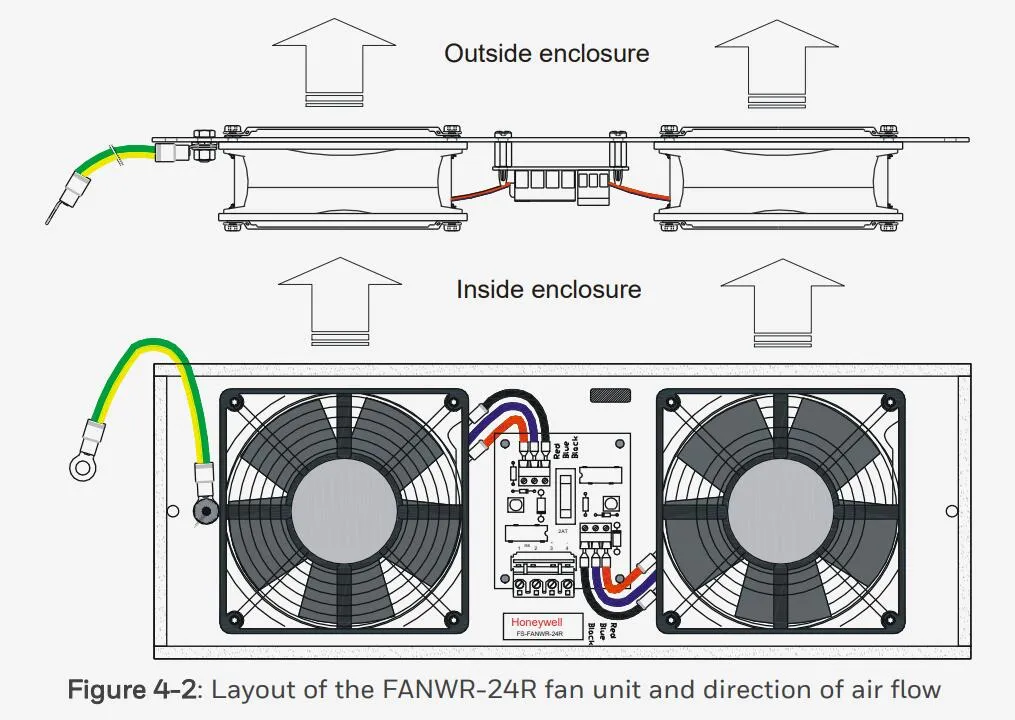

Function: The 24 V DC fan unit FC-FANWR-24R consists of two fans and a printed circuit board (PCB) 07209 on a mounting plate. Electronics in the fan unit generate the signals to indicate the fan status. If the speed of a fan is above minimum, a green LED illuminates. If both fans are above minimum speed, the readback contact closes.
| FC-FANWR-24R Detail Specifications | ||
|---|---|---|
| General | Type numbers | FS-FANWR-24R |
| Approvals | CE; UL; FM | |
| Power | Requirements | 24VDC 9.5W |
| Voltage range | 12-29VDC | |
| Air flow | Complete unit | 360 m3/hr, 211.8 CFM |
| Noise | Complete unit | 52 dB |
| Fan speed | Nominal speed | 3,200 RPM |
| Minimum speed | 1,500 ± 100 RPM | |
| Life cycle | At 40° C | 85,000 hrs |
| Protection | Ingress | IP 20 |
| Physical | Dimensions | 391 x 142 x 51 mm |

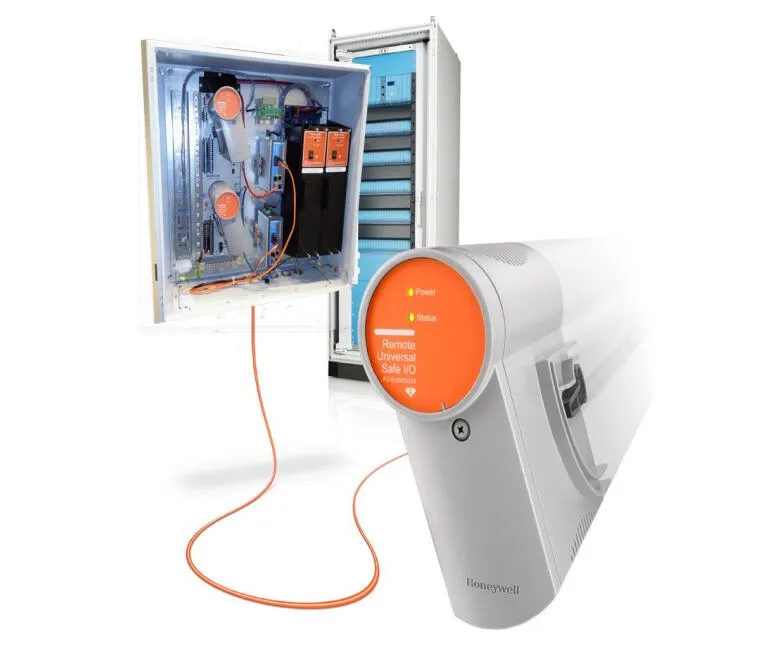

Safety Manager is the logic solver of a Safety Instrumented System (SIS) performing specific Safety Instrumented Functions (SIF) to ensure that risks are kept at predefined levels. It measures process signals like temperature, pressure, and flow independently from the Basic Process Control System (BPCS).
