Automated Parking Tower with Vehicle Condition Monitoring and Damage Prevention System Ensuring Safety

Customization: Available
Level: 5-9 Levels
Parking Post: 25-99 Posts

Product Description

📊
Basic Information
Color:Black
Installation:Multi-Level
Material:Steel
Operation:Automatic
Power Source:Electric (3P 380V 50Hz)
Drive Mode:Traction + Wire Rope
Lifting Speed:Max: 95m/Min
Car Weight:≤2350kg
Warranty:2 Years
Origin:China

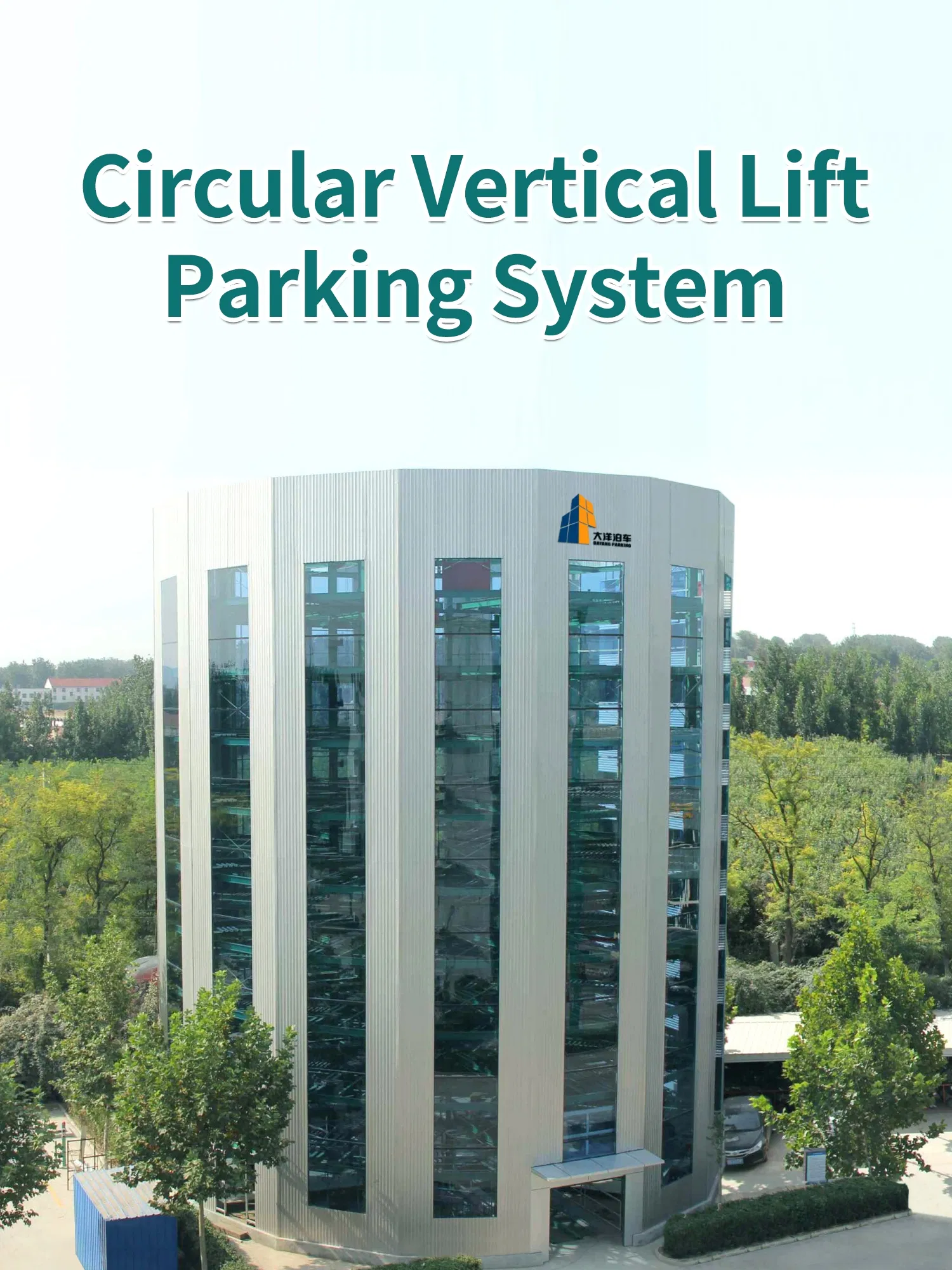

Automated Parking Tower System
📋
Product Specifications
Parameter Details
Drive Mode Traction + wire rope
Car Size Limit Sedan ≤5300×1900×1550mm
SUV ≤5300×1900×2050mm
Max Car Weight ≤2350kg
Power & Speed Lifting 30kw (Max: 95m/min)
Turn 2.2kw (4.5 rpm)
Access Method Forward in and forward out
Key Advantages
1
Extremely High Space Utilization

The system adopts a vertical tower design, requiring only a small circular foundation to construct dozens of parking levels upwards. It completely eliminates the need for ramps or internal driveways, dedicating all volume purely to parking spaces.

2
Excellent Access Efficiency

Equipped with high-speed elevators and 360-degree rotating platforms. Vehicles can enter and exit directly facing forward ("head-in, head-out"), simplifying driver operation and significantly reducing retrieval time.

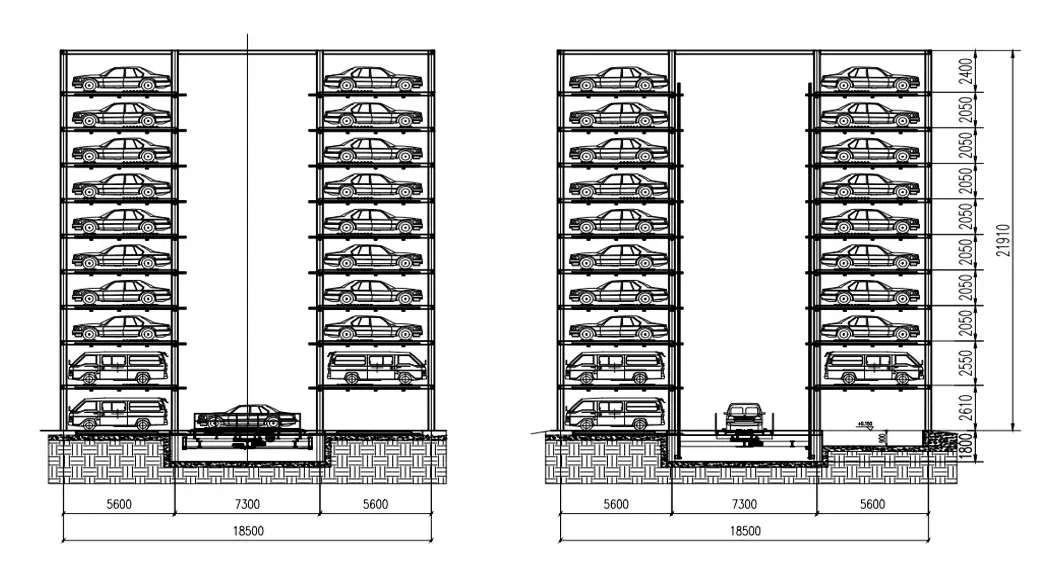

Parking Tower Mechanism

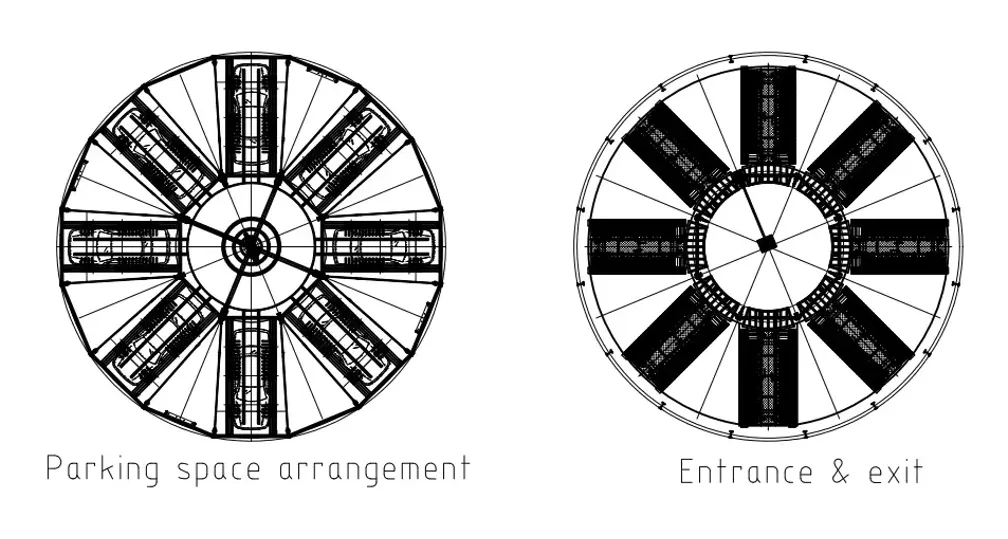

Smart Parking View
3
Outstanding Safety Protection

Vehicles are housed within a fully enclosed steel structure, protecting them from weather, theft, and vandalism. Integrated with oversize detection, personnel intrusion sensors, and emergency stop buttons to ensure fail-safe operation.

4
Environmental & Energy Saving

Reduces vehicle emissions by eliminating the need for drivers to cruise for spots. Advanced electric drives with energy feedback systems recover electricity during descent, improving overall facility efficiency.

🌍
Global Project Showcase

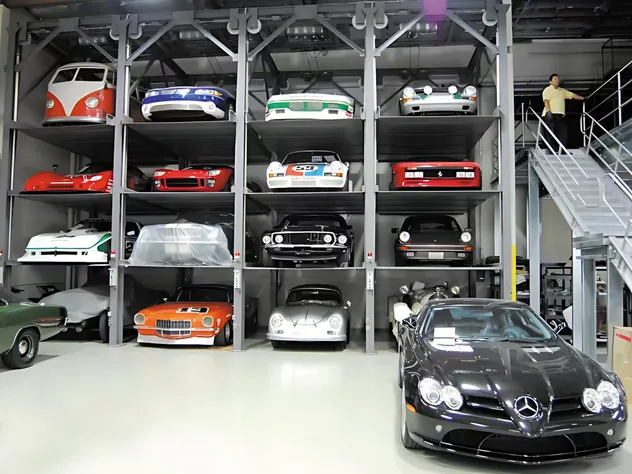

US Parking Project
Vertical Horizontal System

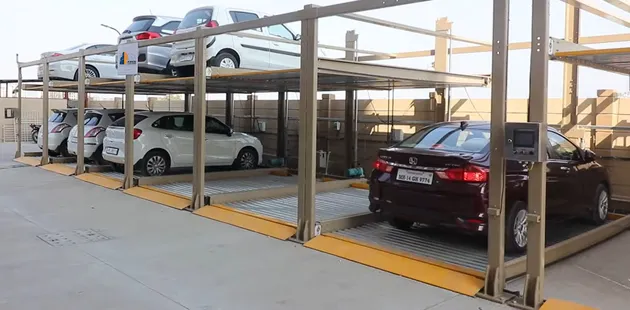

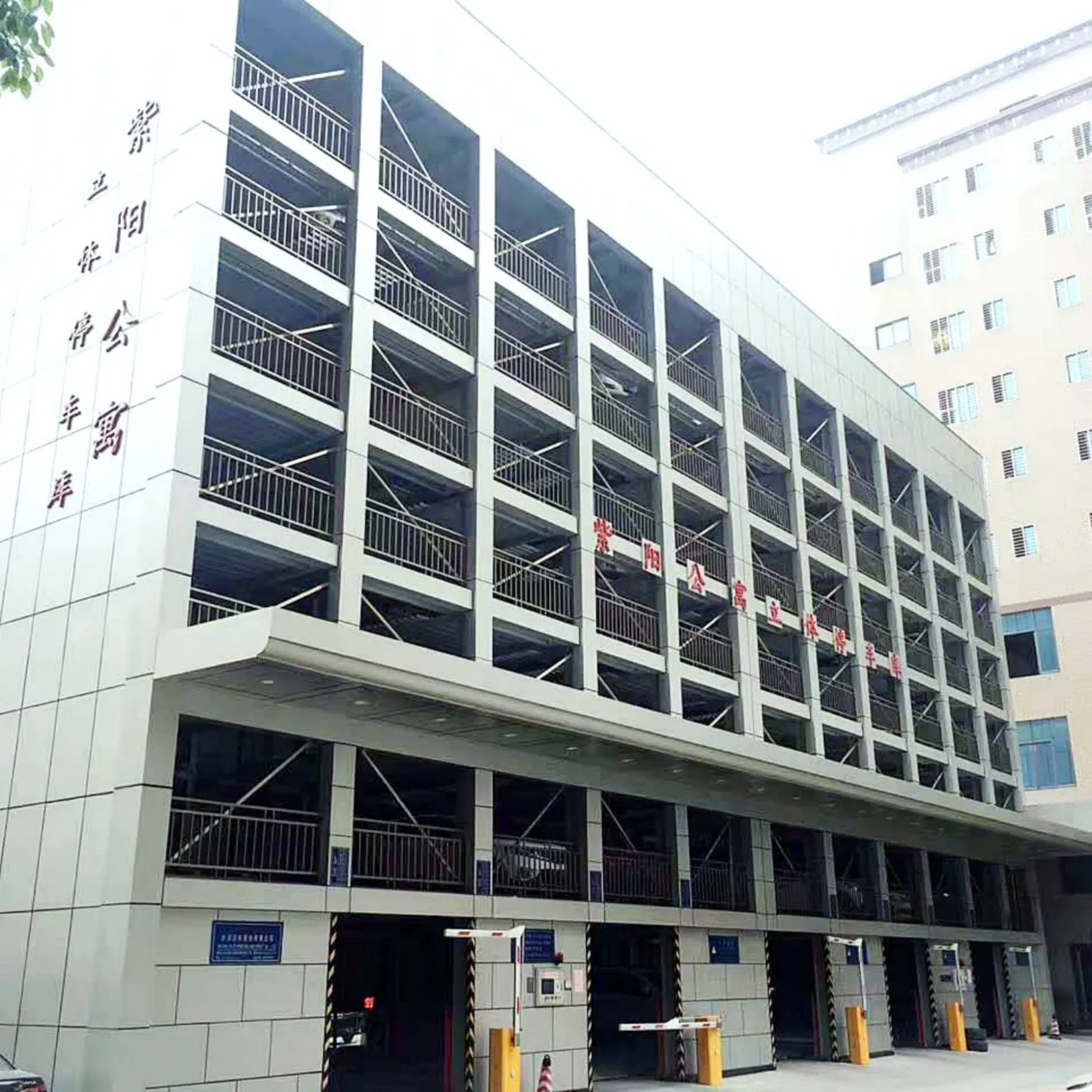

Saudi Arabia Project
Mechanical Puzzle System

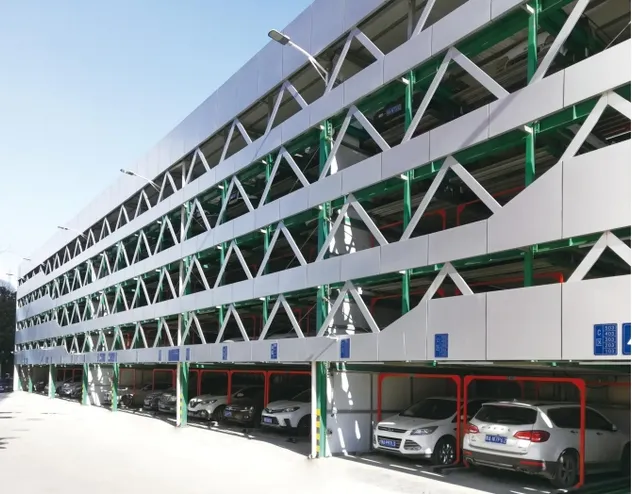

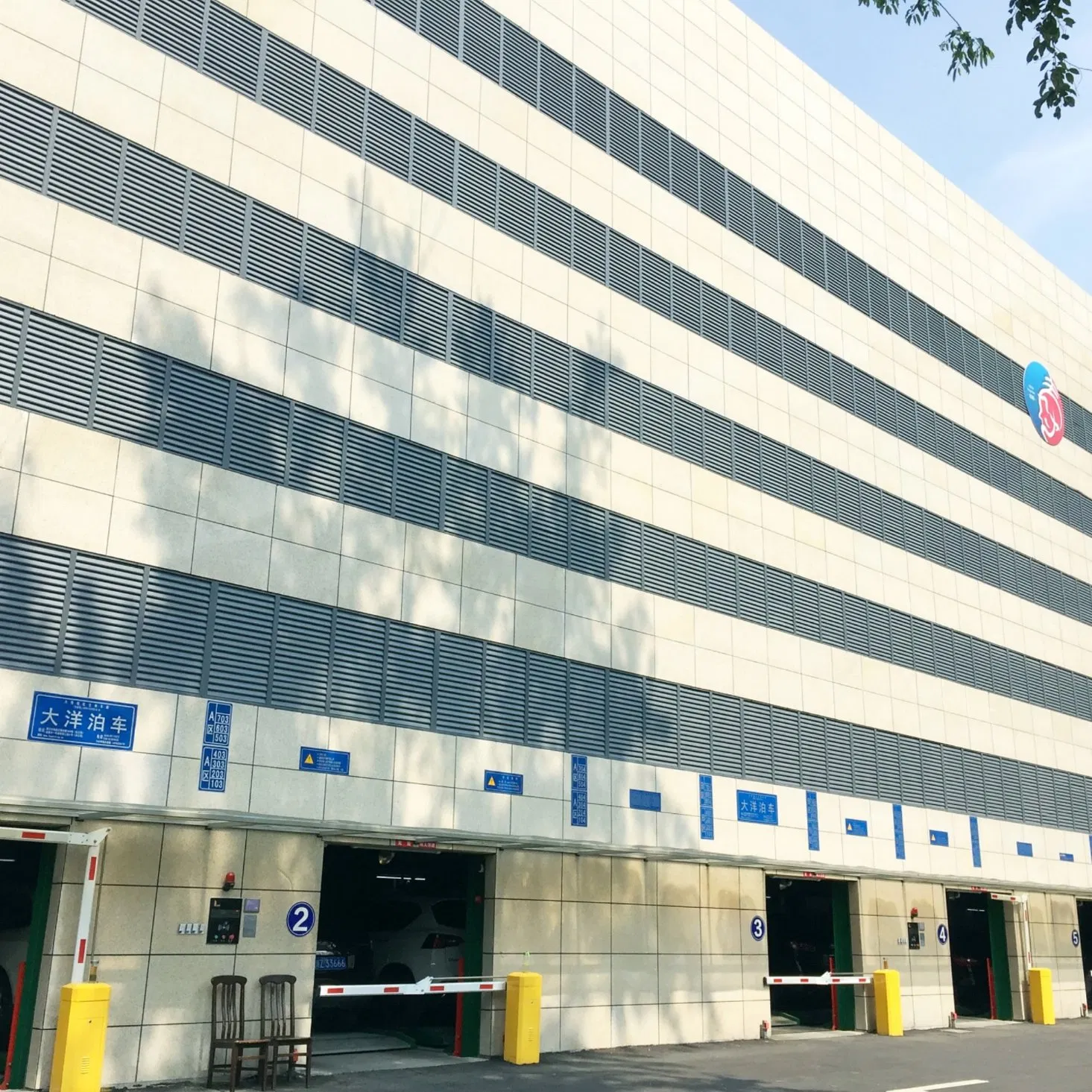

Commercial Project
Smart Multi-Level System
📦
Packaging & Logistics
Package Size:650cm x 150cm x 80cm
Gross Weight:800.00kg
Transport:Wooden Crate, Steel Straps
Shipping Logistics
Frequently Asked Questions
How is equipment corrosion prevented in high-humidity areas?
We utilize hot-dip galvanized steel and fluorocarbon spraying technology, achieving salt spray test results of up to 1000 hours. Optional dehumidification systems are available to maintain humidity below 60%.
How does the system perform in extreme cold regions?
Systems can be equipped with heated car carriers (operational from -30ºC to 50ºC) and anti-slip coated rails. Our low-temperature start-up technology ensures reliability even at -40°C.
Can the parking facility be managed without on-site staff?
Yes, the system supports AGV robots and IoT monitoring. Owners can park at the entrance via app or card, and the system automatically alerts for any maintenance abnormalities.
What are the typical construction costs per parking space?
Costs vary by type: puzzle-style systems range from 15,000-30,000 units, while vertical lifting towers range from 60,000-100,000 units per space. We provide full-cycle optimization to reduce long-term energy use.
Are there safety standards for fire and earthquakes?
Yes, all designs meet high safety standards for both fire resistance and seismic stability, ensuring the protection of vehicles and the surrounding infrastructure.
What is the average vehicle retrieval time?
The system optimizes paths automatically, with average retrieval times typically ranging between 1 to 3 minutes, making it ideal for peak hour demand.
