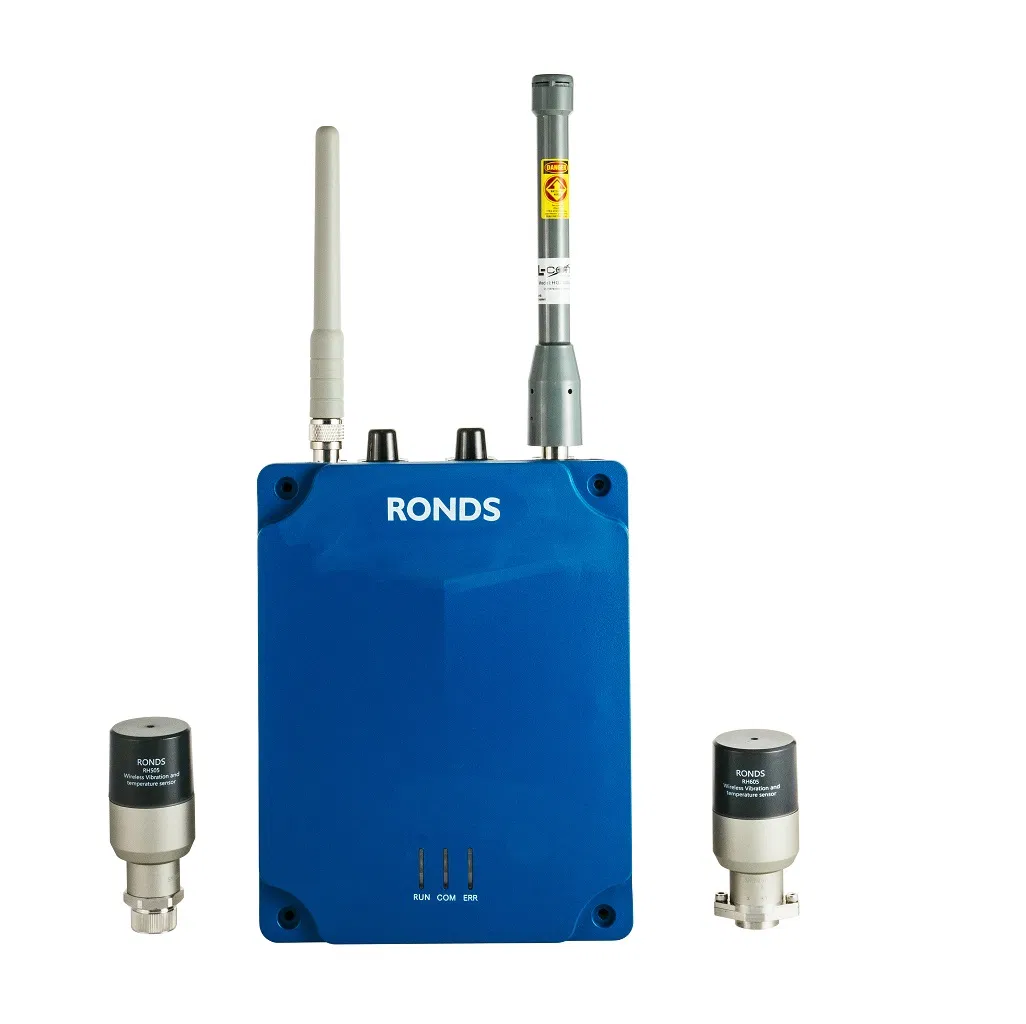

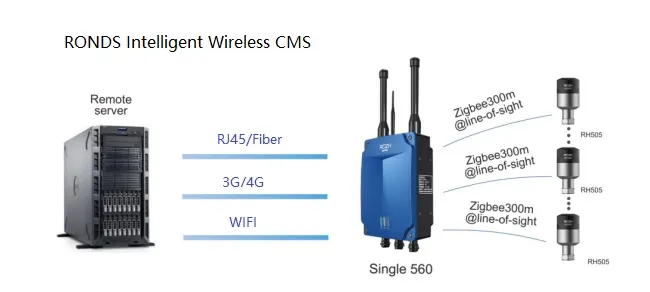

| RH560 Wireless Data Collector | |
|---|---|
| Input and Output | |
| Communication Protocol | 2.4GHz IEEE 802.15.4 |
| Number of Sensors Connecting | 30~60 units according to real condition |
| Analysis Frequency (Hz) | 500 / 1K / 2K / 5K / 10K / 15K / 20K |
| Number of Samples | 1K~128K (1K=1024) |
| Electrical and Structure | |
| Power Supply | 220V AC |
| Dimension (L*W*H) | 203 mm × 82 mm × 260 mm |
| Weight / Mounting | 3 kg / Hanging or fixation through holder |
| Environmental | |
| Working Temp / IP Grade | -40~70 °C / IP66 |

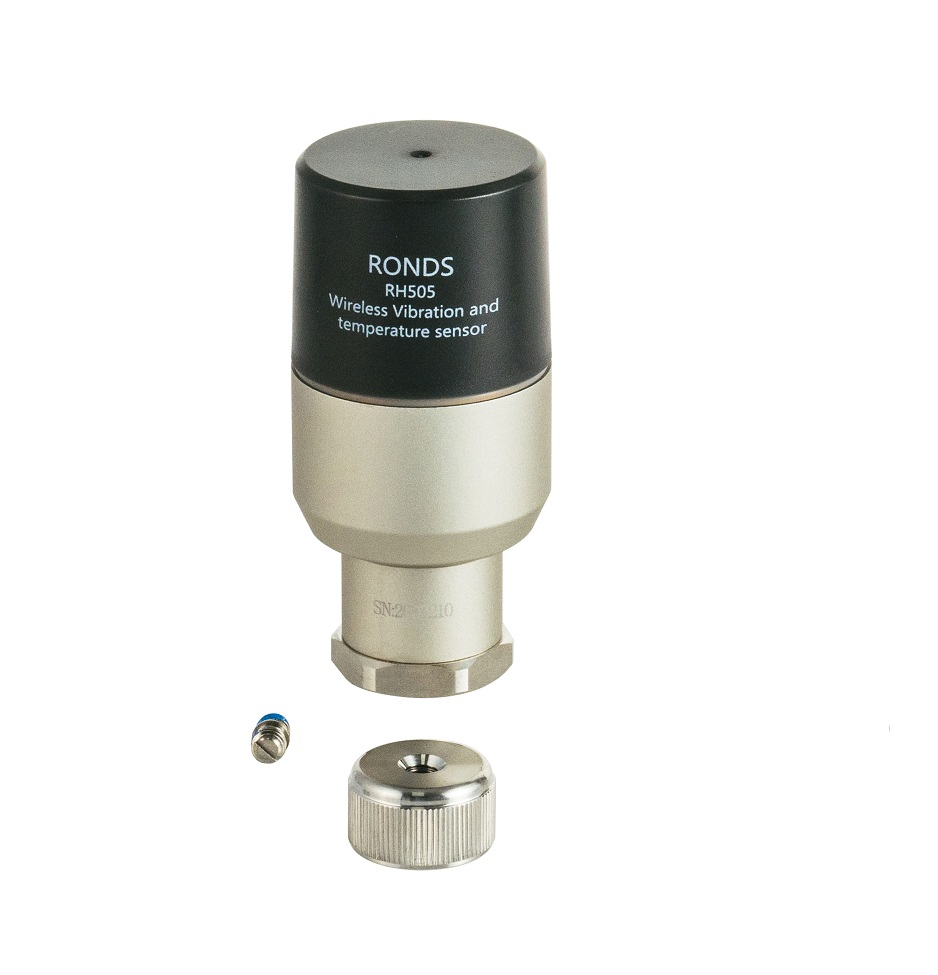

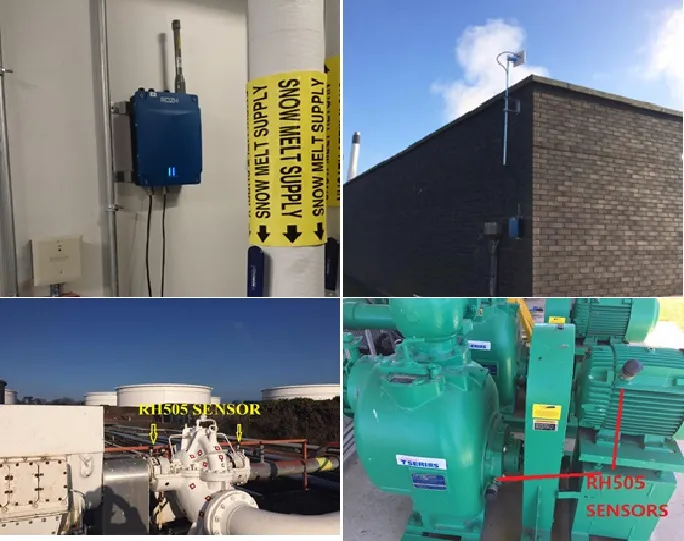

| RH505 Integrated Sensor | |
|---|---|
| Vibration Measurement | |
| Vibration Range / Linearity | ±50 g / 1% |
| Frequency Response | 2Hz~15kHz (±3dB) |
| Sampling Rate | Max. 51.2KHz |
| Measurement Types | Overall value, FFT, time signal, Envelop FFT |
| Temperature Measurement | |
| Range / Accuracy | -40~125 °C / ±1 °C |
| Electrical and Environmental | |
| Power Supply | Lithium battery, 3.6V, 3.3Ah |
| Dimension / Weight | 46 mm × 94 mm / 188 g |
| IP Grade | IP67 |
