Product Description

Overview & Basic Info

Model NO.
GT102BXA
Data on Monitor
Meter, Slope
Waterproof
IP68
Rotate
360 Degree Endless Rotate
Flip
220 Degree Flip
Zoom
Optical and Electrical
Wheels
73 120mm Optional
Qty of Camera
Front and Rear Double
Suitable Pipe Diameter
150-2500mm
Cable Length
50-150m
Cable Material
Professional Kelvar
Barrow
Electrical
Language
8
Production Capacity
1000sets/Month

Product Description

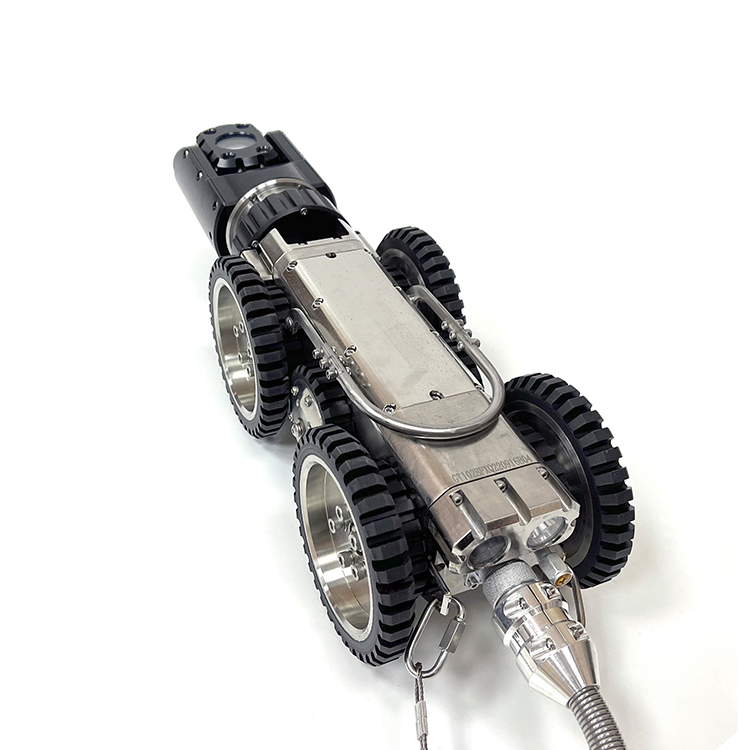

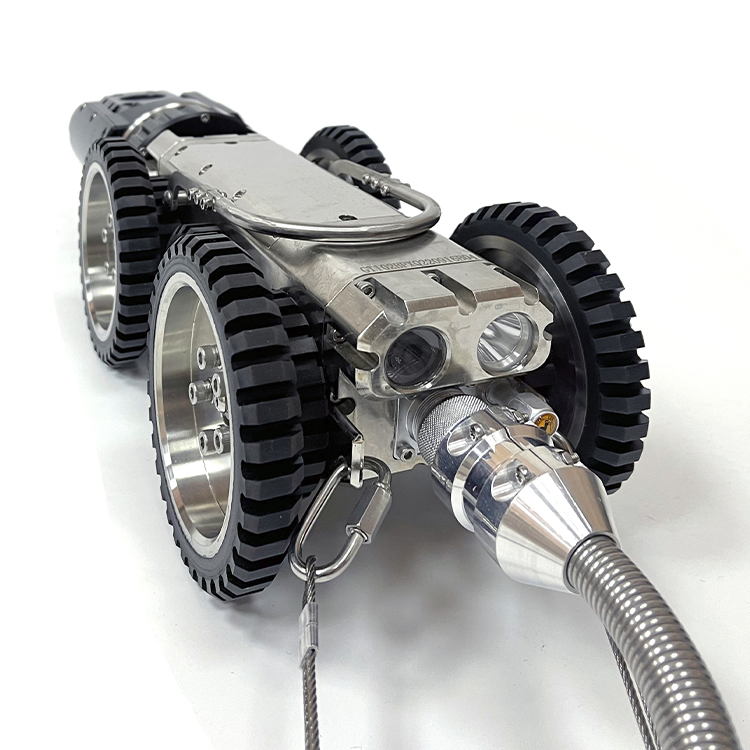

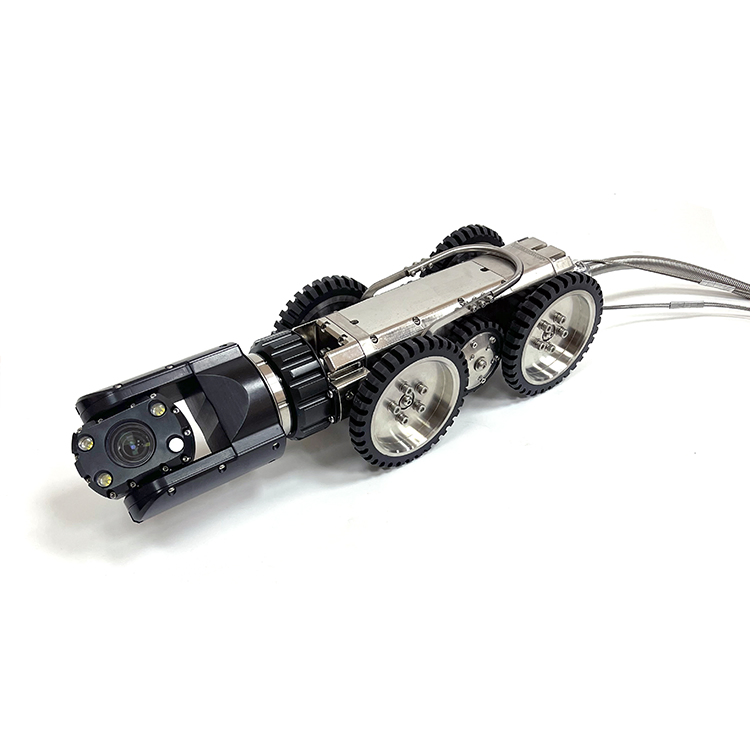

The GT102BXA Pipe inspection camera crawler robot is an advanced solution widely utilized across various sectors including technical supervision, energy, electric power, petrochemical, shipbuilding, rail transit, municipal management, and aerospace research. It is specifically designed for inspecting pipelines with diameters ranging from 150mm to 2500mm.

High-quality CCTV Camera Captures clear and detailed HD 1080P footage of sewer and drain pipes for precise analysis.
Robust Crawler Robot 4-wheel drive system with 6-wheel drive options to effortlessly navigate through challenging pipeline systems.
IP68 Waterproof Fully waterproof design allows for reliable performance in underwater and harsh environments.
Dual Camera Lens Equipped with both front and rear camera lenses to meet various detection working conditions.

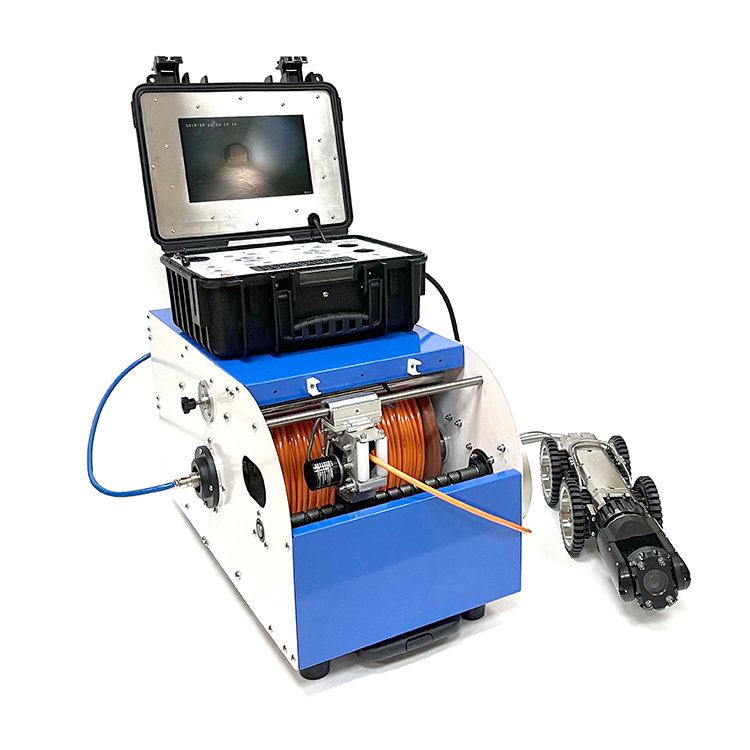

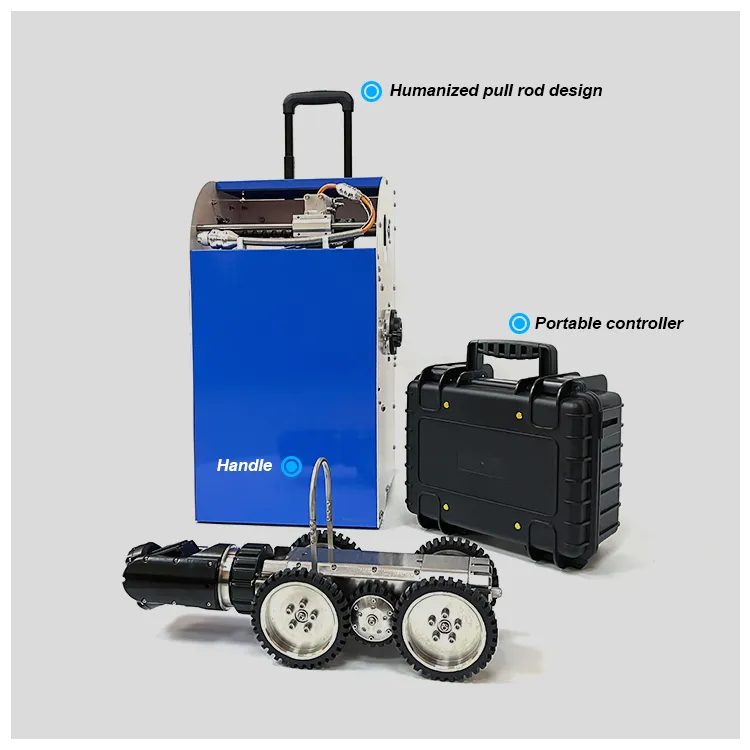

Pipe Inspection System Overview

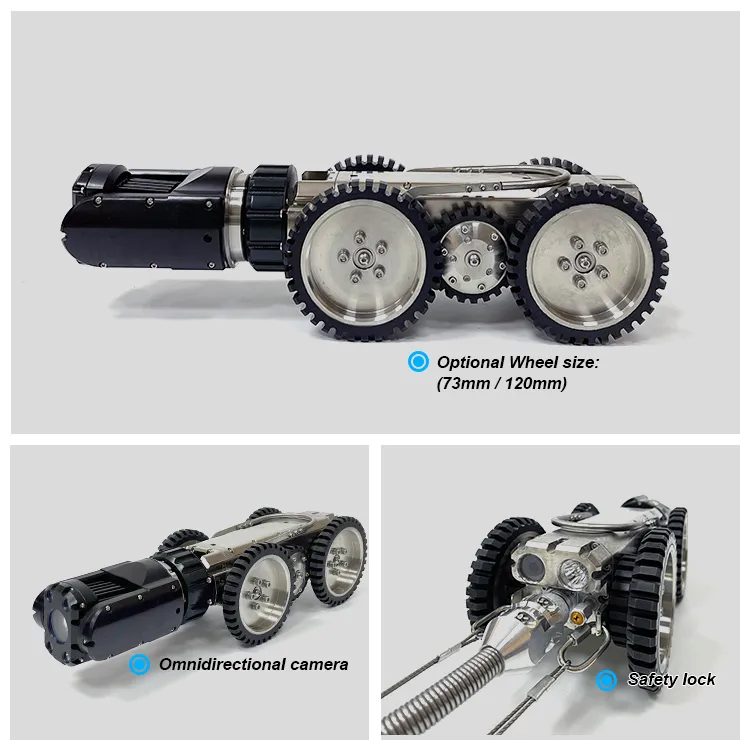

Crawler Robot Details

Key Features

  • Precise Focusing: Electric focusing ensures HD 2 Megapixel (1080P) clarity without blind spots.

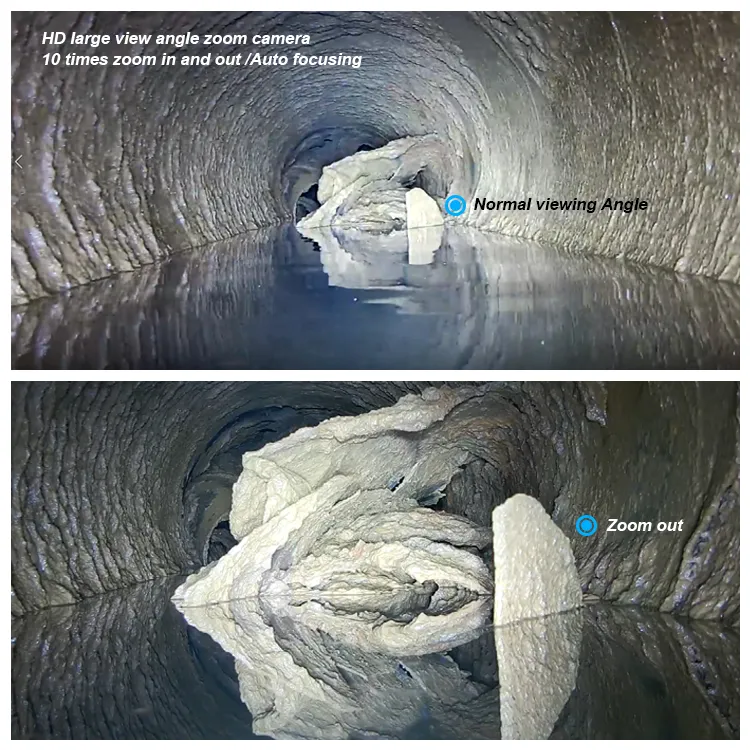

  • Zoom Capabilities: 10 times optical and electrical zoom for detailed inspection.

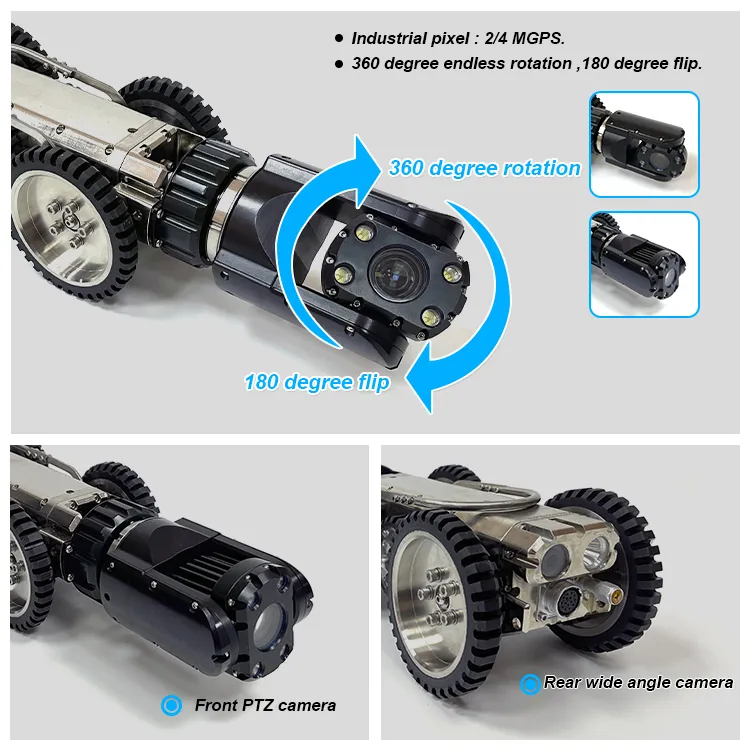

  • Advanced Rotation: 360 degree endless rotation and 220 degree flip lens.
  • Measurement: Automatic take-up and pay-off with a precise meter counter.
  • Optional Tools: Laser measurement and 512Hz locator support.

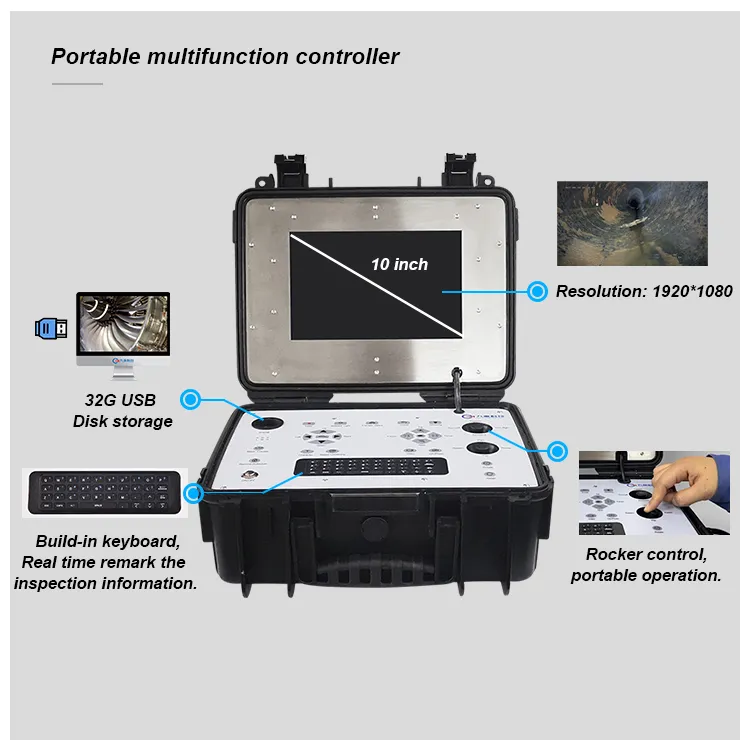

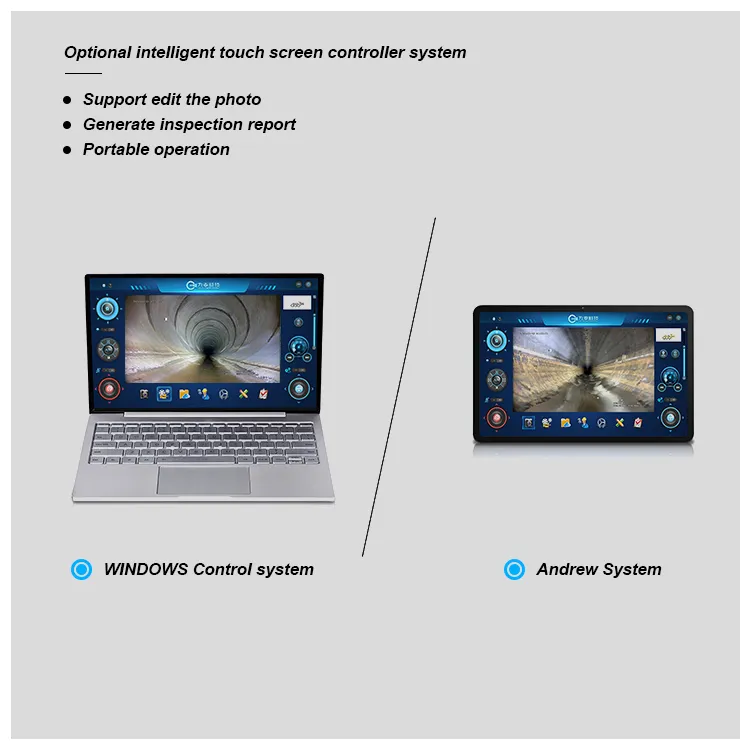

Control System

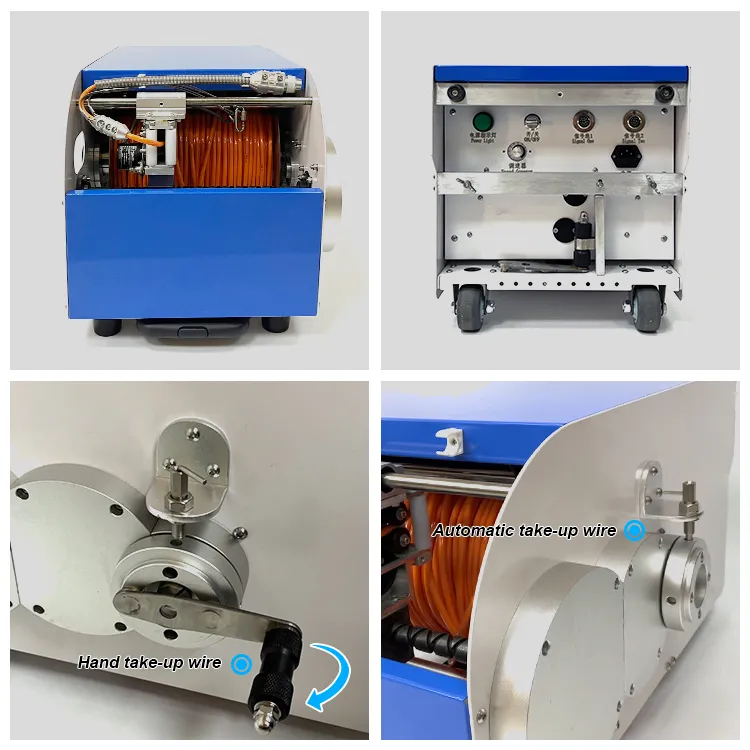

Cable Reel

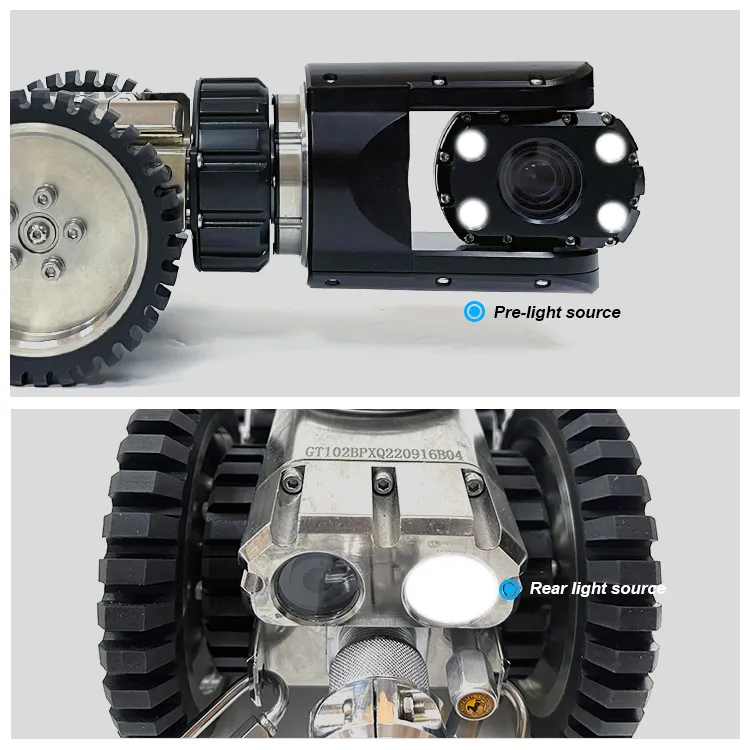

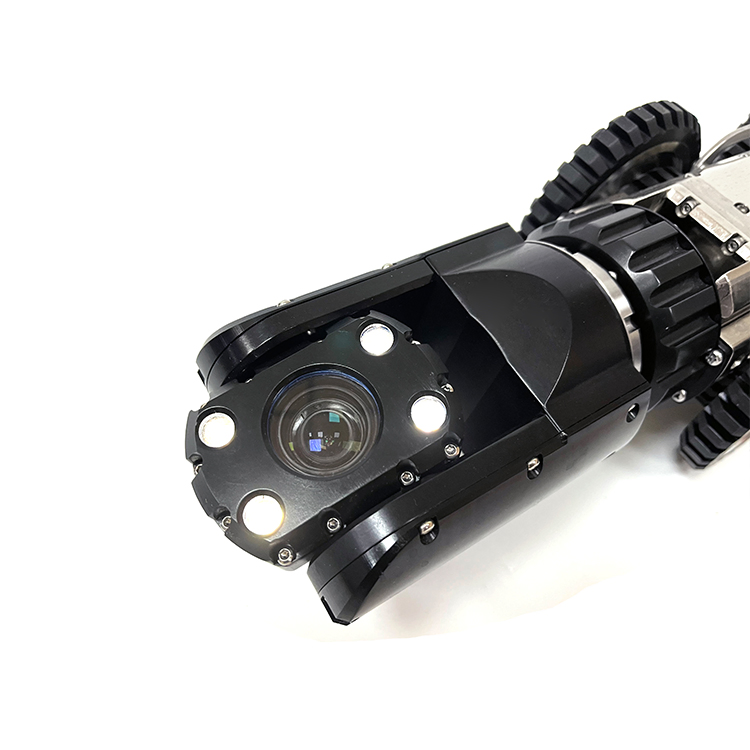

Pipe Camera Front
Crawler Operation
Inspection View

Product Parameters

Parameter Specification
Suitable DiameterPipe diameter: 150-2500mm
Cable LengthStandard 100m or customized
Screen Size10 inch
Resolution1920*1080P
Pixel2,000,000 (HD)
BrightnessAdjustable LED illumination
Wheels73mm / 120mm options
BarrowElectrical powered barrow

Quality Assurance

Advantages
Certification 1
Certification 2
Production Facility

Frequently Asked Questions

What is the suitable pipe diameter for this system?
The GT102BXA system is designed for a wide range of pipes, specifically from 150mm up to 2500mm in diameter.
Is the camera system waterproof for deep inspections?
Yes, the system is rated IP68 waterproof, making it suitable for underwater inspections and harsh, wet pipeline environments.
Can the camera rotate to see all angles?
Absolutely. The camera features 360-degree endless rotation and a 220-degree flip, ensuring a comprehensive view without any blind spots.
How long is the standard cable, and can it be extended?
The standard cable length is 100 meters, but it can be customized between 50 and 150 meters based on your specific requirements.
Does the system support high-definition video?
Yes, the camera provides HD 1080P (2 Megapixel) resolution for crisp, clear video and photos, which can be stored and replayed.
What kind of driving system does the crawler use?
The crawler features a powerful 4-wheel drive system, with the option for 6-wheel drive using different wheel sizes (73mm or 120mm) to handle various pipe conditions.
