Customization: Available
Warranty: 3 Years
Logo Printing: with Logo Printing
Send Inquiry

Product Description

📋 Basic Information
Model NO.
G2-G00M02C240
Certification
CE
Chip Architecture
Arm A55 Dual-Core Architecture
CPU Frequency
Single Core Performance: 2.0GHz
RAM
2GB LPDDR4
Storage
64GB eMMC 5.0
Package Size
20.00cm * 15.00cm * 3.00cm
Gross Weight
2.000kg
🔍 Product Description
IoT Edge Computing Gateway
Basic Specifications
ModelG2-G00M02C240
Chip ArchitectureARM A55 Dual Core Architecture
CPU FrequencySingle Core Performance: 2.0GHz
RAM2GB LPDDR4
Storage64GB EMMC5.0
Communication Interface
Serial Port6 Serial ports (2x RS232, 4x RS485)
Ethernet1-port 100Mbps adaptive, 1-port config port
Industrial Grade Protection
EMC4.5KV (Power, Coupling)
Operating Temp-20~85℃
Cooling MethodPassive Cooling
📊 Model Comparison
Model G1-G00M02C240 G2-G00M02C240 G3-G00M06C240 G4-G00M06C240
Storage 8GB EMMC5.0 64GB EMMC5.0 8GB EMMC5.0 64GB EMMC5.0
Ethernet 2 Ports (1 Adaptive + 1 Config) 2 Ports (1 Adaptive + 1 Config) 6 Ports (5 Adaptive + 1 Config) 6 Ports (5 Adaptive + 1 Config)

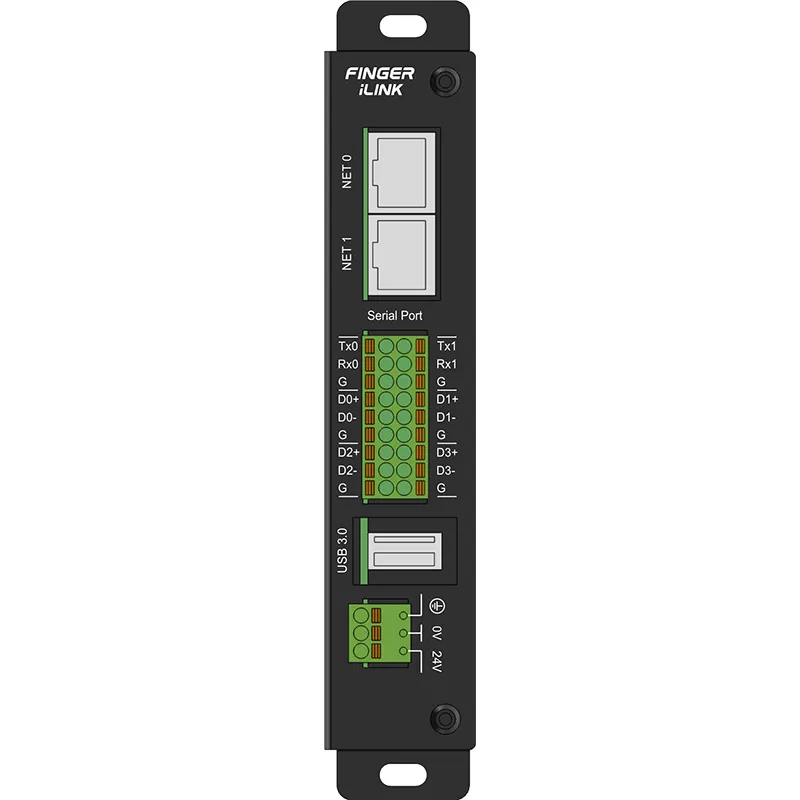

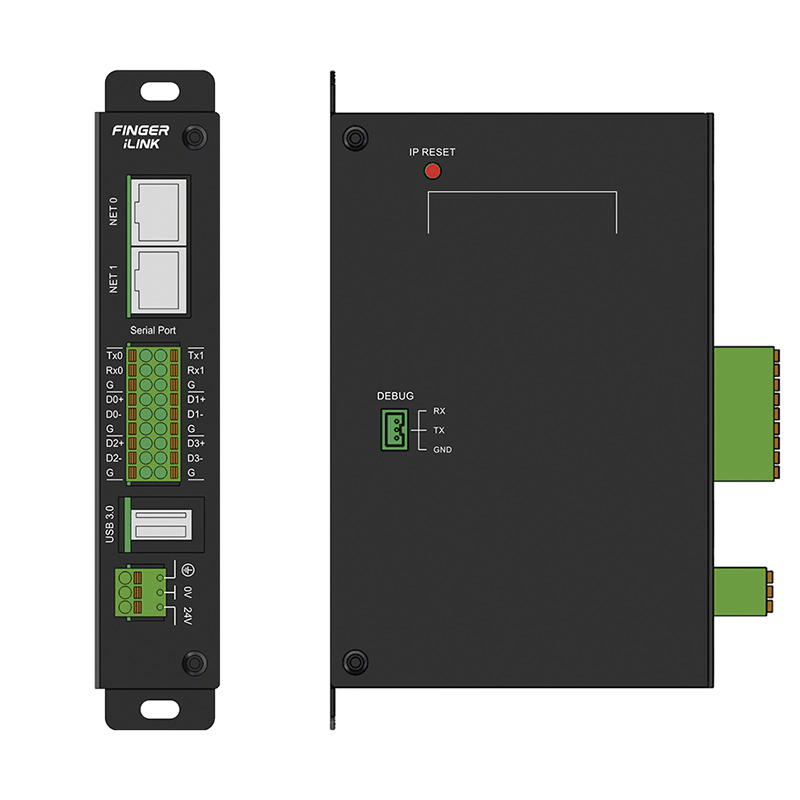

G1/G2 Model View

G1/G2 Series

G3/G4 Model View

G3/G4 Series

🚀 Product Introduction & Features

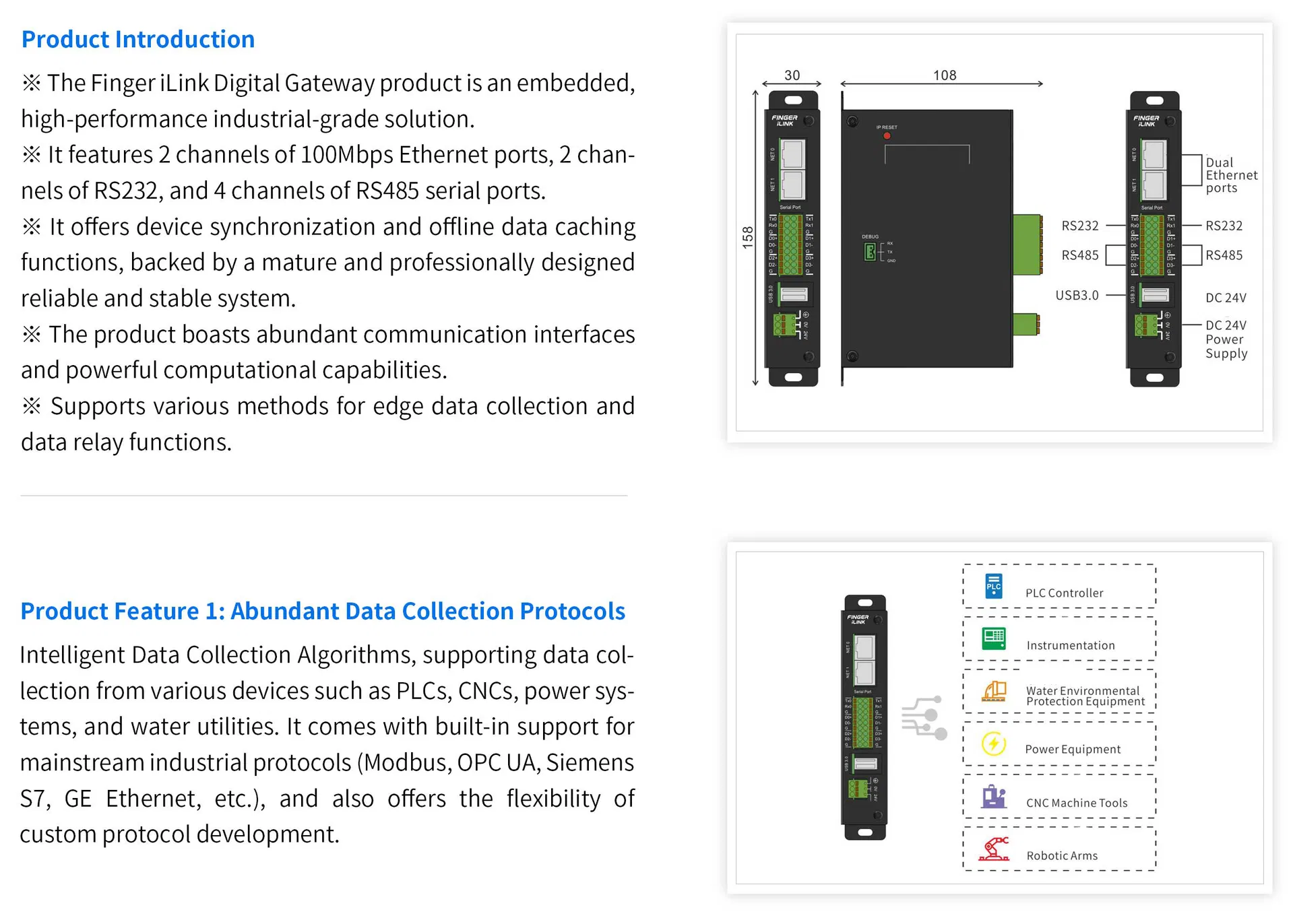

Feature 1

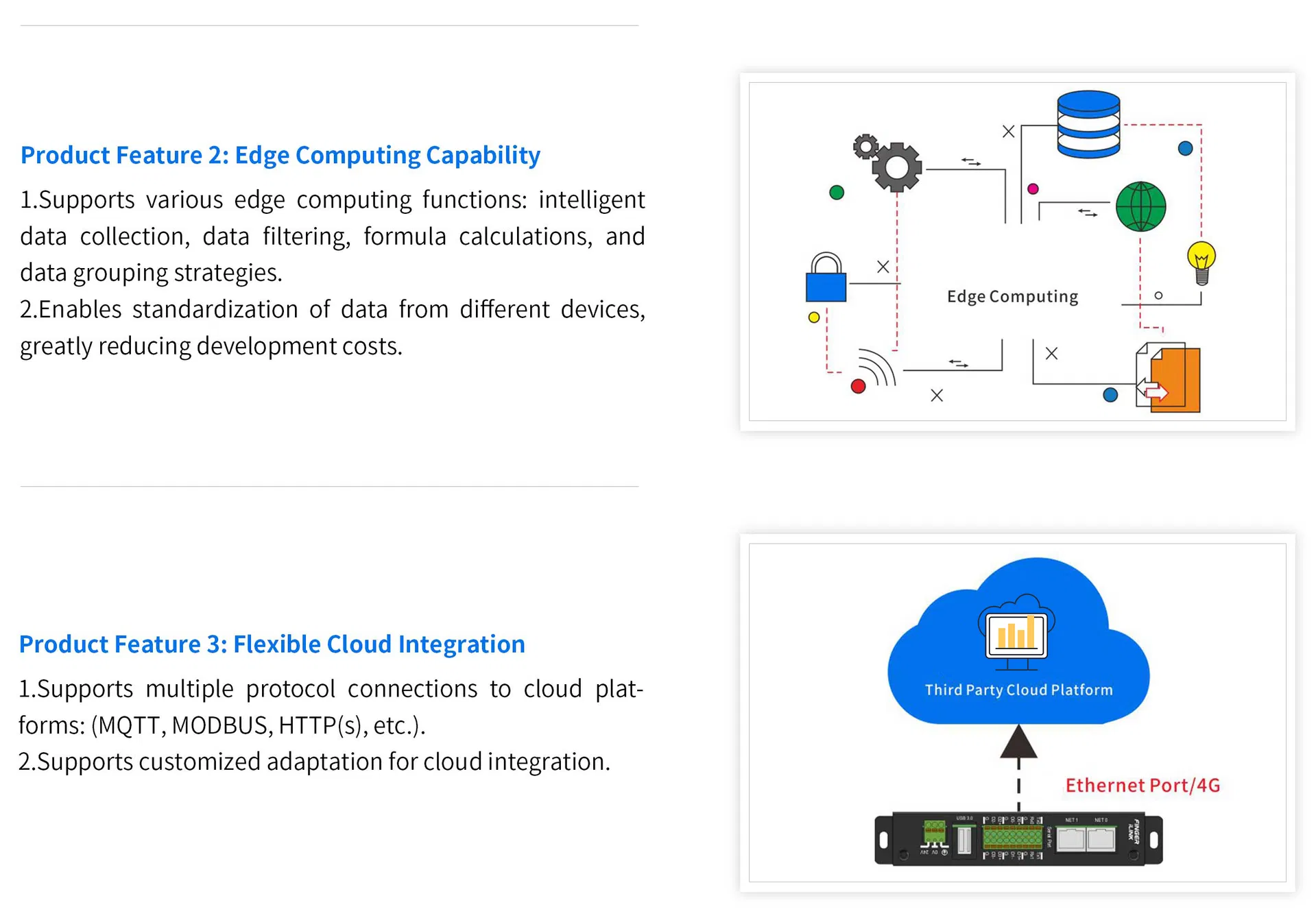

Feature 2

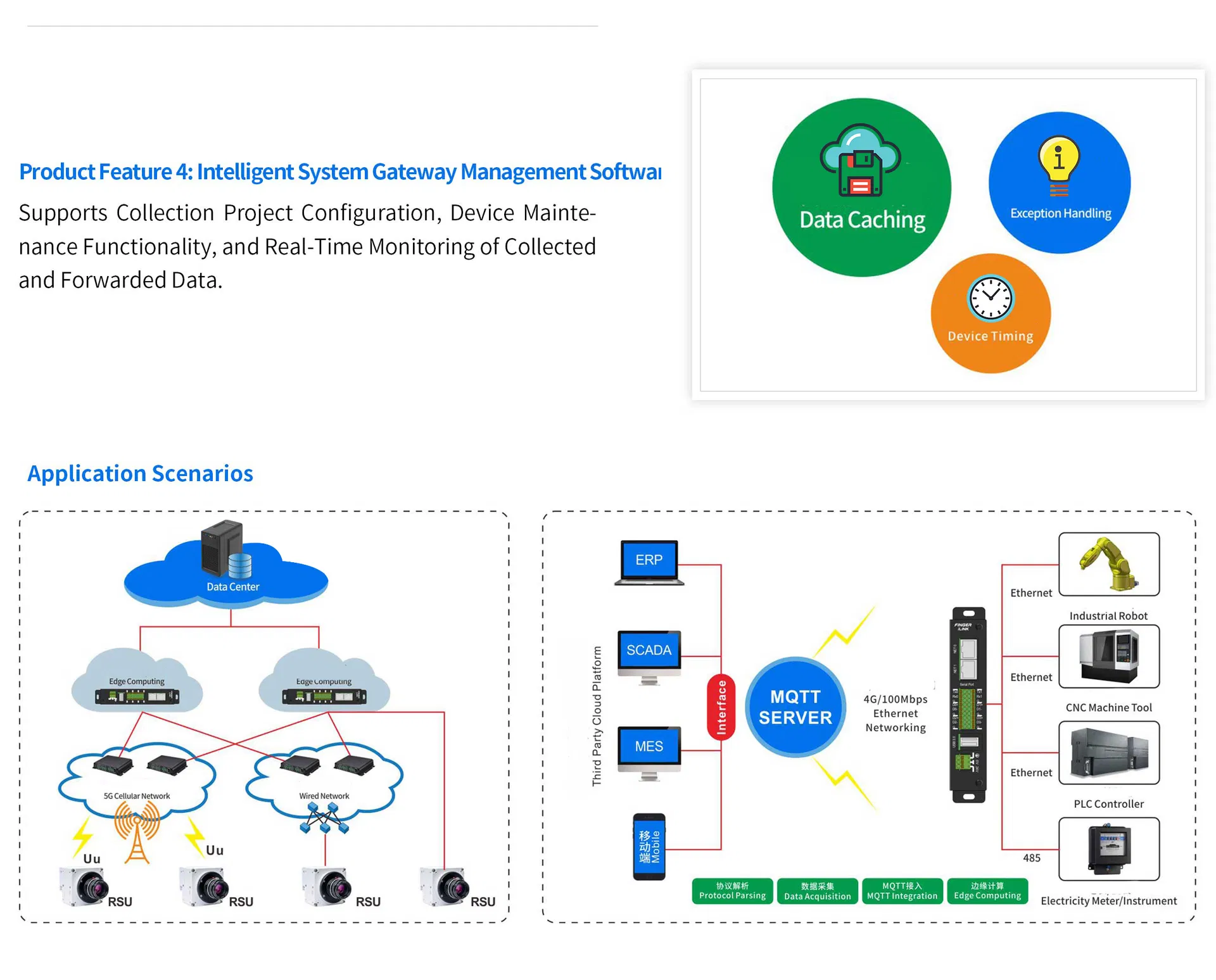

Feature 3
Feature 4
Feature 5
Feature 6
📦 Packaging & Shipping
Packaging Details
❓ Frequently Asked Questions
Q1: What is the primary chip architecture of this gateway?
The gateway is built on a high-performance Arm A55 Dual-Core architecture, providing efficient processing for edge computing tasks.
Q2: How many serial communication ports are available?
It features 6 serial communication ports, specifically including 2 RS232 interfaces and 4 RS485 interfaces for versatile industrial connectivity.
Q3: Which operating system does the device support?
The gateway comes pre-installed with the stable Debian 11 operating system, ensuring a reliable environment for industrial software.
Q4: What are the environmental operating limits?
The device is designed for industrial grade use with an operating temperature range of -20℃ to +85℃ and high EMC protection (4.5KV).
Q5: What is the power consumption and cooling method?
It operates on a 24VDC power supply with a low power dissipation of 10W. It uses a passive cooling method (no fans required).
Q6: Can this device handle large data acquisition?
Yes, the software system (Finger GateWay Link IDE) supports a data-handling capacity of up to 20,000 points.
