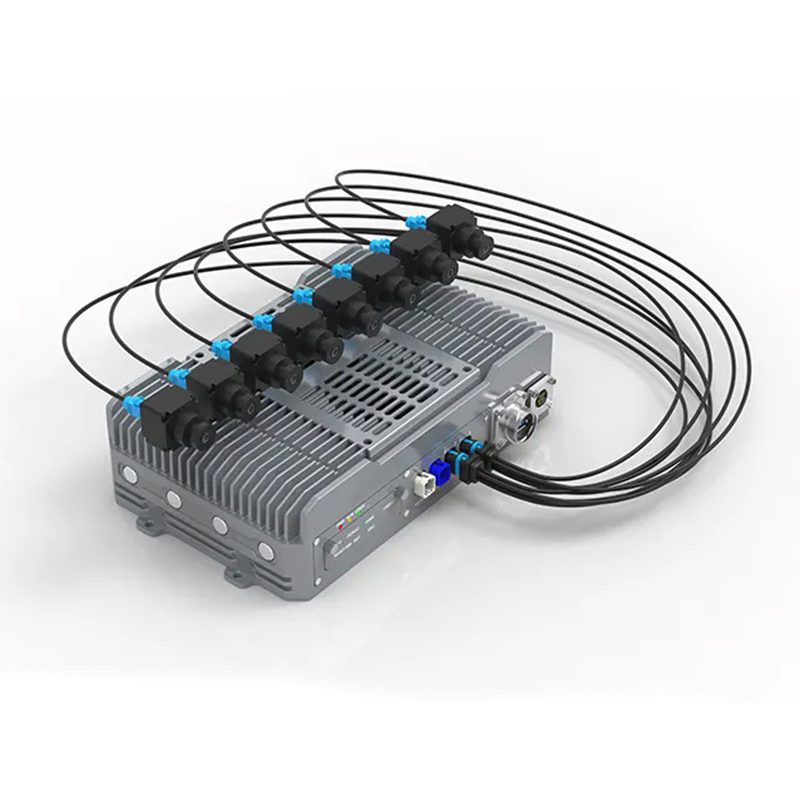

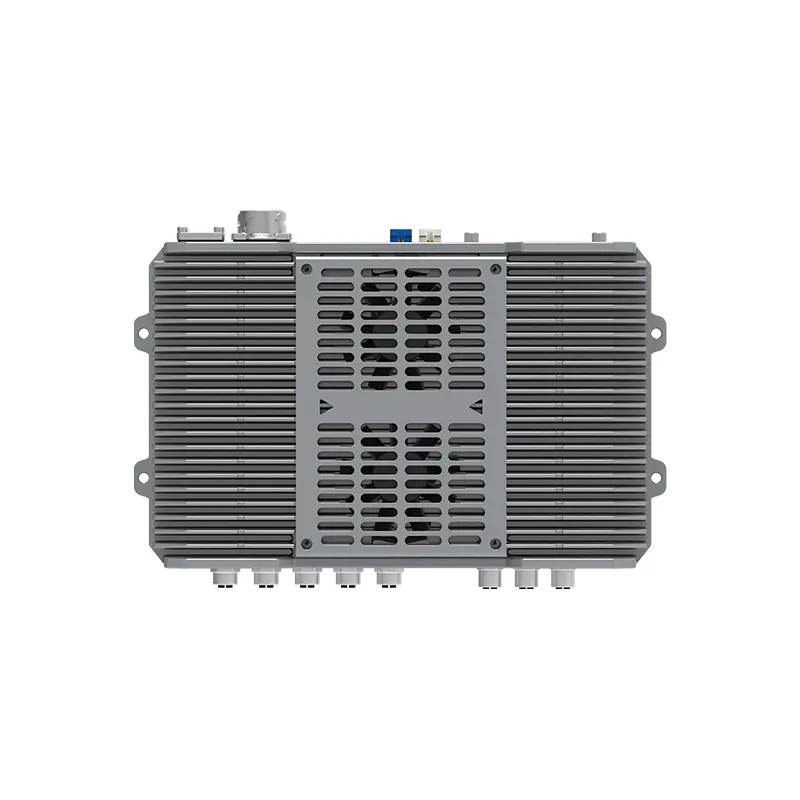

32GB 200TOPS AI Development Board – Embedded Computing Edge Sensor Modules and Kits. Developed based on the NVIDIA Jetson AGX Orin embedded GPU module, the FC9130G offers high-performance computing power ranging from 200 to 275 TOPS.
Equipped with rich hardware interfaces, it fully supports sensors commonly used in autonomous vehicles, making it an ideal solution for industrial vision, smart robotics, and high-demand autonomous driving applications.
| System Architecture | |

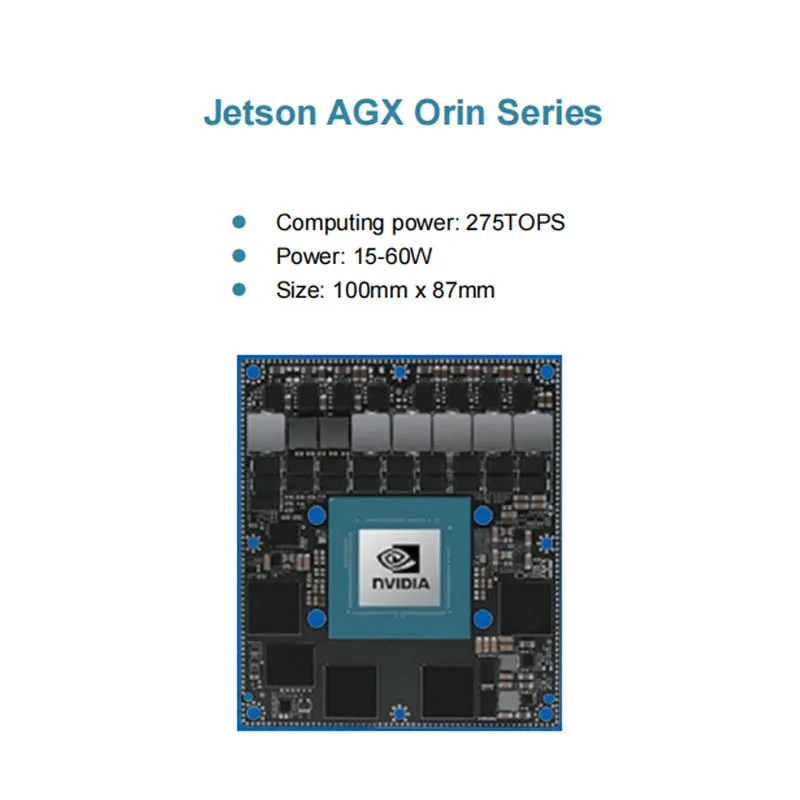

| AI Platform | NVIDIA Jetson AGX Orin |
| AI Computing Power | 200 TOPS / 275 TOPS |
| GPU | 1792-core Ampere architecture (56 Tensor Cores) / 2048-core (64 Tensor Cores) |
| CPU | 8-core or 12-core Arm® Cortex®-A78AE v8.2 64-bit |
| Memory | 32GB / 64GB 256-bit LPDDR5 (204.8GB/s) |
| Storage | 64GB eMMC 5.1 |
| Hardware Interfaces | |

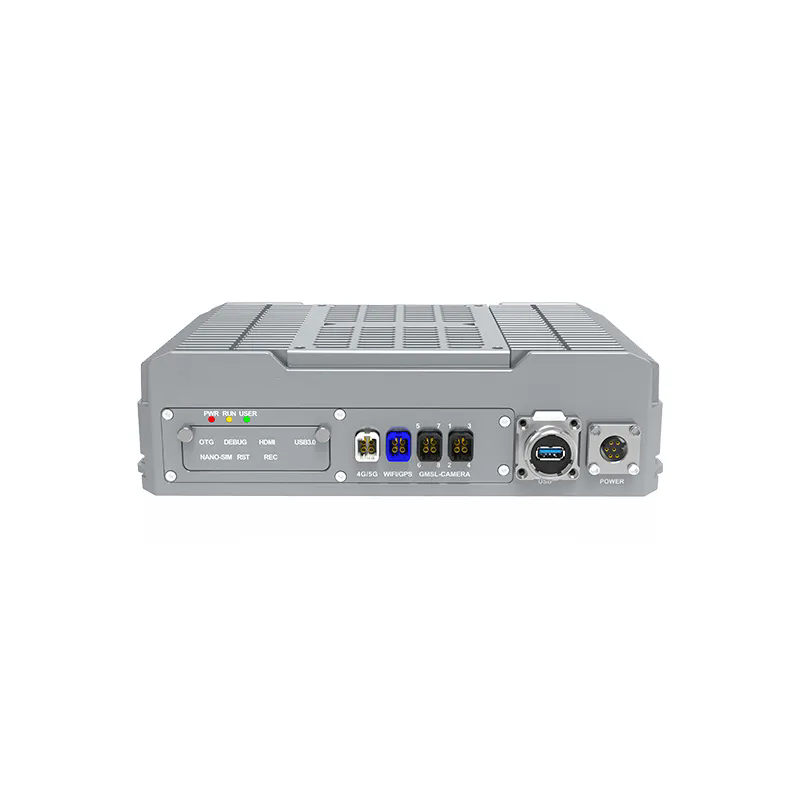

| Wired Network | 1 × M12 10GbE (PTP support), 4 × M12 GbE (Independent IP, POE Optional) |
| Wireless | Dual-band WiFi, 4G/5G Full Netcom, GNSS (BD/GPS/RTK) (Optional) |
| Video Output | 1 × HDMI |
| USB / Serial | 2 × USB 3.0 Type-A, 1 × Type-C OTG, 1 × RS485, 2 × RS232 |
| Special Interfaces | 2 × CAN, 2 × SPI-CAN, 8 × GMSL2 Camera Ports |
| Physical & Environment | |
| Power Input | 10V-36V DC (Supports ACC) |
| Dimensions | 275mm × 177.3mm × 76.5mm |
| Operating Temp | -20ºC to 60ºC (Standard) / -40ºC to 70ºC (Optional) |
| Cooling | Active Fan Cooling |
