Remote Condition Monitoring System for Wind Turbine Predictive Maintenance

1 / 5

Remote Condition Monitoring System for Wind Turbine Predictive Maintenance

Specification:	5kgs
Trademark:	Ronds
Origin:	China

Send Inquiry

Product Description

Basic Specifications

Model NO. RH1000

HS Code 9031809090

Production Capacity 1000/Month

Product Introduction

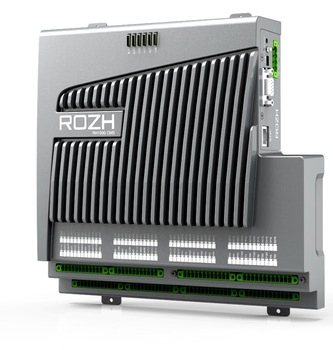

RH1000 online monitoring station consists 16 vibration and temperature optional channels, 2 process information channels, 1 speed channel. It can realize synchronous data acquisition with all channels.

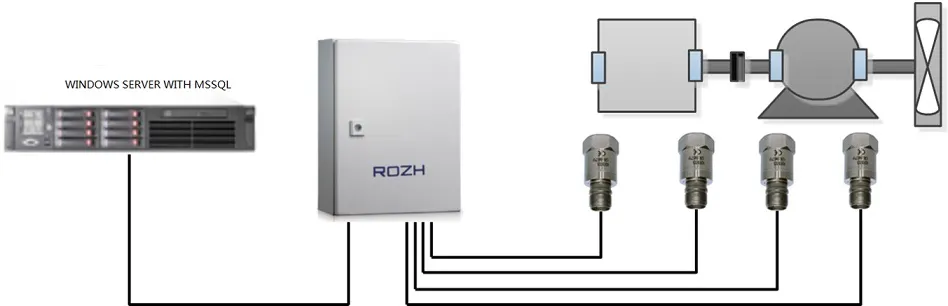

Working Diagram

System Features

📊Maximal 16 channels synchronous data acquisition

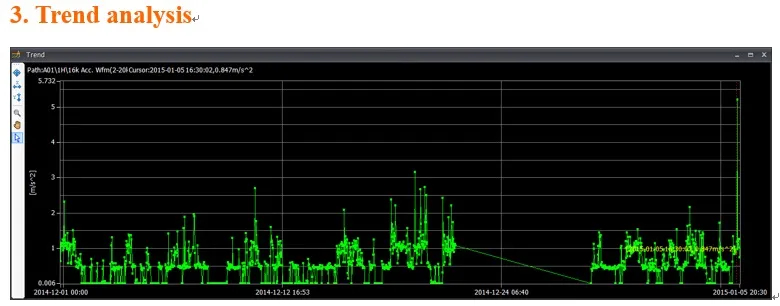

🖥️Machine Data Overview

⚙️DAQ Definition & Group Management

🌳Configuration Information Tree

🌐Remote Data Viewing

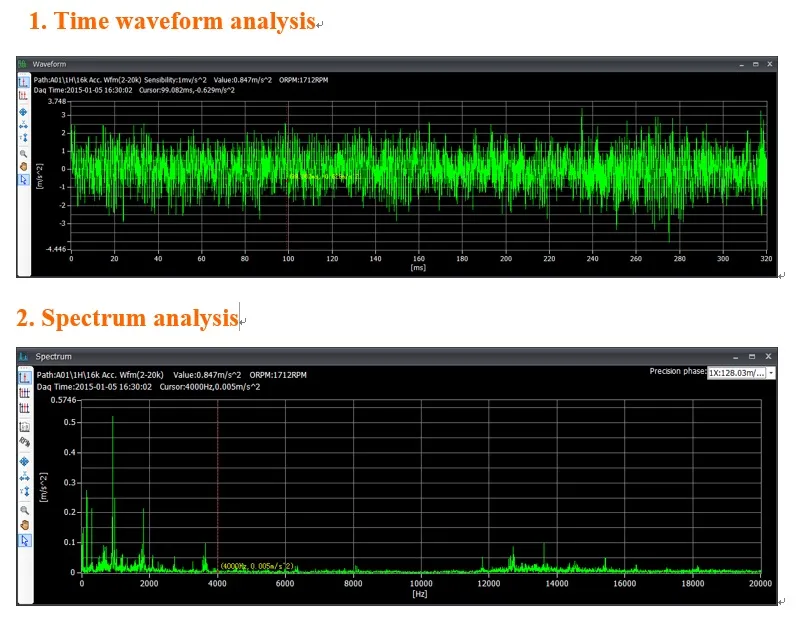

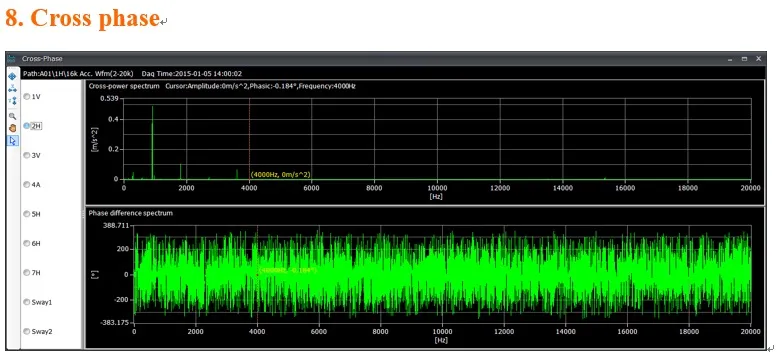

🛠️Plenty of Data Analysis Tools

🧮Automatic Calculation of Characteristic Frequency

🔔Intelligent Alarm Function

📝Create report Function

Technical Parameters

Parameter Item	Specification Details	Notes
Max. Channels	16 vibration/temperature, 1 speed, 2 processing	Total channels
Vibration (Temperature measurement optional)
Sensor Type	IEPE acceleration sensor	High/low frequency synchronous
A/D Converter	24 bits delta-sigma ADC	High precision
Sampling Frequency	256Hz to 102.4kHz	Multiple ranges available
Dynamic Range	100dB	-
Temp Range	-40ºC ~ 120ºC	Precision: ±2ºC
Speed & Sway Channels
Speed Range	0 ~ 20000 RPM (Proximity/PLC)	Precision: ±0.5%
Sway Channel	1 channel, two axial (0~5V)	Optional for wind towers
Basic & Environment Parameters
Protection Grade	IP65	Dust and water resistant
Working Environment	-40~70ºC, ≤95%RH	Non-condensing
Power Supply	Outdoor: 220VAC / Indoor: 12-24VDC	Consumption <8W

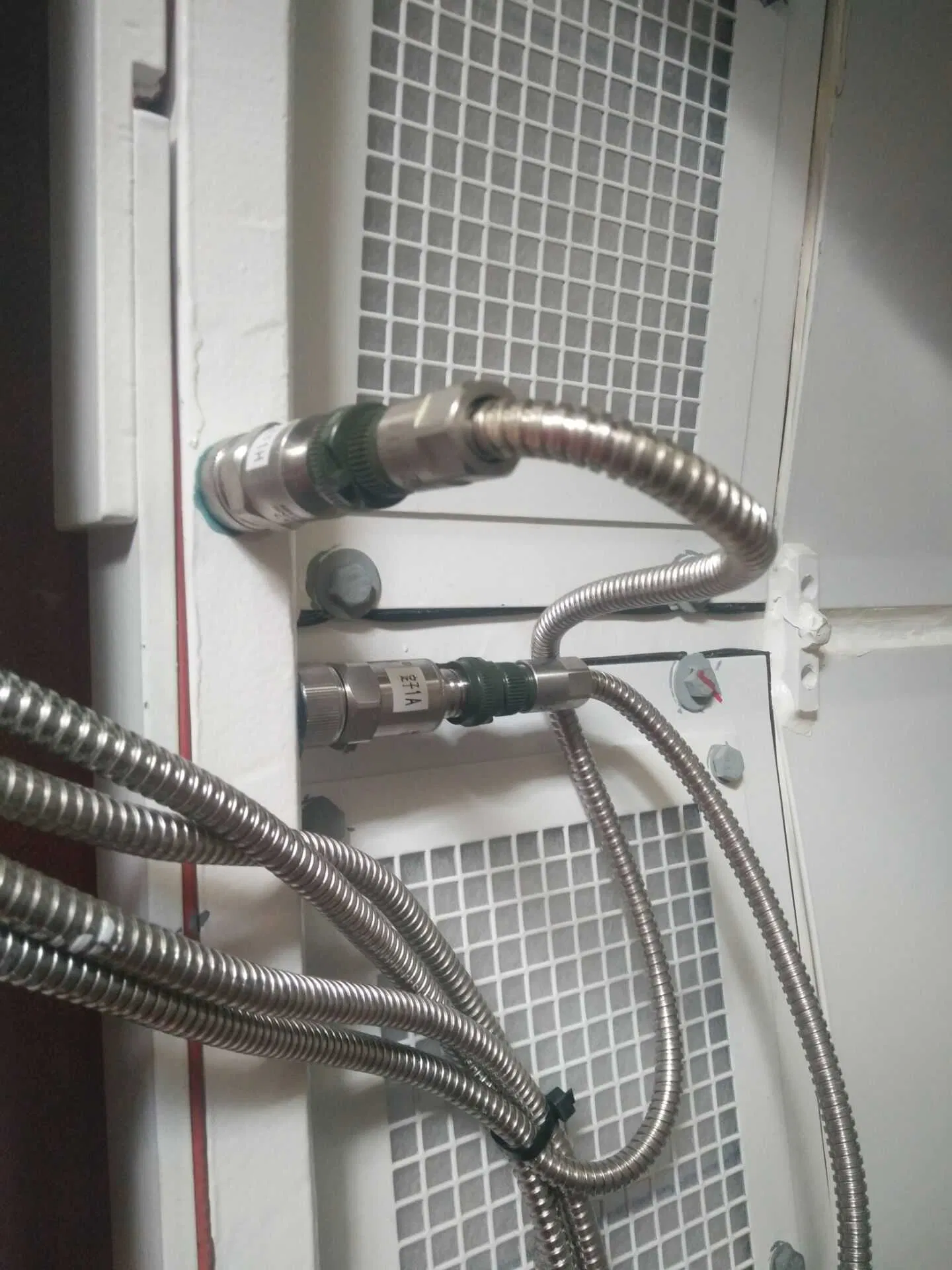

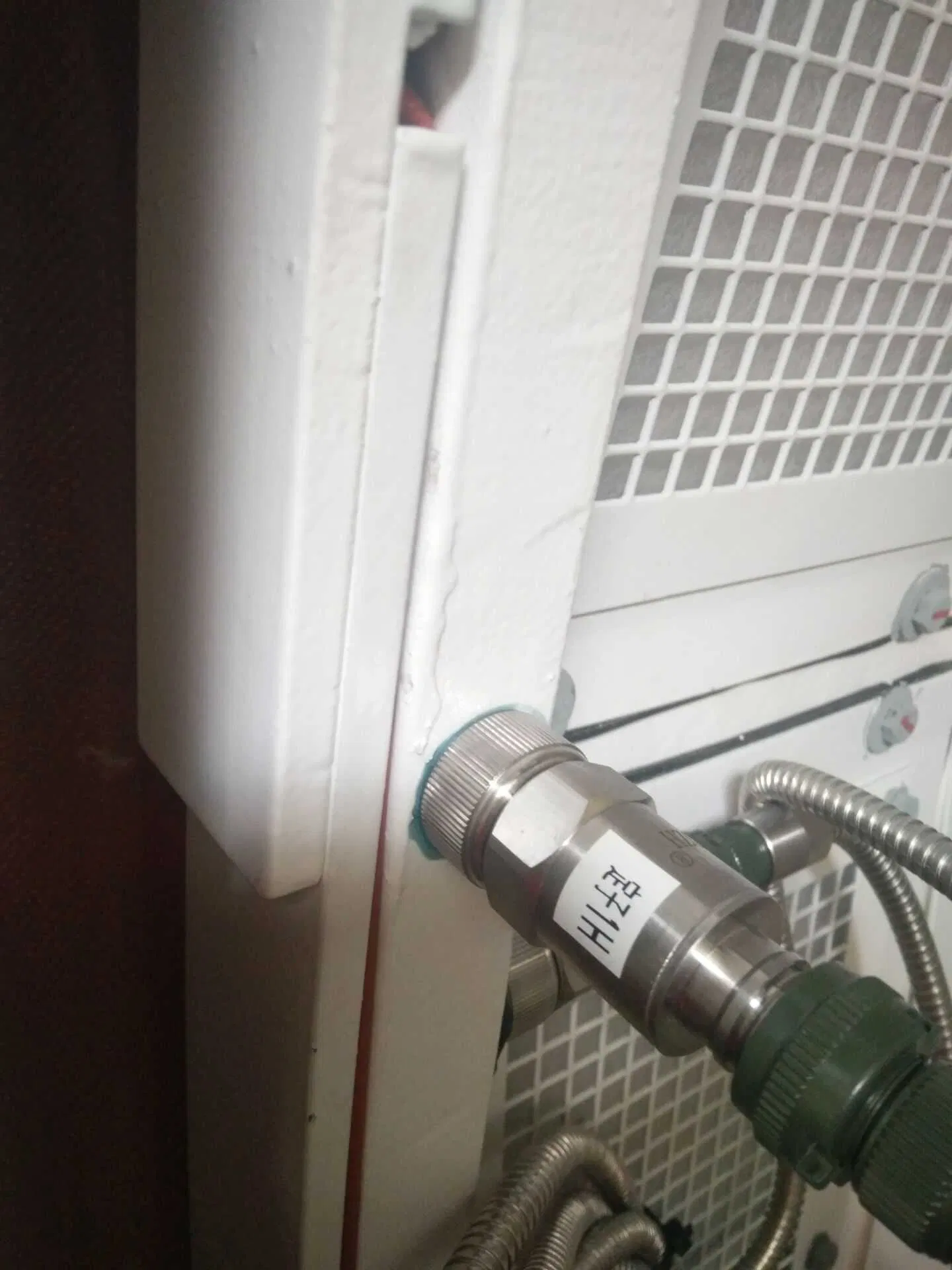

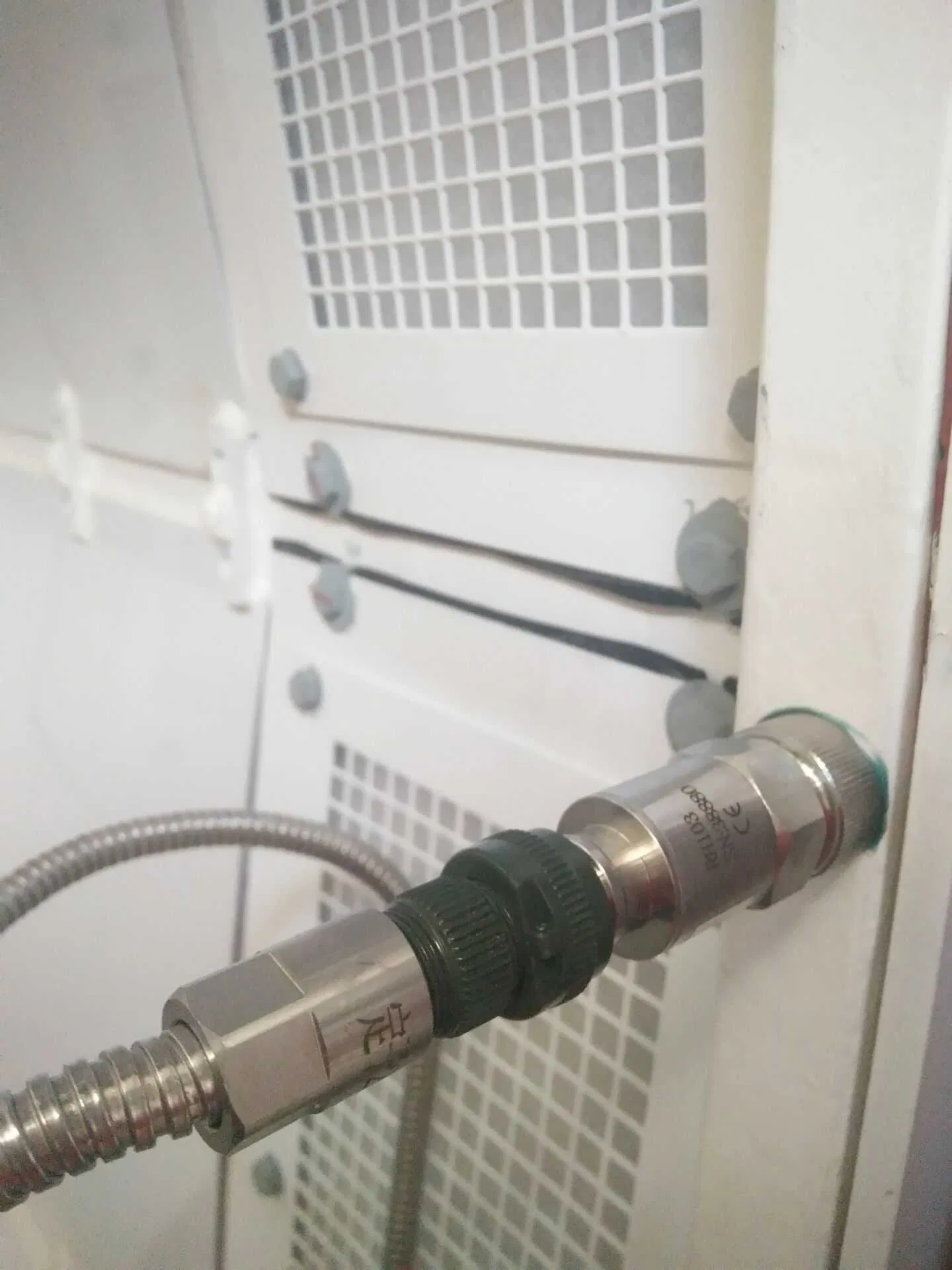

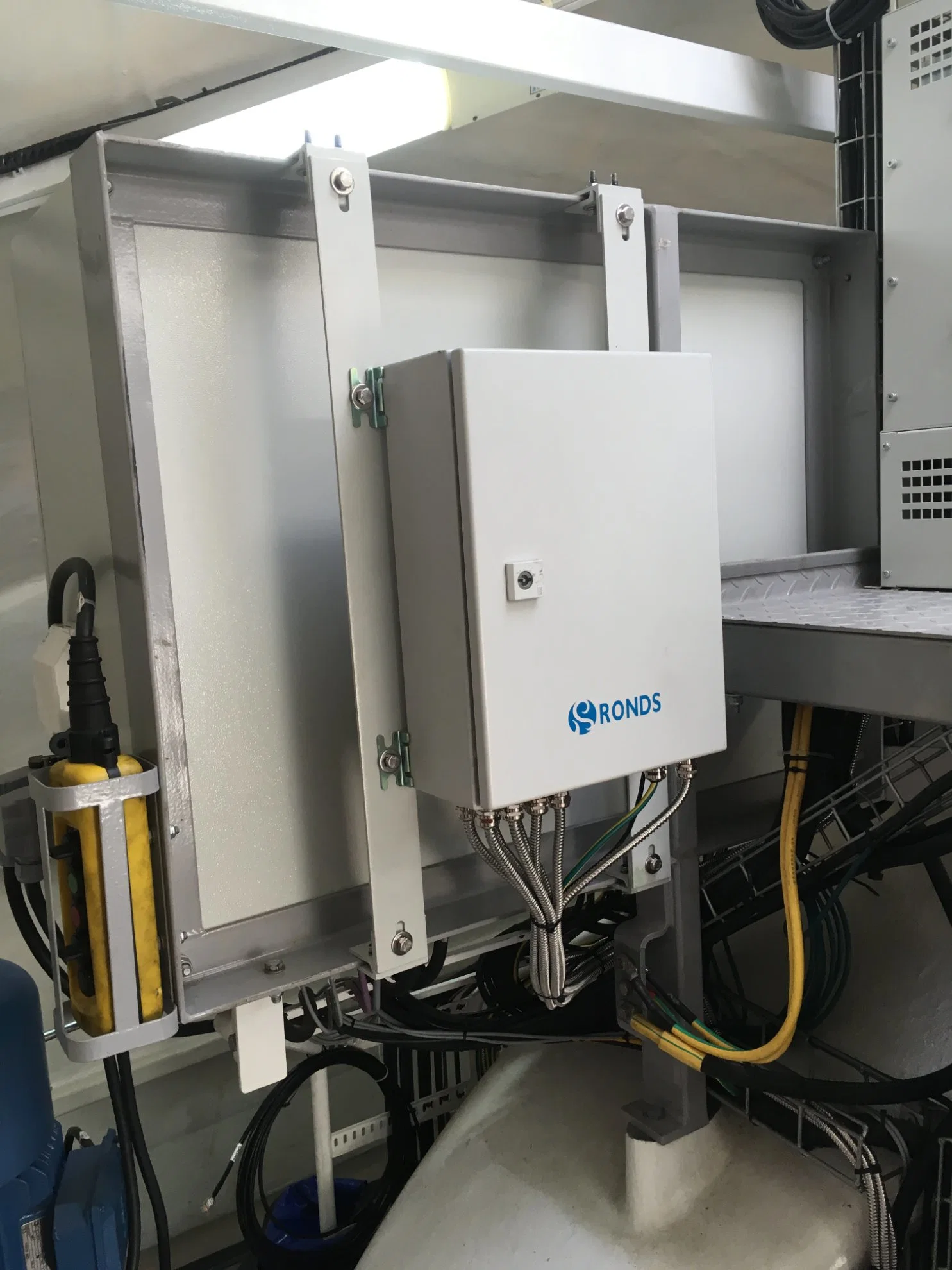

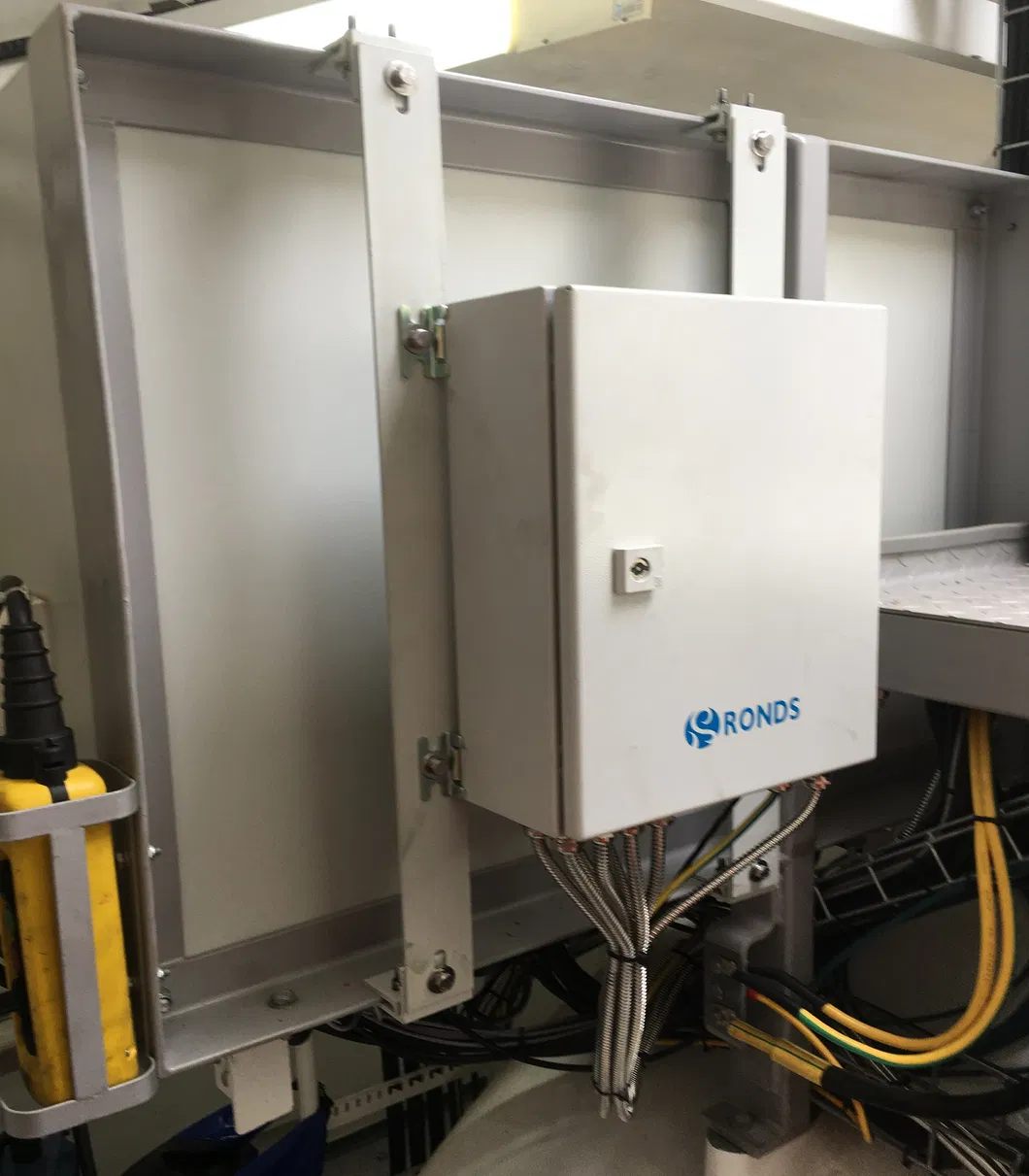

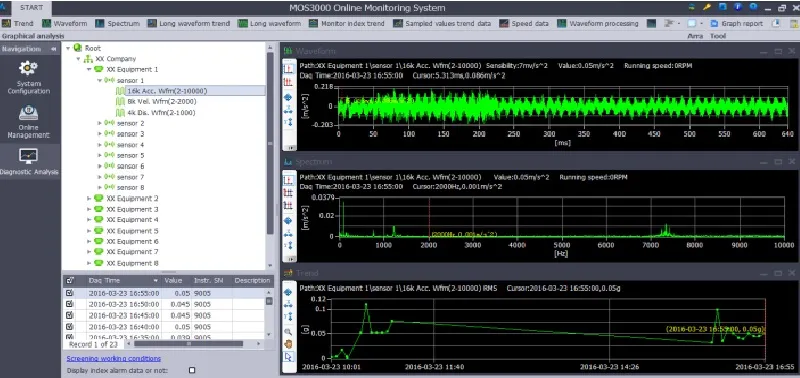

MOS3000 Software & Site Installation

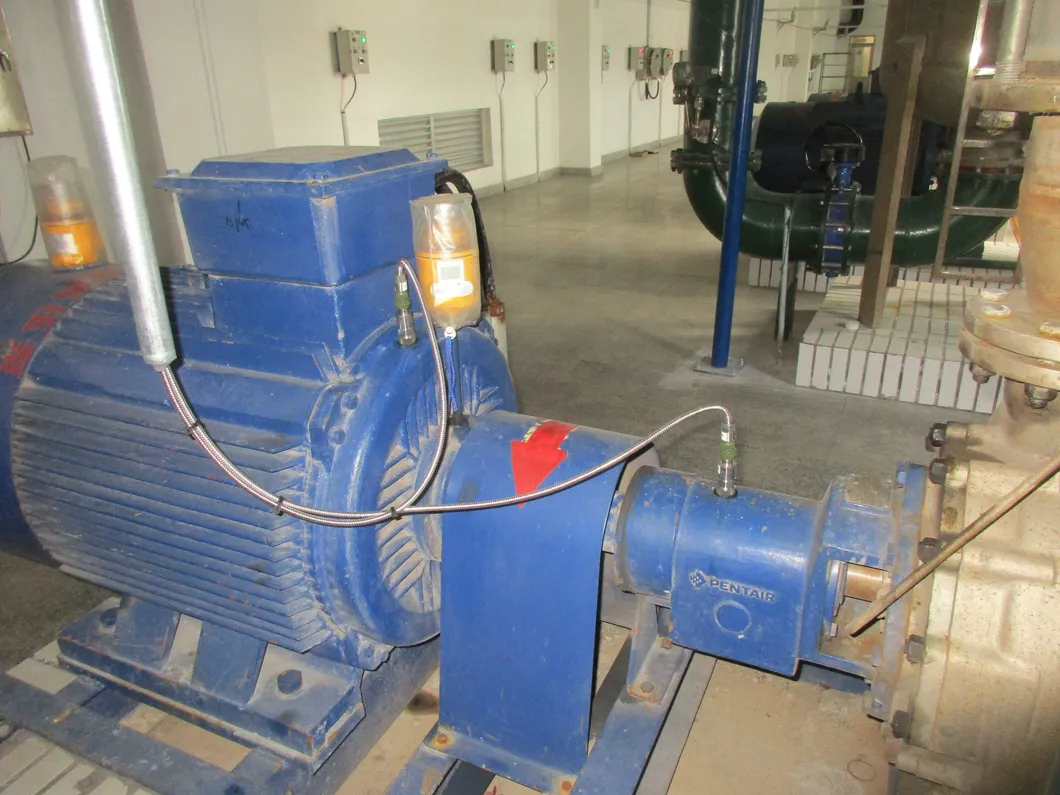

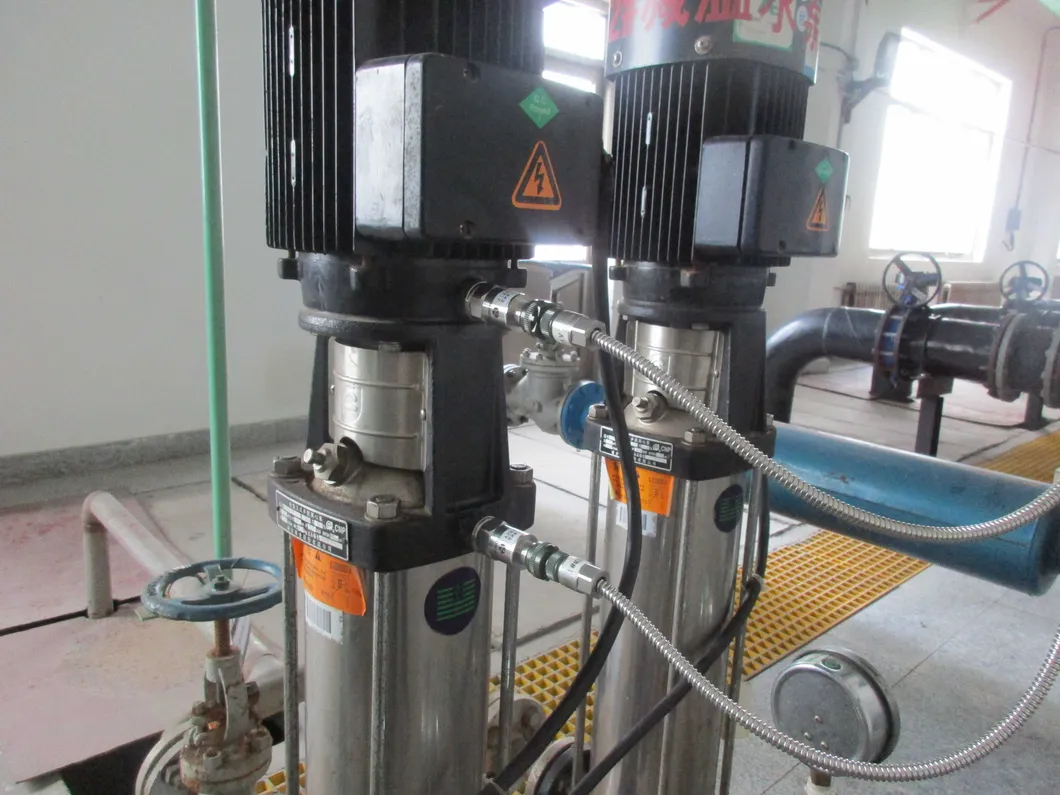

Industrial Applications

Wind Turbine Solutions

Professional Expertise

30 Professional Vibration Analysts

• Diagnosis experts with more than 20 years of experience

• CAT III vibration analysts

• CAT II vibration analysts

Intelligent Algorithm Team

• Algorithm team with 11 members, led by famous doctoral tutor

• Big data team with 13 members

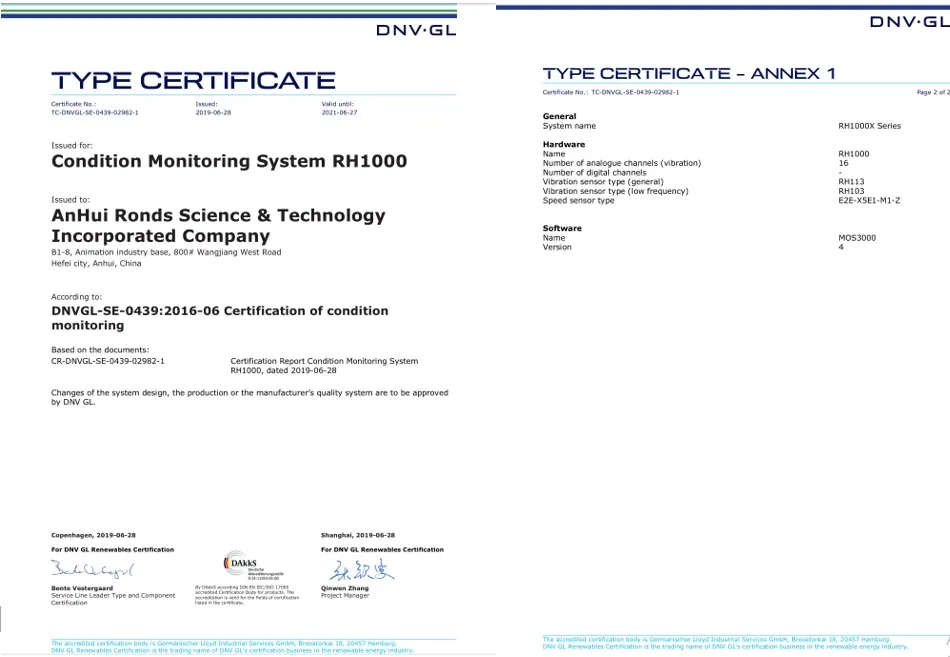

Certificate

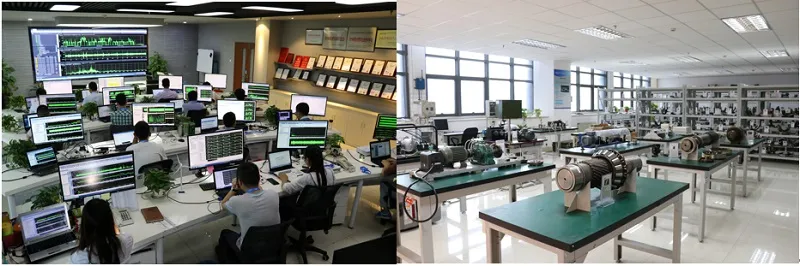

Remote Diagnostic Center and Lab

Frequently Asked Questions

Q1: How many channels can the RH1000 monitor simultaneously? A1: The RH1000 supports up to 16 channels for synchronous vibration and temperature data acquisition, along with 2 process information channels and 1 speed channel.

Q2: What is the environmental protection rating for the RH1000? A2: The device is IP65 rated, making it highly resistant to dust and water, suitable for harsh industrial and outdoor environments.

Q3: Does the system support remote data monitoring? A3: Yes, the RH1000 features remote data viewing and intelligent alarm functions, allowing for predictive maintenance from a distance.

Q4: What types of sensors are compatible with this station? A4: It is primarily integrated with IEPE acceleration sensors and can handle synchronous acquisition for high and low frequency signals.

Q5: What is the operating temperature range? A5: The working environment temperature range is from -40ºC to 70ºC, designed for reliability in extreme conditions.

Q6: What communication protocols are supported? A6: It supports TCP/IP (10/100baseT), RS485, and optional optical fiber communications for robust data transfer.
