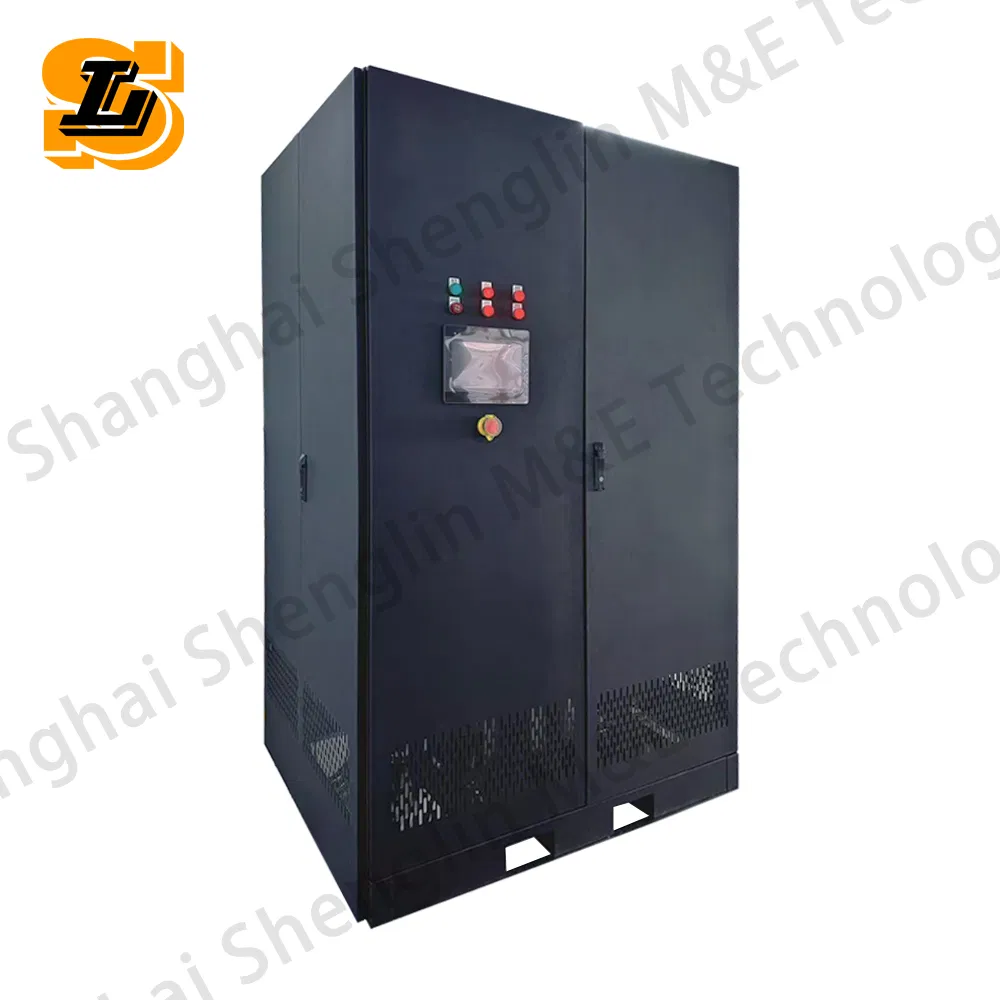

Liquid Cooling Cdu for Edge Computing Scenarios

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Specifications

Model NO.
CDU150
Type
Water-Cooled
Cooling Water
Dry Cooler/Cooling Tower
System Type
Closed System
Noise Level
Low
Capacity
150 Kw
Application
Mining Farms and Data Center
Power
400/3n/50Hz/60Hz
Heat Exchanger
Plate Heat Exchanger
Pump
Variable Frequency Pump
🏢

Overview

A premier enterprise focusing on the innovative design, cutting-edge research, and advanced manufacturing of HVAC refrigeration equipment. The expertise and commitment to quality have established a leadership position in the industry.

Pioneering liquid cooling technologies incorporate dry coolers as the pivotal component. These solutions are indispensable for cooling high-density computing environments like supercomputers, data centers, IDC rooms, and telecommunications facilities. These systems drastically cut energy consumption and enhance operational efficiency.

Liquid Cooling Cdu for Edge Computing Scenarios
⚙️

Product Description

The Coolant Distribution Unit (CDU) is indispensable for ensuring optimum coolant distribution within cutting-edge water cooling systems. This pivotal component guarantees smooth operation, bolstered by essential auxiliary monitoring devices and critical elements such as robust circulating pumps, efficient heat exchangers, precise electric control valves, advanced sensors, reliable filters, versatile expansion tanks, accurate flow meters, and seamless online replenishment.

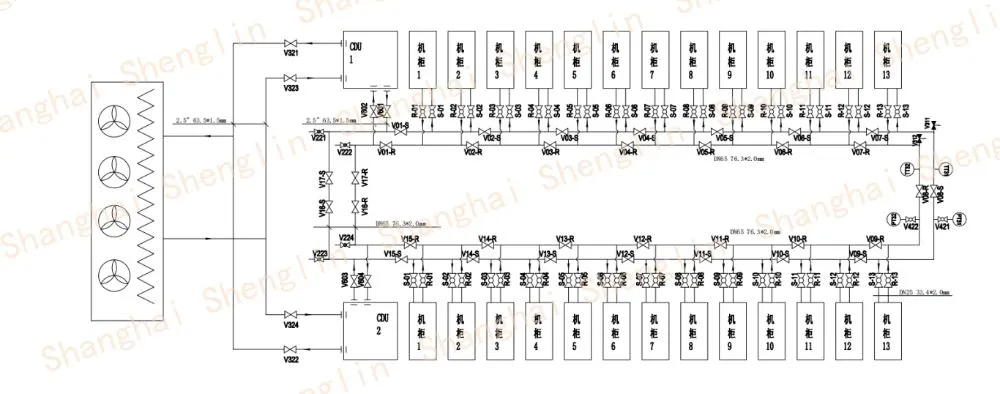

CDU Introduction

Performance Range

Heat Transfer Capacity: Ranges from an efficient 9 kW to a powerful 1500 kW, accommodating a wide variety of operational needs.

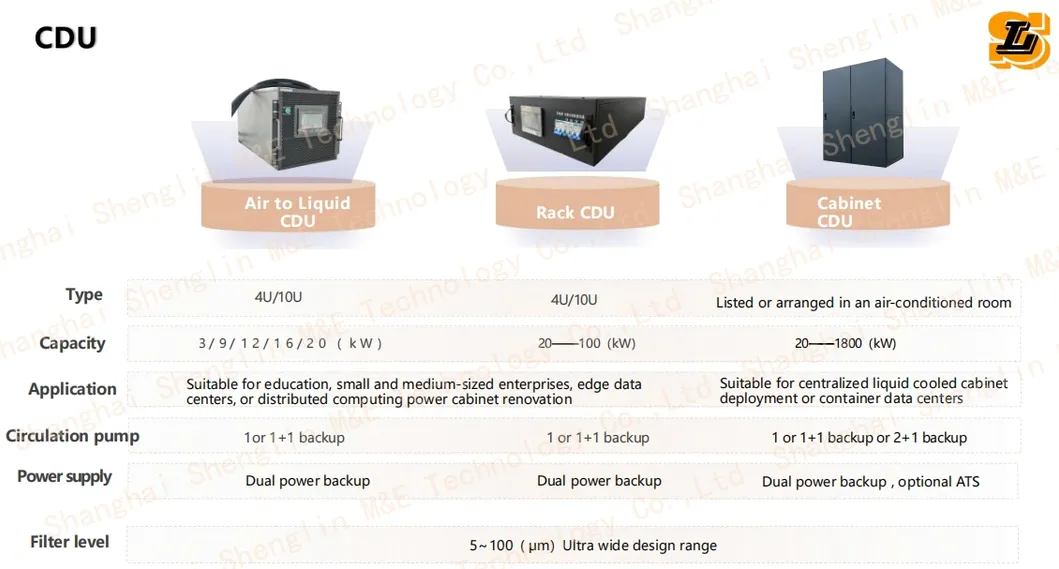

CDU Types
Application Scenarios Description
Data Centers High-density cabinet clusters and green data centers. Cooling capacity up to 1500kW.
Industry & Energy Power electronic equipment and Battery Energy Storage Systems (BESS).
Efficiency Optimization Enhances energy efficiency ratio by optimizing cooling pathways and reducing expenditure.

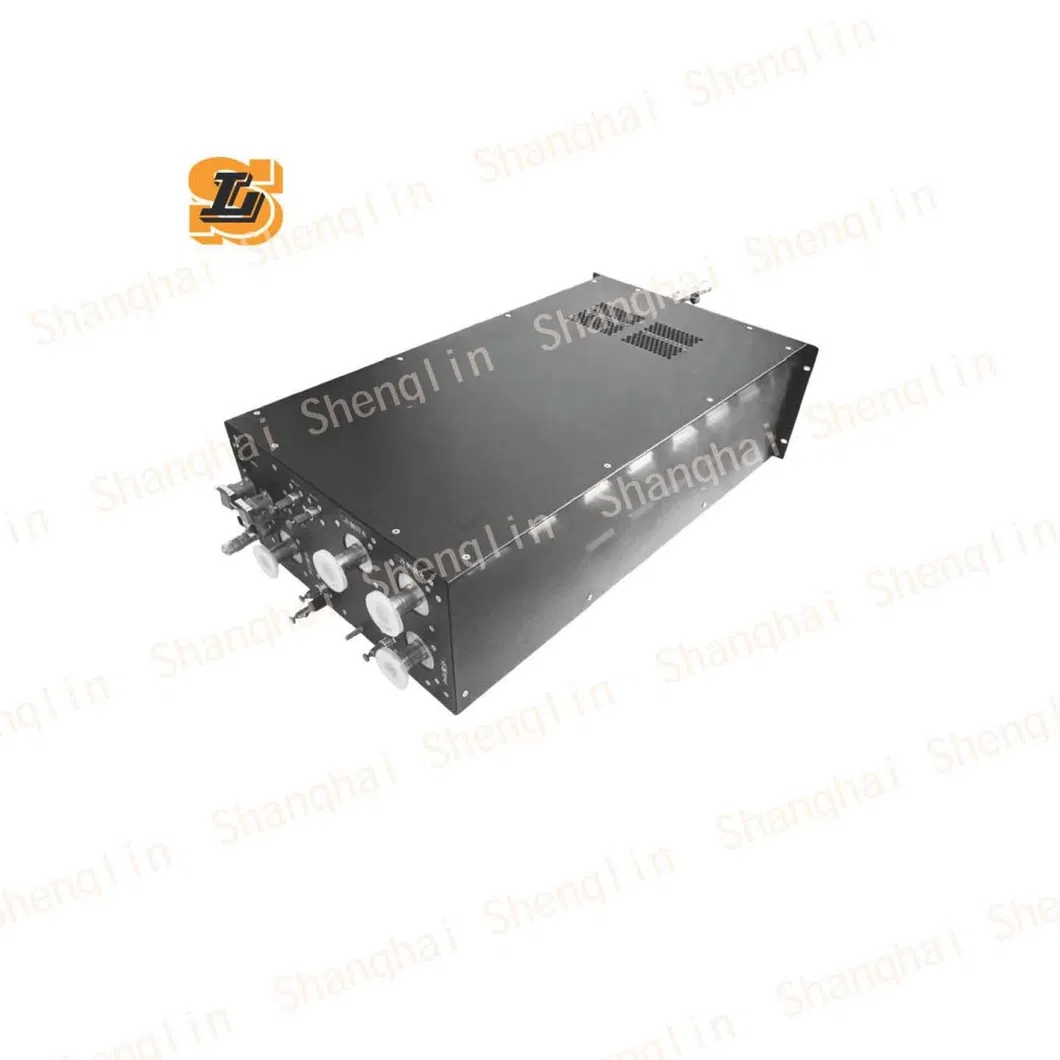

CDU Unit

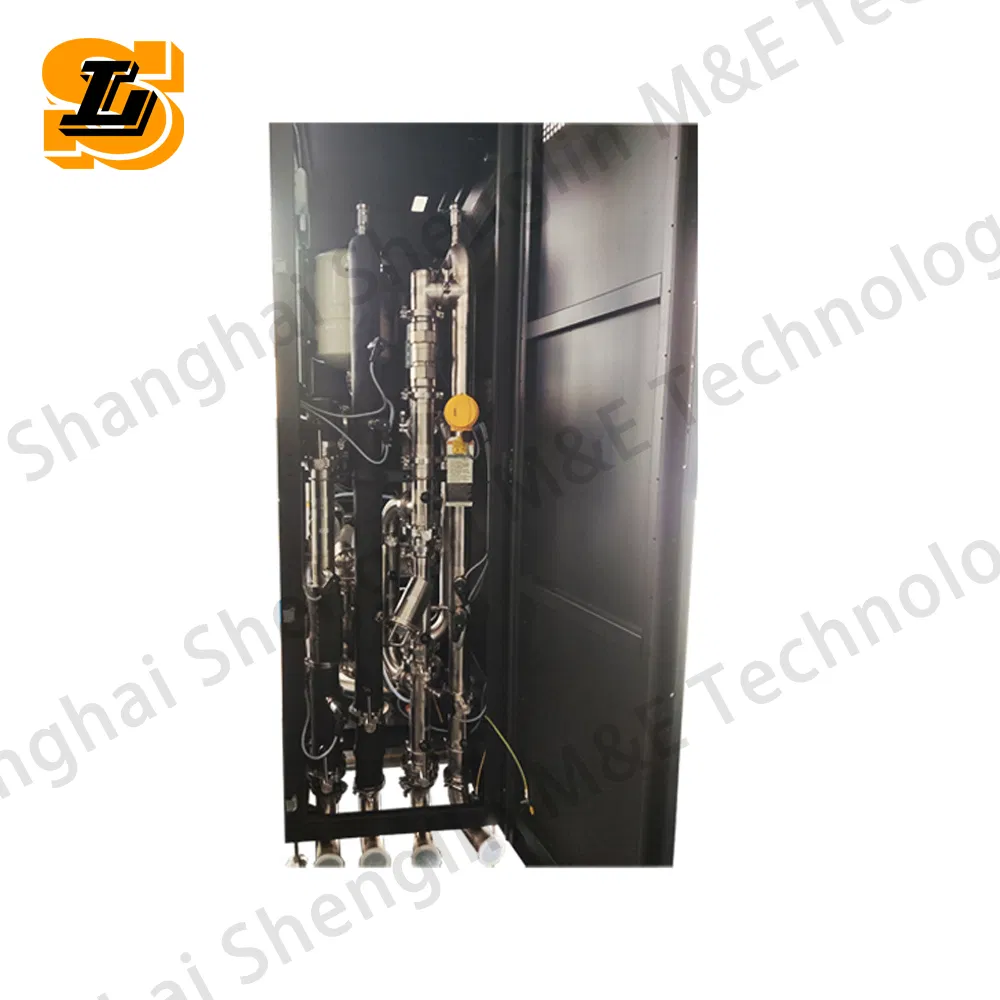

CDU Detail
💎

Core Components

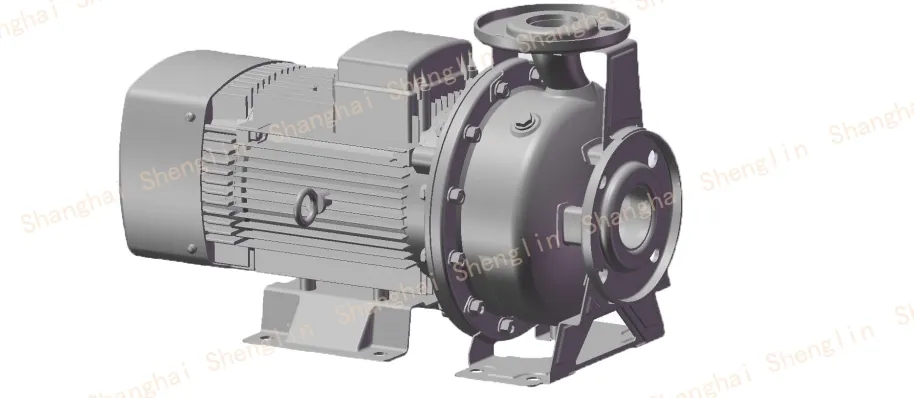

High-efficiency variable frequency pump

Pump

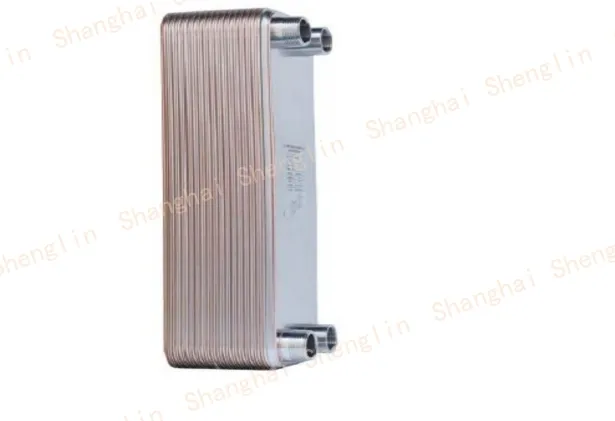

Plate heat exchanger

Heat Exchanger

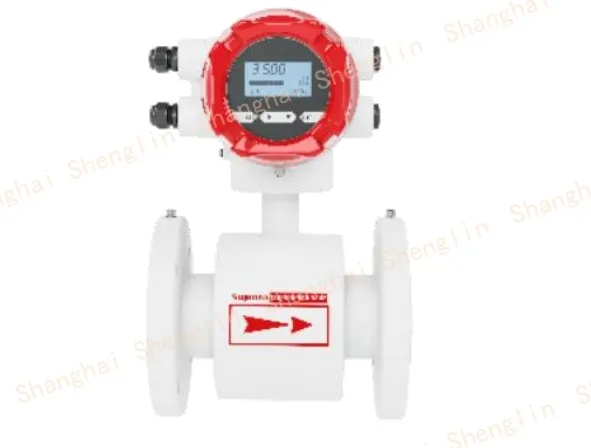

Flowmeter

Flowmeter
🌟

Product Characteristics

  • 10-inch color touch screen with multi-level permission control.
  • Liquid cooling intelligent control system with temperature and pressure monitoring.
  • Flow detection and water quality monitoring integrated.
  • Anti-condensation control with temperature accuracy reaching ±0.5ºC.
  • Heat exchangers tested at a pressure of 30 bars.
🛡️

Manufacturing & Quality

Advanced Equipment

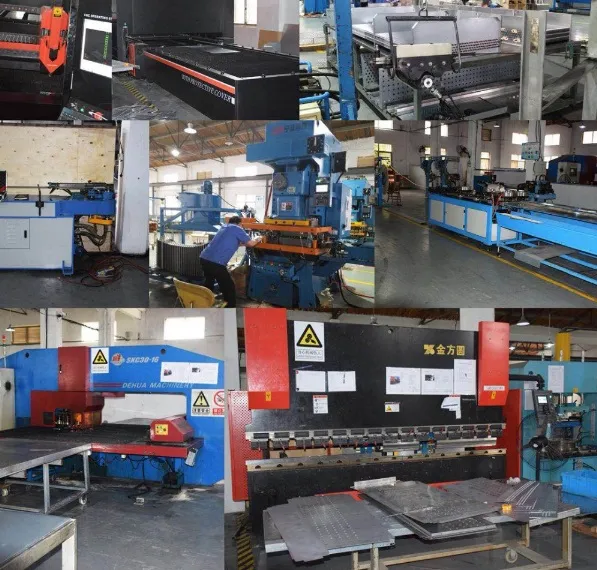

Factory

Quality Certificates

Certification

Frequently Asked Questions

What is the main function of a Coolant Distribution Unit (CDU)?
The CDU is designed to manage and distribute coolant within high-efficiency liquid cooling systems. It ensures optimal flow, temperature control, and pressure management between the primary cooling source and the equipment being cooled.
What are the available types of CDUs?
We offer several configurations: Cabinet CDUs for centralized cooling, Rack Liquid-to-Liquid CDUs for maximum heat transfer efficiency, and Rack Air-to-Liquid CDUs for versatile installation environments.
Can the CDU handle high-density computing loads?
Yes, our units support a heat transfer capacity ranging from 9 kW up to 1500 kW, making them ideal for supercomputing centers, large-scale data centers, and IDC rooms.
What cooling mediums are compatible with your units?
The primary side typically uses softened water or ethylene glycol solutions. The secondary side is compatible with deionized water, ethylene glycol solutions, and propylene glycol solutions.
How accurate is the temperature control?
Our intelligent control system features high-precision sensors and variable frequency components, allowing for temperature control accuracy of up to ±0.5ºC.
What information is needed for a prompt quotation?
Please provide the required cooling capacity (KW or Ton), the type of medium (e.g., water or glycol), operational voltage/frequency (V/PH/HZ), and the specific application environment.
