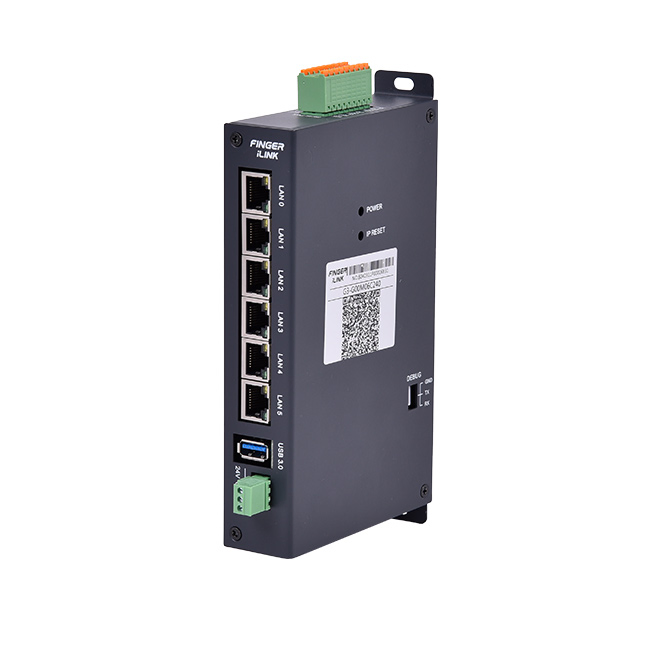

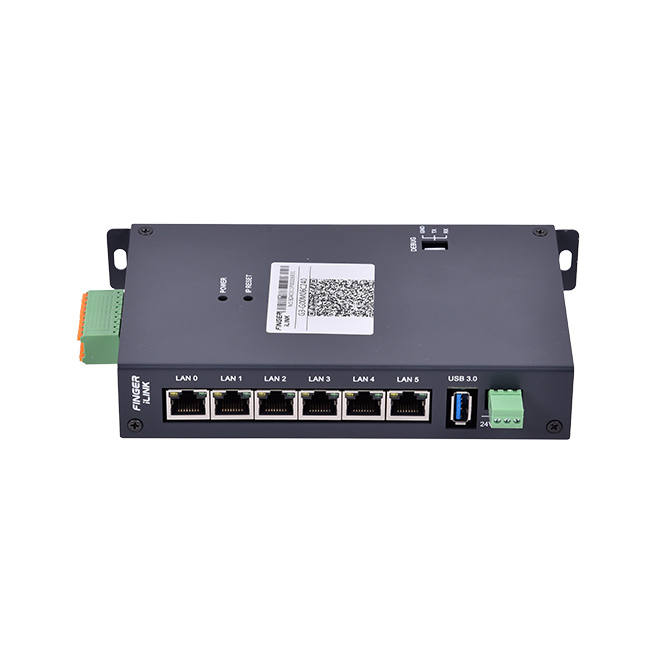

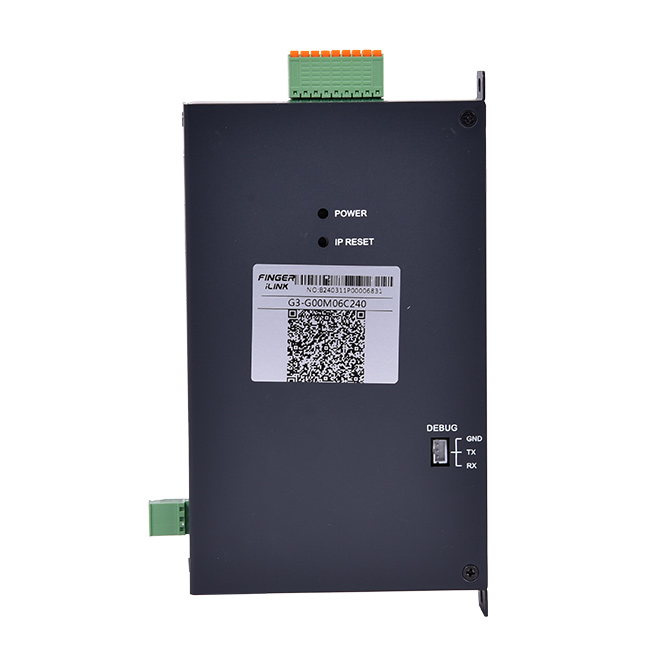

Industrial Universal Edge Computing Digital Mqtt Gateway with 20000 Points Data-Handling Capacity

📋 Basic Info.

📦 Packaging & Delivery

Package Size	20.00cm * 15.00cm * 3.00cm
Package Gross Weight	2.000kg

🚀 Product Description

Communication Interface

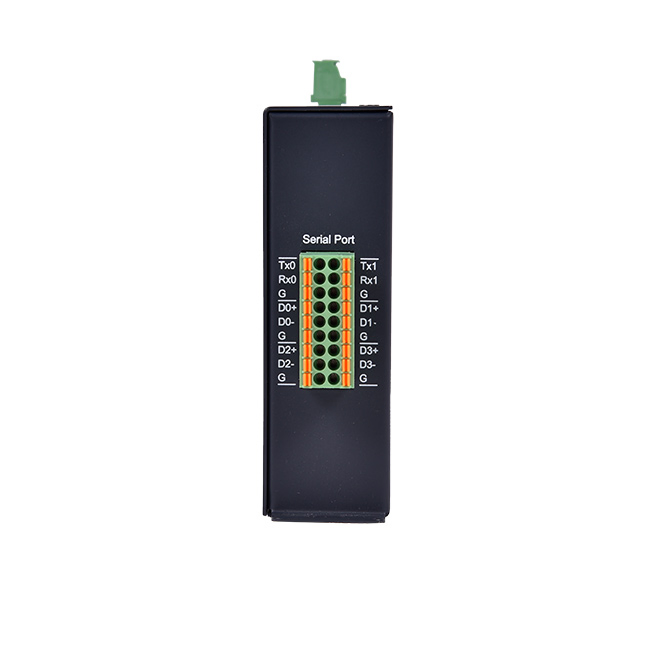

Serial Port	6 Serial communication ports (2 RS232, 4 RS485)
Ethernet	5-port 100Mbps adaptive network interface, 1-port 100Mbps configuration port

Industrial Grade Protection
EMC	4.5KV (Power, Coupling)
Vibration (Work/Storage)	7mm@2~9Hz; 2g@10~500Hz
Operating Temperature	-20~85℃
Power Supply Voltage	24 VDC
Cooling Method	Passive Cooling

📊 Model Comparison

Model	G1-G00M02C240	G2-G00M02C240	G3-G00M06C240	G4-G00M06C240
Storage	8GB EMMC5.0	64GB EMMC5.0	8GB EMMC5.0	64GB EMMC5.0
Ethernet	1+1 Port	1+1 Port	5+1 Port	5+1 Port

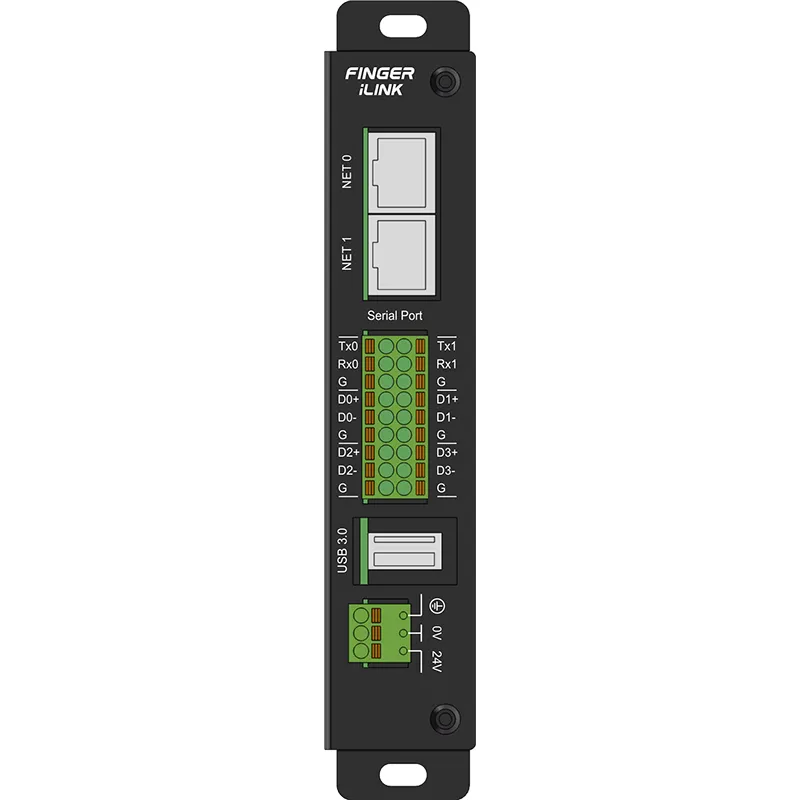

G1-G00M02C240 / G2-G00M02C240

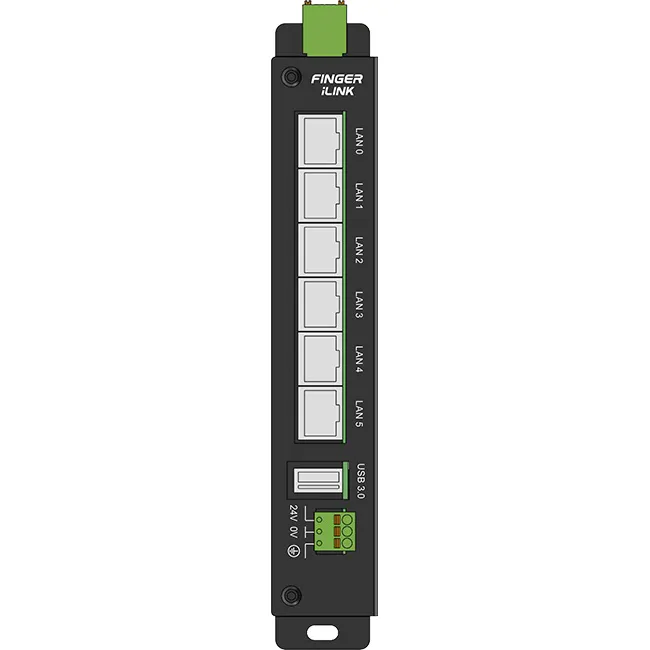

G3-G00M06C240 / G4-G00M06C240

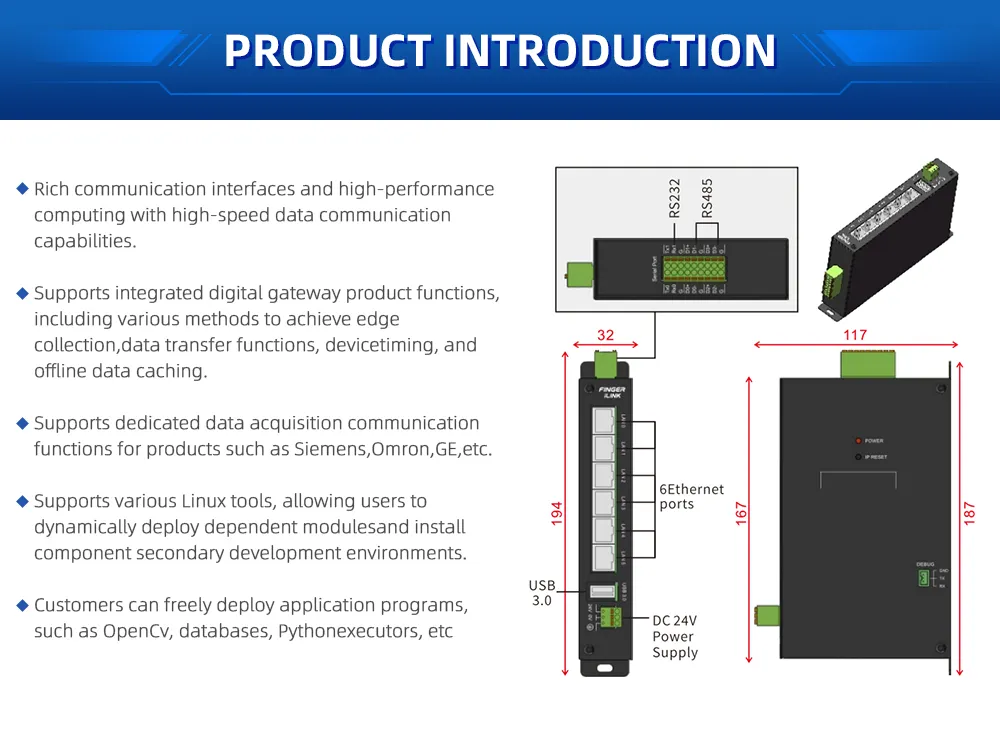

🔍 Product Introduction

✈️ Packaging & Shipping

❓ FAQ

What is the data-handling capacity of this gateway?

The gateway features a robust data-handling capacity of up to 20,000 points, making it ideal for large-scale industrial edge computing.

Which operating system does the device run on?

The system runs on the stable and versatile Debian 11 operating system.

How many serial communication ports are available?

The device provides 6 serial communication ports, including 2 RS232 interfaces and 4 RS485 interfaces.

What are the power supply requirements?

The gateway requires a 24 VDC power supply and has a power dissipation of approximately 10W.

What is the operating temperature range for this industrial gateway?

It is designed for industrial environments with an operating and storage temperature range of -20 to 85℃.

What software platform is used for configuration?

The device utilizes the GateWay Link IDE software platform for development and configuration.
