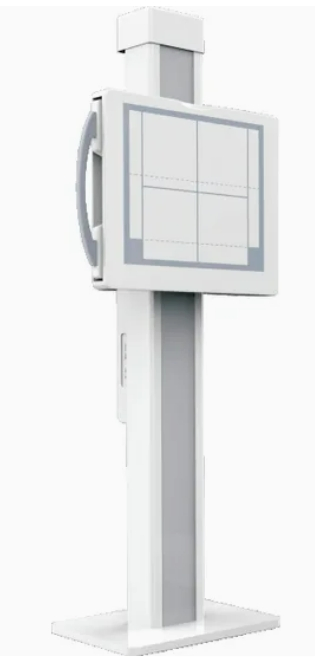

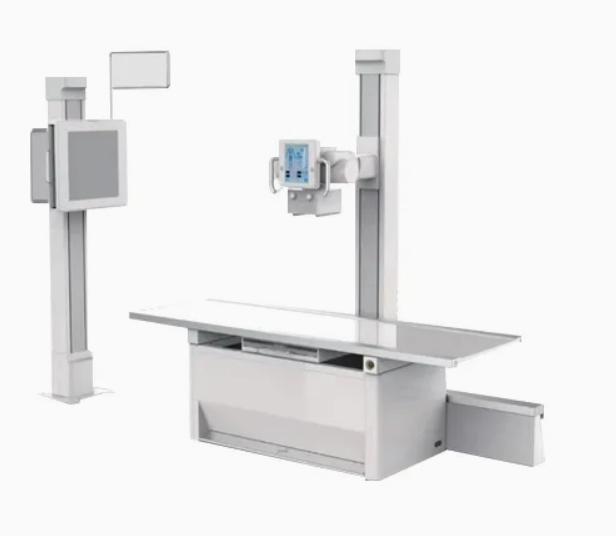

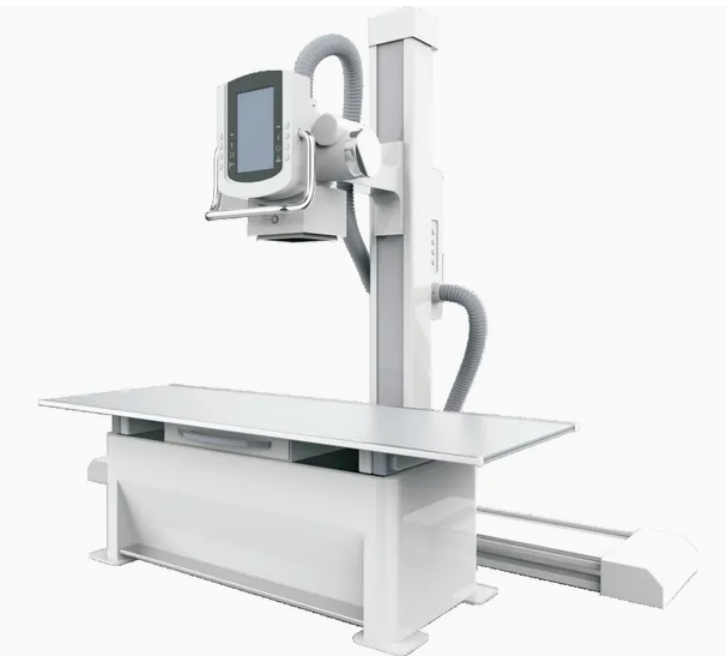

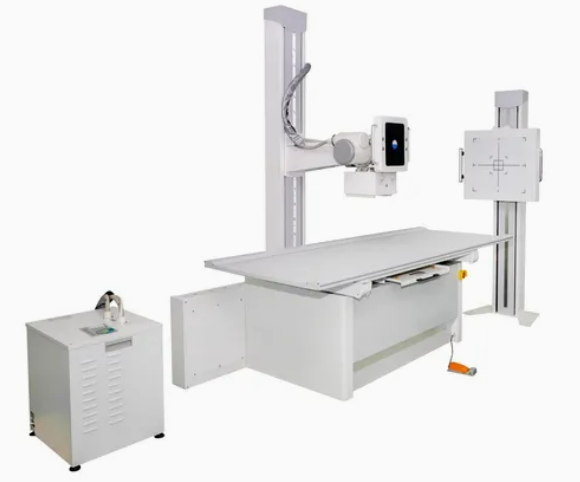

Freestanding Twin Column Digital Radiography System for Diagnostic Imaging

Customization:	Available
Customized:	Non-Customized
Certification:	CE

Basic Info.

Model NO.

HXDCDR-100

Scale

Medium

Machine

Double Column

X-ray

Digital

Certification

ISO13485

Out Power

25kw 32kw 40kw 50kw

Max Cartridge

432mm*432mm

Origin

China

Product Description

⚙️

Versatile Mechanical Structure: The column type ball tube, chest film frame, and fixed floating photography bed support single and double board systems. It meets emergency photography needs for standing, lying, side, full freedom angle, and stretcher wheelchair scenarios.

🔄

Automatic Tracking: The ball tube and detector are interlocked in both vertical and horizontal positions. Automatic tracking significantly reduces positioning time for healthcare professionals.

💡

Innovative Tablet Box: Features a unique, portable, ultra-light, and thin tablet box design, bringing users a new level of operational efficiency and experience.

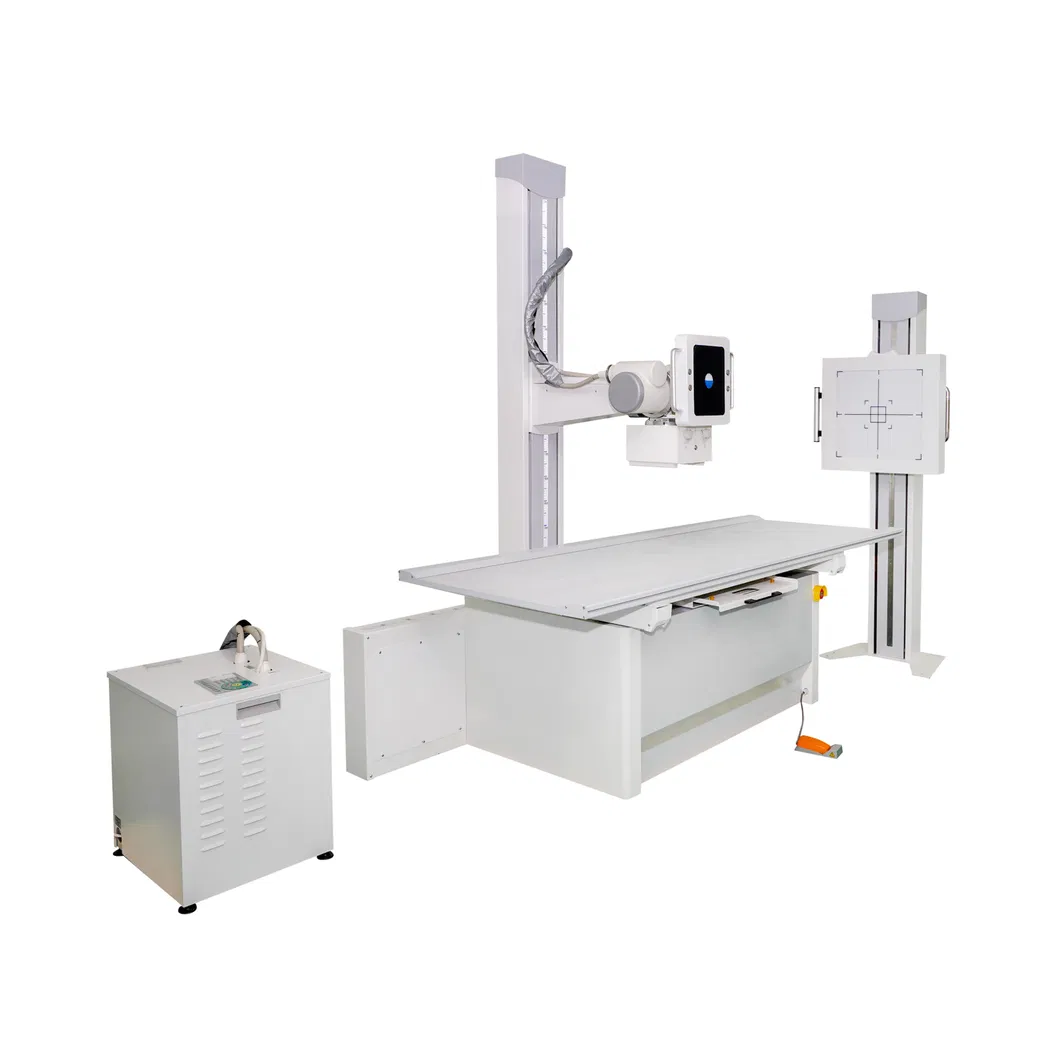

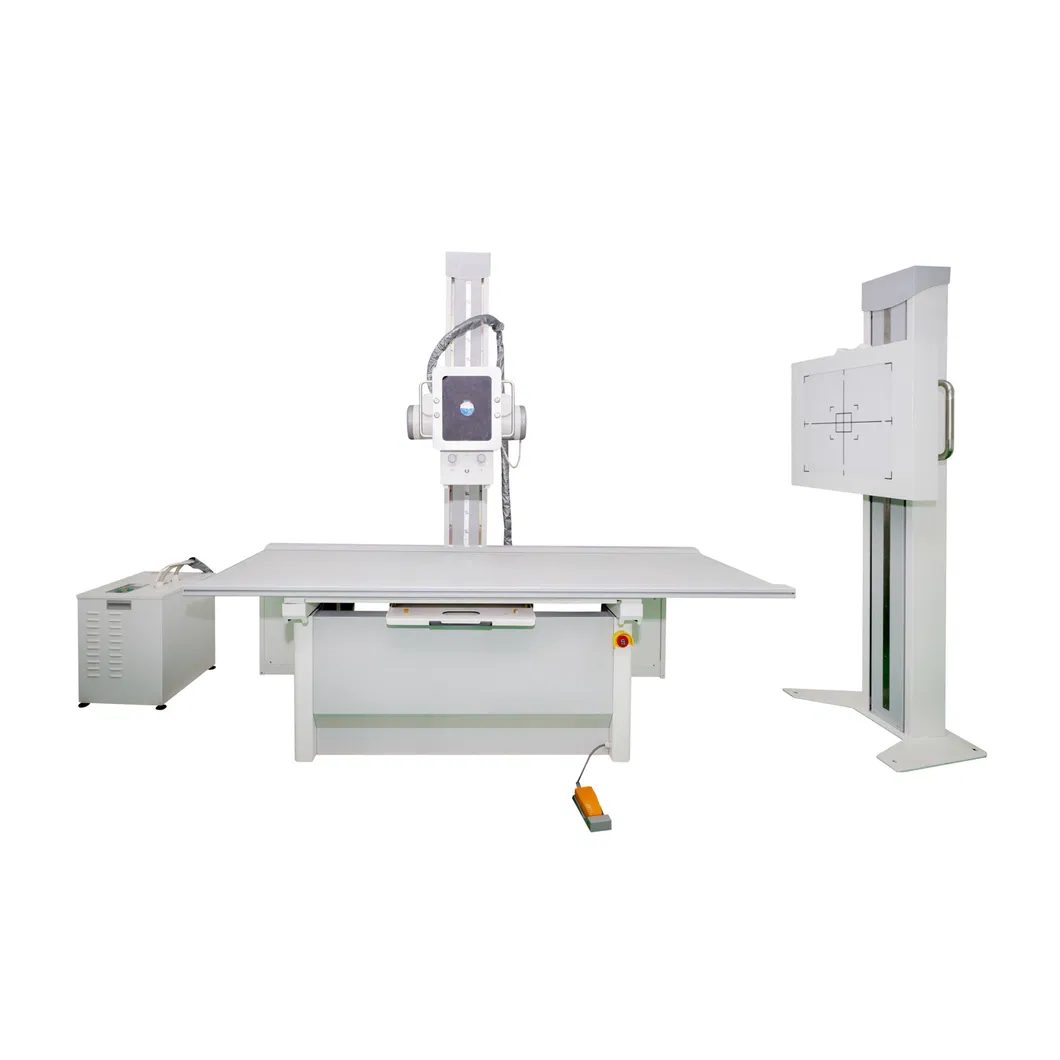

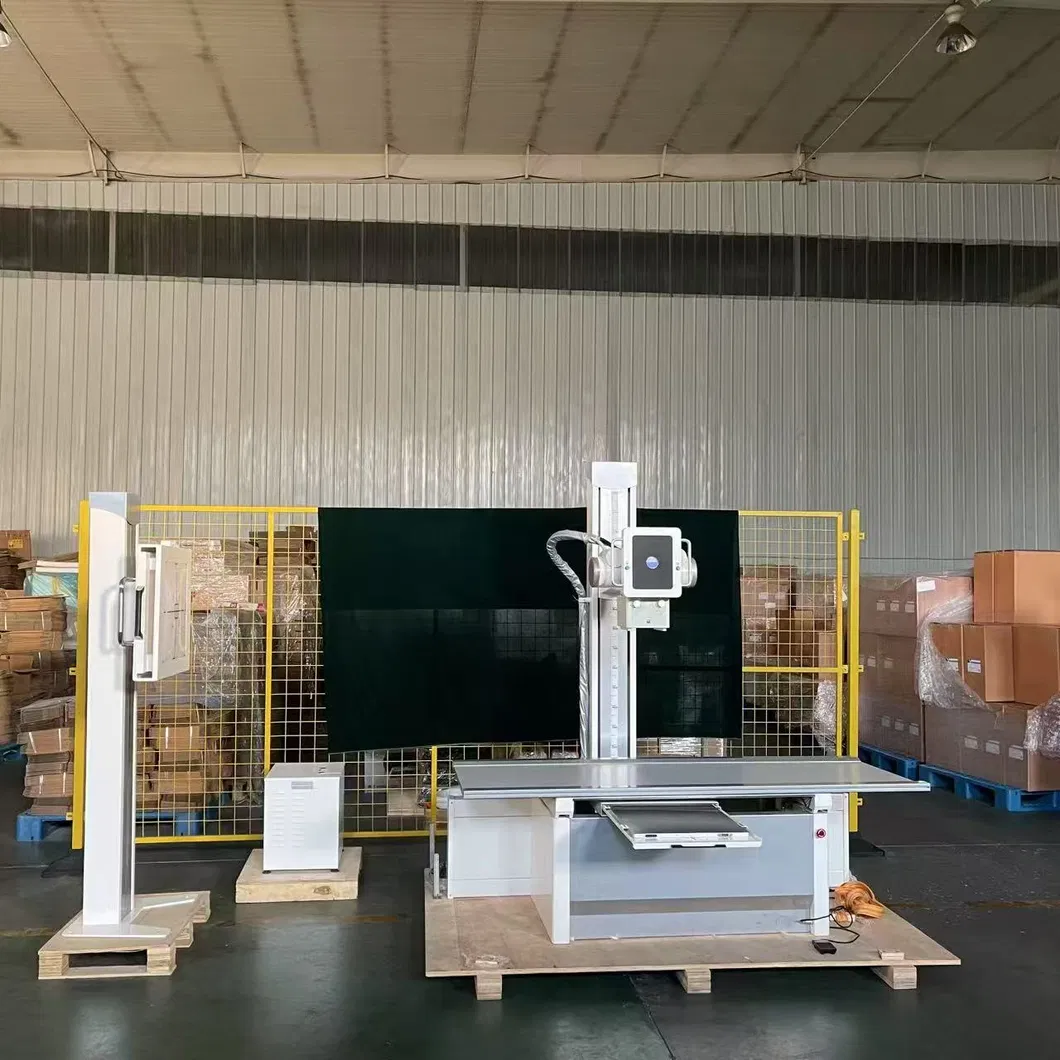

Detailed Photos

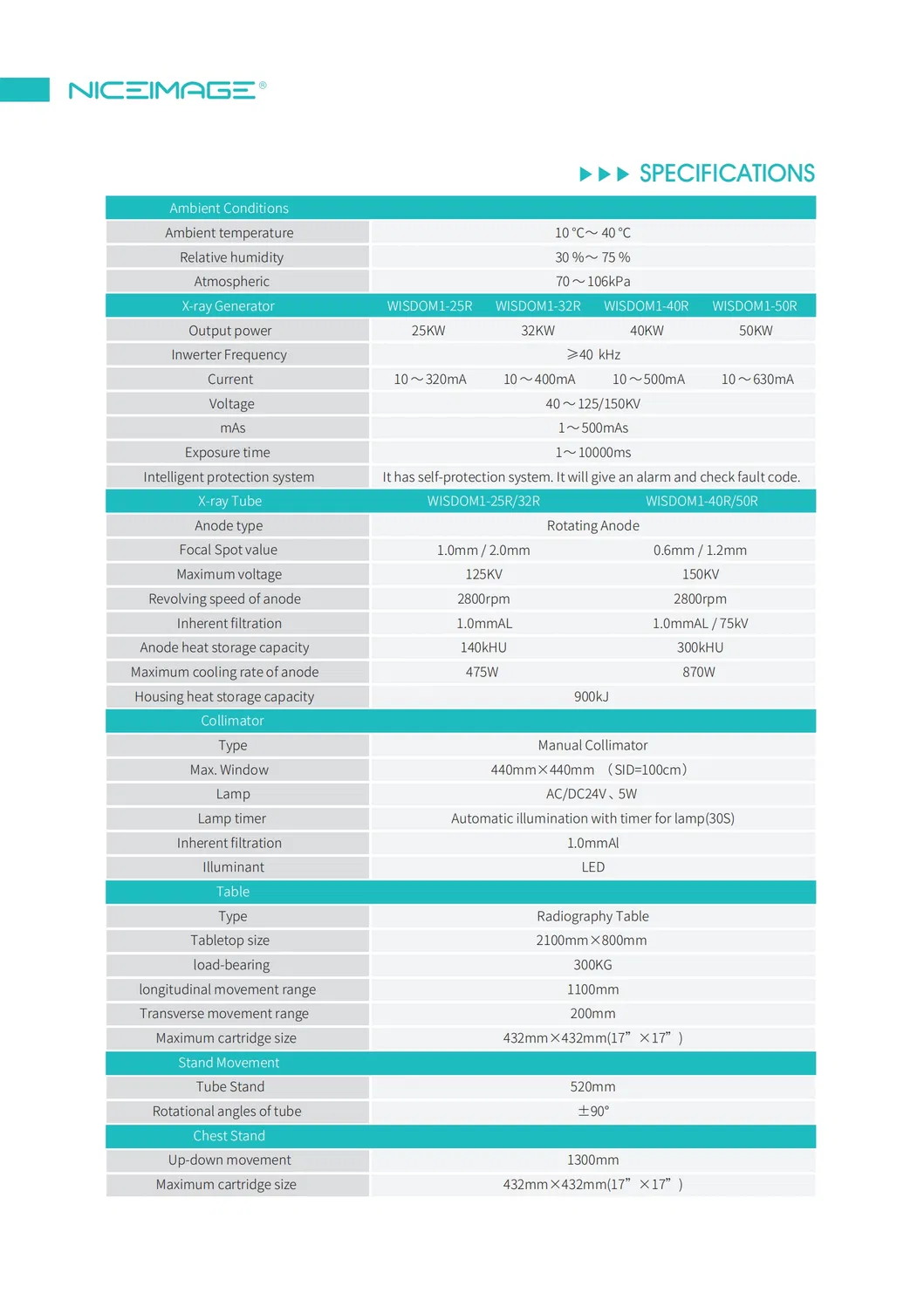

Product Parameters

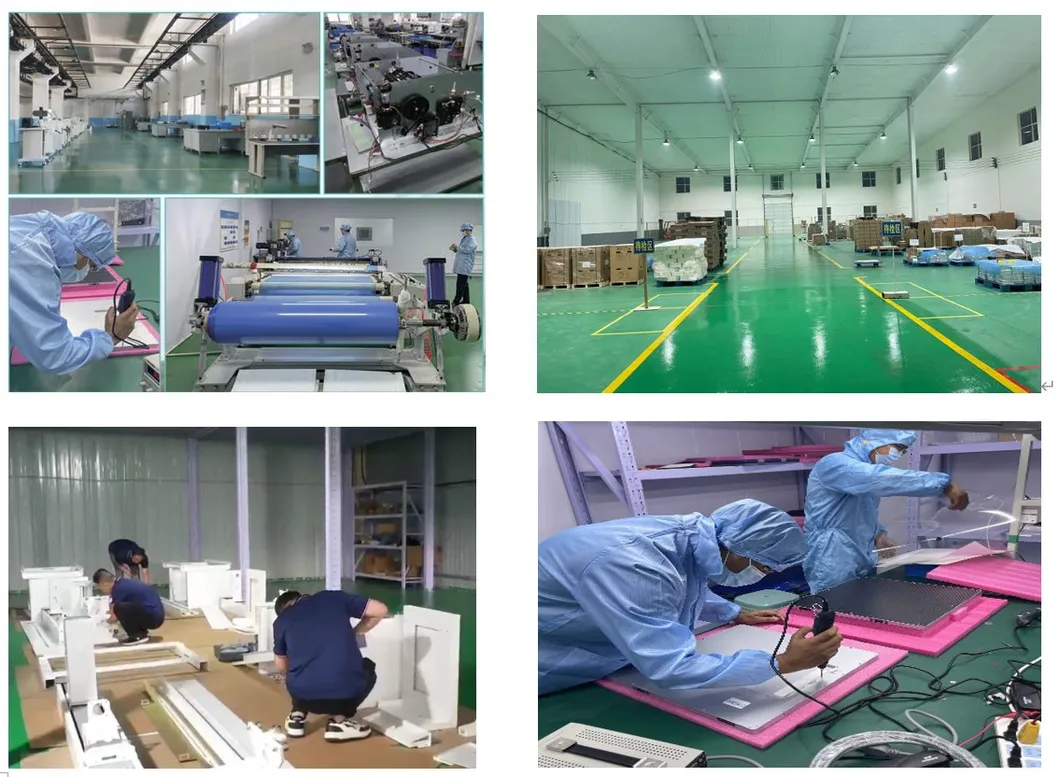

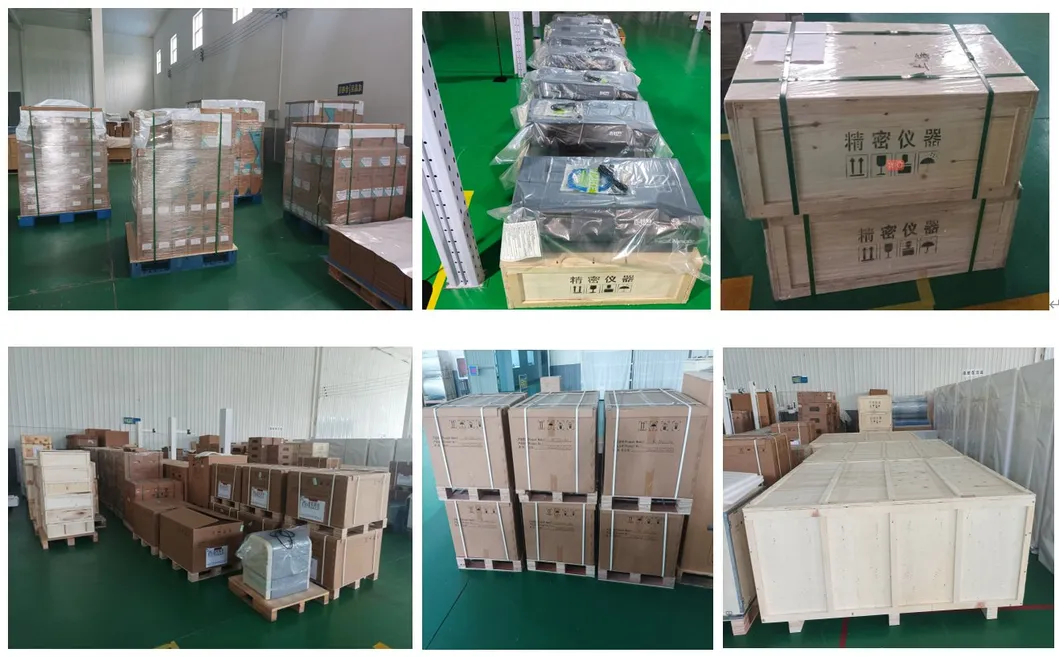

Capability & Certifications

Providing one-stop solutions for X-ray equipment widely used in medical, dental, veterinary, and industrial imaging. The product range includes flat panel detectors, generators, scintillators, X-ray tubes, and complete DR assembly solutions compatible with global markets.

Frequently Asked Questions

Q1: What imaging positions are supported by this system? A: The system supports standing, lying, side views, full freedom angles, and is compatible with stretchers and wheelchairs.

Q2: Does the system feature automatic tracking? A: Yes, the ball tube and detector are interlocked for automatic horizontal and vertical tracking to improve workflow efficiency.

Q3: What power configurations are available? A: The system can be configured with 25kw, 32kw, 40kw, or 50kw power outputs depending on your clinical requirements.

Q4: What is the maximum imaging size for the detector? A: The system supports a maximum cartridge size of 432mm x 432mm.

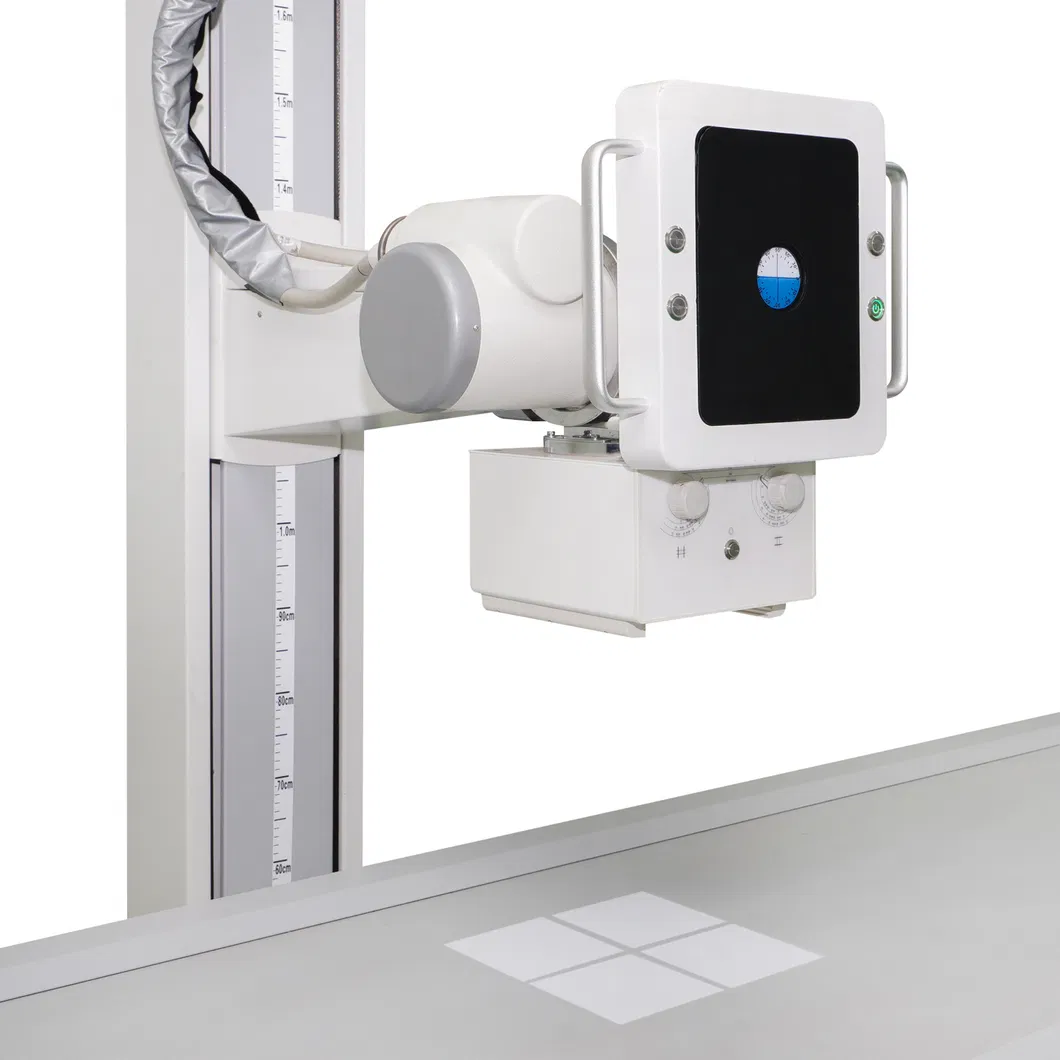

Q5: Can the X-ray tube column be rotated for off-bed photography? A: Yes, the column ball tube can rotate at all angles to facilitate easy off-bed photography.

Q6: Is this system certified for medical use? A: Yes, the system complies with ISO13485 standards for medical device quality management.
