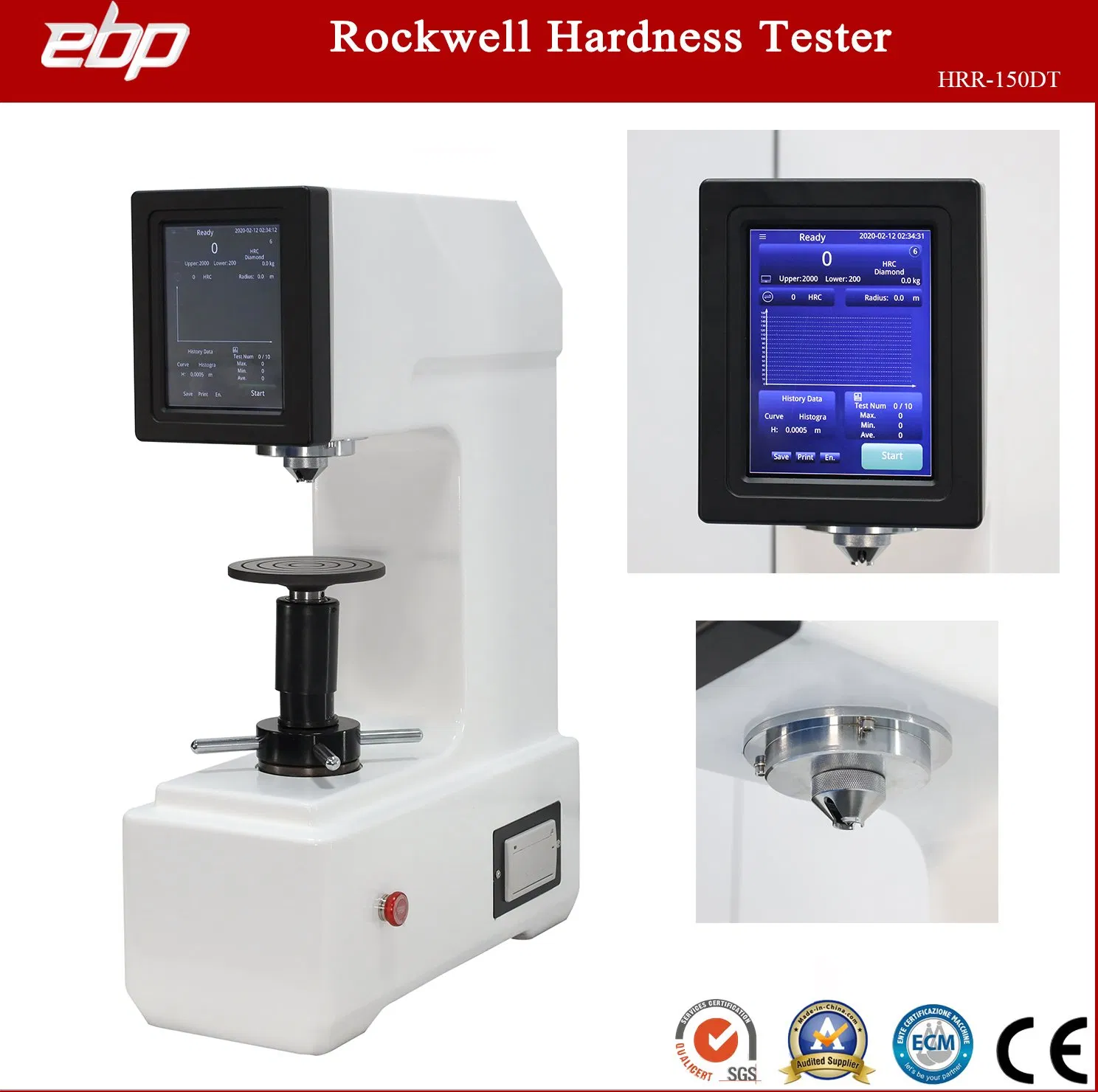

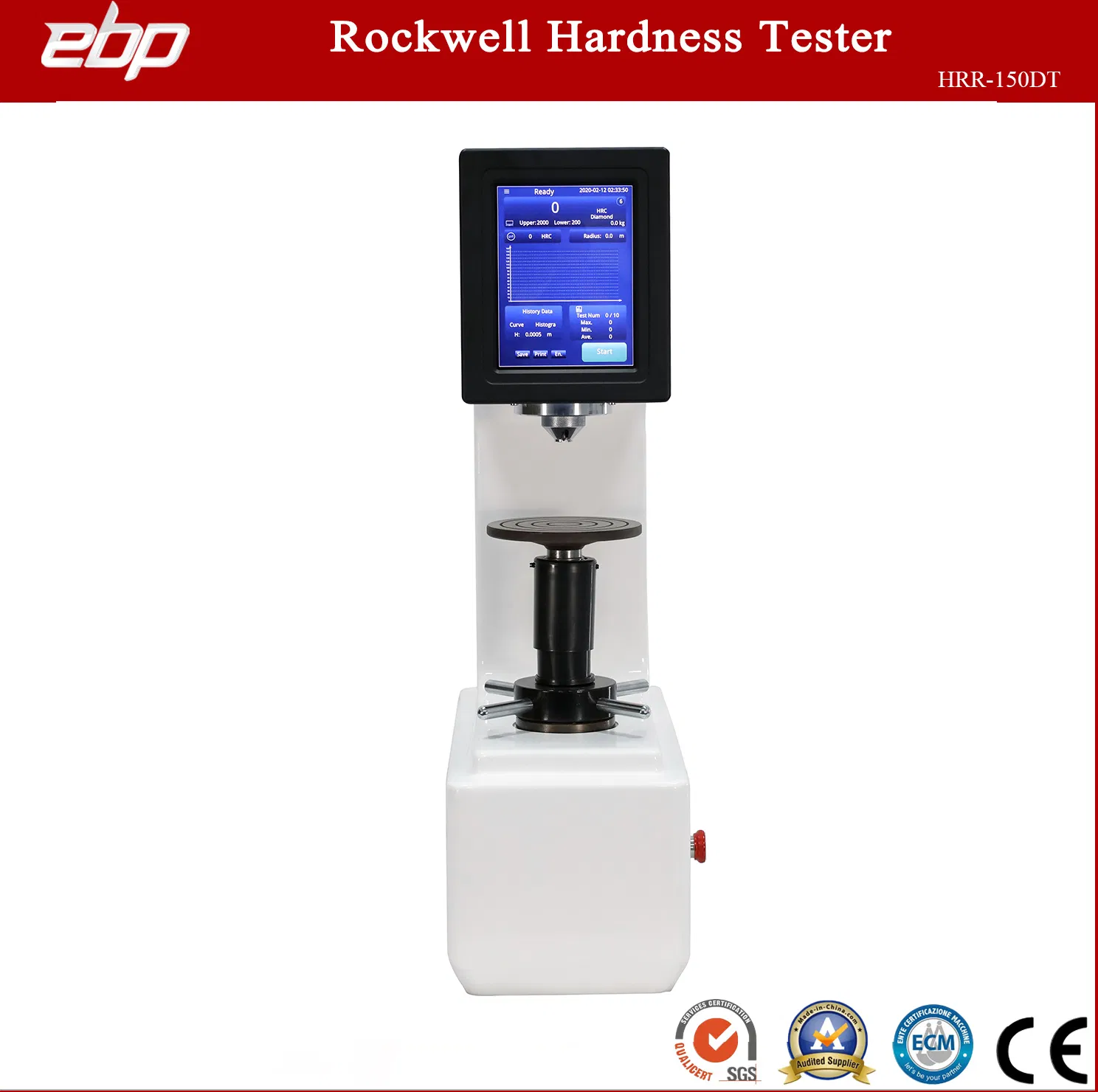

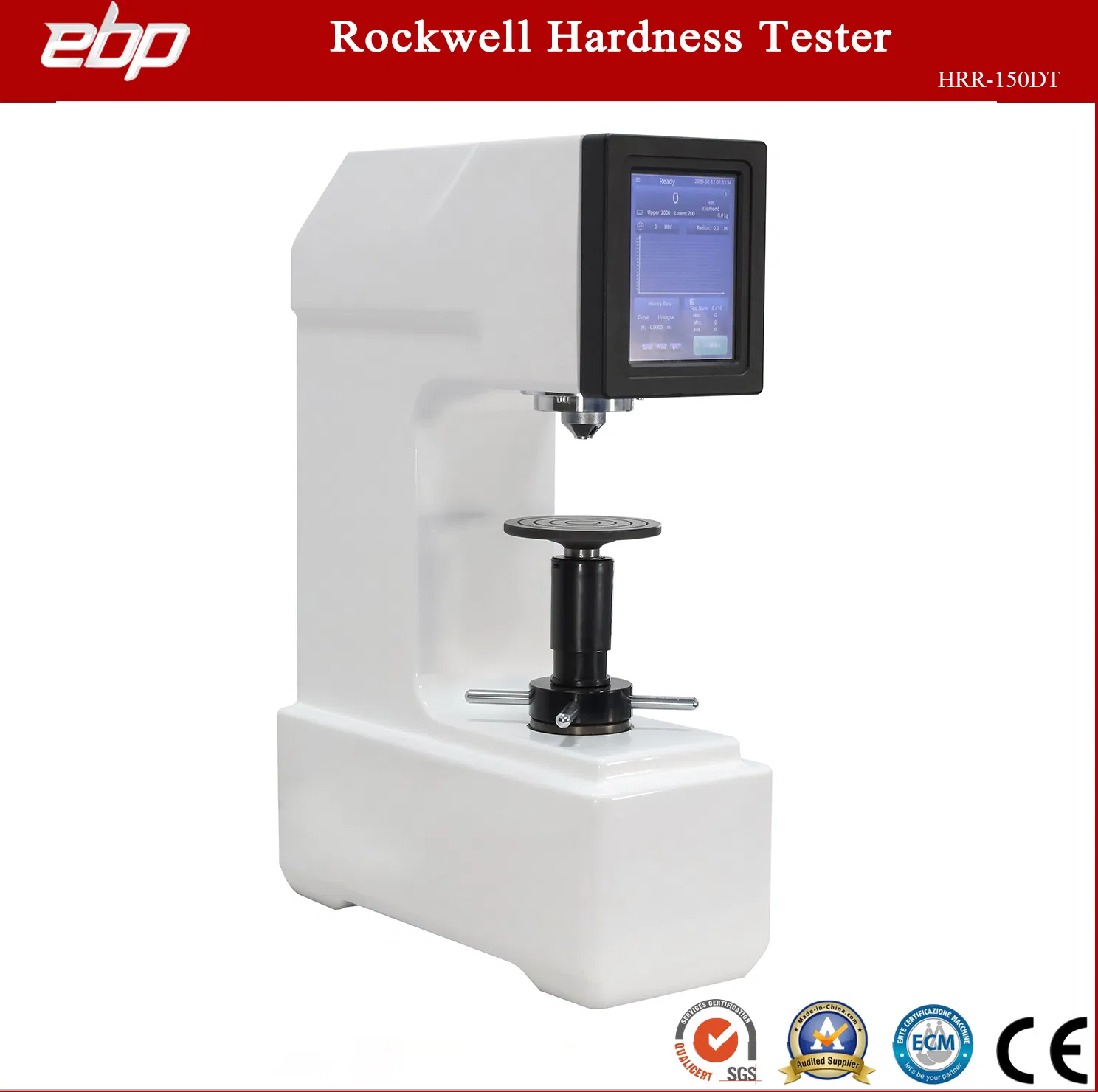

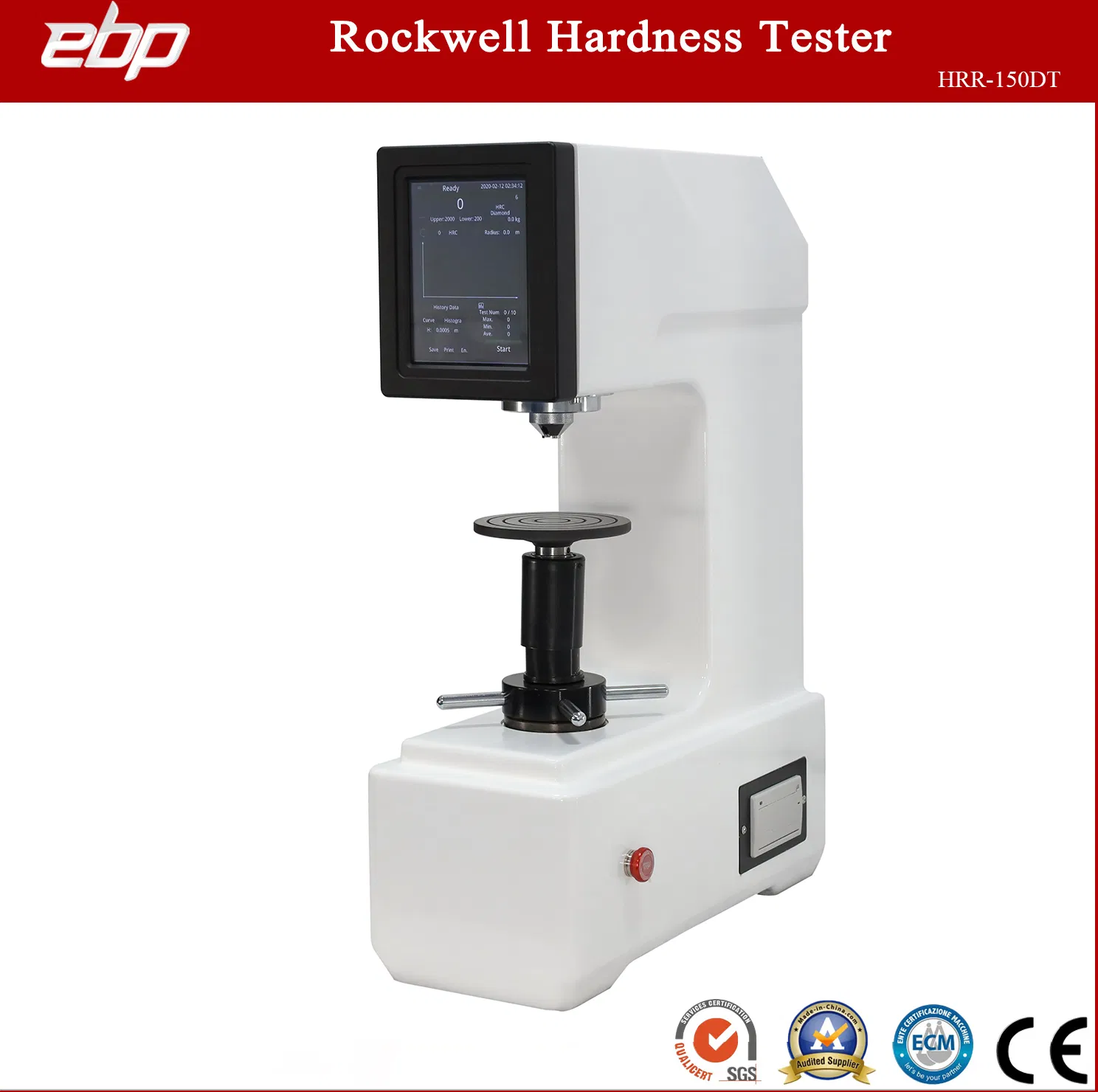

Digital Twin Rockwell and Superficial Rockwell Hardness Tester with Touch Screen
The HRR-150DT is a high-tech closed-loop load cell digital Rockwell & Superficial Rockwell hardness tester. It combines mechanical and electrical features to provide complete functionality, intuitive display, and high reliability for precision testing.
● Main Features:

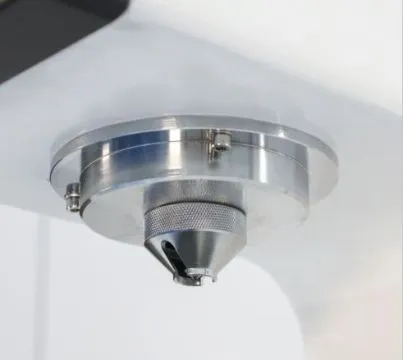

Indenter protective device for safety

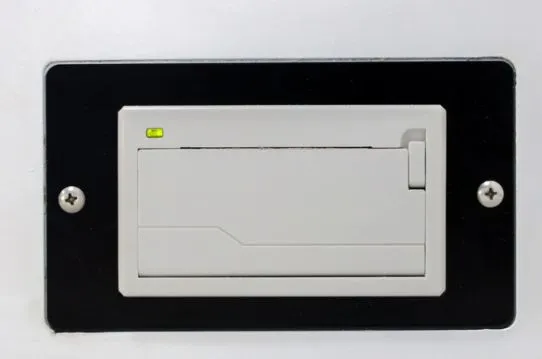

Built-in printer for easy data output

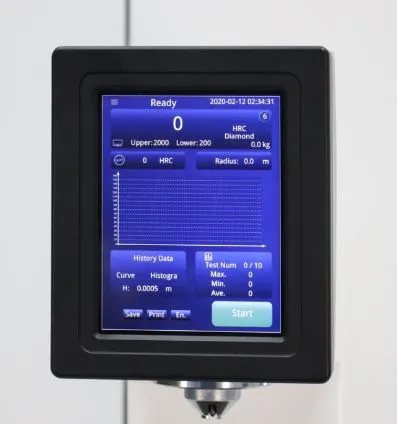

Convenient touch screen operation
● Application Range:
Perfectly suited for testing quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, and bearing steel. It is also ideal for surface heat treating and chemical treating materials such as sheet, zinc layers, chrome layers, and tin layers.
| Parameter | Detail |
|---|---|
| Model | HRR-150DT |
| Initial Test Force | 3kgf (29.4N) superficial / 10kgf (98N) Rockwell |
| Total Test Force | 15kgf, 30kgf, 45kgf, 60kgf, 100kgf, 150kgf |
| Indenter | Diamond Rockwell Indenter, ф1.588mm Ball Indenter |
| Test Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, etc. |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
| Resolution | 0.1HR |
| Dwell Time | 0-99s |
| Execution Standards | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimensions & Weight | 510*290*730mm, 90kg |
| Name | Qty | Name | Qty |
|---|---|---|---|
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| ф1.5875mm Ball Indenter | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Inner Hexagon Spanner | 1 pc | Spanner | 1 pc |
| Hardness Block | 6 pc | Fuse 2A | 2 pcs |
| Power Cable | 1 pc | Anti-dust Cover | 1 pc |
