Eeptron PLC
1 / 5
Advanced timing functionality
Clear 4-digit 8-segment screen
±0.3% Repeat accuracy
Panel or Din Rail mounting

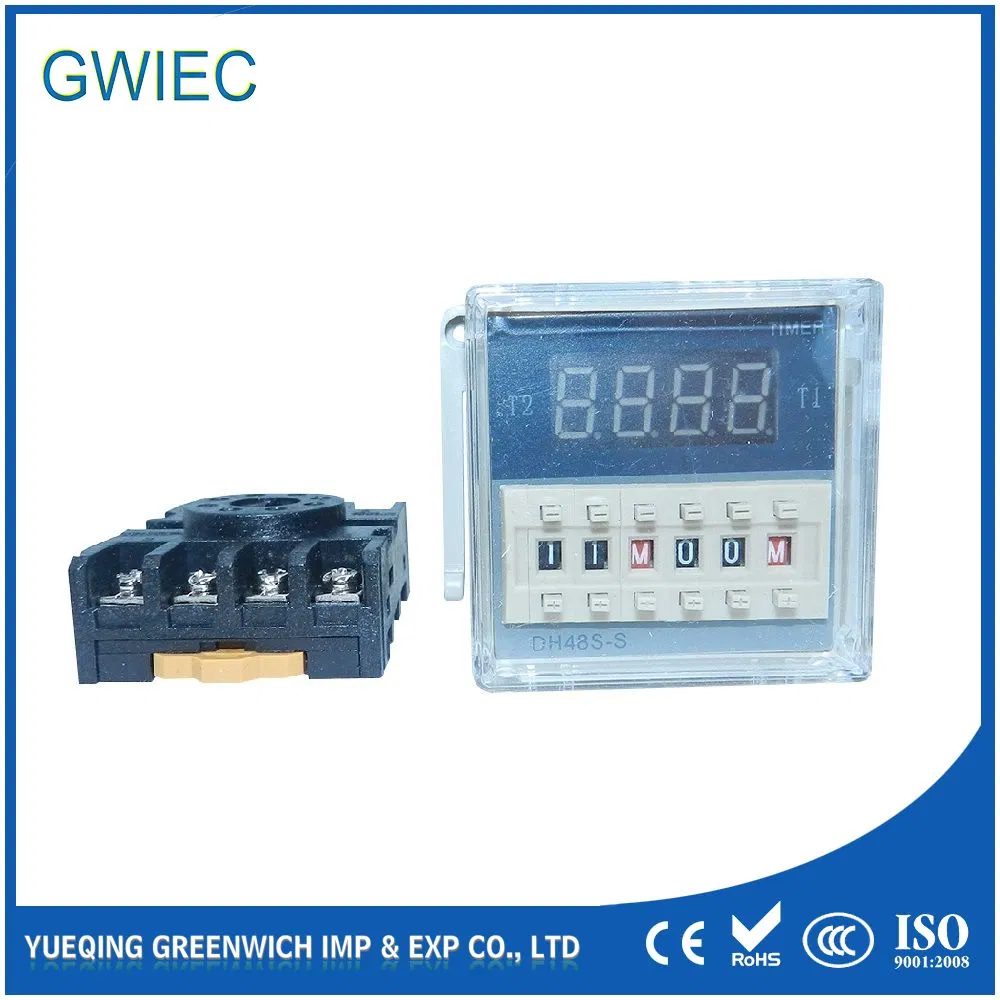

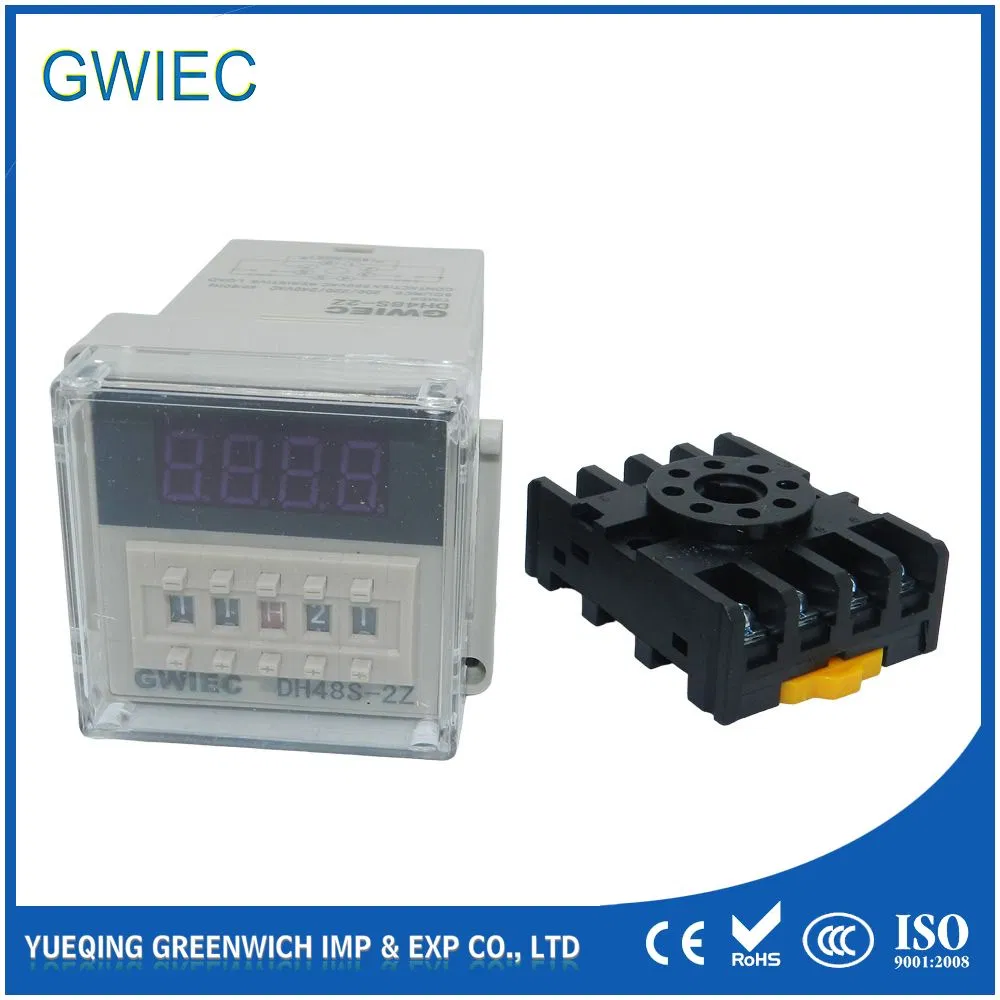

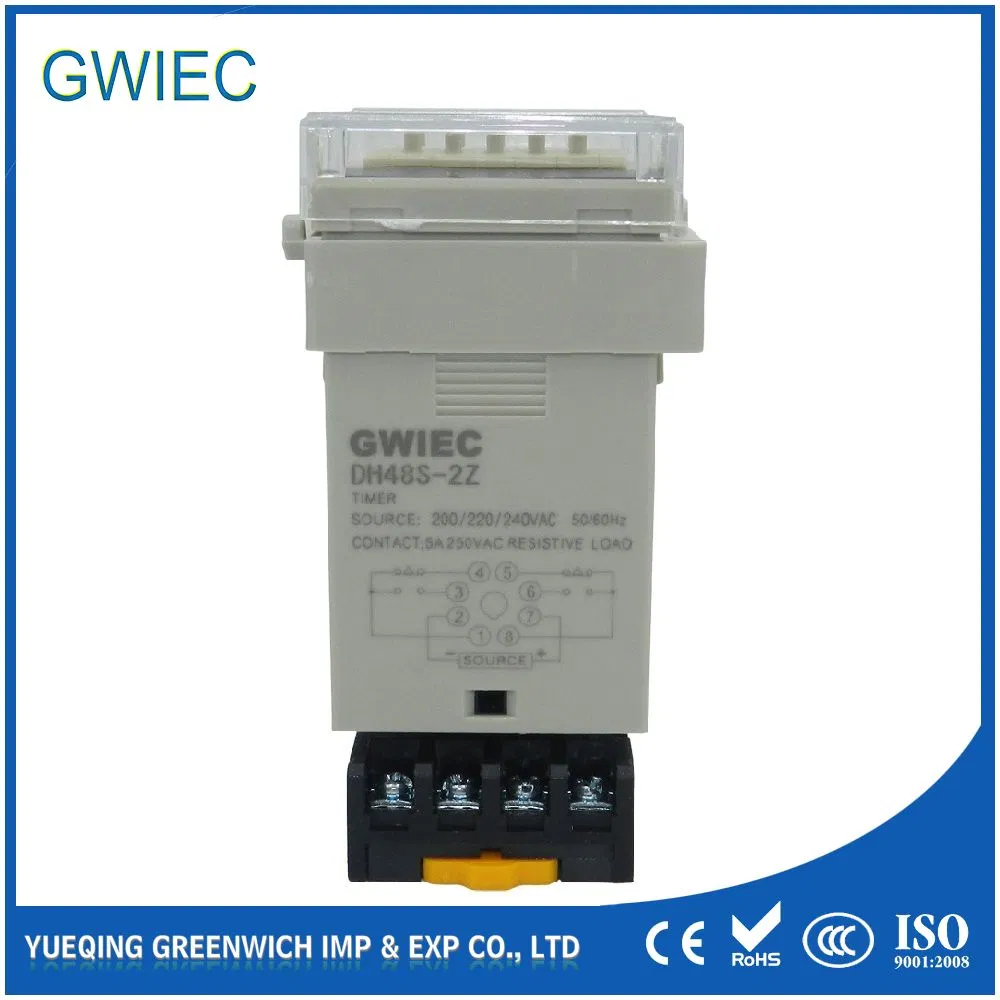

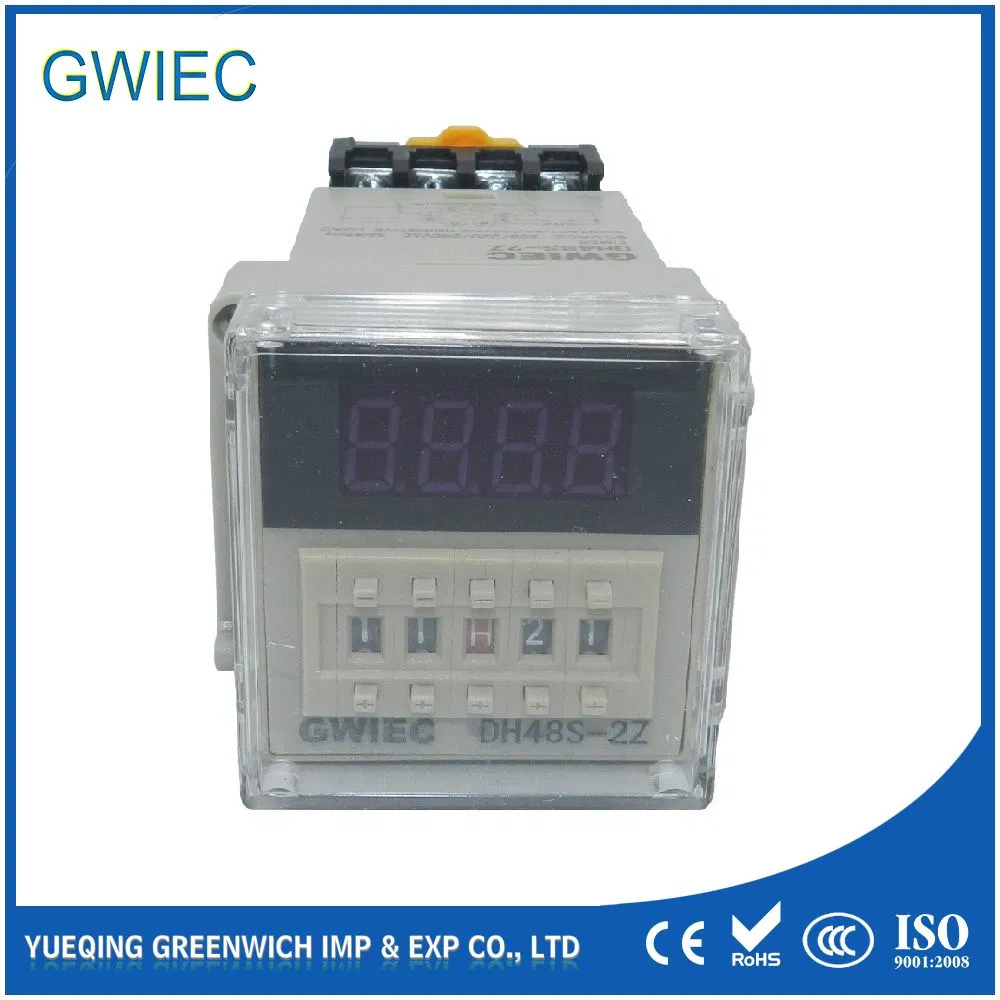

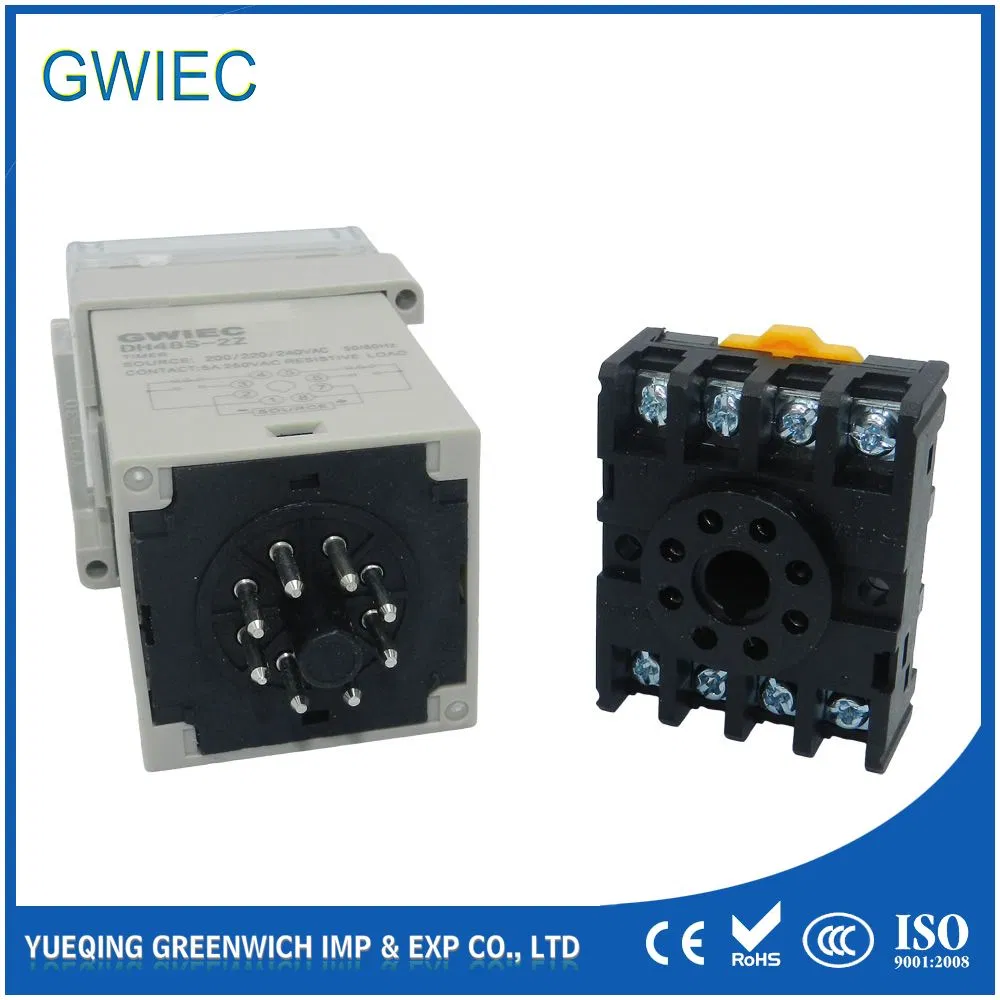

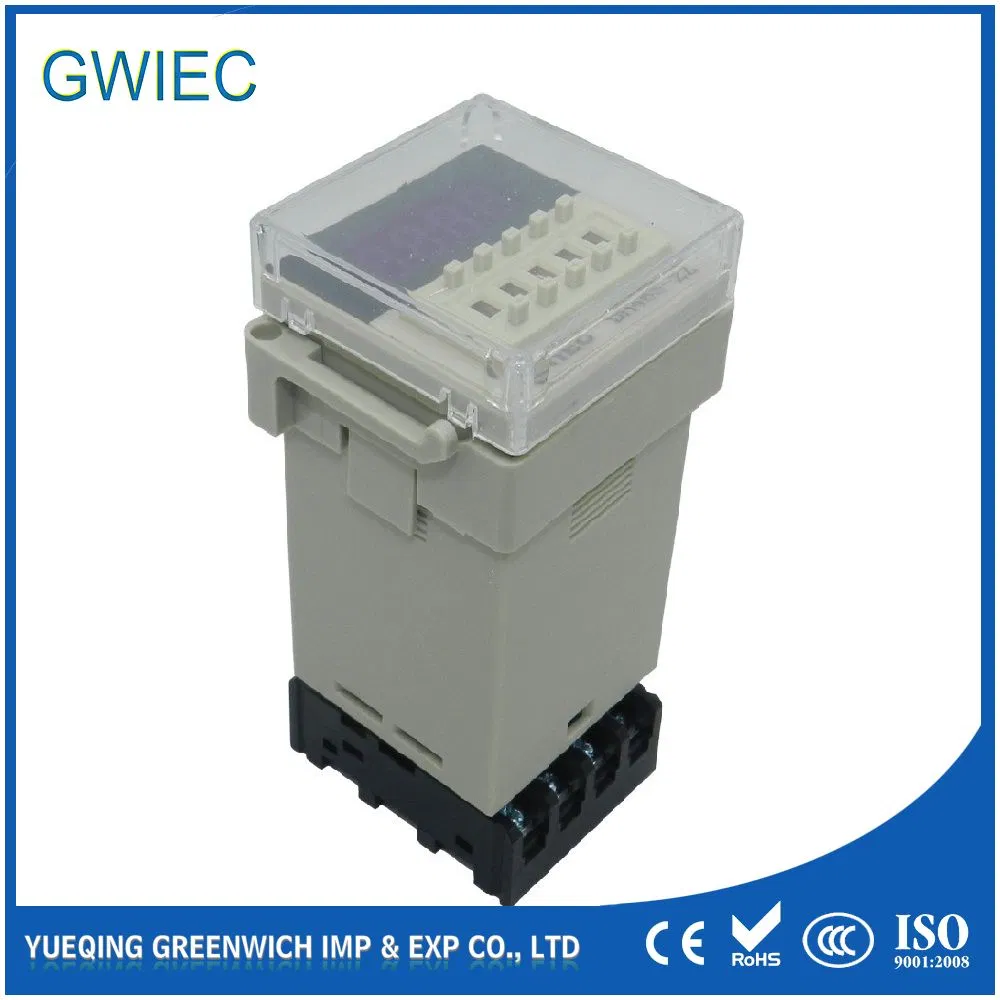

DH48S-S 0.1s-990h Repeat Cycle SPDT Programmable Timer Time Switch Relay with Socket Base
Digital timer relay DH48S is widely used in automatic control circuits for delay devices. Featuring a high-precision digital display, this timer offers a beautiful appearance, easy installation, and stable performance. With its digital key switch preset and low power consumption, it is an essential component for industrial automation, electromagnetic counters, and universal timing applications.
| Model NO. | DH48S |
| Type | Timer |
| Usage | Timer Switch, Time Counter, Industrial, Electromagnetic Counter, Universal Counter |
| Function | Subtract Counter |
| Theory | Digital |
| Dimensions | 48H × 48W × 81.6D |
| Timing Range | 0.01s ~ 990h |
| Display | LED |
| Weight | 160g |
| Supply Voltage | 36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc |
| Tolerance | -15% to 10% (AC), -10% to 10% (DC) |
| Power Consumption | 2W max |
| Setting Method | Dial switch |
| Contact Rating | 3A@250Vac, 5A@28Vdc |
| Termination | 8 pins |
| Matched Socket | PF083A, PF083A-E |
| Mechanical Life | 1x10^6 operations |
| Operating Temp | 0 to 50 °C (32 to 122 °F) |
