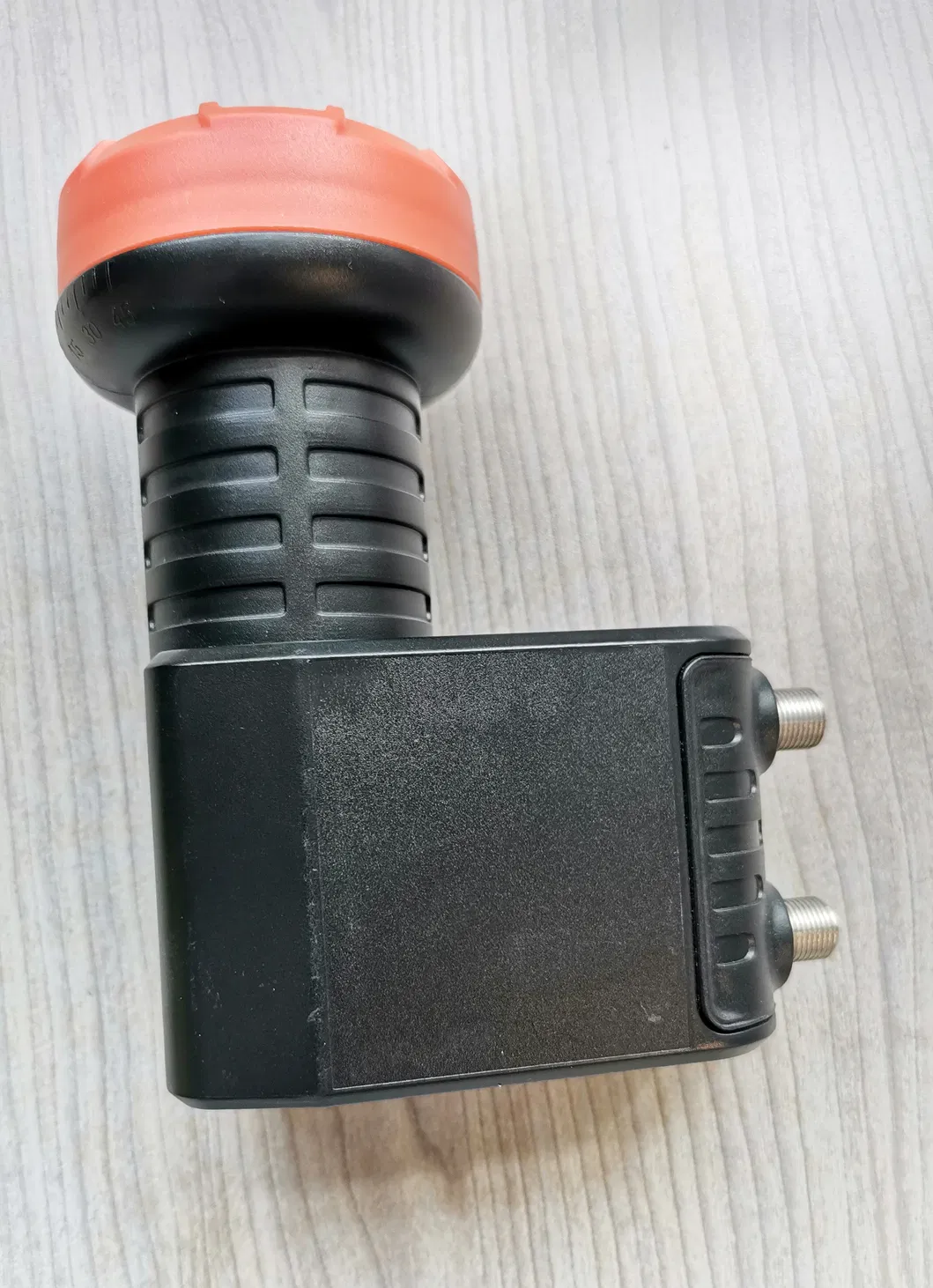

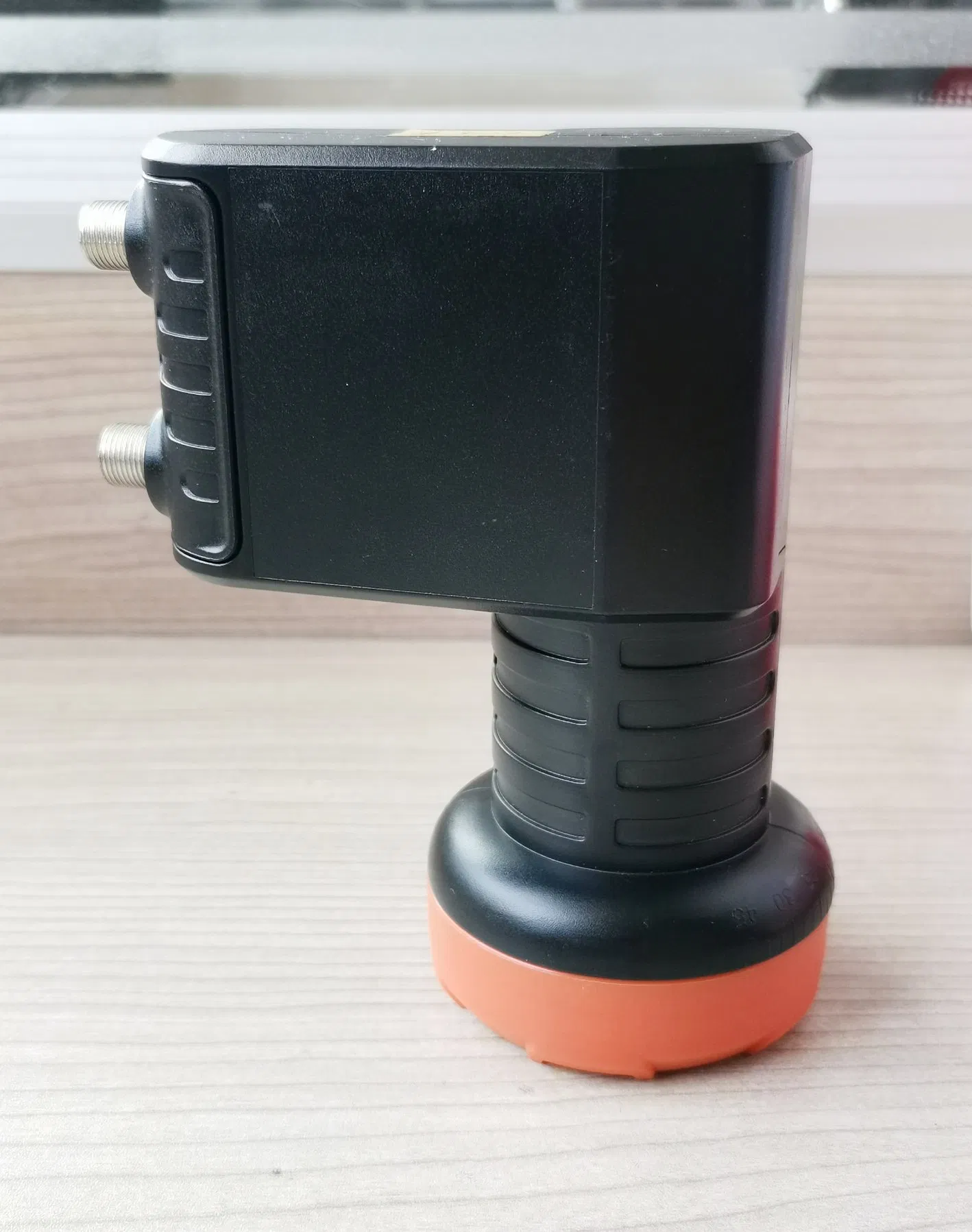

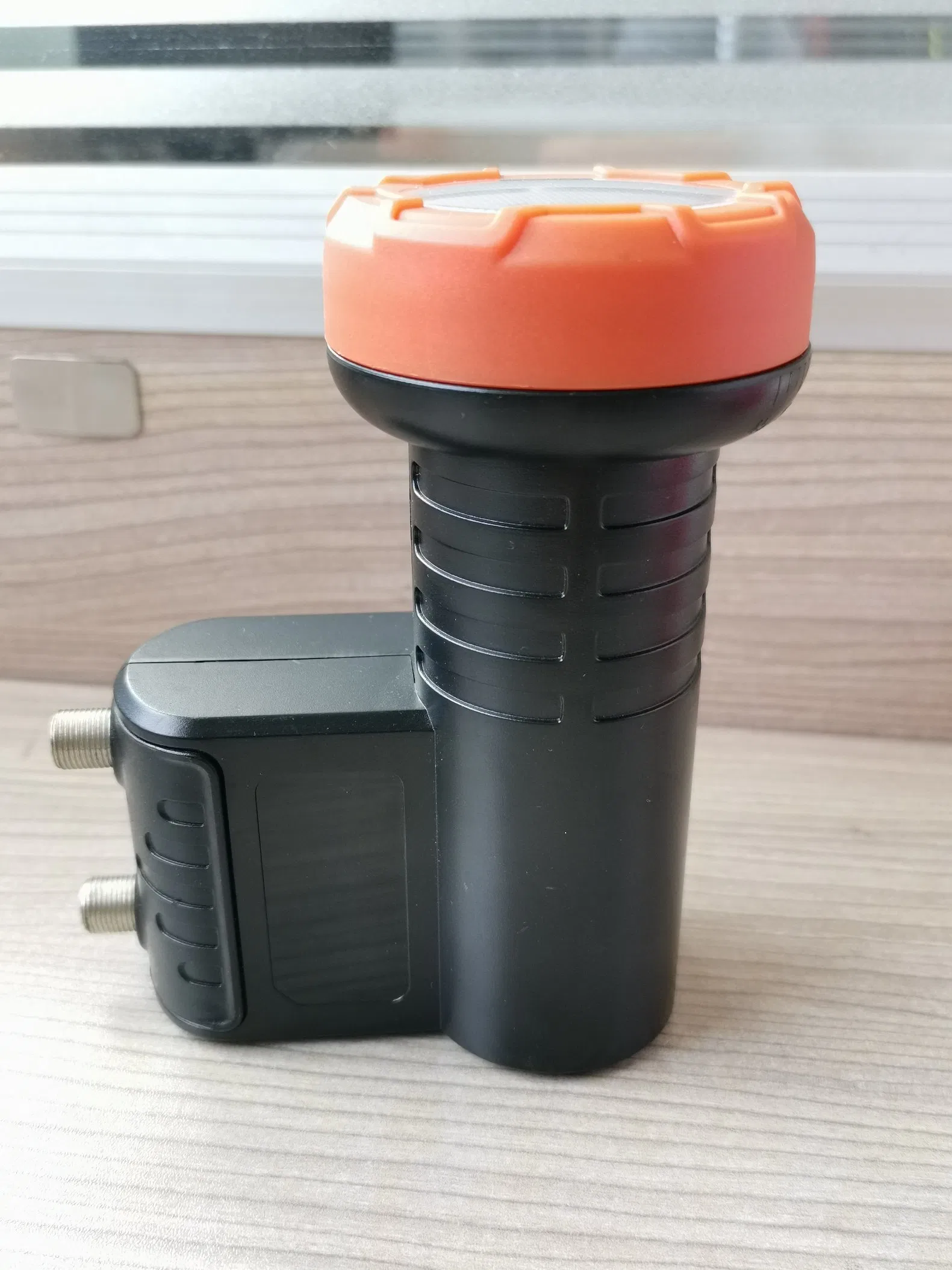

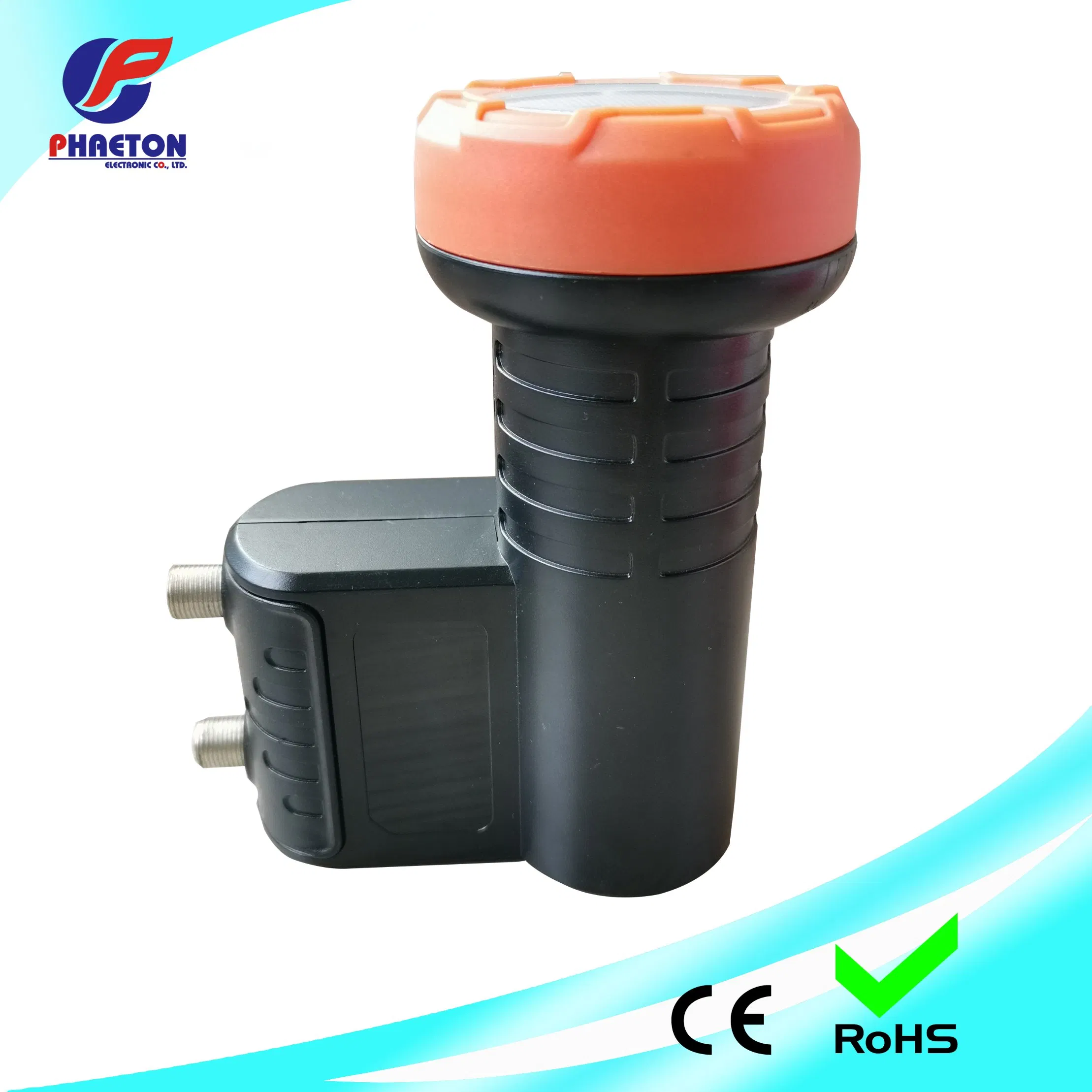

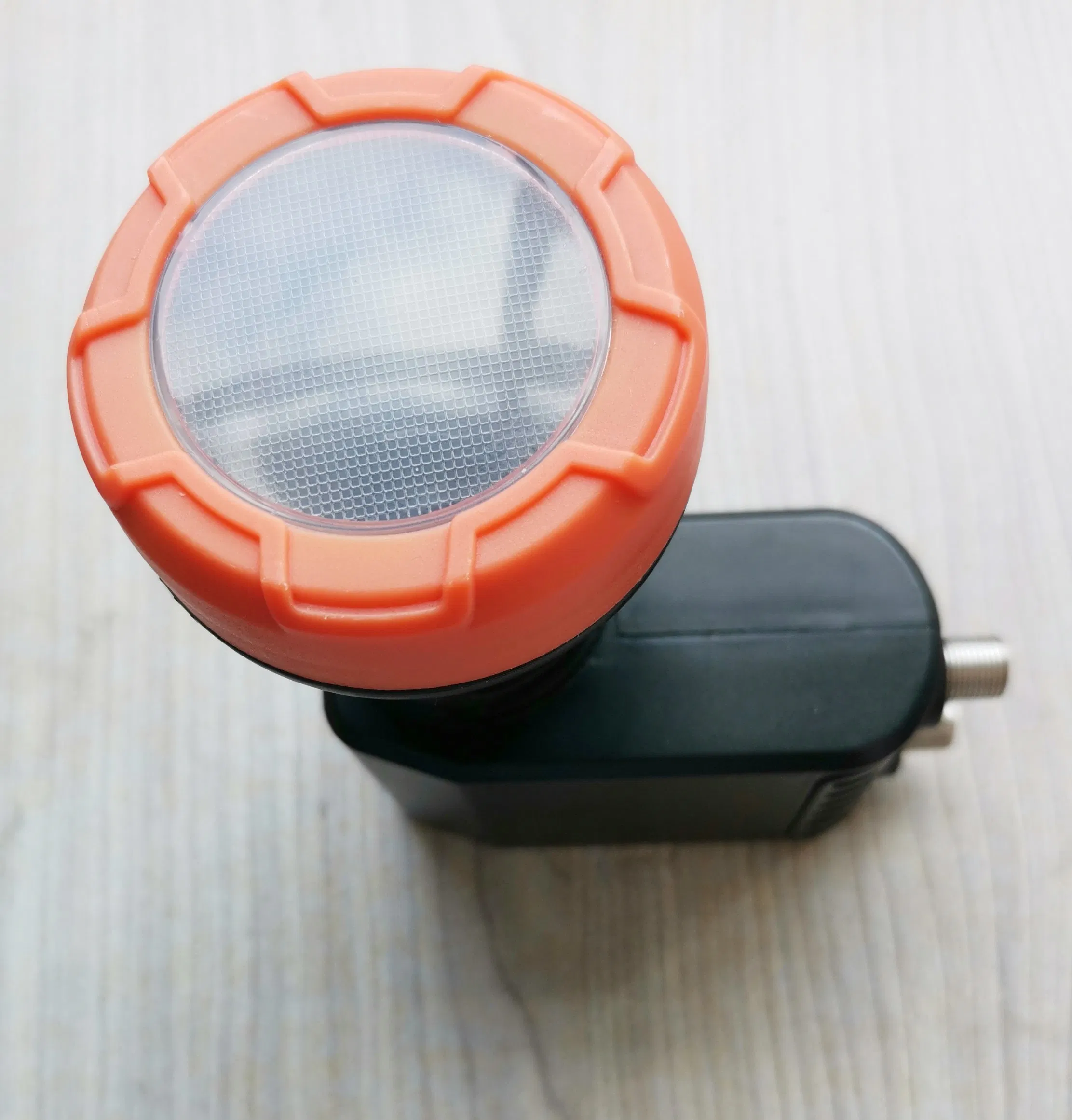

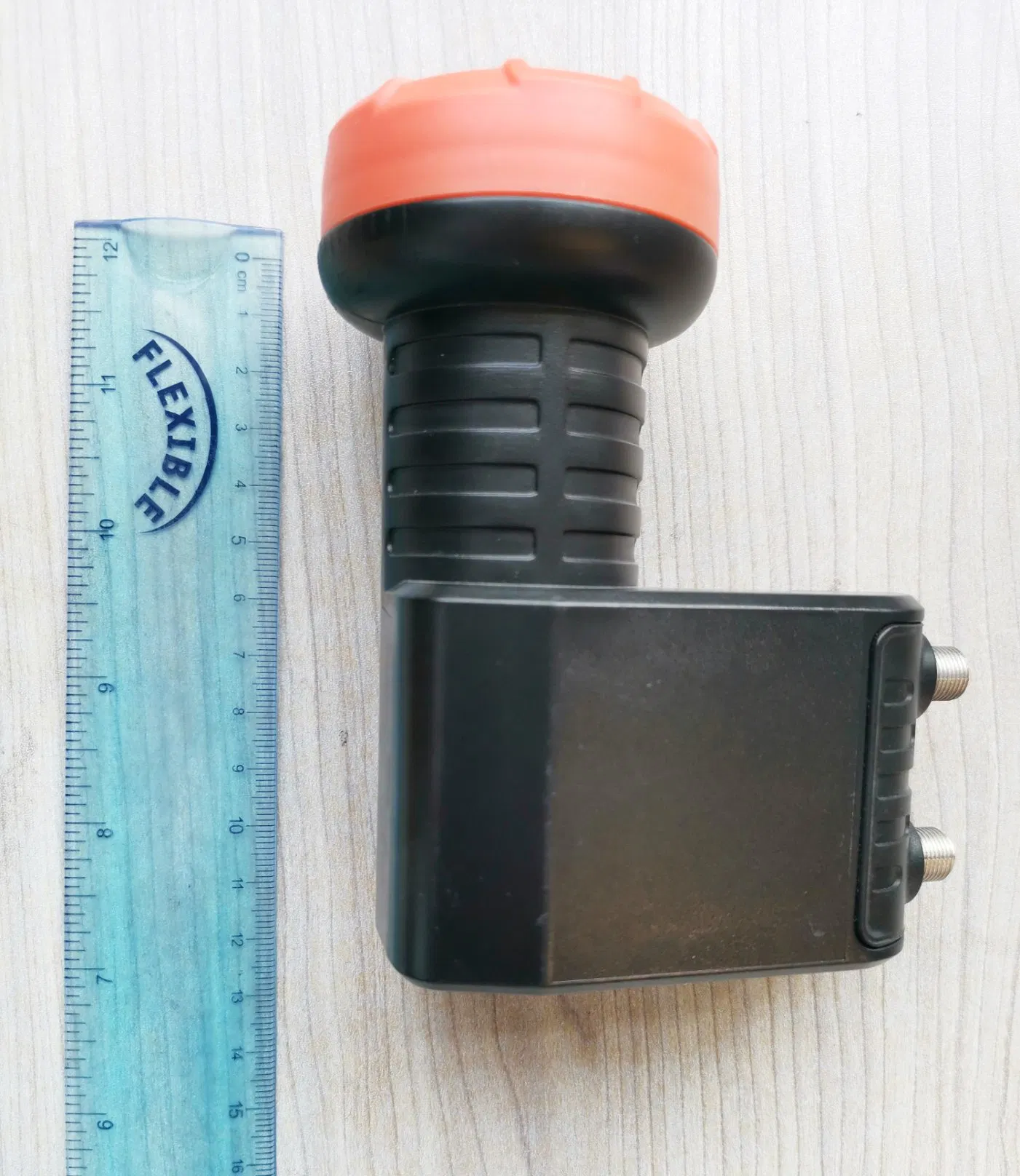

Digital Ku Band Universal Twin LNB

i

Basic Information

Model NO.

PH3-1286B

Usage

Hand Held, TV

Wave Range

Ku Program

Type

Coaxial

Cover/Shell

Plastic

Connector

RF Female

Color

White or Colorful

Trademark

OEM

Capacity

100,000PCS/Month

HS Code

8529909011

★

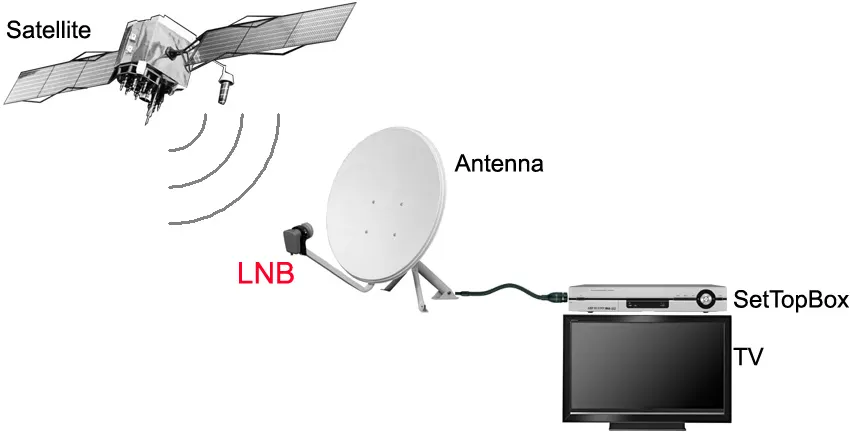

High-performance single LNB designed for satellite dishes, supporting full HD KU band signal reception with universal compatibility.

TECHNICAL SPECIFICATIONS:

Input Frequency: 10.70~11.7GHz (Low); 10.70~12.75GHz (High)

Output Frequency: 950~1950MHz (Low); 1100~2150MHz (High)

LO Frequency: 9.75/10.6GHz

Noise Figure: 0.2dB (Typ.)

Conversion Gain: 60dB (Typ.)

Input Interface: Wave guide WR-75

Cross Pol. Isolation: 20dB (Typ.)

Image Rejection: 45dB (Min.)

Polarity Voltage: Vertical 12-14.5V; Horizontal 16-18V

Band Switching: 0/22kHz tone

Gain Flatness: ±0.5dB/27MHz

Operating Temp: -40°C to +60°C

📋

Certification	ROHS available
Delivery Time	Stock: 3 days; Customized: 1~3 weeks upon payment
Sample Policy	Free samples available
Minimum Order (MOQ)	1000 pcs (Flexible if stock is available)
Terms of Trade	EXW, FOB, CIF, CPT, etc.
Application	Automotive, telecommunication, computer, security, and appliances
Service	Professional ODM/OEM support
