The DCS analog input (AI module) and analog output (AO module) serve as the core interface connecting field sensors and actuators with the main controller. These modules are responsible for high-precision acquisition, conversion, and output of analog signals, ensuring continuous control over critical parameters such as pressure, temperature, and flow regulation.
| No. | Module Name | Model Designation |
|---|---|---|

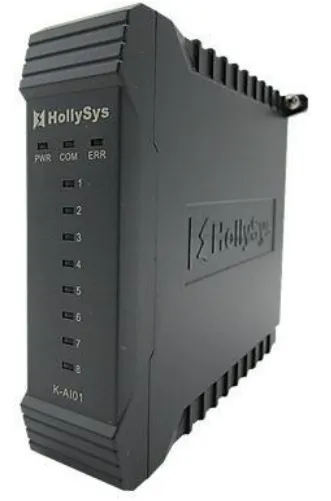

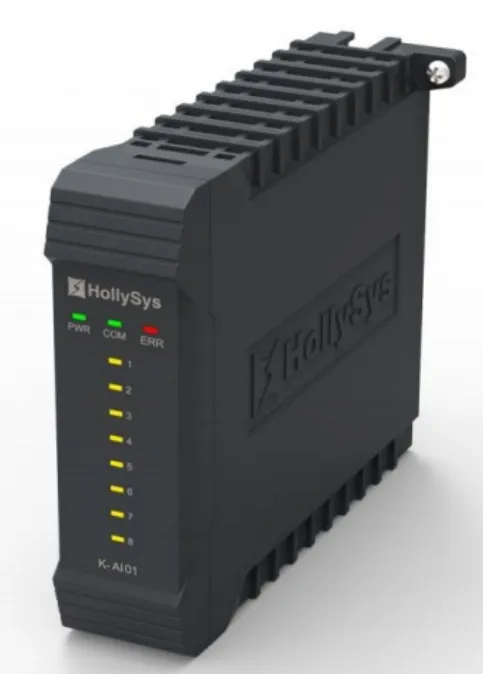

| 1 | 8-channel analog input module | K-AI01 |

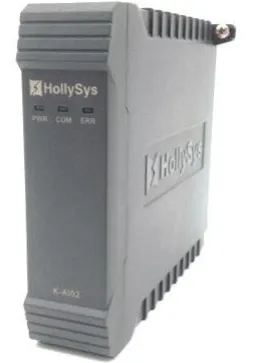

| 2 | 8-channel analog input module | K-AI02 |

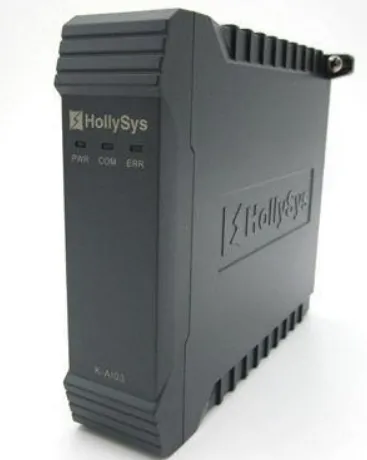

| 3 | 16-channel analog input module | K-AI03 |
| 4 | 8-channel analog output module | K-AO01 |
| 5 | 8-channel analog output module | K-AO02 |

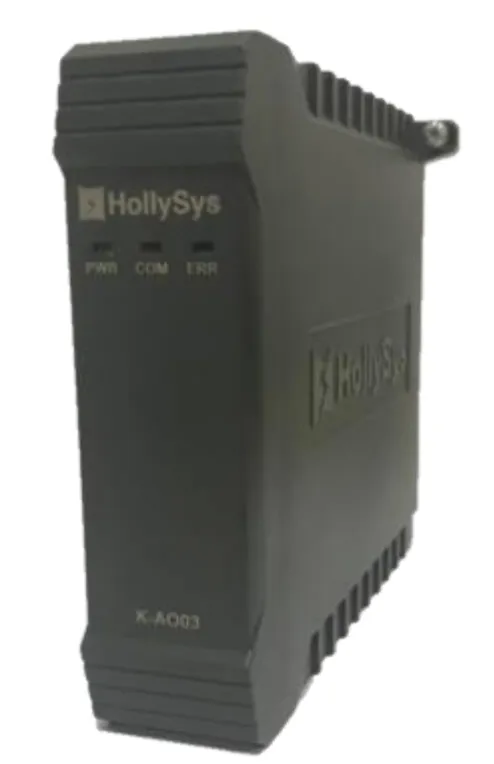

| 6 | 16-channel analog output module | K-AO03 |
| 7 | 8-channel HART-enabled AO module | K-AOH01 |
| 8 | 16-channel HART-enabled AO module | K-AOH03 |
| 9 | 8-channel thermal resistance input module | K-RTD01 |

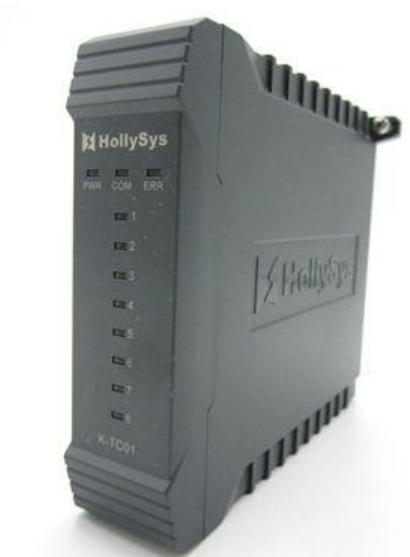

| 10 | 8-channel thermocouple input module | K-TC01 |
| 11 | Intelligent remote temp acquisition module | K-SRT01 |
| Item | Material | C (%) | Si (%) | Mn (%) | Cr (%) | Mo (%) | V (%) |
|---|---|---|---|---|---|---|---|
| Turbine Casing | ZG20CrMo | 0.15-0.25 | 0.20-0.60 | 0.50-0.80 | 0.50-0.80 | 0.40-0.60 | - |
| Exhaust Hood | ZG230-450 | ≤0.3 | ≤0.5 | ≤0.9 | 0.3 | - | - |
| Rotor | 30Cr1Mo1V | 0.27-0.34 | 0.17-0.37 | 0.7-1.0 | 1.05-1.35 | 1.00-1.30 | 0.21-0.29 |
| Wheels | 35CrMoV | 0.30-0.38 | 0.17-0.37 | 0.40-0.70 | 1.00-1.30 | 0.20-0.30 | 0.10-0.20 |
| HP Blades | 1Cr11MoV | 0.11-0.18 | ≤0.50 | ≤0.60 | 10-11.5 | 0.5-0.7 | 0.25-0.40 |
