Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
1 / 5
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting
Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting

Paperless 15.6 Conference Desktop Dual Touch Screen Conference Systems for Meeting Room Integrated Conference System with Voting

Customization: Available
Color: Black
Type: Voice Conferencing System
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
DCS-2062
Installation
Desktop
Connection
Network Cable
Display
35mm*18mm
Audio Frequency
30Hz-20kHz
Thd
<0.05%
Interpretation
32 Channels
Vox Sensitivity
H/M/L
Microphone Type
Uni-Directional Condenser
Weight
0.6kg
Communication
Wired
Package
Full-Sealing Package
Origin
China
Capacity
2000 Sets / Month
🚀

Key Functions & Features

DCS-2062DI Basic Core Technology

Compliant with IEC60914 international standards, utilizing digital audio processing and transmission technology with high-speed CPU and DSP.

  • Dual Display System: 15.6-inch LCD main touch screen (1920x1080) and 10.1-inch HD electronic nameplate (1280x800).
  • Flexible Cabling: Supports daisy-chain, star, and mixed connections via network cables for high stability.

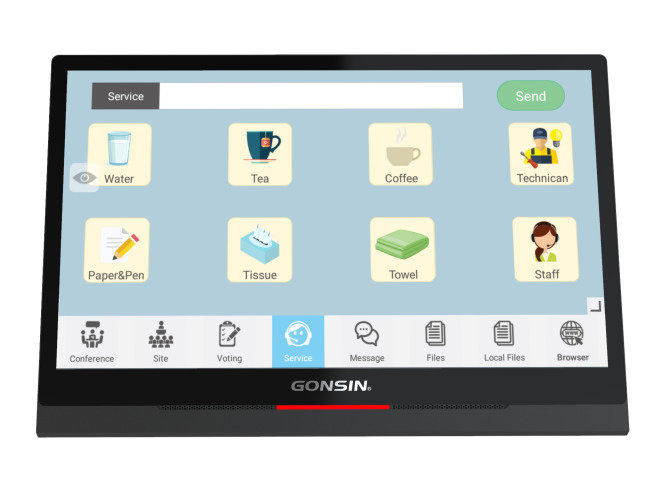

  • Comprehensive Interaction: Features attendance registration, electronic voting, and customized call services (tea, paper, pen, etc.).
  • Digital File Management: Supports browsing and screen sharing for DOC, PDF, PPT, JPG, MP4, and more.
  • Enhanced Audio: Built-in 2W loudspeakers, 3.5mm headphone jack, and pluggable cardioid pickup gooseneck microphone.
  • Security & Privacy: Built on Android platform with data encryption and anti-restoration techniques.
🎧

Interpretation & Discussion

  • 32 Channel Interpretation: Supports 1+31 simultaneous interpretation channels with volume control via LCD.
  • VOX Activation: Voice-activated mic mode with adjustable sensitivity levels (High, Middle, Low).
  • Advanced Audio Processing: 48KHz sample rate, 20Hz~20KHz frequency response, and low-frequency shock avoidance.
  • Video Tracking: Supports automatic SD/HD video tracking with preset panoramic positions.

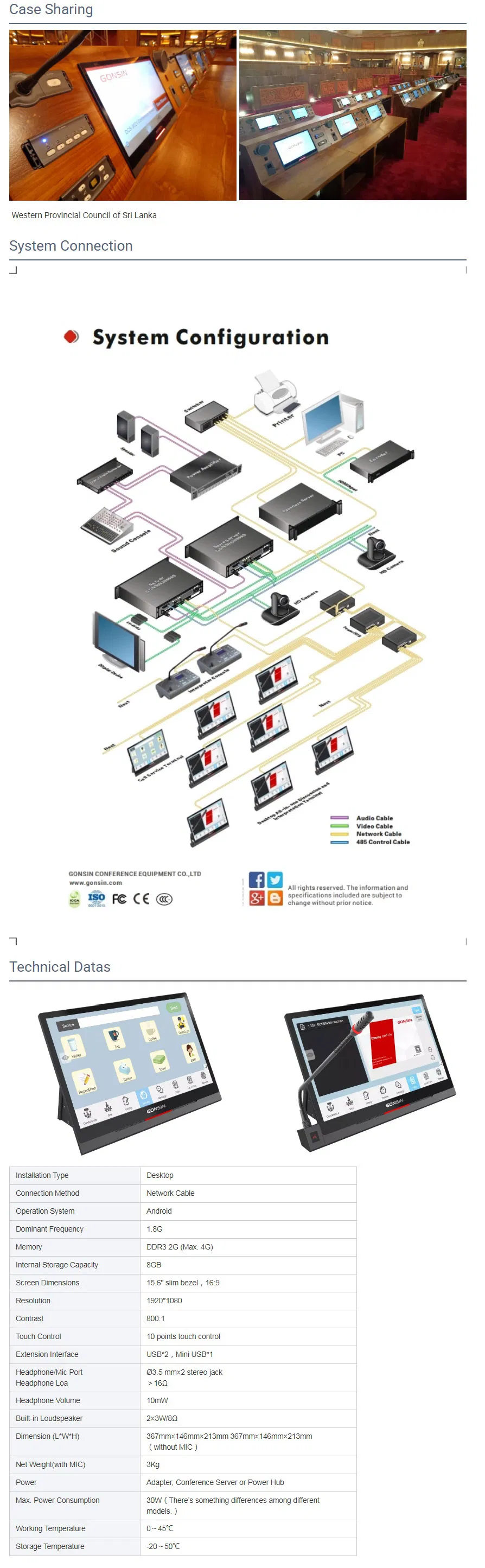

Paperless Desktop Dual Touch Screen System
Integrated Conference System Details
❓

Frequently Asked Questions

What are the screen sizes for the DCS-2062DI?
The unit features a 15.6-inch main LCD touch screen for user operation and a 10.1-inch super bright HD LCD screen on the back for the electronic nameplate.
Does this system support paperless file sharing?
Yes, it supports browsing and sharing digital files including DOC, PDF, PPT, and various image/video formats. Users can also make digital notes on files.
How many interpretation channels can the system handle?
The system supports up to 32 (1+31) channels of simultaneous interpretation, which can be selected directly via the touch screen.
What are the microphone activation modes?
It supports several modes: VOX (voice-activated), Auto, FIFO (First-In-First-Out), and Operator mode controlled by the chairman.
Can the system be expanded for large meetings?
Yes, the system capacity is unlimited for wired connections, and it supports flexible cabling (daisy-chain or star) to simplify large-scale construction.
What functions does the Chairman Terminal have?
The Chairman Terminal can override delegate units, initiate voting/attendance, send mass system messages, and control the conference flow.
