DCS-2062DI Basic Functions
- ✦
Utilizes digital audio processing and transmission technology in compliance with IEC60914 international standards.
- ✦
Equipped with full digital audio technology, high-speed CPU, and high-performance digital audio processor (DSP).
- ✦

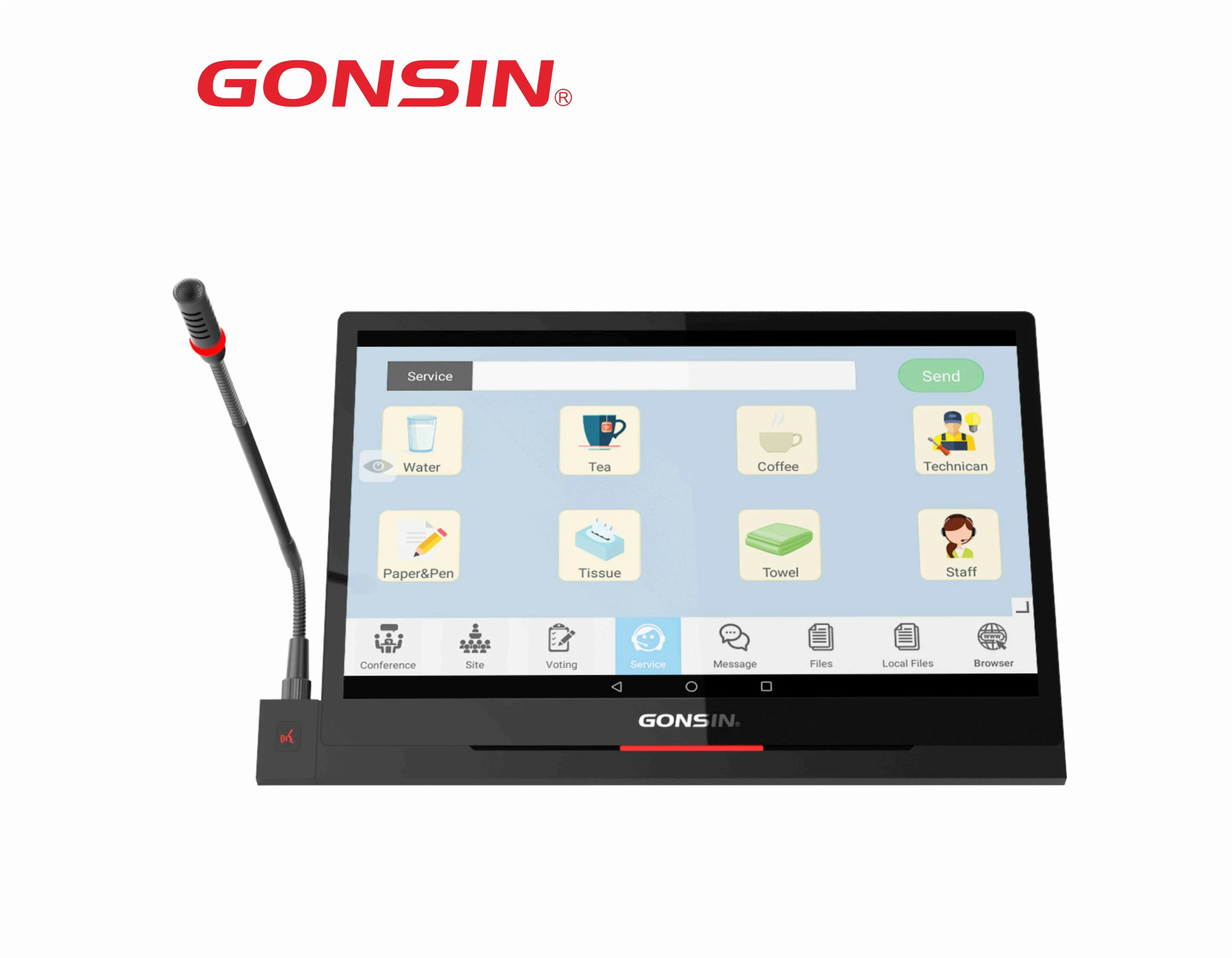

15.6-inch LCD touch screen (1920 × 1080) with 10-point control and slim bezel design.
- ✦

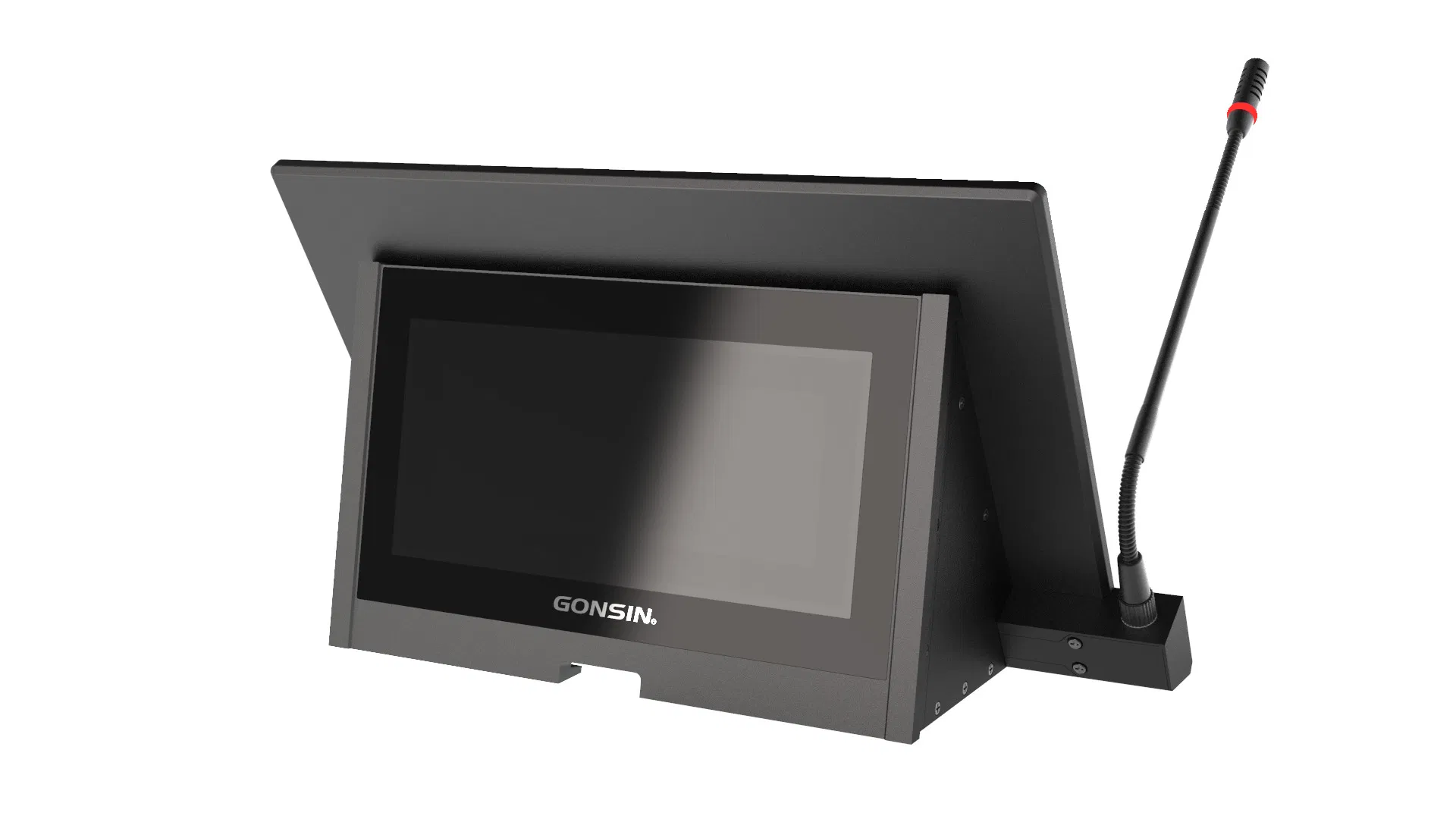

Electronic nameplate featuring a 10.1-inch super bright HD LCD screen (1280 × 800).
- ✦
Supports synchronous display of user information: name, position, title, organization name, and Logo.
- ✦
Flexible connectivity via network cables supporting daisy-chain, star, and mixed connections.
- ✦
Bottom-mounted cabling for clear and tidy desktop installation; supports hot plugging.
- ✦
Integrated headphone jack (Ø 3.5 mm) and built-in 2W loudspeakers with 9-level adjustable volume.
- ✦
Comprehensive conference functions: attendance registration, voting, and customized voting initiated by the chairman.
- ✦
Digital file management: browse DOC, PDF, PPT, JPG, MP4, and share screens with other terminals.
- ✦
Android-based platform with data encryption to ensure information security.
- ✦
Additional utilities: digital whiteboard, internet browser, and USB flash disk file reading.
Chairman Terminal Capabilities: Mass messaging, conference topic control, quick voting initiation, mandatory screen sharing, and comprehensive monitoring of attendance and microphone status.
Discussion and Interpretation Functions
- 🎤
Luminous capacitive touch control microphone button for accurate response and long life.
- 🎤
48KHz audio sample frequency with a response range of 20Hz to 20KHz.
- 🎤
Standard electret cardioid pickup pattern with red ring indicator; pluggable gooseneck stems (310/410/510mm).
- 🎤
Supports VOX (voice-activated) mode with adjustable sensitivity (high, middle, low).
- 🎤
Automatic video tracking (SD and HD) with preset panoramic positions.
- 🎤
Supports 32 (1+31) channels of simultaneous interpretation with channel selection on the LCD screen.
Frequently Asked Questions
What are the screen sizes for the paperless terminal?
The terminal features a primary 15.6-inch HD touch screen for user interaction and a secondary 10.1-inch electronic nameplate for displaying participant information.
How many simultaneous interpretation channels are supported?
The system supports up to 32 channels (1 original floor channel + 31 interpretation channels) for multi-language conferences.
What file formats can be viewed and shared on the terminal?
It supports a wide range of formats including DOC, DOCX, PDF, PPT, PPTX, JPG, PNG, BMP, MP3, MP4, AVI, FLV, and WMV.
Is the system stable if one unit fails?
Yes, the system supports star and daisy-chain mixed connections. The failure or breakdown of one extension does not affect the operation of other units or the overall system.
Does the terminal support voting and attendance?
Yes, it includes integrated functions for attendance registration, standard voting, and customized voting, all of which can be controlled by the chairman terminal.
Can the microphone be activated by voice?
Yes, the terminal features a VOX function where the unit activates automatically when the user speaks. Sensitivity can be set to high, middle, or low.
