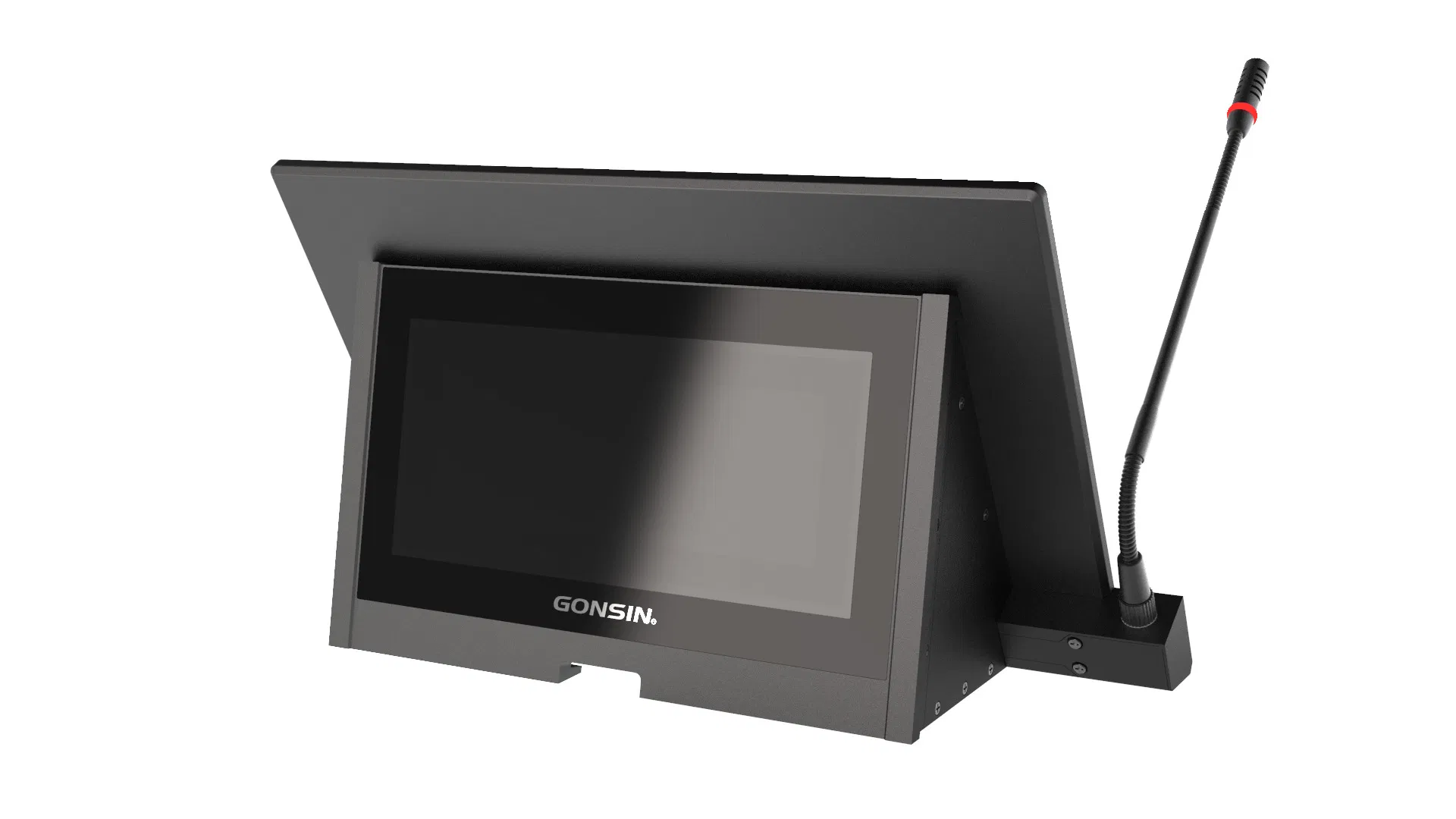

Desktop Paperless Video Conference Monitor Conference Motorized LCD Monitor Screen Microphone Conference System with LCD

Customization: Available
Color: Black
Type: Voice Conferencing System

Product Description

Basic Specifications

Model NO.
DCS-2061DI
Installation
Desktop
Connection
Network Cable
Display
35mm*18mm
Audio Frequency
30Hz-20kHz
Thd
<0.05%
Interpretation
32 Channels
Vox Sensitivity
H/M/L
Microphone Type
Uni-Directional Electret Condenser
Weight
0.6kg
Communication
Wired
Origin
China
Production Capacity
2000 Sets / Month

Product Description

DCS-2062DI Core Functions
Compliant with IEC60914 international standard, utilizing digital audio processing and transmission technology.

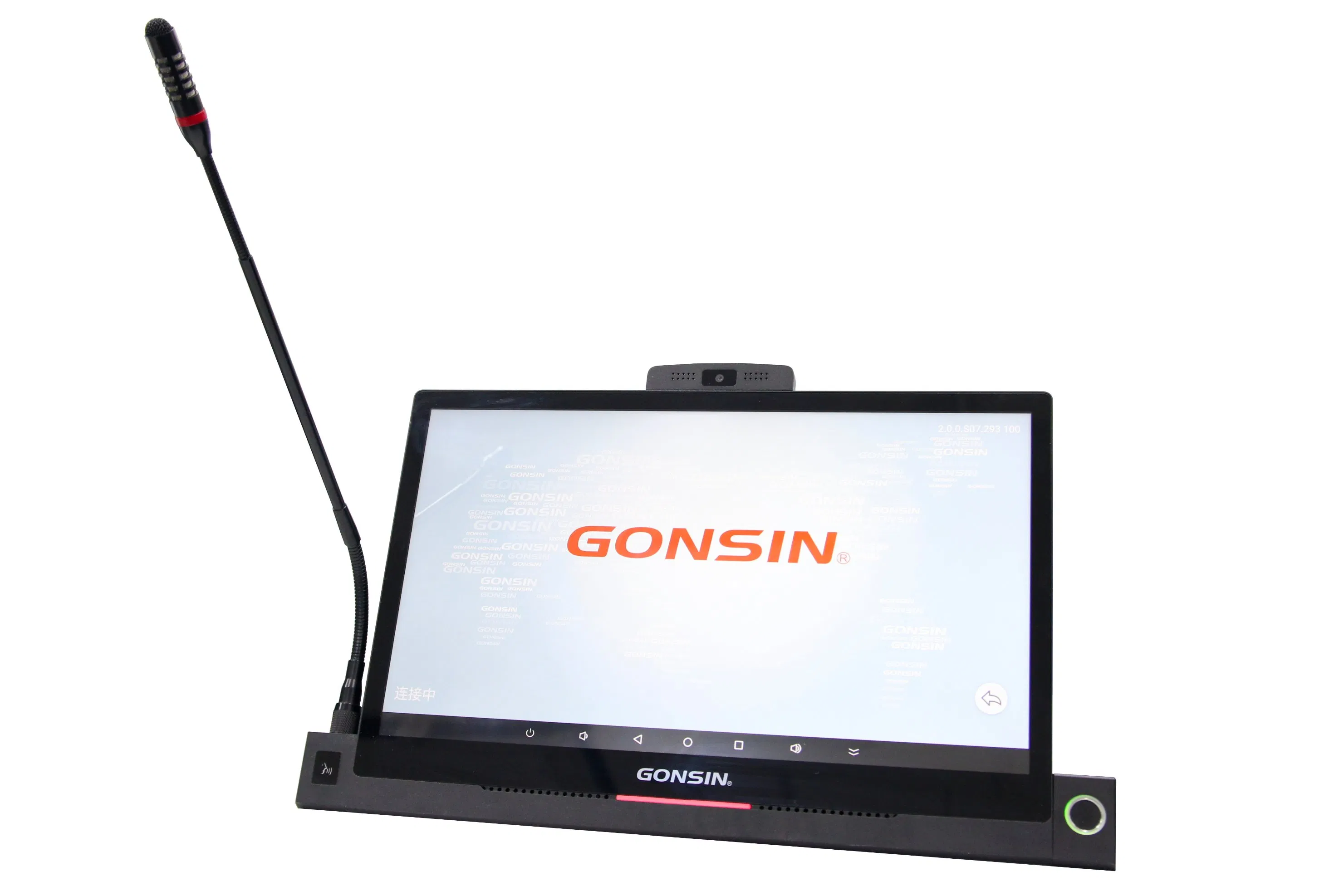

15.6 inches LCD screen (1920 × 1080 resolution) with 10 points touch control and slim bezel design.

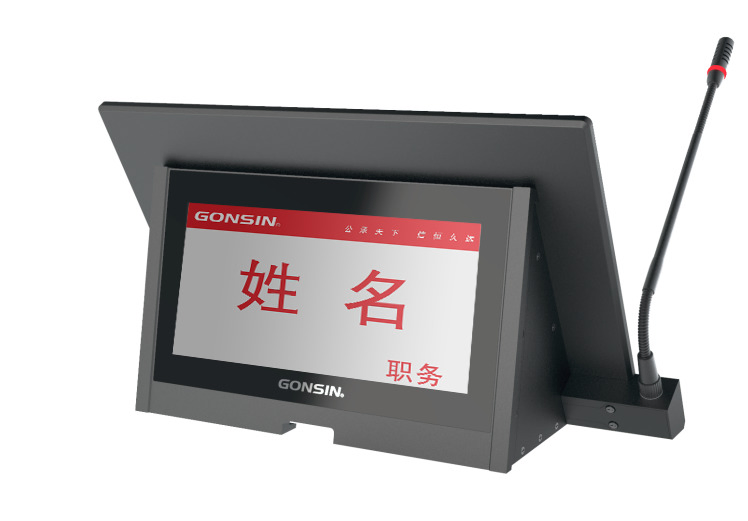

Electronic nameplate with 10.1 inches HD LCD screen (1280 × 800) for high-quality display.
Synchronous display of user info: name, position, title, organization, and customized logos.
Supports flexible cabling: daisy-chain, star, and mixed connections via network cables.
Automatic restoration and hot plug support for high system stability.
Integrated headphone jack (Ø 3.5 mm) and 2W built-in loudspeakers with 9-level volume adjustment.
Comprehensive conference functions: Attendance registration, voting, and customized voting managed by software.

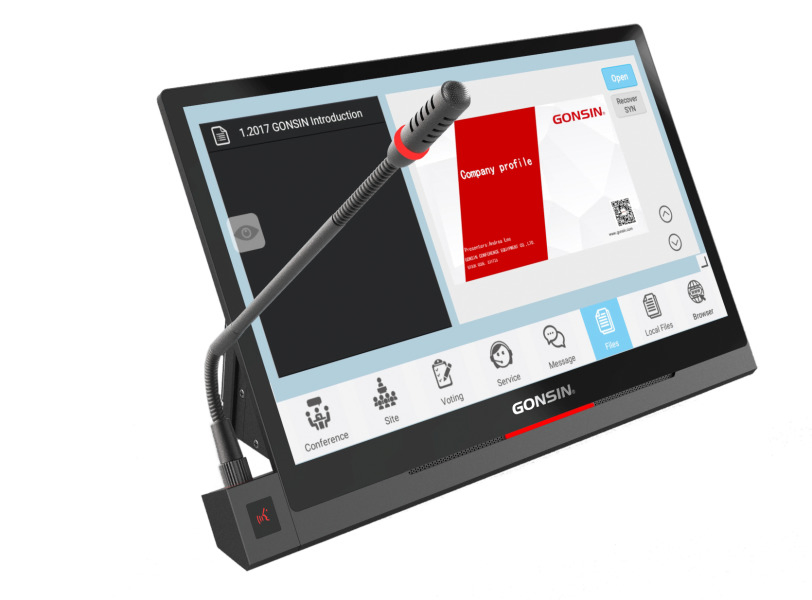

Paperless file management: Supports browsing DOC, PDF, PPT, JPG, PNG, MP4, and more.
Advanced screen sharing: Supports synchronous sharing, page scrolling, and on-screen notes.
Security: Built on Android platform with data encryption and anti-restoration techniques.
Digital whiteboard and internal message transmission for efficient communication.
Discussion & Interpretation Features
Luminous capacitive touch mic button for accurate response and long service life.
48KHz audio sampling frequency with response up to 20Hz~20KHz.
Standard electret cardioid pickup pattern microphone with red ring indicator.
Multiple system modes: VOX, Auto, FIFO, and Operator.
VOX sensitivity adjustment (high, middle, low) with adjustable timeout (20-250 seconds).
Support for 32 (1+31) channels of simultaneous interpretation.
Automatic video tracking (SD and HD) with preset panoramic positions.
Chairman Terminal Capabilities
Priority button to override all active delegate terminals.
Mass system message broadcasting to all paperless terminals.
Complete conference control: initiate registration, voting, and quick voting.
Real-time monitoring of attendance, voting process, and microphone status.

Frequently Asked Questions

What are the main display features of the terminal?
The terminal includes a 15.6-inch main LCD touch screen (1920x1080) and a secondary 10.1-inch HD electronic nameplate for displaying participant details.
What file formats are supported for paperless browsing?
It supports a wide range of formats including DOC, DOCX, PDF, PPT, PPTX, JPG, PNG, BMP, MP3, MP4, AVI, FLV, and WMV.
How many simultaneous interpretation channels are available?
The system supports up to 32 channels (1 floor channel + 31 interpretation channels) for multi-language conferences.
Does the system support video tracking?
Yes, it supports automatic video tracking for both SD and HD cameras, including preset panoramic positions.
What is the VOX function and how does it work?
In VOX mode, the microphone activates automatically when the user speaks. Sensitivity can be adjusted to high, middle, or low levels.
How is the terminal connected within the system?
Terminals are connected via standard network cables and support daisy-chain, star, and mixed configurations for maximum reliability.
