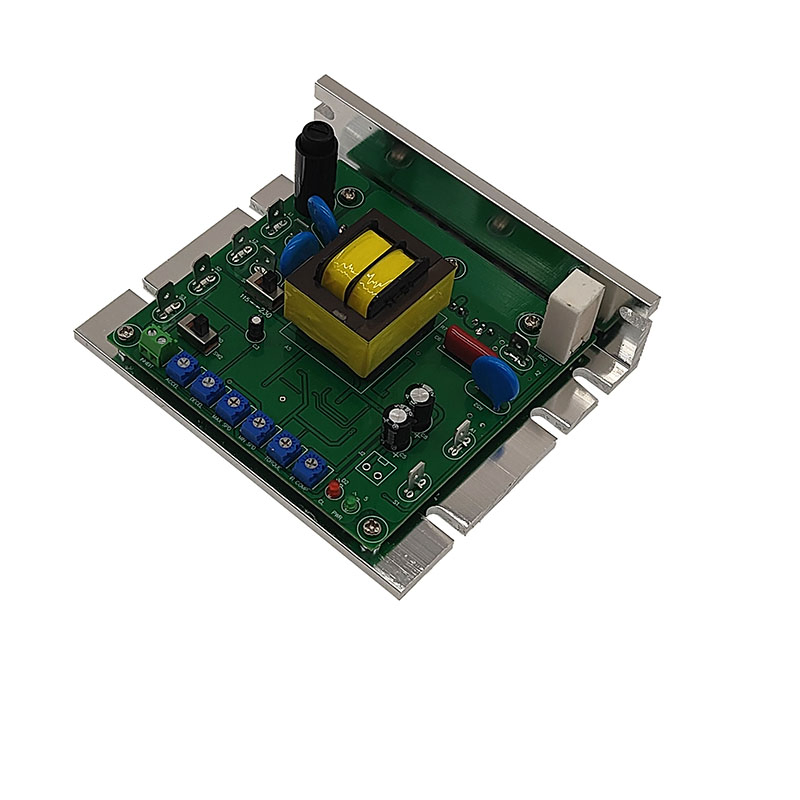

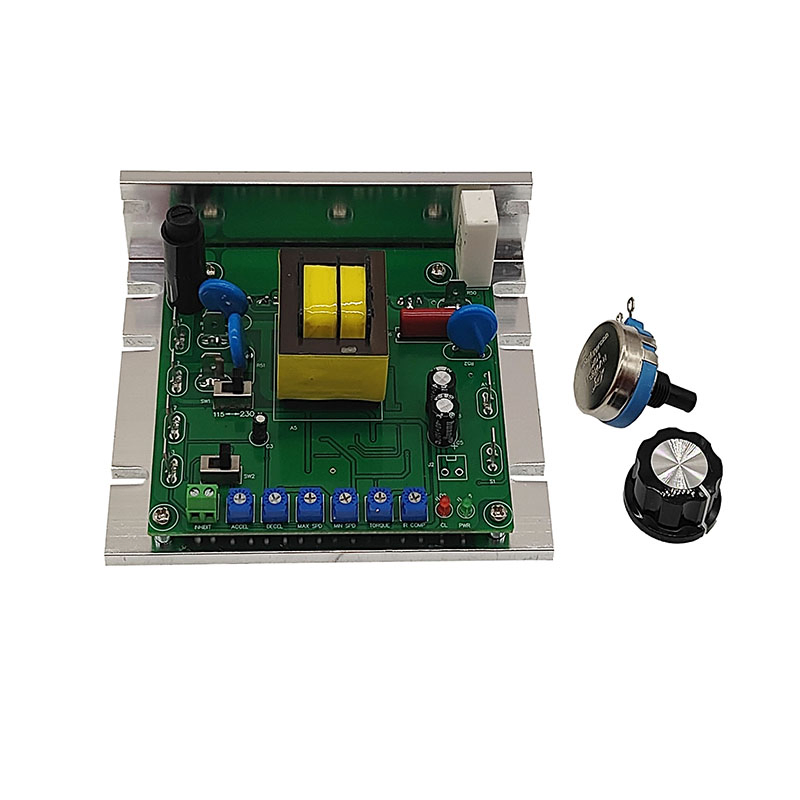

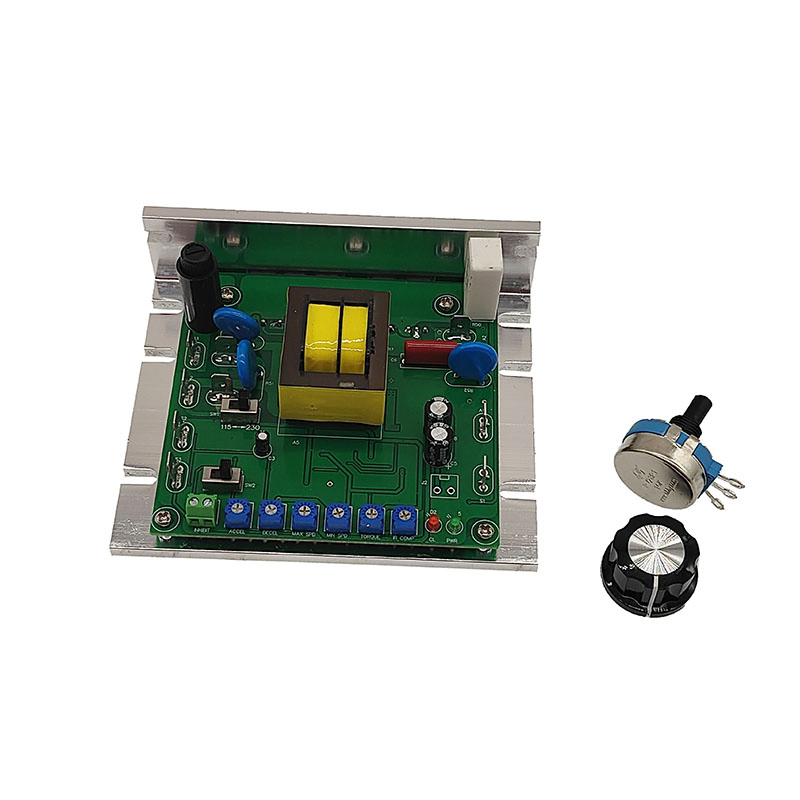

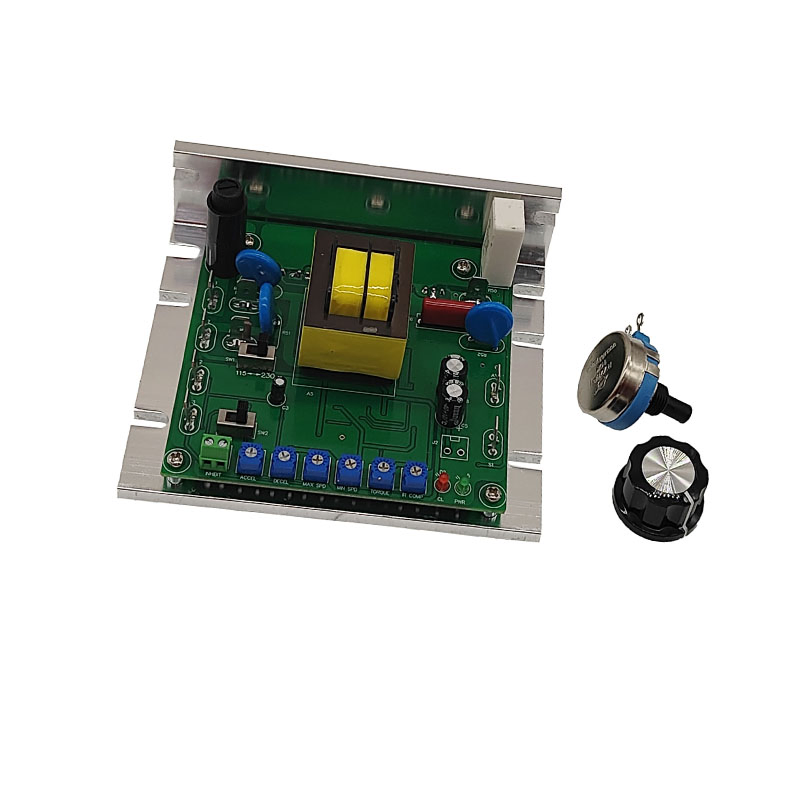

Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
1 / 5
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control
Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control

Lkdr2410 Brush Motor Driver Input 220VAC Output 0-180VDC 500W 800W DC Motor Control

Customization: Available
Signal: Continuous
Function: Automatic Control, Protection, Monitoring, Measurement
Send Inquiry

Product Description

Overview - Basic Information

Model NO.
LKDR2410
Certification
CE
Condition
New
Customized
Customized
Input Voltage AC
115V / 230V ± 10
Frequency
50 / 60 Hz ± 5
Output Voltage DC
0-220V (Can Be Set)
Transport Package
Carton
Origin
China
Production Capacity
50000

Product Description

LKDR2410 Brush motor driver Input 220VAC output 0-180VDC 500W 800W dc motor control

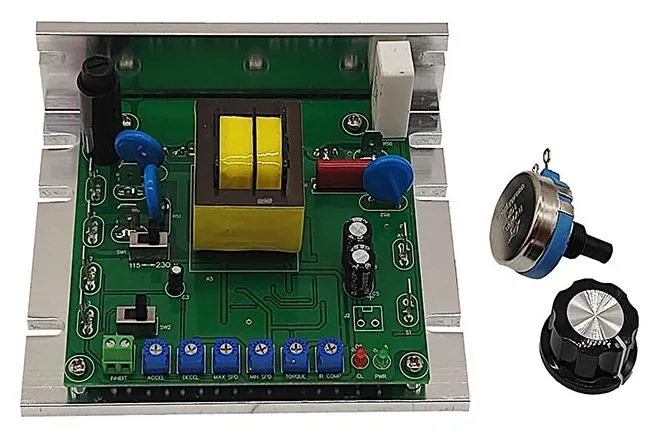

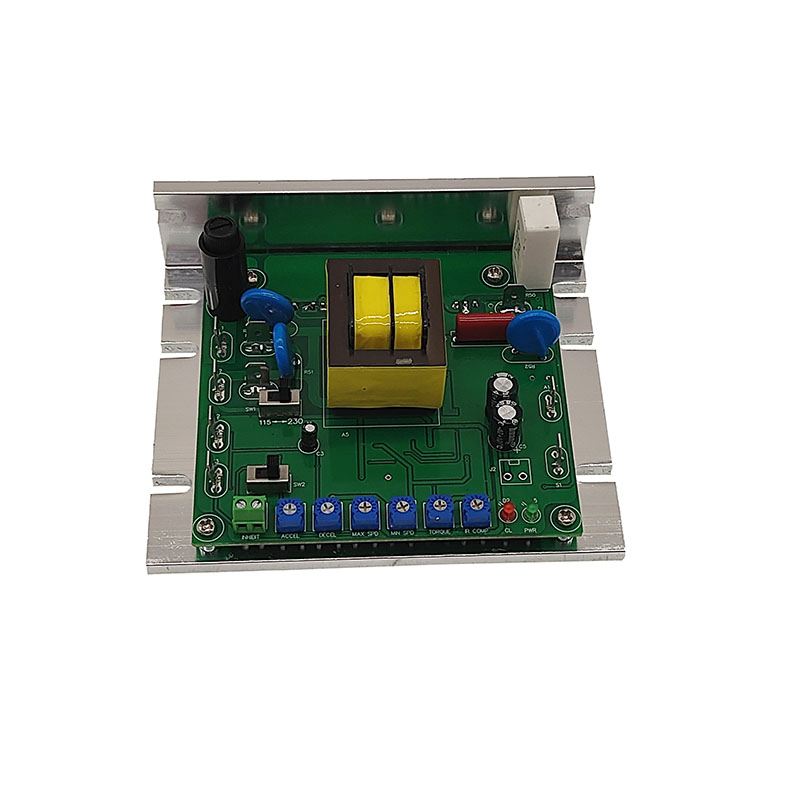

Lkdr2410 Brush Motor Driver

Product Features

1. SMT technique with small size
2. Good follow-ability, fast response speed
3. Wide speed regulation ratio, hard mechanical characteristics
4. Suitable for permanent magnet, other and DC motor
5. Double closed-loop PI adjustment (voltage, current)
6. Current setting and current limiting protection
7. Low-speed output torque is large
8. Overflow protection function
9. Quick stop function
10. Upper and lower limit speed set arbitrarily
11. Soft start, soft stop setting function
12. Input and output voltage dial switch selection

Product Parameters

Input voltage AC
115V / 230V ± 10
Frequency
50 / 60 HZ ± 5
Output voltage DC
0-220V (can be set)
Rated output current
10A
Speed Ratio
80:1
Voltage Accuracy
0.1
Soft Start Time
0.2S-20S
Soft Stop Time
0.2S-10S
Ambient Temp
-10ºC ~ + 60ºC
Leakage current
0.09 mA
Insulation Resistance
> 500M Ω

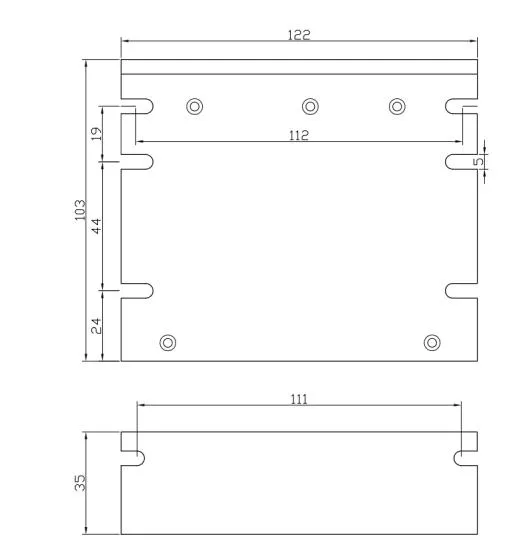

Driver Side View

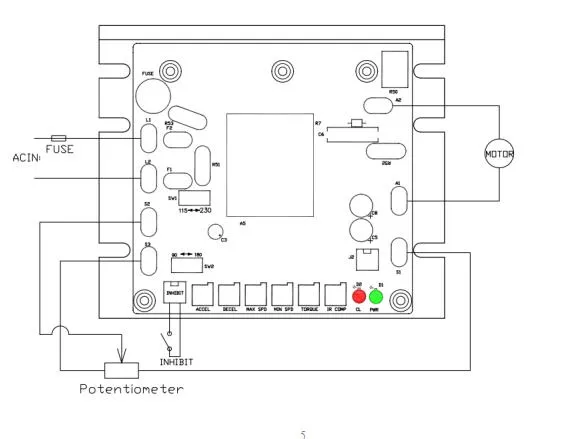

Driver Dimension View

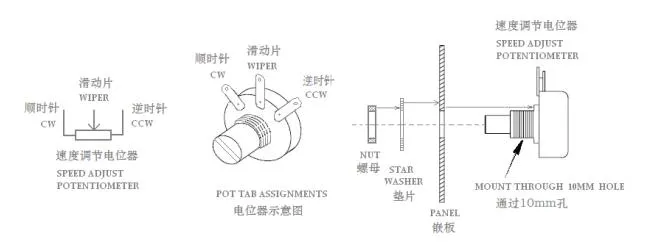

Connection Diagram

Packaging & Delivery

Package Size
35.00cm * 30.00cm * 25.00cm
Gross Weight
0.600kg
Packaging Details

Company Profile

Founded in 2017, the company is mainly engaged in high and low voltage permanent magnet DC motors, high and low voltage BLDCM, high and low voltage AC and DC servo motors, and its supporting high and low voltage DC motor drivers, AC and DC servo motor drivers and other high-quality products for industrial fields.

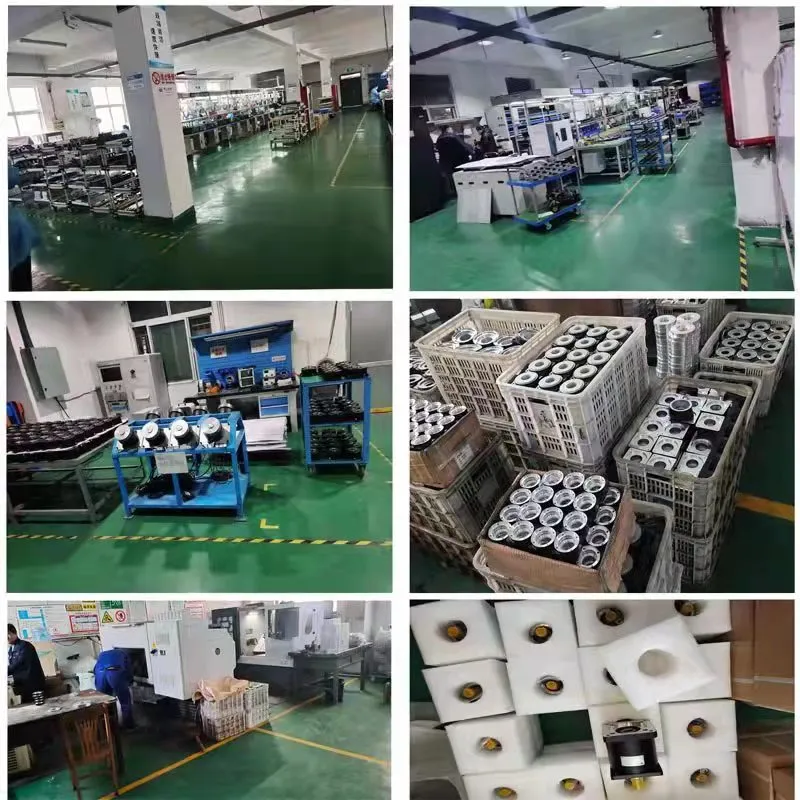

Factory Overview 1
Factory Overview 2

FAQ

1. Are customized designs available for this motor driver?
Yes, customized design is available. OEM and ODM orders are welcome to meet your specific industrial requirements.
2. How long does it take to receive a response to an enquiry?
We value your time and will reply to all enquiries within 24 working hours.
3. Does your staff provide professional technical support?
Absolutely. Our experienced staff will answer all your questions in professional and fluent English.
4. Can you provide specific technical solutions for our projects?
Yes, exclusive and unique solutions can be provided by our well-trained and professional engineers.
5. Do you offer discounts for bulk orders?
Yes, special discounts can be offered for large quantity orders. Please contact us for a detailed quotation.
6. What is your commitment to quality?
We try our best to meet your requirements and supply you with the best quality motor and driver products.
