| Model NO. | KD600E |
| Principle of Work | Vector Control Transducer |
| Switch Mode | High Carrier Frequency PWM Control |
| Main Circuit Type | Voltage |
| Power Supply | Low Voltage Variable-Frequency Drive |
| Transformation | AC-DC-AC Variable-Frequency Drive |
| Function | Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type |
| Production Capacity | 200,000 PCS/Per Month |
| Specification | 3 Years Warranty |
A professional manufacturer specializing in R&D of AC drives. With a comprehensive product family, frequency inverters' power covers the range from 0.4 to 630kW, and voltage range is between 220V and 480V. More than 300,000 units are running smoothly at various industrial sites.

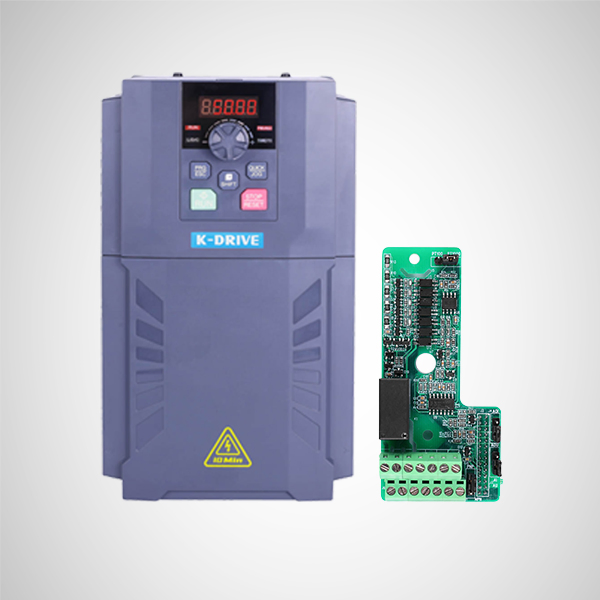

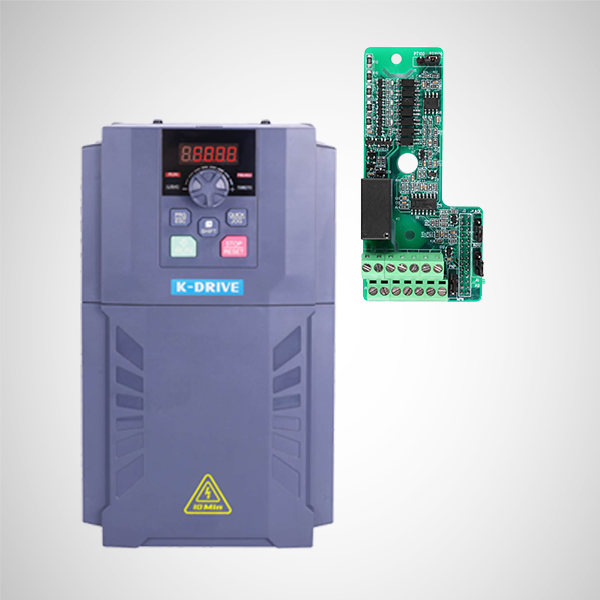

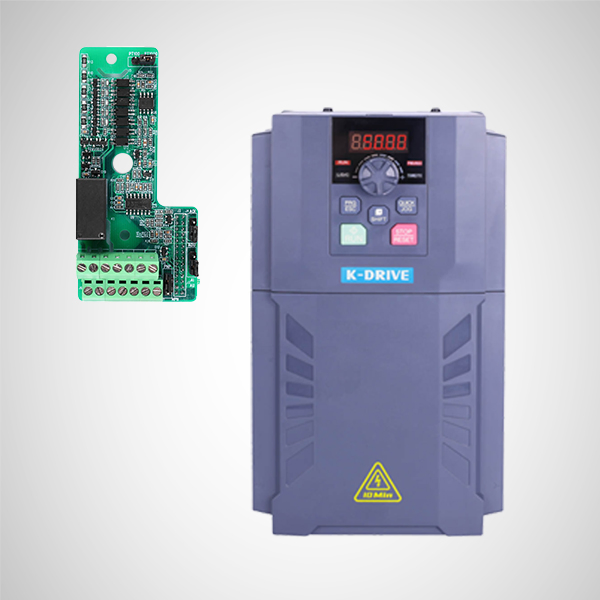

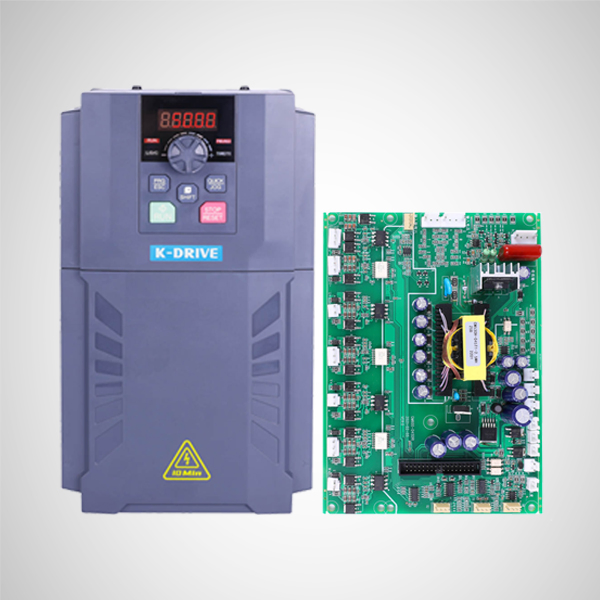

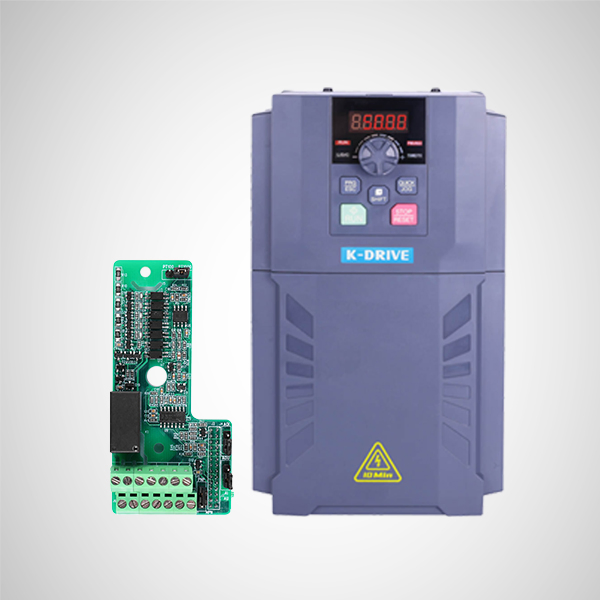

The KD600E series inverter is designed specifically for elevator carrying characteristics. It adopts high-performance vector control technology, capable of controlling both asynchronous and synchronous motors. For asynchronous motor open-loop vector control, it integrates innovative sensor start/stop compensation technology to ensure passenger comfort without the need for weighting devices.

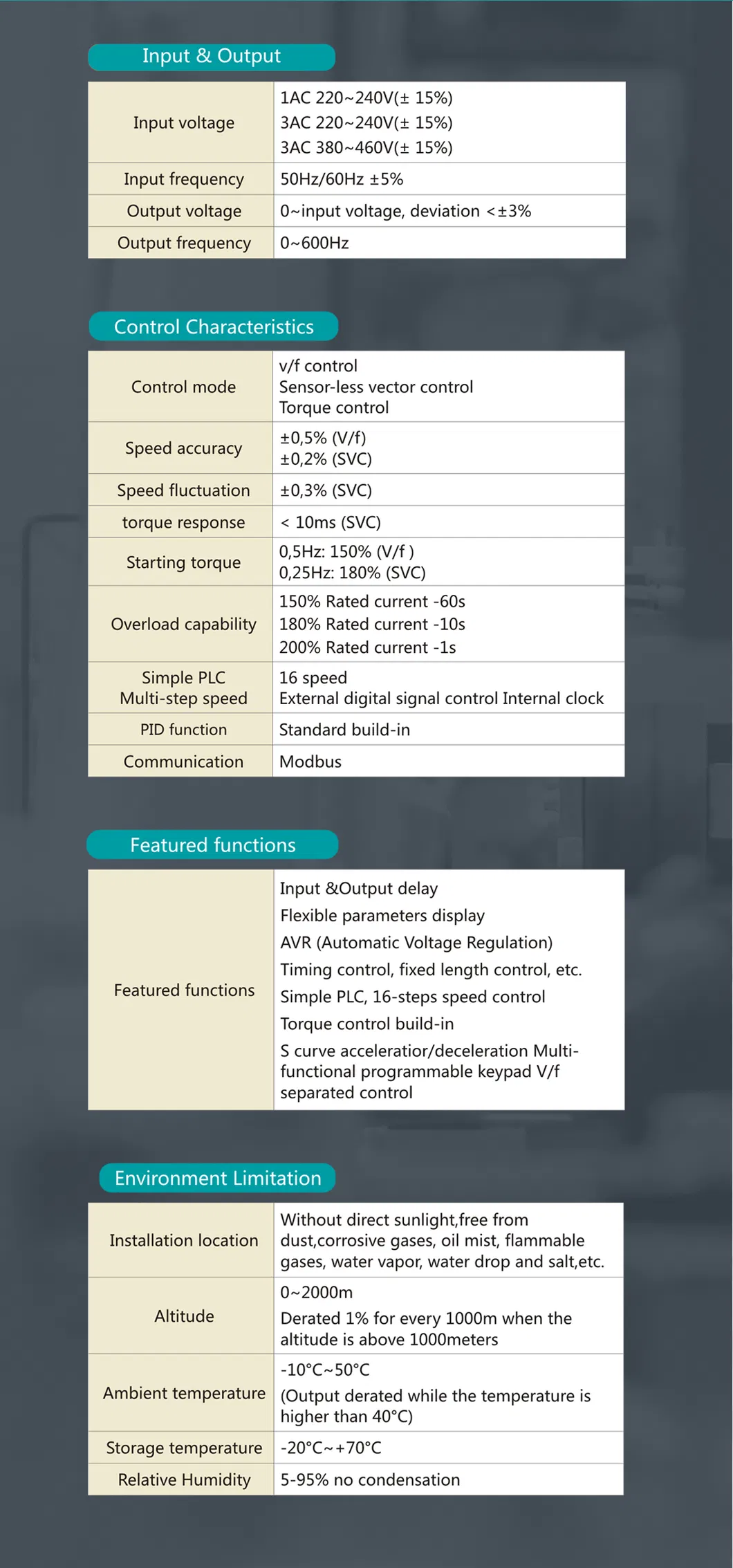

| Input Voltage | 208~240V single phase & three phase 380~480V three phase |
| Output Frequency | 0~1200Hz V/F 0~600HZ FVC |
| Control Technology | V/F, FVC, SVC, Torque Control |
| Overload Capability | 150% @ rated current 60S 180% @ rated current 10S 200% @ rated current 1S |

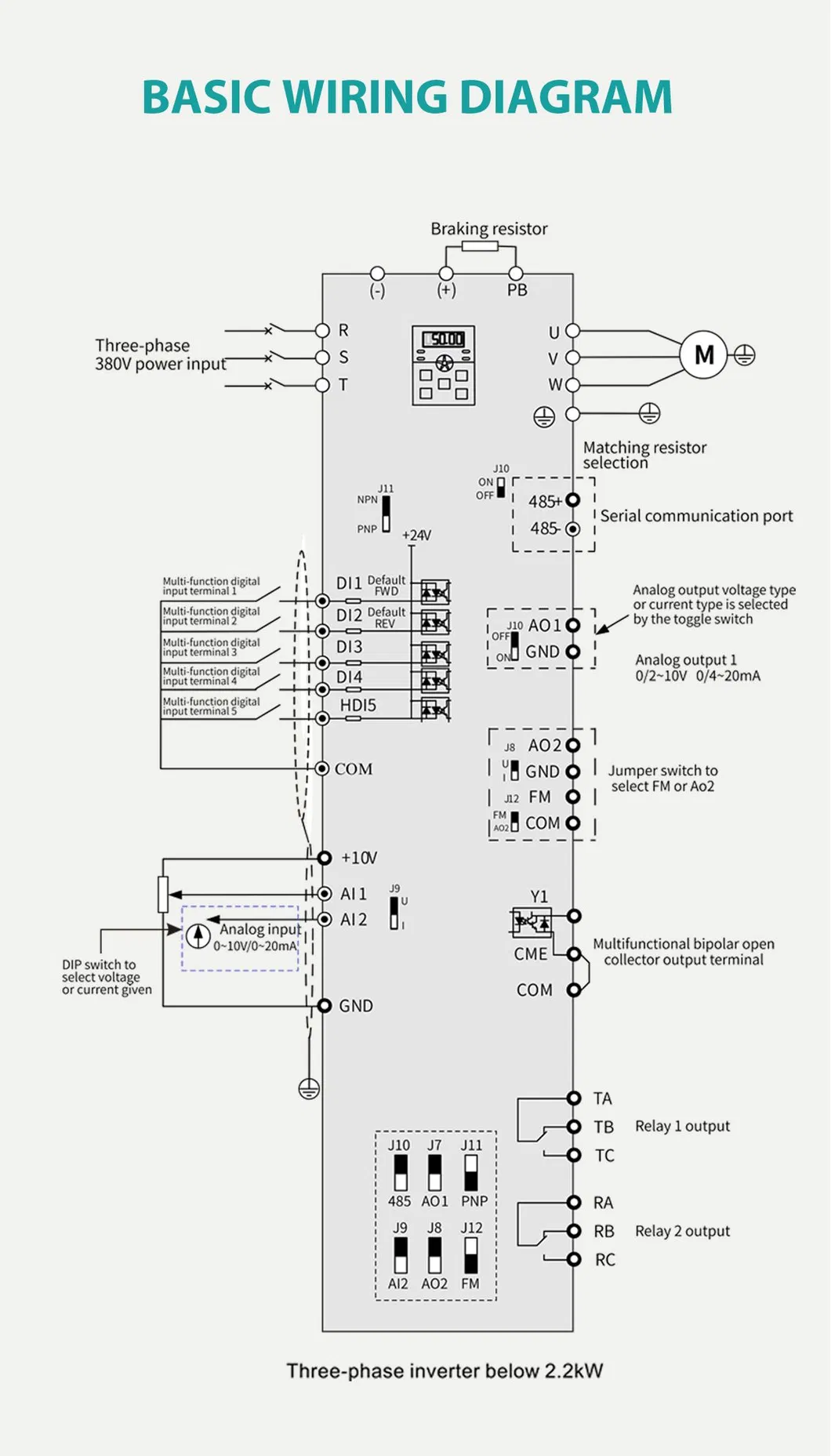

| I/O Support | Simple PLC max 16-steps speed control; 5 Digital inputs (NPN & PNP); 2 Analog inputs, 2 analog outputs |
| Communication | MODBUS RS485, Profinet, Profibus, CANopen, Ethercat, PG |
