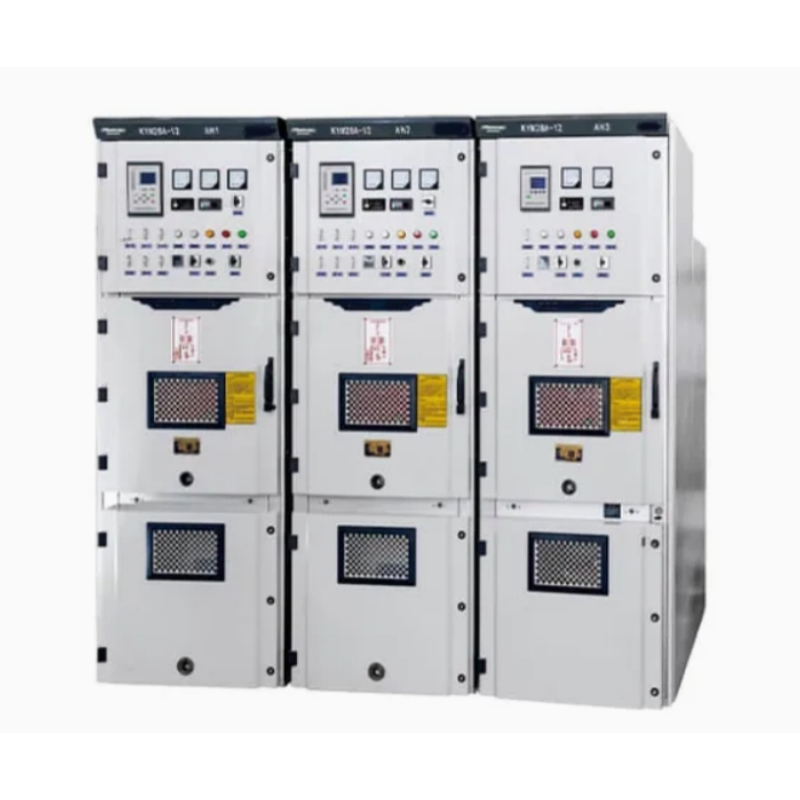

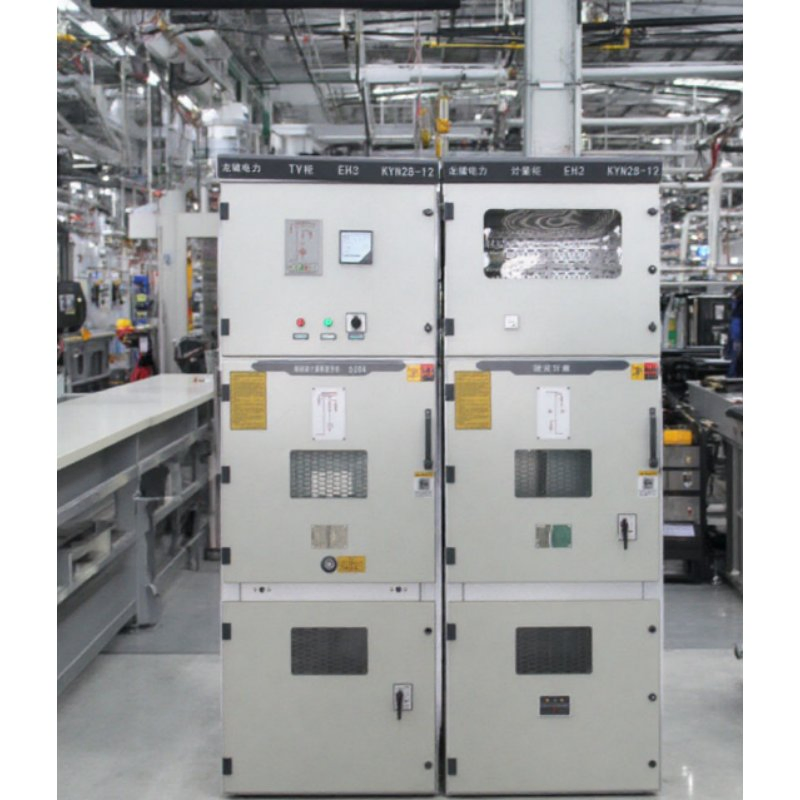

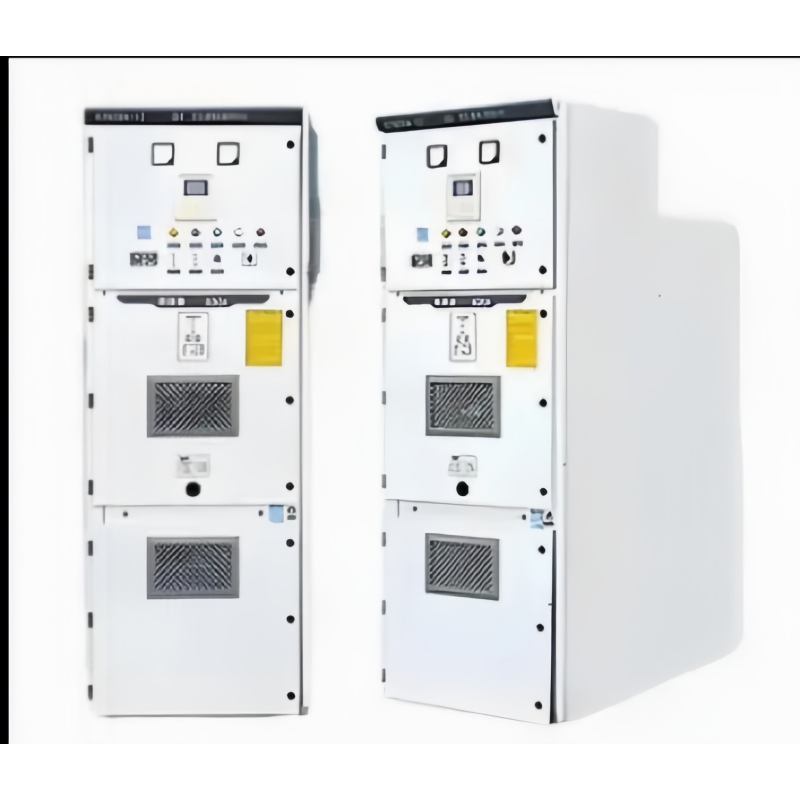

Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
1 / 5
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring
Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring

Kyn28-12 (Z) Indoor Distribution Cabinet - Used for Power Distribution, Control and Monitoring

Customization: Available
Type: Power
Structure: Fixed Board
Send Inquiry

Product Description

Basic Information
Model NO.
KYN28-12(Z)
Certification
ISO9001:2000, VDE, CCC
Form
All-packaged Type
Operation Voltage
High Voltage
Application Range
Power Plants
Shell Material
Steel Plate
Protection Grade
IP4X
Rated Voltage
12kv
Insulating Medium
Air Insulation
Breaker Type
Vacuum Circuit Breaker
Packaging & Delivery
Package Size
800.00cm * 1500.00cm * 2300.00cm
Gross Weight
750.000kg
Transport Package
Wooden Box
Production Capacity
5000 Pieces/Year
Product Description

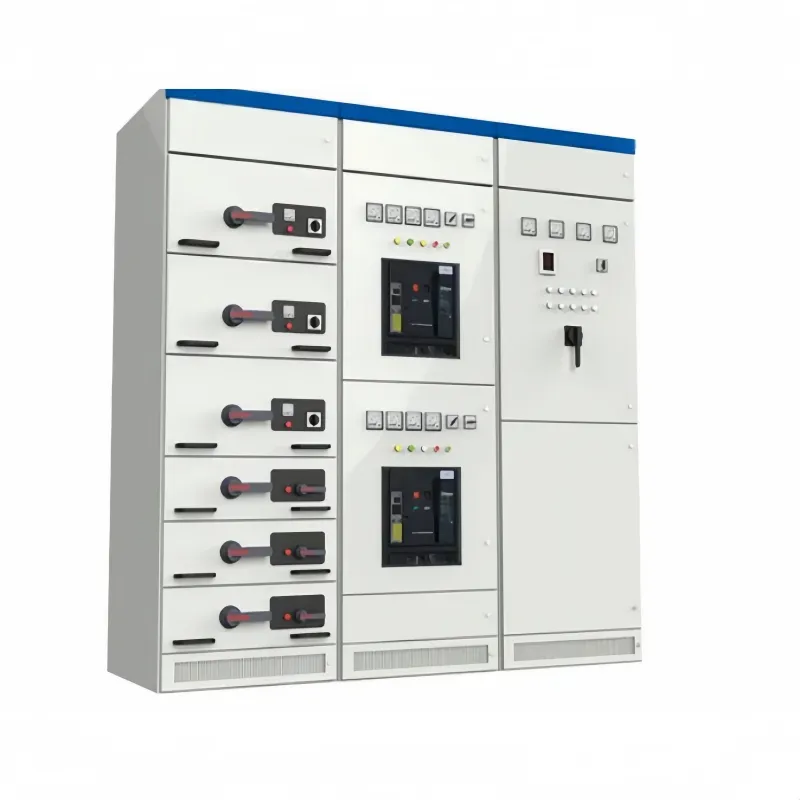

Indoor Distribution Cabinet Banner

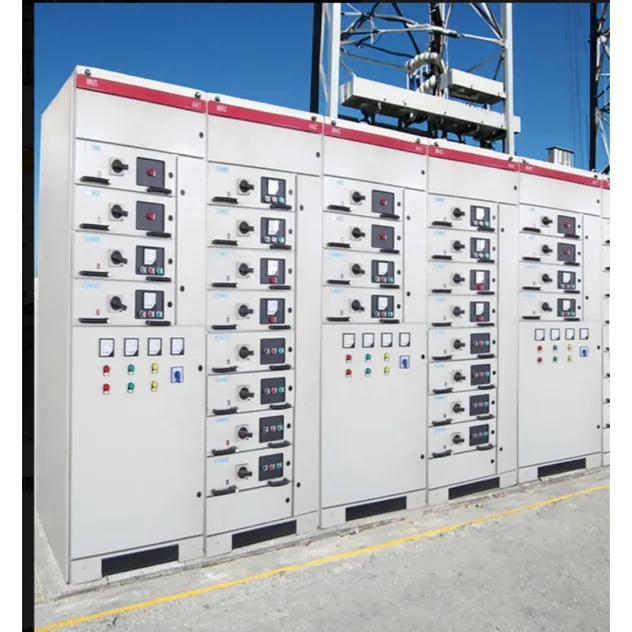

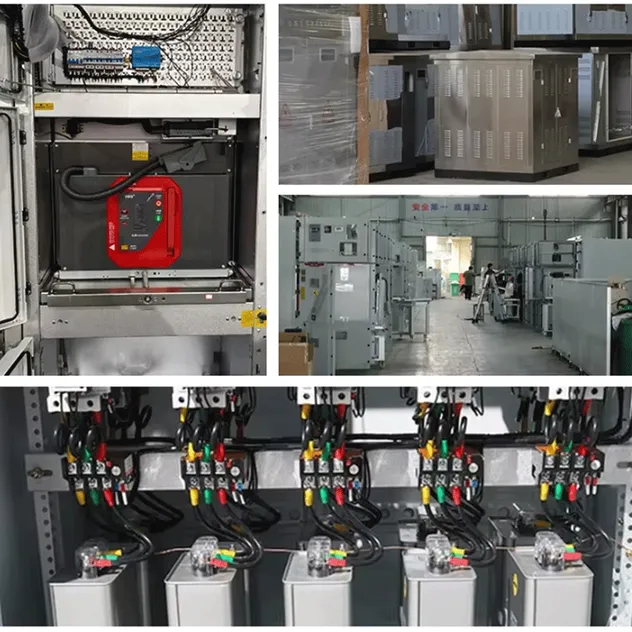

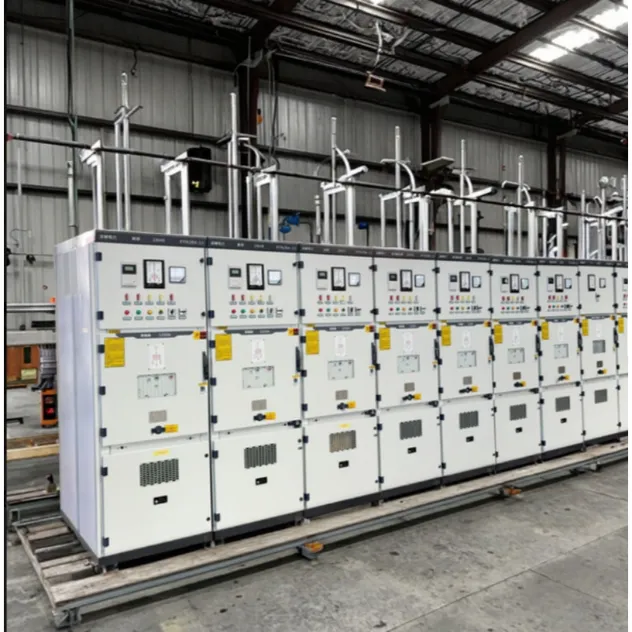

KYN28-12(Z) Detail 1 KYN28-12(Z) Detail 2 KYN28-12(Z) Detail 3
Name Organization Data
Rated frequencyKV3.6 / 7.2 / 12
Rated frequency (Hz)Hz50
Rated current of circuit breakerA630 - 3150
Rated thermal stability current (4s)KA16 - 50
Rated dynamic stability current (peak)KA40 - 125
Rated short-circuit breaking currentKA16 - 50
Protection levelEnclosure IP4X, Compartments IP2X
Technical Drawing
Technical Specification
Specifications Diagram
Manufacturing Excellence
Production Line Assembly Area Testing Center

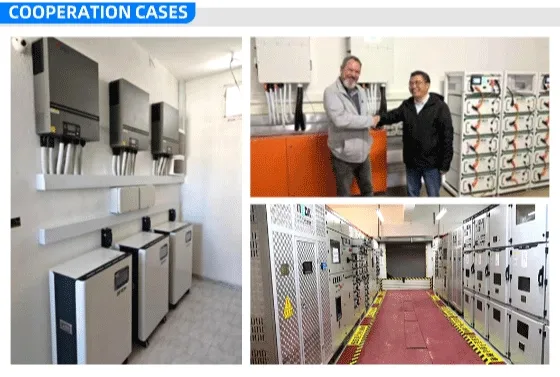

Warehouse Equipment Workflow
Certifications Banner Quality Standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer established in 1998, with a team of over 800 people dedicated to high-quality power distribution equipment.
Can you provide OEM & ODM services?
Yes, we support both OEM and ODM services to meet specific project requirements, subject to minimum order quantities.
What is the standard warranty period for your products?
Our warranty ranges from 3 to 10 years, depending on the specific product type and project requirements.
Why should we choose your energy systems over others?
We specialize in comprehensive energy storage and distribution systems, including PCS, Battery PACK, BMS, EMS, and Transformers, ensuring integrated performance and reliability.
How do you handle after-sales technical support?
We have a team of 50 professional engineers providing 1-on-1 assistance. If necessary, our team can provide on-site service to resolve complex technical issues.
Is it possible to obtain a sample before a bulk order?
Yes, please leave your contact details and our manager will reach out to discuss sample availability and shipping arrangements.
