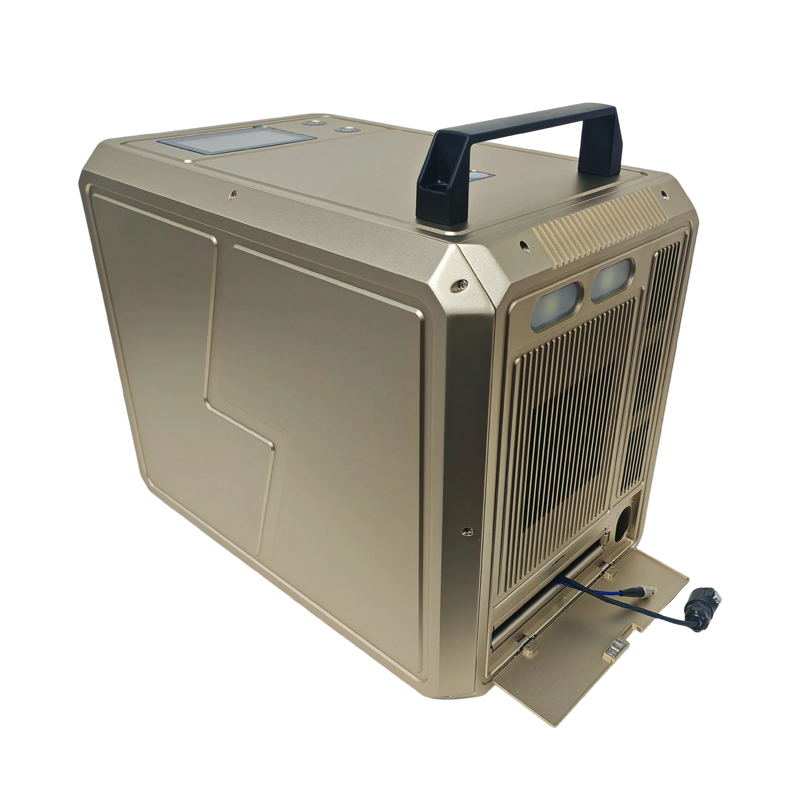

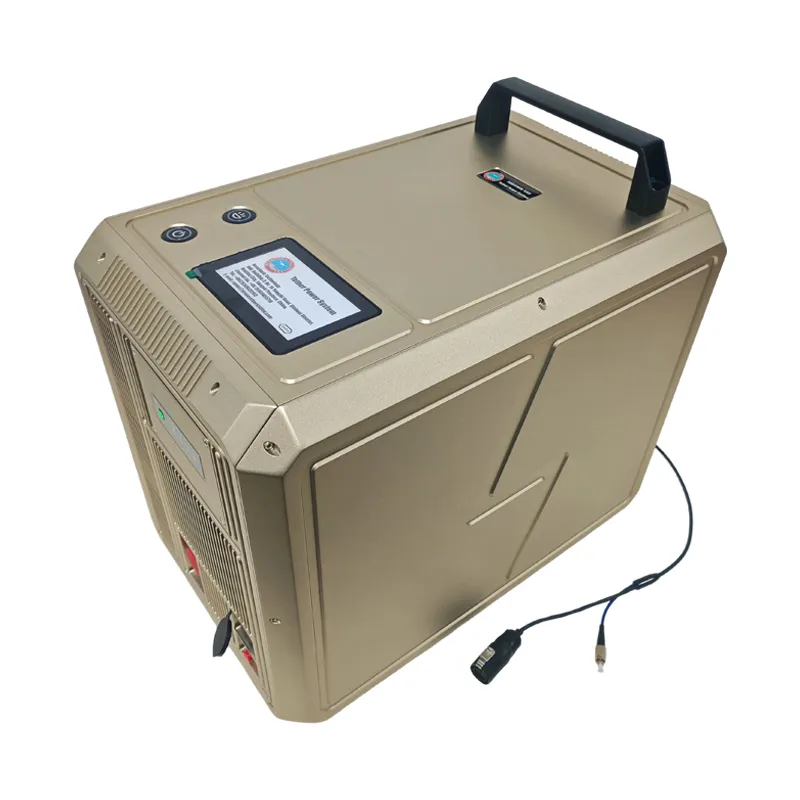

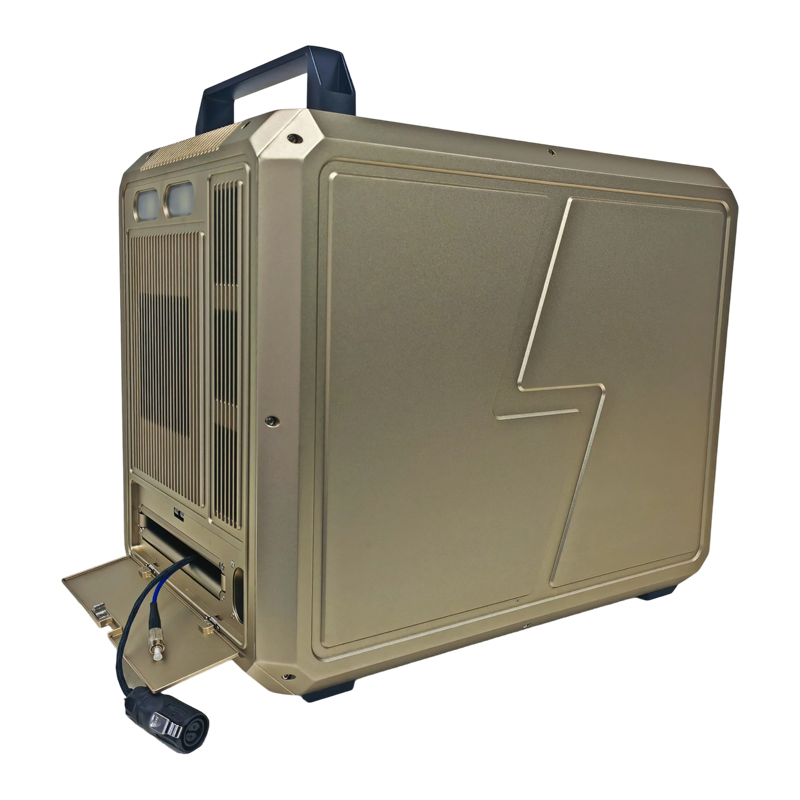

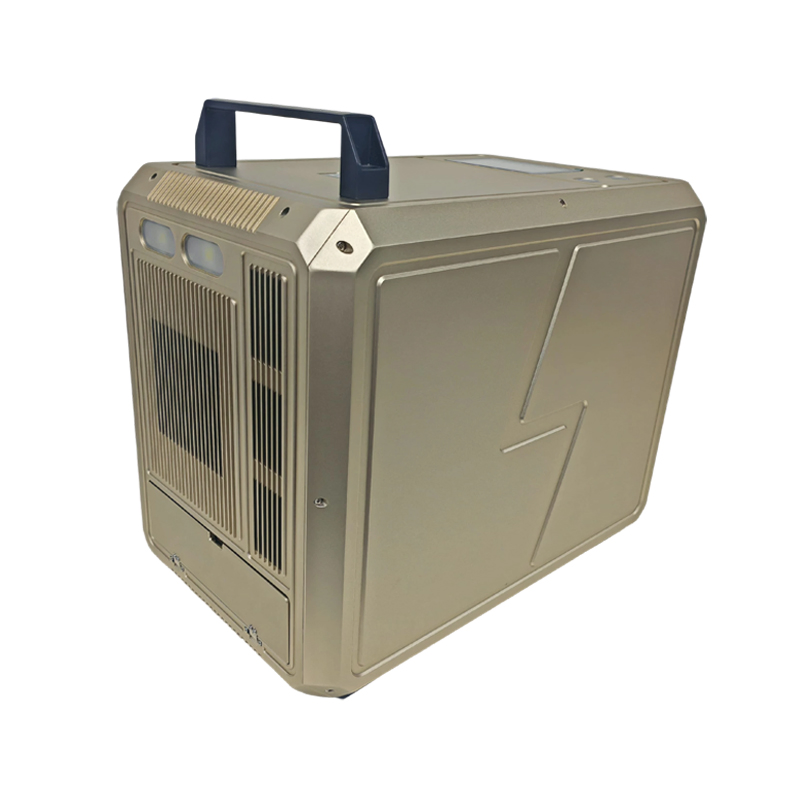

9000W Drone Tethered Power Unit

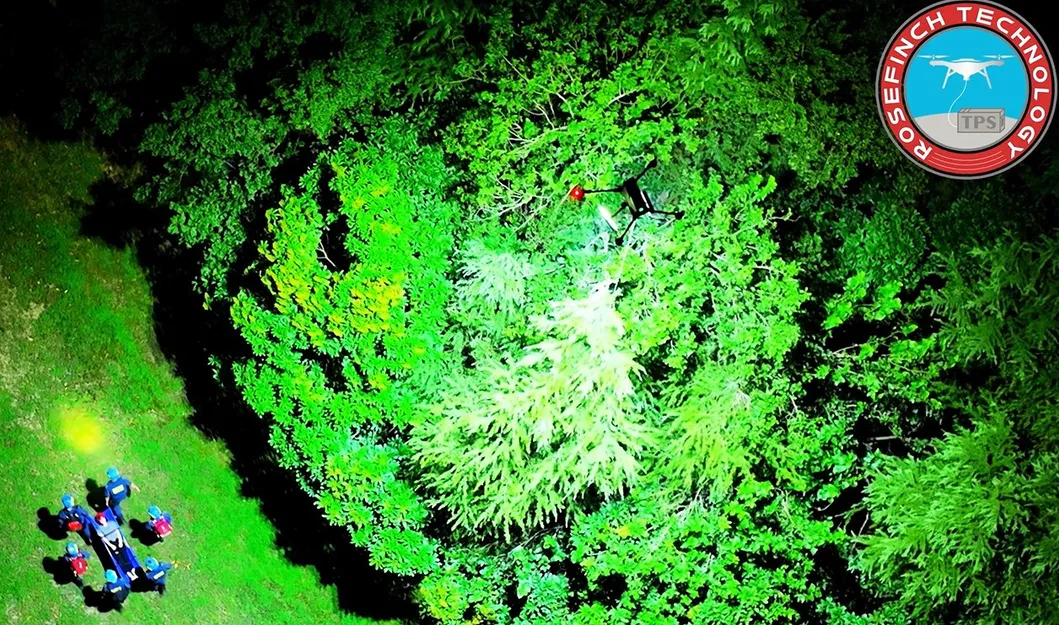

Providing stable, safe, and efficient power for drones—ideal for long-duration aerial monitoring and rescue missions. The tether power supply system delivers reliable support with a high-efficiency system, ensuring continuous operation in tethered mode for professional extended-duration surveillance, emergency communications, and security patrols.
2.1 Lightweight and Portable: Compact design, easily carried by one person. Supports rapid field deployment.
2.2 Multiple Protections: Complete separation of AC high voltage and DC low voltage. Features input overvoltage/undervoltage and output short circuit protection.
2.3 Safe Start Mode: Low-voltage soft starting replaces traditional air switches for superior waterproofing and safety.

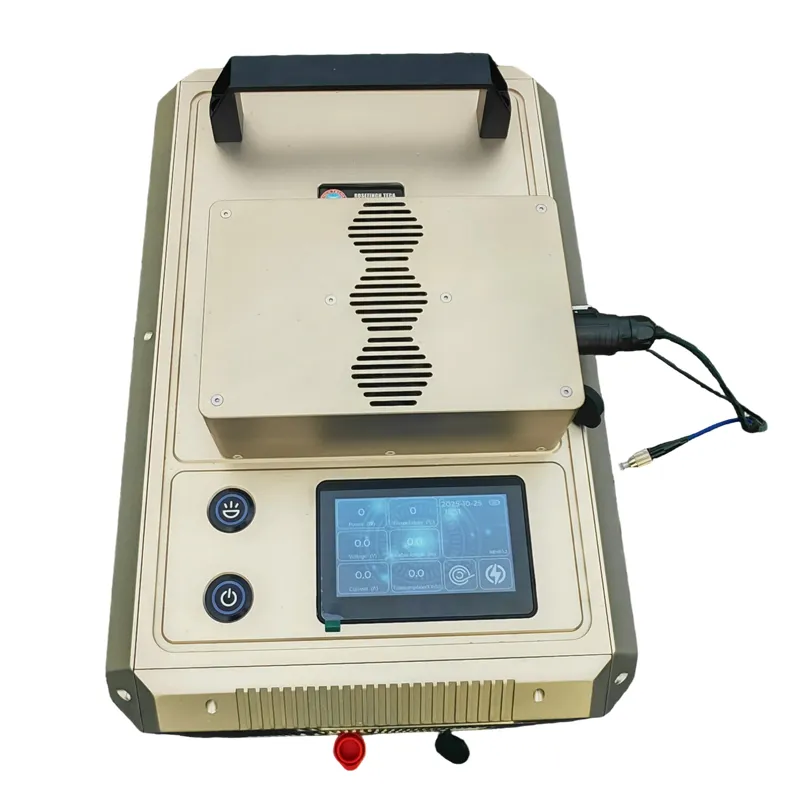

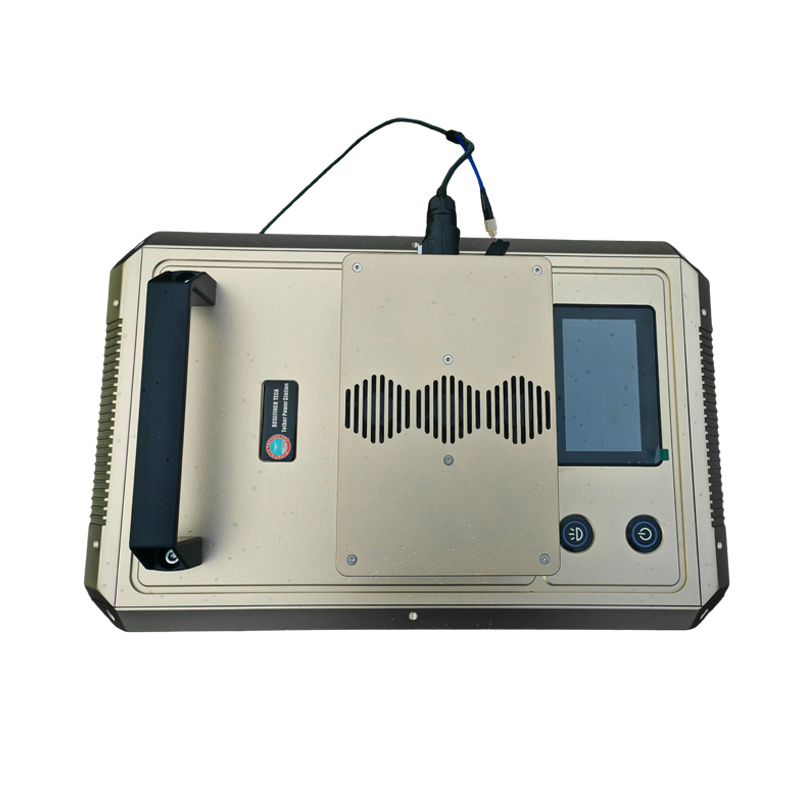

2.4 Touch Screen Display (4.3-inch): Real-time monitoring of power, voltage, current, temperature, cable length, and running time.
2.5 Stable Power Supply: Onboard module provides constant voltage output, protecting battery lifespan.
2.6 Intelligent Winch System: Automatically follows drone takeoff/landing to retract or release cables without manual operation.
2.7 Emergency Power: Built-in backup power supply for automatic cable retraction during sudden power outages.

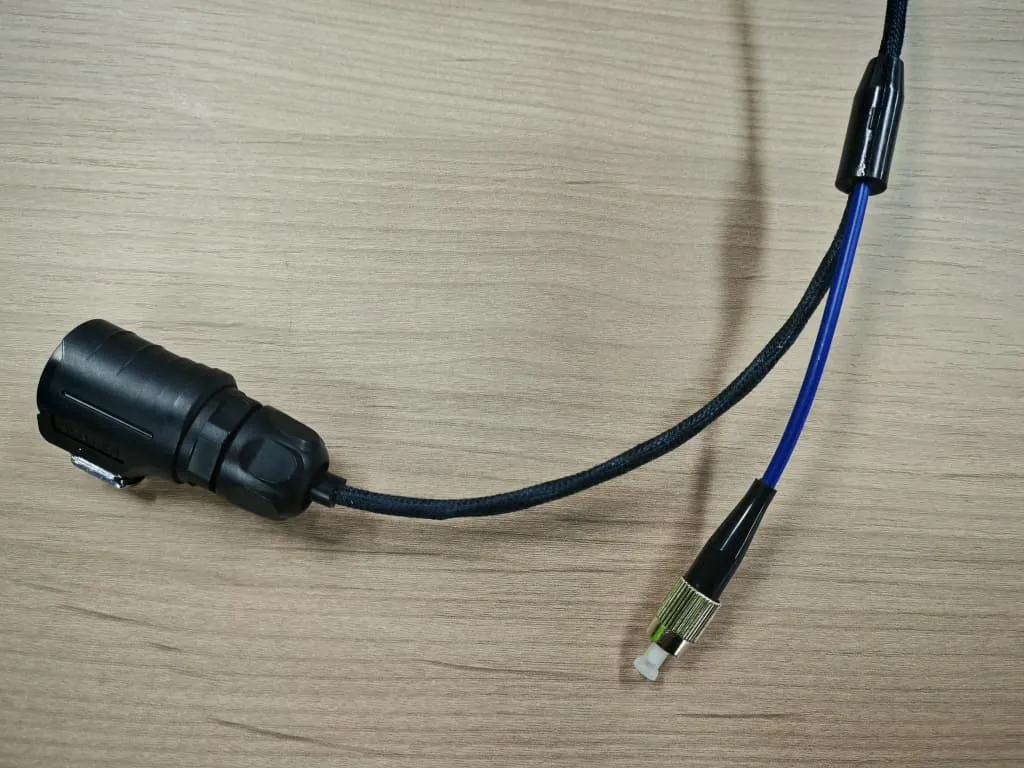

2.8 Communication Management: Supports USB Type-C/RJ45 wired, Bluetooth 5.0 wireless, and Optic fiber high-speed transmission.
| Items | Technical Parameters | |
|---|---|---|
| Model | TPS110M-9KW Ver. 3.0 | TPS220M-9KW Ver. 3.0 |
| Cable Length | 110M | 220M |
| Ambient Temperature | -20~45ºC (Working), -40~65ºC (Storage) | |
| Ground Power Output | ≥10500W (Rated Long-Time Output) | |
| Winch Speed | 0~2m/s (Adjustable) | |
| Cable Material | Alloy lightweight high-temp aviation wire | |

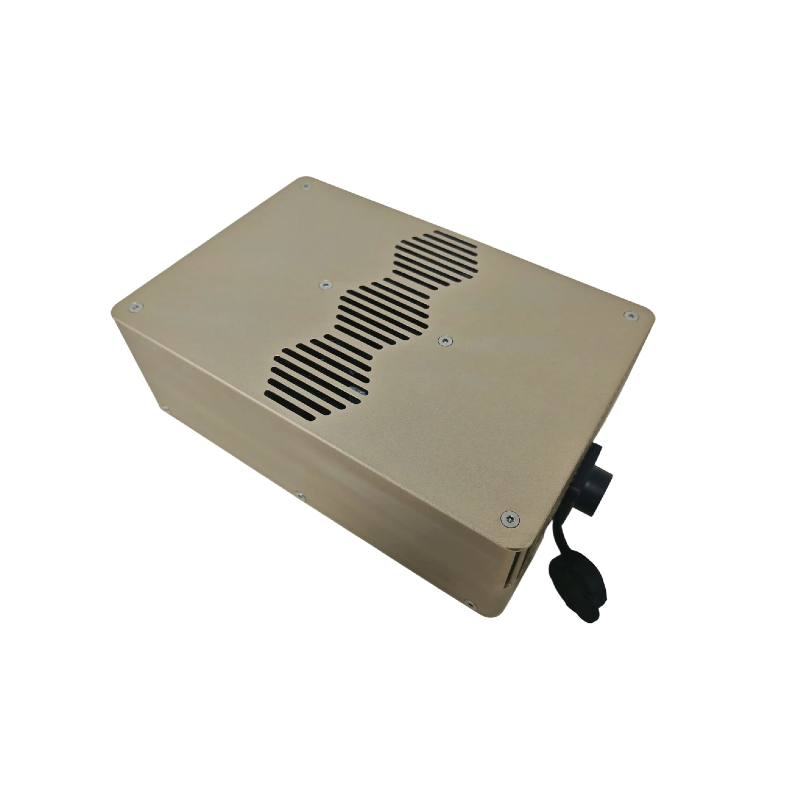

| Air Module Output | 50.0 or 58.5Vdc±1%, 9000W | |
| Protection Level | IPX4 (Ground) / IP54 (Air Module) | |

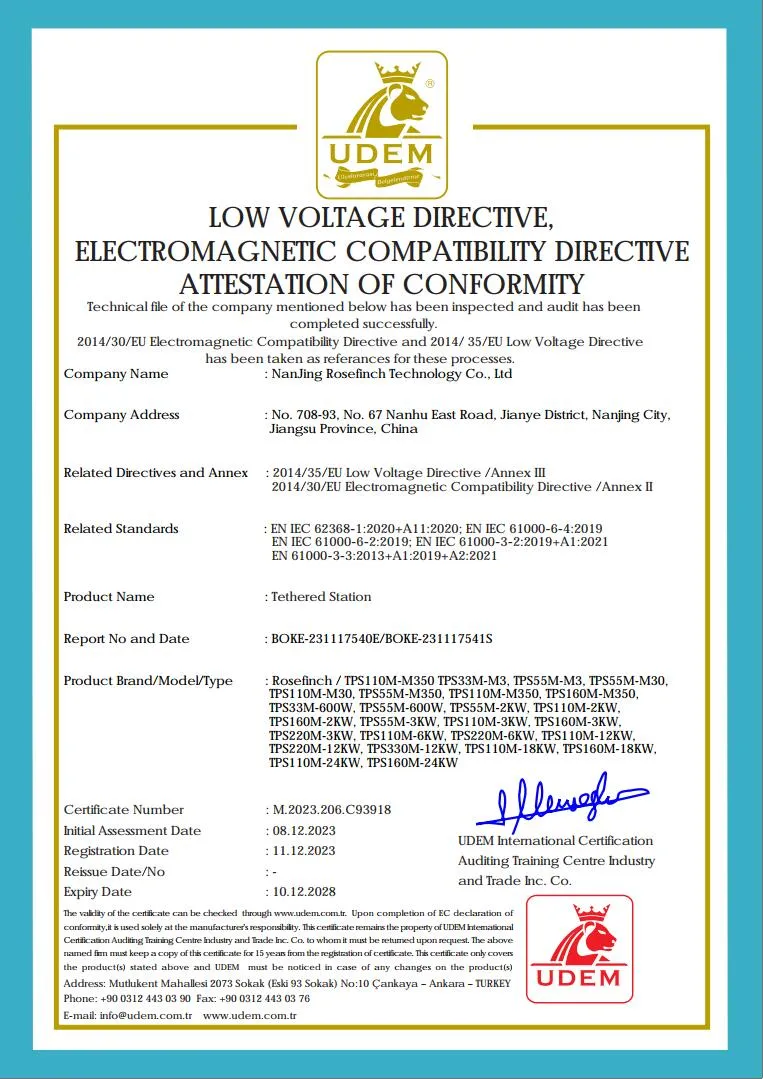

Our products are qualified by CNAS and other third-party testing, and have obtained the CE certificate (LVD+EMC).
The system supports continuous flight for over 24 hours, depending on the drone's structural and electrical fatigue resistance.
Standard configurations support 100m or 200m flight altitudes with cable lengths of 110m and 220m respectively.
Yes, the system features an intelligent winch that automatically retracted or released cables by following the drone's movement.
The unit includes a built-in backup battery (3000mAh) that automatically engages to safely retract the cable and prevent entanglement.
Yes, the ground module has an IPX4 waterproof rating, and the air module is rated at IP54, designed for rugged field environments.

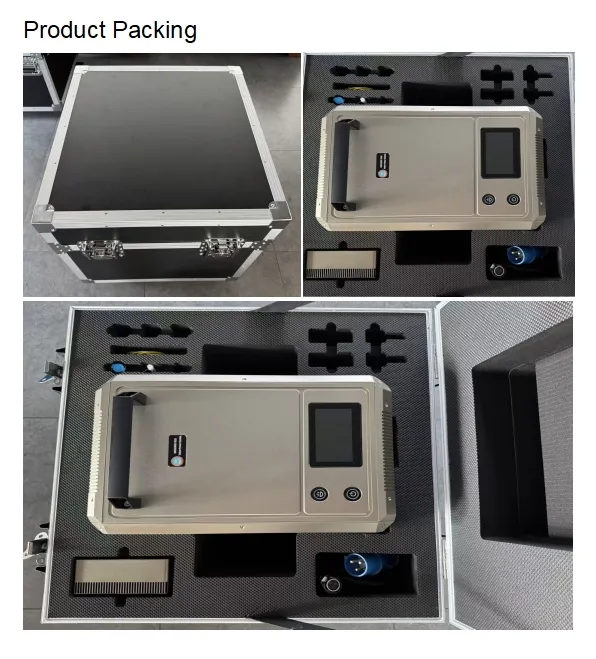

Yes, the system adopts a lightweight design and is compact enough to be carried and deployed by one person.
