Basic Specifications
Model NO.
DCS-2061/DCS-2062
Audio Frequency
30Hz-20kHz
Interpretation Channels
32 Channels
Microphone Type
Uni-Directional Electret Condenser
Capacity
2000 Sets / Month
Product Overview & Functions

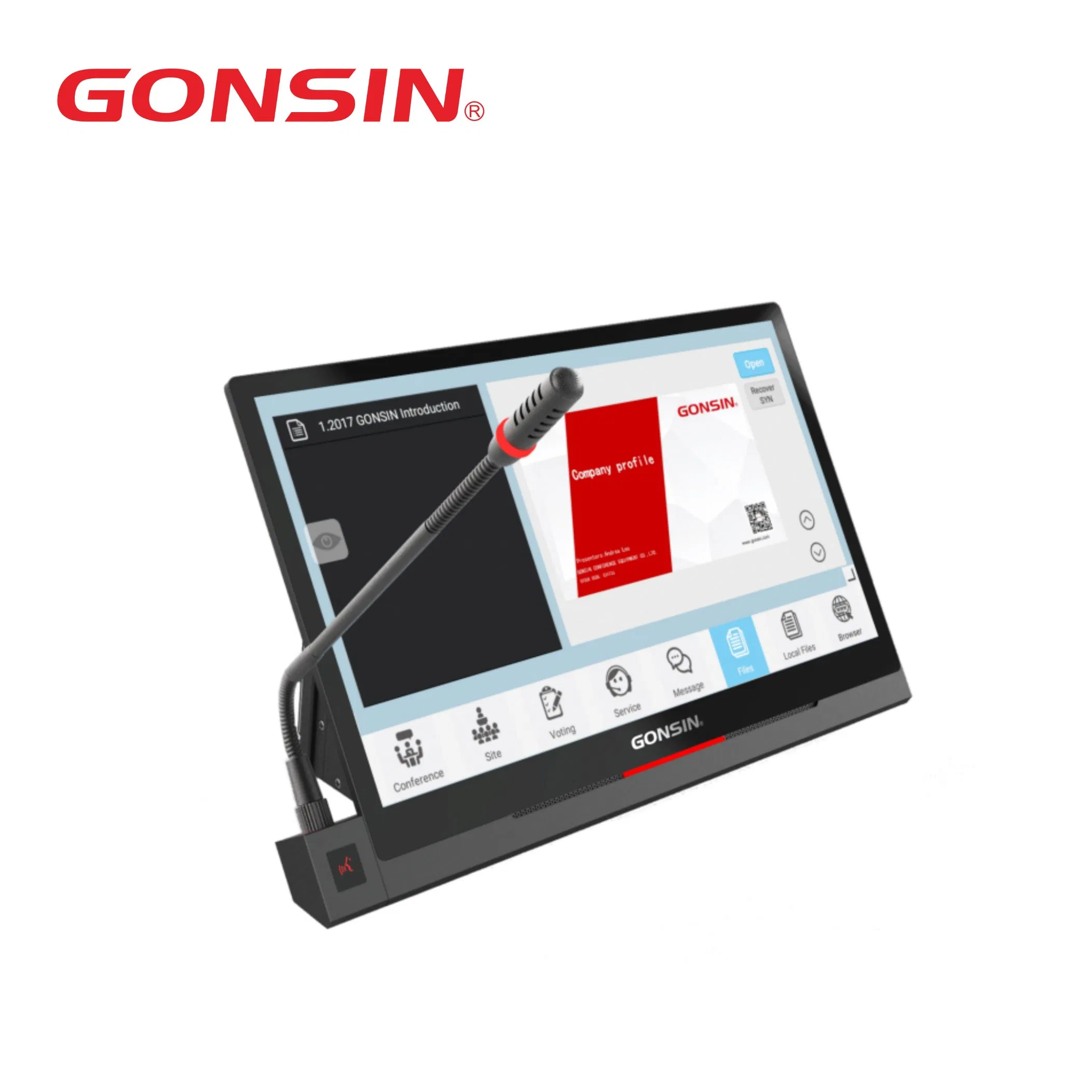

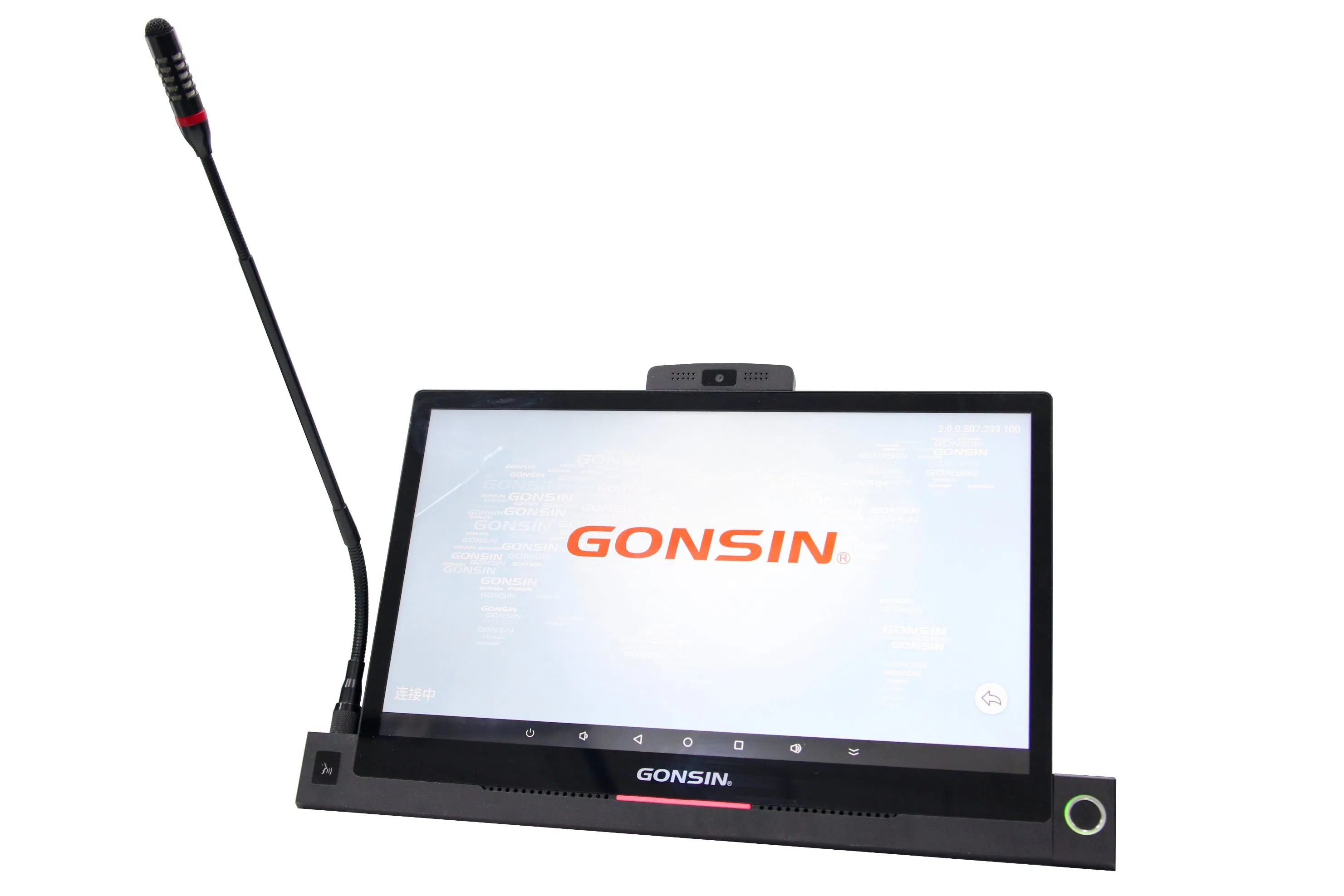

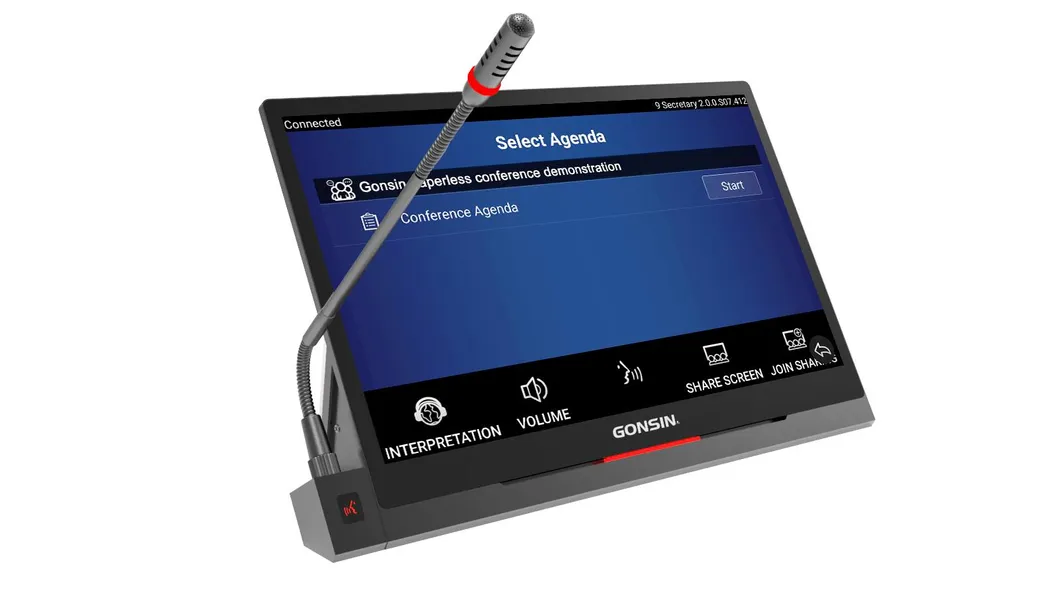

DCS-2062DI Paperless Terminal Core Functions
Utilizes digital audio processing and transmission technology in compliance with IEC60914 standards.
High-speed CPU and high-performance digital audio processor (DSP) for full digital audio technology.

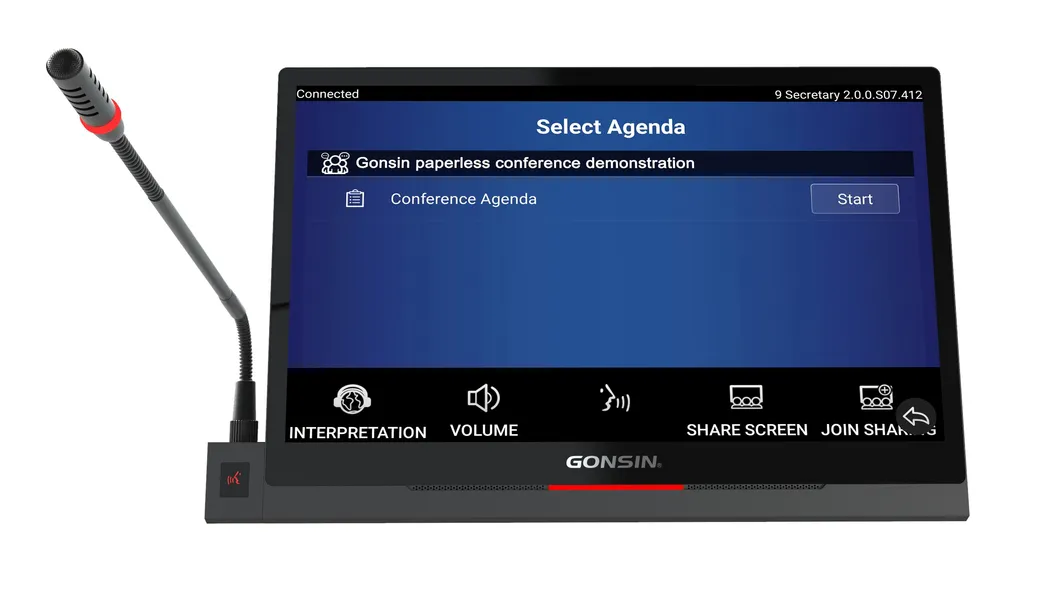

15.6-inch LCD touch screen (1920×1080 resolution) with 10-point touch control and slim bezel design.

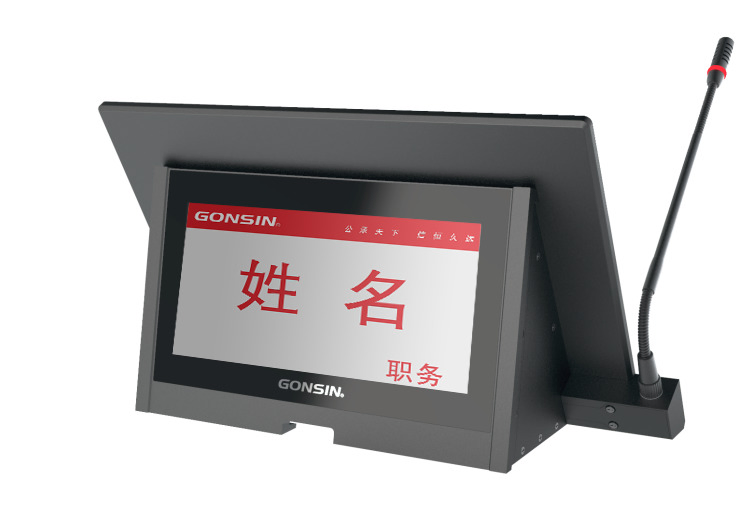

Electronic nameplate with 10.1-inch HD LCD screen (1280×800) for high-quality information display.
Supports synchronous display of user name, position, organization, and customized templates.
Flexible cabling using network cables, supporting daisy-chain, star, and mixed connections for high stability.
Hot-plug support with automatic restoration function for easy maintenance.
Built-in dual 2W loudspeakers and 3.5mm headphone jack with 9 levels of volume adjustment.

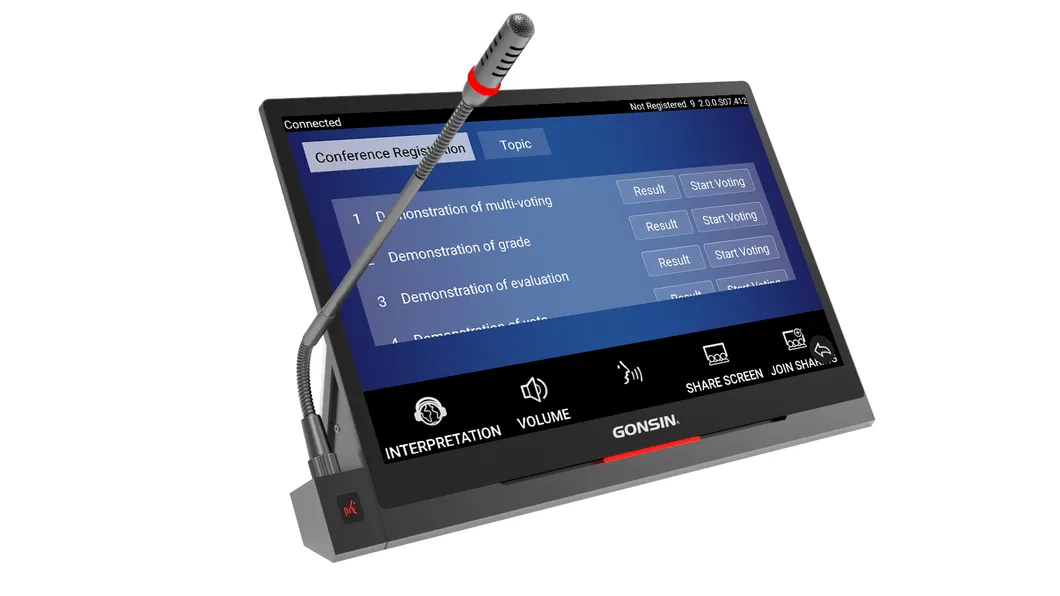

Integrated attendance registration and voting functions manageable by the chairman terminal.

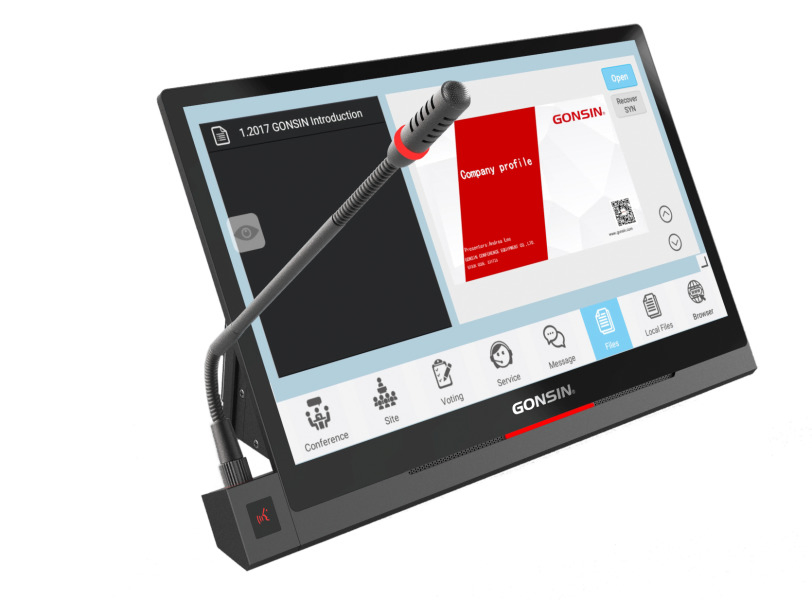

Digital file management supporting DOC, PDF, PPT, and various media formats (MP4, AVI, etc.).
Screen sharing and synchronization allows all terminals to view identical content simultaneously.
Developed on a secure platform with data encryption to ensure information security.
Internal message transmission and digital whiteboard functions for quick collaborative work.
Unlimited system capacity for wired connections with randomly assignable Chairman terminals.
Chairman Terminal provides mass messaging and mandatory screen sharing control.
Discussion & Interpretation Capabilities
Luminous capacitive touch control mic button for accurate response and long service life.
48KHz audio sample frequency with a response range of 20Hz to 20KHz.
Built-in DSP to eliminate low-frequency shock and improve sound sharpness.
Pluggable gooseneck microphone with cardioid pickup pattern and active status indicator ring.
Multiple system modes: VOX (Voice Activated), Auto, FIFO, and Operator mode.

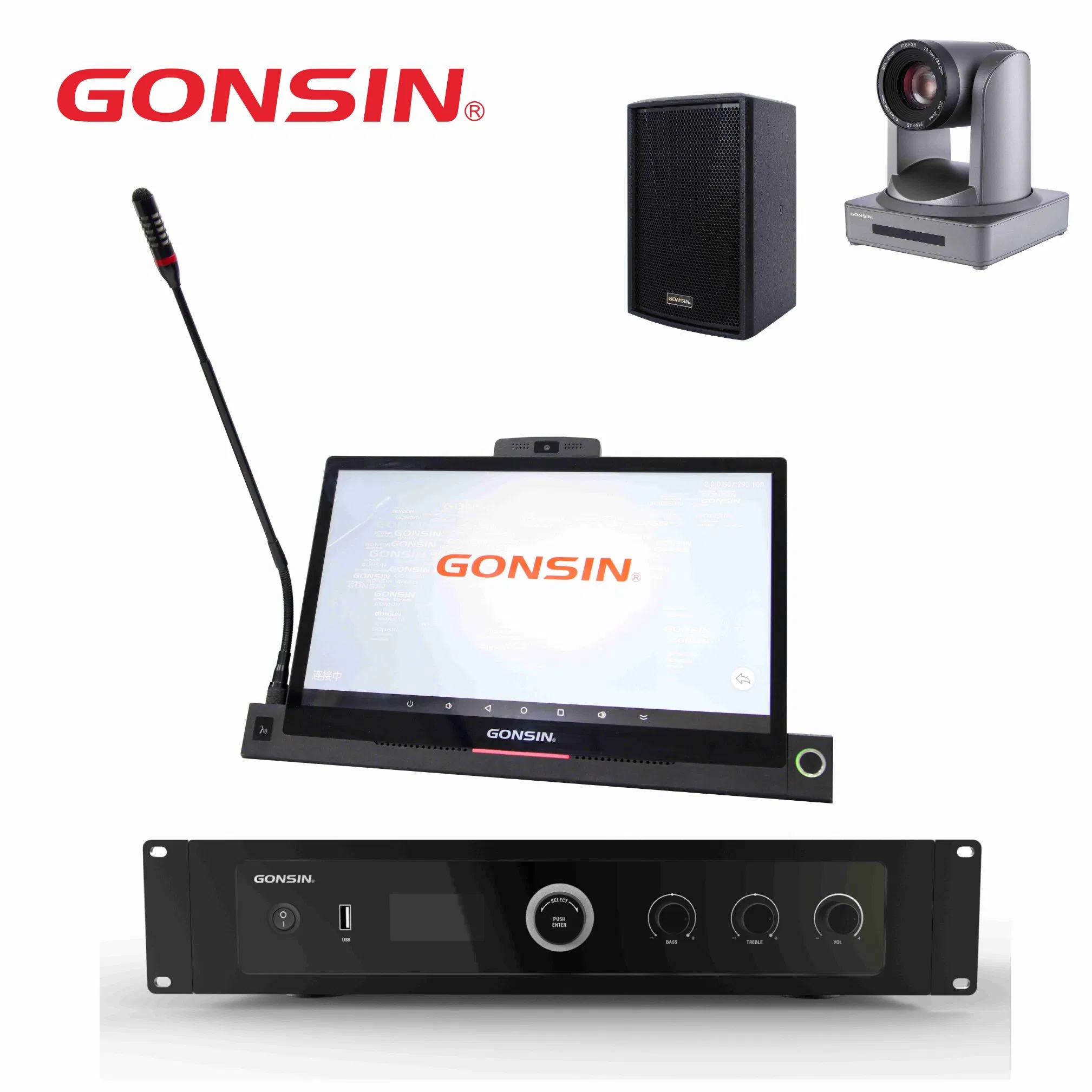

Automatic video tracking (SD/HD) with preset panoramic positions for camera integration.

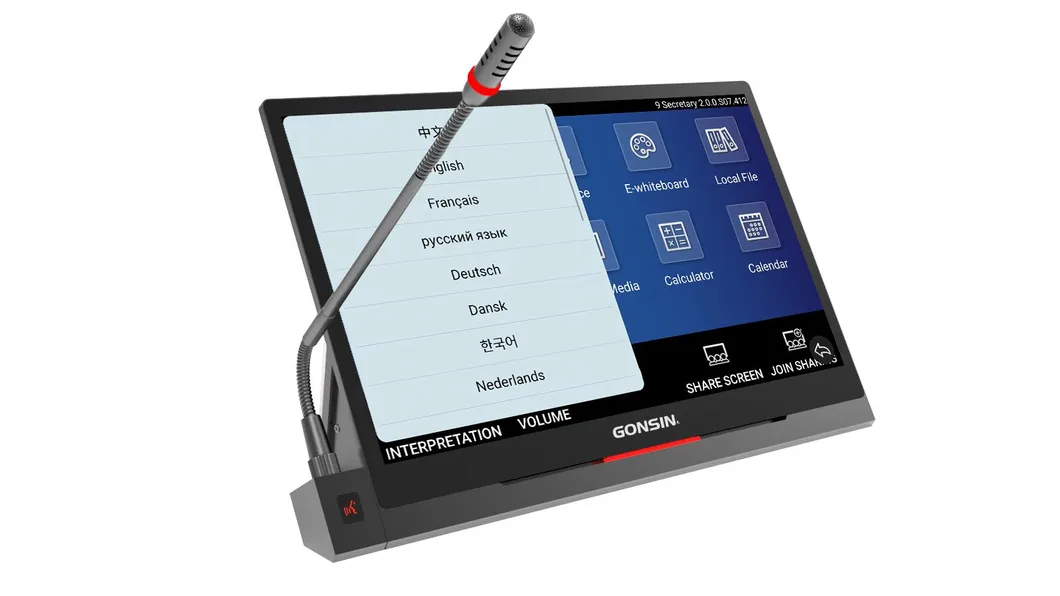

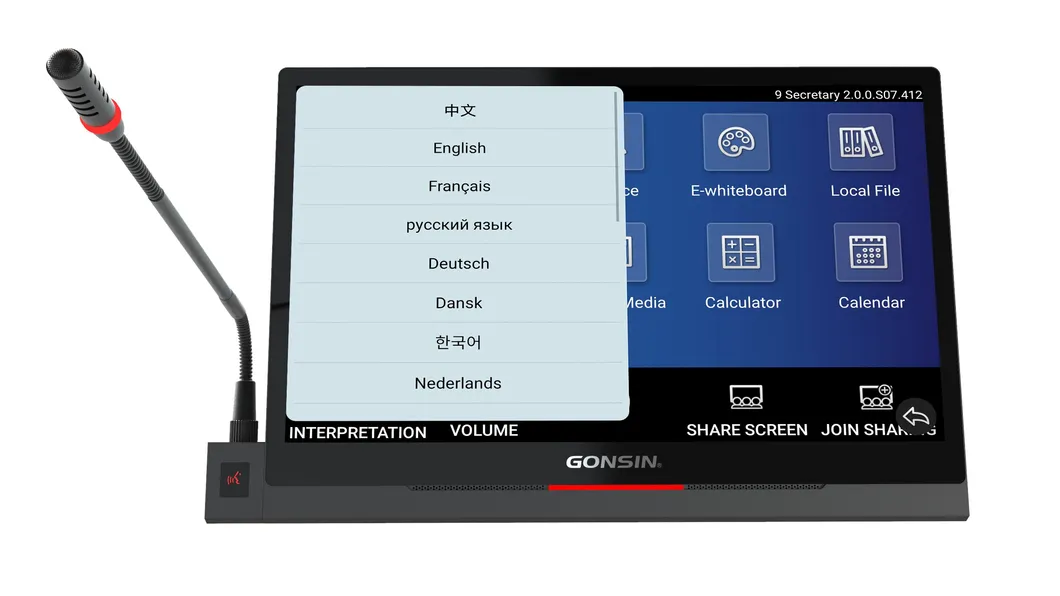

Supports 32 (1+31) channels of simultaneous interpretation with independent volume control.
Frequently Asked Questions
What are the display specifications for the DCS-2062DI?
The terminal features a 15.6-inch primary touch screen with 1920x1080 resolution and a secondary 10.1-inch HD electronic nameplate for displaying participant information.
How many interpretation channels does the system support?
The system supports up to 32 channels (1 floor + 31 interpretation channels) of simultaneous interpretation, selectable directly from the terminal screen.
What kind of cabling is required for installation?
The system utilizes standard network cables for connection, supporting daisy-chain, star, and mixed connection topologies for flexible and reliable installation.
Can the system handle paperless file sharing?
Yes, it supports browsing and sharing various file formats including DOC, PDF, PPT, and media files. Users can also perform screen synchronization and digital whiteboard collaboration.
Does the microphone have interference resistance?
The system is designed to be highly resistant to mobile phone interference and utilizes a cardioid pickup pattern to ensure clear audio transmission.
What voting features are integrated into the terminal?
The terminal supports standard voting, attendance registration, and customized voting sessions initiated and managed by the Chairman unit.
