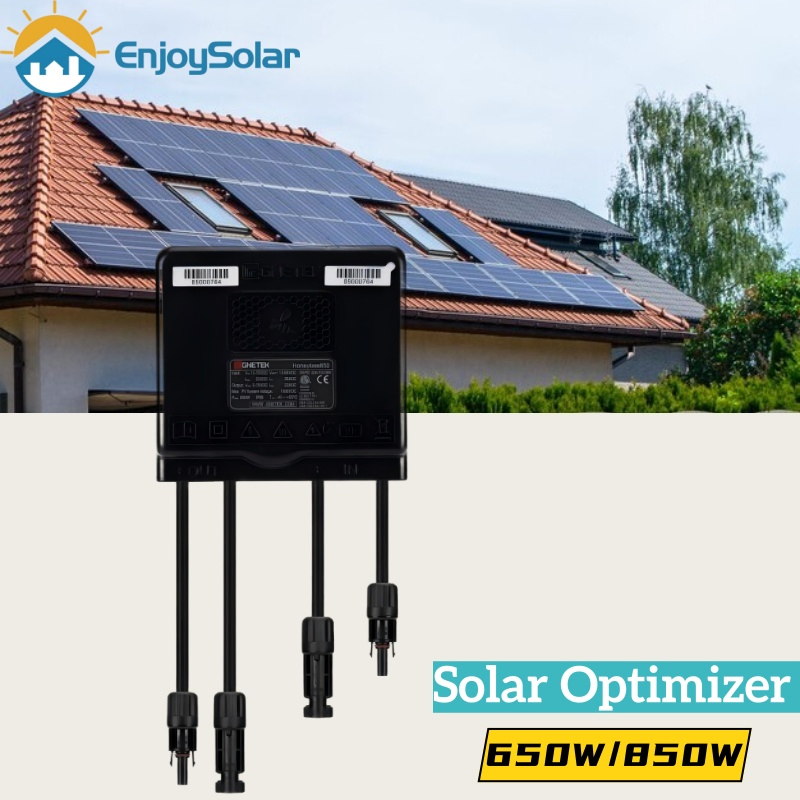

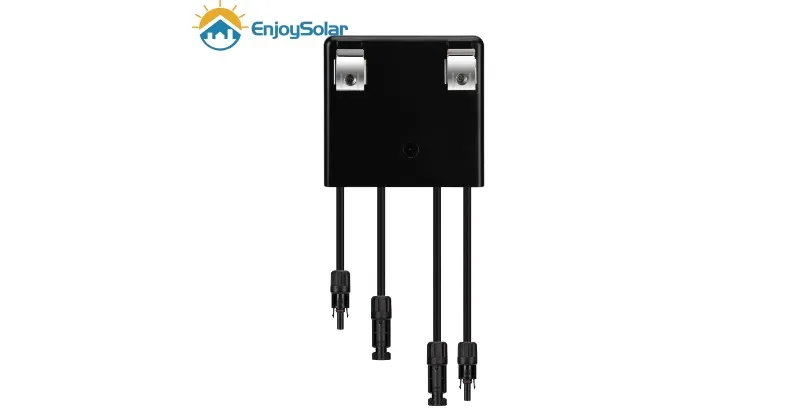

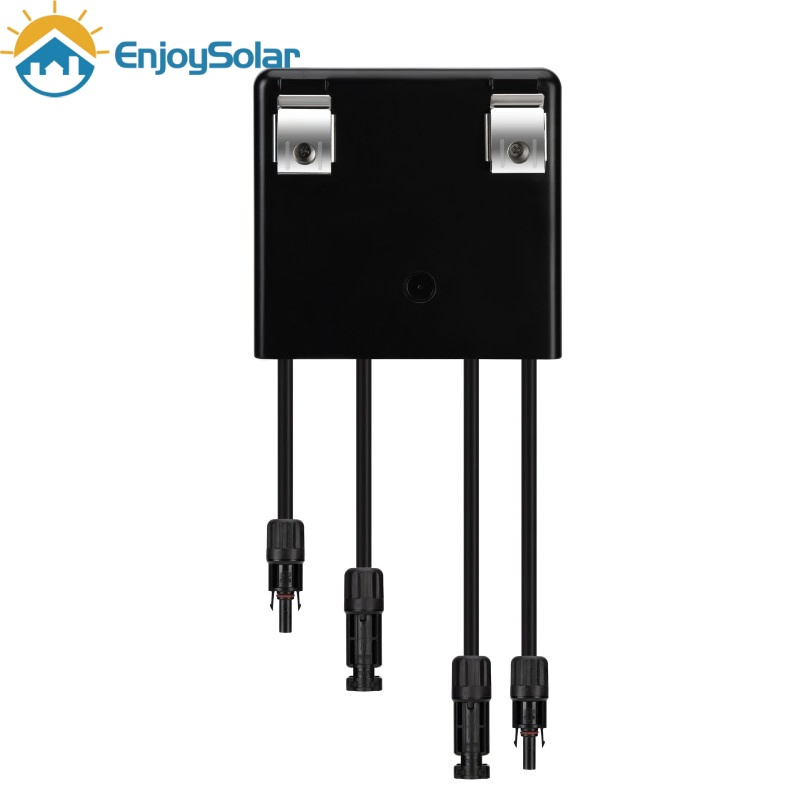

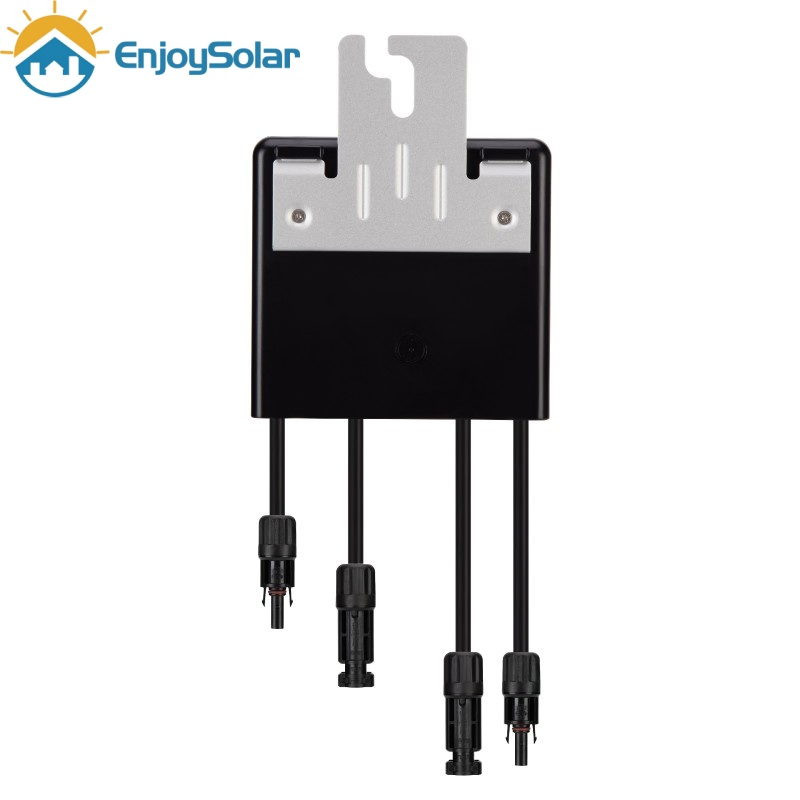

Eeptron PLC
1 / 5
| Model NO. | ES-honeybee850 |
| Condition | New |

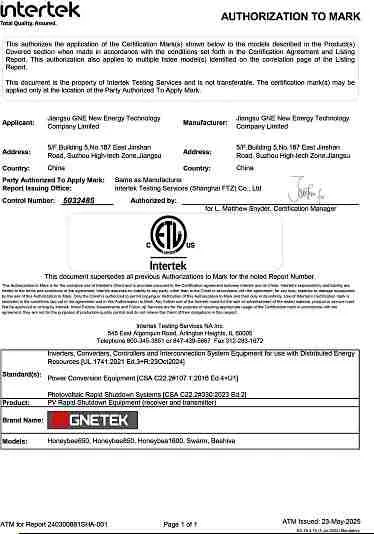

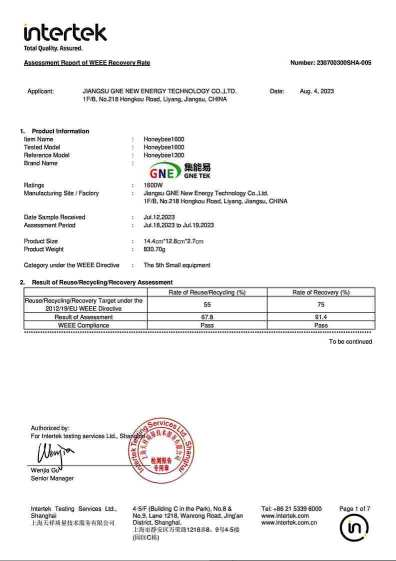

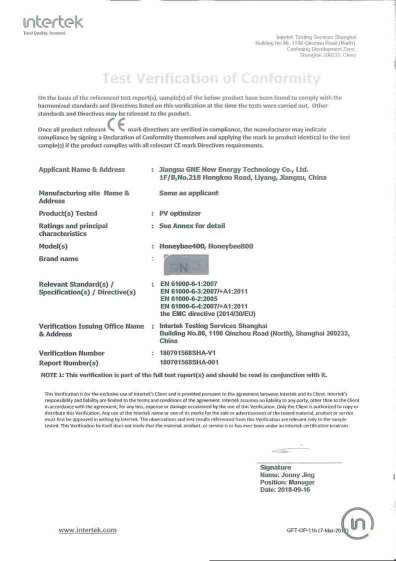

| Certification | ISO, CE, ETL |
| Application | Home, Industrial, Commercial |
| Max. Input Power | 850W |
| Max. Efficiency | 99.50% |
| Ingress Protection | IP68 |
| Communication | 868m/915m/2.4G/PLC |
| Size | 130.3×109.6×25mm |
| Production Capacity | 1000 Units Per Day |
| Model | Honeybee 400 | Honeybee 650 | Honeybee 850 |
|---|---|---|---|
| Max Input Power | 450 W | 650 W | 850 W |
| Max Input Voltage | 75 VDC | 75 VDC | 60 VDC |
| MPPT Voltage Range | 12~75 VDC | 12~75 VDC | 14~60 VDC |
| Max Conversion Efficiency | 99.50% | 99.50% | 99.50% |
| System Voltage | 1500 VDC | ||
| Protection | IP68 / Class II | ||

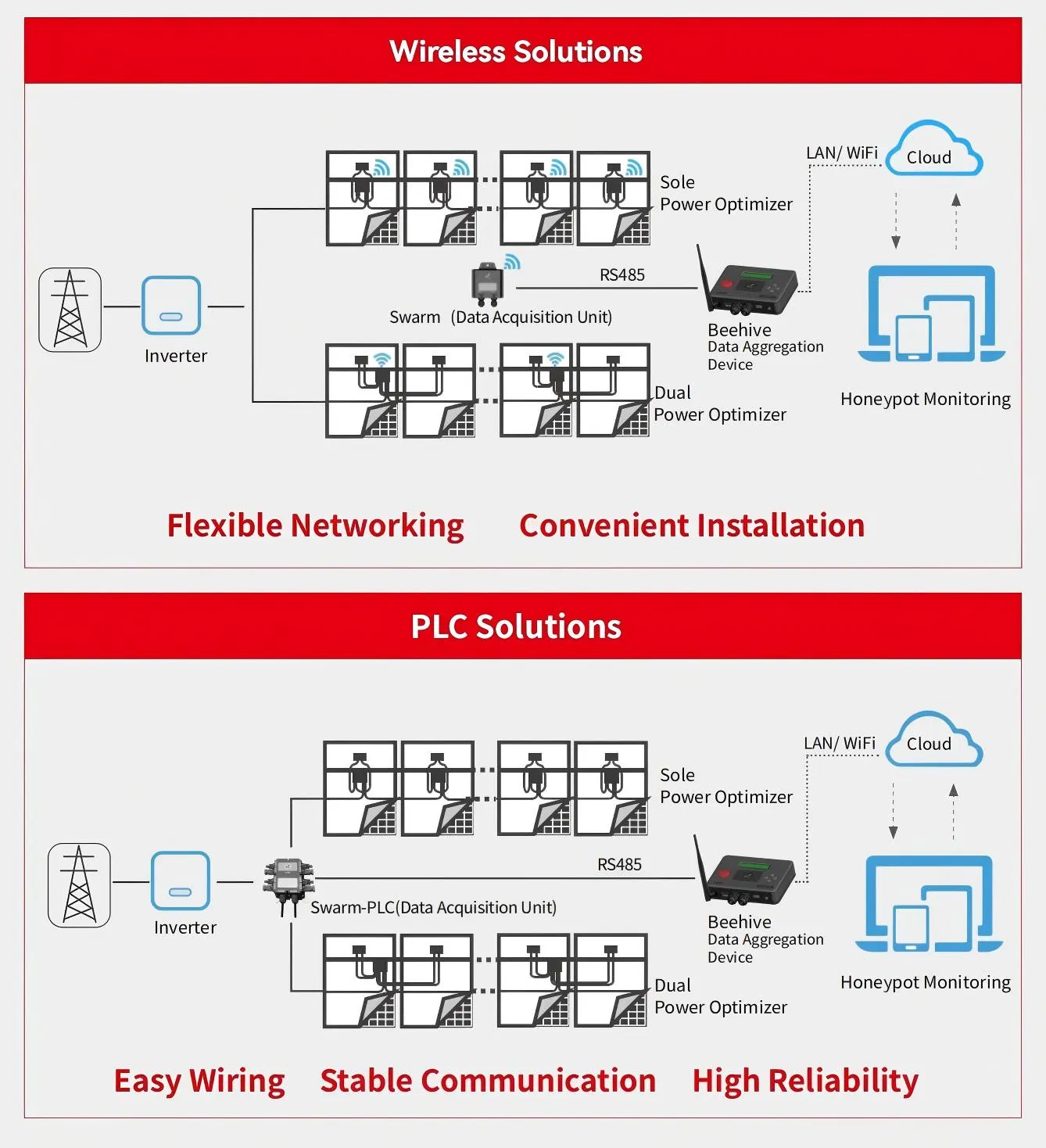

Significantly improve the power generation of the entire PV power station, effectively track the maximum power of the module (MPPT), and perfectly solve the power generation loss caused by shadow, mismatch, or module differences. Through the monitoring platform, each module can be managed remotely, preventing electric shock risks and improving safety.
