Xyz Multi Axis Gantry Linear Robot Cartesian Motion System for Industrial 3D Handling Automation

Product Overview

Model NO.

MH

Control Options

PLC Control

IP Rating

IP43

Limit Switch

Built-in

Max Thrust

7000N

Standard Stroke

800mm

Type

Industrial Linear Actuator

Voltage

220-380

Color

Customizable

Trademark

MICCLAN

Origin

China

Production Capacity

500,000

Packaging & Delivery

Package Size

5000.00cm * 4000.00cm * 2000.00cm

Package Gross Weight

100.000kg

Transport Package

Wooden Crate

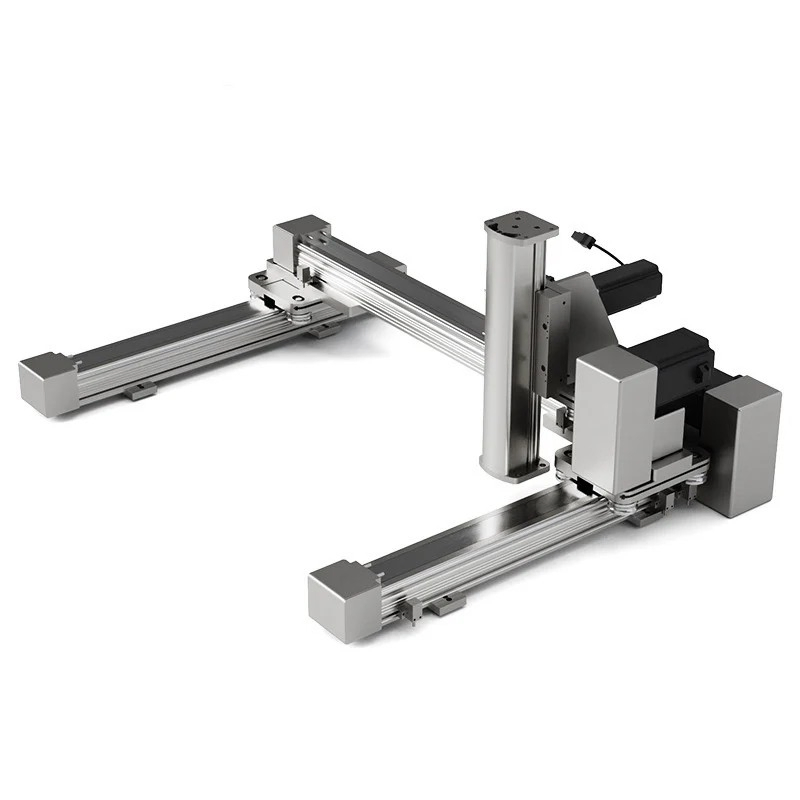

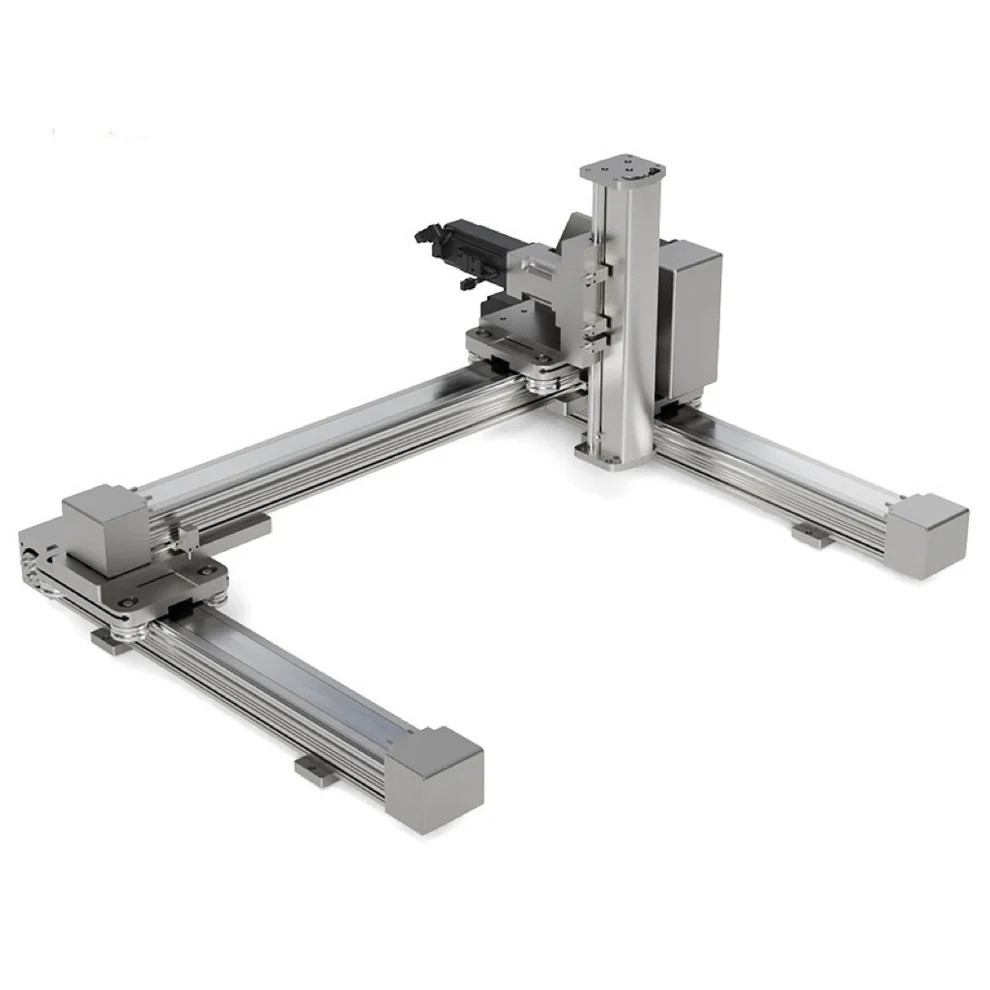

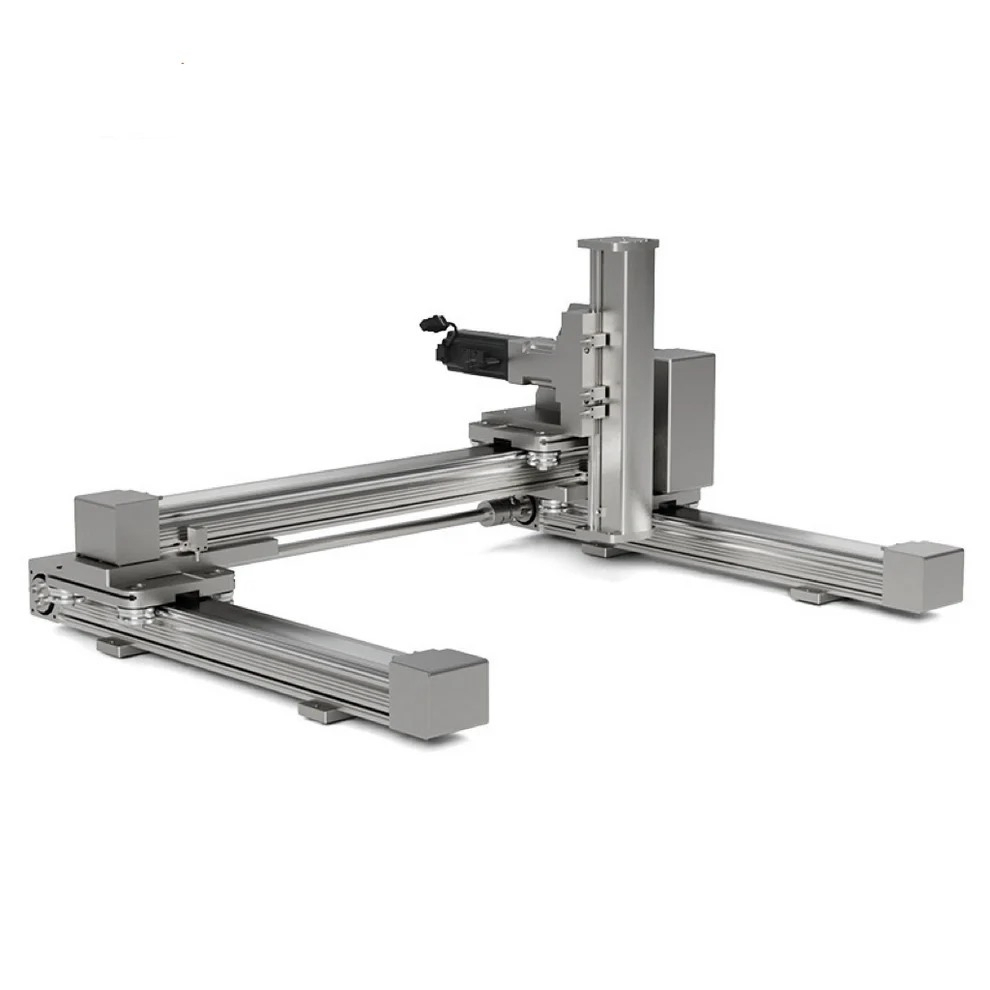

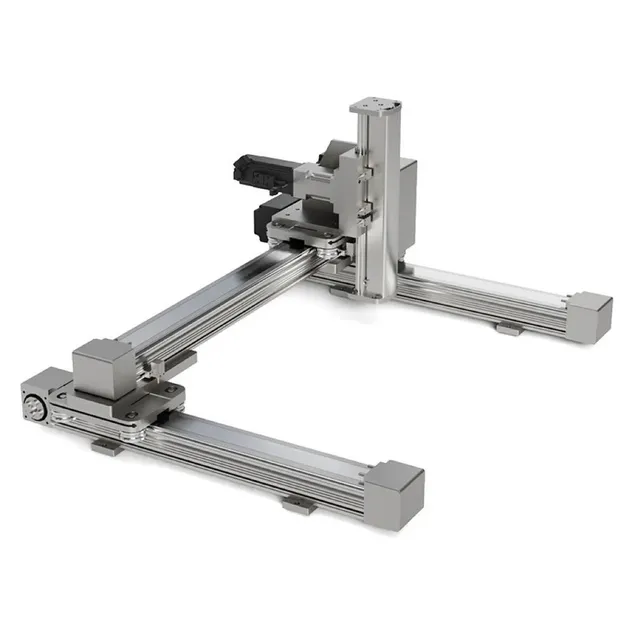

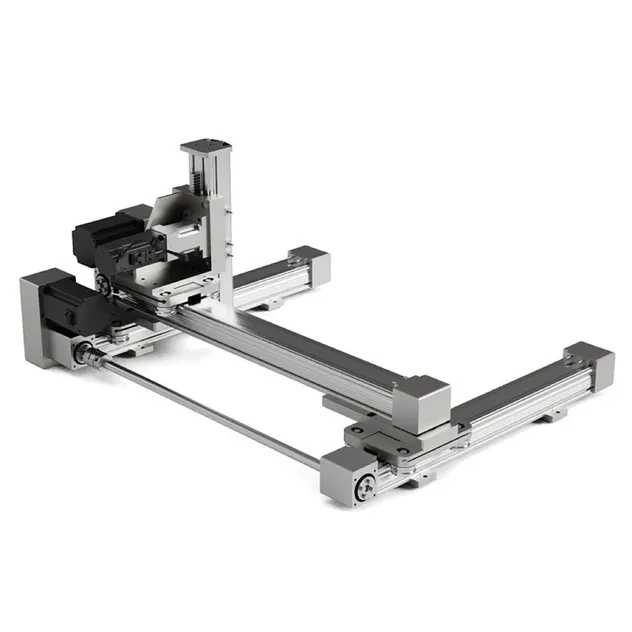

High Precision XYZ Multi Axis Gantry Cartesian Robot

The XYZ Multi Axis Gantry Cartesian Robot is a high-precision linear motion automation system designed for complex industrial applications. Built with a rigid gantry frame and modular XYZ structure, it supports long travel distances, heavy payload handling, and accurate multi-axis positioning.

Common Applications:

Pick & Place Automation – High-speed and precise parts handling.
CNC Machine Tending – Automatic loading and unloading of machining centers.
Palletizing & Depalletizing – Efficient handling for warehouse and logistics.
Material Handling – Transporting, stacking, and sorting with high payload capacity.
Inspection & Testing Systems – Accurate positioning for vision quality control.
Laser Cutting & 3D Printing – Supports long-travel, multi-axis operations.

Key Configurations

Motion Axes: X, Y, Z multi-axis linear gantry configuration.

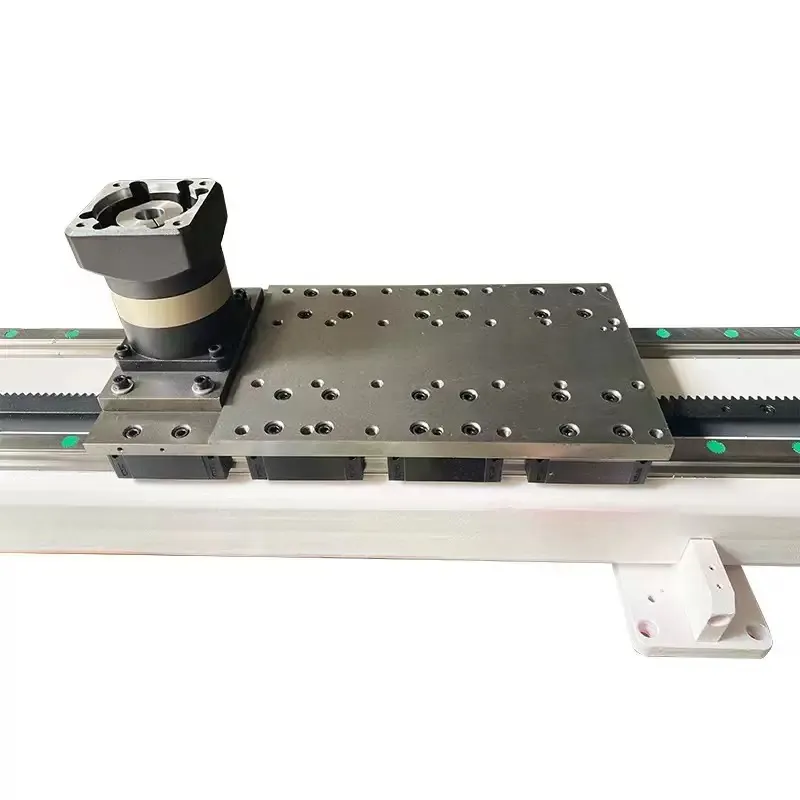

Drive System: Belt-driven, ballscrew-driven, or rack & pinion options.
Payload Capacity: Ranges from 50kg to over 500kg.
Travel Length: Customizable up to 10,000mm+.
Positioning Accuracy: ±0.02mm repeatability with servo drive.
Frame Structure: Rigid steel or aluminum extrusion gantry frame.

Technical Quote Requirements

Please provide the following information to receive a customized quote:

1. Payload Requirements
Approximate payload to be carried on the linear axis (robot + cable carrier + tooling).

2. Travel Distance
Net stroke or total rail length required.

3. Required Speed and Accuracy
Desired movement speed (mm/s) and positioning repeatability requirements.

4. Environment Conditions
Specific environmental factors for installation.

After Sales Service

Warranty

Standard Warranty: 12 months or 2,000 operating hours. Optional coverage up to 36 months.

Support

24/7 technical assistance and global spare parts supply.

Training

On-site or remote operation and maintenance training programs.
