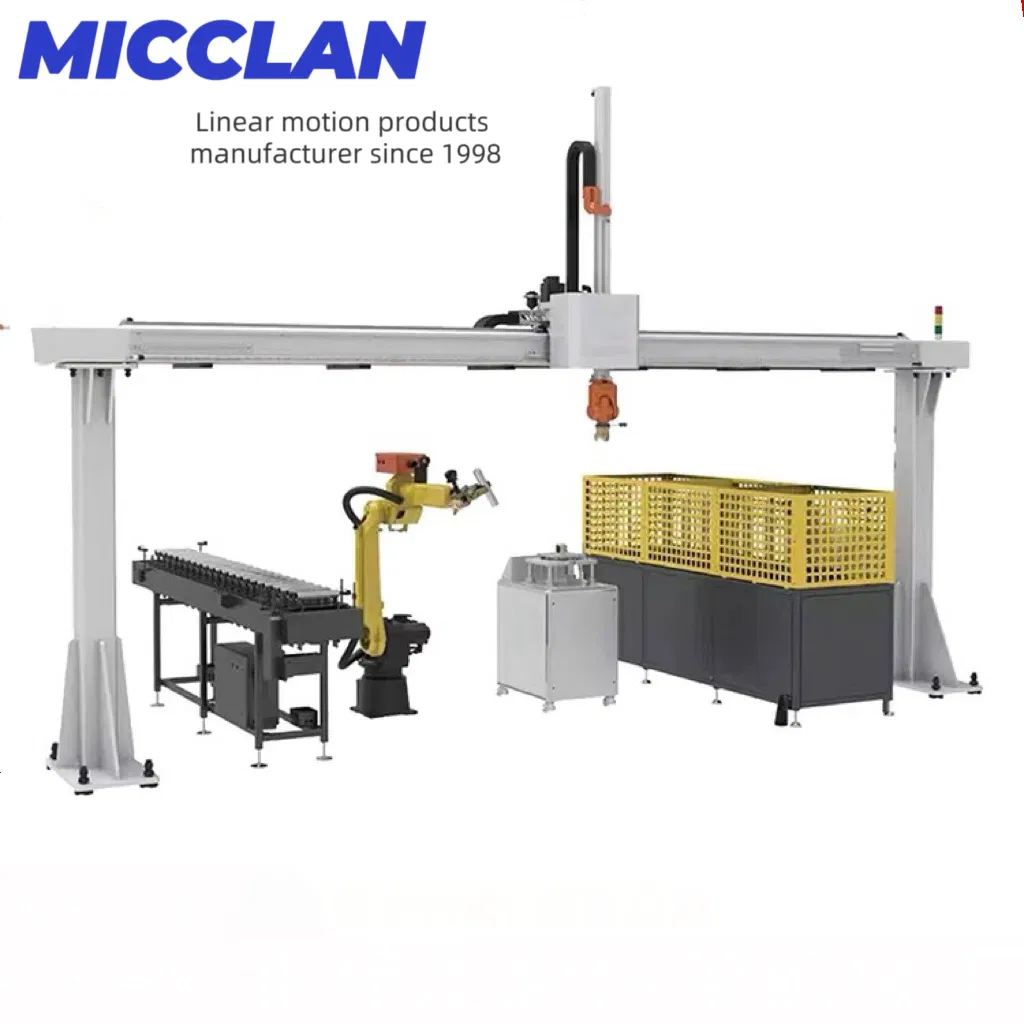

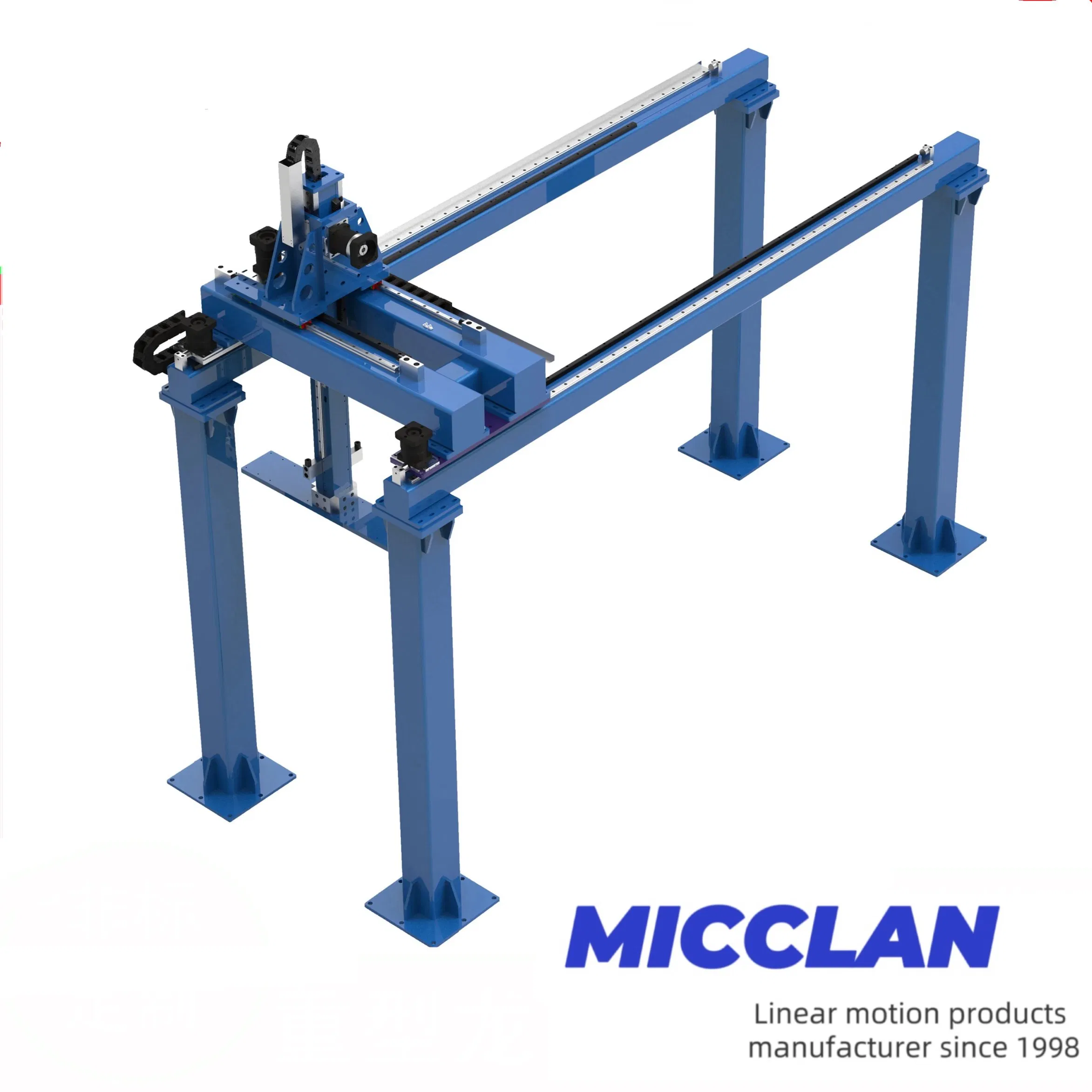

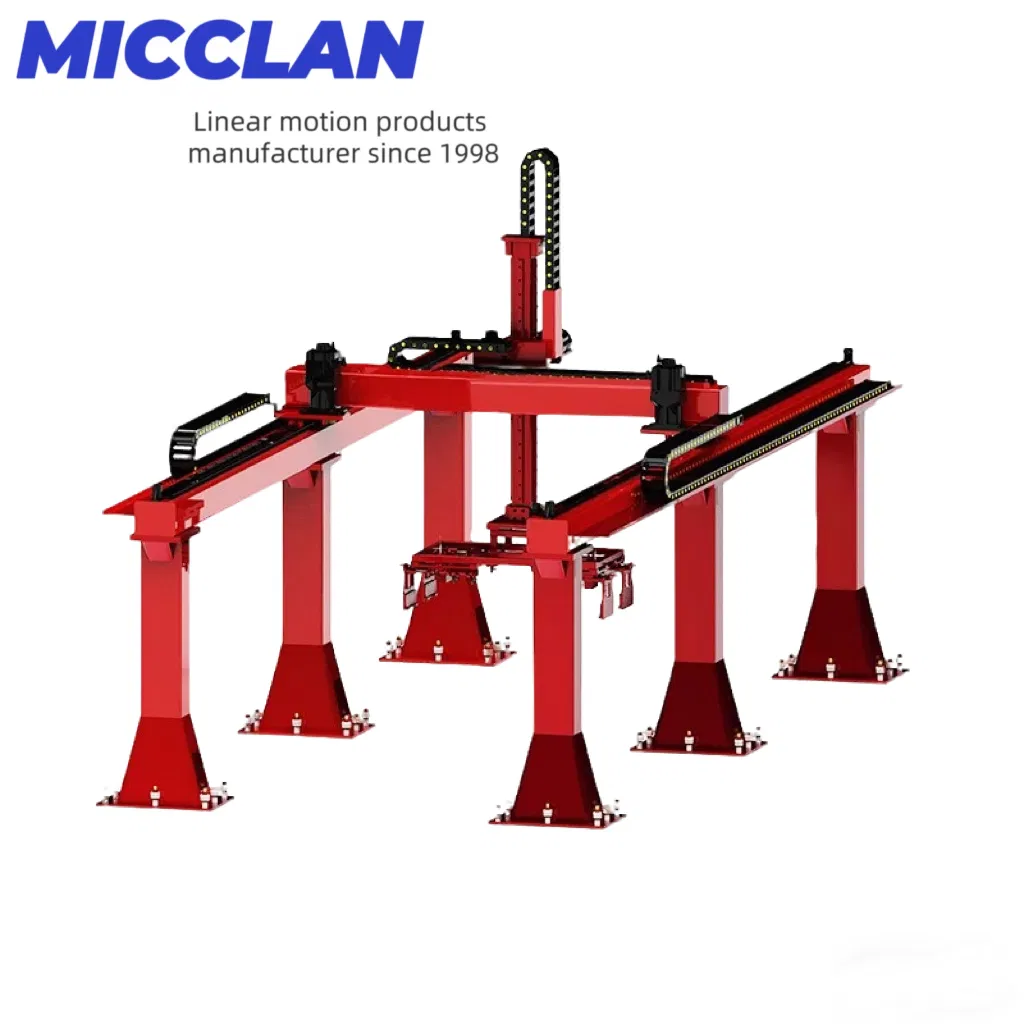

High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
1 / 5
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation
High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation

High Precision Robotic Gantry & Cartesian Palletizing System for Packaging Line Automation

Customization: Available
Application: Agricultural Machinery, Automotive, Furniture, Industrial Automation, Marine, Medical Equipment, Robotics, Solar Tracking System
Certification: CCC, CE, FCC, ISO, RoHS
Send Inquiry

Product Description

Basic Information
Model NO.
MH
Control Options
PLC Control
IP Rating
IP43
Limit Switch
Built-in
Max Thrust
7000N
Standard Stroke
800mm
Type
Industrial Linear Actuator
Voltage
220-380V
Color
Customizable
Origin
China
Packaging & Delivery
Package Size
5000.00cm * 4000.00cm * 2000.00cm
Gross Weight
1000.000kg
Transport Package
Wooden Crate
Product Description

Automatic Gantry Palletizer Robot – High-Speed Cartesian Palletizing Machine

Our Customized Gantry Palletizer Robot Arm is a tailor-made automation solution designed for packaging, logistics, and warehouse applications. Fully customizable in travel length, load capacity, speed, and stacking patterns, it features high-precision servo control and a durable gantry structure for stable, long-term efficiency in end-of-line automation.

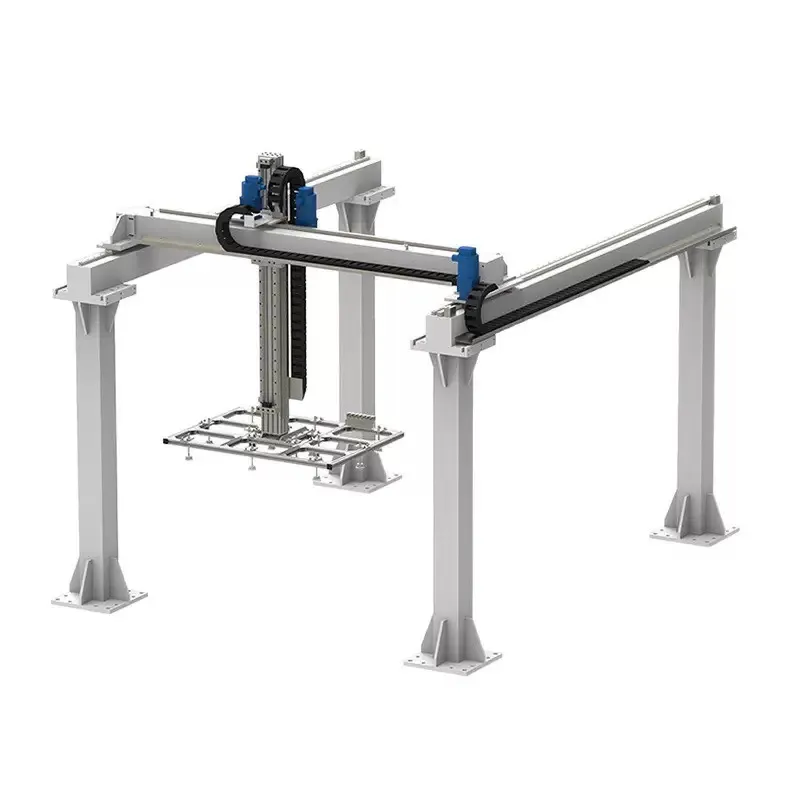

Automatic Gantry Palletizer Robot

🌐 Common Applications:

✓Packaging Industry: Palletizing cartons, boxes, bags, or crates.
✓Logistics & Warehousing: Automated stacking and sorting for smart warehouses.
✓Food & Beverage: Efficient stacking of packaged food and bottled drinks.
✓Chemical & Building Materials: Handling heavy bags, cement sacks, and chemical drums.
✓Manufacturing Plants: Industrial automation with customized layouts.

⚙️ Key Configurations (Customizable):

  • 📍 Travel Length (X/Y/Z): 1m ~ 20m based on factory layout.
  • ⚖️ Payload Capacity: 20kg ~ 500kg+ (Heavy load models available).
  • ⚡ Speed: Adjustable from 0.2 m/s up to 1.5 m/s.
  • 🛠️ Drive System: Rack & pinion / ballscrew / linear motor.
  • 🖥️ Control System: Siemens / Mitsubishi / Omron PLC + Touchscreen HMI.
  • 🧲 End Effector: Vacuum gripper, mechanical gripper, or magnetic chuck.

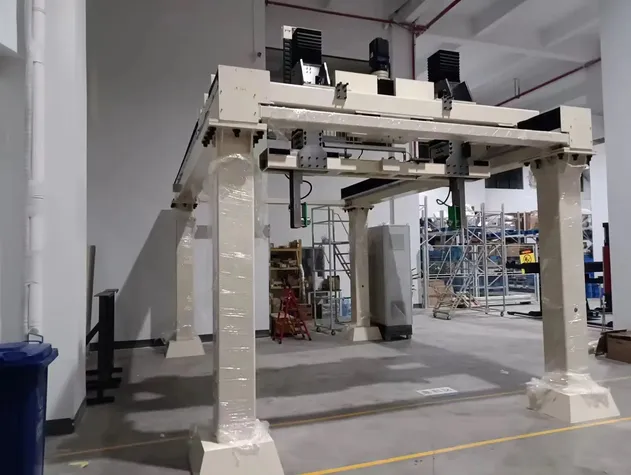

Gantry System Detail 1
Gantry System Detail 2

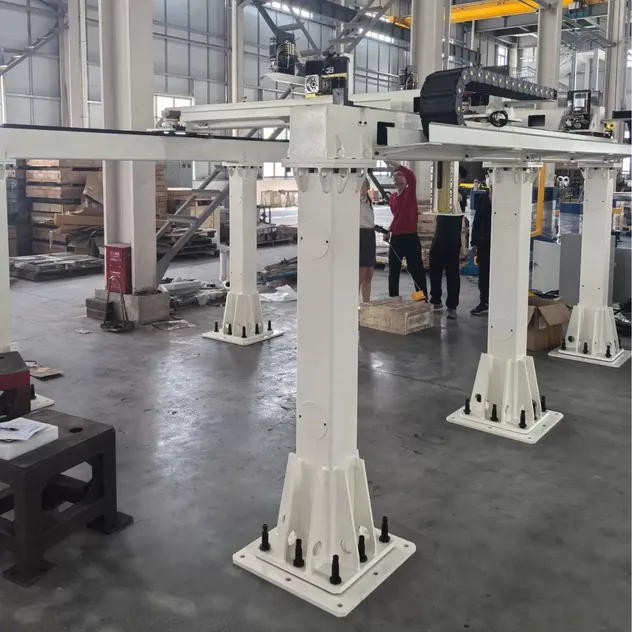

Gantry System Detail 3
Technical Specifications

Please provide the following information for a precise quote:

1. Payload Requirements
Approximate weight to be carried (robot + tooling + cables).
2. Travel Distance
Net stroke or total rail length required for X, Y, and Z axes.
3. Speed and Accuracy
Desired movement speed (mm/s) and positioning repeatability.
4. Environmental Conditions
Operating environment details (temperature, dust, moisture, etc.).
After Sales Service
🛡️Standard Warranty: 12 months or 2,000 operating hours.
➕Extended Warranty: Optional coverage up to 36 months.
🌍Global Support: 24/7 technical assistance and spare parts supply.
🎓Training: On-site or remote operation and maintenance training.
Industrial Solutions Capability
Production Capability

We specialize in the design and customization of advanced Linear Motion Solutions. With a commitment to innovation, we provide cost-effective automation products including Linear Actuators, 7th Axis for Industrial Robots, and Palletizing Machines.

Technical Layout

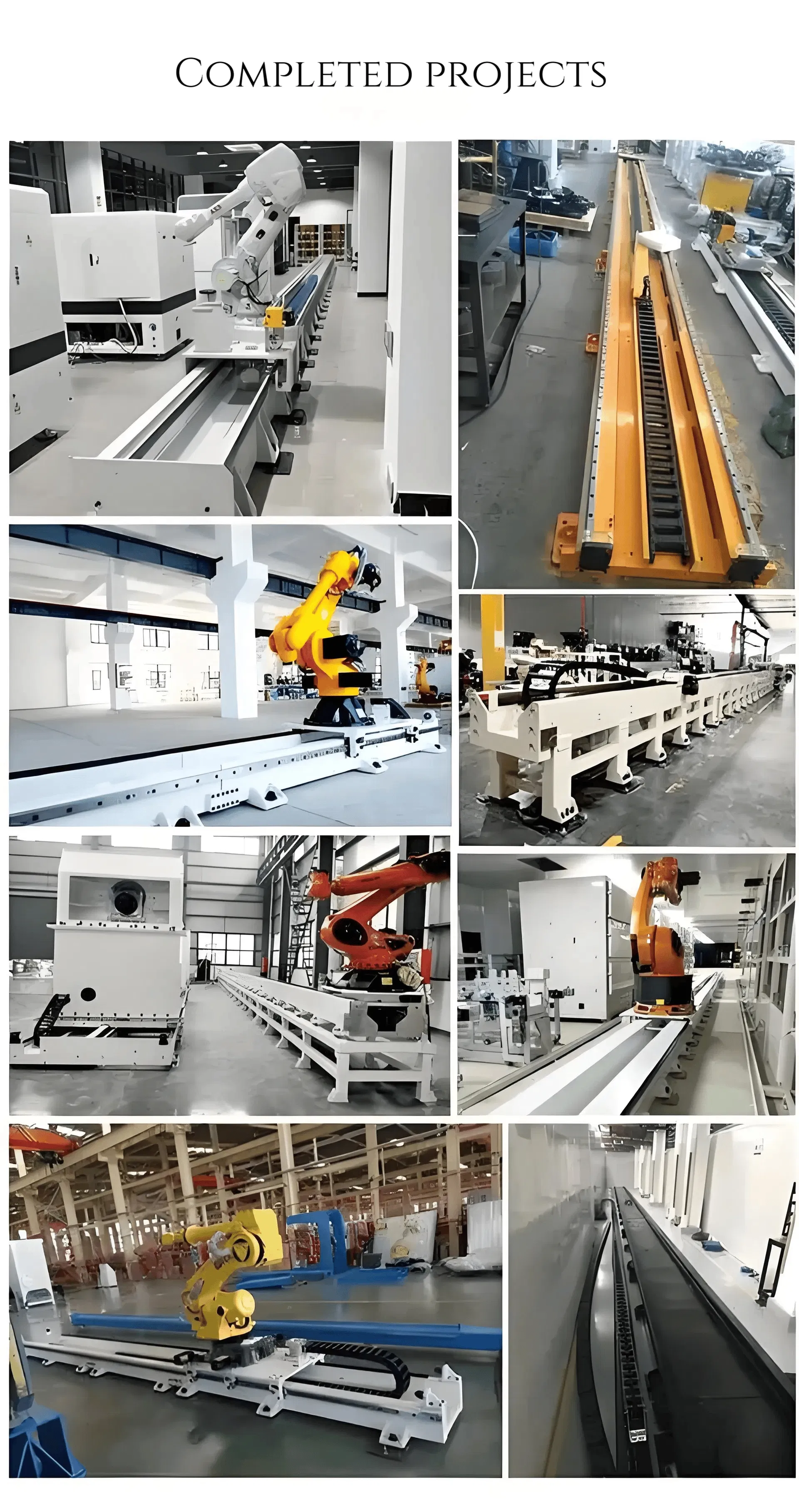

Automation Equipment
Robot Integration

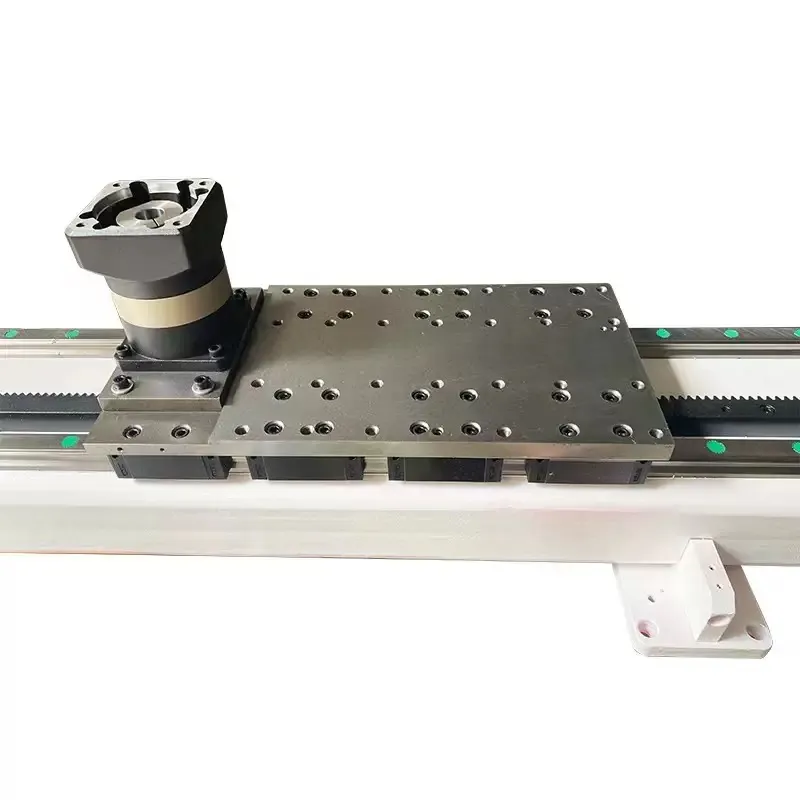

Custom Tooling
Frequently Asked Questions
Q: What's the lead time for orders? A: Standard customized units typically require 20–45 days depending on the complexity of the design.
Q: Do you provide after-sales service overseas? A: Yes, we provide global technical assistance and have partnered service centers in key regions to support our international clients.
Q: Can I request customized dimensions or attachments? A: Absolutely! We specialize in tailored solutions, including custom travel lengths, payload capacities, and specific end-effectors like vacuum or mechanical grippers.
Q: What documents are provided for international export? A: We provide a full export documentation package, including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
Q: How can I initiate an order? A: You can reach out to our team for a detailed technical consultation and quote. Once the specifications are finalized, orders are confirmed via a Purchase Order (PO).
Q: What is the standard warranty period? A: Our systems come with a 12-month standard warranty, with options to extend coverage up to 36 months for long-term peace of mind.
