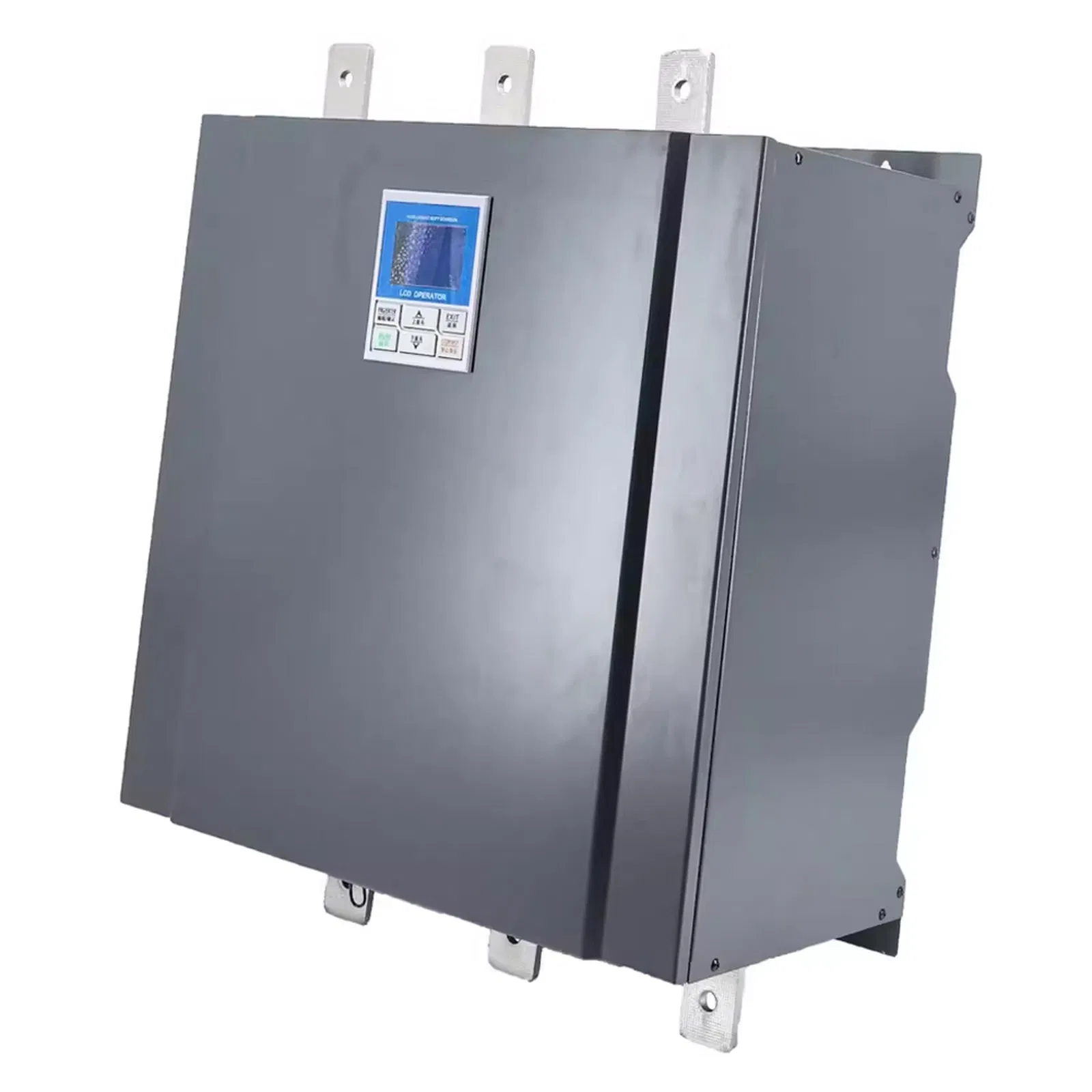

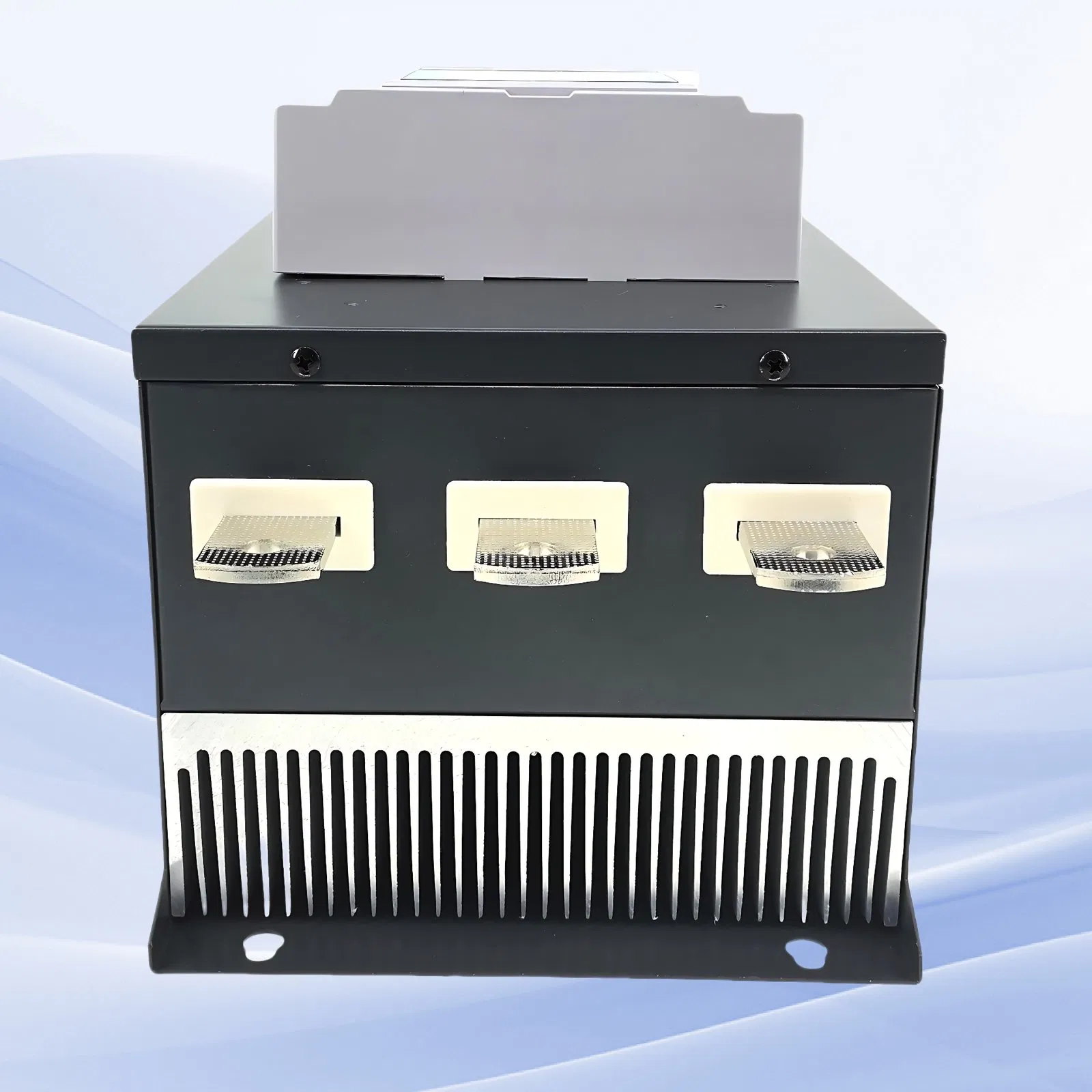

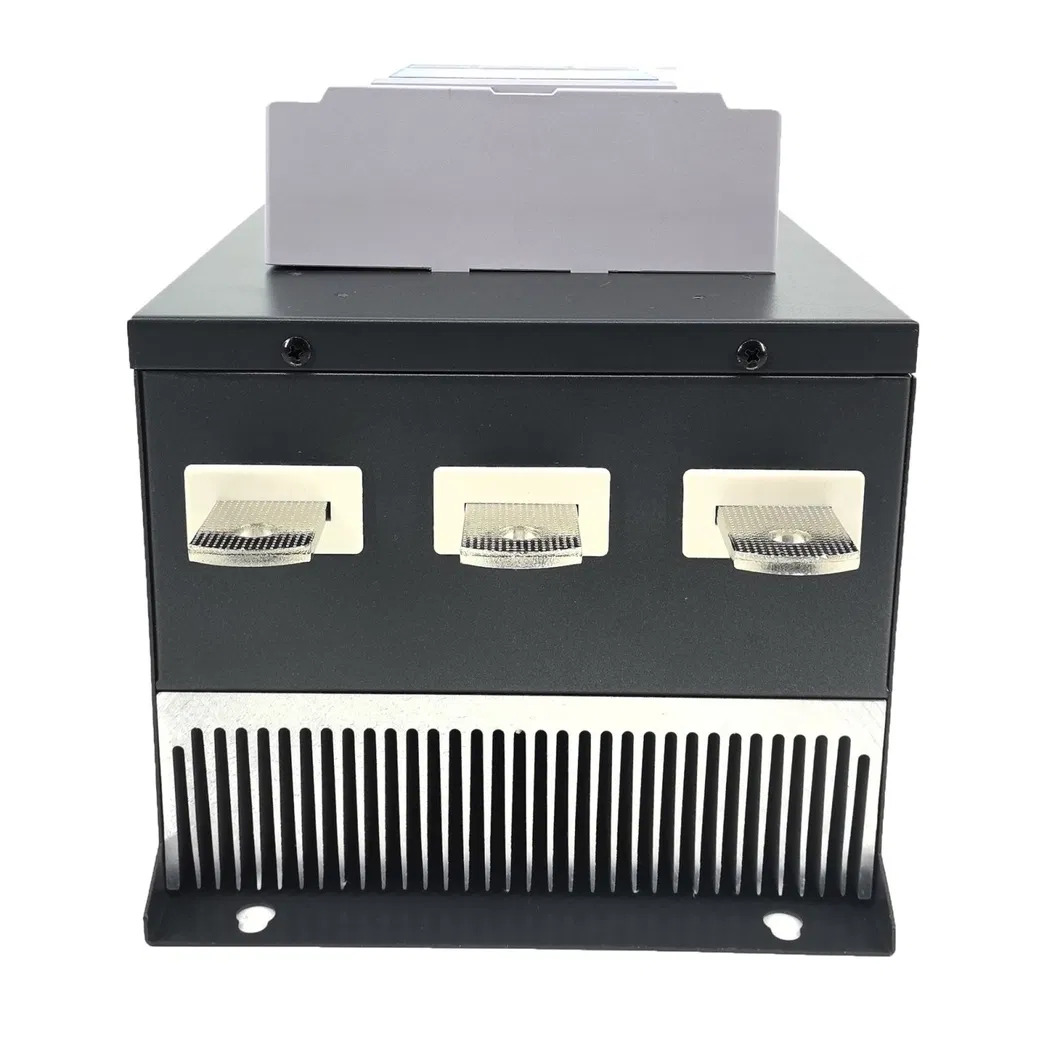

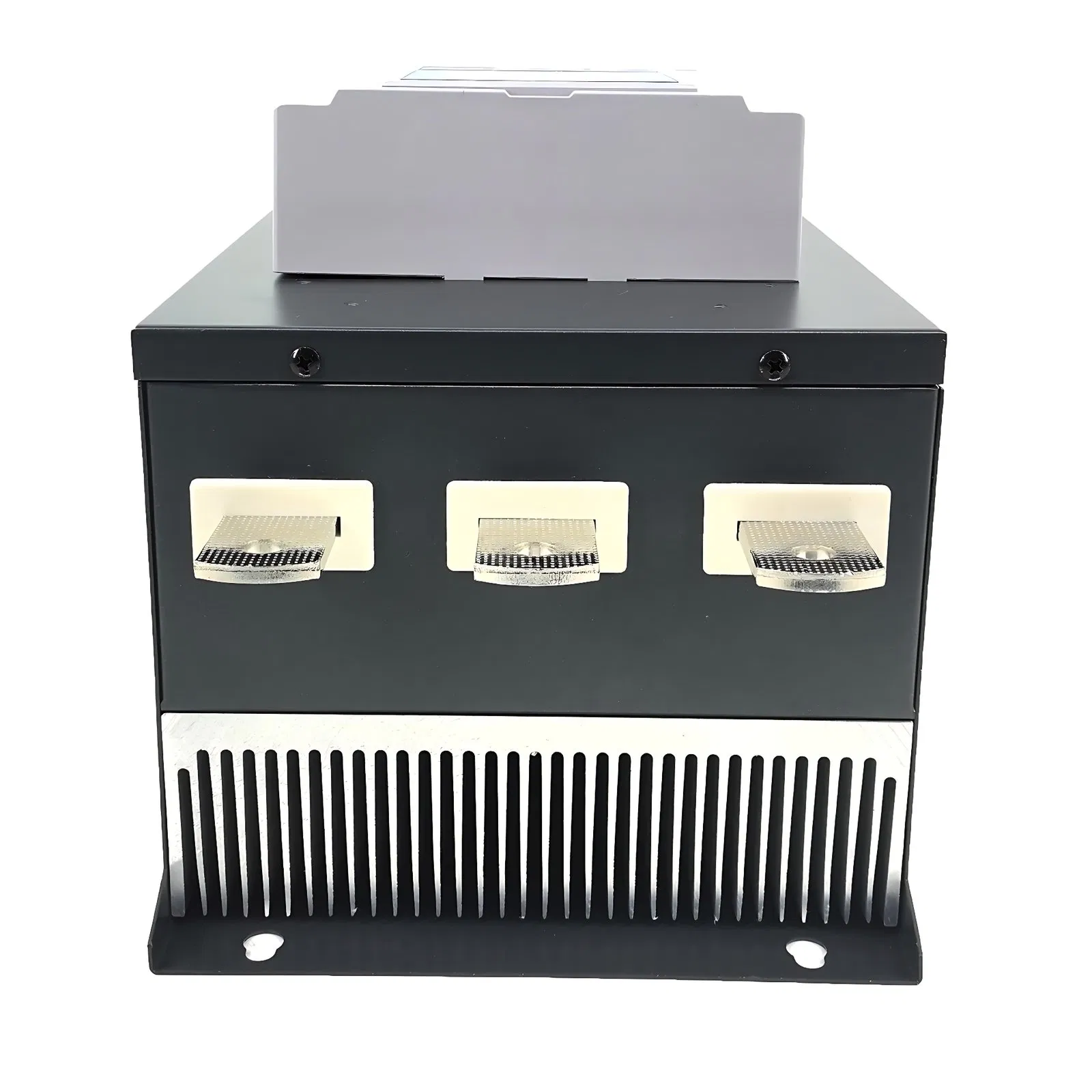

Constant power, Constant current, Open loop, and Cycle zero crossing control modes.

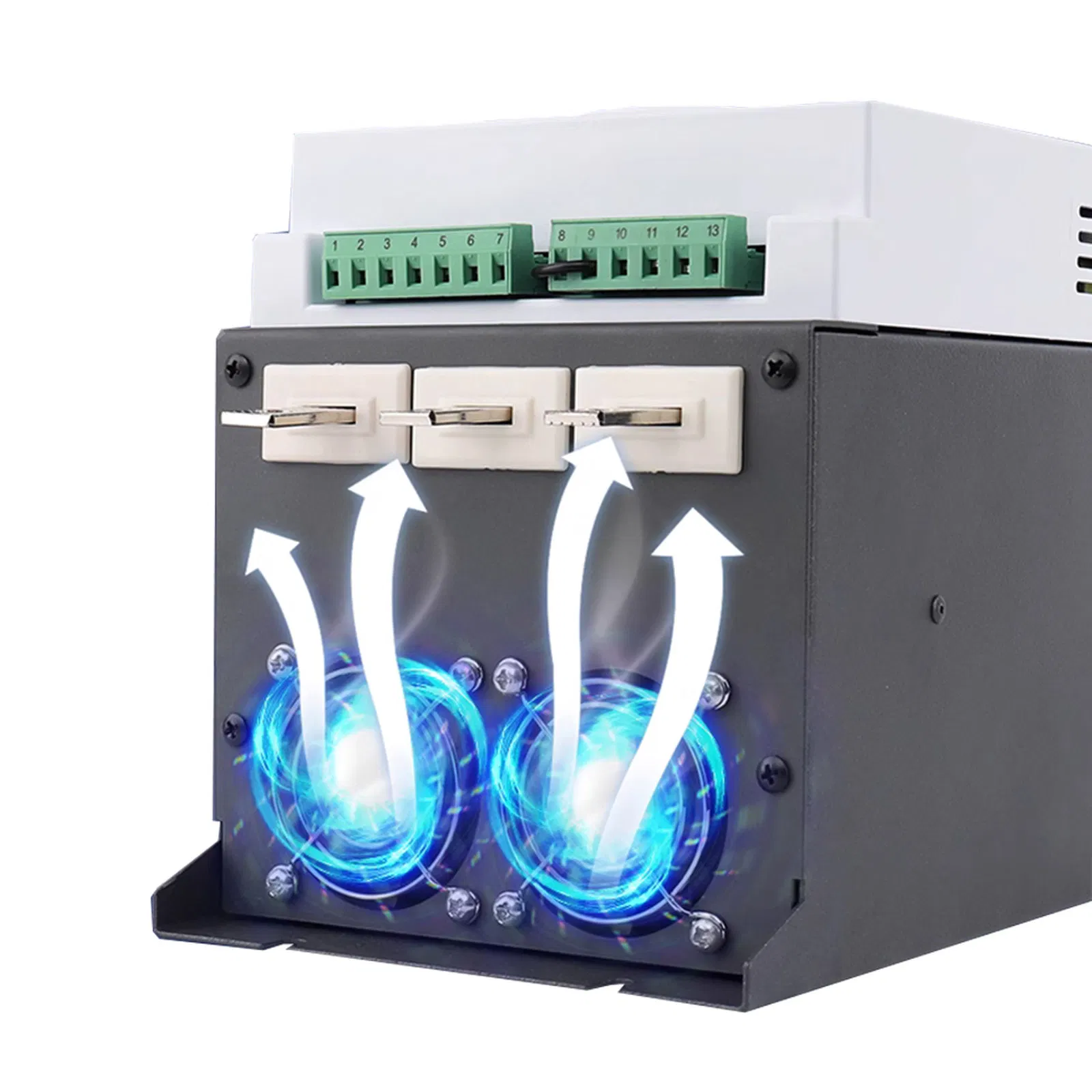

Phase loss, Overheat, Load overcurrent, and Three phase current unbalance protection.

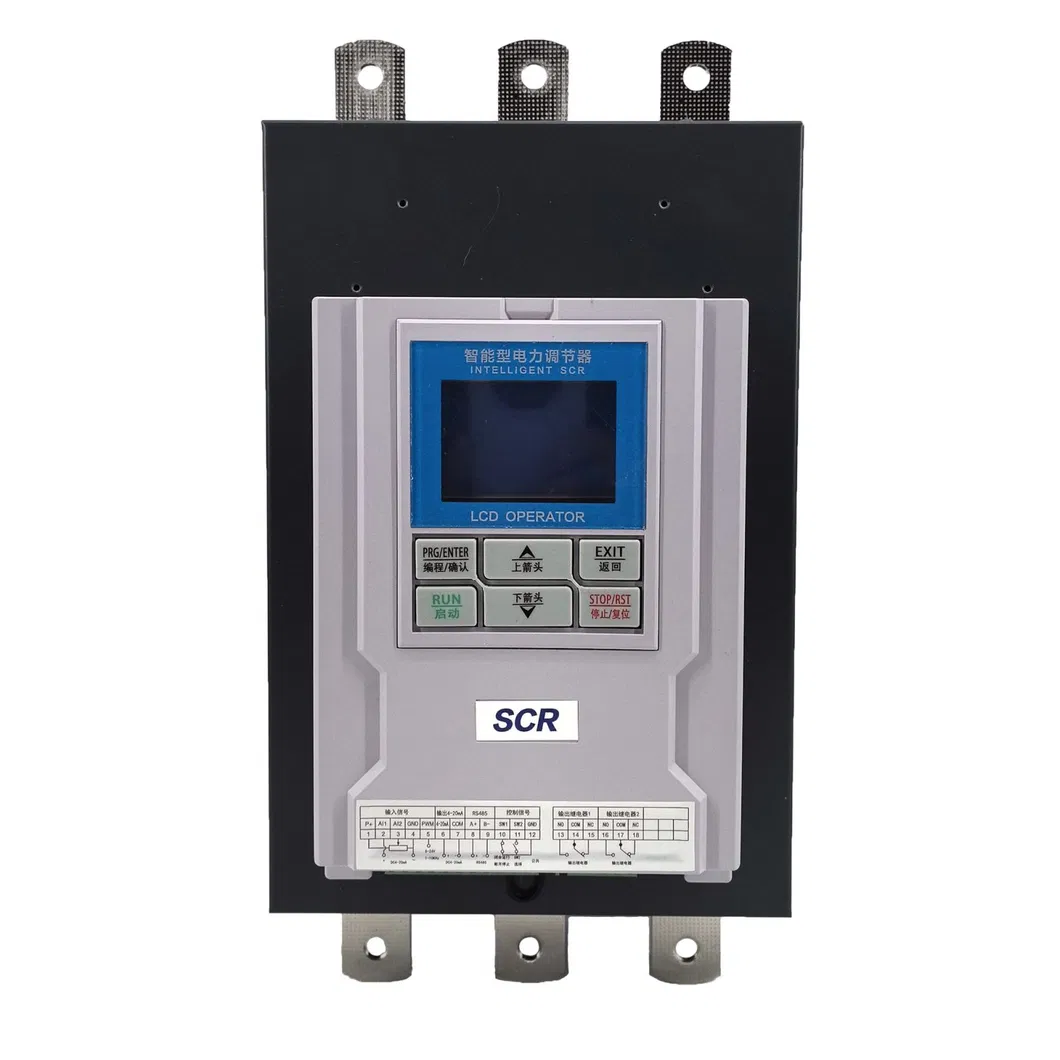

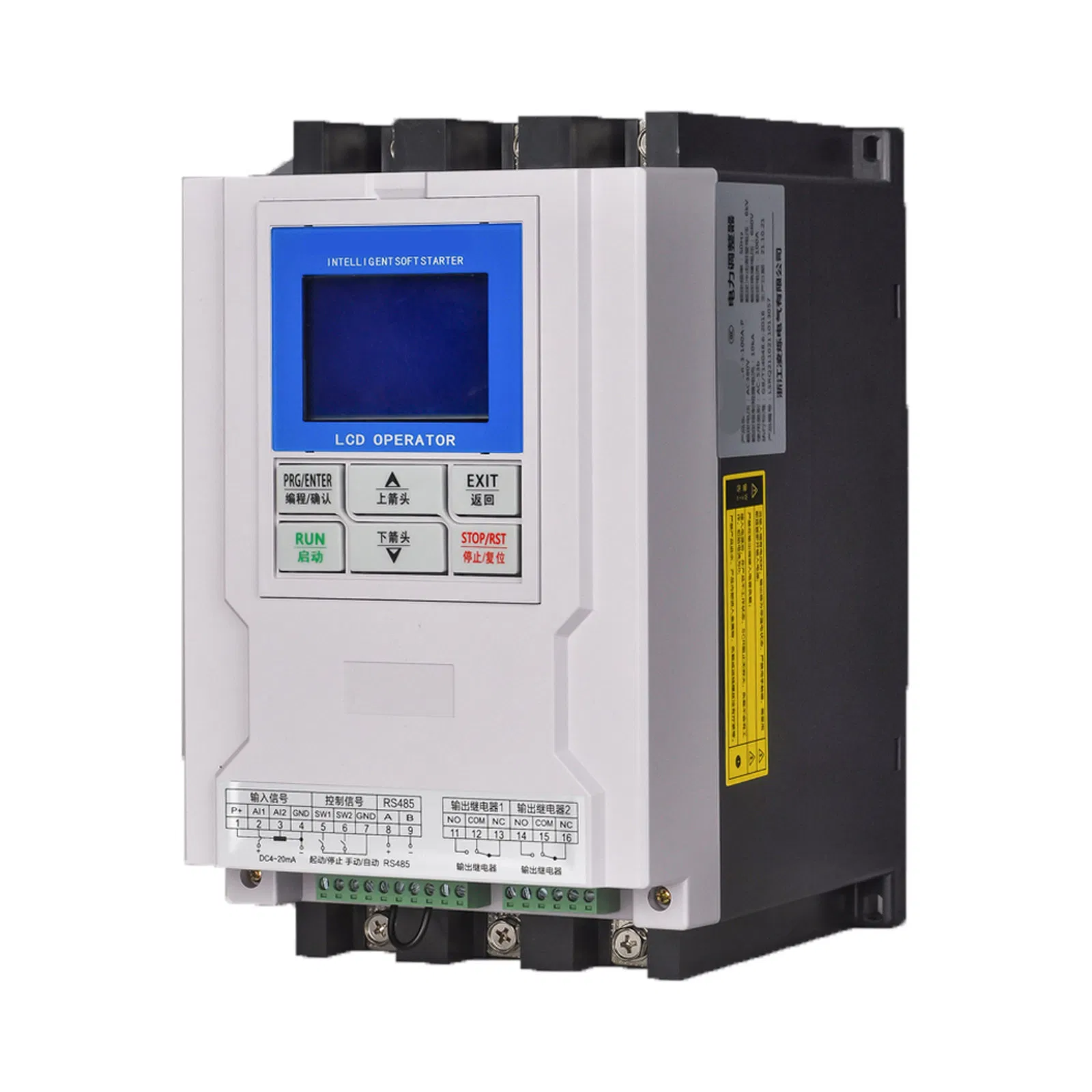

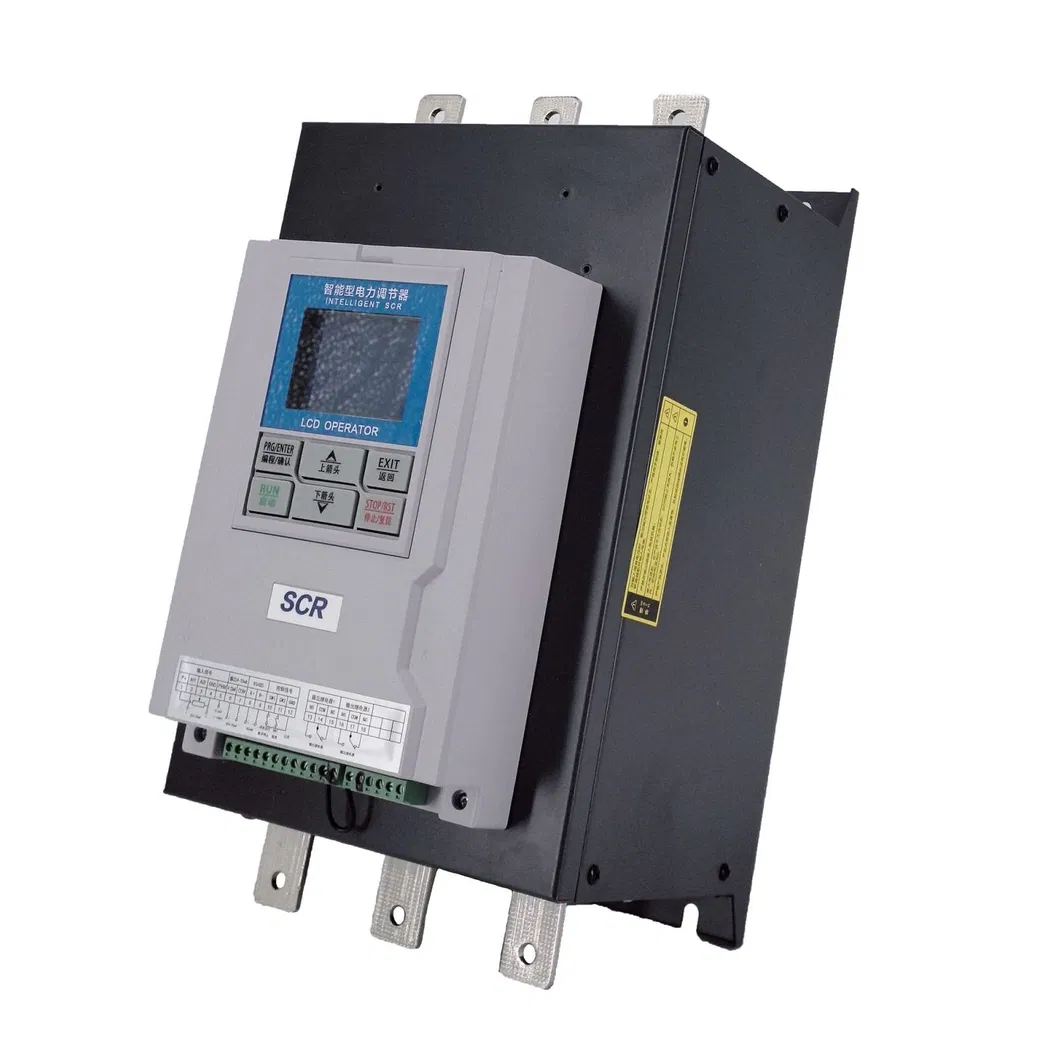

LCD display for real-time monitoring of current working status.

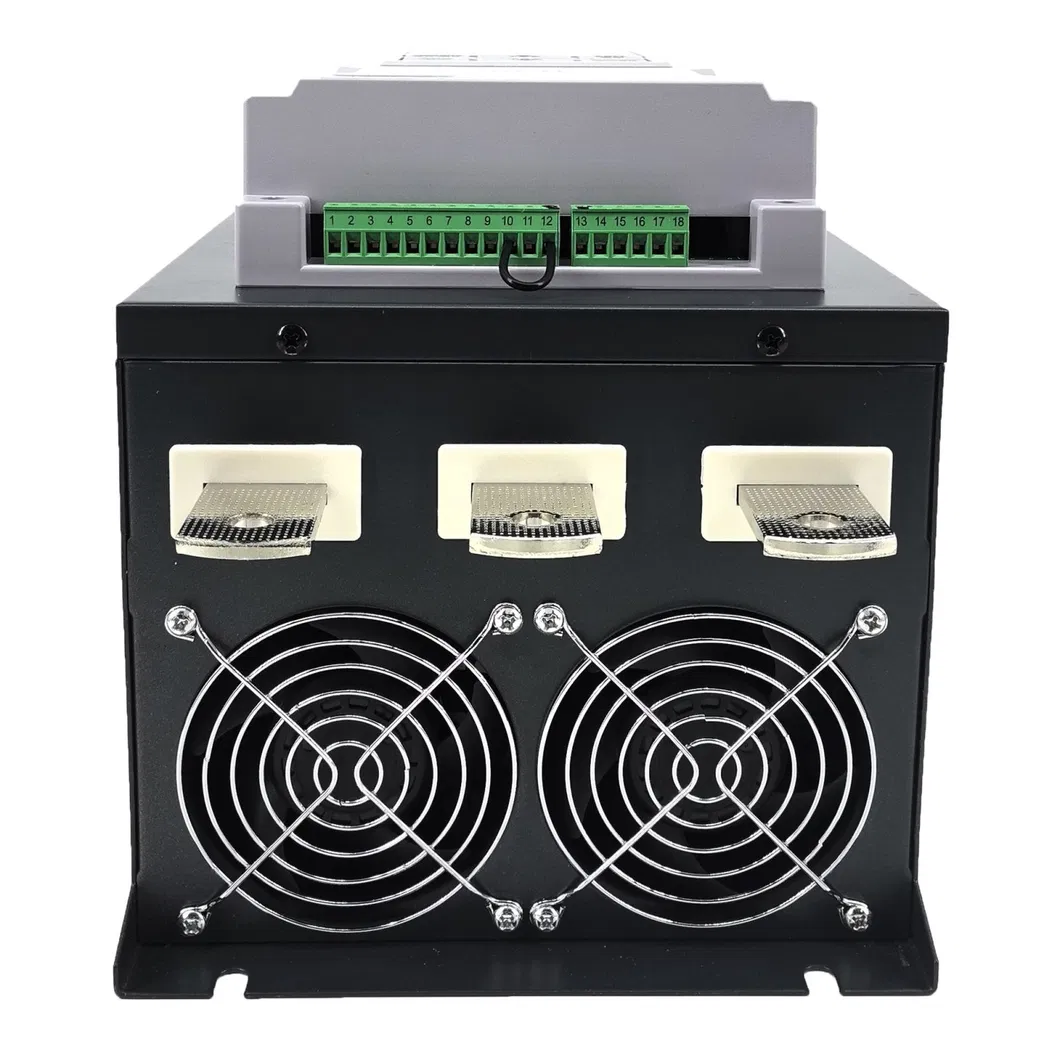

| No. | Mark | Functional Description |
|---|---|---|
| 1 | P+ | Reference power supply +5V: Feed reference for external potentiometers |
| 2 | AI1 | Current analog input port 1: DC 0~20mA / 4~20mA |
| 3 | AI2 | Voltage analog input port 2: 0~5V / 0~10V / Potentiometer |
| 4 | GND | Signal common ground |
| 5 | PWM | Signal Analog, PWM Input Port |
| 8/9 | A / B | RS485 communication port |
| 10 | SW1 | External start/stop control terminal |
| 13-15 | NO/COM/NC | Output relay 1: Fault alarm or signal output (AC240V/5A, DC24V/5A) |
| 19/20 | L / N | External AC 220V power supply |

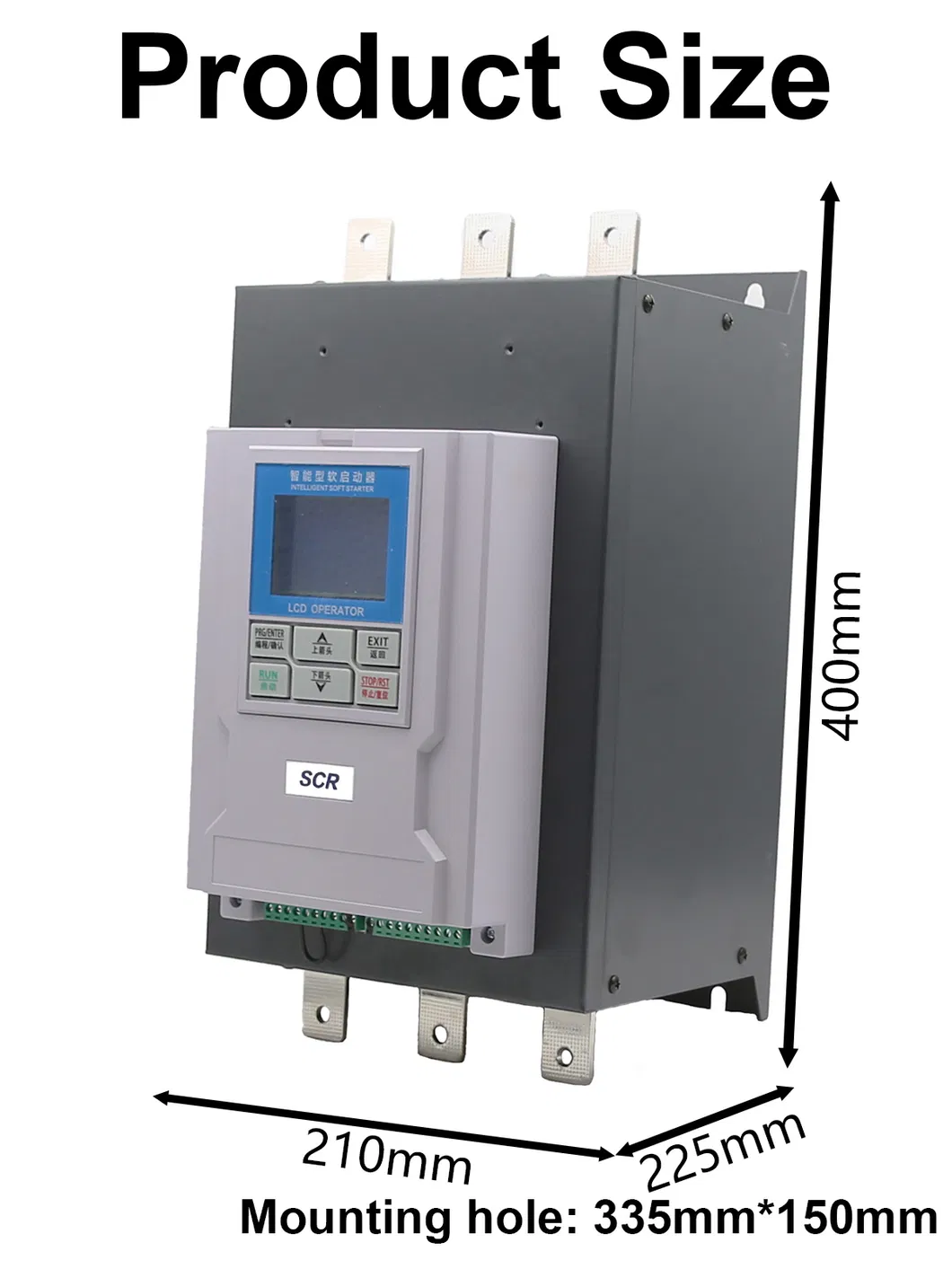

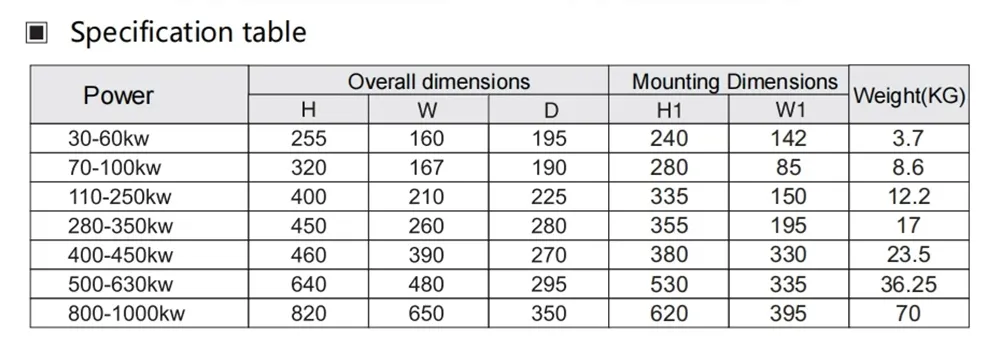

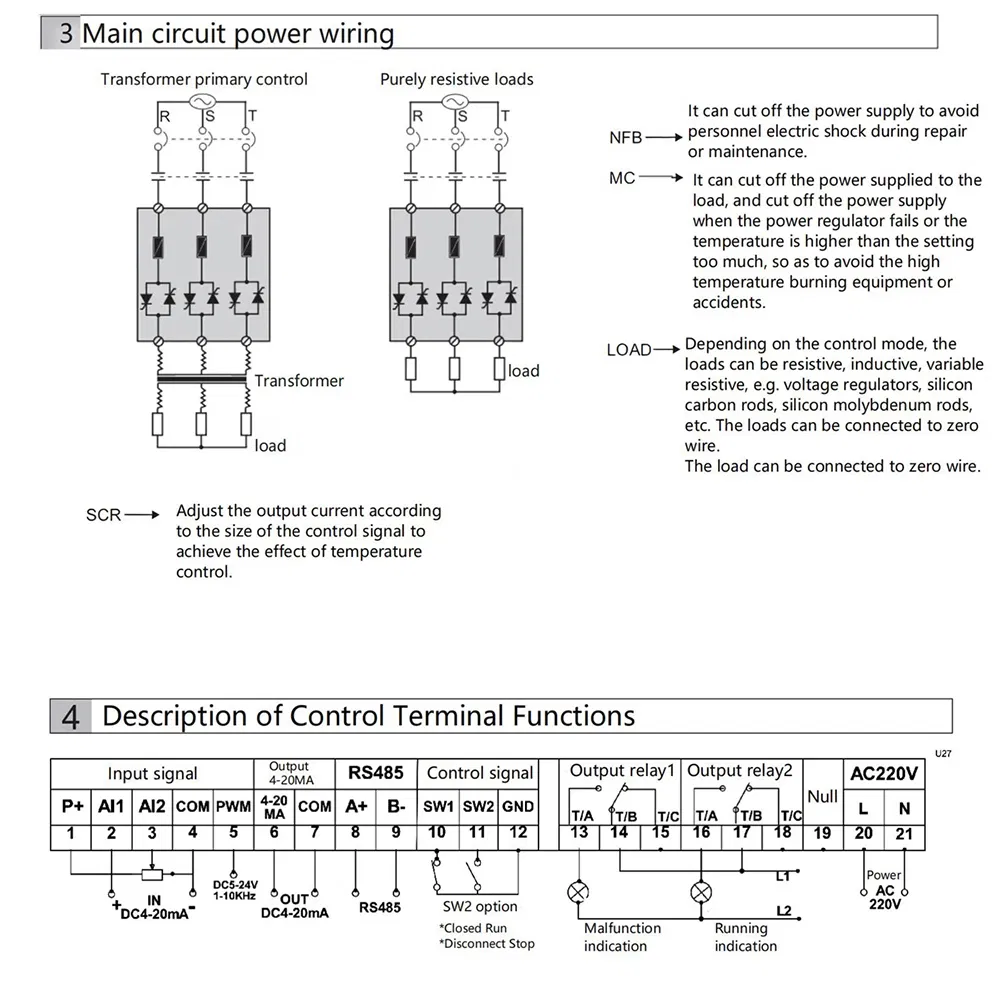

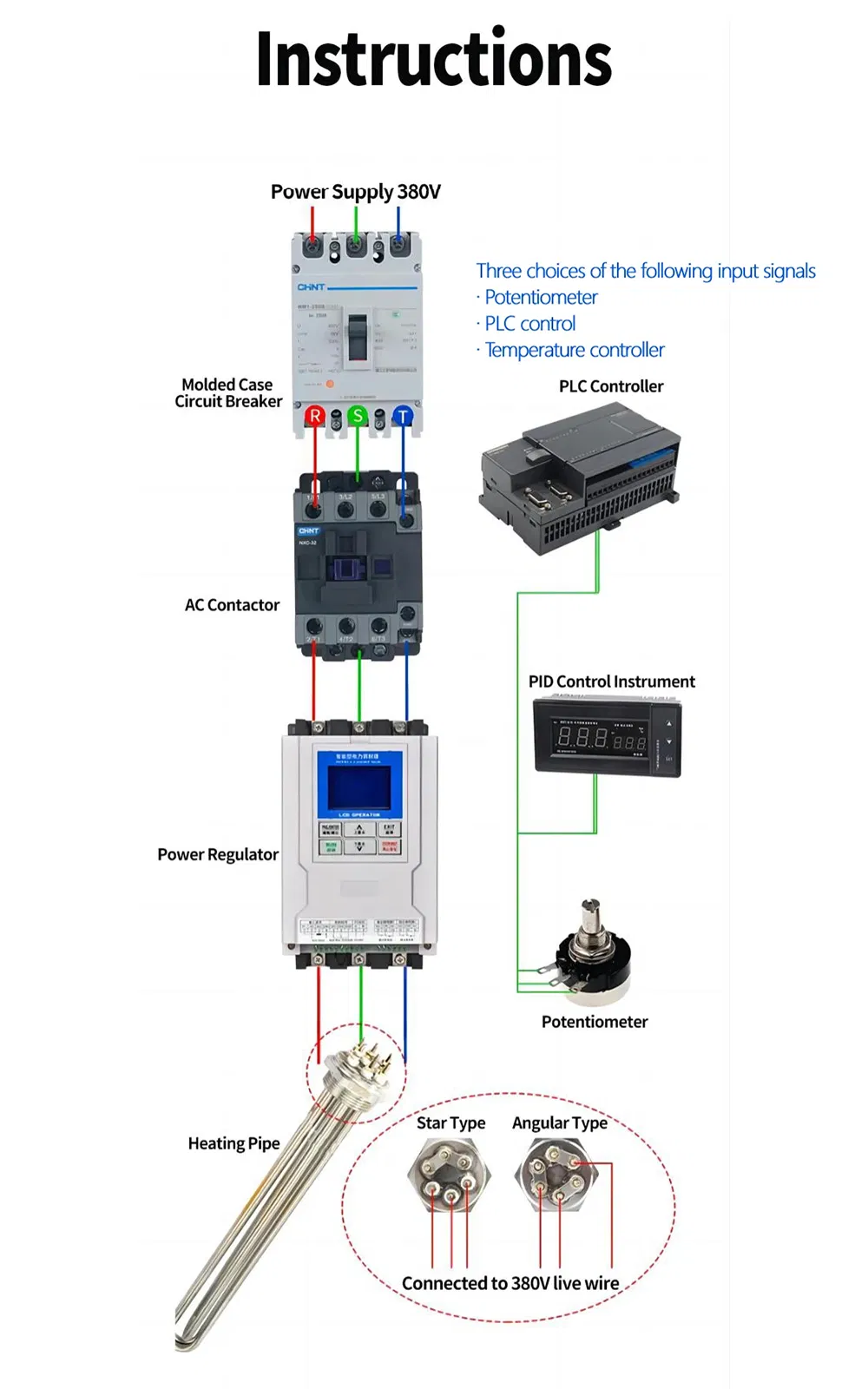

SCR Heater Control Wiring Diagram

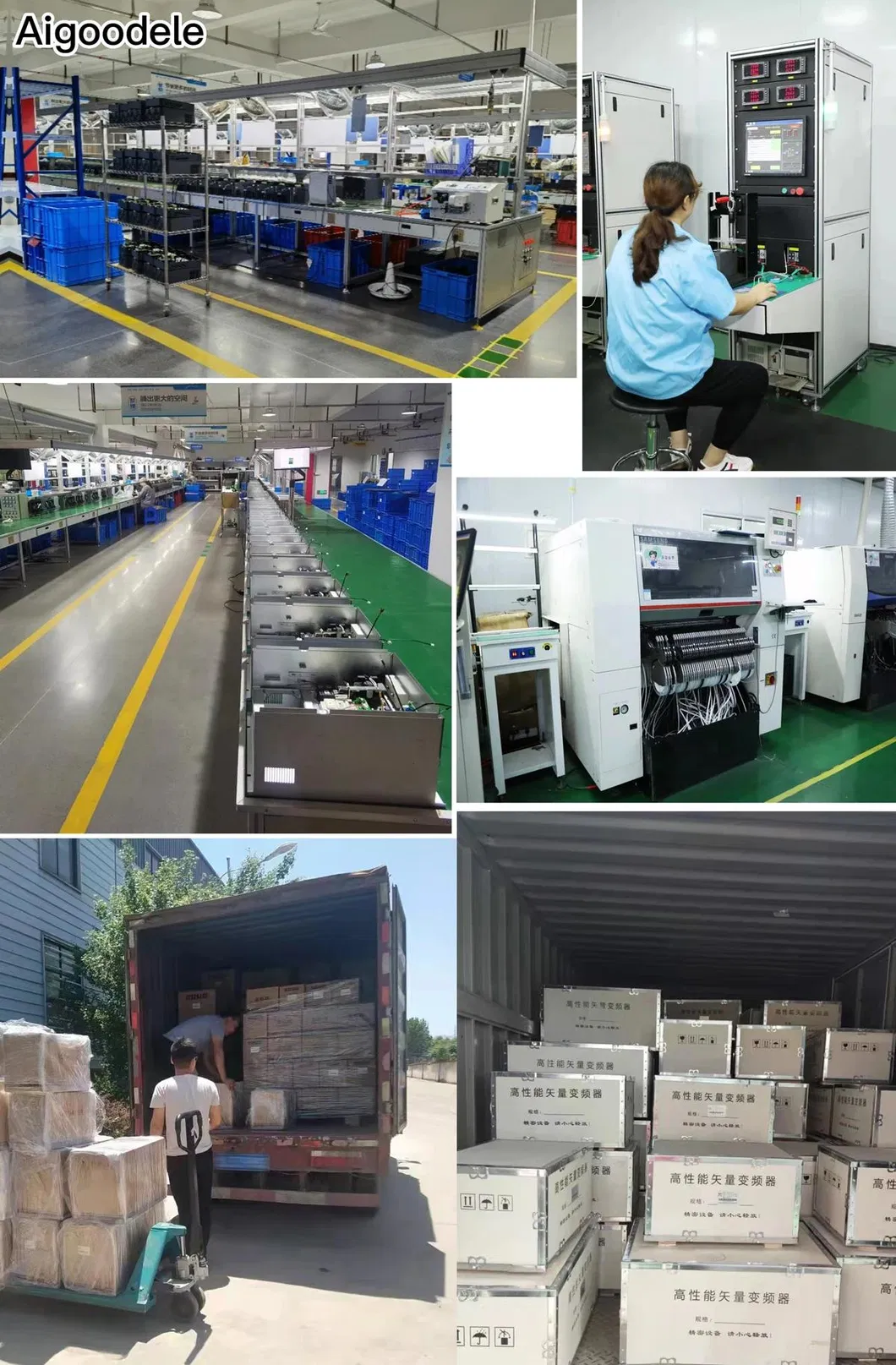

The enterprise is a high-tech company integrating production, sales, and service. Main products include SCR Heater Controls, frequency converters (VFD), soft starters (LSRQ), solid-state relays (SSR), and high-power rectifiers. These products are widely utilized in energy, petroleum, metallurgy, chemical industry, construction, plastics, textile, water supply, and mining.
