Modular Expandable Measuring Solution

Customization:	Available
After-sales Service:	Life-Long Maintenance Service
Warranty:	1 Year

i

Basic Information

Model NO.

JTDQVS-6050CNC

Type

2.5D Video Measuring System

Operate Method

CNC

CCD

Sony Color Camera

Grating

Gsi

Working Range

600*500*200mm

Accuracy

<=(3+L/200)μm

Load Bearing

30kg

Voltage

200V+/-10%

Production Capacity

5000PCS/Year

★

Product Description

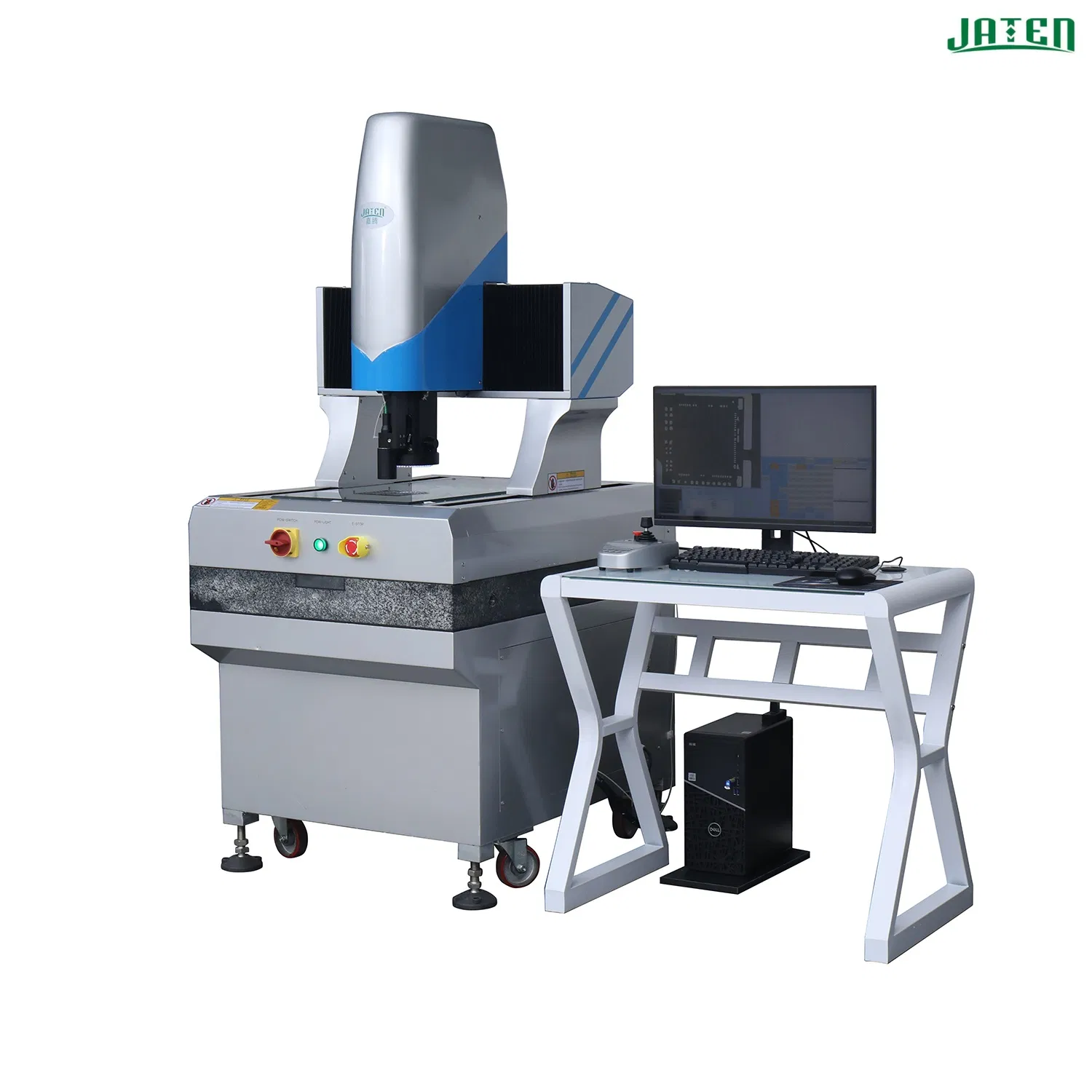

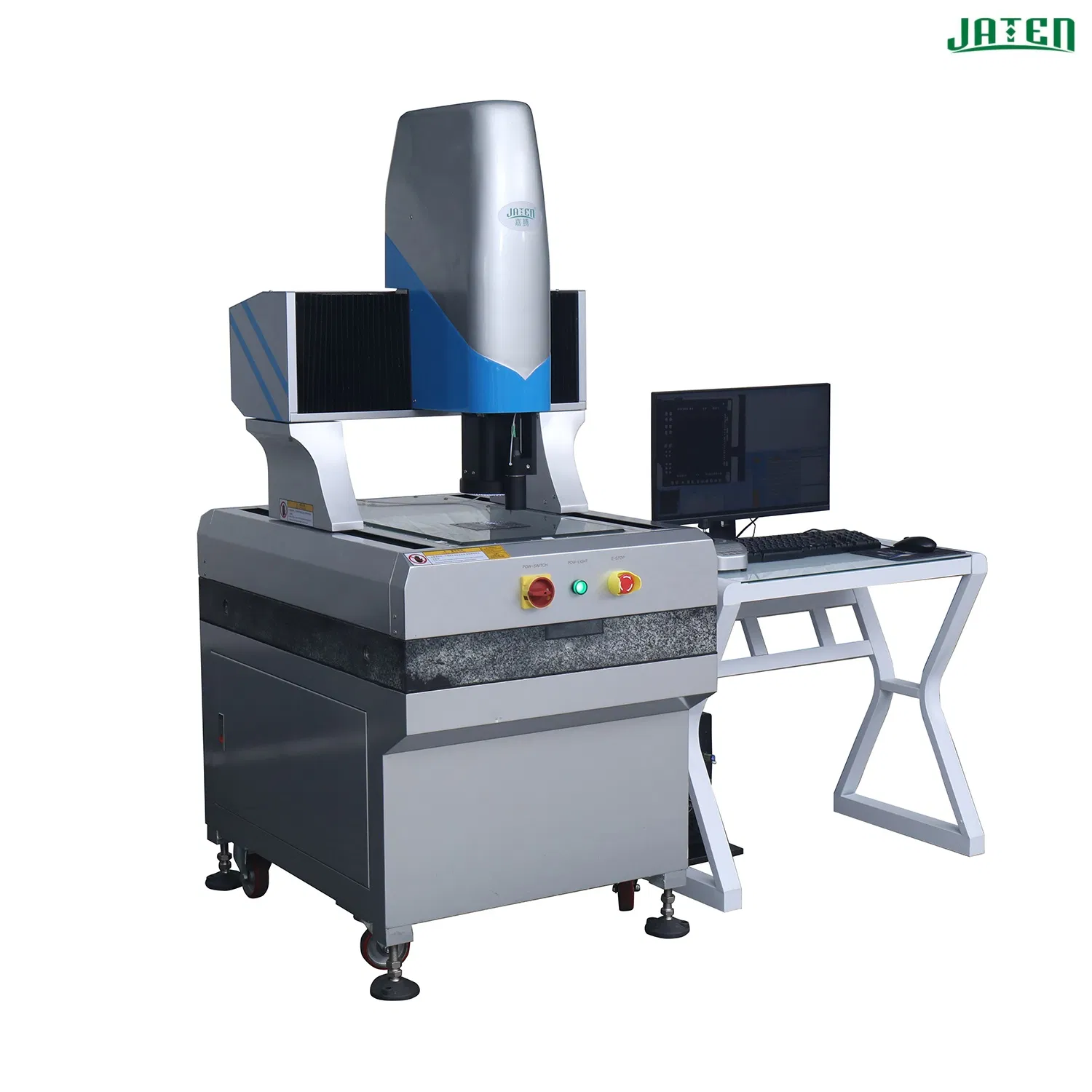

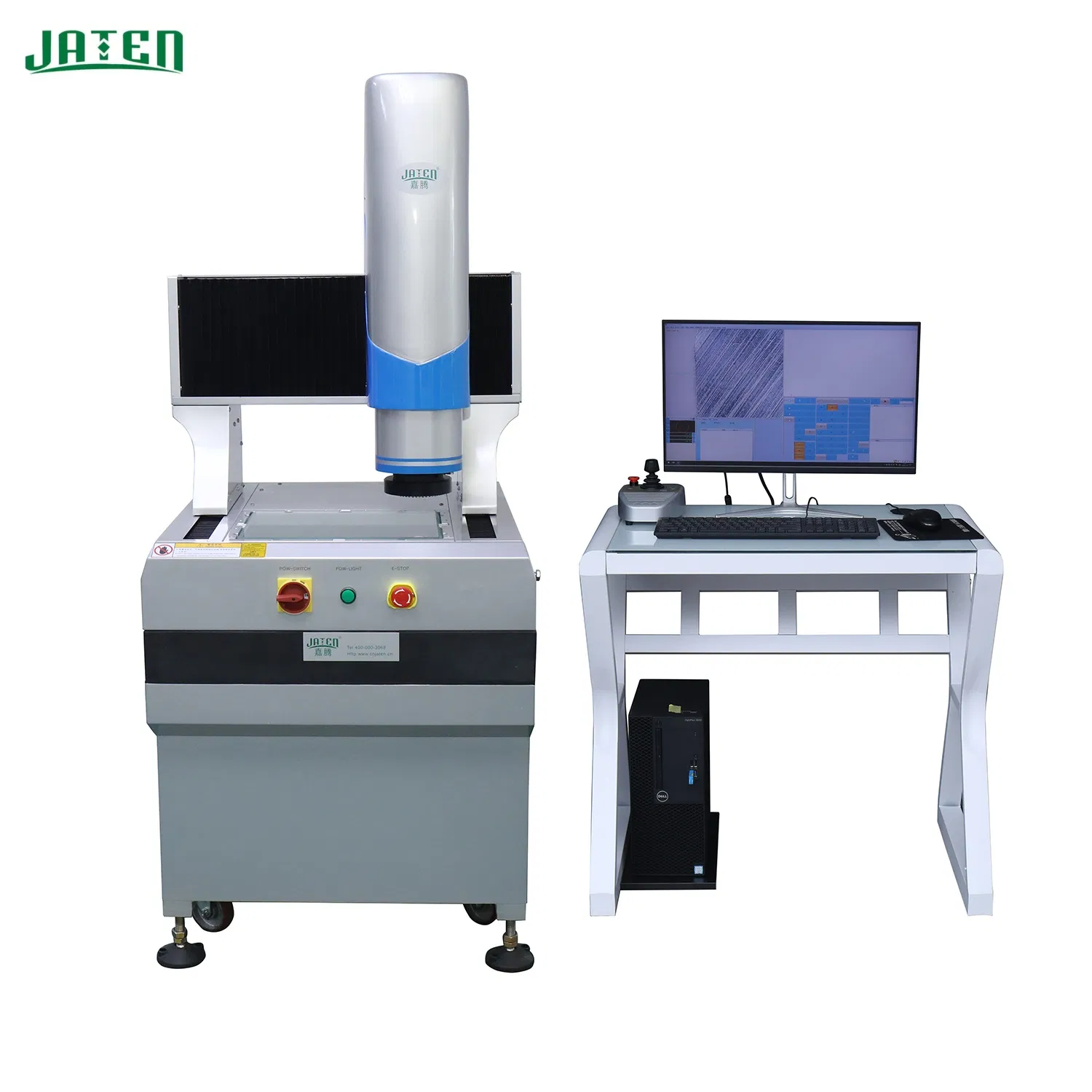

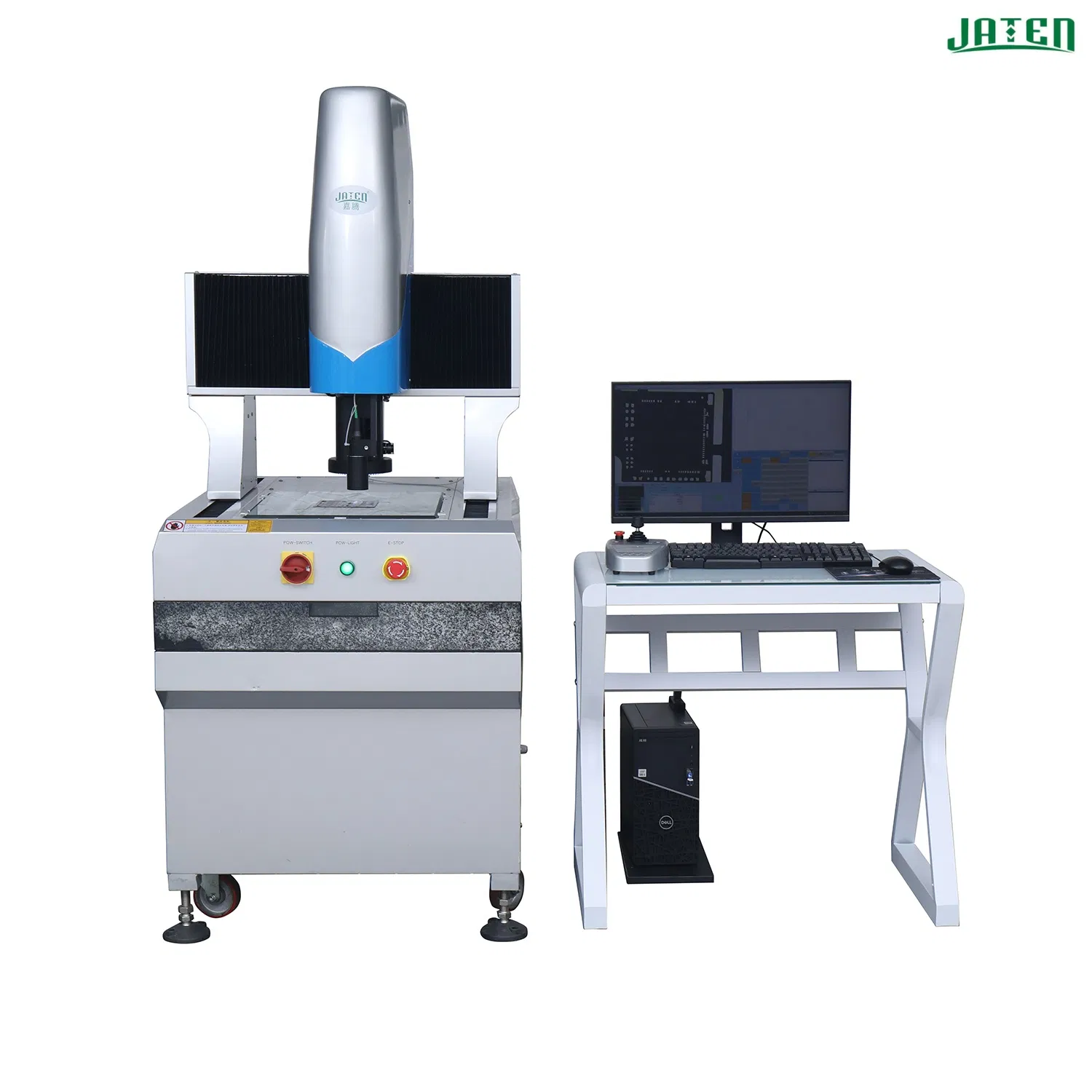

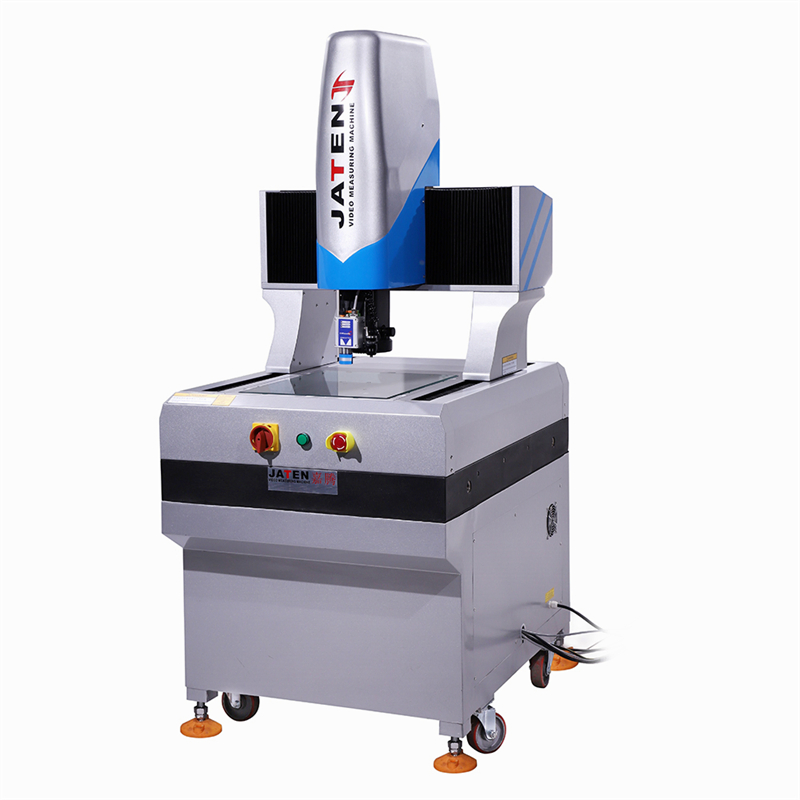

Gantry CNC Video Measuring Machine - High-precision measurement solution designed for rigorous industrial inspection standards.

Instrument Characteristics:

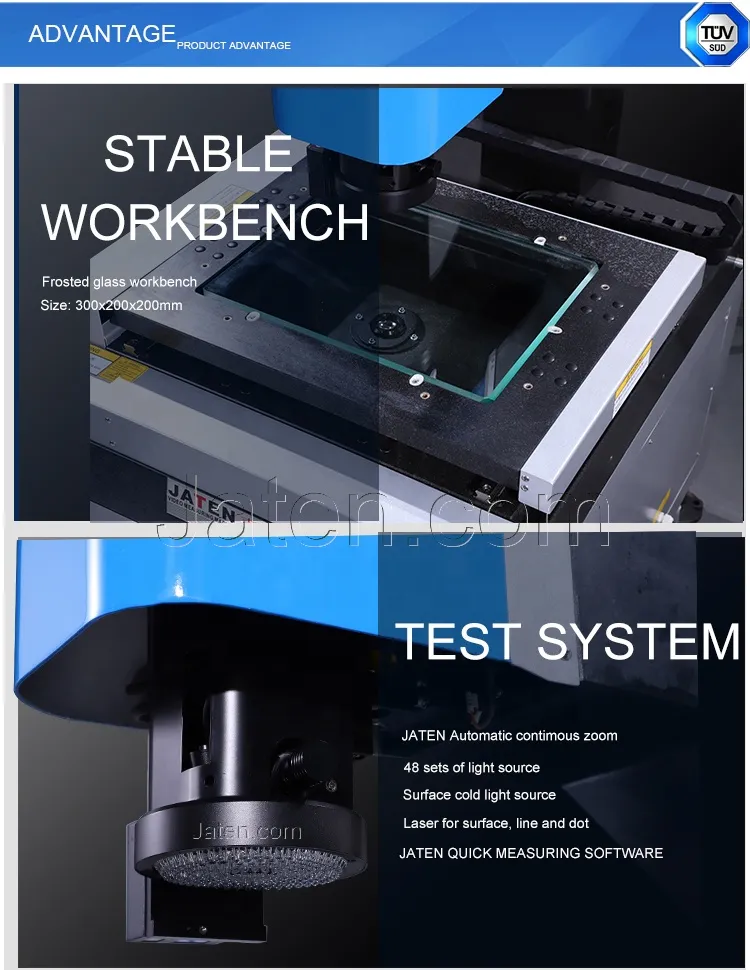

High-precision marble base and beams ensure exceptional stability and rigidity.
Small gantry mobile architecture allows the table load glass to remain stationary, enabling higher speeds without compromising accuracy.
Equipped with precision grinding ball screws and Japan THK linear guides.
Utilizes Japan Matsushita servo motors with dual closed-loop motion control for high-speed positioning.

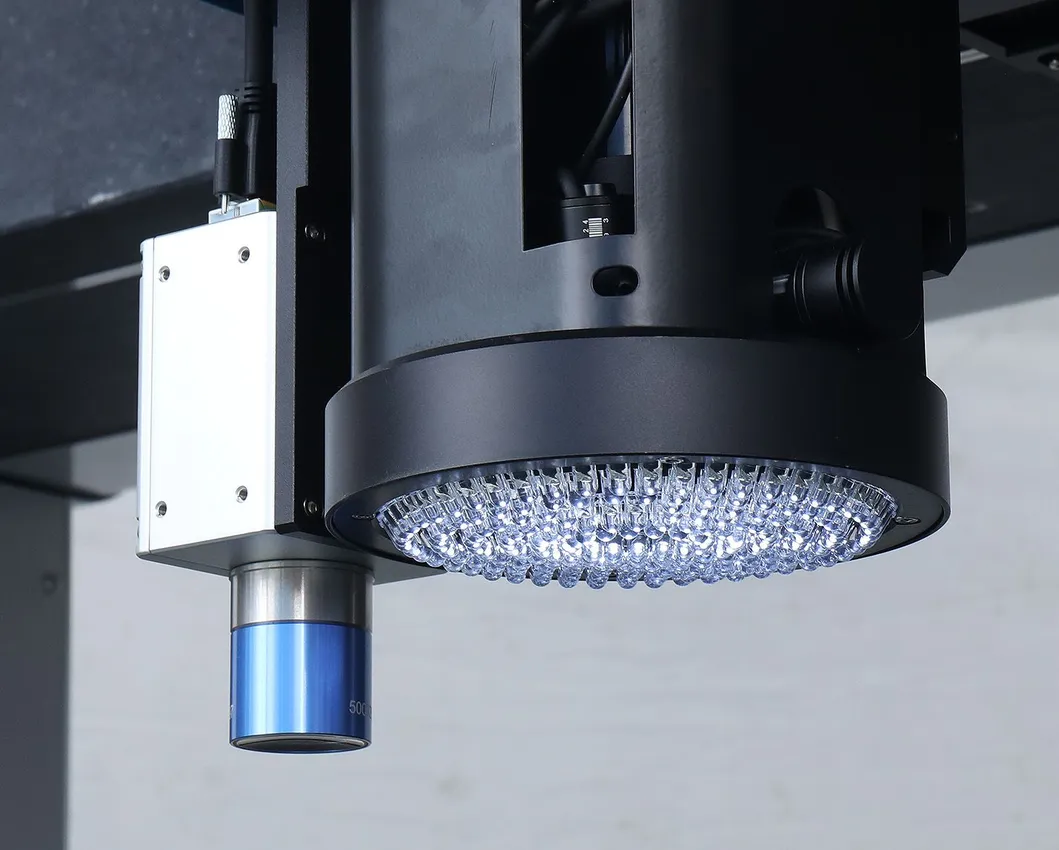

SONY high-resolution color camera combined with a custom-developed 48-group independent surface light source.
American GSI precision optical scale with a resolution of 0.5μm.
Automatic continuous zoom lens eliminates the need for manual re-calibration after zooming.
Image navigation system for rapid workpiece location and enhanced measurement efficiency.

Technical Parameters		Specifications
Work-bench	Work Range	600500200mm
	Dimension(LWH)	174013161760mm
	Load Bearing	30Kg
Accuracy	X and Y-axis	≤(3+L/200)μm
Accuracy	Z-axis	≤(4+L/200)μm
Optical	CCD	SONY Color Camera
Lighting	System	Adjustable LED ring surface light and contour light
Environment	Working Conditions	20ºC±3ºC, Humidity: 45%~75%

⚙

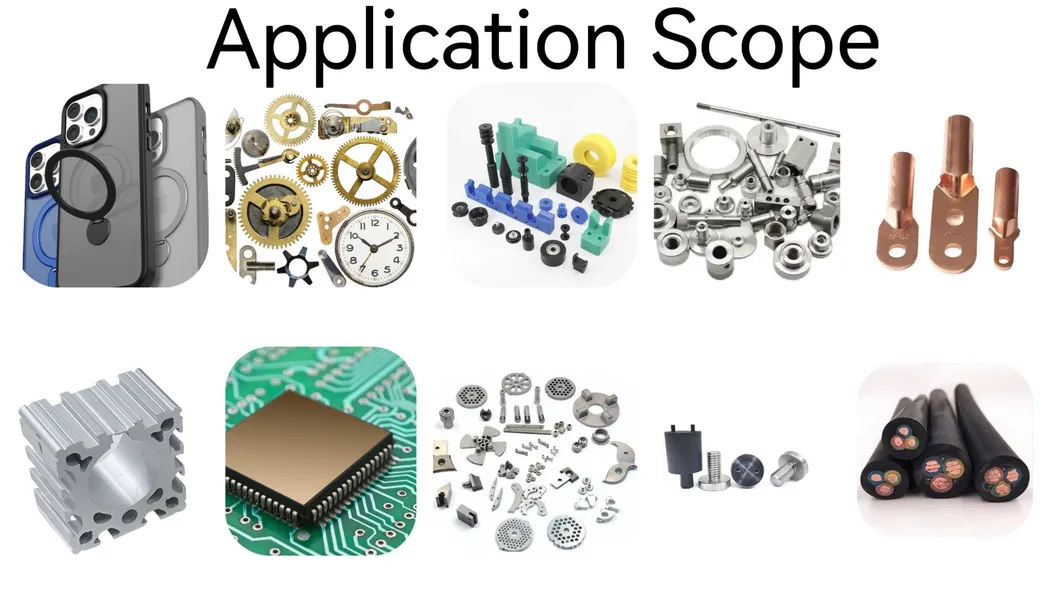

Product Applications

This vision system is ideal for non-contact measurement and detailed inspection across various industries, including:

Stamped and injected plastic parts
Injection moulds and precision hardware
Electronic components and PCB assemblies
Silk screen printing and lead industries

✈

Packaging & Shipping

Package Size

174.00cm * 132.00cm * 176.00cm

Gross Weight

700.000kg

Packing Type

Professional Wooden Case

✔

Certifications

Our manufacturing processes and products meet international quality standards:

ISO 9001:2008 Quality Management System
CE Certification

?

Frequently Asked Questions

Is your company a factory or a trading company?

We are a professional manufacturer with over 20 years of worldwide manufacturing experience, supported by a dedicated team of professional engineers.

How can I obtain detailed technical specifications and pricing?

You can send us an inquiry through our messaging system. Please specify the information you require, such as detailed machine data, terms of shipment, or current pricing, and we will respond promptly.

How do you ensure the quality of the machines?

Quality is ensured through ISO 9001:2008 and CE standards. We utilize key components from top-tier suppliers in Japan, Germany, and Taiwan. Before shipping, every machine undergoes a Factory Acceptance Test (FAT), and a verification video is provided to the client.

What is the procedure if a machine malfunctions?

For any non-manmade errors occurring within the guarantee period, we provide replacement parts free of charge. We also offer technical support and can arrange overseas service based on mutual agreement.

What is your annual production capacity?

Our current production capacity is approximately 5,000 units per year, ensuring reliable supply for global demand.

What kind of after-sales service is provided?

We offer a one-year warranty on the main board and life-long maintenance services for all our measuring products to ensure long-term operational stability.
