High Precision XYZ Multi Axis Gantry System

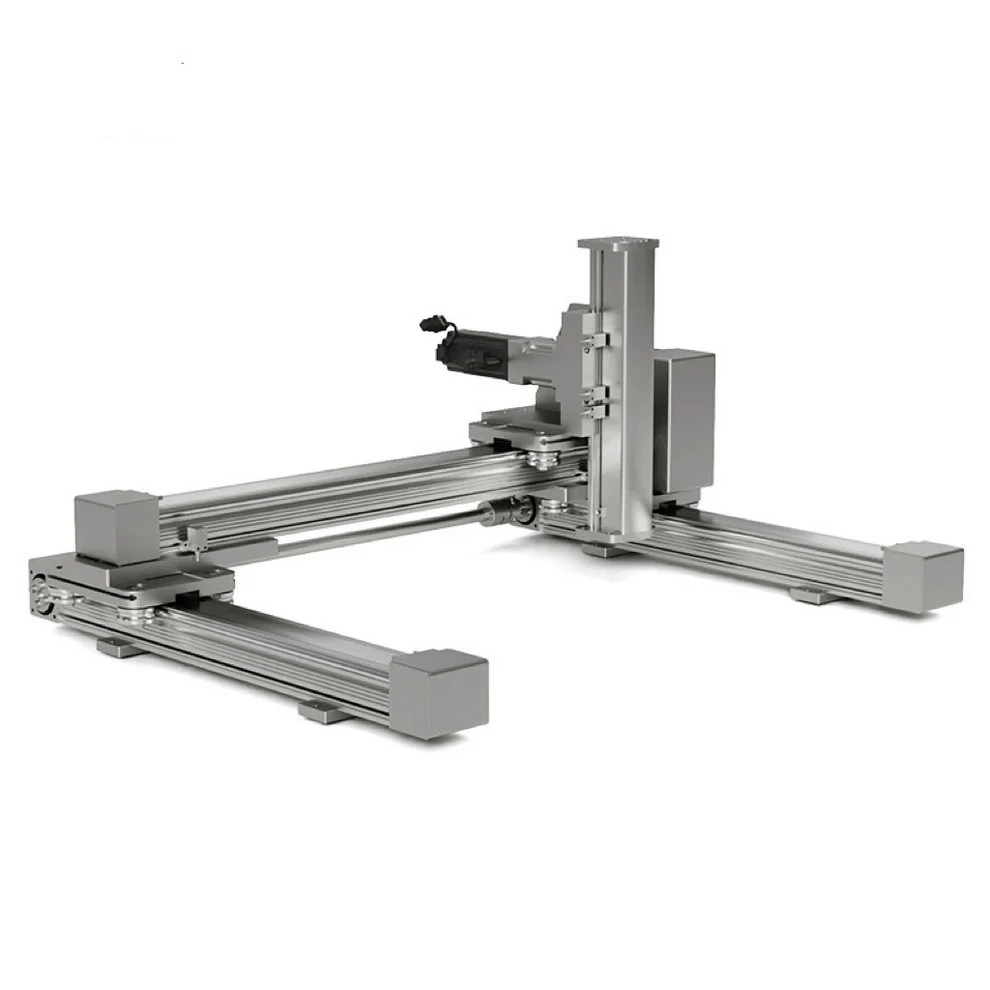

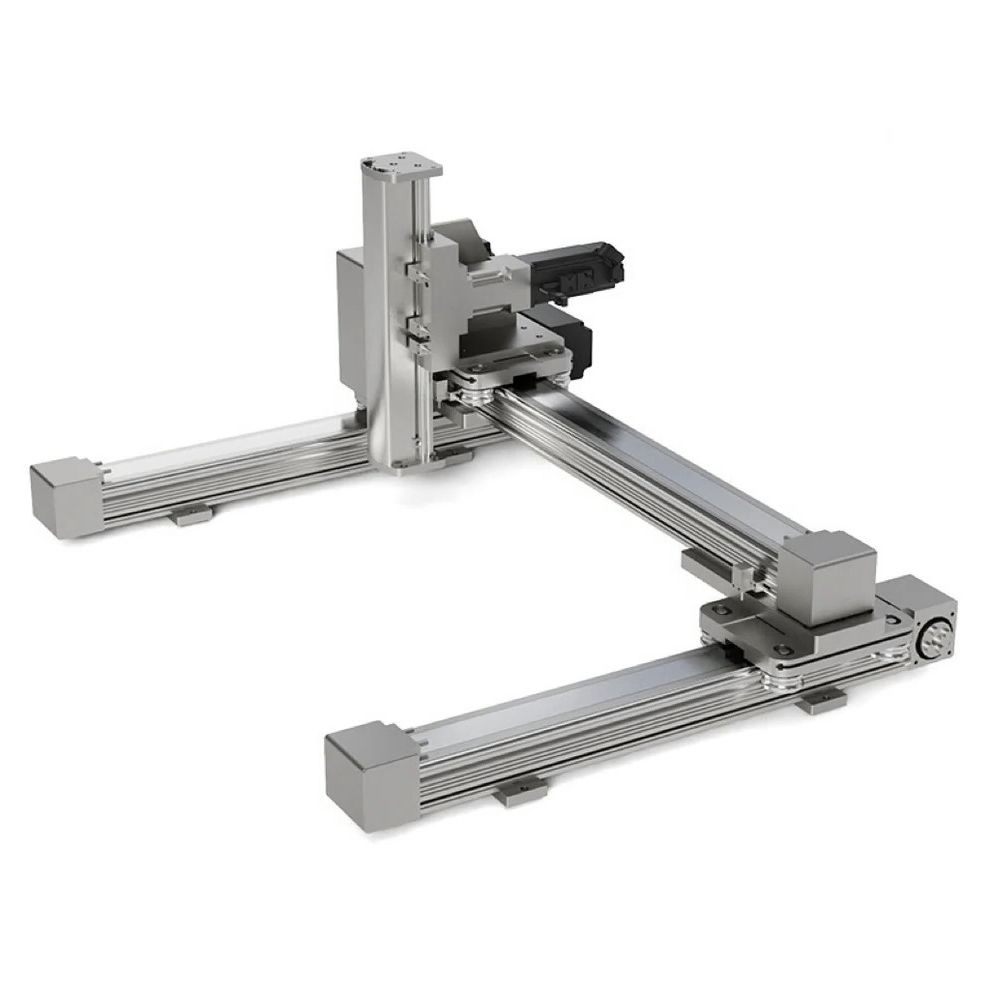

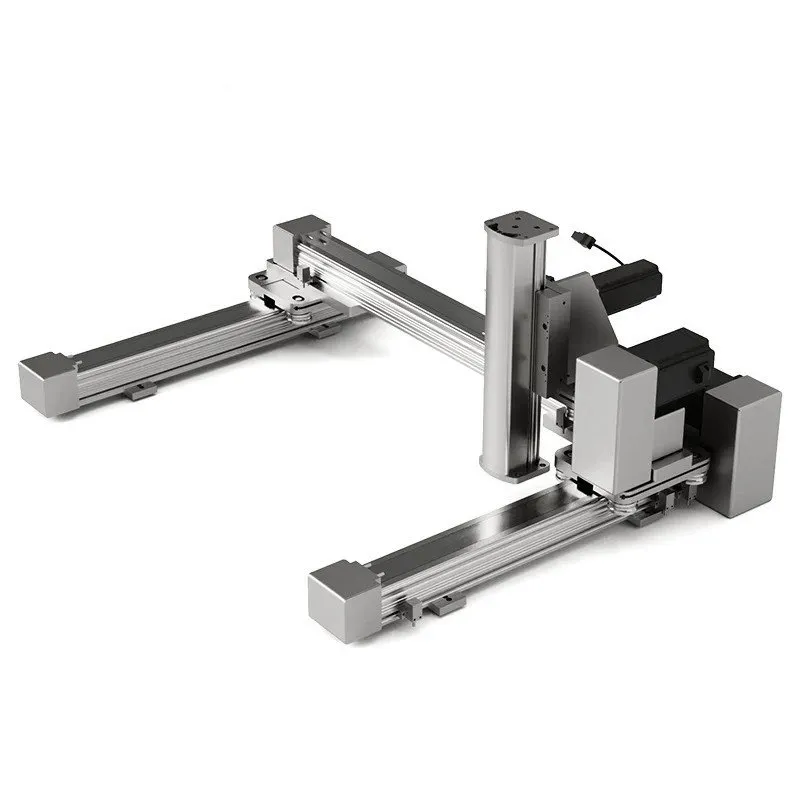

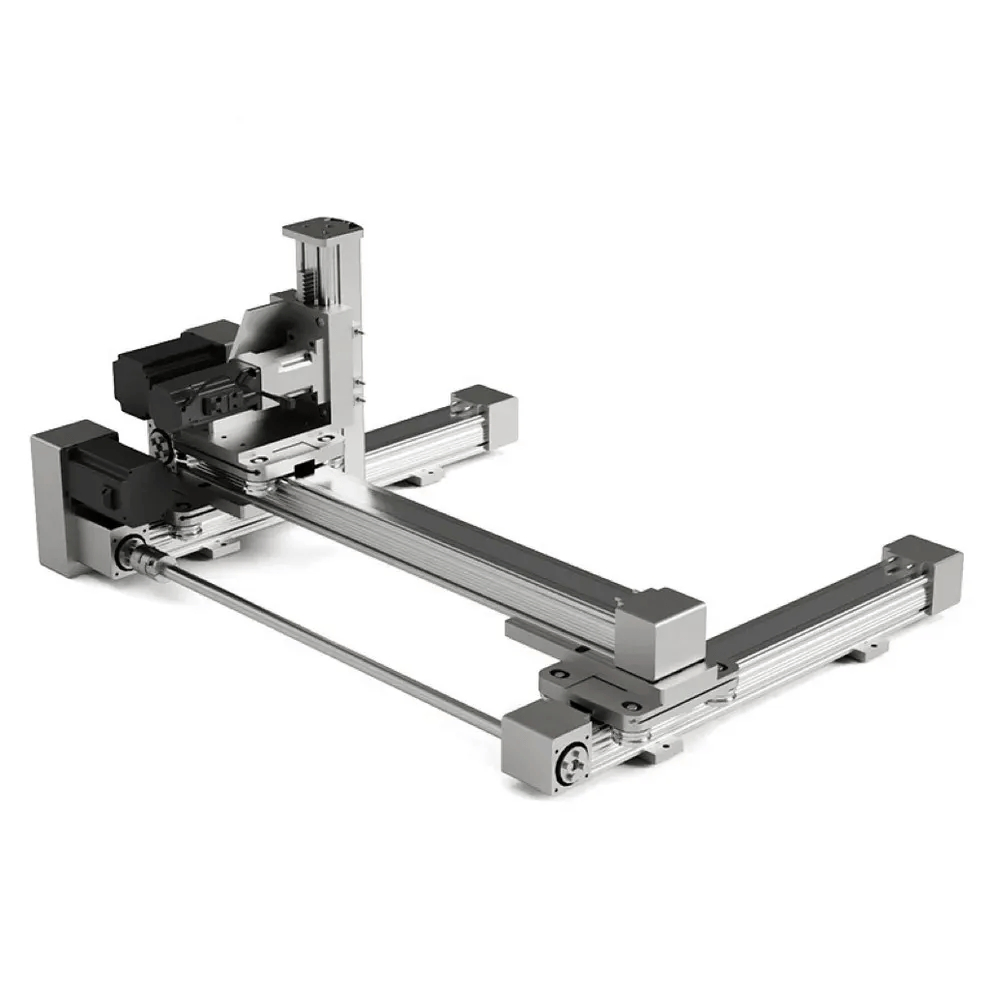

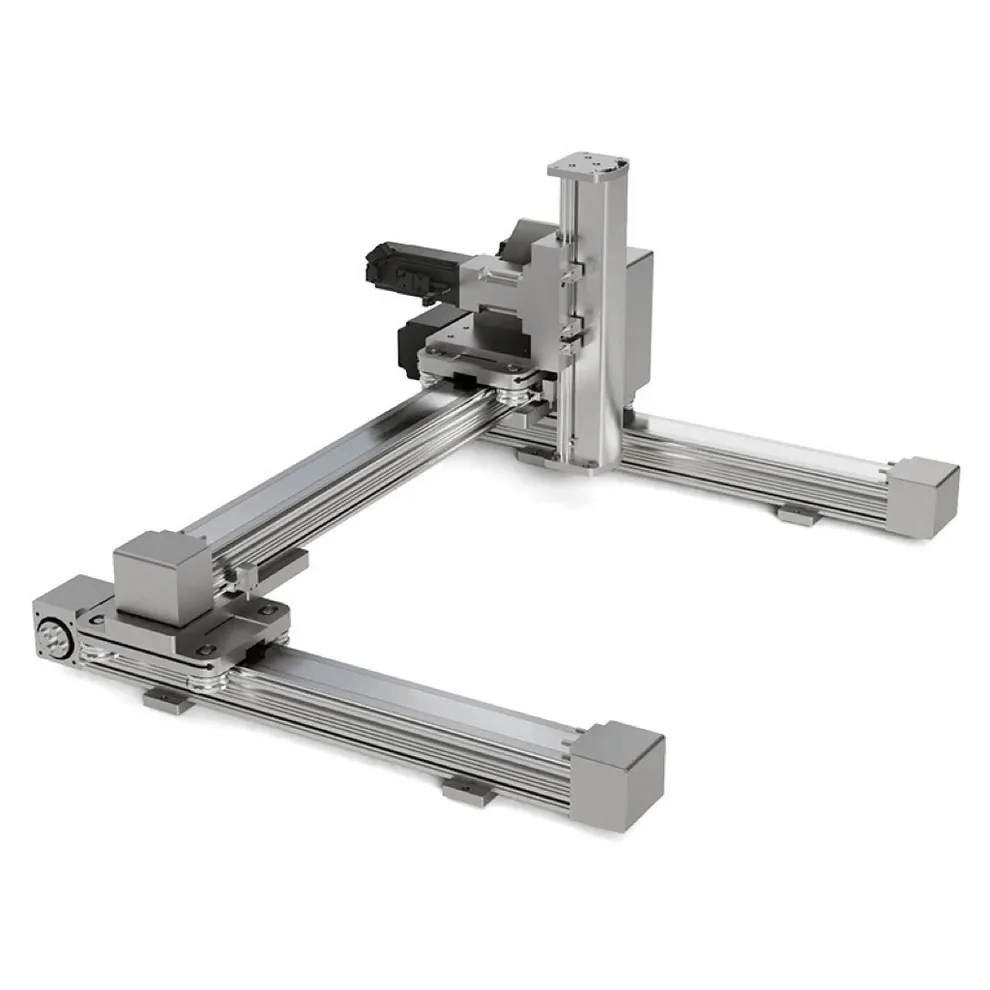

The XYZ Multi Axis Gantry Cartesian Robot is a high-precision linear motion automation system designed for complex industrial applications. Built with a rigid gantry frame and modular XYZ structure, it supports long travel distances, heavy payload handling, and accurate multi-axis positioning.
Common Applications:
✔Pick & Place Automation – High-speed handling in electronics and assembly.
✔CNC Machine Tending – Automatic loading/unloading of machining centers.
✔Palletizing & Depalletizing – Efficient handling for warehouse logistics.
✔Material Handling – Transporting and stacking with high payload capacity.
✔Laser Cutting & 3D Printing – Supports long-travel, multi-axis operations.
▶
Key Configurations & Performance
●Motion Axes: X, Y, Z multi-axis linear gantry configuration.
●Drive System: Belt-driven, ballscrew-driven, or rack & pinion.
●Payload Capacity: 50kg to over 500kg.
●Positioning Accuracy: ±0.02mm repeatability with servo motor drive.
●Travel Length: Customizable up to 10,000mm+.
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
i
Professional Automation Solutions
Specializing in the design, manufacturing, and customization of advanced Linear Motion Solutions tailored for a wide range of industrial applications. Our commitment to innovation ensures cost-effective automation products backed by reliable factory warranty.
Frequently Asked Questions
What is the standard lead time for customized gantry systems?
Customized units typically require 20–45 days depending on the complexity of the configuration and stroke length.
What drive systems are available for the XYZ axes?
We offer belt-driven, ballscrew-driven, or rack & pinion-driven options to meet different speed, precision, and load requirements.
What is the maximum travel length possible?
The system is modular and customizable; we can provide travel lengths up to 10,000mm and beyond for large-scale industrial handling.
Can the system be integrated with existing PLC controllers?
Yes, our systems are compatible with major industrial PLC, HMI, and PC-based control systems for seamless factory integration.
Do you provide technical documentation for export?
Yes, we provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
What is the positioning repeatability of the robot?
With high-precision servo motor drives and encoder feedback, we achieve a repeatability of ±0.02mm.
