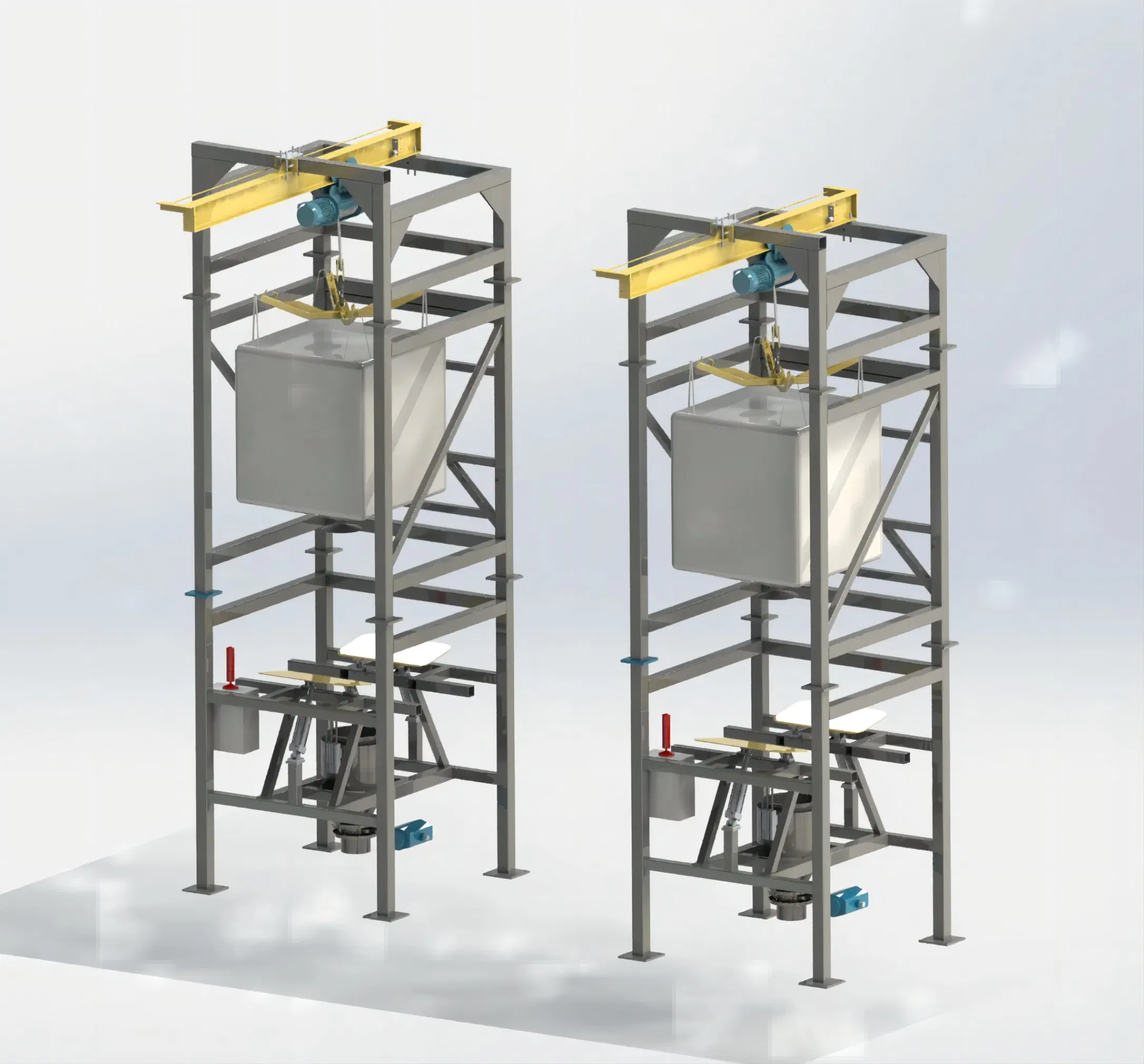

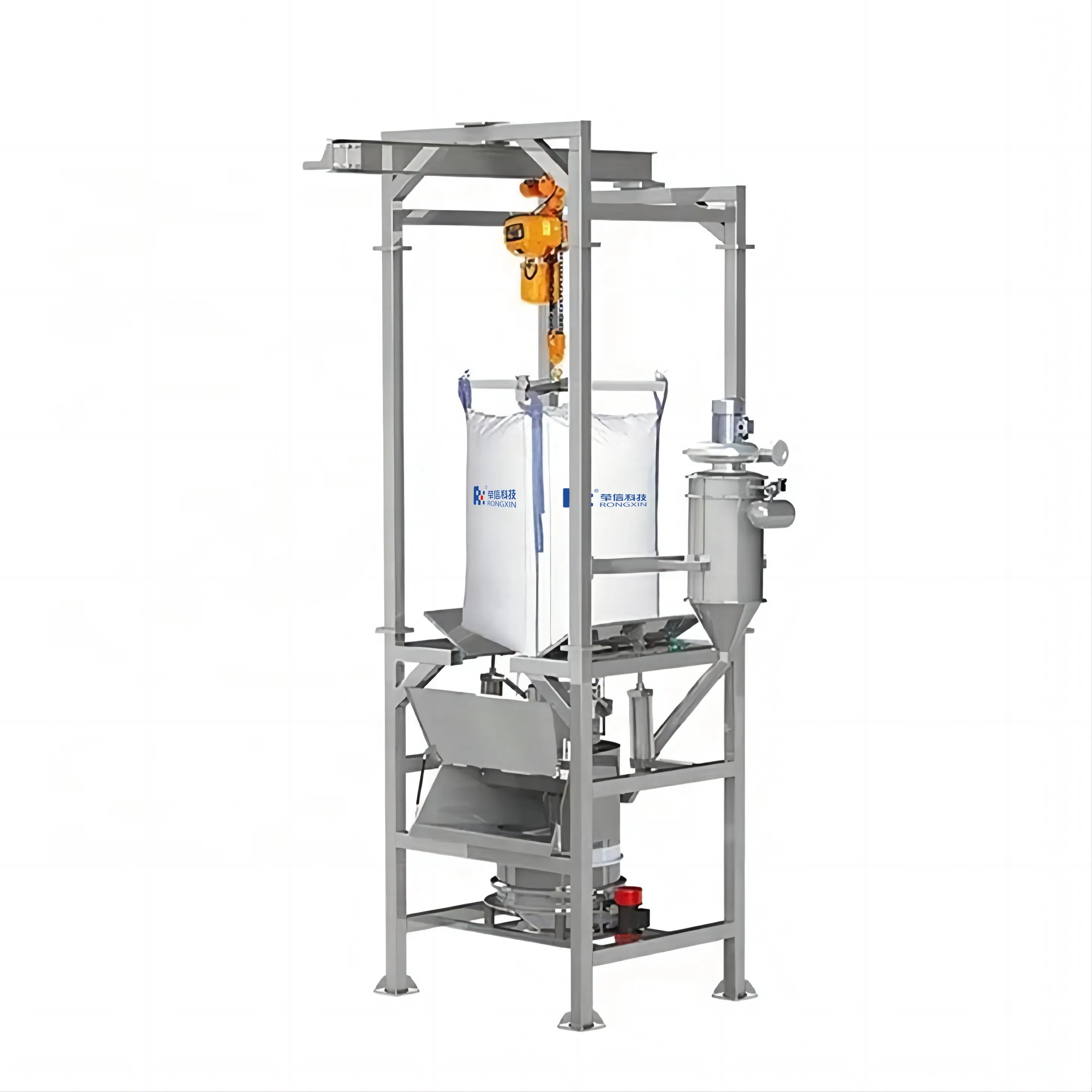

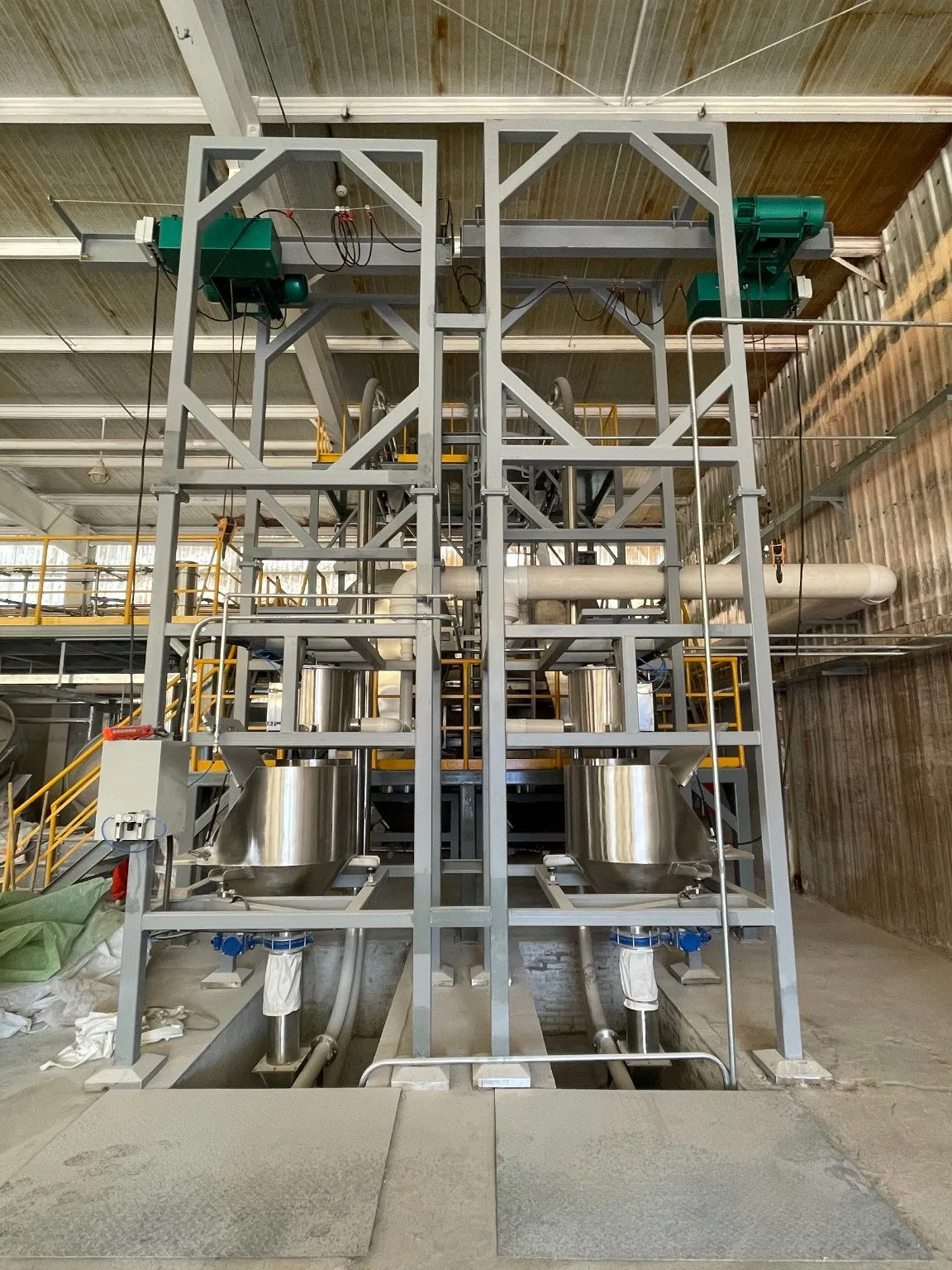

Industrial Dust Control System with PLC Automation Technology

Customization: Available
Accuracy: Customized
Capacity(t/h): 150-300

Product Description

Basic Specifications

Model NO.
Ton Bag Unloader RX-1
Feeding Rate Control
Semi-Automatic
Hopper Capacity
Customized
Motor Power(kw)
1~10
Control Method
Button / PLC
Voltage
220V~600V
Feeding Method
Gravity Attraction
Trademark
RONGXIN

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 200.00cm
Gross Weight
3000.000kg
Transport Package
Non-Fumigated Wooden Box

Product Description

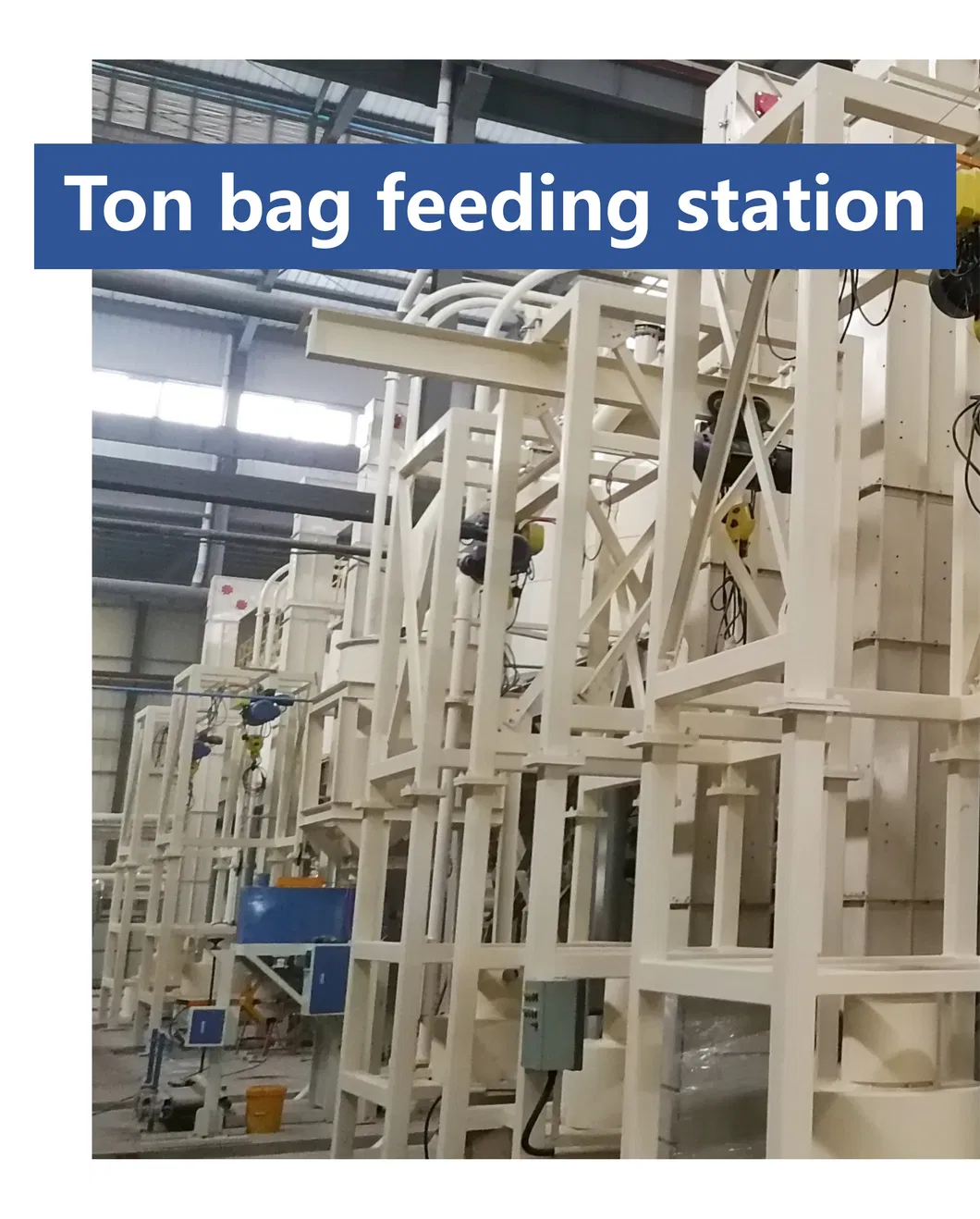

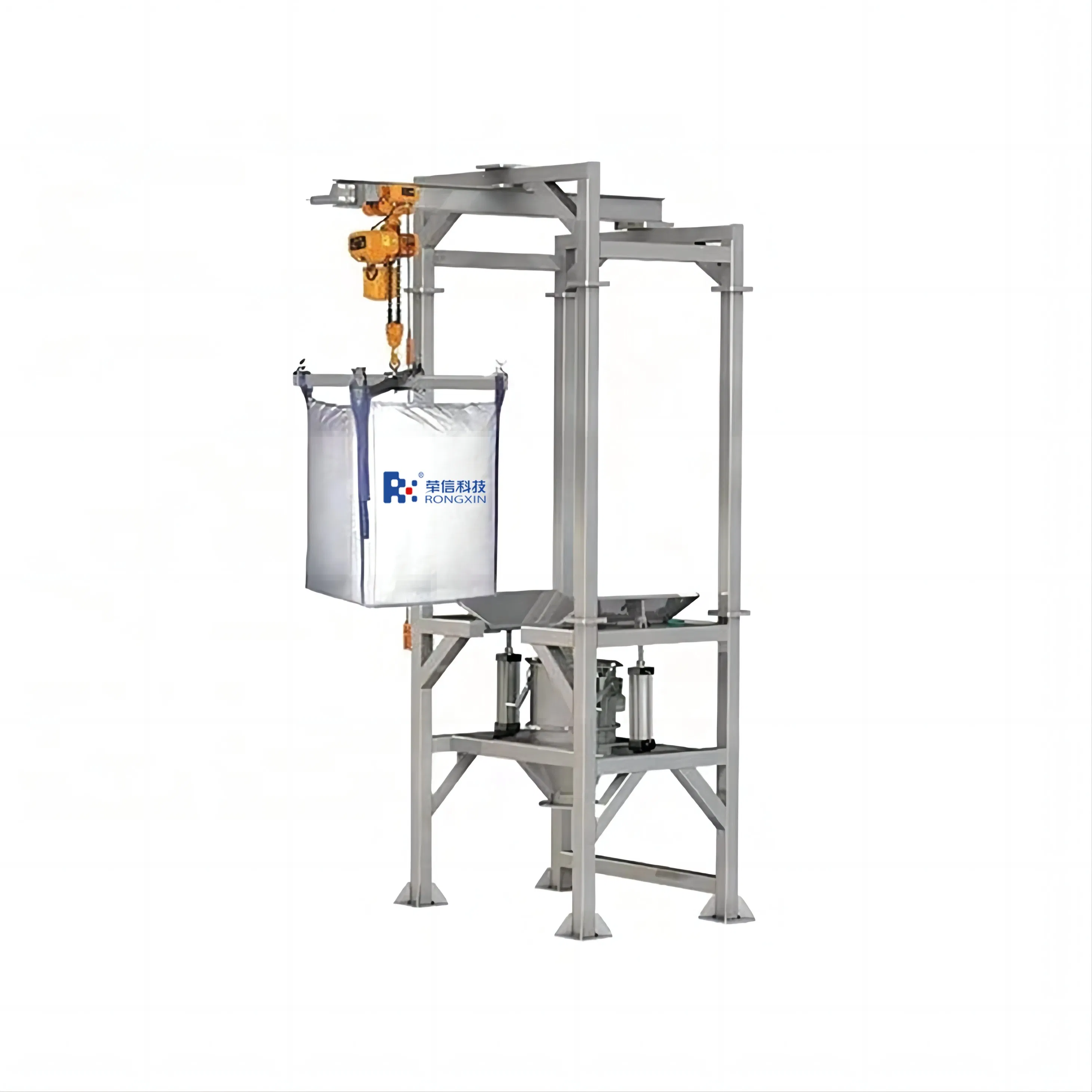

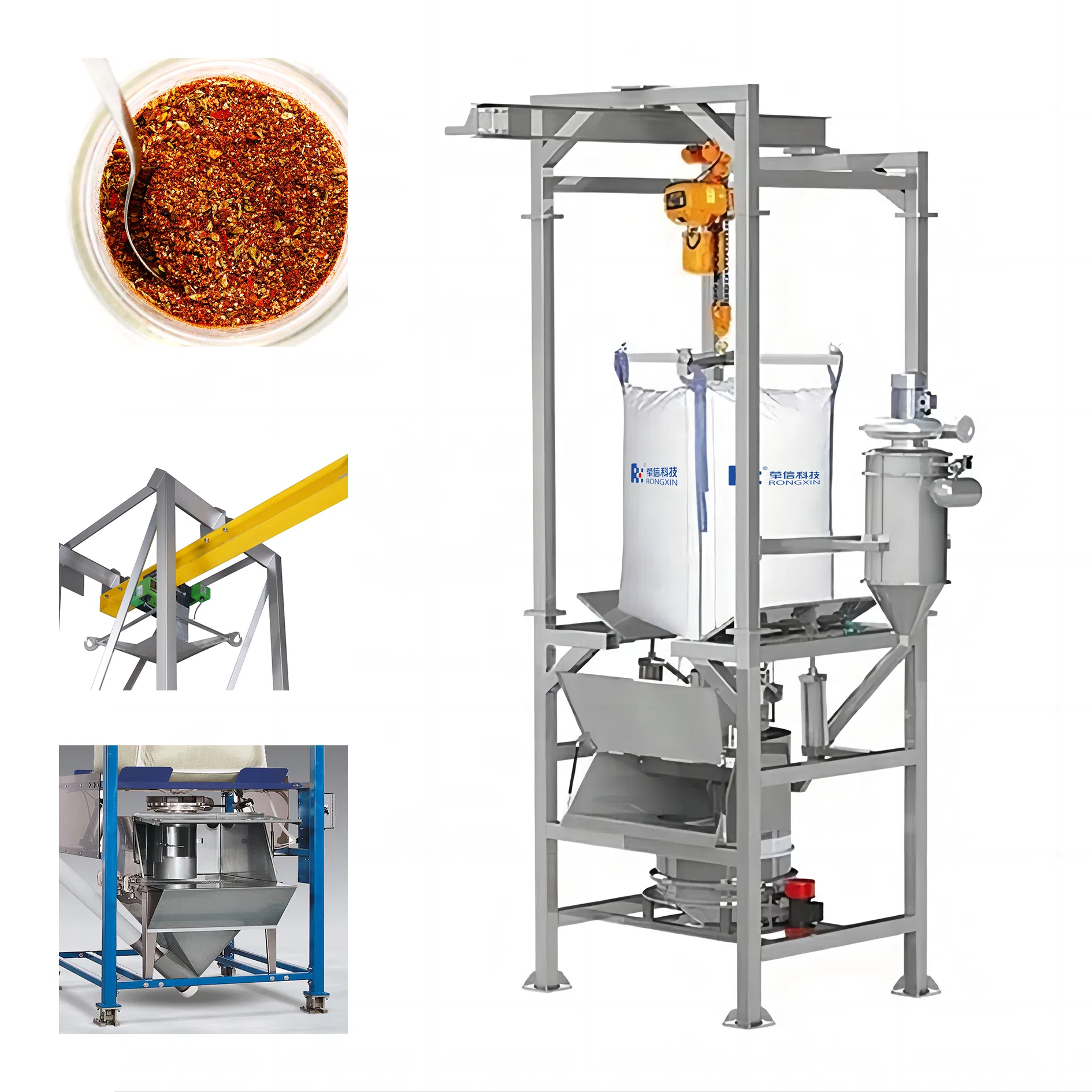

Ton Bag Feeding Station

The Ton Bag Feeding Station boasts a sleek and intuitive design, coupled with cutting-edge automation features. This innovative combination dramatically enhances feeding efficiency and significantly minimizes the labor-intensive tasks usually demanded of operators.

Moreover, it can be outfitted with a sealed bag clamp to ensure an airtight bag opening, effectively preventing any dust dispersion. For materials with poor flowability, additional vibration or tapping devices can be incorporated to enable seamless and efficient unloading.

Unpacking methods include manual assistance for bag opening or automatic knife cutting, catering to various types of ton bags. The high efficiency of this station effectively tackles challenges such as clumping and discharge issues caused by moisture absorption.

divider
  • Features a simplistic structure, easy installation, and user-friendly operation.
  • Significantly reduces material residues, preventing potential cross-contamination.
  • Expertly handles the unloading of a diverse array of materials via various accessories.
  • Ensures sealed unloading to eliminate dust dispersion, enhancing the working environment.
  • Effortlessly connects to equipment such as glove boxes, hoppers, and reactors.
  • Generates no heat during the opening process, mitigating explosion risks.

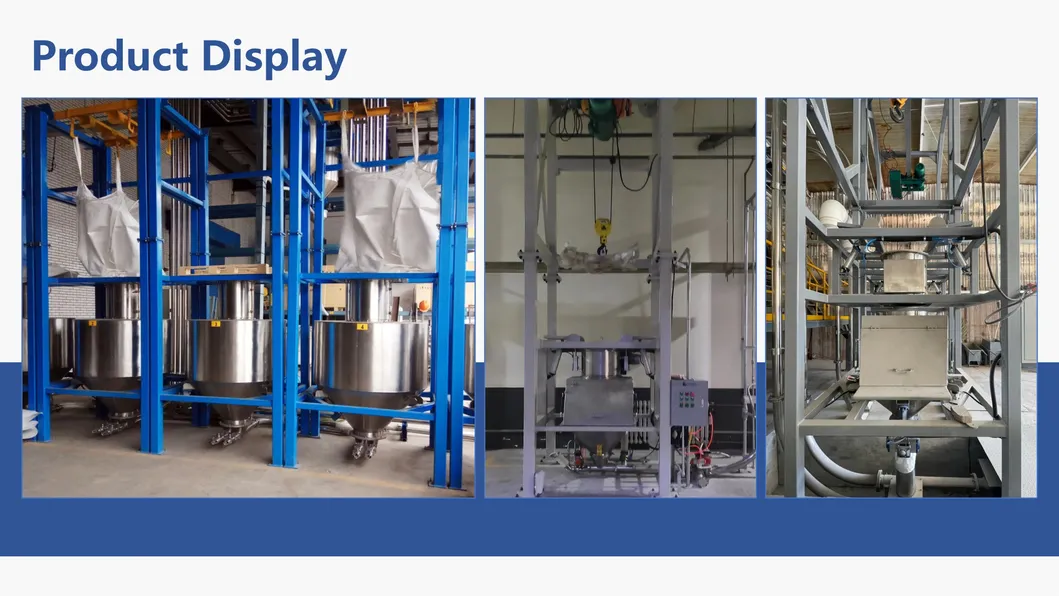

Dust Control System
divider
Structural Unit Specification Material
Pounding Device Pneumatic Control Q235/304/316L
Stainless Steel
Electric Hoist (Lifting Capacity) 1T/2T/3T
Temporary Storage Bin 0.4m³
Hanging Bracket 800-1200mm
Dust Removal Device 0.5-10μm Filter Bag/Cartridge
Unpacking Method Manual/Automatic Q304 Stainless Steel

Our Valued Customers

Customers

Frequently Asked Questions

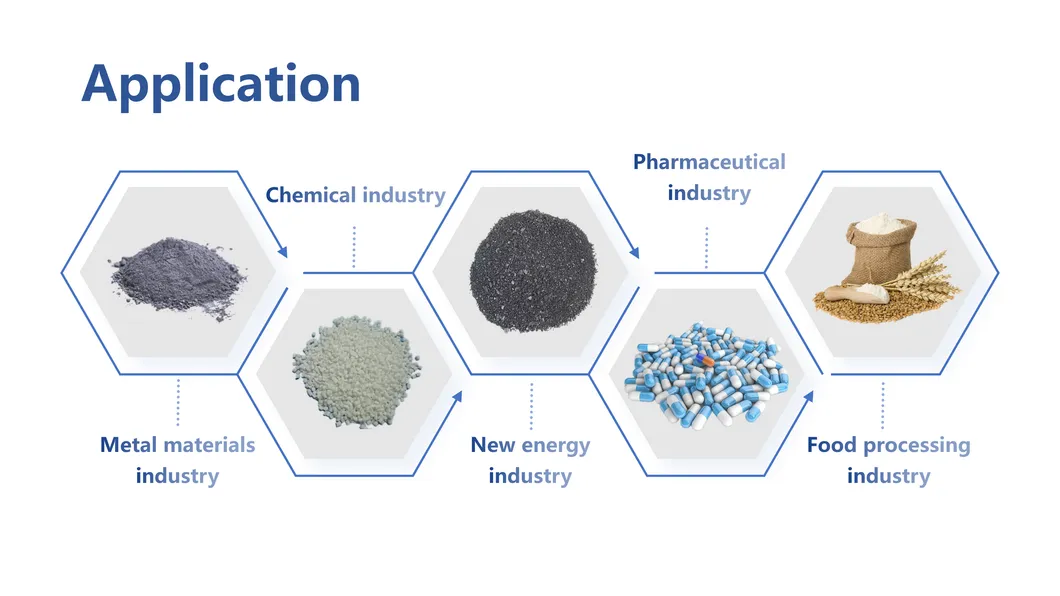

What industries is this ton bag unloader suitable for?
It is extensively used in building materials, the chemical industry, metallurgy, food processing, and the new energy sectors.
How does the system prevent dust pollution?
The station features a sealed bag clamp for airtight opening and can be integrated with a dust removal device (0.5-10μm) to eliminate dispersion.
Can it handle materials with poor flowability?
Yes, the system can be equipped with pneumatic pounding devices or vibration units to ensure smooth and efficient unloading of difficult materials.
What control methods are available?
The equipment supports both simple Button control and advanced PLC automation technology to suit different operational needs.
Is the lifting capacity customizable?
The electric hoist comes with standard lifting capacities of 1T, 2T, and 3T, allowing for the handling of various bag sizes.
