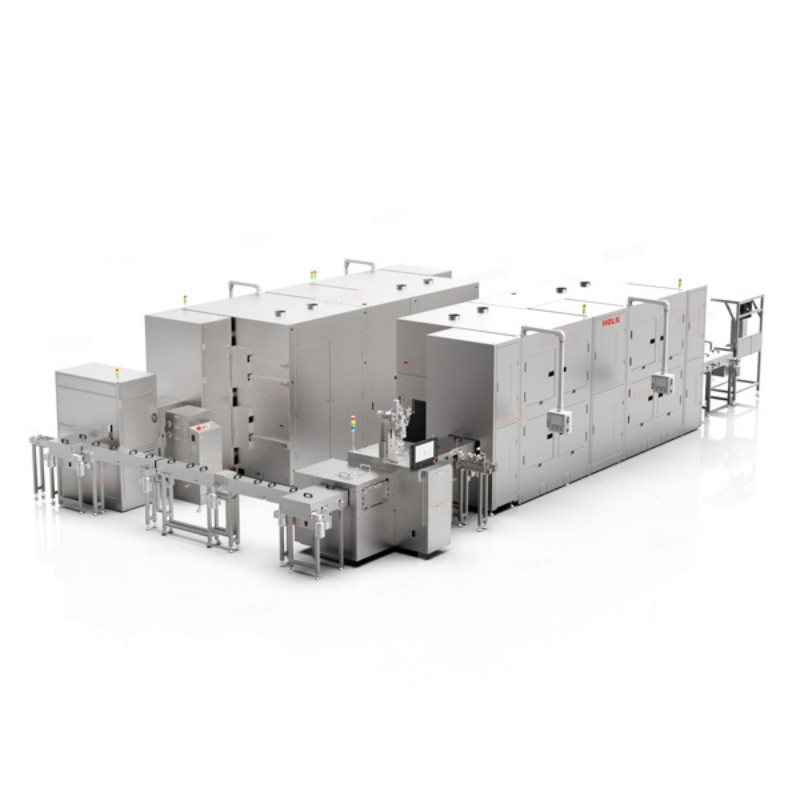

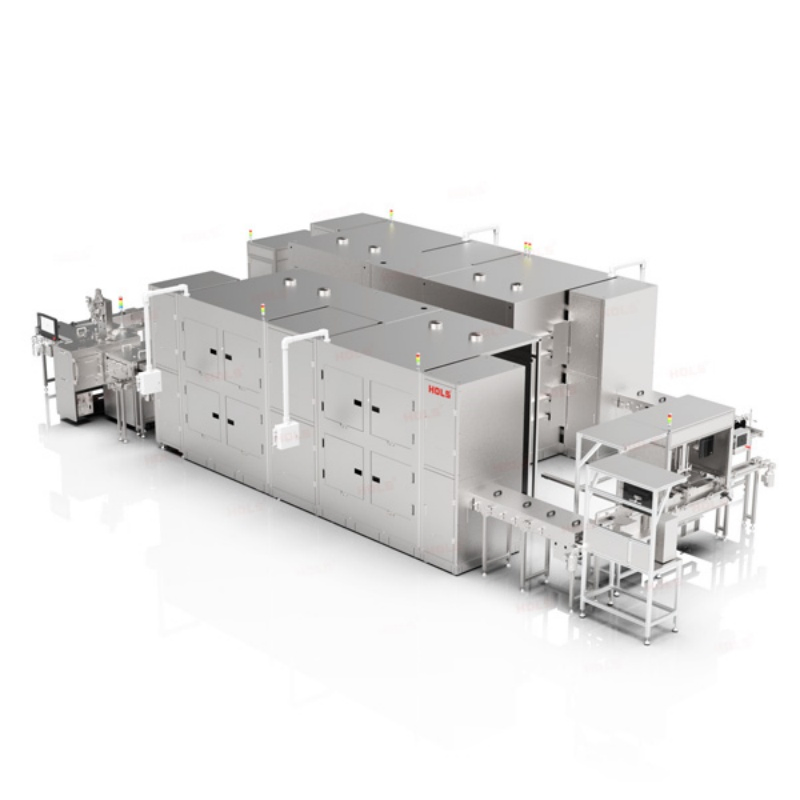

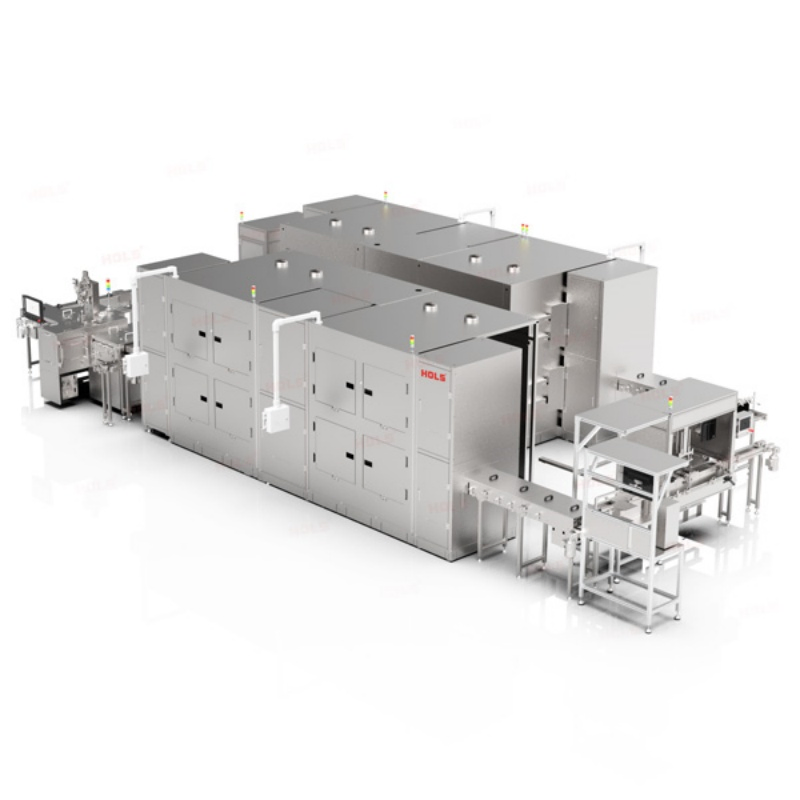

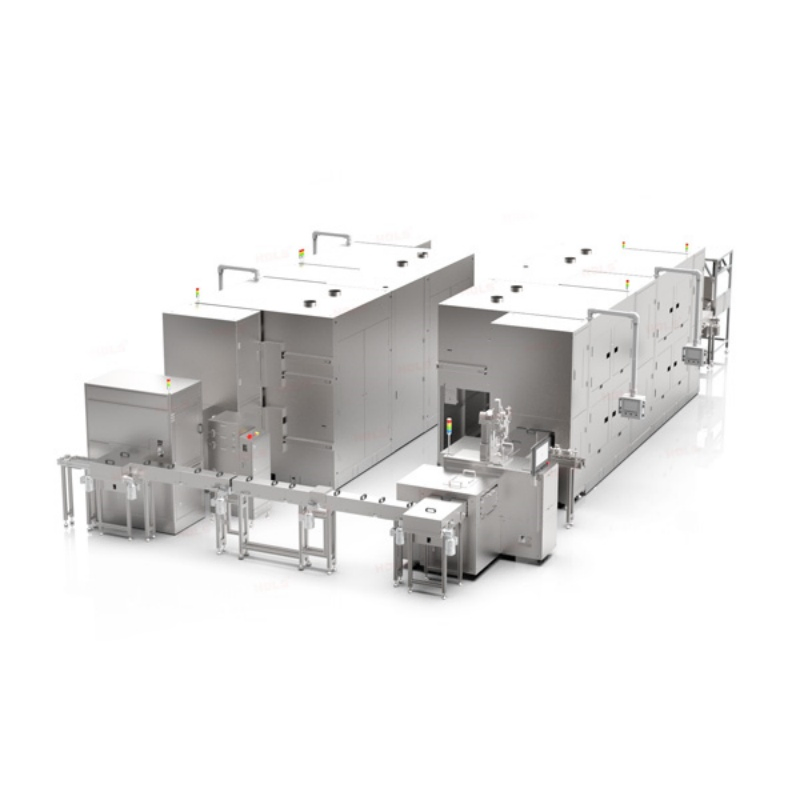

High-Performance IGBT Power Module Packaging Solutions for Reliability

Customization:	Available
Application:	Automotive Industry, Electronics Industry, Semi-Conductor Industry
Coating Type:	Adhesive Coating

📋 Basic Information

Model NO.

IGBT Production Line

Heating system

Tunnel Type Multi-Layer Curing Oven

Warranty

Online Service

Power

3.5 Kw

Voltage

380V

Air Pressure

0.3-0.6 MPa

Min. Output

0.3ml

Customization

Available

Transport

Wooden Case

Package Size

220cm * 182cm * 190cm

Gross Weight

2200.00kg

⚙️ Product Description

High-Performance IGBT Power Module Packaging

Applicable Industries: Pioneering solutions for New Energy Vehicles, Semiconductors, and Healthcare sectors.

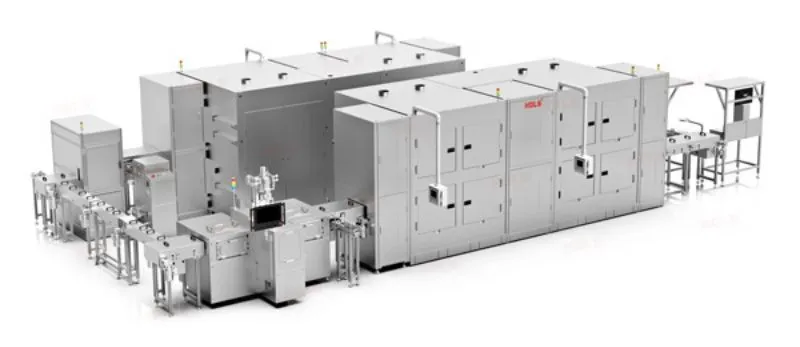

🔄 Working Process:

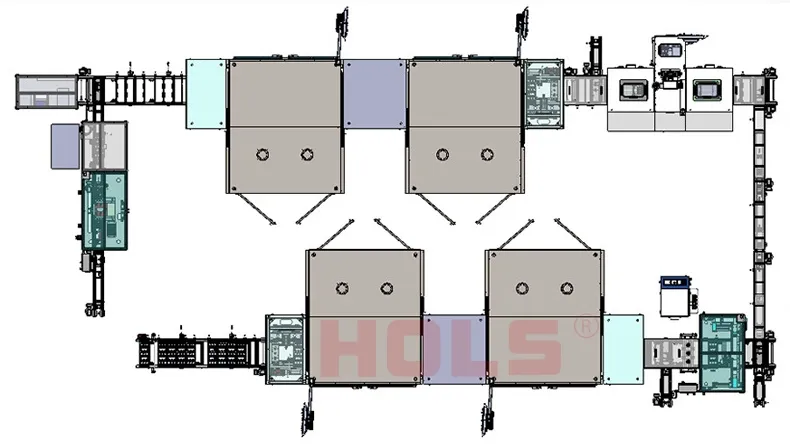

Seamlessly retrieve product → Enter high-temperature oven for premium curing → Proceed to cooling furnace → Automatic cleaning and dust removal → Precision vacuum dispensing → Return to high-temperature oven → Transition to cooling furnace → Advance to subsequent stage.

The IGBT module is indispensable across rail transit, photovoltaic power generation, and automotive electronics. With the rise of new energy vehicles, high-efficiency IGBTs are crucial for minimizing power consumption and heat. Our advanced packaging technology ensures reliability through precision screen printing, mounting, bonding, and functional testing.

Industrial curing ovens are utilized to induce chemical reactions, securing finishes or adhesives, and solidifying epoxies to create robust materials that withstand extreme temperature, humidity, and corrosion.

⭐ Key Advantages

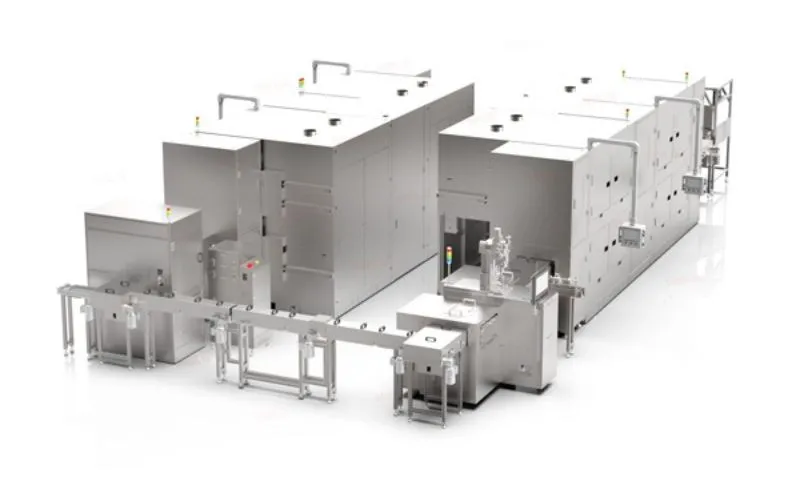

Degassing Technique: Low-viscosity materials self-degas effectively; vacuum degassing significantly accelerates the process for high-viscosity products.

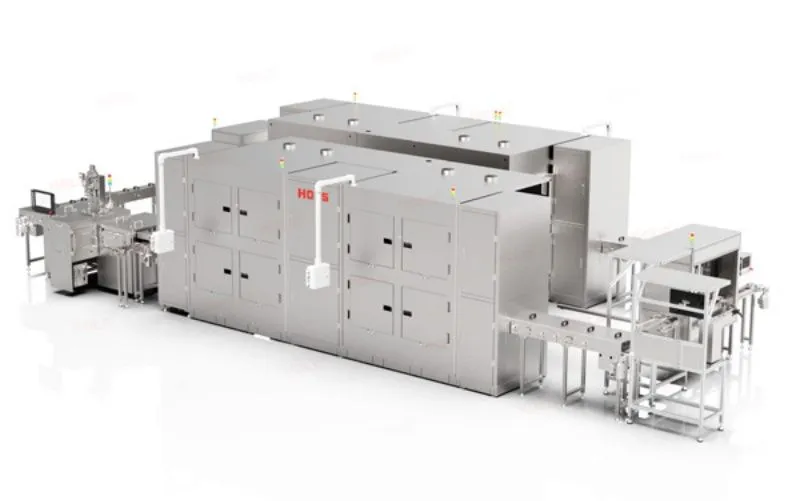

Vacuum Potting Technology: Innovative technology prevents air inclusion; operating in a vacuum environment enhances final product performance.
Significant Reduction of Voids: Meticulously designed production lines and processes are engineered to minimize voids, optimizing overall reliability.

🌐 Application & Distribution

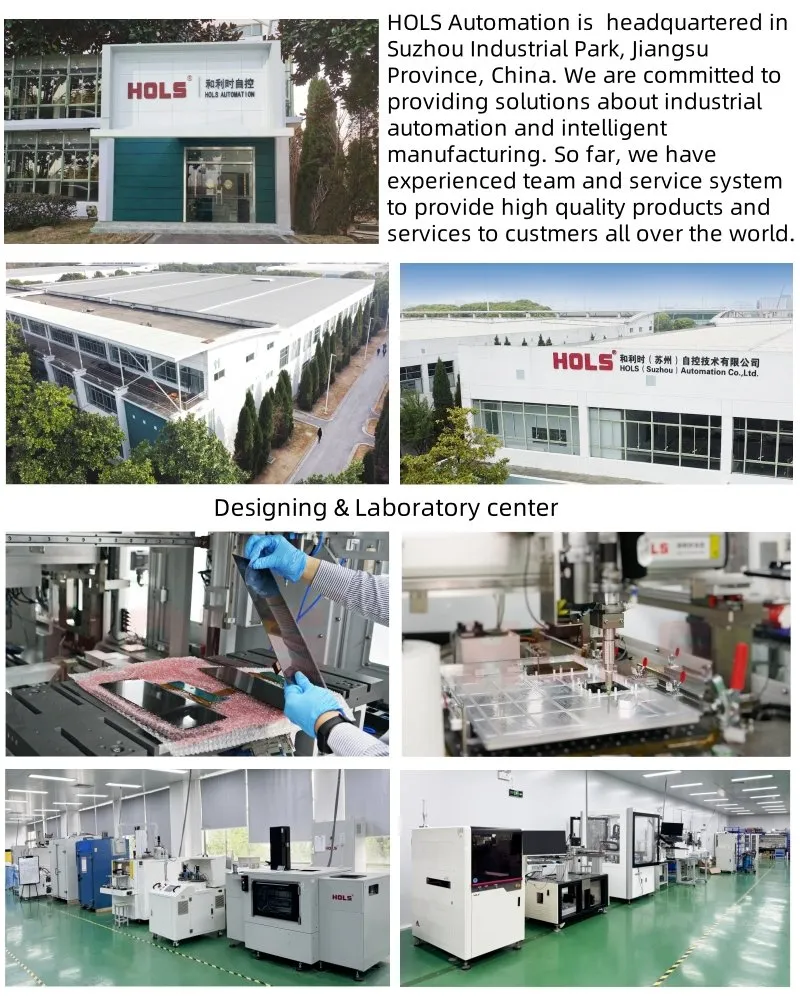

🏢 Industrial Capability

Global Office Distribution

❓ Frequently Asked Questions

1. What industries primarily use the IGBT dispensing and curing line?

The assembly line is specifically designed for New Energy Vehicles, Semiconductors, Healthcare sectors, Rail Transit, and Photovoltaic power generation.

2. How does the vacuum potting technology benefit the product?

Vacuum potting prevents air from being trapped during the dispensing process, which significantly reduces voids and enhances the electrical and structural performance of the IGBT modules.

3. What is the role of the Tunnel Type Multi-Layer Curing Oven?

It provides superior temperature uniformity to ensure optimal chemical curing of adhesives and epoxies, resulting in a robust coating that resists humidity and corrosion.

4. Can the production line handle materials with different viscosities?

Yes. It features specialized degassing techniques: low-viscosity materials degas naturally, while high-viscosity products are processed using vacuum degassing to ensure quality.

5. Is the equipment customizable for specific production requirements?

Absolutely. All specifications, including dimensions and output volumes, can be customized to meet the specific technical and production needs of the customer.

6. What is the standard packaging for shipping?

The equipment is securely packed in high-quality wooden cases to ensure safe international transport and delivery.
