Customization: Available
After-sales Service: Provide
Warranty: 1 Year
Send Inquiry

Product Description

★

Basic Specifications

Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level
Moves
Vehicular
Driven Type
DC
Certification
GS, CE, RoHS, ISO 9001
Protection Rating
IP54
Voltage
380 V
Control Method
Pendant + Remote (Customized)
Material
Metal
Working Temperature
-40~150℃
Lifting Speed
9-10m/Min
📦

Packaging & Delivery

Package Size
1200.00cm * 240.00cm * 250.00cm
Gross Weight
700.000kg
Transport Package
Wooden Boxes
📝

Product Description

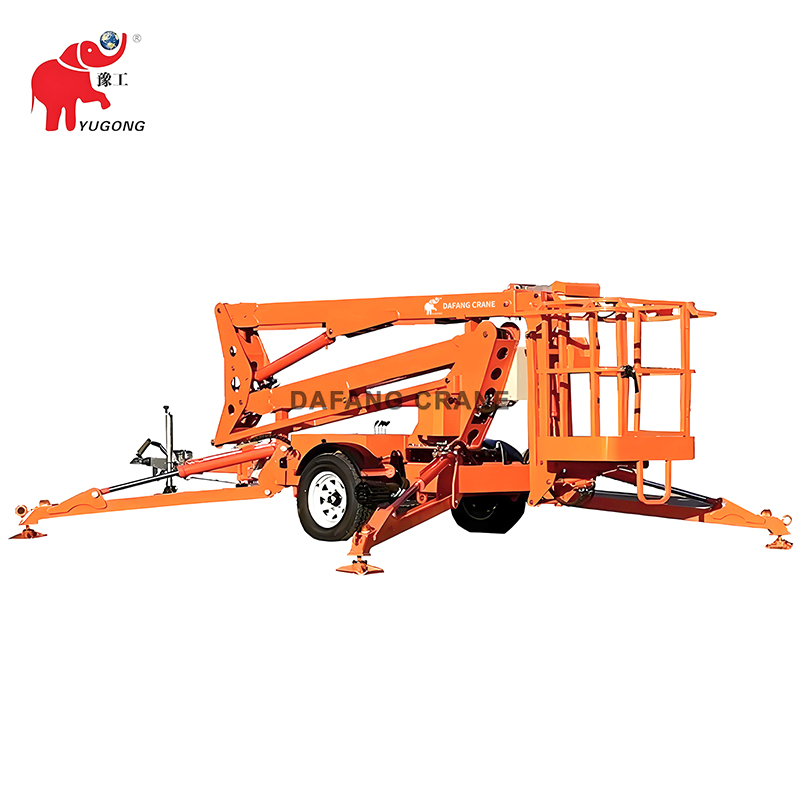

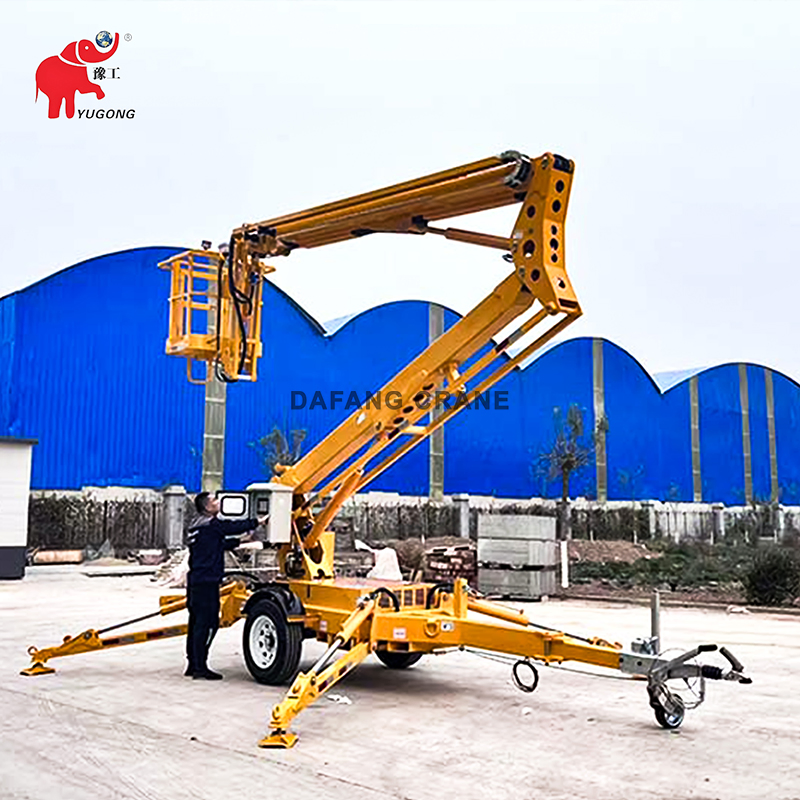

Towable Articulating Boom Lift
✔ Features: Adopting multi-section articulated arm telescopic mechanism, capable of vertical lifting and horizontal extension, large operating radius.
✔ Advantages: Flexible and maneuverable, able to cross obstacles for operations, lifting height 10-20 meters, suitable for high-altitude maintenance and curtain wall installation.
✔ Scenarios: Construction sites, bridge inspection, airport terminal maintenance.
Model 10A 12A 14A 16A 18A 20A
Lifting height 10M 12M 14M 16M 18M 20M
Working height 12M 14M 16M 18M 20M 22M
Load capacity 200KG
Platform size 0.9*0.7M
Working radius 5.5M 6.5M 8.5M 10.5M 11M 11M
Net Weight 1855KG 2050KG 2500KG 2800KG 2800KG 2800KG
Overall Size (L*W*H) 5.2*1.7*2.1M 6.2*1.7*2.1M 5.6*1.7*2.1M 5.7*1.7*2.2M 6.5*1.8*2.3M 5.8*1.9*2.3M
Articulating Boom Lift 1
Articulating Boom Lift 2

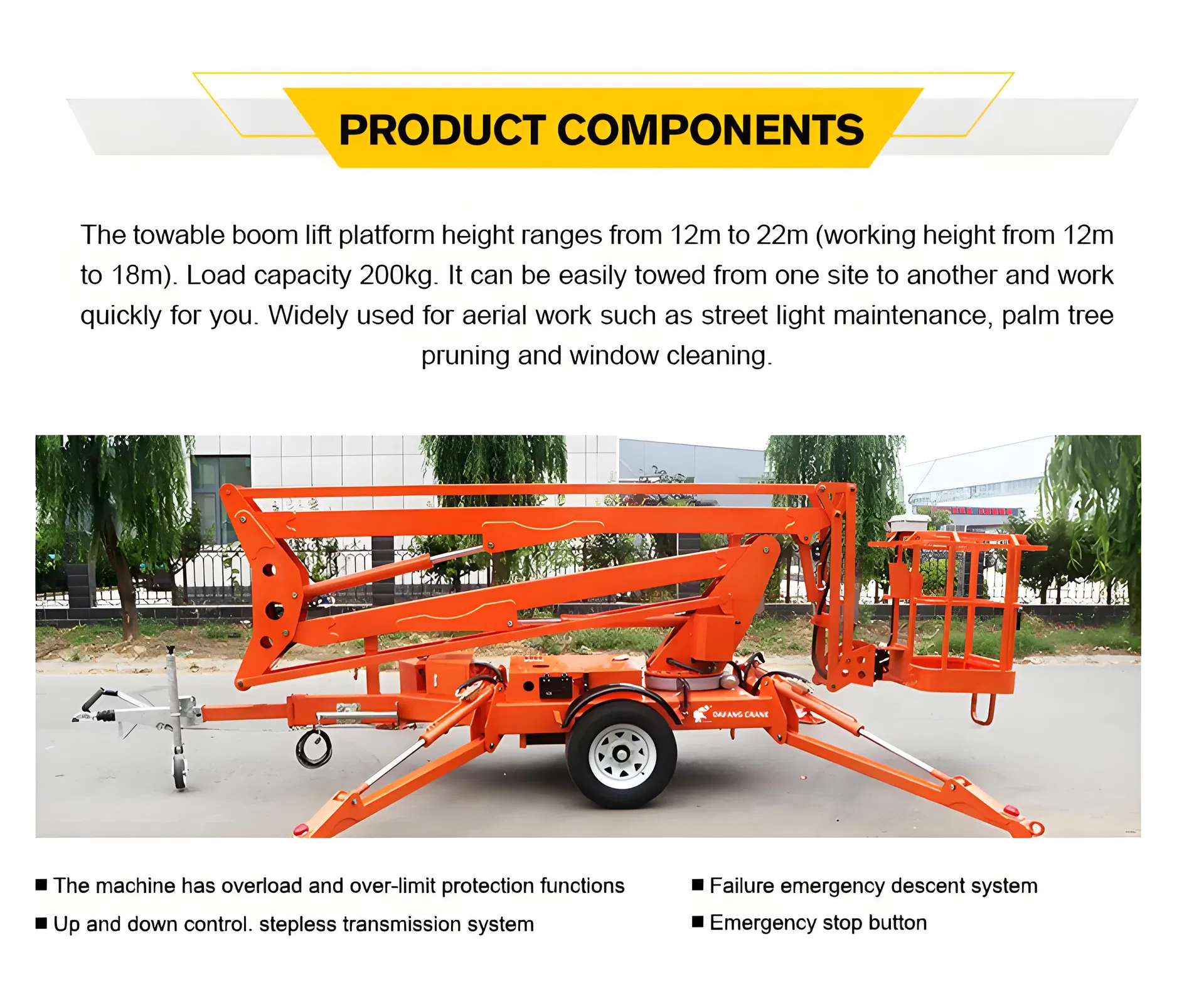

Lift Details 1

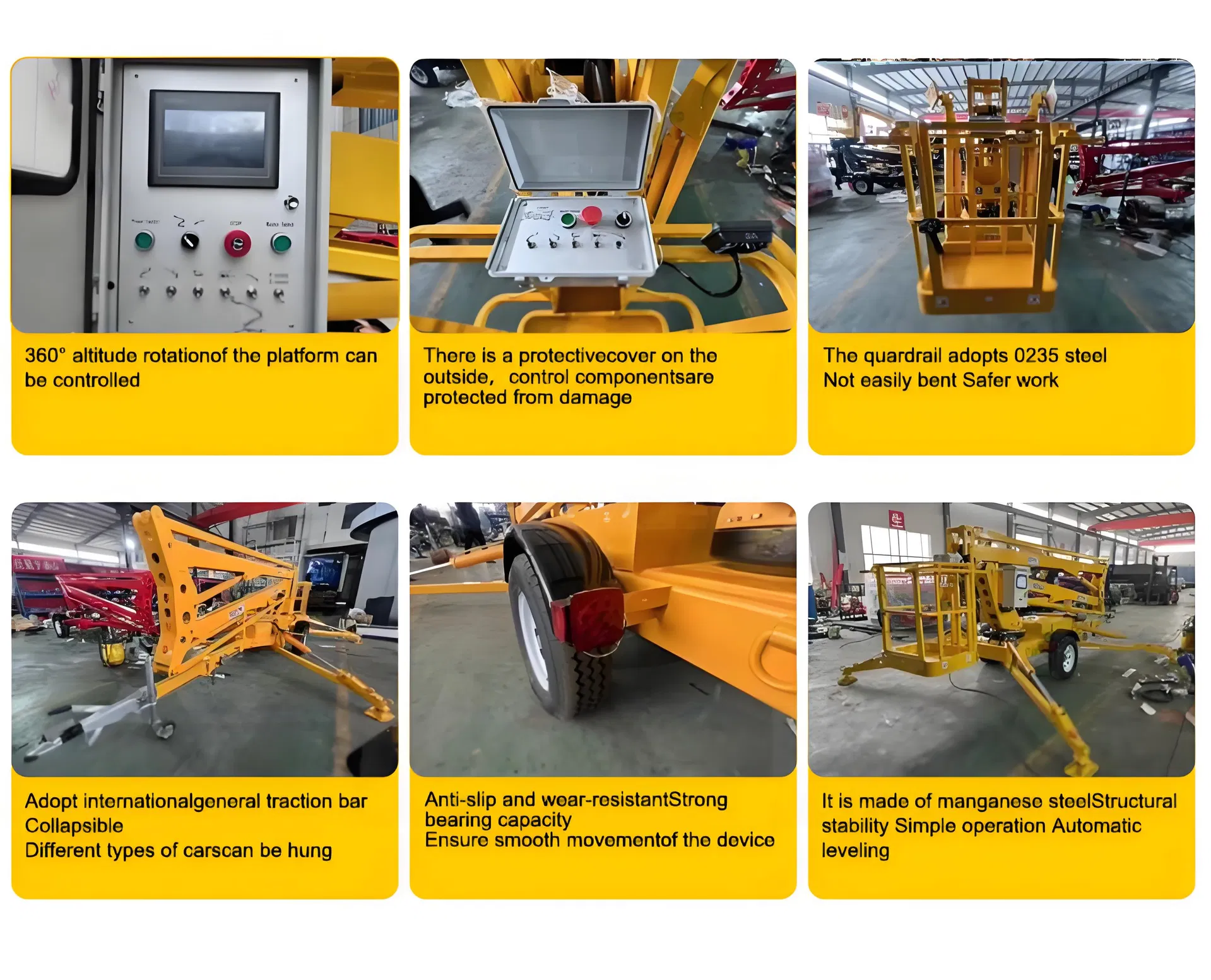

Lift Details 2

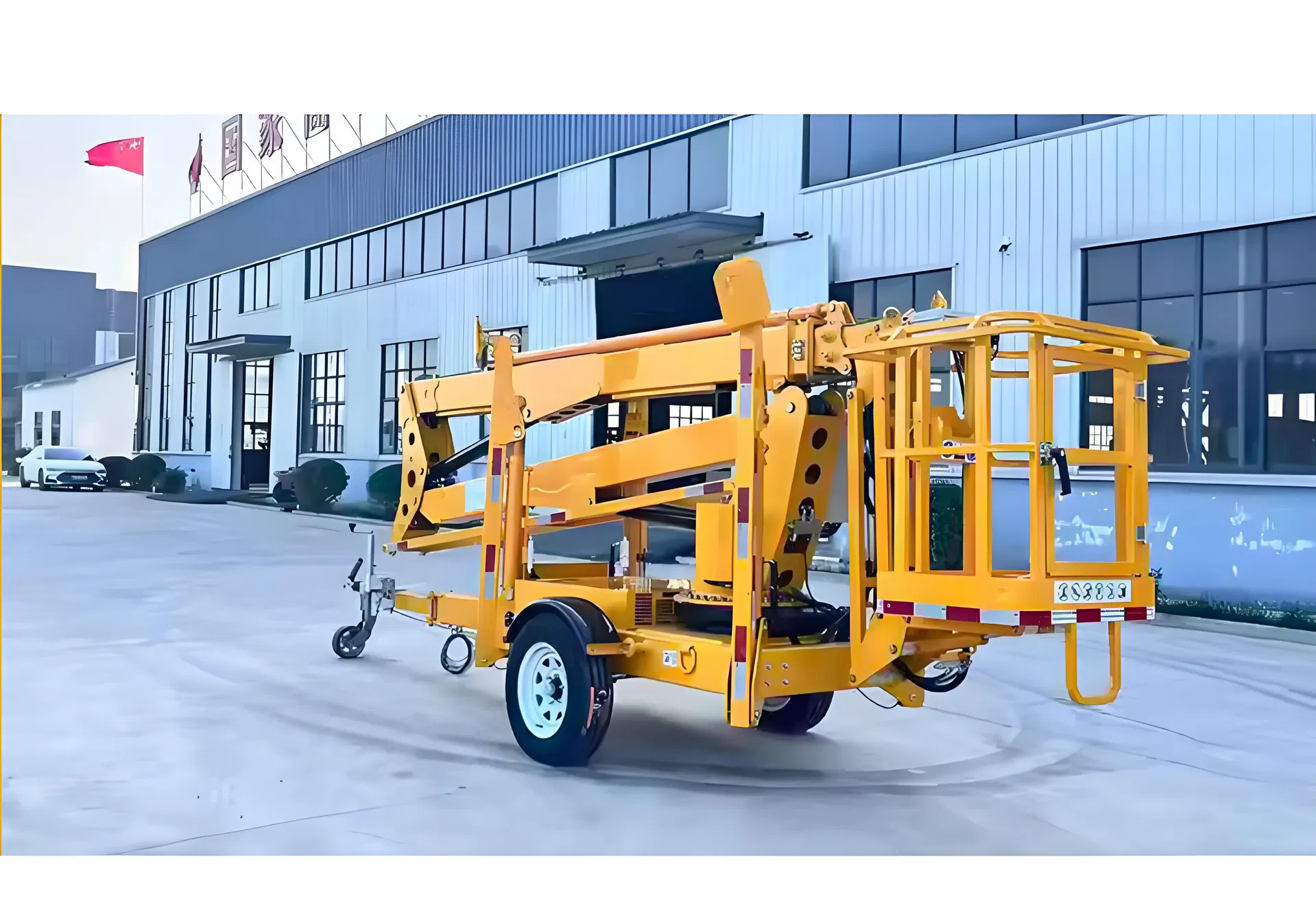

Lift Details 3

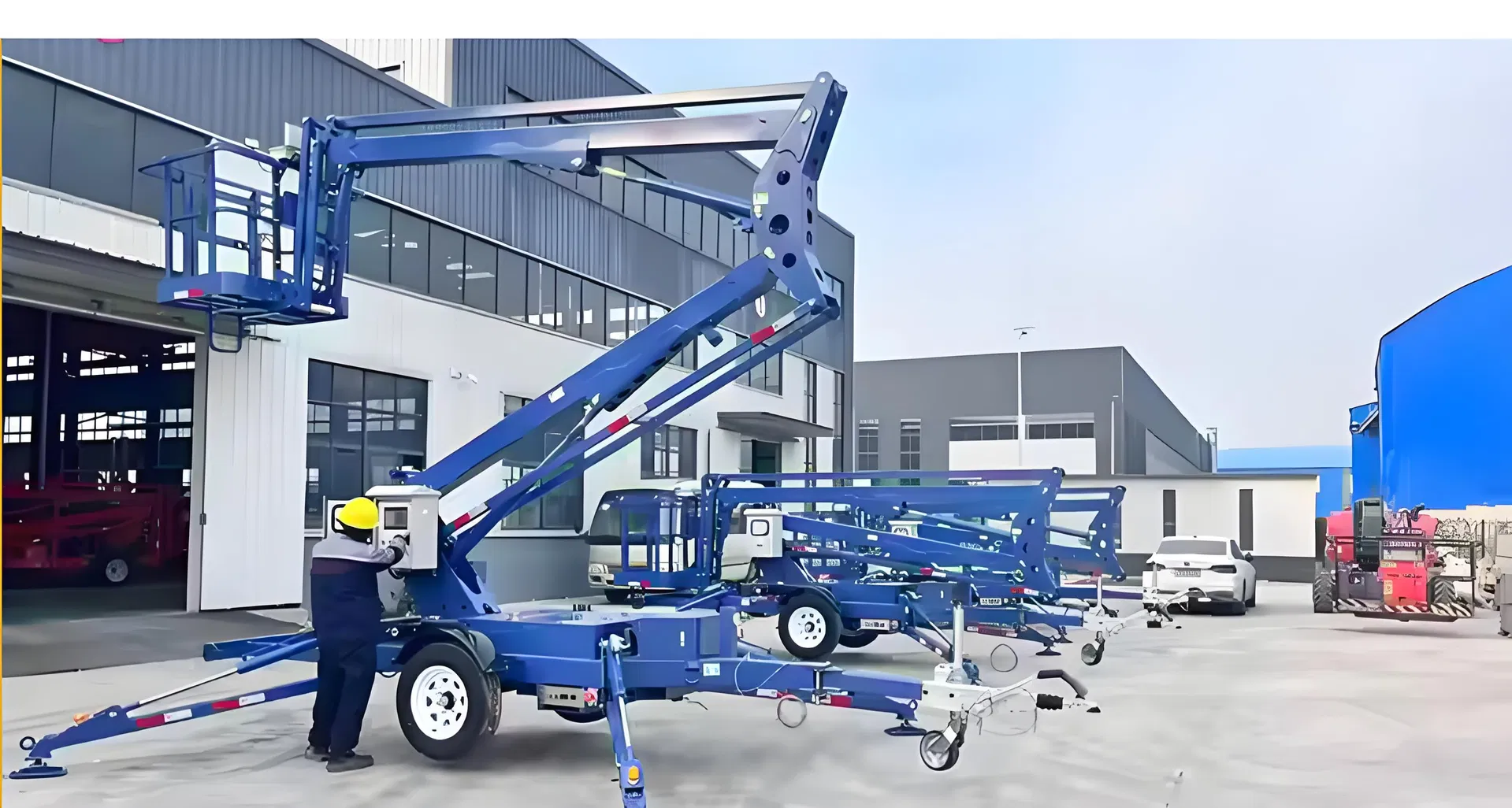

Operations View 1

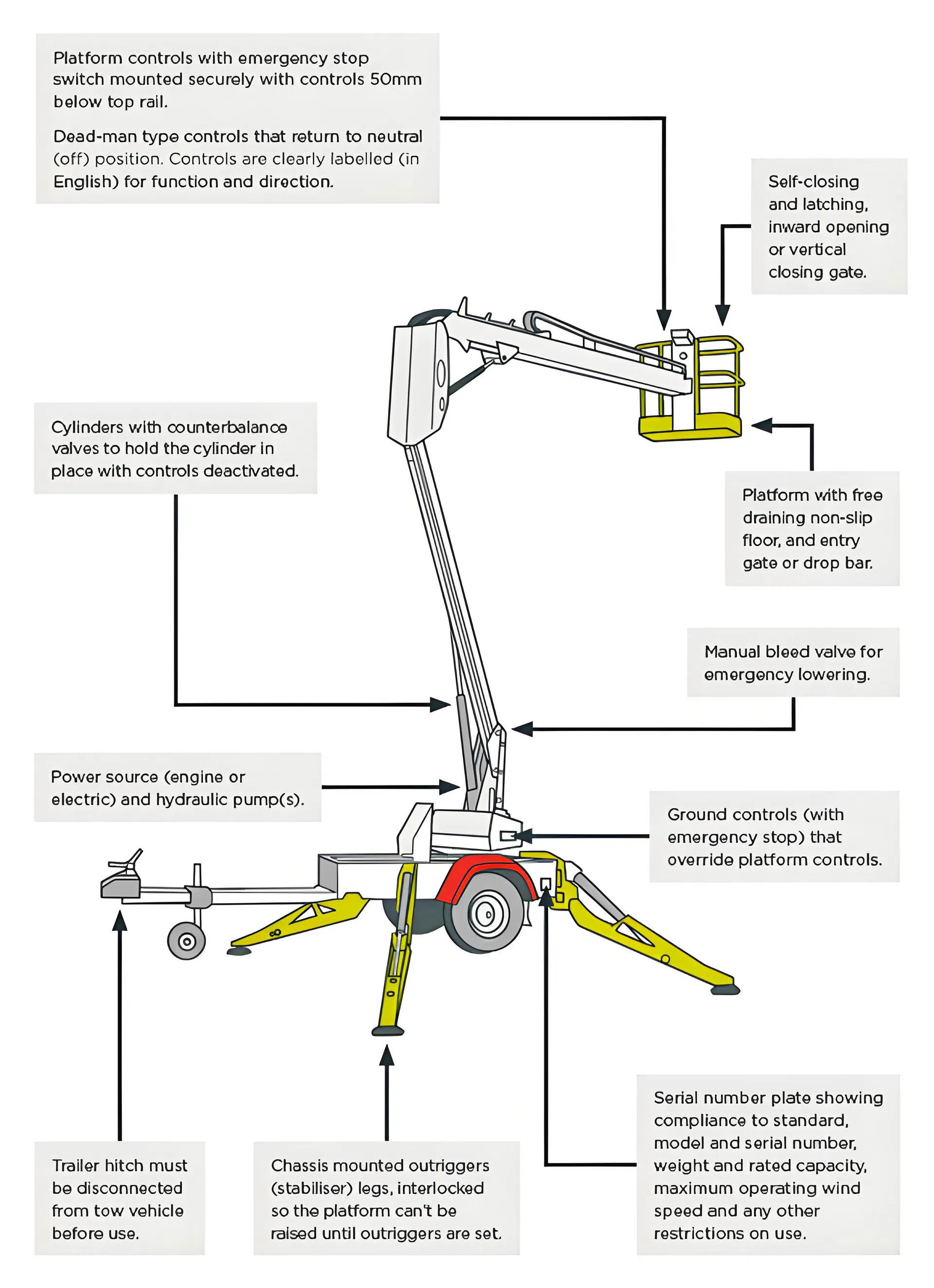

Operations View 2
Technical Drawing
Product Display 1

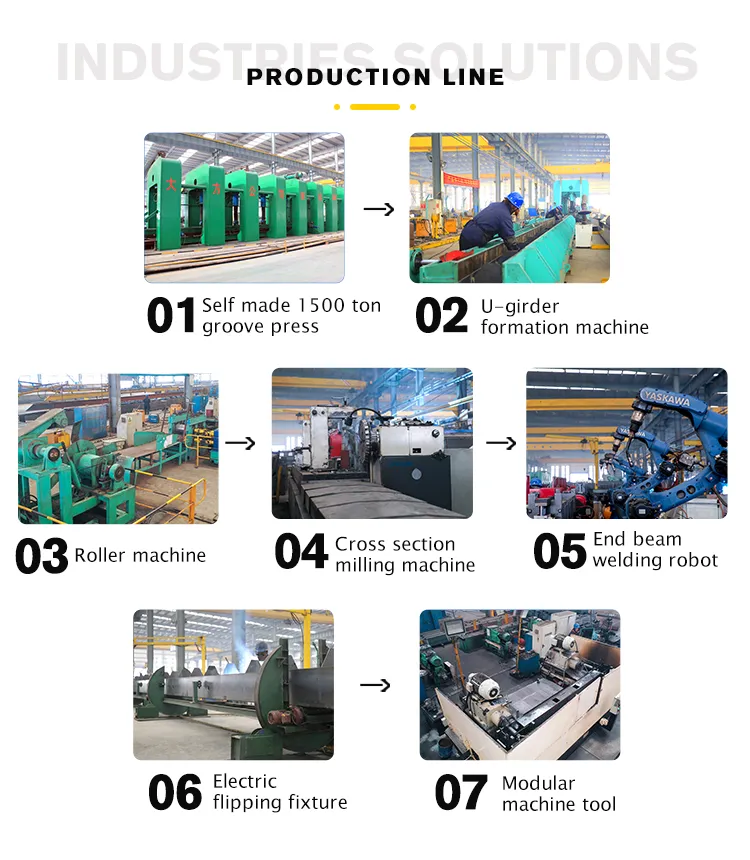

Product Display 2

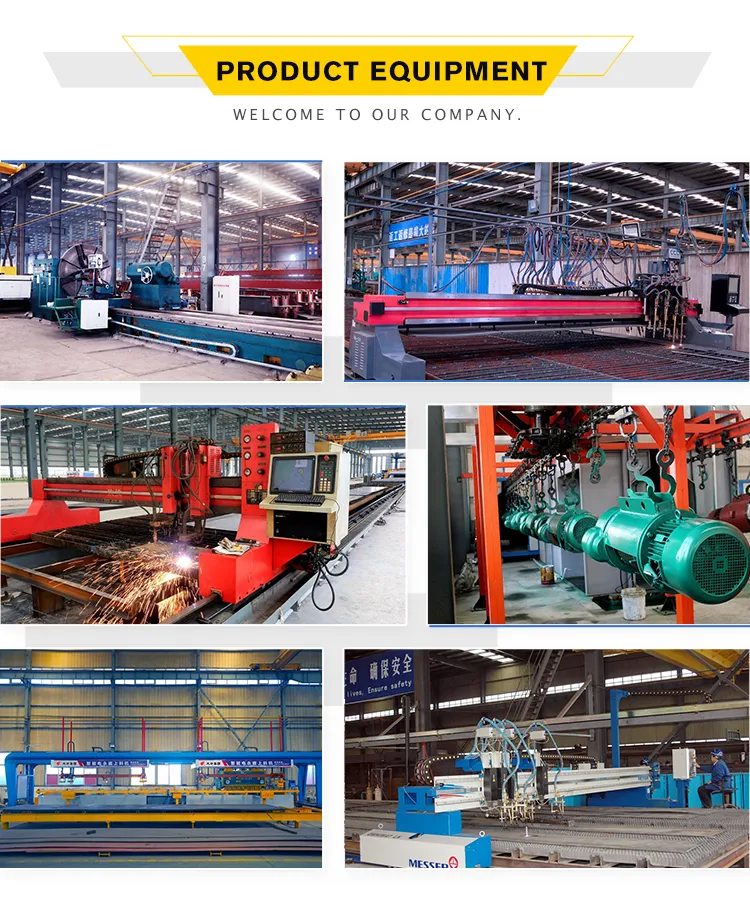

Product Display 3
?

Frequently Asked Questions

Q1: What is the maximum lifting height of this articulating boom lift? A: Our articulating boom lifts offer various models with lifting heights ranging from 10 meters up to 20 meters, providing a maximum working height of 22 meters.
Q2: Can the lift operate over obstacles? A: Yes, the multi-section articulated arm design allows the platform to cross obstacles vertically and extend horizontally, making it ideal for complex high-altitude operations.
Q3: What power source does the machine use? A: The machine is driven by a DC power system and is compatible with a 380V voltage supply for efficient operation.
Q4: Is the platform easy to transport? A: Absolutely. It is a towable vehicular-type lift, and we provide secure packaging in wooden boxes for safe international shipping.
Q5: What safety certifications does the equipment have? A: Our products are fully certified with GS, CE, RoHS, and ISO 9001 standards, ensuring high safety and quality performance.
Q6: What is the load capacity of the platform? A: All standard models in this series have a rated load capacity of 200KG, suitable for two workers and their tools.
