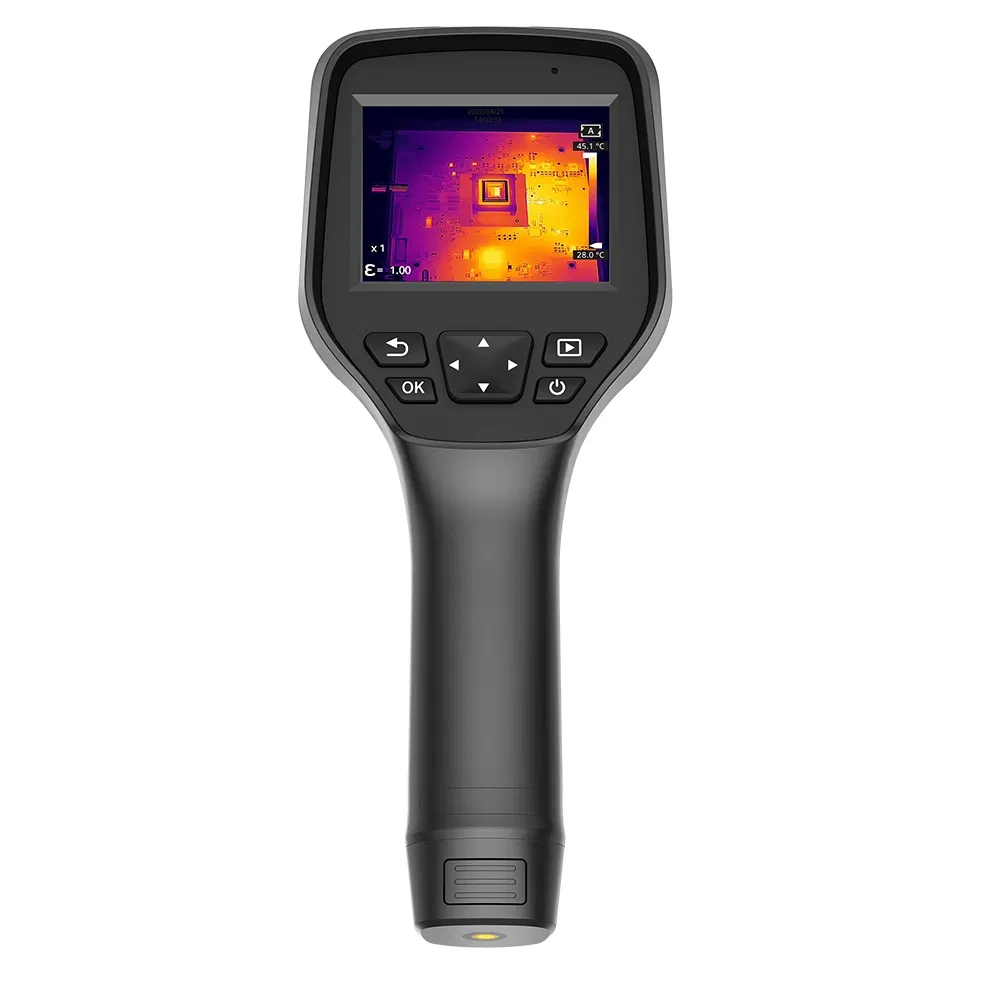

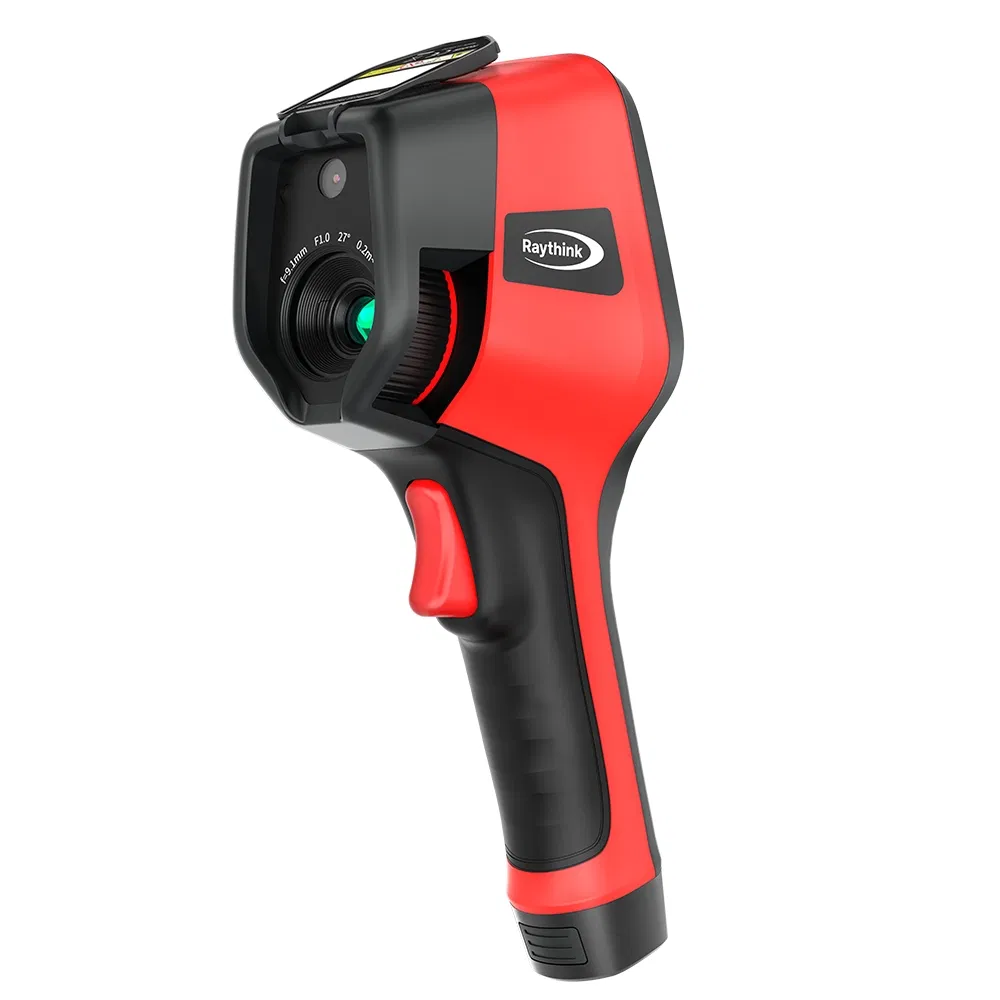

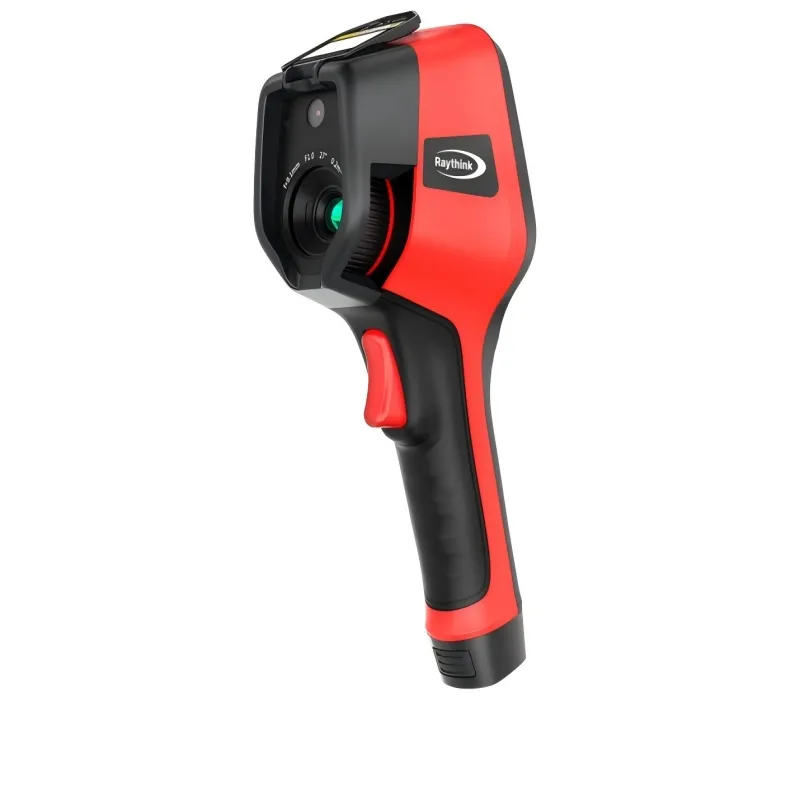

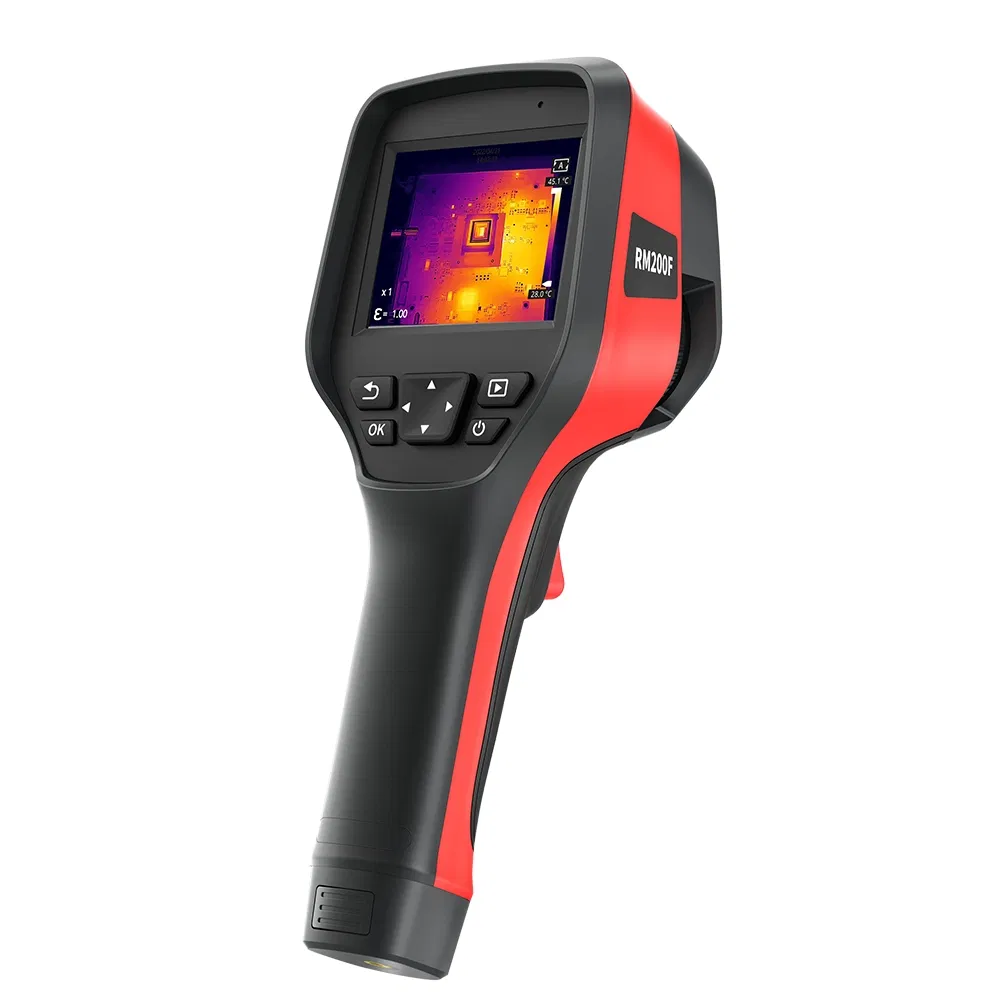

RM620 is equipped with a 12μm infrared detector, which brings 640×512 high-resolution infrared thermal images and a high sensitivity of 35mK to easily capture small hot spots.

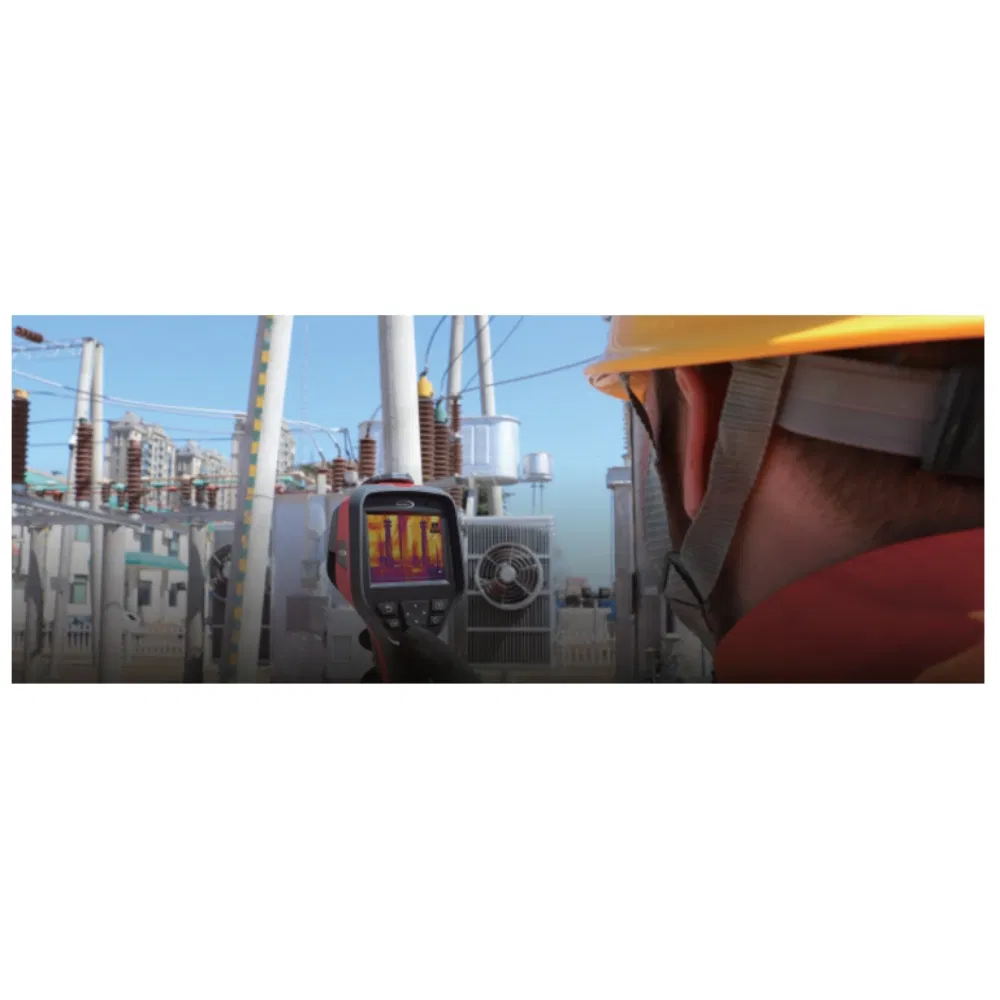

With a temperature measurement range extendable to 650°C, the device is suitable for electric routine inspection, electronic circuit design, HVAC, industrial manufacturing, petrochemical industry, photovoltaic testing, and many other fields.
| Thermal Imaging | |
| Detector Type | 12μm uncooled infrared detector |
| Infrared Resolution | 640x512 |
| Spectral Band | 7.5-14μm |
| NETD | <35mK (25°C,F1.0) |
| Frame Rate | 30Hz |

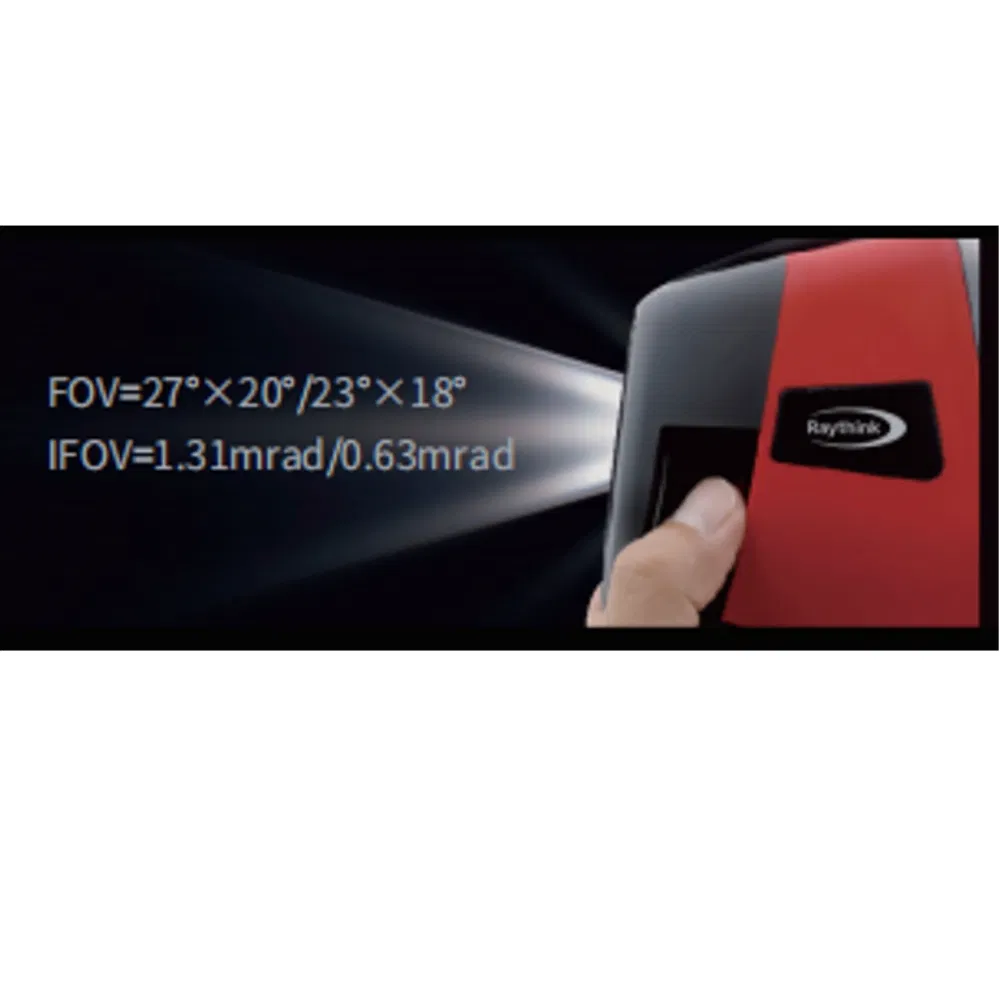

| Focal Length | 19mm |
| Measurement Accuracy | ±2°C or ±2% of readings |
| Image Display | |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Visible Light Camera | 5 megapixels |
| Digital Zoom | 1×, 2×, 4×, 8× |
| System & Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 512G |
| Video Transmission | Support UVC video transmission |
| IP Grade | IP54 |
| Battery Life | About 6h (total with 2 batteries) |

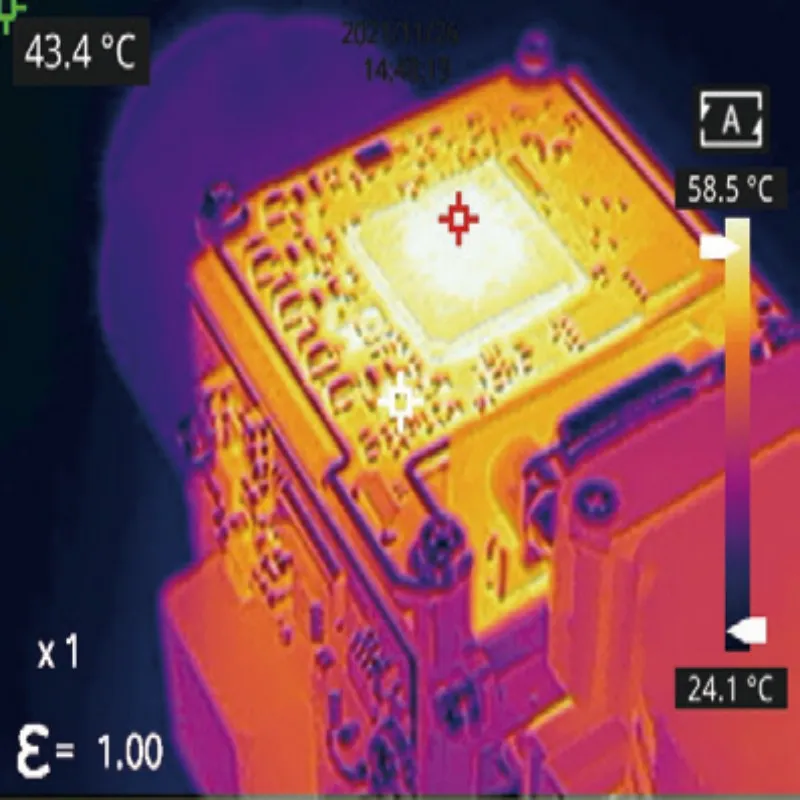

Circuit Design

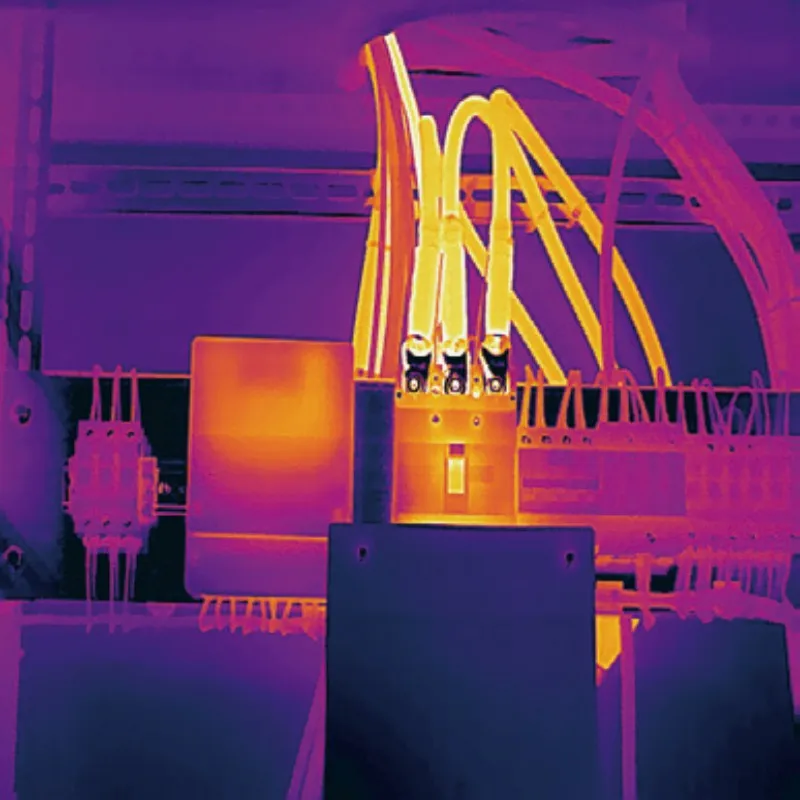

Electric Routine Inspection

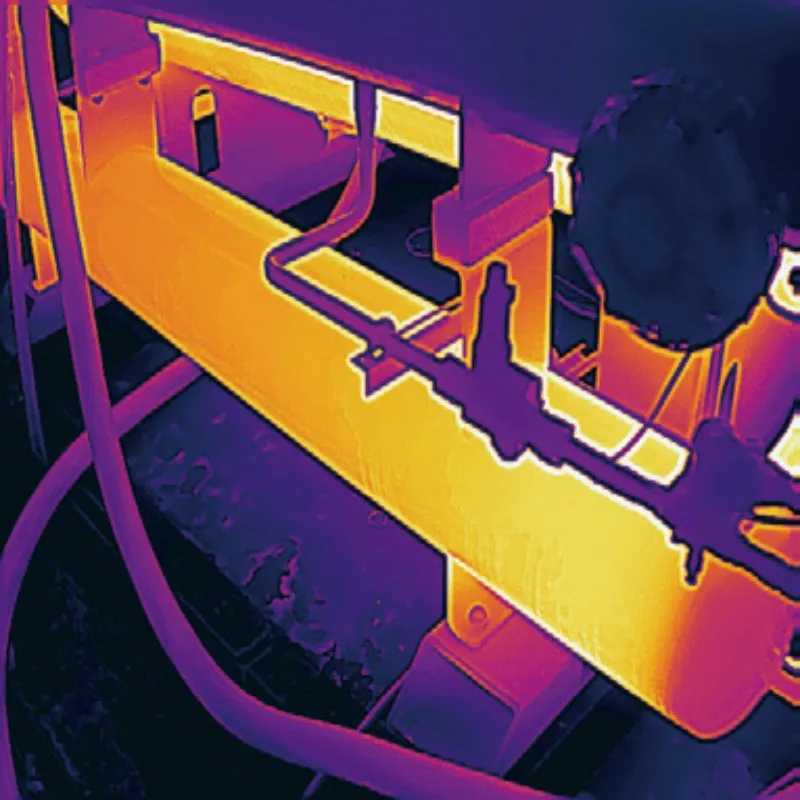

Industrial Manufacturing

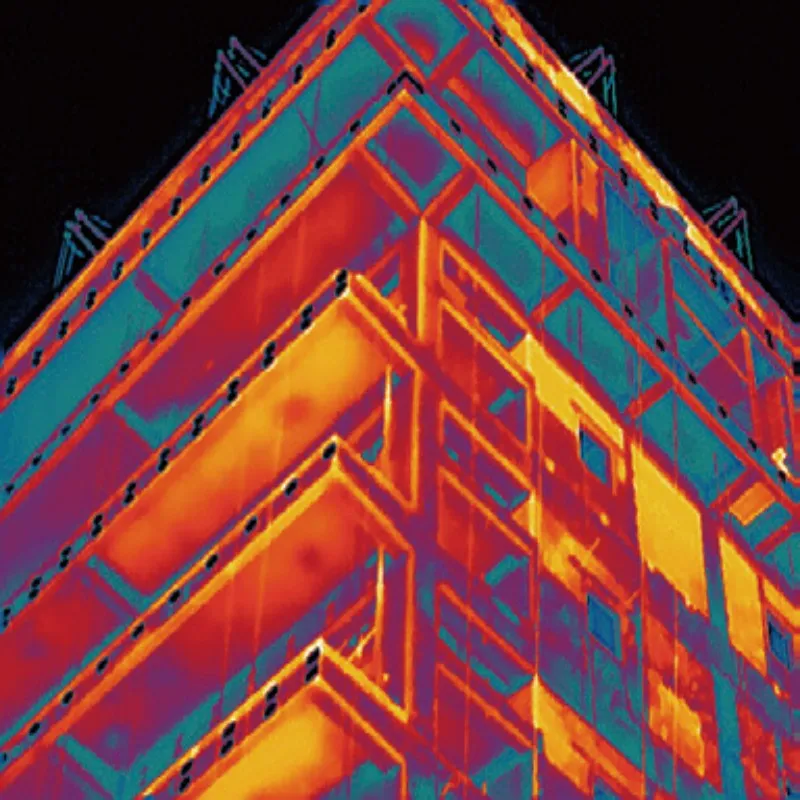

Construction Inspection
