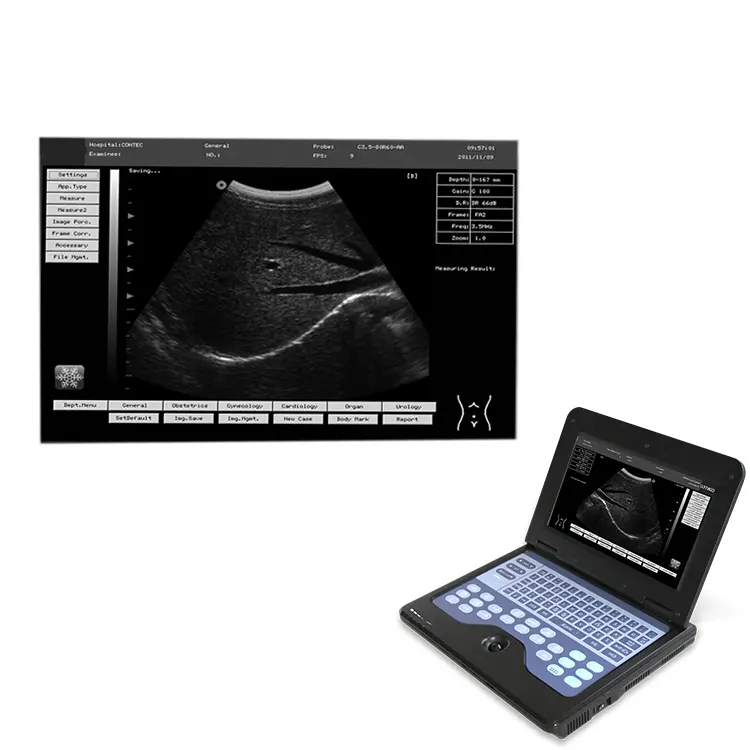

Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
1 / 5
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System
Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System

Medco Good Quality Medical Device Scanner Machine Handheld Ultrasound Diagnostic System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
KM-CMS600P2
Scale
Medium
Warranty
1 Year
Material
Metal, Plastic, Steel
Quality Certification
CE
Screen
10.1 Inch TFT LCD
Power Source
Electricity
Shelf Life
1 Year
Classification
Class II
Type
Laptop
Specification
292 mm * 232 mm * 45 mm
Production Capacity
10,000 Sets/Month
Product Description
Ultrasound Diagnostic System Banner

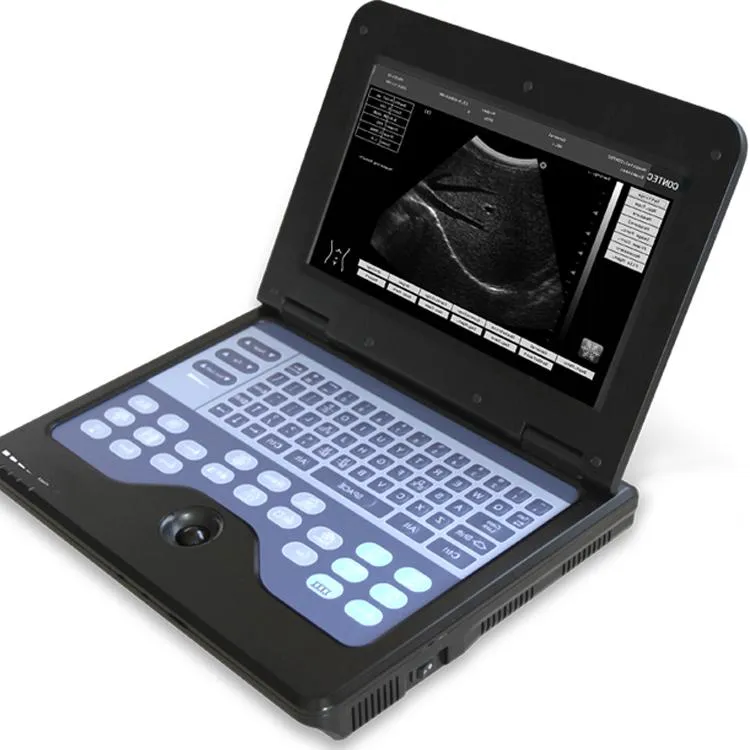

Ultrasound Device View 1

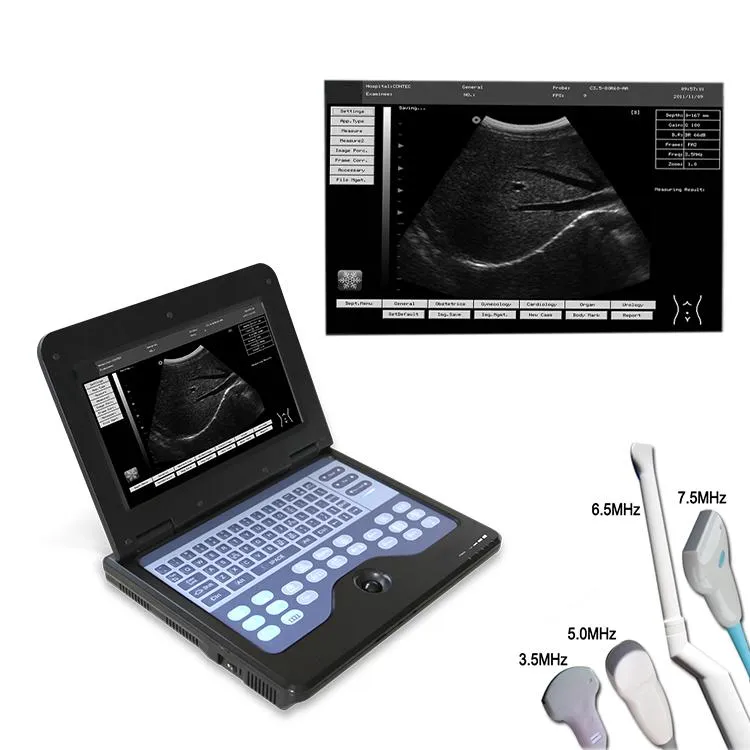

Ultrasound Device View 2
Ultrasound Device View 3

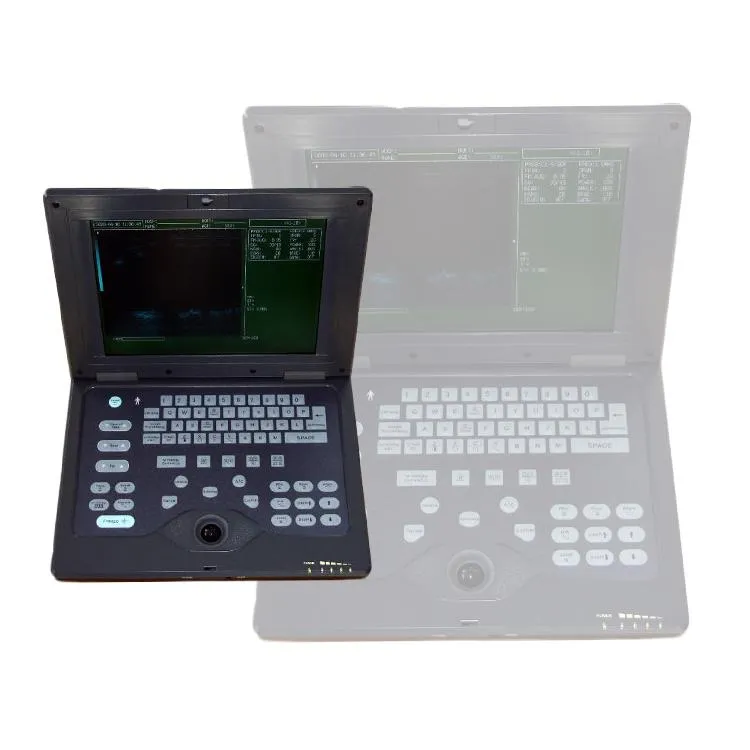

Ultrasound Device View 4

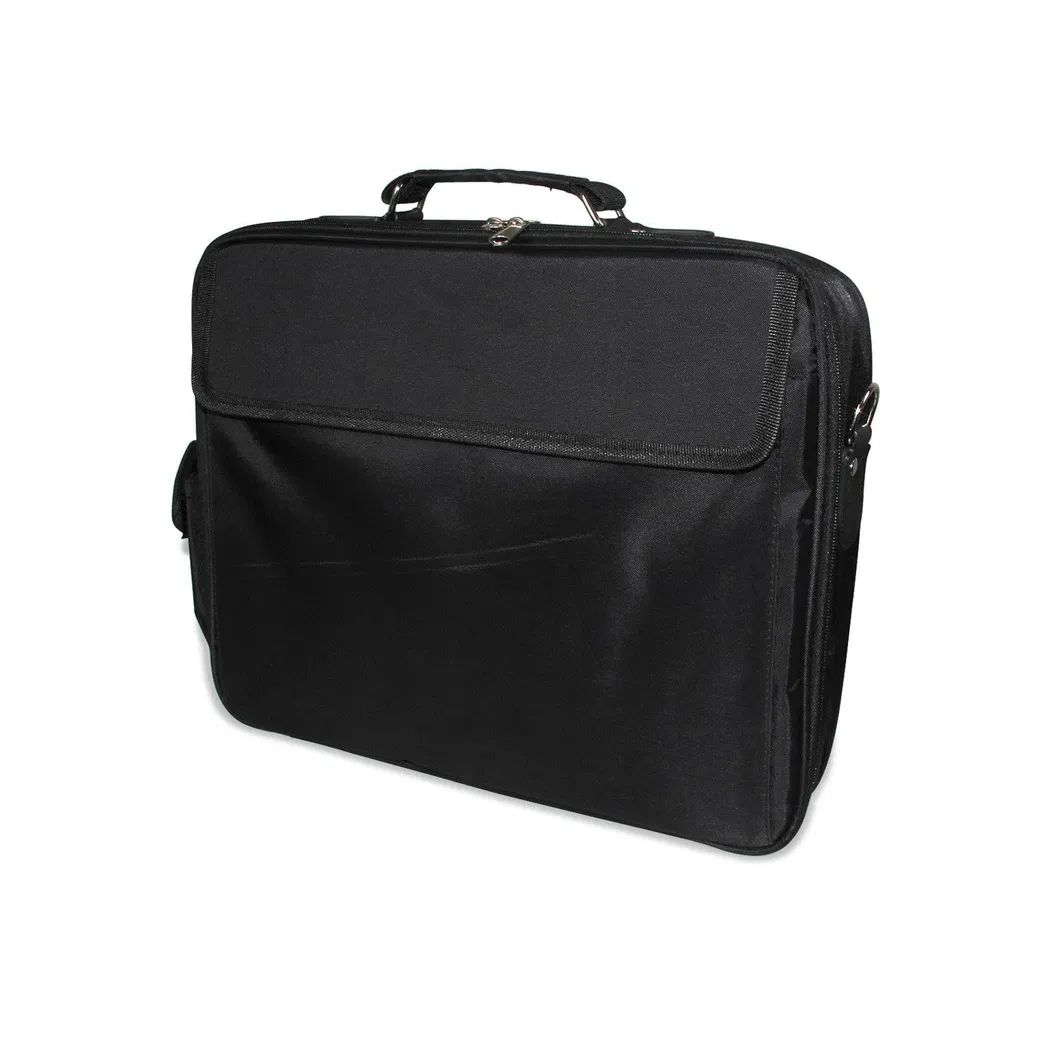

Ultrasound Device View 5

Introduction: The notebook type KM-CMS600P2 is a full digital B-Ultrasound diagnostic system. It adopts an embedded operating system, which greatly optimizes product performance. The system is designed for high effective data processing with a pop-up menu and ergonomic keyboard design.

● Advanced full digital beam-forming and real-time dynamic aperture technology.
● Notebook design with built-in battery for high portability.
● Touch-type folding keyboard and flexible trackball operation.
● Comprehensive measuring software: Obstetrics, Gynecology, Cardiology, Urology, and Small Parts.
● High-resolution 10.1 inch TFT LCD (1024*600).
Technical Specifications
ParameterValue
Display ModeB, 2B, 4B, B/M, M
Image Gray Scale256
ResolutionLateral: ≤2mm (near), ≤4mm (far) | Axial: ≤2mm
Display Depth≤240 mm
Cine Loop600 frames
Image Storage2048 frames
InterfaceUSB, Video, VGA
Body Mark43 types
Weight2.3 kg (including probe)

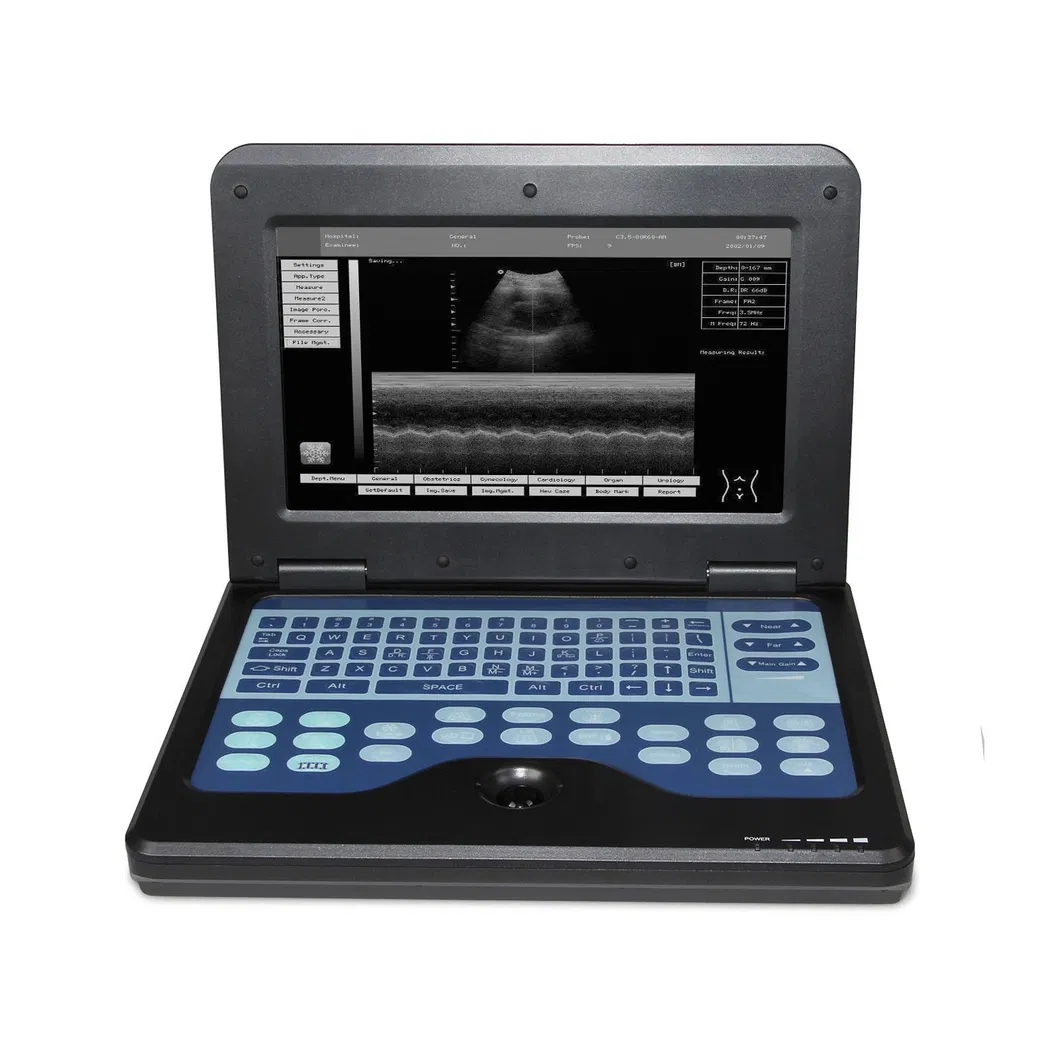

Interface View

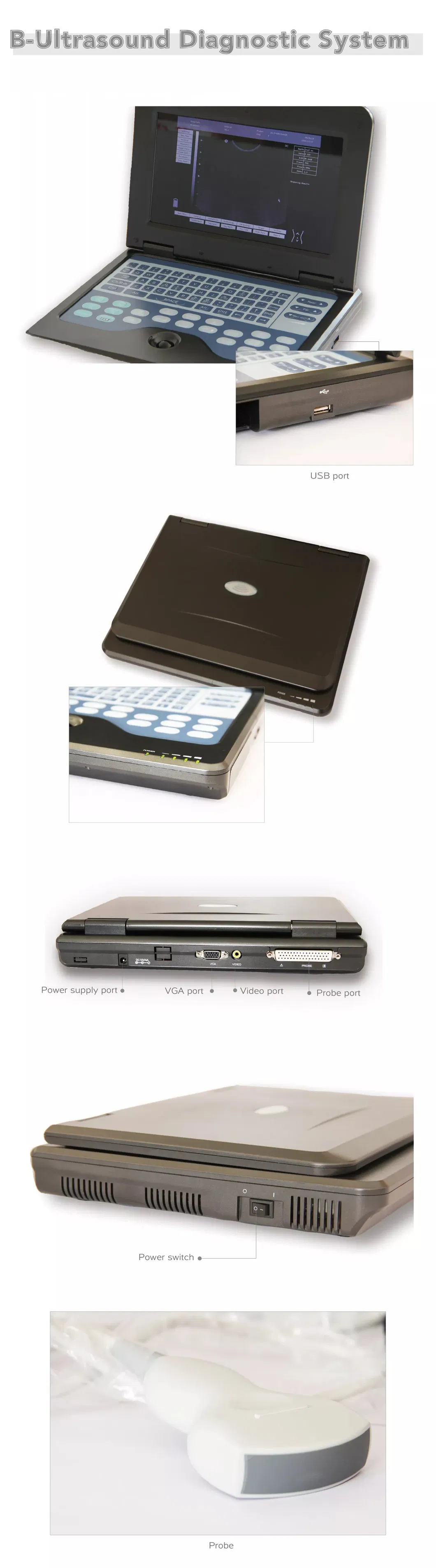

Application View
Configuration
Standard
3.5 MHz Convex Probe (2.0 MHz~5.0 MHz)
Optional 1
6.5 MHz Endo-vaginal Probe (5.0 MHz~8.5 MHz)
Optional 2
7.5 MHz Linear Probe (5.0 MHz~10.0 MHz)
Probe Option 1
Probe Option 2
Probe Option 3
Frequently Asked Questions
Q1: Can your company provide OEM services?
Yes, we provide guaranteed diagnostic equipment customized for your brand.
Q2: What is the minimum order quantity (MOQ) you can accept?
The minimum quantity depends on the specific product. We also welcome trial orders for new customers.
Q3: How are the products packaged for delivery?
We pack goods in standard export cartons or according to your specific requirements to ensure safety during transit.
Q4: What are the available shipment methods?
We offer delivery via sea freight and air freight to meet different timeline and budget needs.
Q5: How is product quality ensured before shipping?
Every unit undergoes strict inspection by our factory Quality Control (Q.C.) team to ensure perfect condition before shipment.
Q6: What is the typical lead time for orders?
Lead times range from 7 days for small orders (1-5 sets) to 15 days for larger batches (up to 50 sets). Bulk orders are subject to negotiation.
