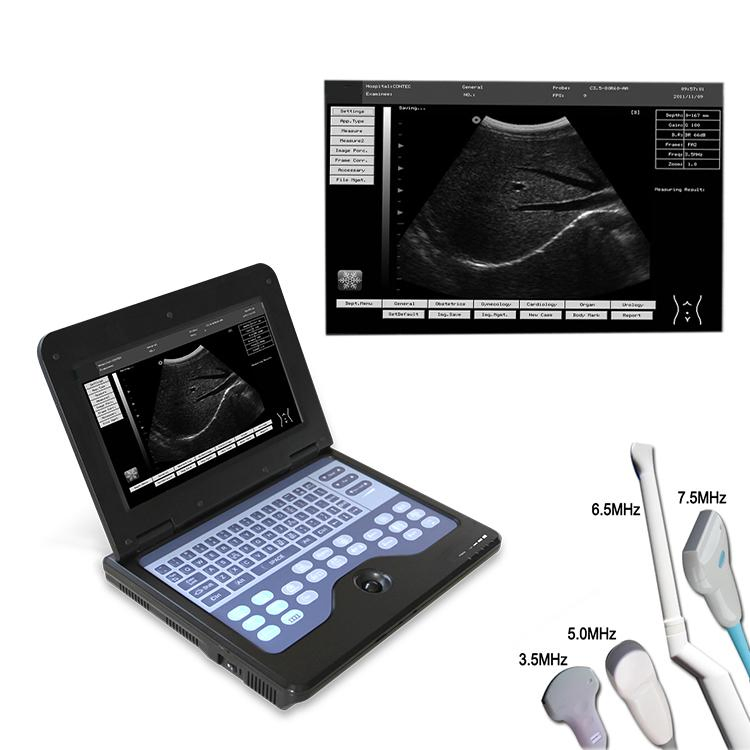

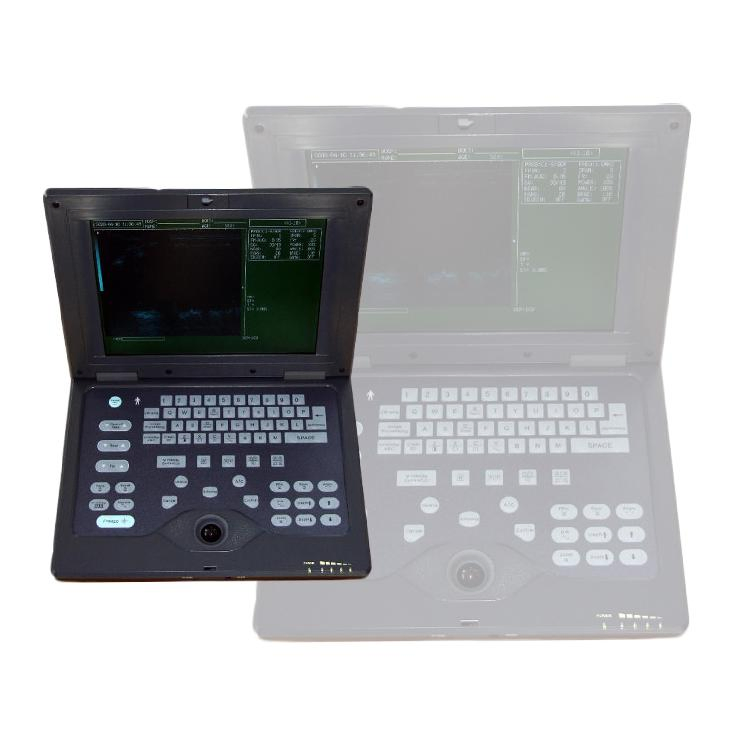

Medical Device Scanner Machine Handheld Ultrasound Diagnostic System

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
KM-CMS600P2
Certification
CE
Screen
10.1 Inch TFT LCD
Dimension
292 mm * 232 mm * 45 mm
Shelf Life
1 Year
Classification
Class II
Capacity
10000 PCS/Month

Product Description

Key Attributes

Attribute Type Detail Specification
Industry-specific Warranty: 1 Year; After-sale Service: Repair and Replacement
Material Metal, Plastic, Steel
Power Source Electricity
Product Name Doppler Ultrasound Equipment
Type Laptop / Notebook Type

Lead Time

Quantity (sets) 1 - 5 6 - 20 21 - 50 > 50
Lead time (days) 7 10 15 To be negotiated
📷

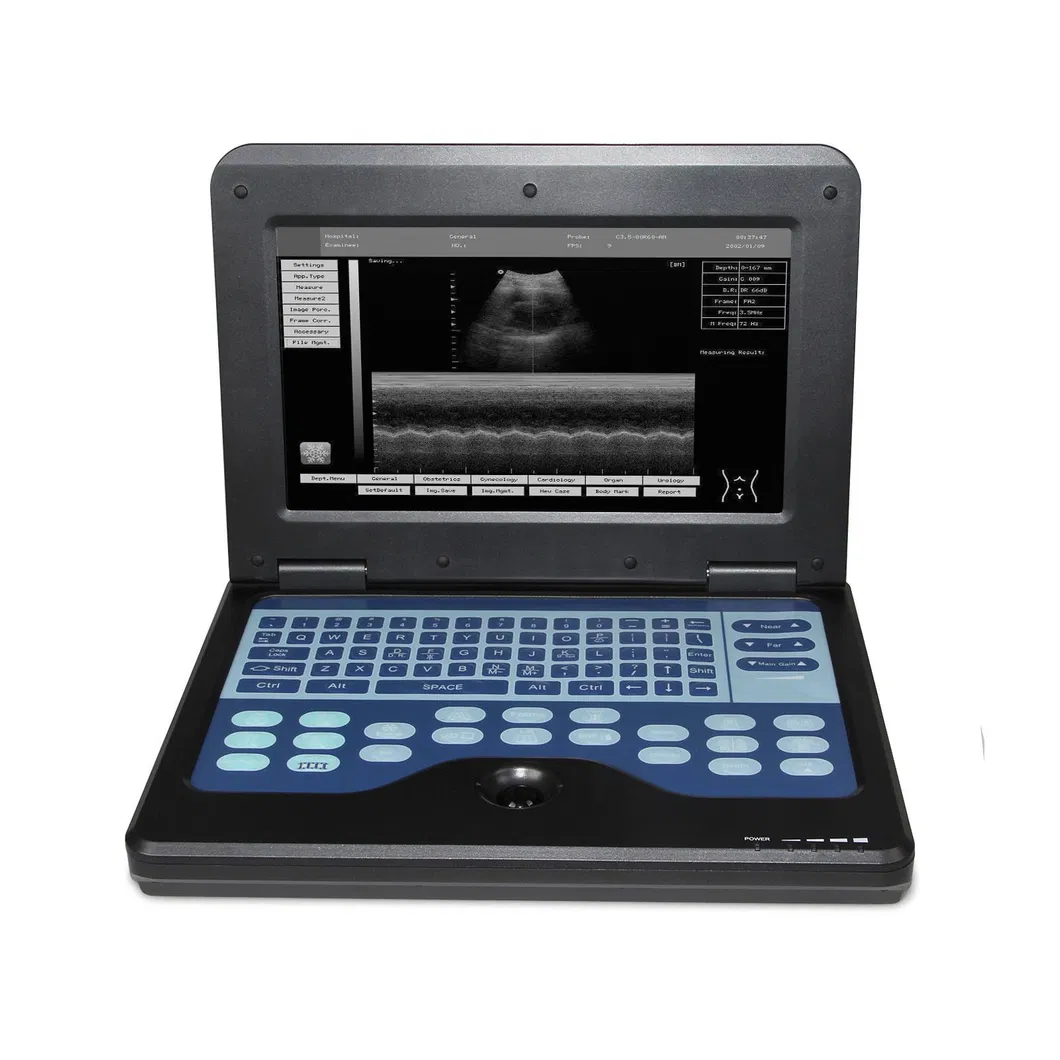

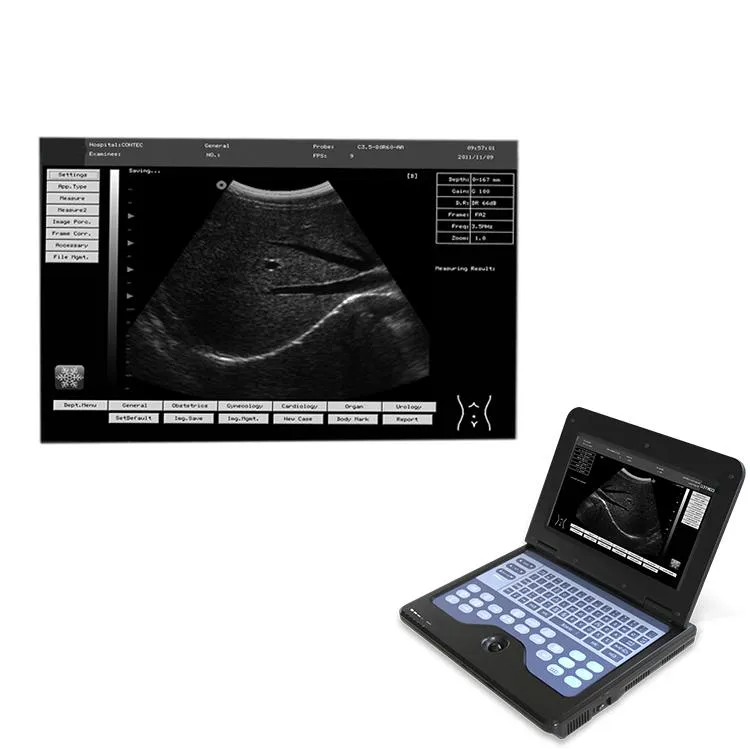

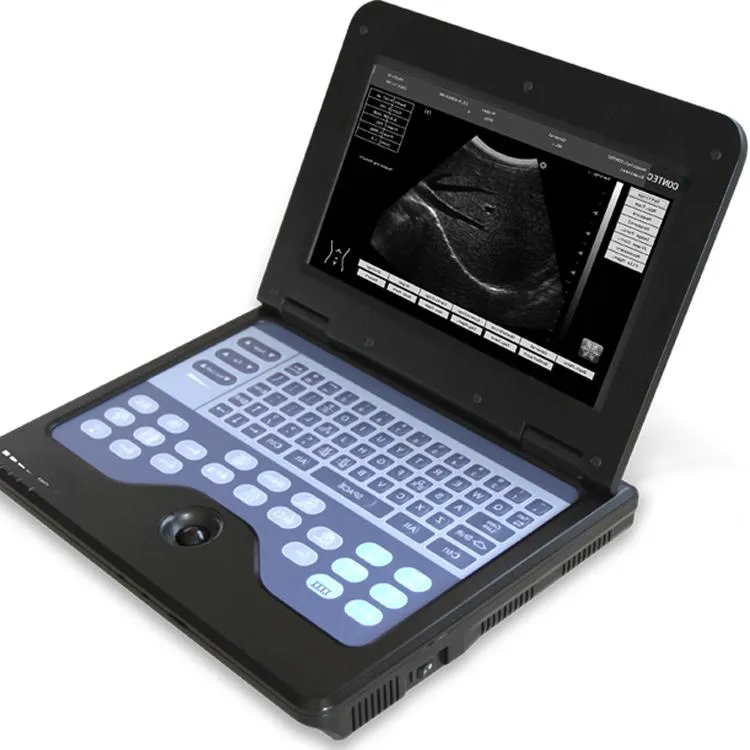

Product Visuals

Medical Device Scanner Machine

Technical Specifications

Display modeB, 2B, 4B, B/M, M
Image gray scale256
Monitor10.1 inch TFT LCD (1024*600)
ResolutionLateral: 2mm (near), 4mm (far) | Axial: 2mm
Dead zone≤3 mm
Display depth≤240 mm
Cine loop600 frames
Image storage2048 frames
Body mark43 types
InterfaceUSB, Video, VGA

Main Features

  • Linux embedded operating system for high compatibility and stability.
  • Advanced full digital beam-forming and real-time dynamic aperture.
  • Portable notebook design with built-in battery for convenient use.
  • Touch-type folding keyboard and shortcut trackball operation.
  • Rich measuring software packages: obstetrics, gynecology, cardiology, urology, and small parts.
  • Adjustable Near gain, far gain, and total gain.
  • External memory function and multiple printer connectivity (video, inkjet, laserjet).

Physical Identity

Weight
2.3 kg (including probe)
Dimension
292 mm * 232 mm * 45 mm

Packing & Delivery

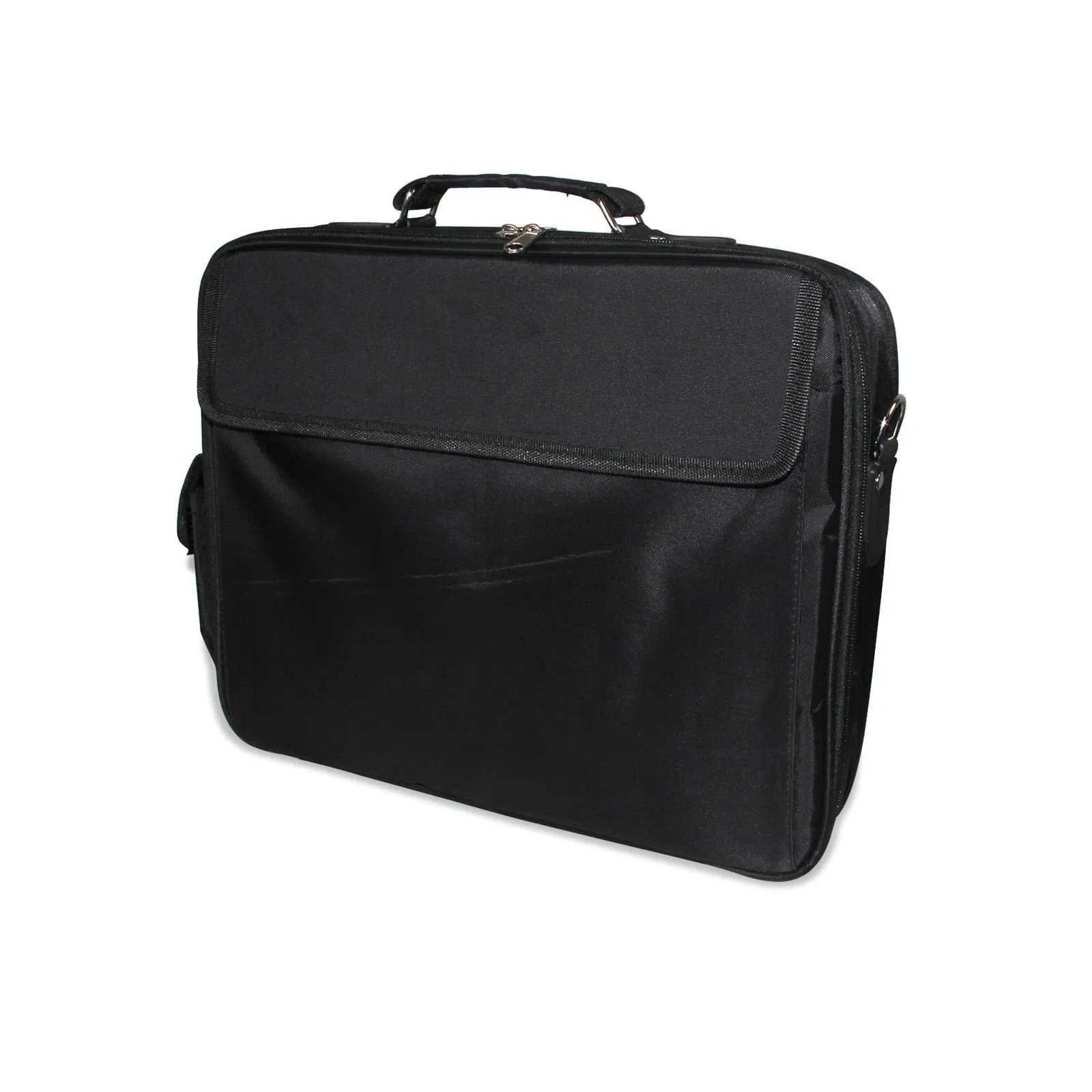

Packing Details
?

Frequently Asked Questions

Can you provide OEM services?
Yes, we provide guaranteed monitoring equipment under your own brand through our OEM services.
What is the minimum order quantity (MOQ)?
The minimum quantity depends on the specific product. We also welcome trial orders for new clients.
How are the products packaged for shipment?
We pack goods in standard export cartons or according to your specific requirements to ensure safety during transit.
What clinical applications does this ultrasound system support?
The system includes comprehensive measuring software packages for obstetrics, gynecology, cardiology, urology, and small parts.
What types of printers can be connected to the CMS600P2?
The system can be connected to video printers, inkjet printers, and laserjet printers for report printing.
How is the quality controlled before shipment?
Every unit undergoes a rigorous inspection by our Q.C. team to ensure optimal working condition before delivery.
